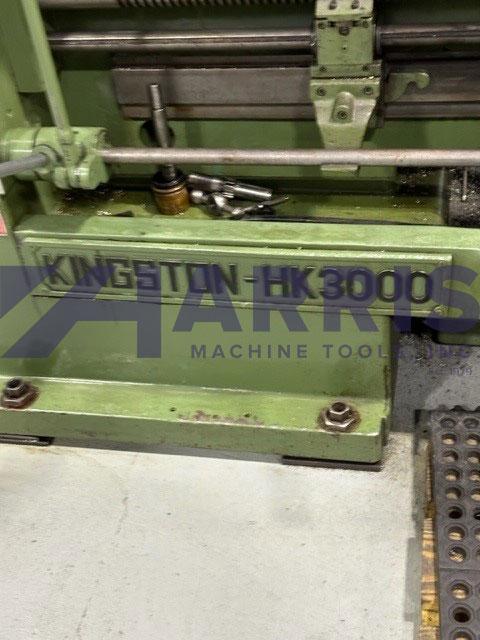

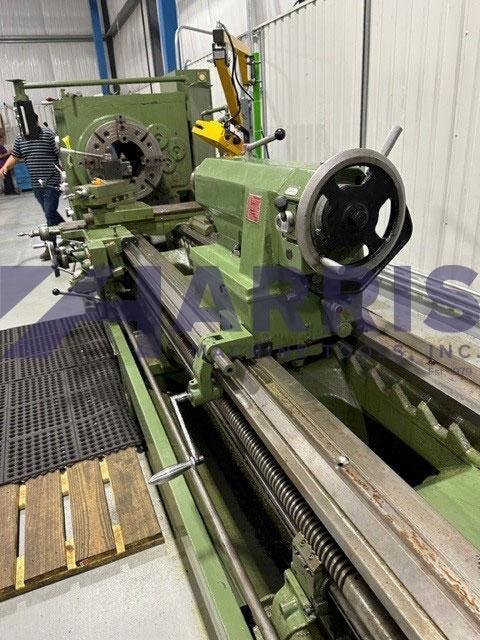

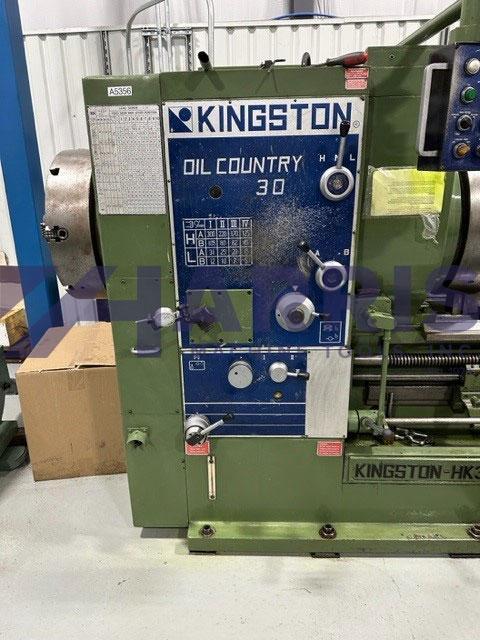

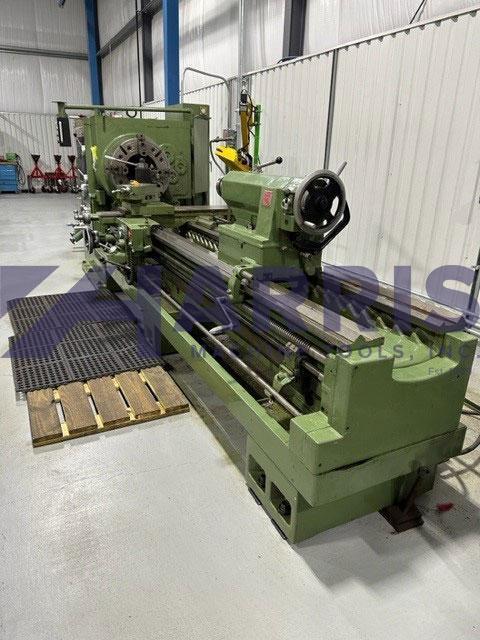

Used, 30″ x 120″ USED Kingston Lathe Model HK3000

Manufacturer

KINGSTON

Category

Lathes

Type

LATHES, ENGINE

Stock

20187

Model

HK-3000

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

Main Motor - 20HP
Swing - 30 inches
Swing - 34 inches
Spindle Bore - 12.5 inches
Spindle Taper - 3/4"
Spindle Nose - ASA A2-20
Spindle Speed - 16 Speeds
Swing Over Cross Slide - 20.75 inches
Center Distance - 118 inches
Spindle Speed (RPM) - 5-300
CNC Control - no
Dimensions - 86"W x 205"L
Weight - 17700 pounds


Swing Over Bed - 30″
Swing Over Cross Slide - 20.75″
Distance Between Centers - 118”

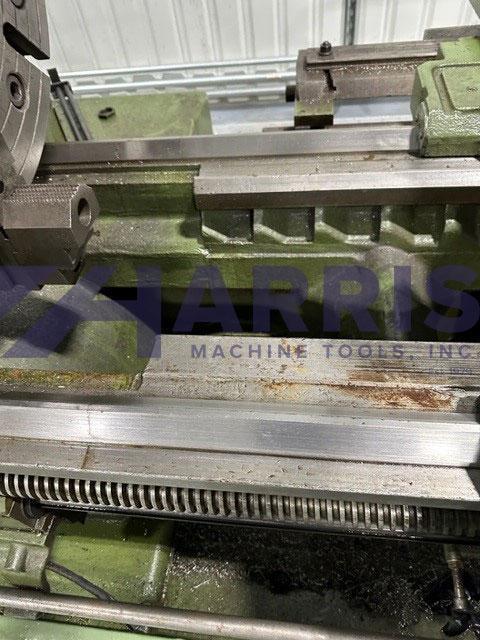

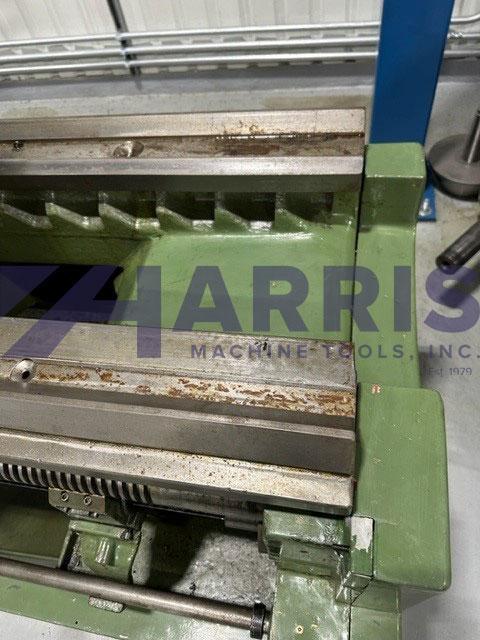

Width of Bed - 22″
Height of Center from Leg Bottom - 46.44”
Spindle Bore - 12.5″
Taper of Spindle Bore & Center - 3/4” Taper per Foot
Type of Spindle Nose - ASA A2-20
Number of Spindle Speeds - 16
Spindle RPM - 5 – 300 RPM

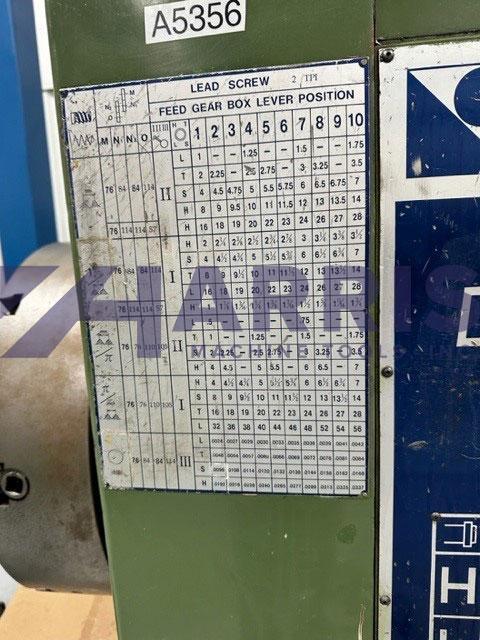

Number of Feed Changes - 40 Kinds
Range of Feeds per Revolution - 0.0024”-0.0337″
Longitudinal Cross - 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch - 1.875” / 2 TPI
Threading - inch/metric
Threading range Whitworth - 1 to 28 TPI (50)
Threading range Metric - 1 to 28mm pitch (41)
Threading range Module - 0.5 to 7 M (20)
Threading range D.P. - 4 to 56 D.P. (40)
Maximum Travel of Compound - 9.75″
Maximum Travel of Cross Slide - 21.25″
Tailstock Quill Travel - 11.75″
Tailstock Quill Diameter - 5.125″
Tailstock Center - M.T. #6
Main Drive Motor - 20 HP (15kw), 6P
Coolant Pump Motor - 1/4 HP
Floor Space - W: 86″ L: 205″
Machine Weight - 17,700

Specifications subject to buyer verification
