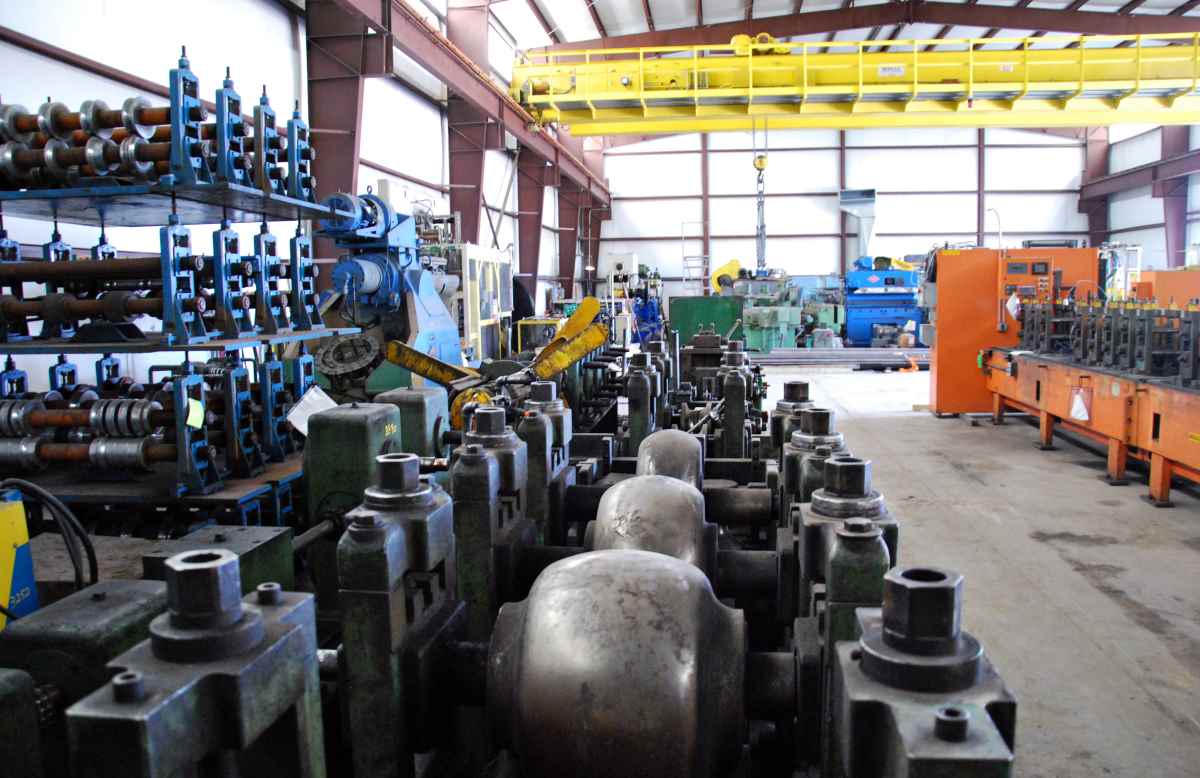

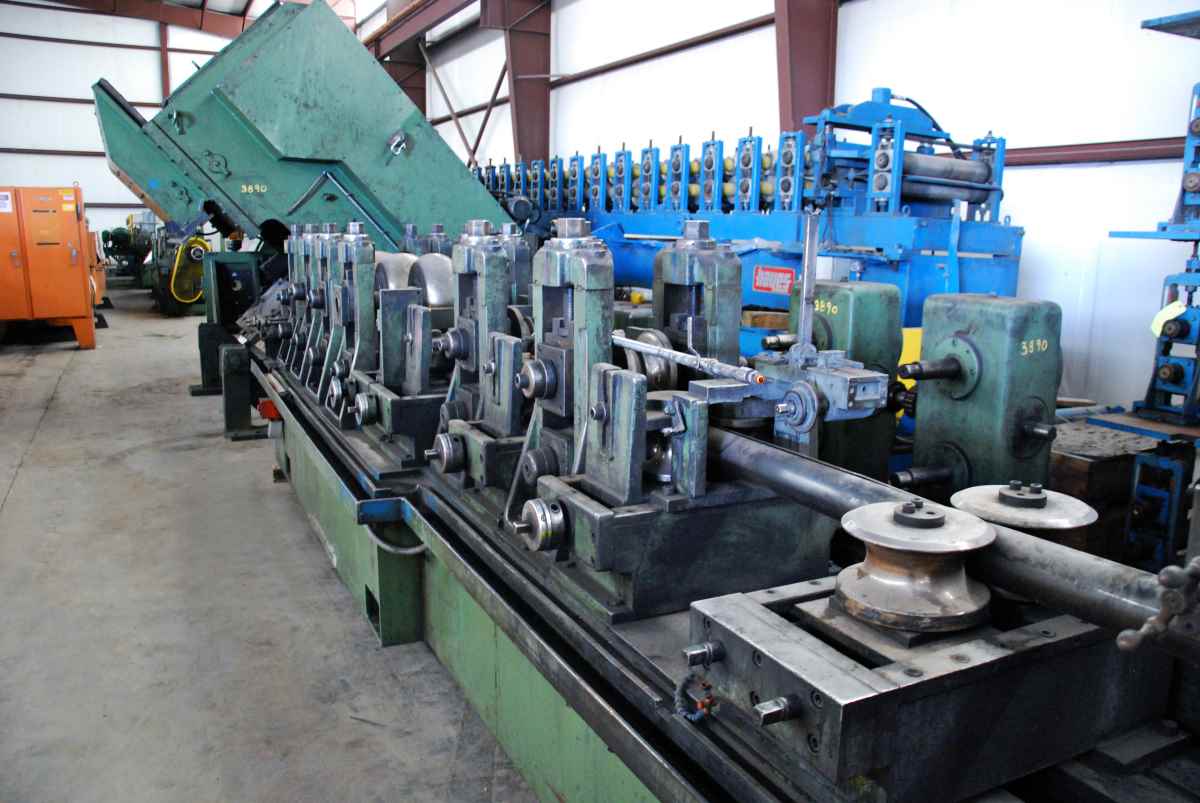

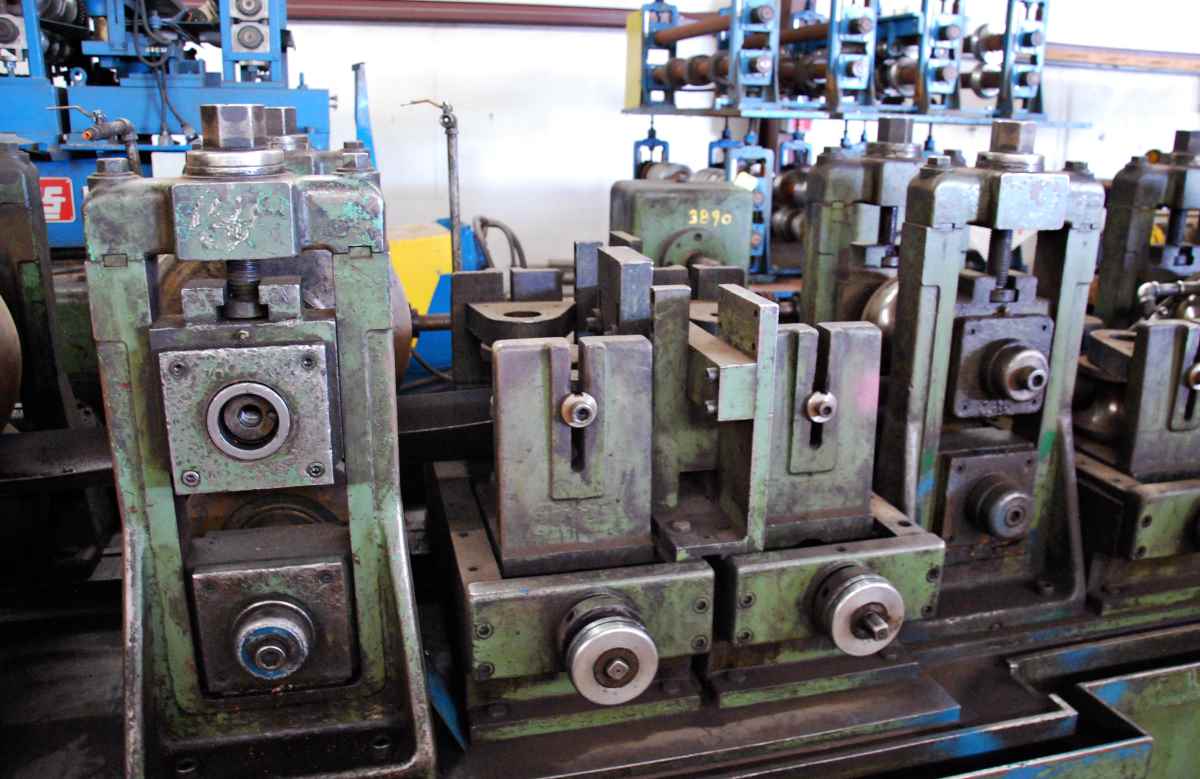

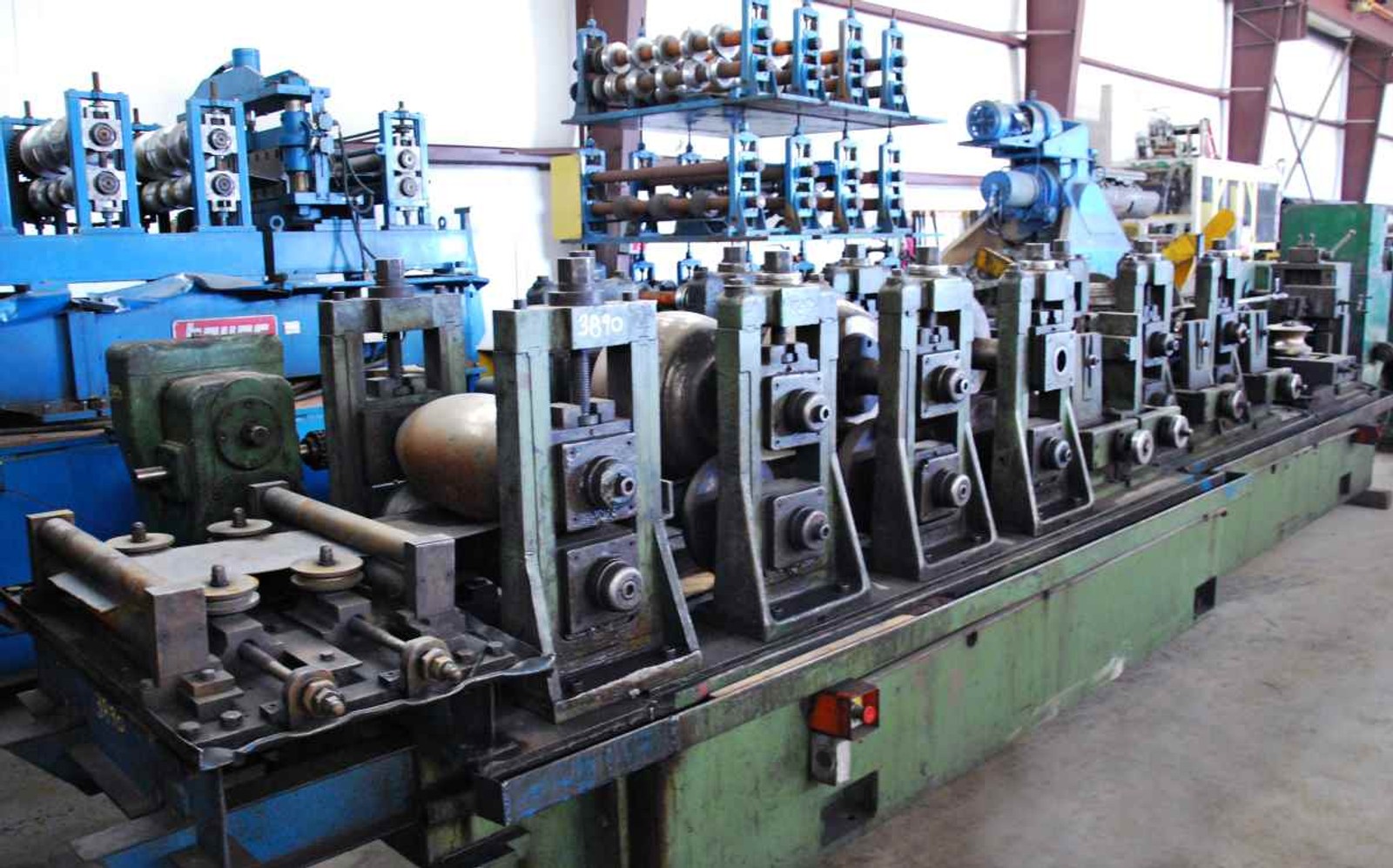

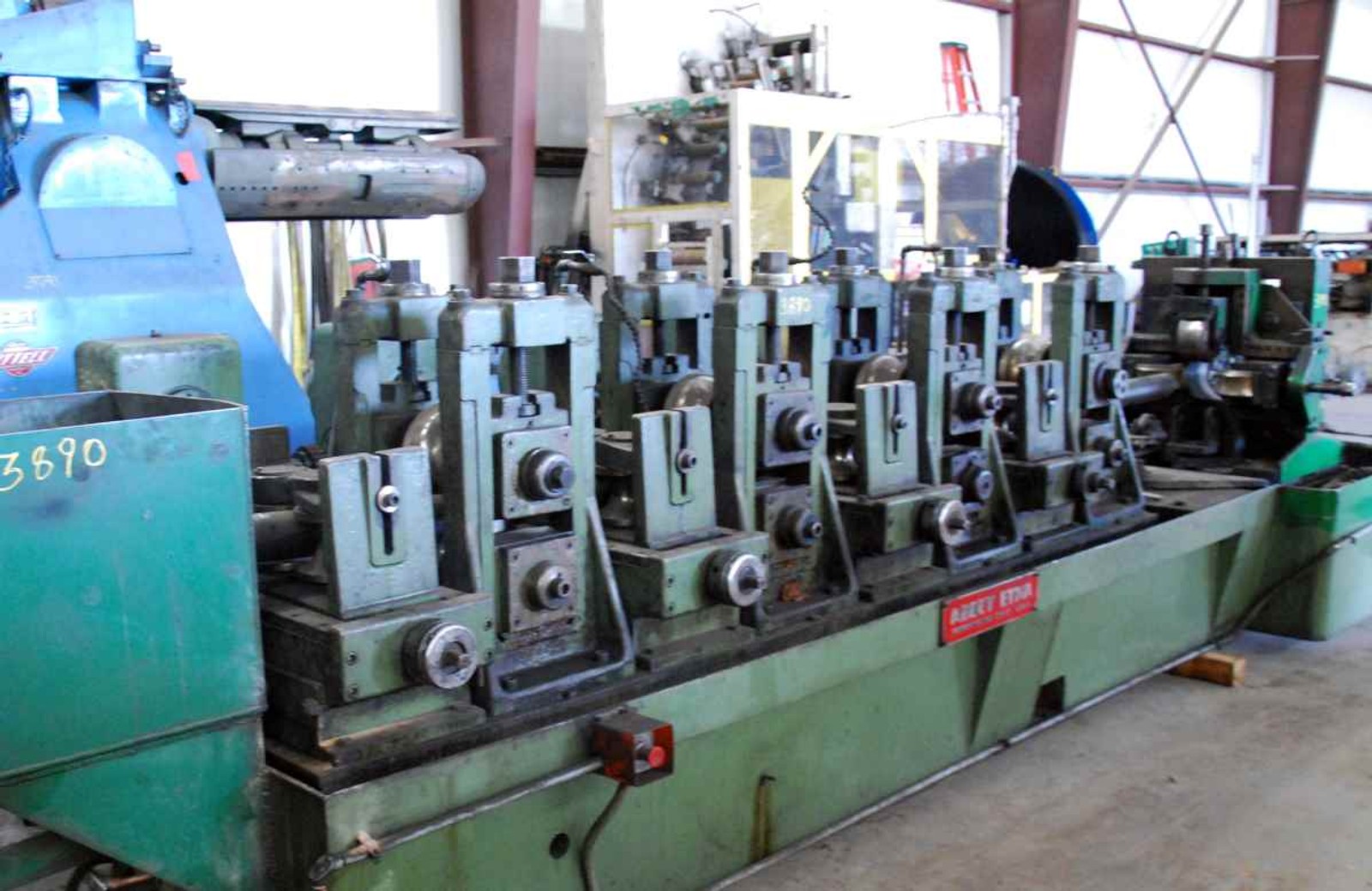

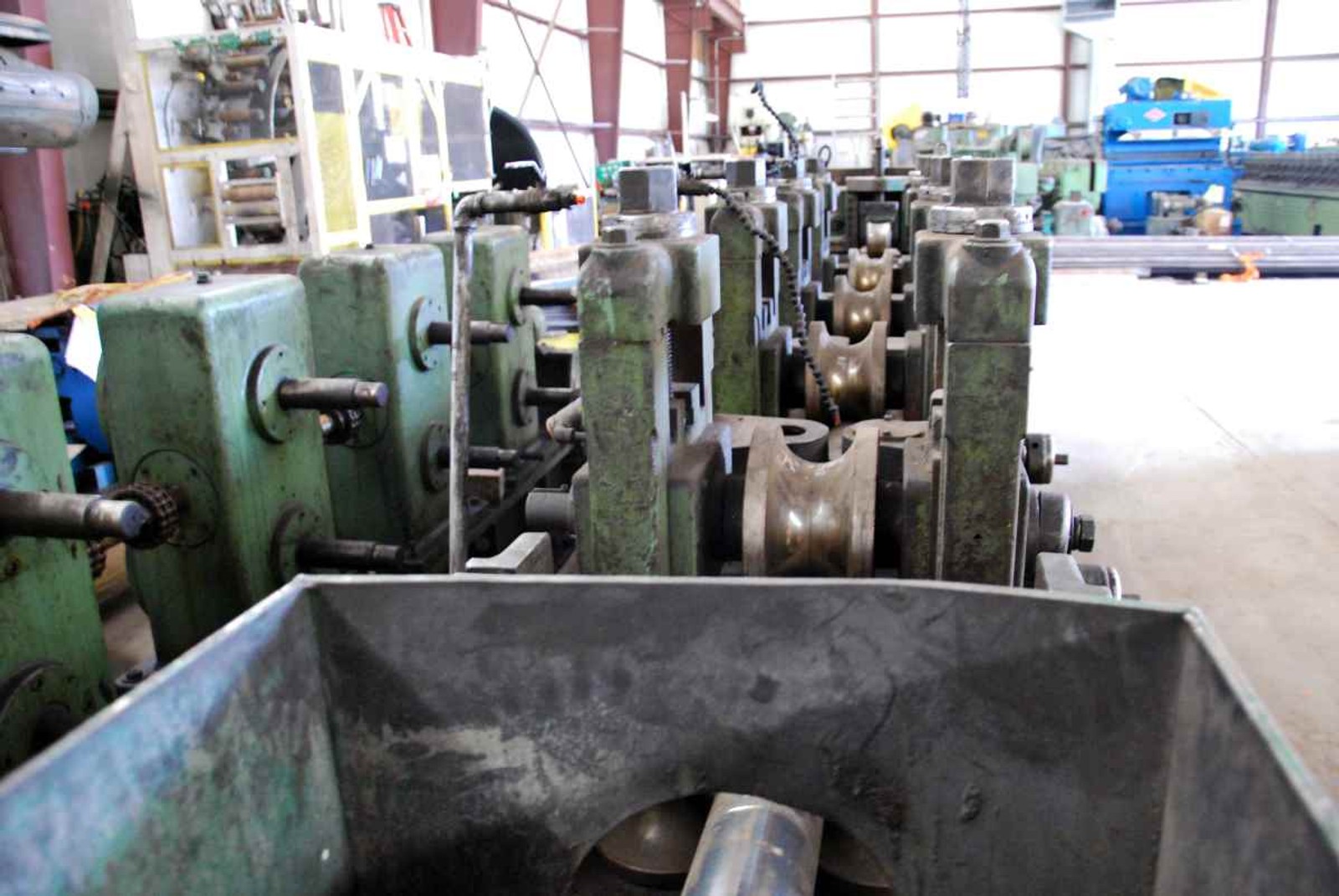

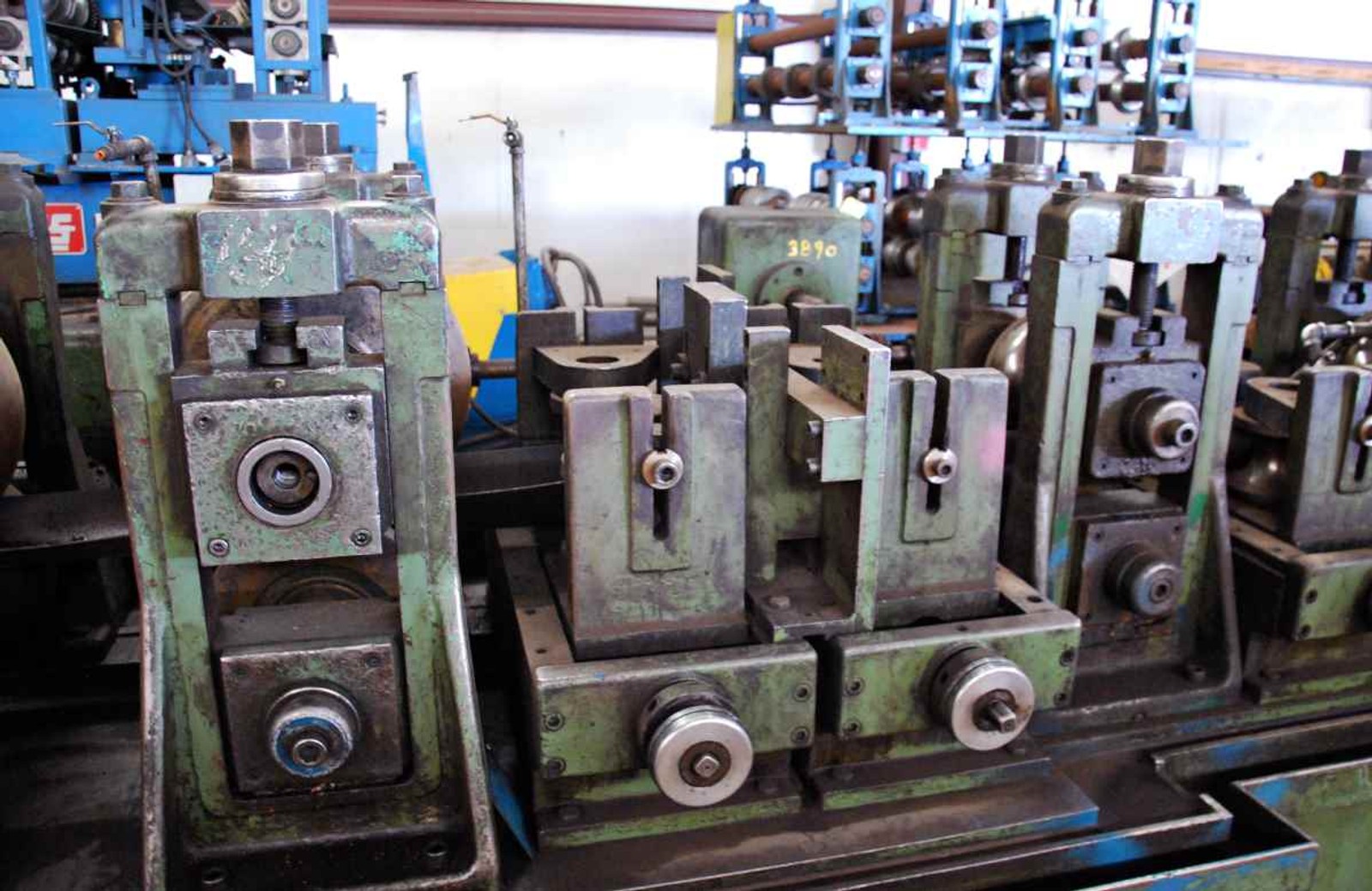

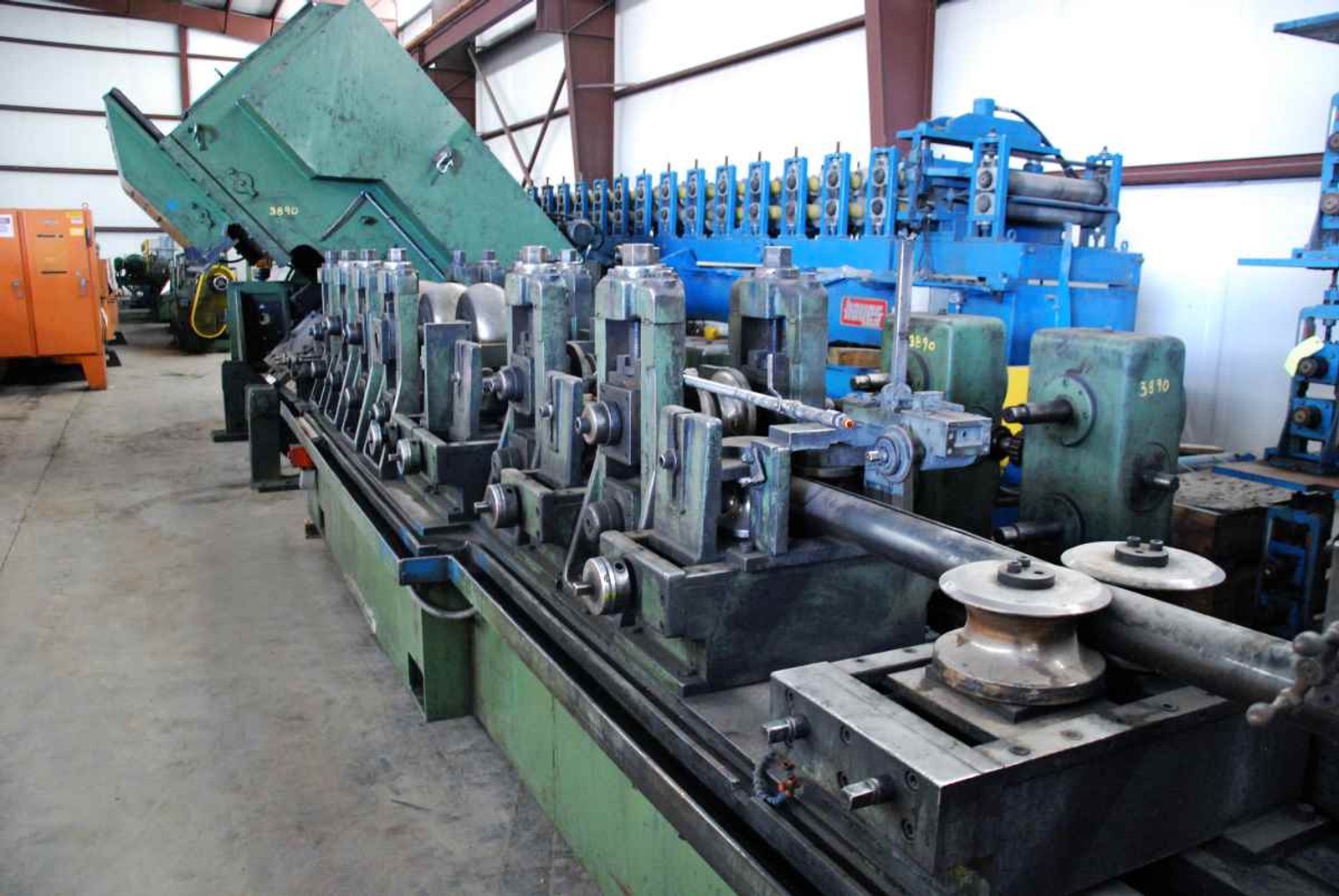

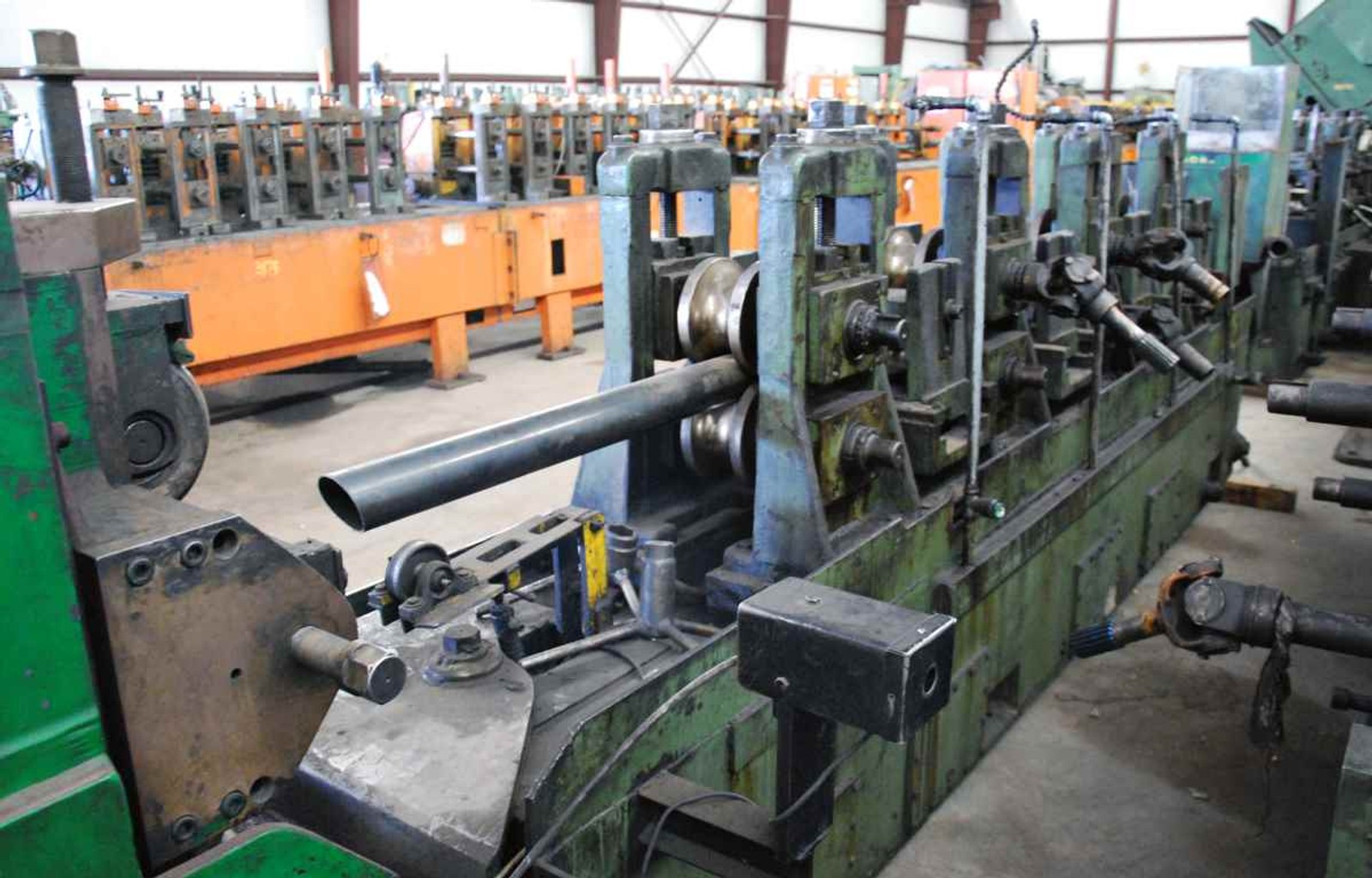

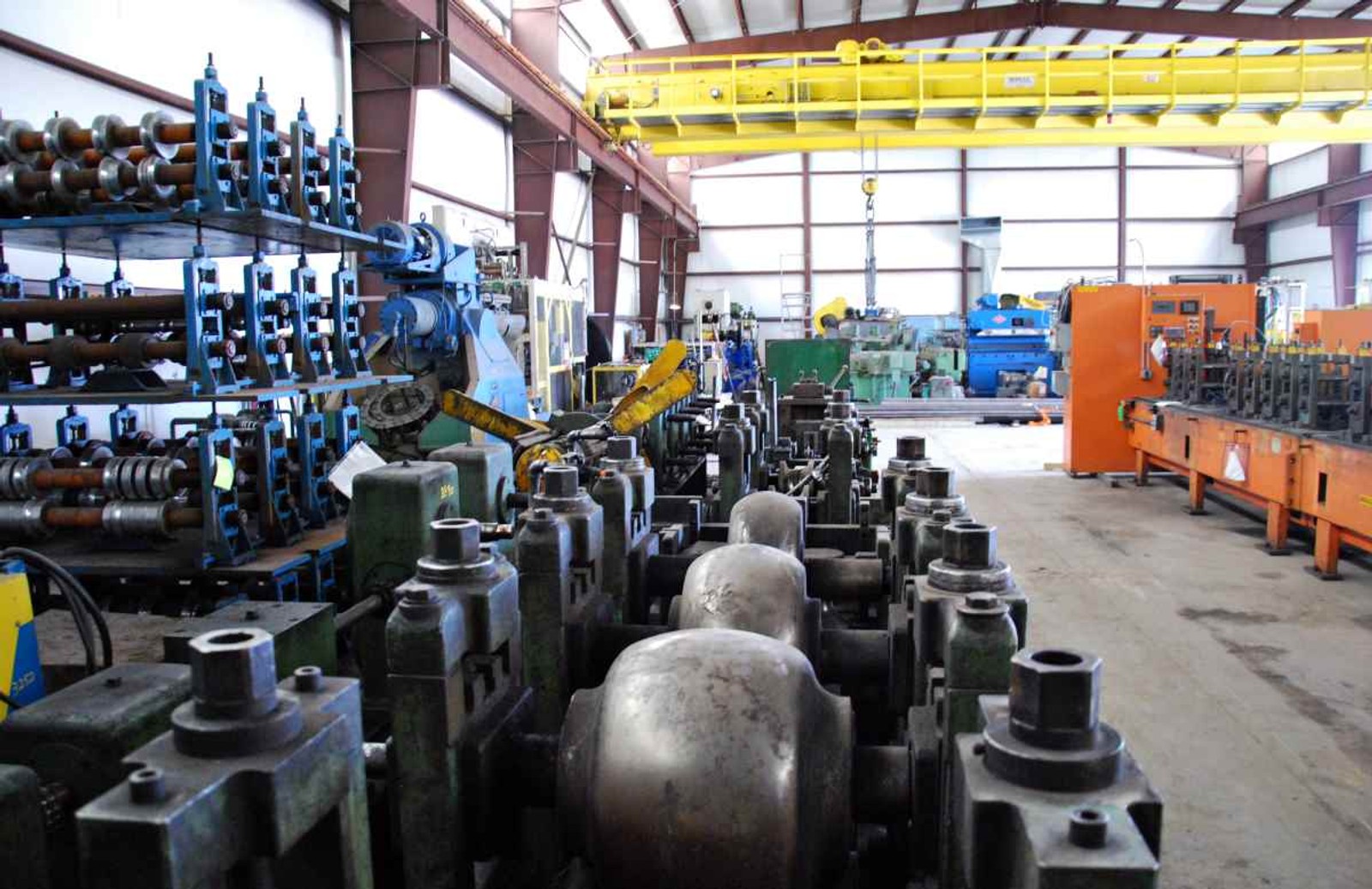

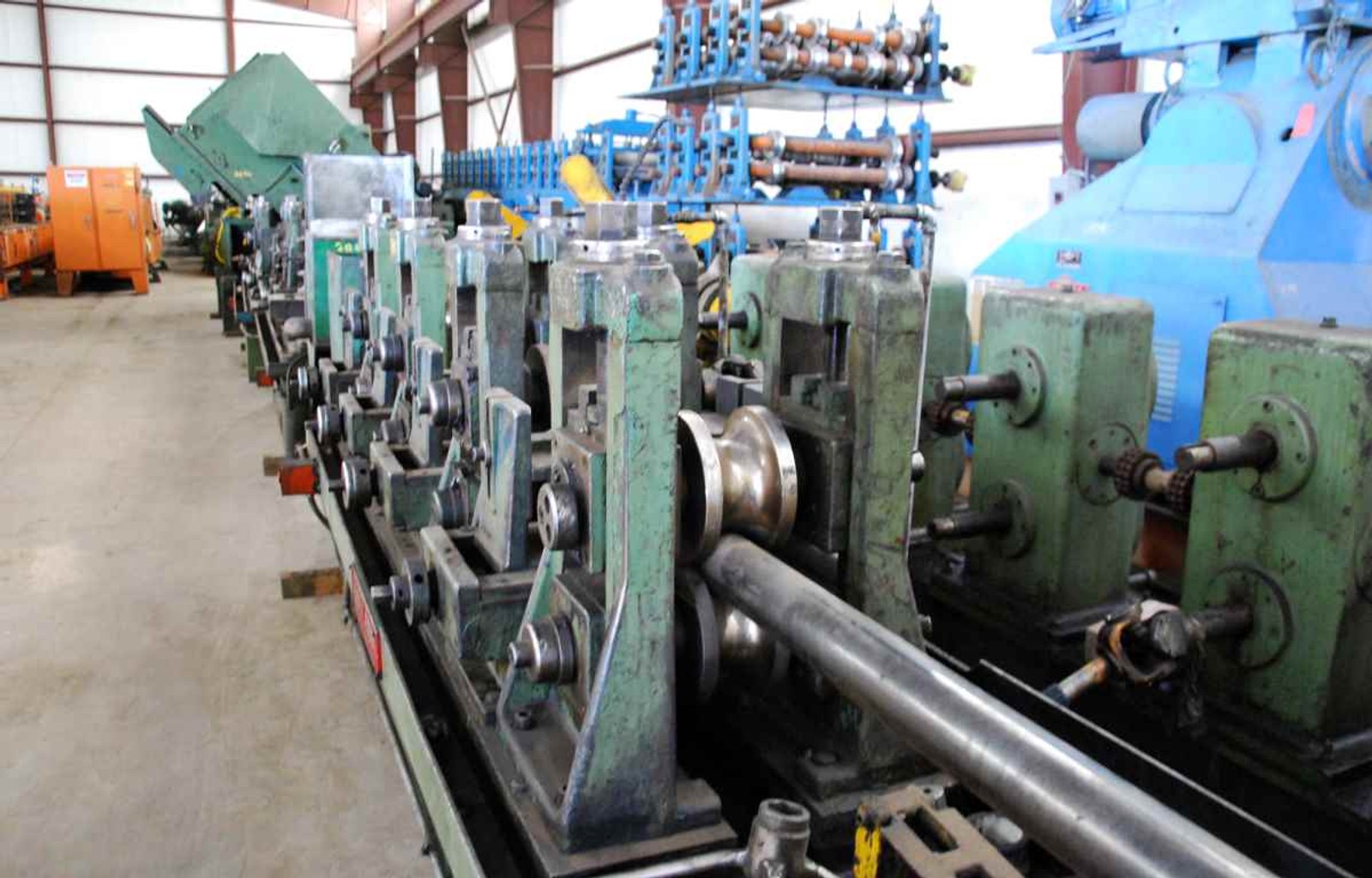

6″ (152 mm) x .120″ (3 mm) ABBEY ETNA #6-SXU High Frequency Tube Mill

Manufacturer

ABBEY ETNA

Category

Tube Machinery

Type

TUBE MILLS, HF/ERW

Stock

3890

Model

6-SXU

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3890
MANUFACTURER: ABBEY ETNA MACHINE CO.
MODEL NUMBER: 6 SXU
SERIAL NUMBER: 10680-11366-11925
YEAR: 1957 – 1966 – 1979

SPECIFICATIONS:
Maximum Tube Diameter: 6″ (152 mm)
Minimum Tube Diameter: 1.900″ (48.2 mm)
Maximum Wall Thickness: .120″ (3 mm)
Minimum Wall Thickness: .042″ (1.1 mm)
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI
Maximum Mill Speed: 200 FPM (60 MPM) Maximum Gear In Speed, No Load
Roll Space (Width): Forming: 21″ (533 mm)
Roll Space (Width): Fin & Sizing: 8″ (203 mm)
Driven Spindle Diameter: 2-1/2″ (63.5 mm)
Gear Box Data: ABBEY 4K, 15:1 Ratio
Roll Root Diameter: 5.425″ (138 mm)
Hand of Operation: Left to Right

FORMING MILL:
Entry Guide
(4) Driven Breakdown Stands
(4) Idle Side Roll Units
(2) Driven Fin Stands

WELDING SECTION:
No Welder
2-Roll Weld Pressure Unit, for High-Frequency Welding
Scarfing and Seam Ironer Unit

COOLANT SECTION:
Not Included

SIZING MILL:
(4) Driven Sizing Stands
(4) Idle Side Roll Units
Straightener Unit (Modified Turkshead)

TOOLING SIZES:
2.120″, 3.00″, 3.50″, 3.760″, 4.00″, 4.125″, 4.5″ (114.3 mm) On The Mill, 4.862″, 5.00″, Should be inspected for completeness.

NOTE: This is a 6″ Tube Mill Mechanical “only” not a complete line.

CONDITION: Good

LOCATION: Universal Warehouse, Perrysburg, Ohio
