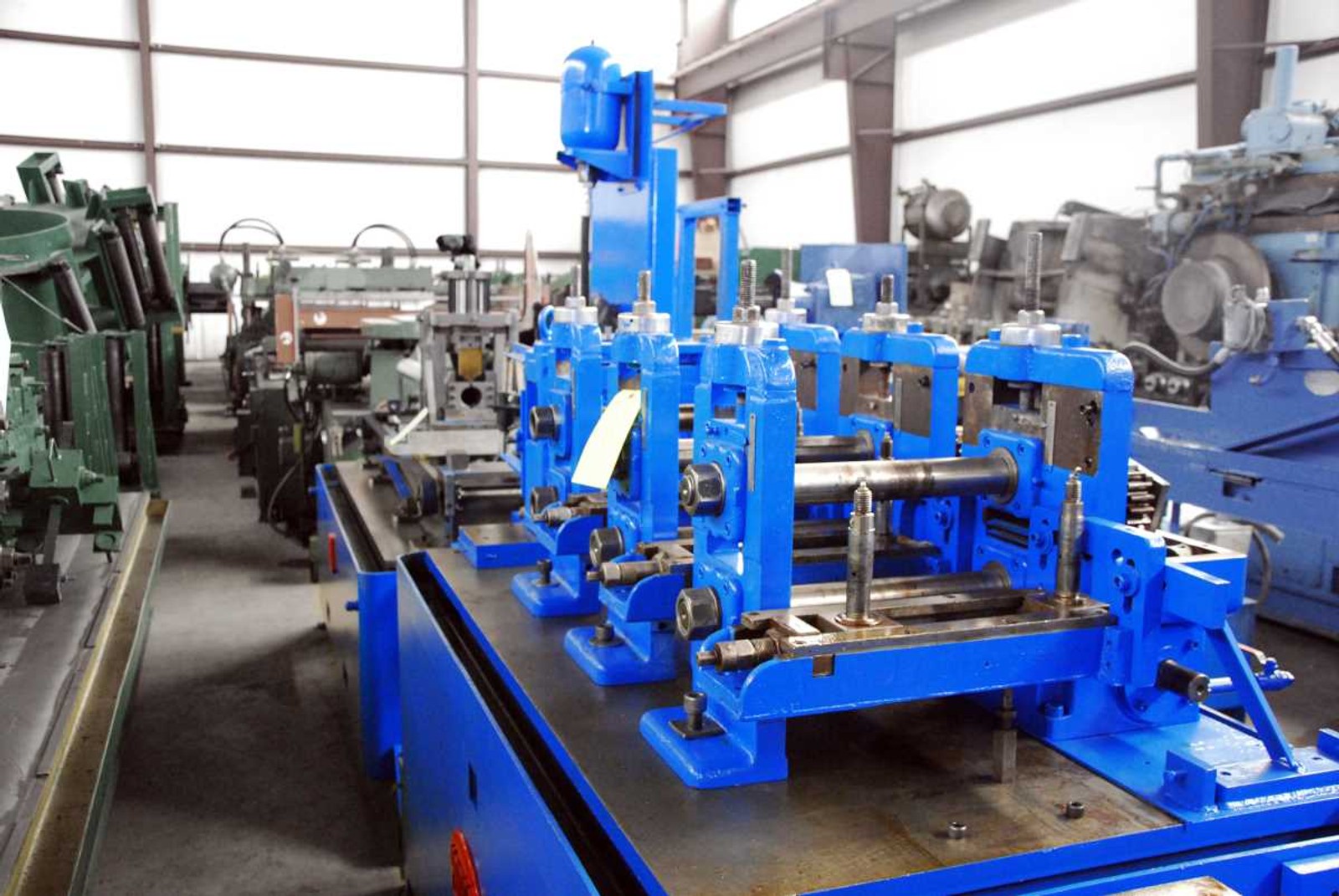

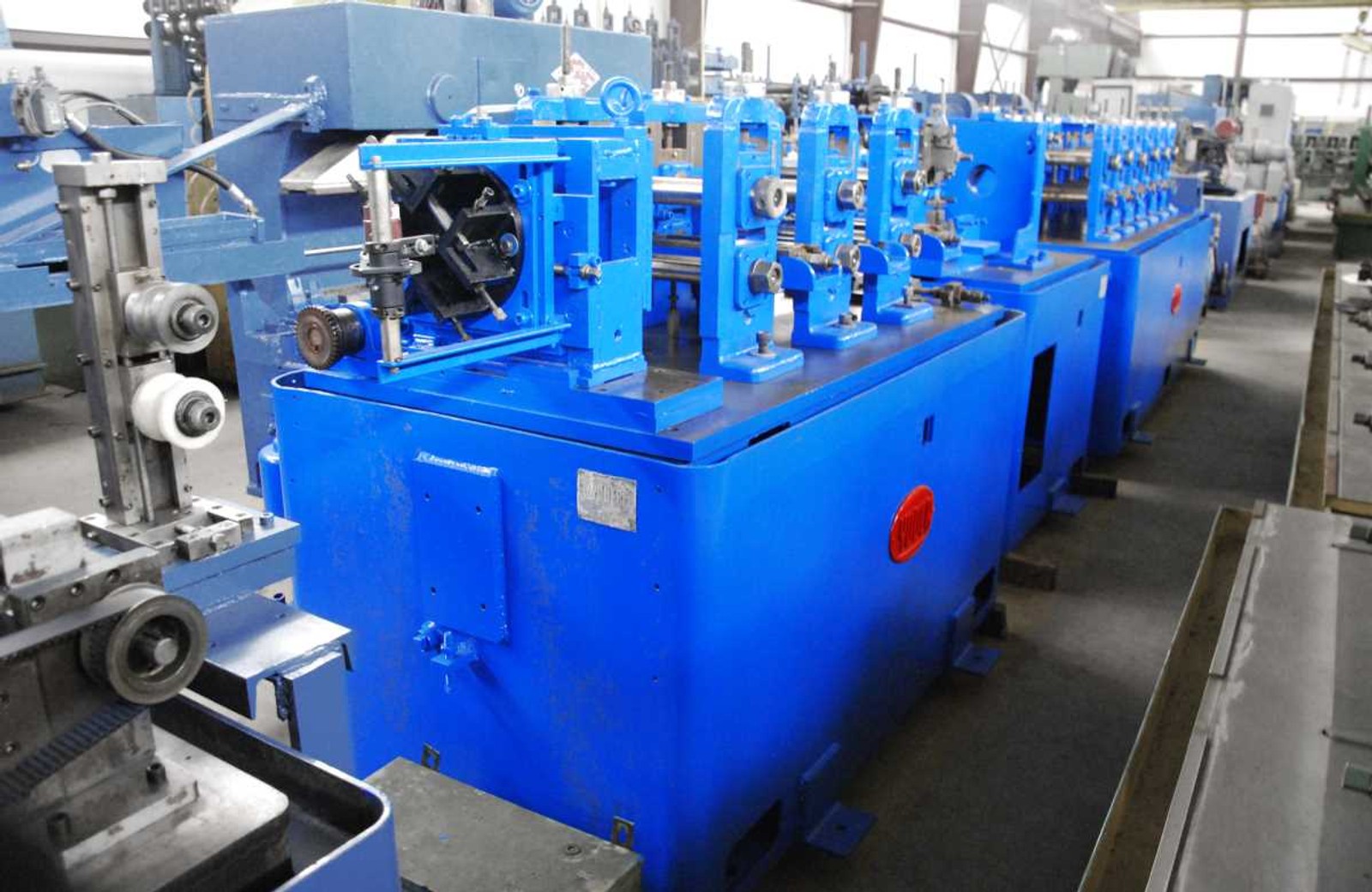

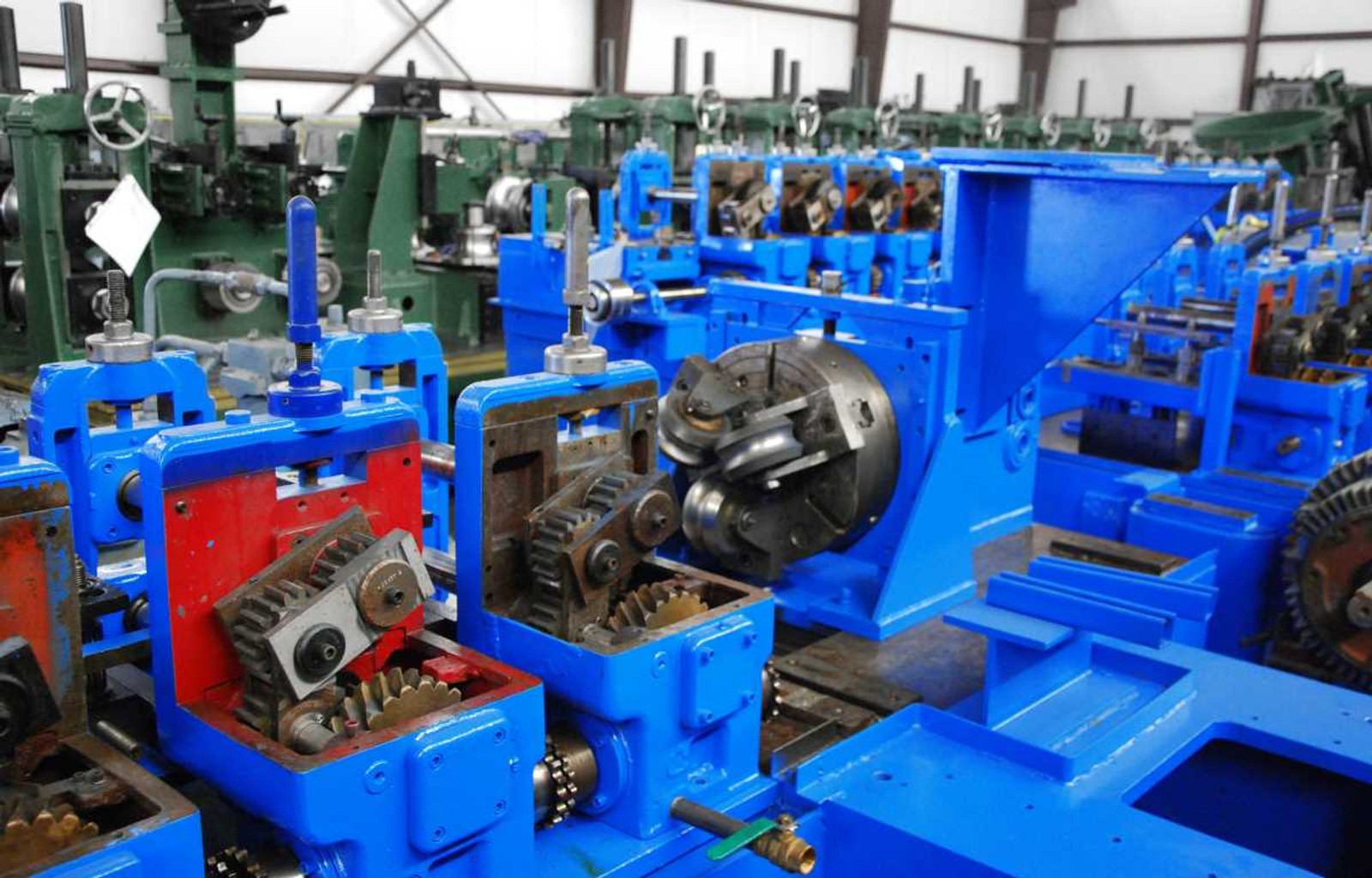

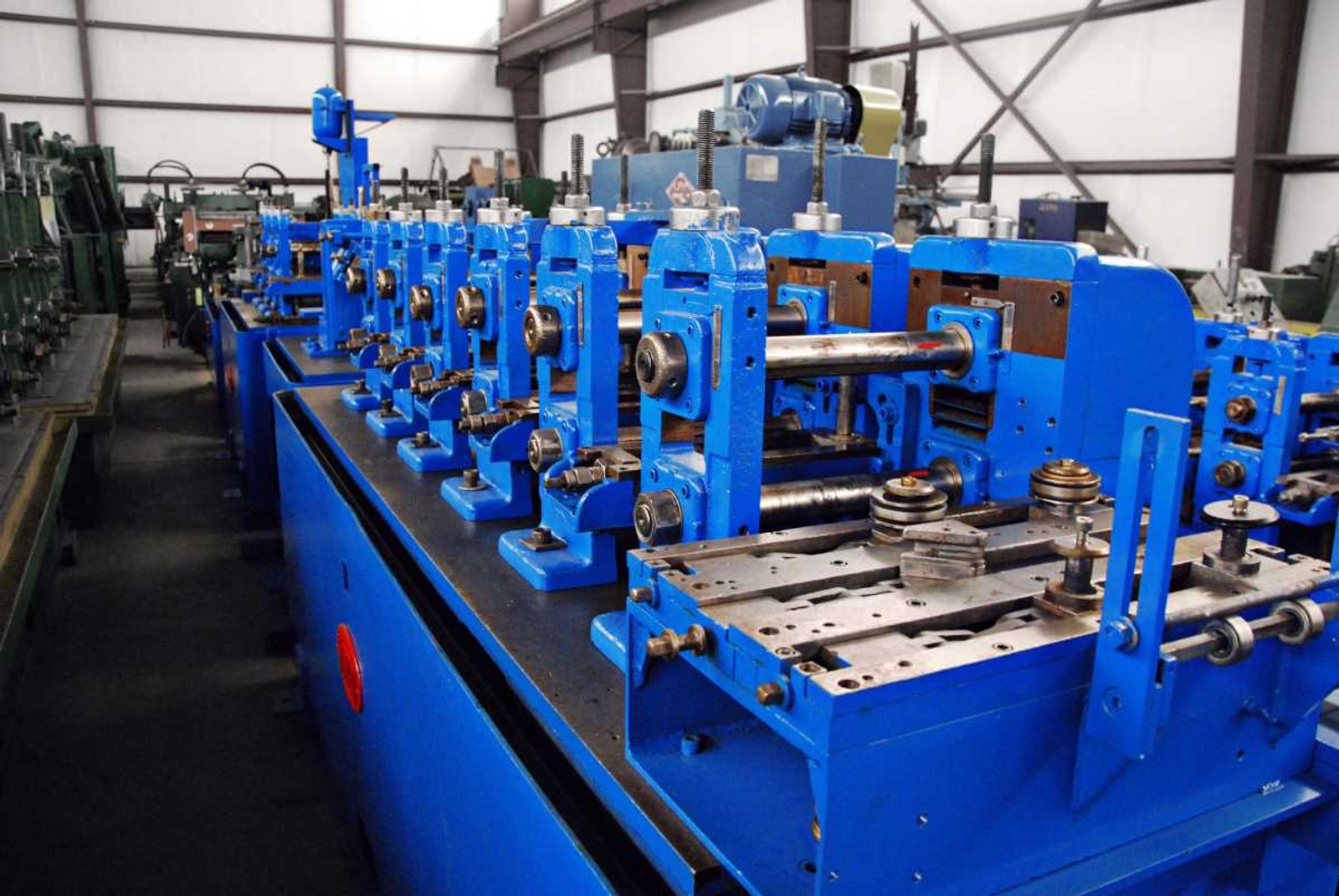

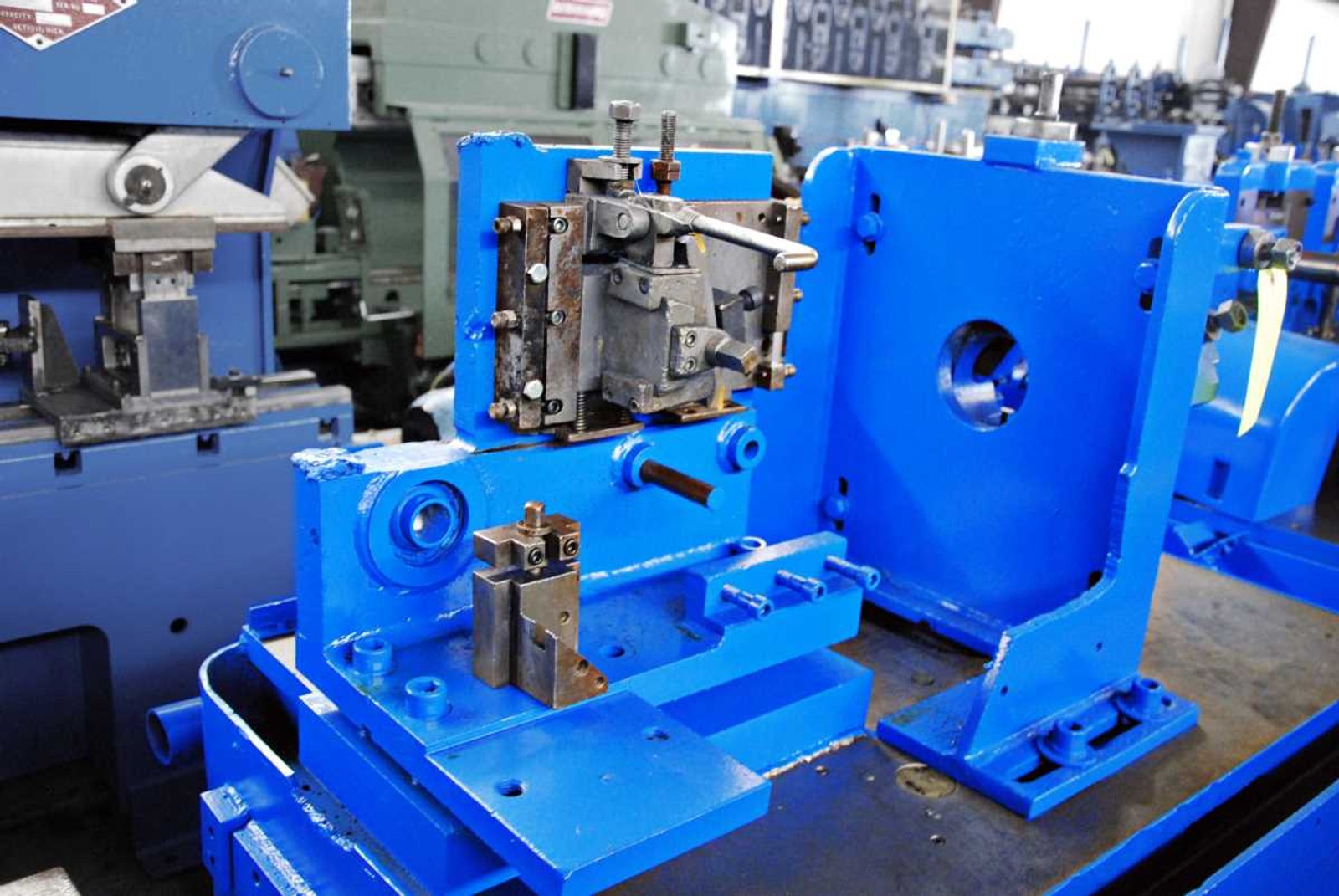

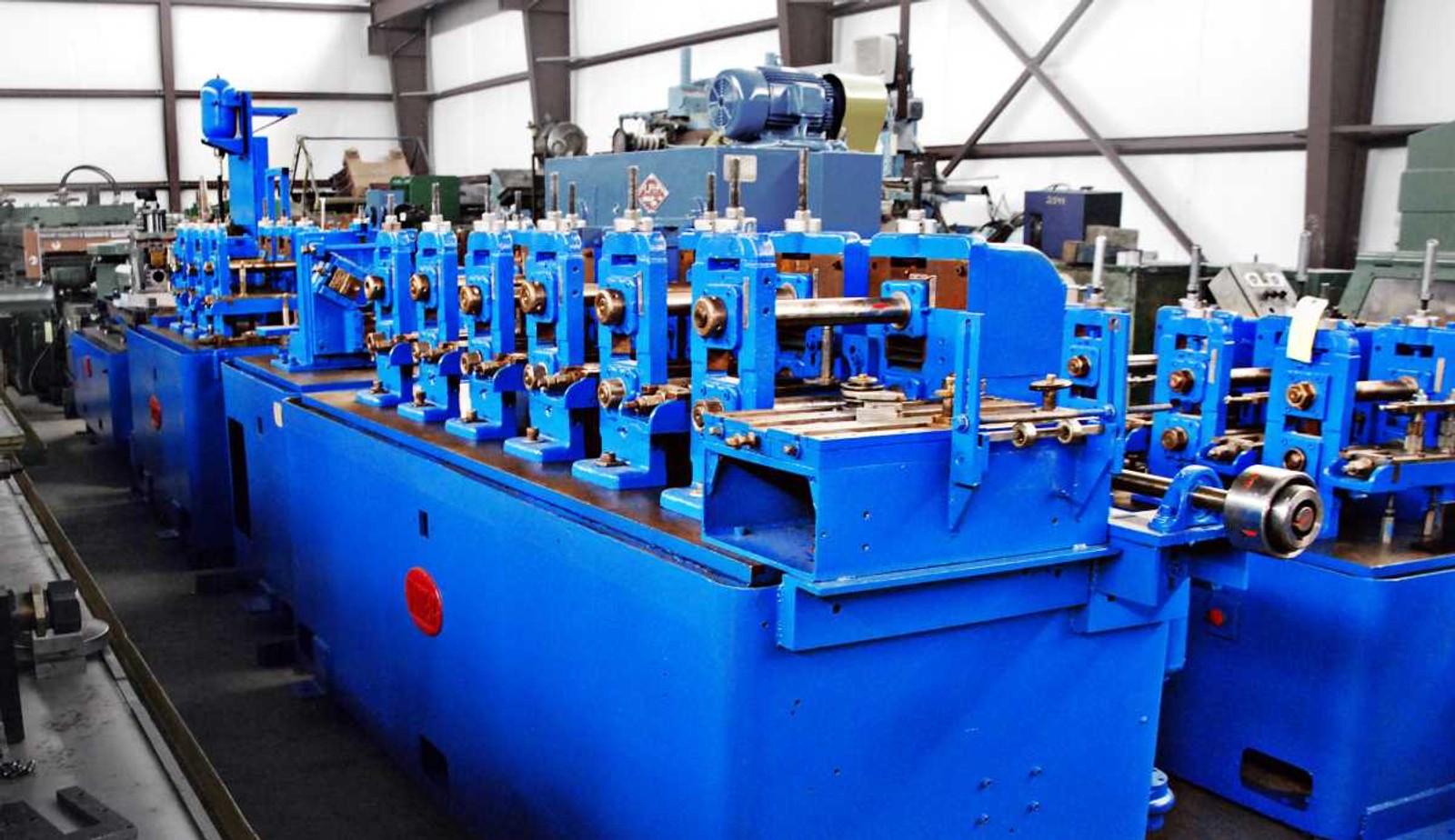

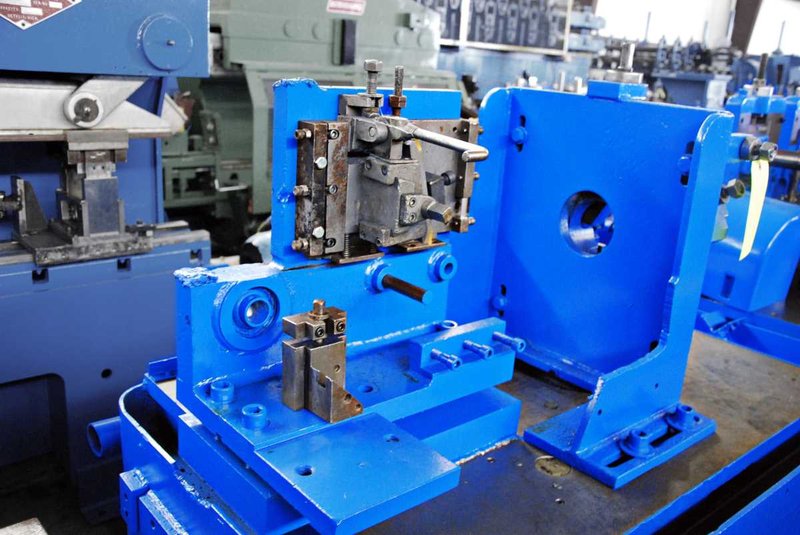

2-1/2″ (63.5 mm) x .095″ (2.41 mm) YODER #M2 High Frequency Tube Mill

Manufacturer

YODER

Category

Tube Machinery

Type

TUBE MILLS, HF/ERW

Stock

3004

Model

M2

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

UTUBE NUMBER: 3004
MANUFACTURER: YODER
MODEL NUMBER: M2
SERIAL NUMBER: 6637

SPECIFICATIONS:
Line Direction: Right to Left
Maximum Tube Diameter: 2-1/2" (63.5 mm)
Minimum Tube Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .095" (2.41 mm)
Minimum Wall Thickness: .020" (.508 mm)
Maximum Line Speed: 180 FPM, Maximum Gear In Speed, No Load
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI

GEAR BOX DATA:
Spindle Diameter: 2" (50.8 mm)
Roll Space Forming: 12" (304 mm)
Roll Space Fin & Size: 12" (304 mm)
Horizontal Centers: 15" (381 mm)

FORMING MILL:
(1) Entry Guide Table
(3) Driven Breakdown Stands
(5) Idle Side Rolls
(3) Driven Fin Stands

WELDING SECTION:
(1) 3-Roll Weld Pressure Unit
(1) Single Scarfing Unit

SIZING MILL:
(3) Driven Sizing Stands
(3) Idle Side Rolls

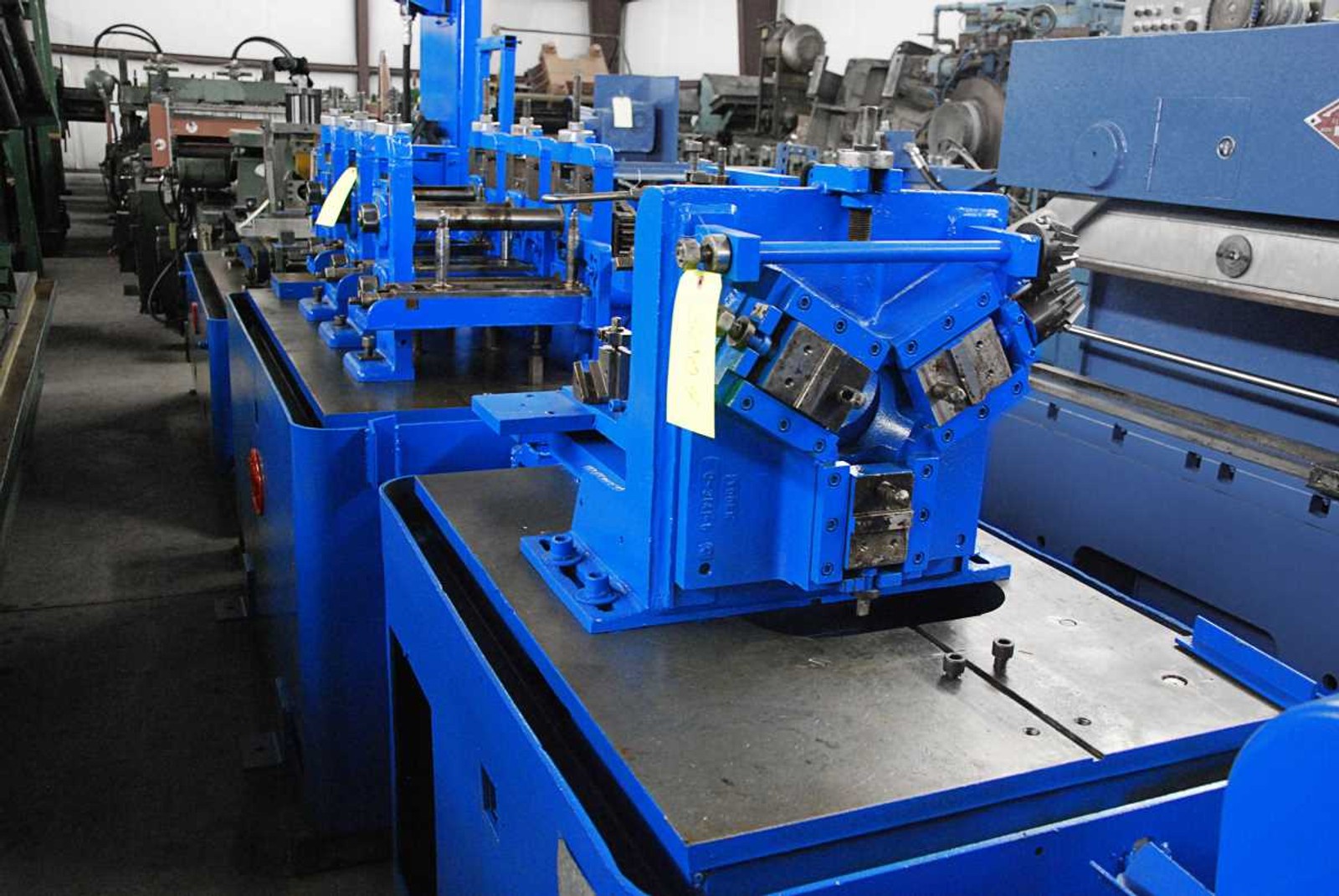

(1) Straightener, Turkshead 4-Roll

MILL DRIVE:
(2) 40 HP AC Motors
(1) Control Panel
(1) ABB Drive Panel

LOCATION: Universal Warehouse, Perrysburg, Ohio
