Mazak Multiplex W-200 Dual Spindle / Dual Turret CNC Turning Center, 2019, Ref# 32875

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

32875

Model

Multiplex W-200

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32875

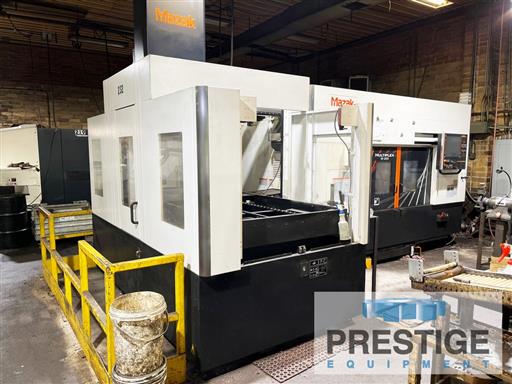

Mazak Multiplex W-200 Dual Spindle / Dual Turret CNC Turning Center

Features:
Mazatrol Smooth G Control w/ 19" Color LCD (Touch Screen)
Manual Pulse Generator
Tapping
Coolant Thru Spindles

Specifications:
Capacity Max. Swing .................. 12.6"
Max. Machining Diameter .............. 12.6"
Max. Machining Length ................ 7.09"
Distance Between Spindles ............ 48"
Max. Weight*1: Chuck workpiece ....... 660 lbs
Bar Work Capacity*2 .................. 2.5"
Travel X Axis ........................ 10.75"
Z Axis ............................... Z1= 19.125" / Z2= 20.625"
C Axis ............................... 360°
Number of Spindles ................... 2
Spindle Speeds ....................... 5000 RPM
Number of Spindle Speed Ranges ....... 1-Stepless
Minimum Spindle Indexing Increment ... 0.0001°
Turret Number of Turrets ............. 2
Number of Tools ...................... 12 Position Drum Turret × 2
Tool Shank Holder .................... VDI
Tool Shank Height .................... 1"
Boring Bar Shank Diameter ............ 1.57"
Spindle Motor ........................ 30/20 HP

Equipped With:

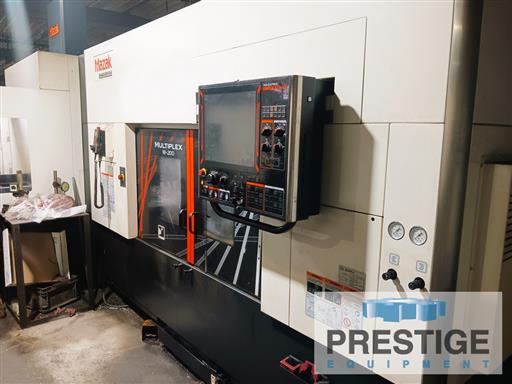

Mazatrol Smooth G Control w/ 19" Color LCD (Touch Screen)
Manual Pulse Generator
GL-100 Gantry Loader System
Tapping
Coolant Thru Spindle
High Pressure Coolant System
8" Kitagawa Chucks
Tool Eye
Chuck Air Blast
Mayfram Rear Hinge Chip conveyor
Complete Coolant System
Some Standard and Live Tooling

Note:
Inspect Under Power
