Amada FOMII 3015NT, 4KW CO2, 60" x 120" Dual Pallets, AMNC Ctrl., Dust Collector, 2012 #43013

Manufacturer

AMADA

Category

Laser Cutting

Type

LASERS

Stock

43013

Model

FOMII 3015NT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43013

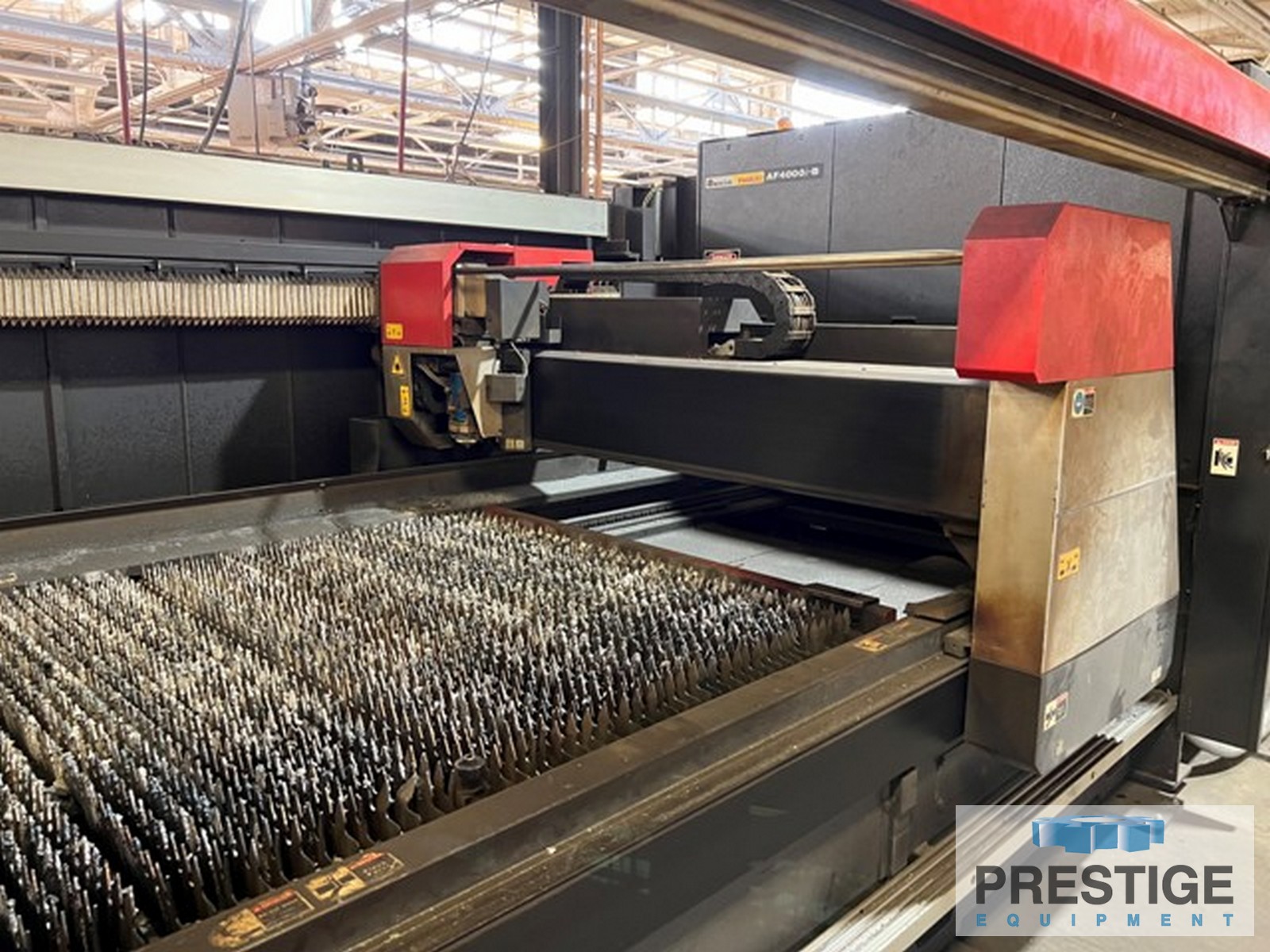

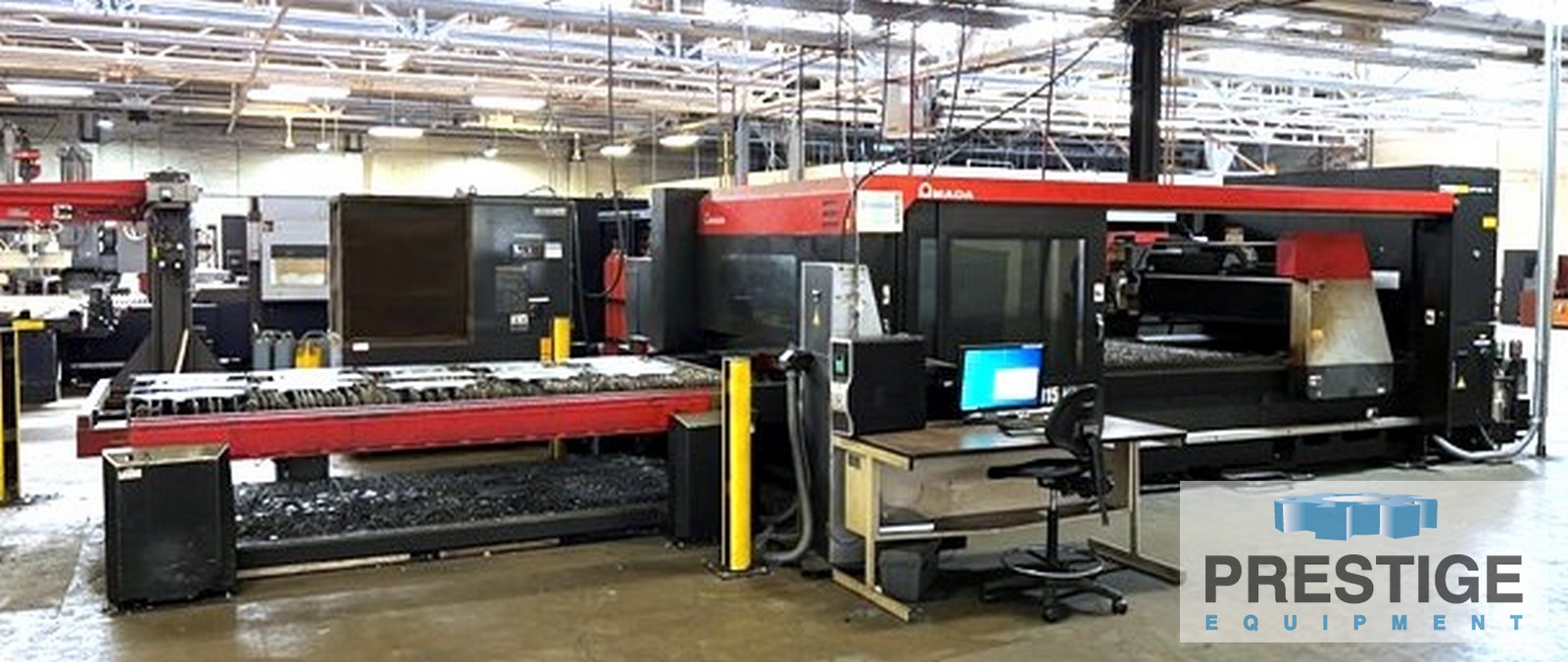

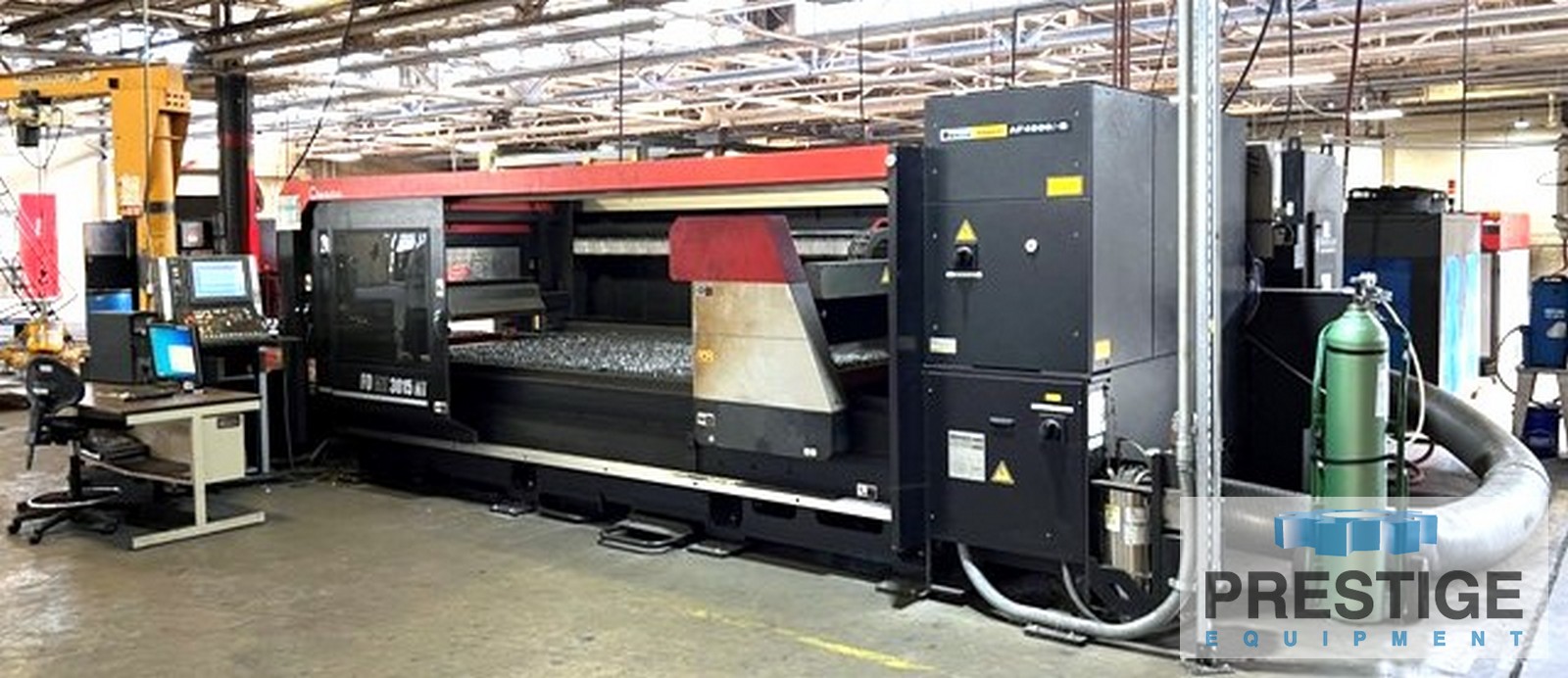

Amada FOMII 3015NT 4KW 60" x 120" CO2 Laser

EQUIPPED WITH:

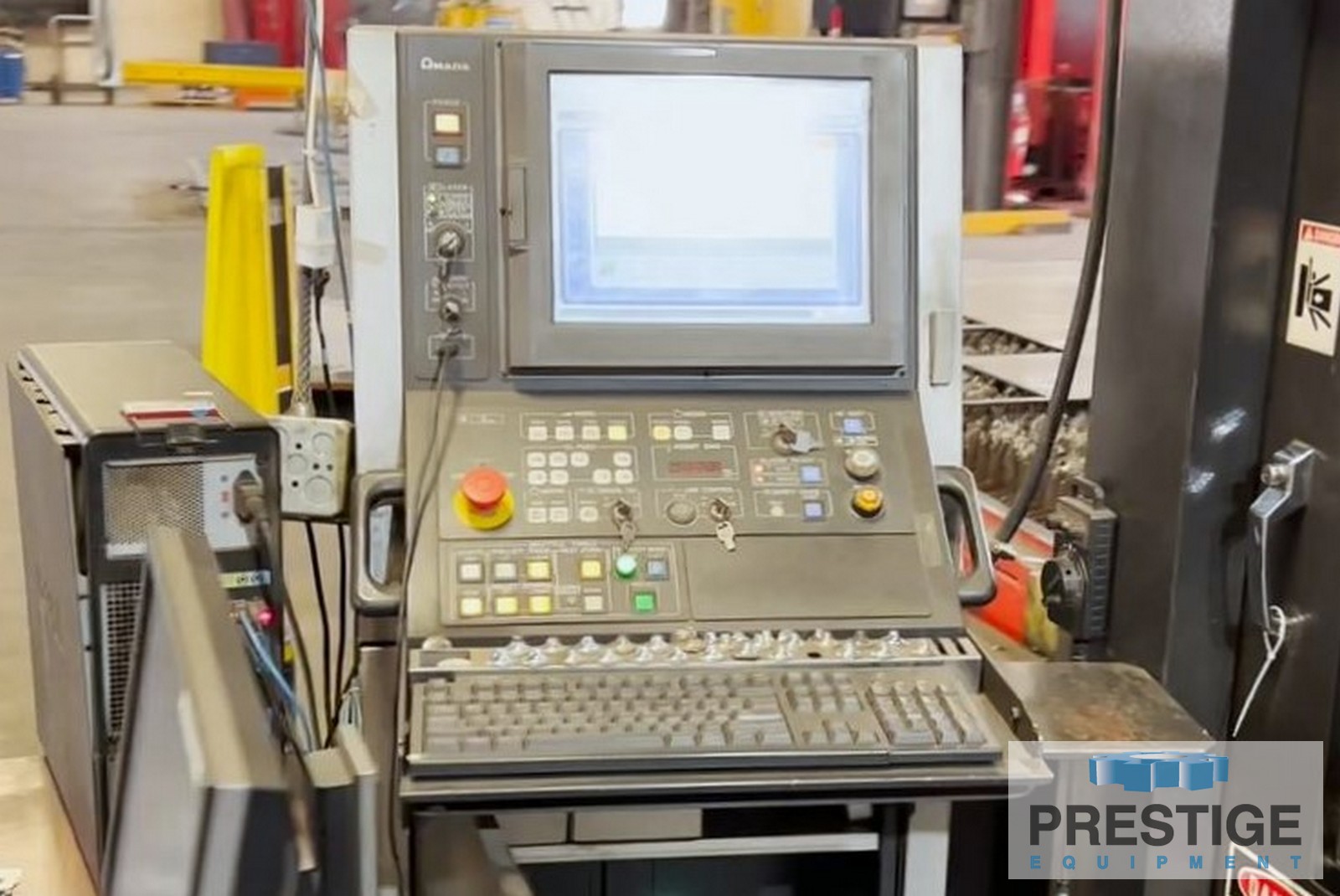

Fanuc AMNC-F CNC Control
Fanuc AF4000i-B Laser Resonator
Dual Pallet Shuttle Tables
Fanuc AC Servo Motors

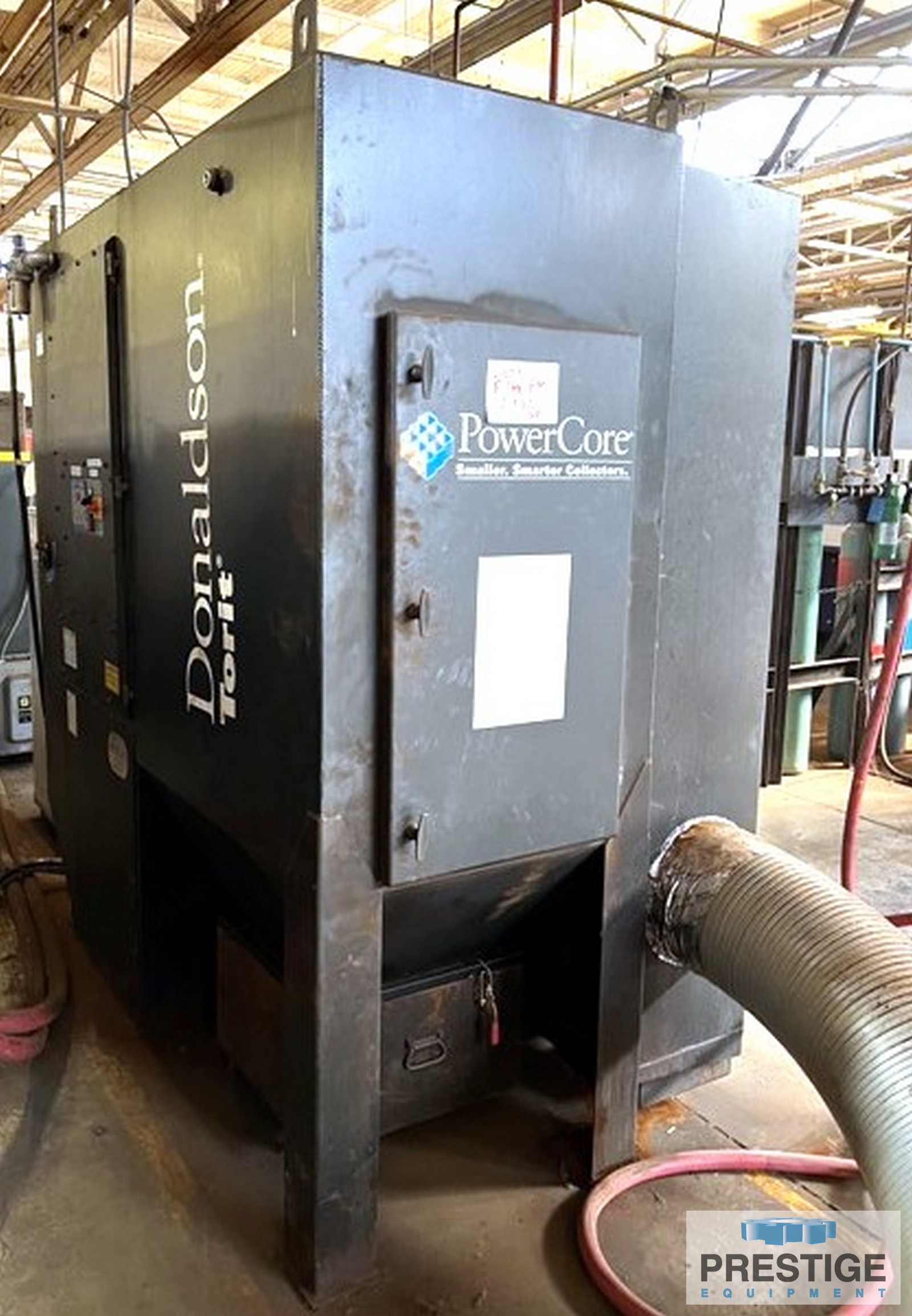

Donaldson Dust Collector

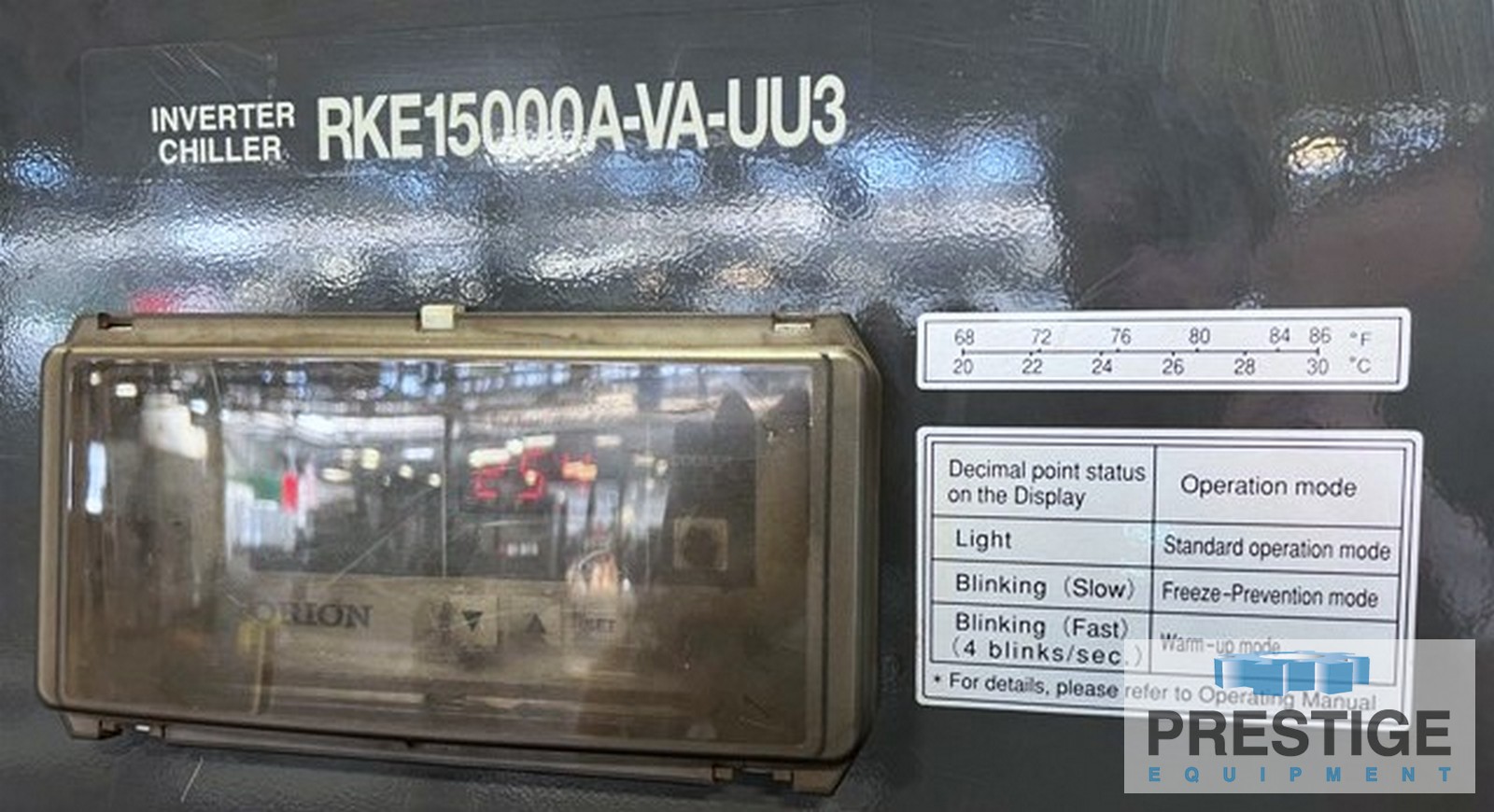

Orion Chiller

CAPACITY:
Maximum Laser Output .................. 4 KW CO2
X-Axis Carriage Travel ................ 121"
Y-Axis Laser Head Travel .............. 61"
Z-Axis Laser Head Travel .............. 7.8"
Maximum Sheet Size .................... 60" x 120"
Cutting Feed Rate ..................... 0 - 780 IPM
Max. Positioning Speed (X & Y Axis).... 3,150 IPM
Max. Positioning Speed (Z Axis) ....... 2,362 IPM
Max. Material Weight .................. 1,850 Lbs.
Approximate Shipping Weight ........... 35,000 Lbs.

EQUIPPED WITH:
Fanuc AMNC-F CNC Control
Fanuc AF4000i-B Laser Resonator
Dual Pallet Shuttle Tables
Fanuc AC Servo Motors
Donaldson Dust Collector
Orion Chiller

HOURS:
45157 Hrs
Turbo replaced at 24,410 with a 24k turbo

NOTE:
Decommissioned By Amada, Packed up & Ready To Ship
