Giddings & Lewis FT3500, X-171", Y-83", Z-49", 6" Spindle, 3500 RPM, TSC, 60-ATC, Fanuc 310i, #42978

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

42978

Model

FT3500

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #42978

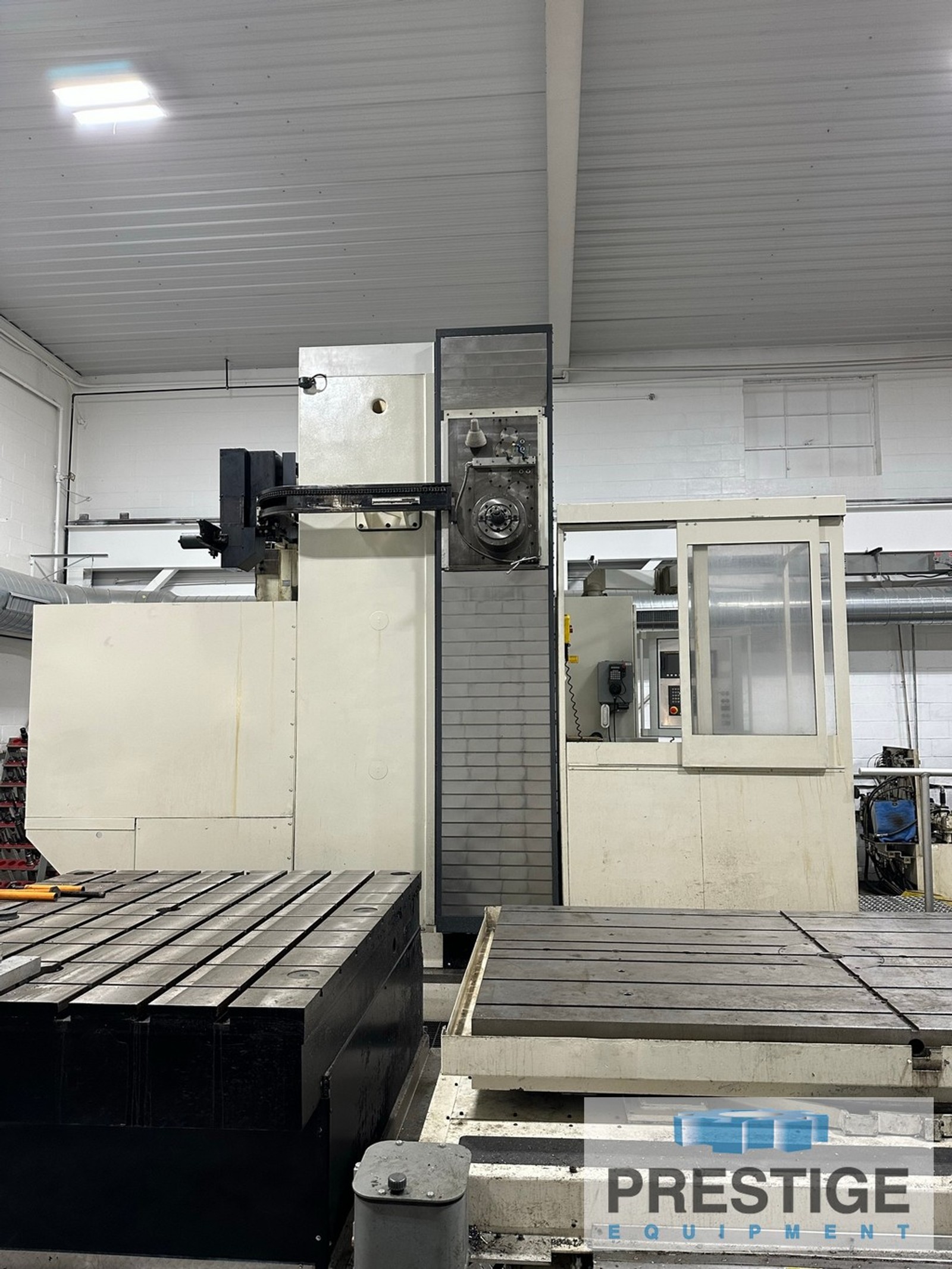

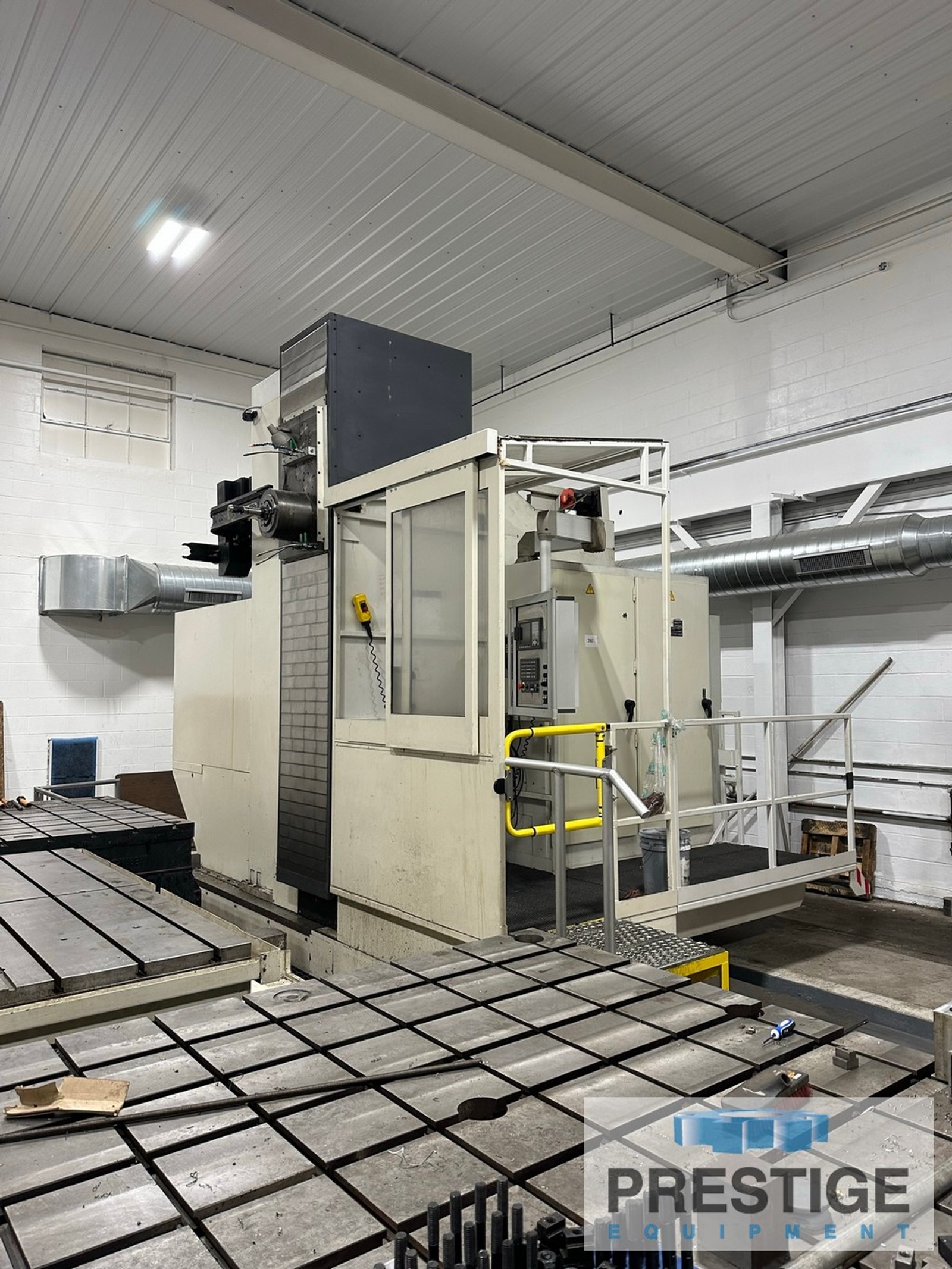

Giddings & Lewis FT3500 6.1" CNC Travelling Column Horizontal Boring Mill

FEATURES:

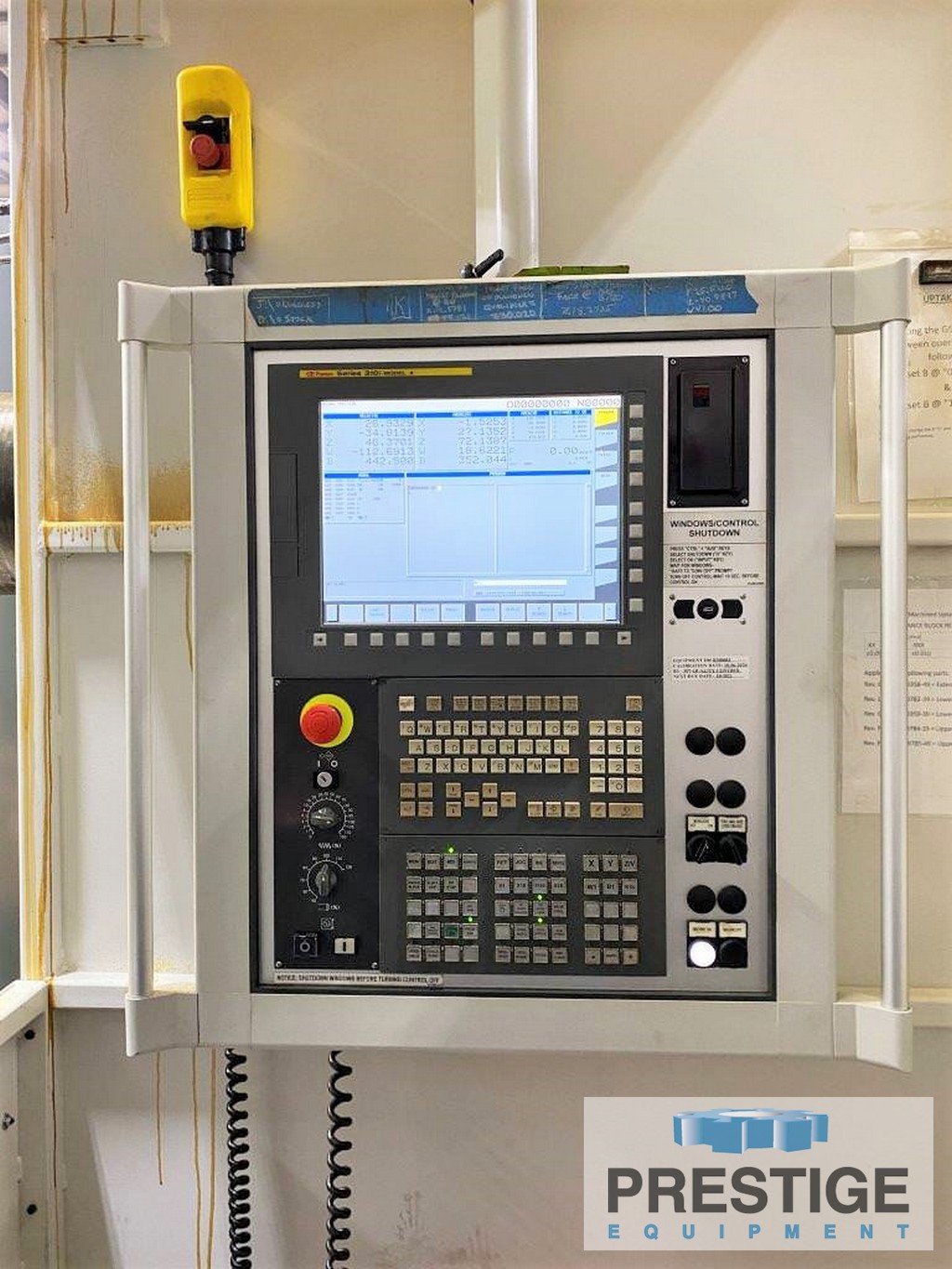

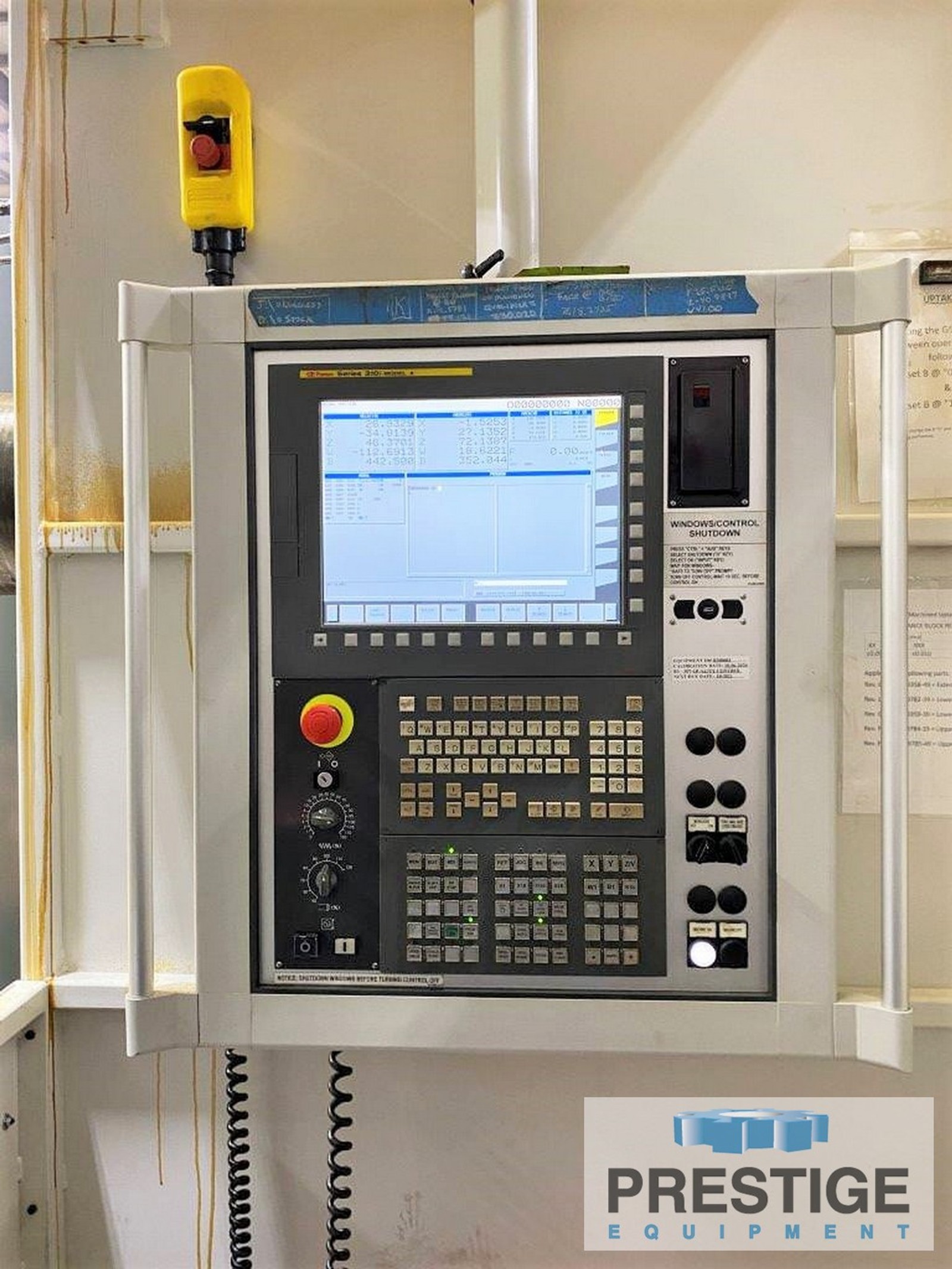

Fanuc 310i CNC Control
Ethernet Ports & RS232 Port

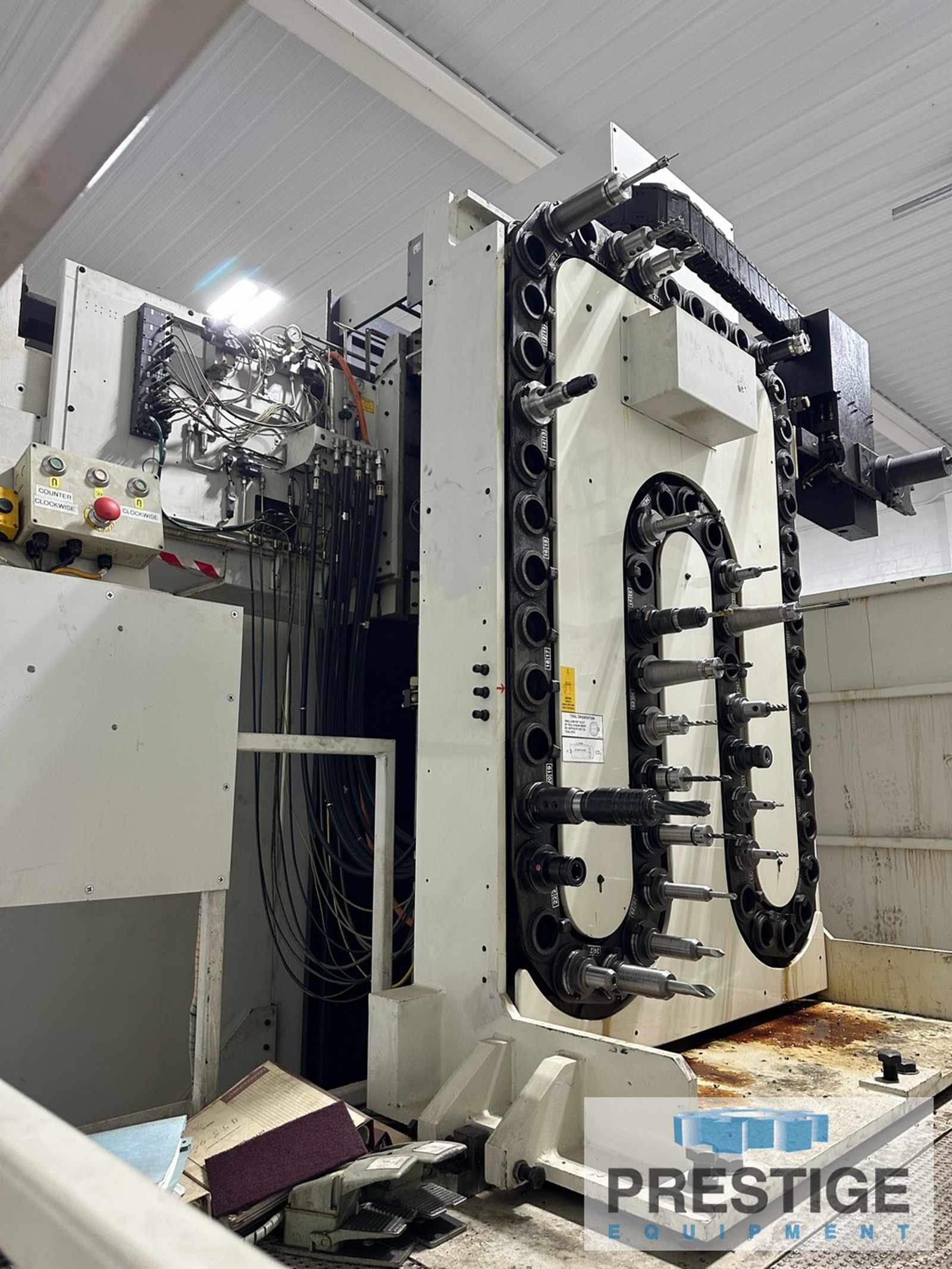

60 Station Automatic Tool Changer
Through Spindle Coolant System
Part & Tool Probing
Chip Conveyor

SPECIFICATIONS:
Spindle Diameter ..................... 6.1"
Y-Axis, Vertical Headstock Travel...... 82.67"
X-Axis, Column Travel ................. 171"
Z-Axis, Spindle Travel ................ 49.2"
V-Axis, Rotary Table Infeed ........... 72"

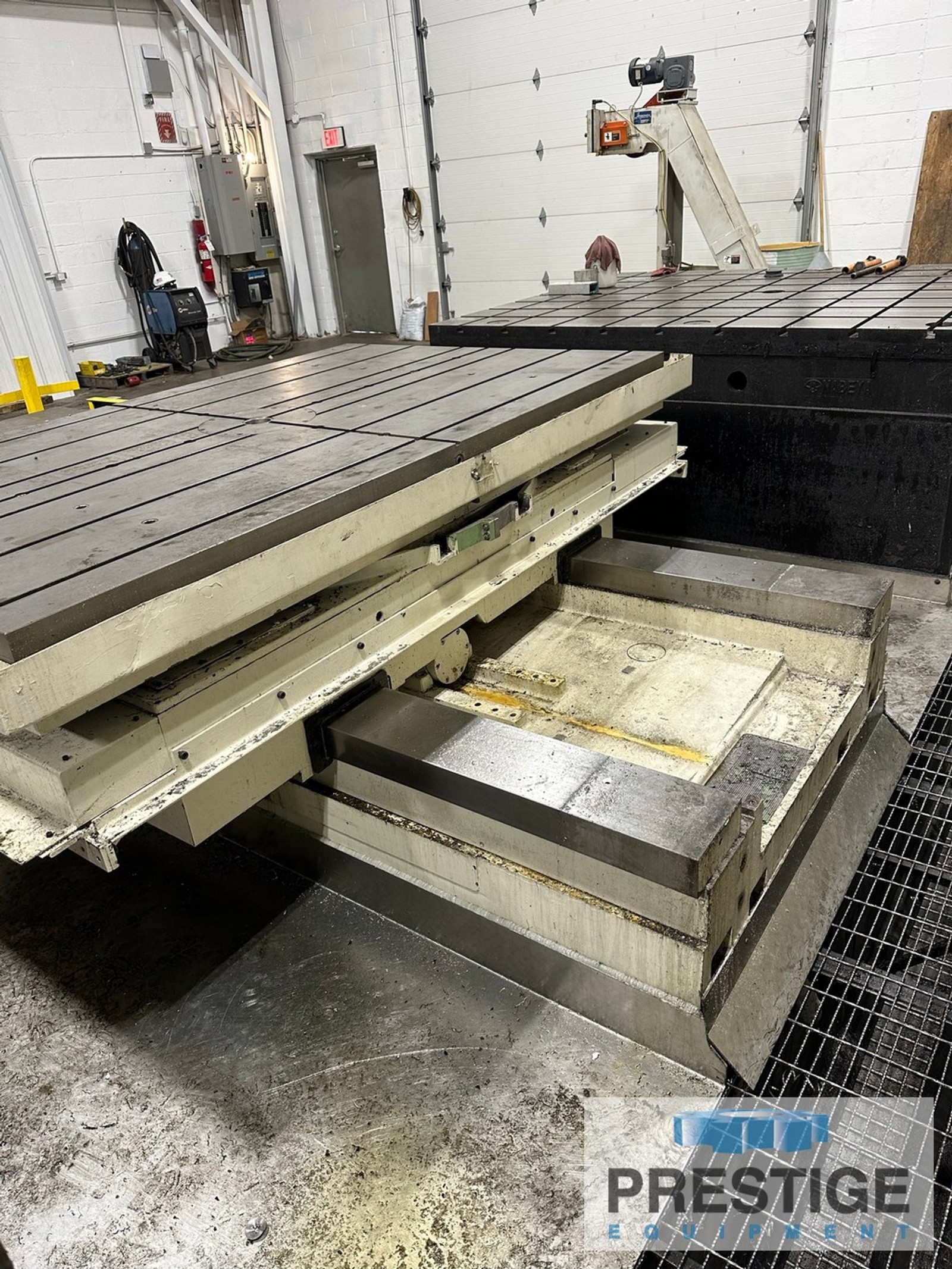

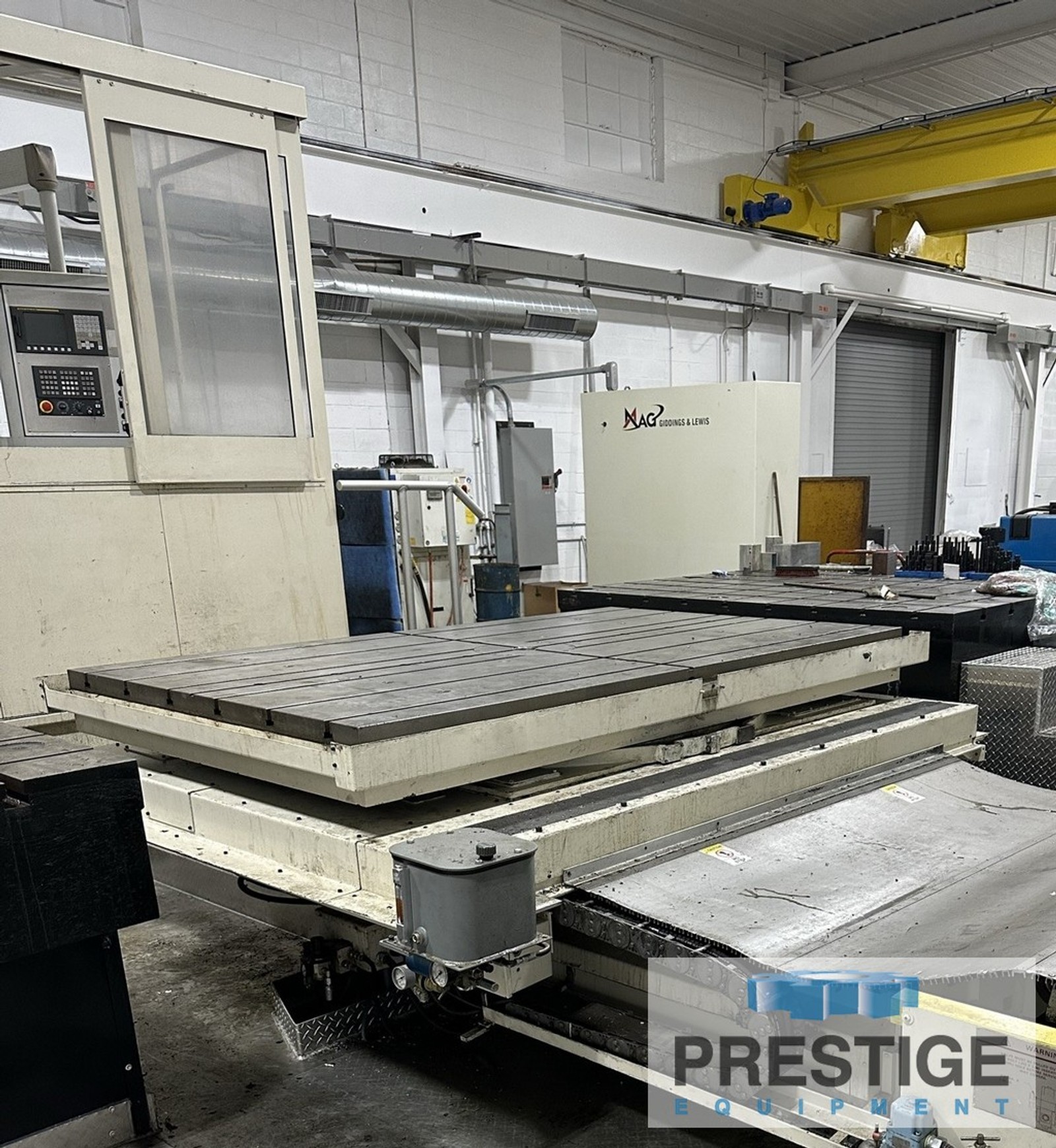

B-Axis, Rotary Table Size.............. 60" x 112"
B-Axis, Table Rotation ................ 360,000 Positions
Rapid Traverse, X,Y,Z Axes ............ 787 IPM
Spindle Taper #50 ANSI B5.50........... #50 Cat
Spindle Motor (Cont/Peak 10 Min) ...... 50 HP/75 HP
Spindle Speeds ........................ 10 to 3500 RPM
Spindle Speeds ........................ 4 Ranges

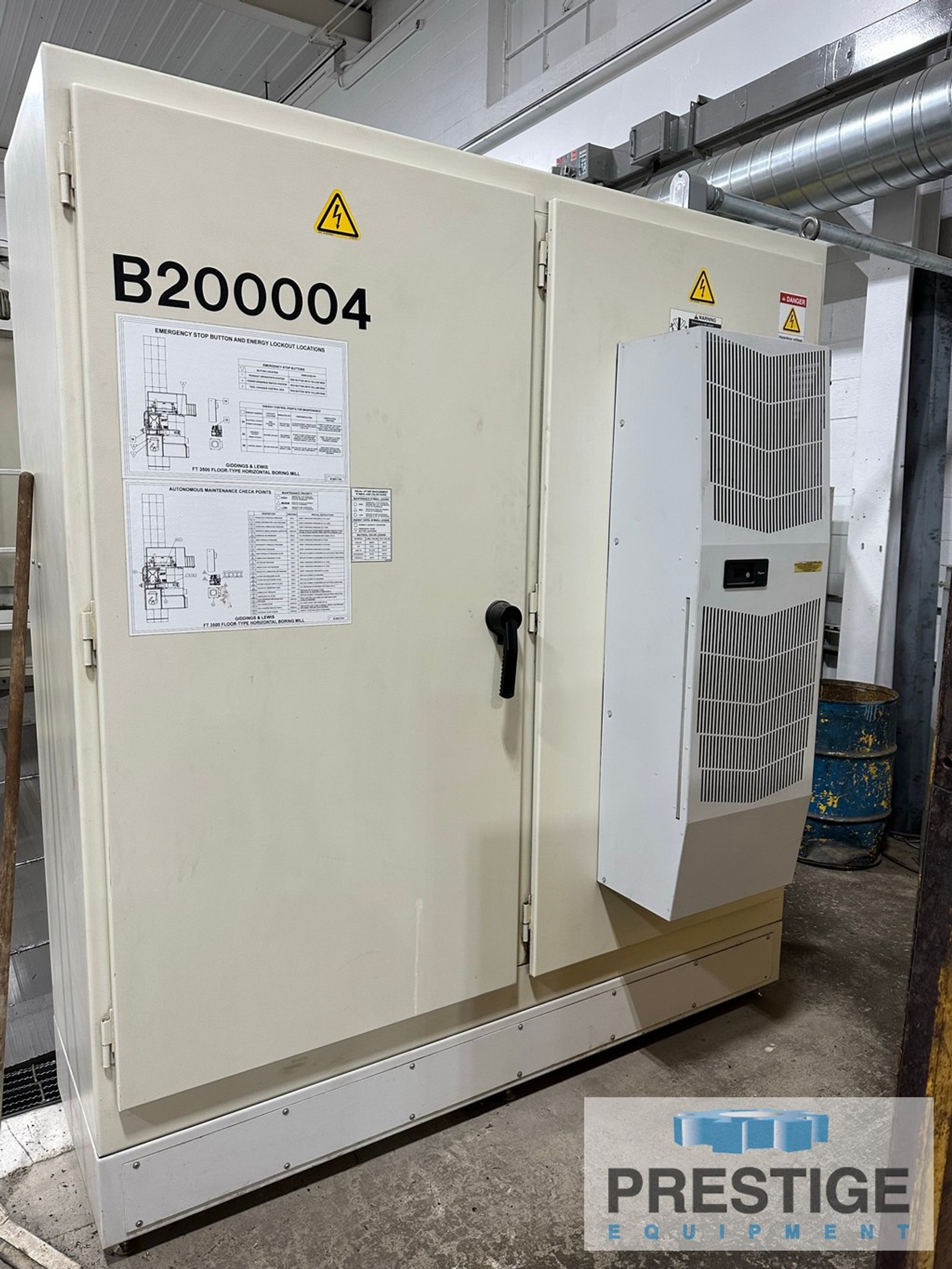

Electrics ............................. 460/3/60
Approximate Machine Height ............ 218"

EQUIPPED WITH:
Fanuc 310i CNC Control
Ethernet Ports & RS232 Port
60 Station Automatic Tool Changer
Through Spindle Coolant System
Part & Tool Probing
Chip Conveyor
50 HP /75 HP Spindle Drive Motor

NOTES:
Originally Purchased for a US Government Defense Project that was Cancelled.
Machine Has Only 2730 Spindle Hours! Video Available on Request.

ALSO AVAILABLE:
Pallet Shuttle System with (2) 60" Square Pallets with Full B-Axis

No Video Available
