5.9" Scharmann Heavy Cut 2 Ram Type, X-780", Y-138", Z-23.4", W-27.6", Angle Head, 60 HP, Heidenhain TNC 407, #27919

Manufacturer

SCHARMANN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

27919

Model

Heavy Cut 2 WFT-150

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27919

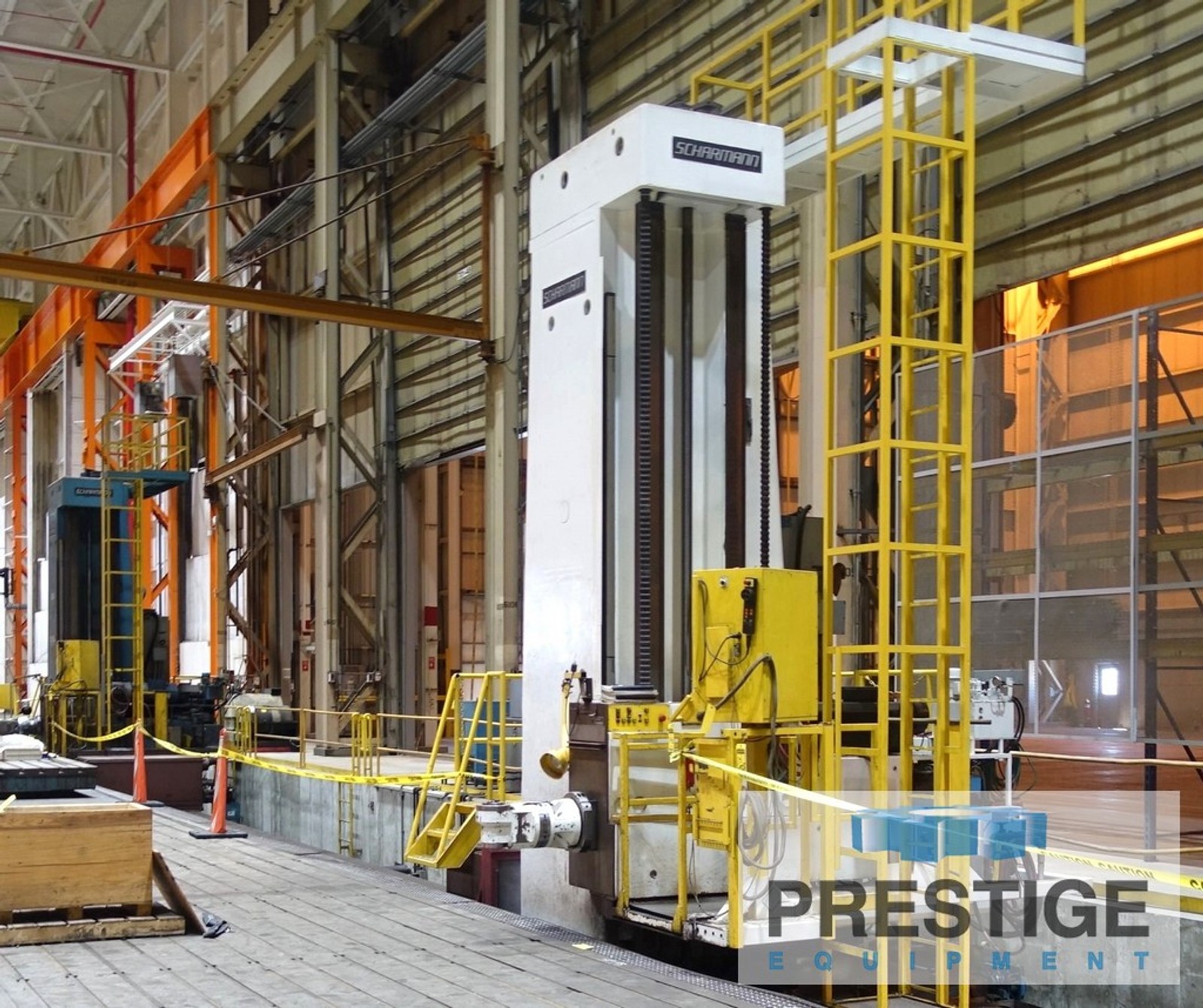

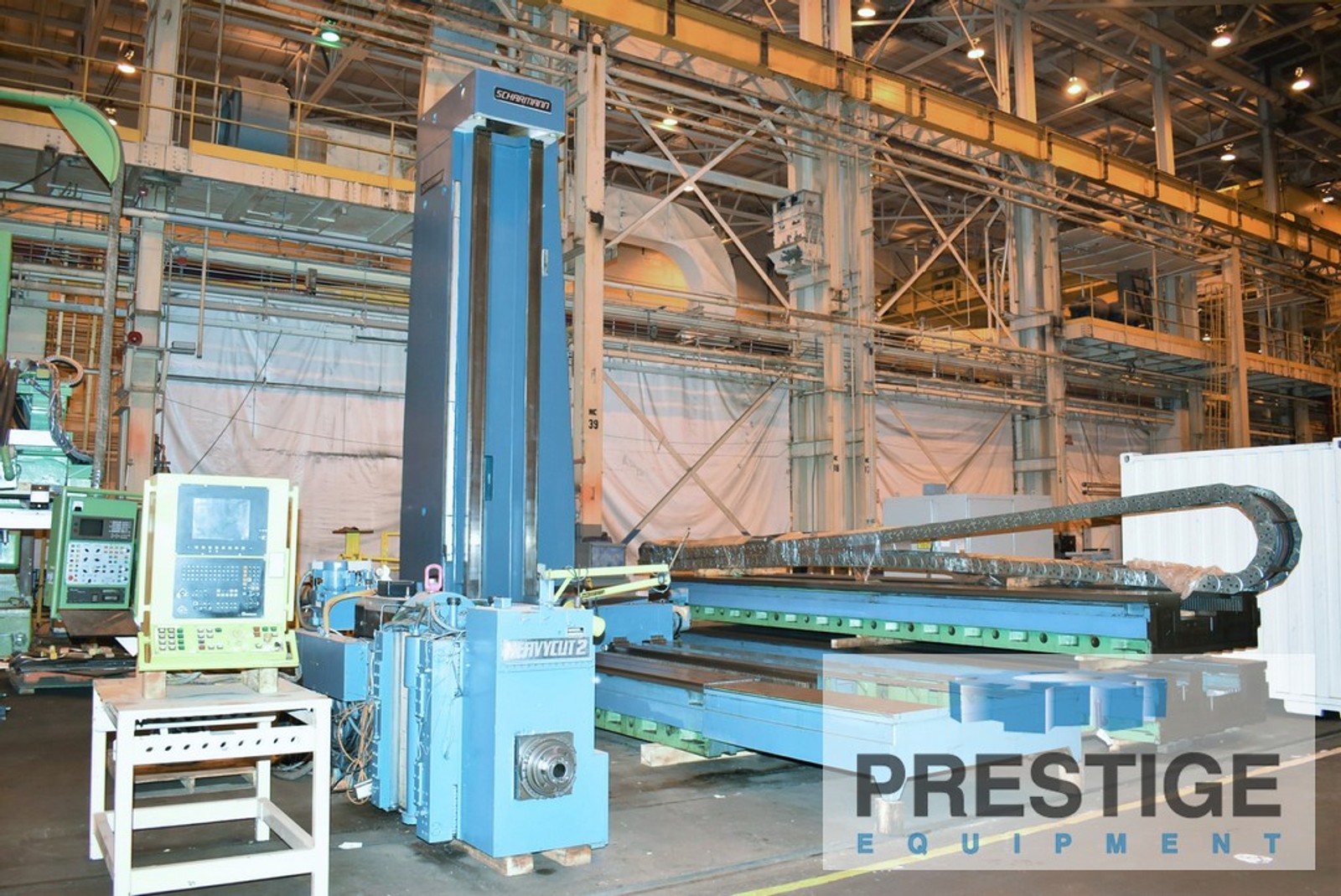

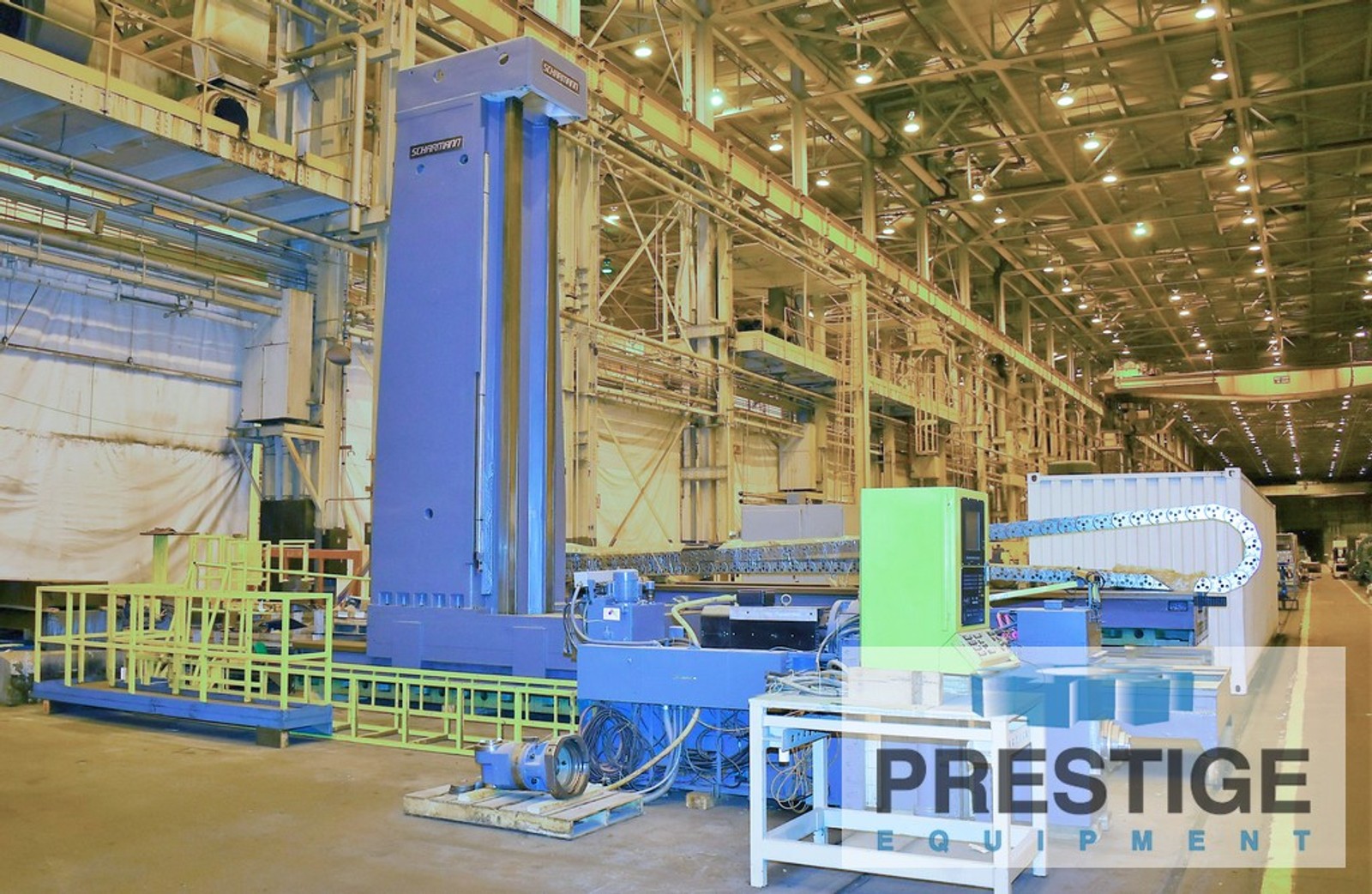

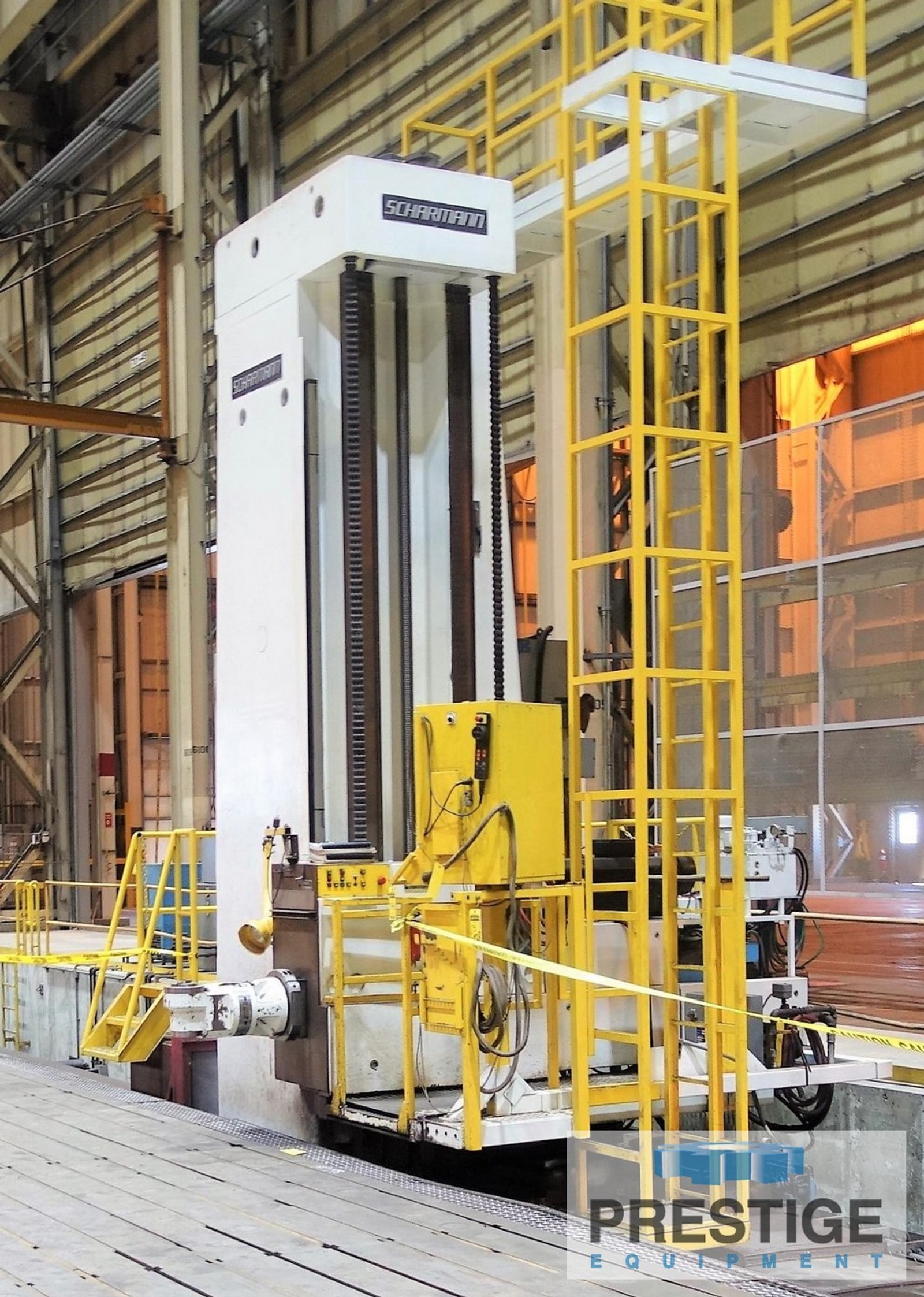

Scharmann HeavyCut 2 WFT 150 5.9" CNC Floor Type Horizontal Boring Mill w/Ram

FEATURES:

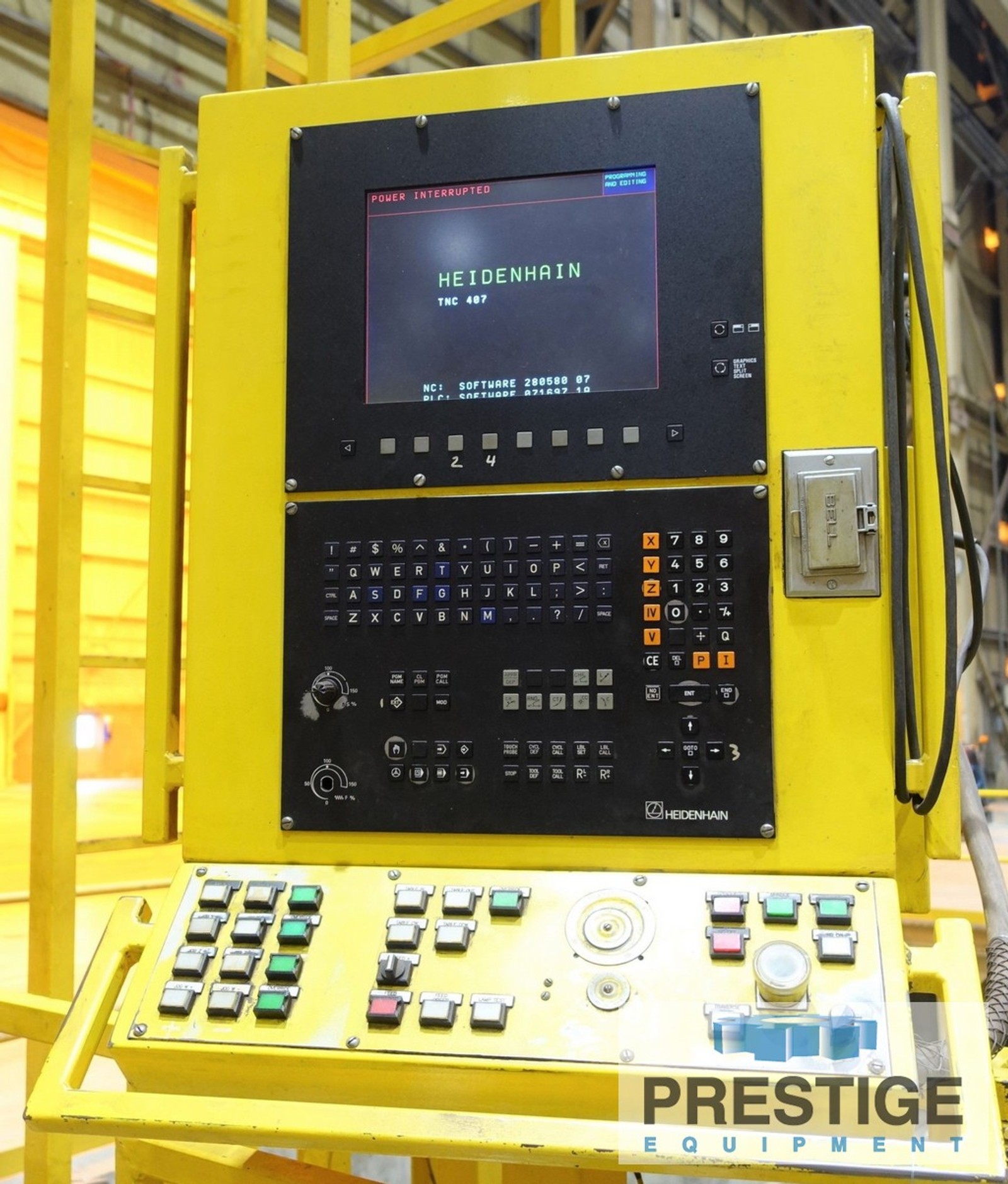

Heidenhain TNC 407 CNC Control
Ram Type
Right Angle Head

SPECIFICATIONS:
Spindle Diameter ..................... 5.9"
Milling Spindle Diameter ............. 11.02"
Spindle Taper ........................ CAT 50
Ram Cross Section .................... 11.81" x 11.81"
Vertical Head Travel, Y-Axis ......... 137.79"
Column Travel, X-Axis ................ 712.59"
Quill Travel, Z-Axis ................. 23.43"
Ram Travel, W-Axis ................... 27.6"
Z & W Axis, Combined ................. 51.03"
Spindle Speeds ....................... 5.5-1000 RPM
Spindle Feed Range ................... 0.003-240 IPM
Rapid Traverse ....................... 396 IPM
Spindle Motor ........................ 70 HP/ 105 HP

EQUIPPED WITH:
Heidenhain TNC 407 CNC Controls
Ram and Spindle Travel

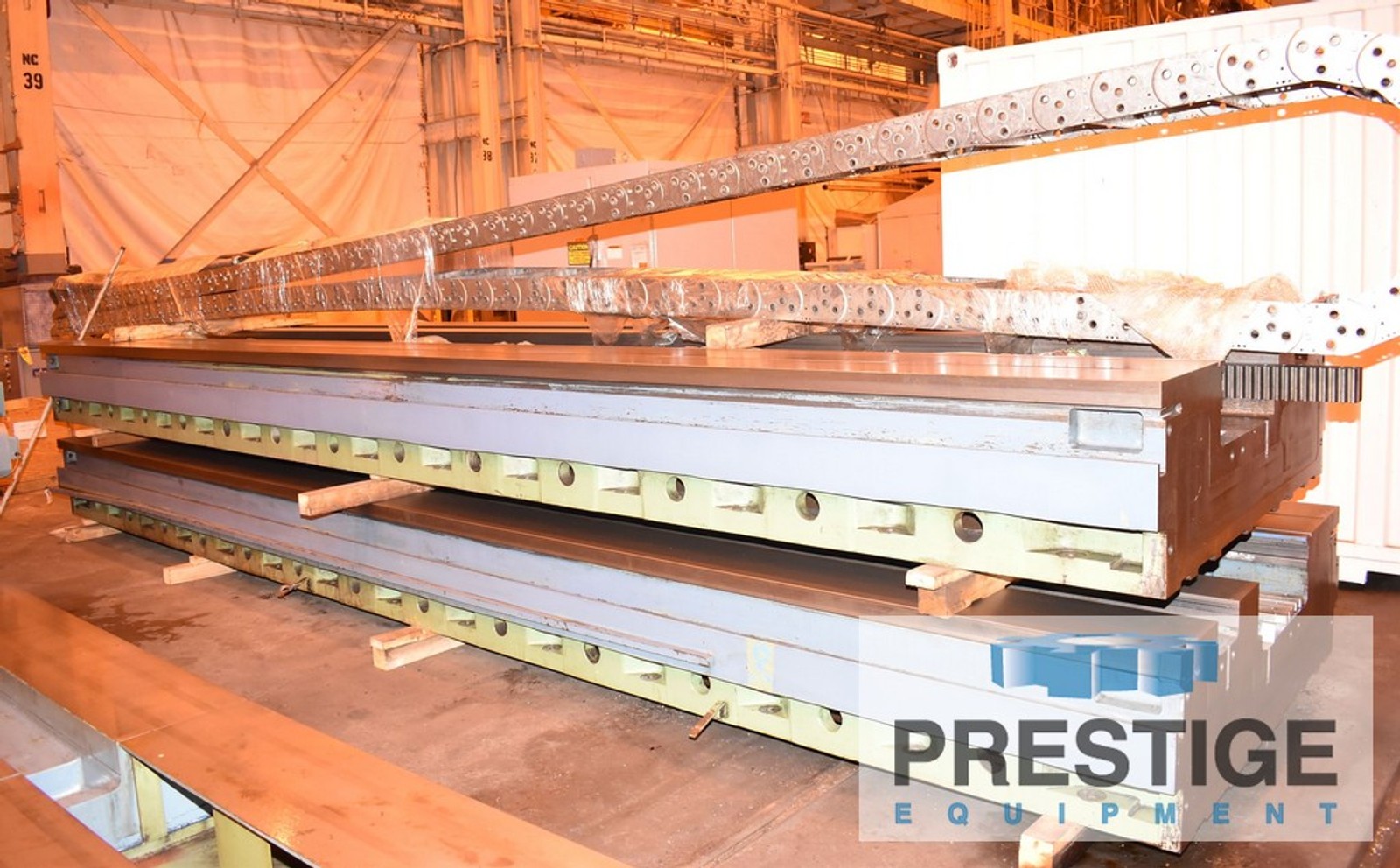

Sliding Way Covers On X-Axis Bed

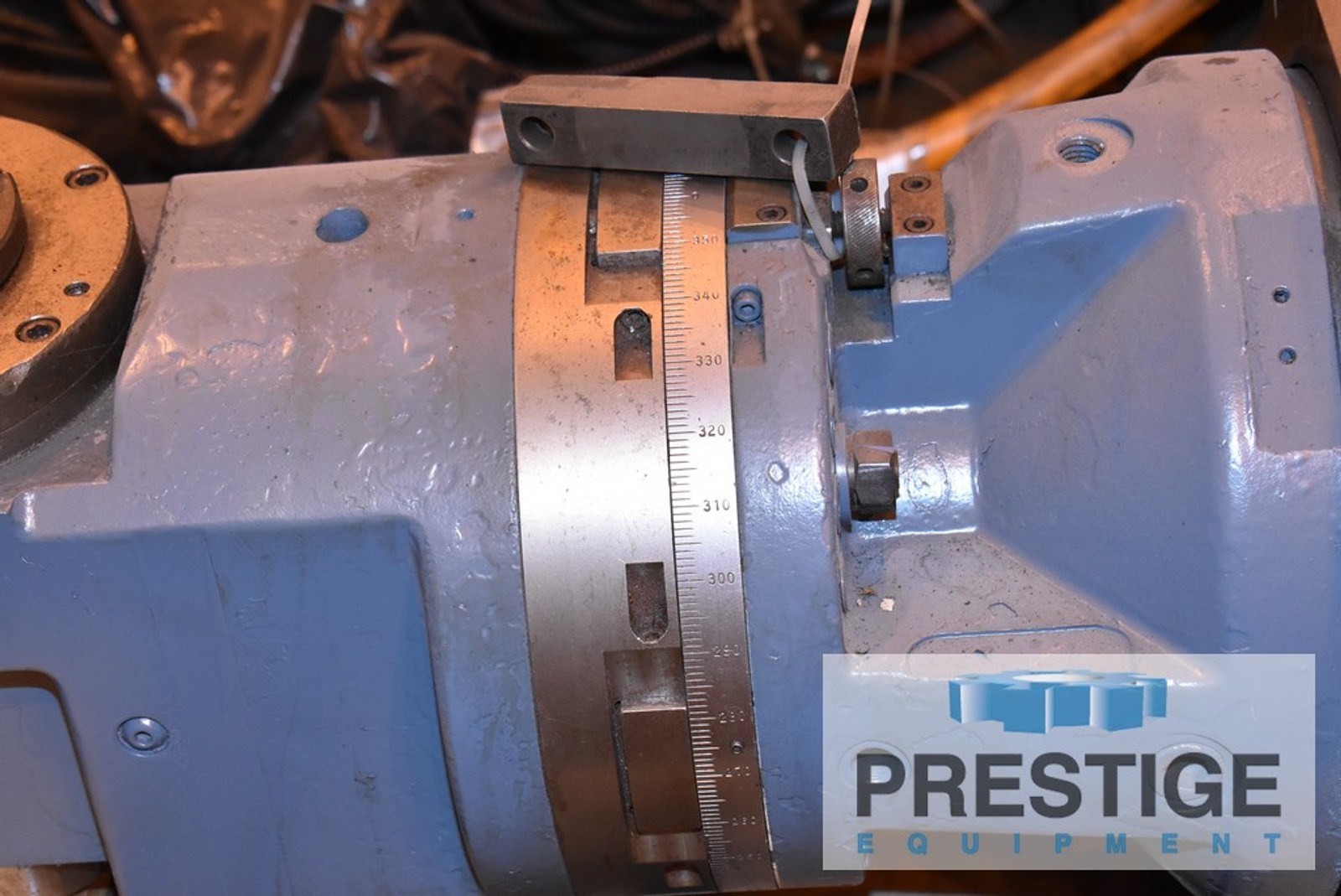

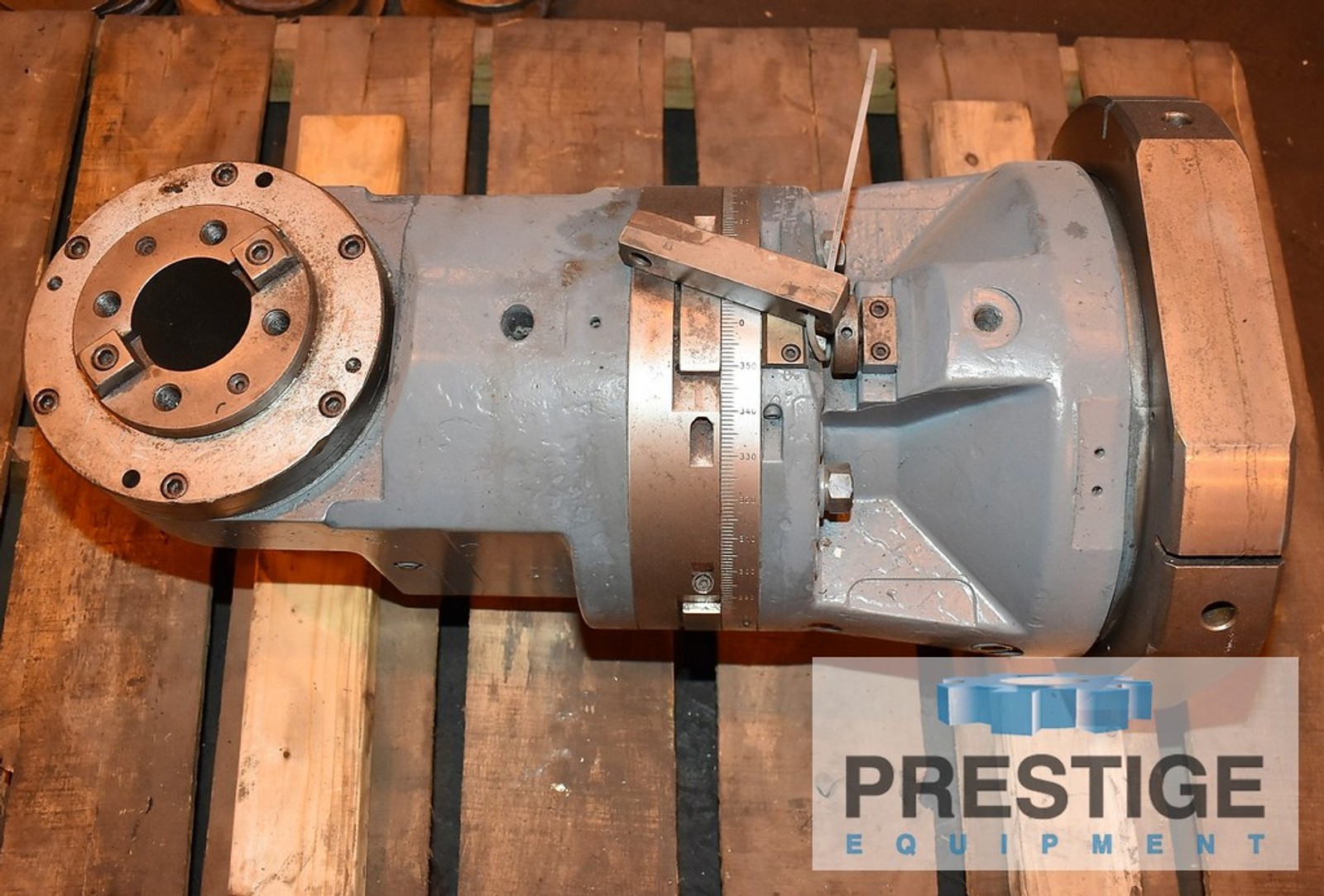

Right Angle Head With 1 Degree Manual Indexing

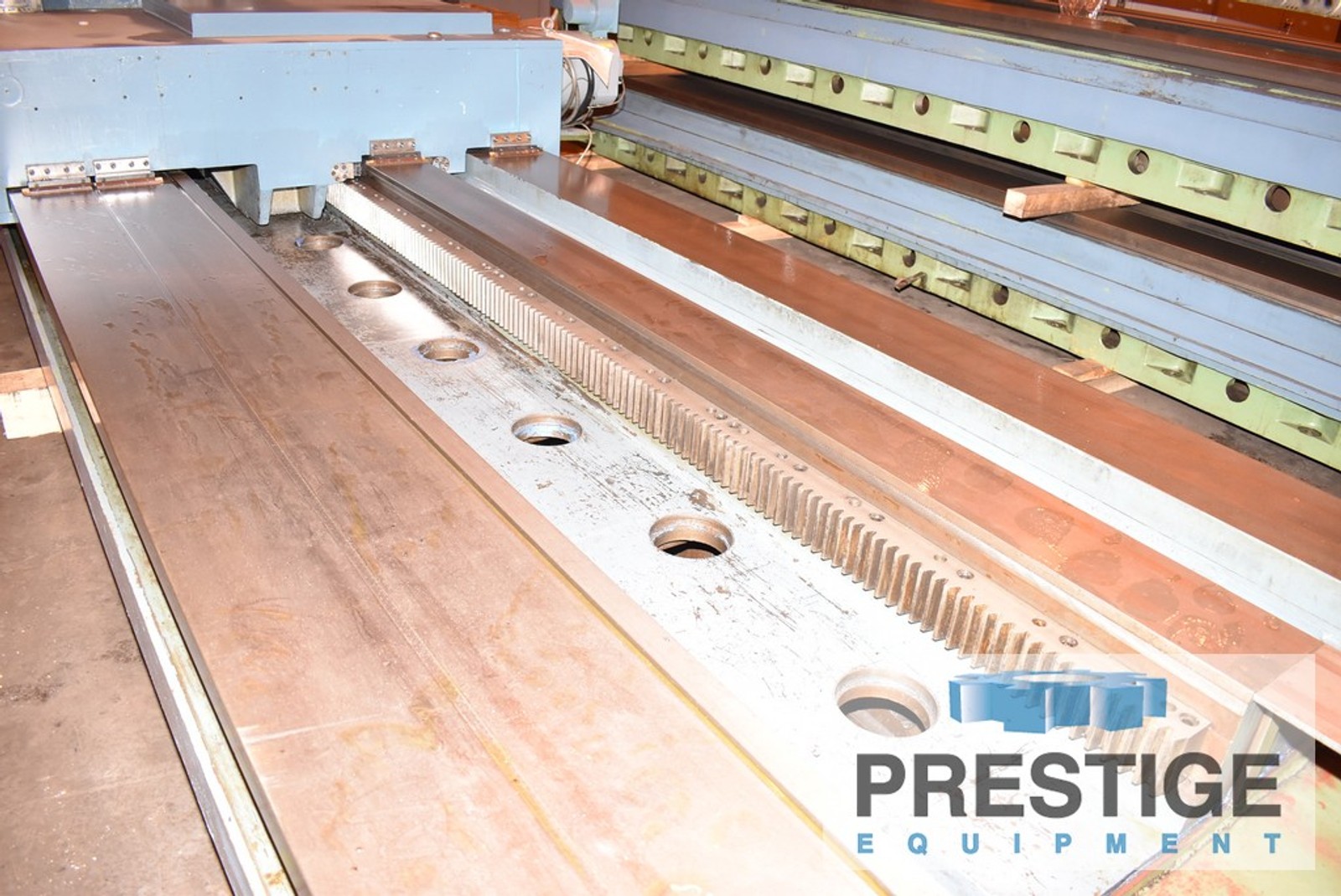

Hardened Ways

NOTES:
Loaded to Your Trucks, From Our Philadelphia Warehouse.
Floor Plates In Photos are Not Available

No Video Available
