7" Giddings & Lewis, H70-T, X-168", Y-120", Z-48", 75/100 HP, Fanuc 0i-MD CNC Retrofit 2022, #32957

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32957

Model

H70-T

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32957

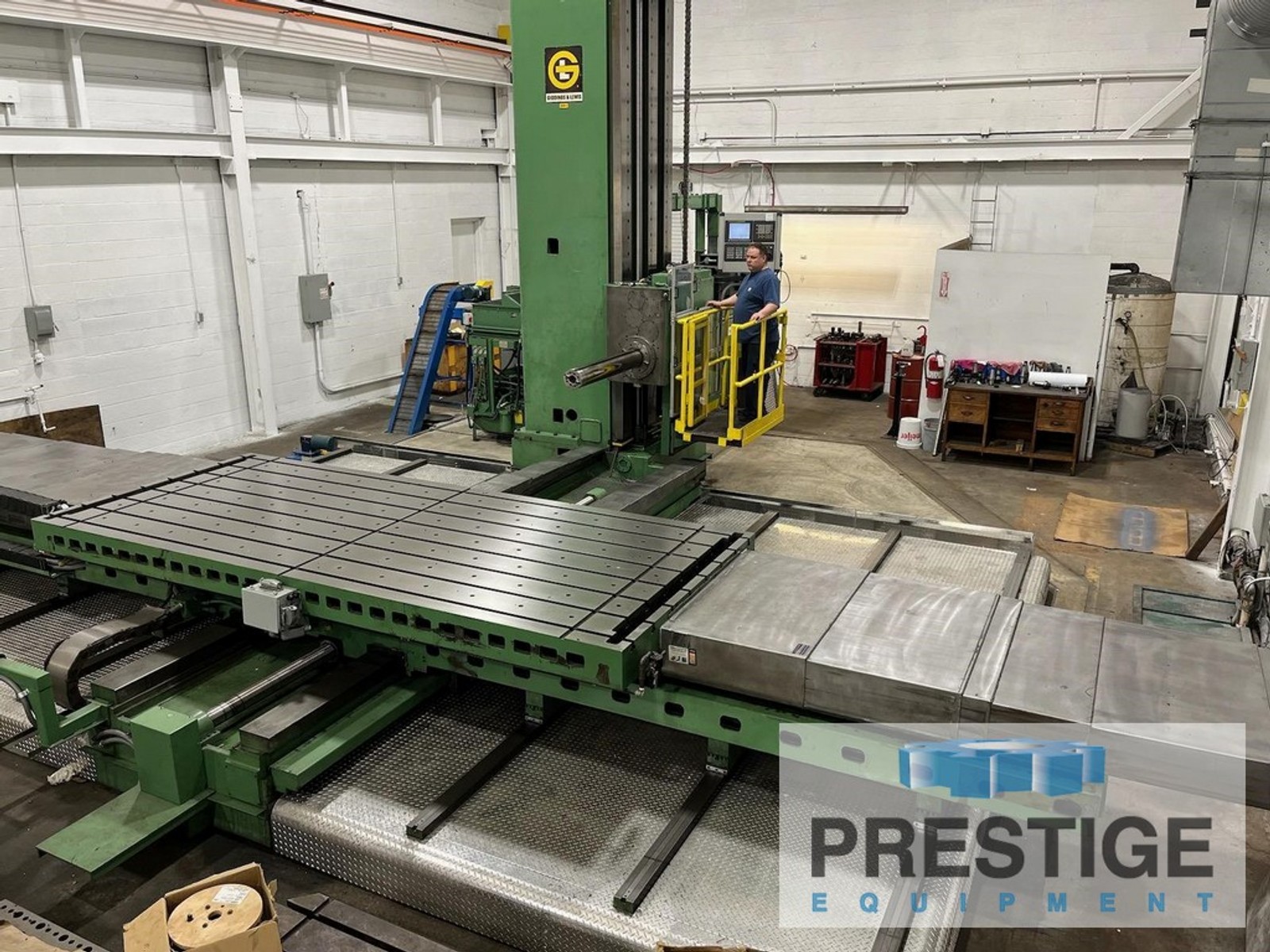

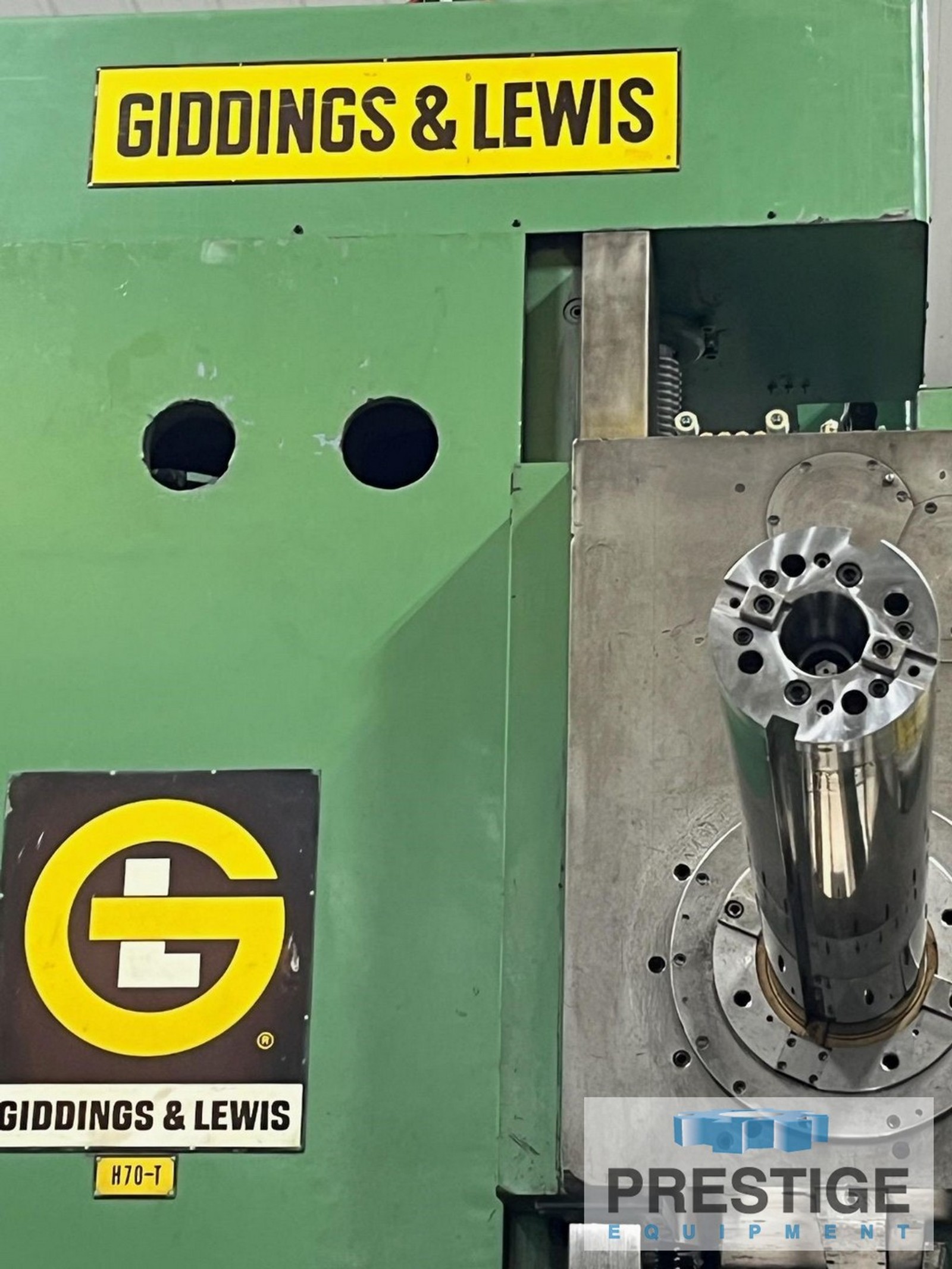

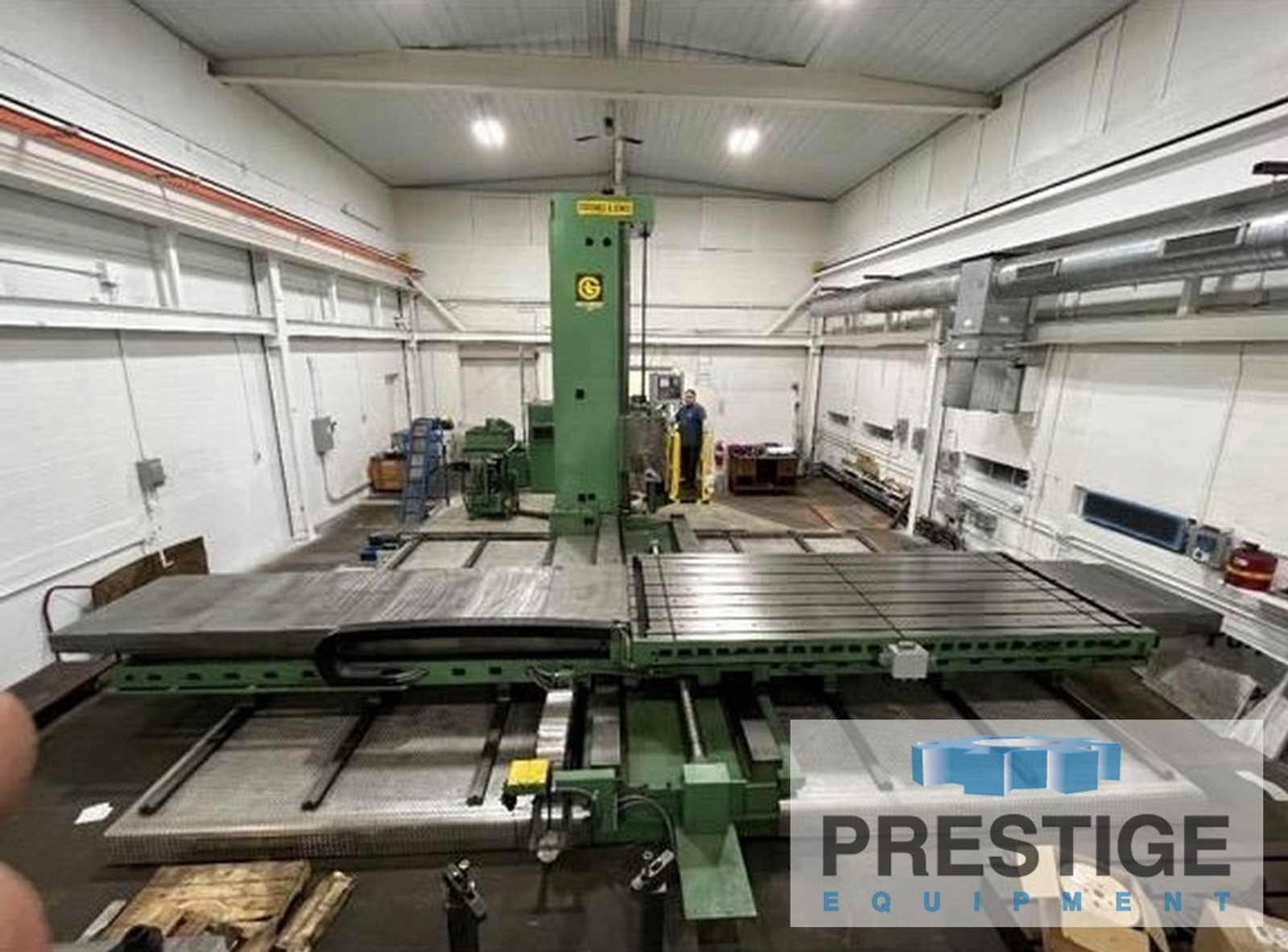

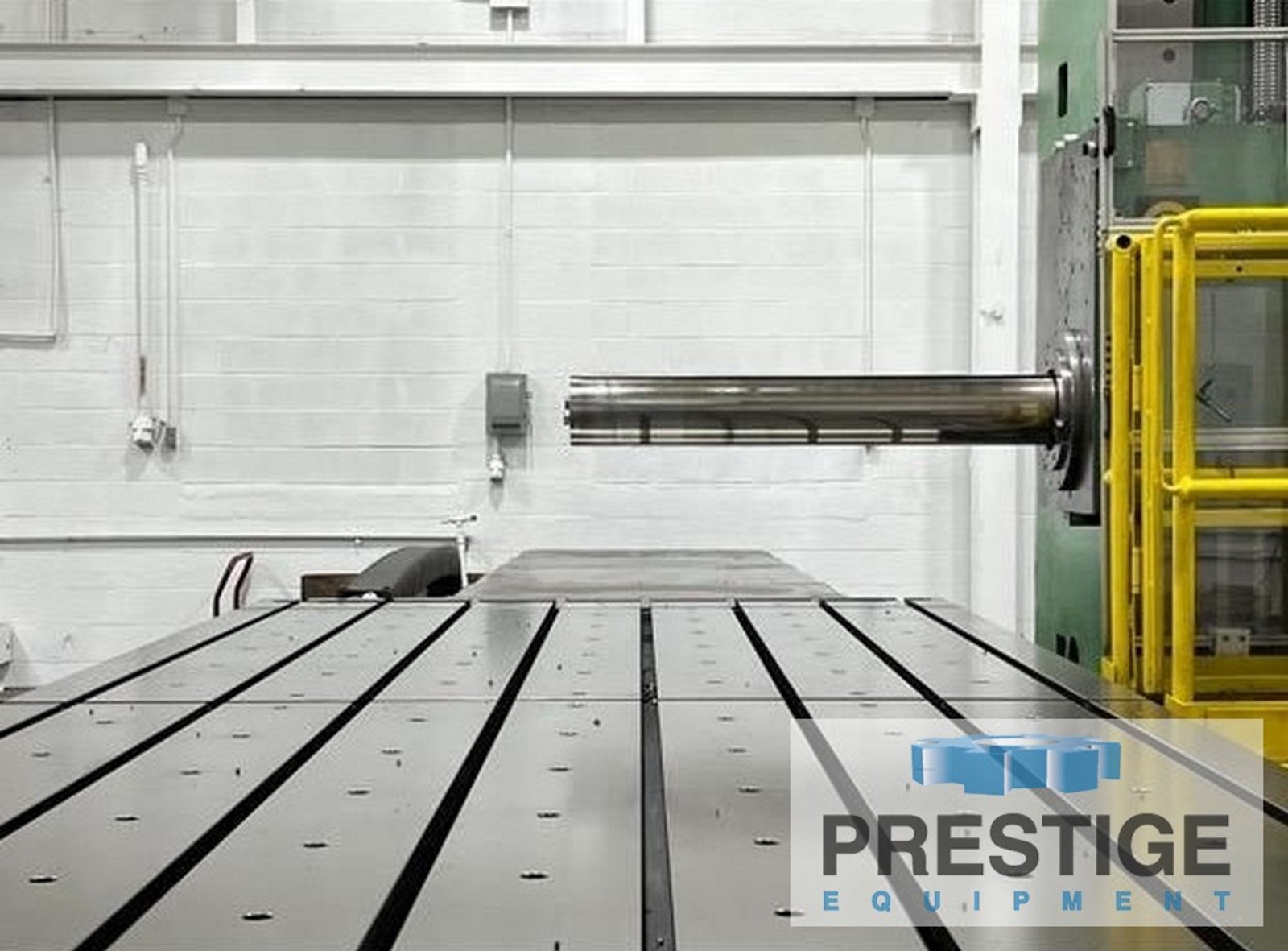

7" Giddings & Lewis H70-T CNC Table Type Horizontal Boring Mill, Retrofit 2022

FEATURES:
Reconditioned & CNC Retrofit 2022
Fanuc Oi-MD CNC
70,000 lb Table Capacity

SPECIFICATIONS:

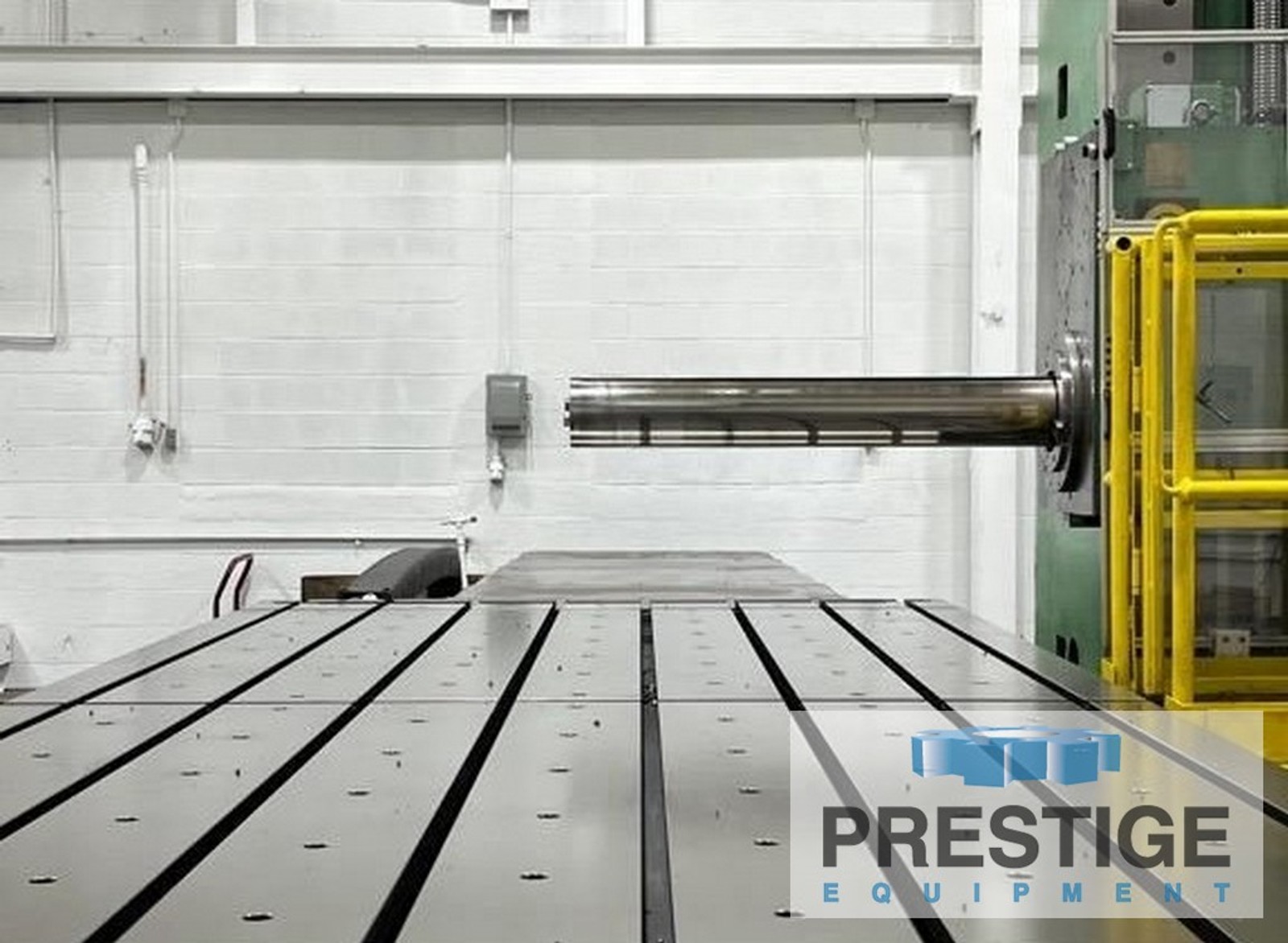

Spindle Diameter ...................... 7"
Spindle Taper ......................... #50
Vertical Head Travel, Y-Axis .......... 120"
Table Cross Travel, X-Axis ............ 168"
Spindle Travel, Z-Axis ................ 48"
Longitudinal Travel, W-Axis ........... 99"
Spindle Speeds ........................ 5 to 1200 RPM
Table Size ............................ 72" x 170"
Table Weight Capacity ................. 70,000 Lbs
Feeds, X,Y,Z,W Axes ................... .1 to 180 IPM
Spindle Motor ......................... 75 HP/100 HP
Machine Footprint W x D ............... 403" x 373"
Machine Height ........................ 239"

EQUIPPED WITH:

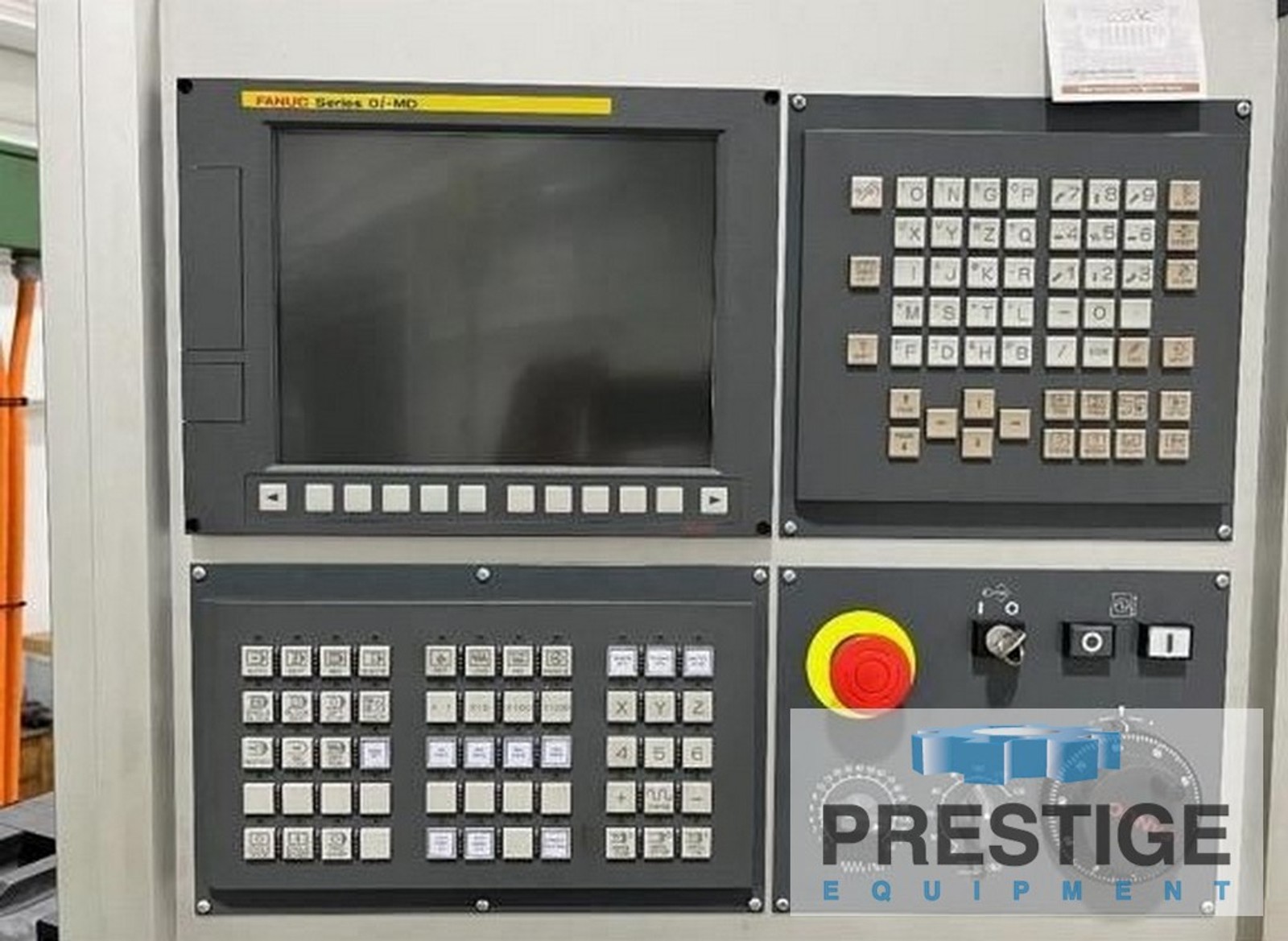

Fanuc 0i-MD CNC Control Retrofit 2022
Heavy Duty Hardened Box Ways on All Axis

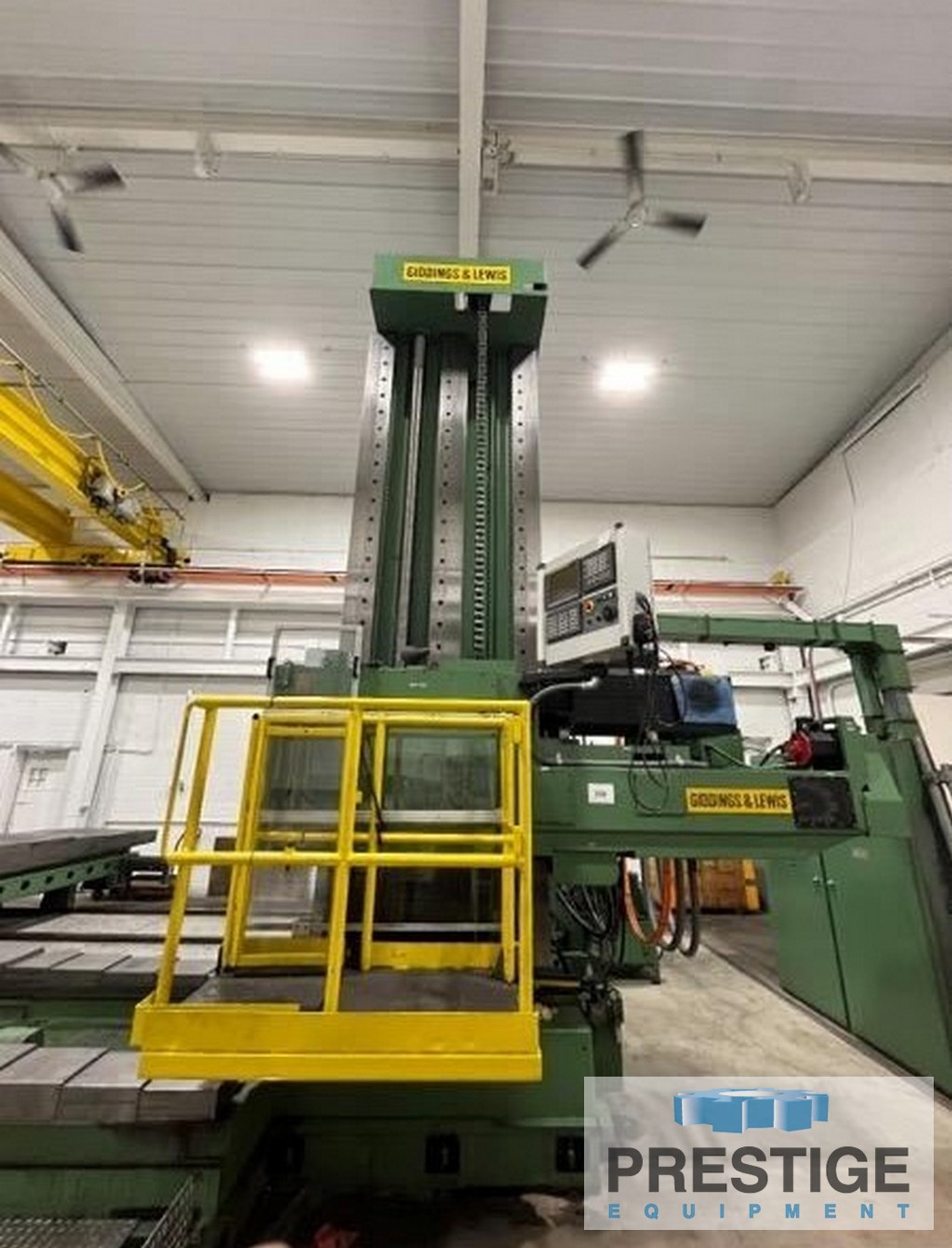

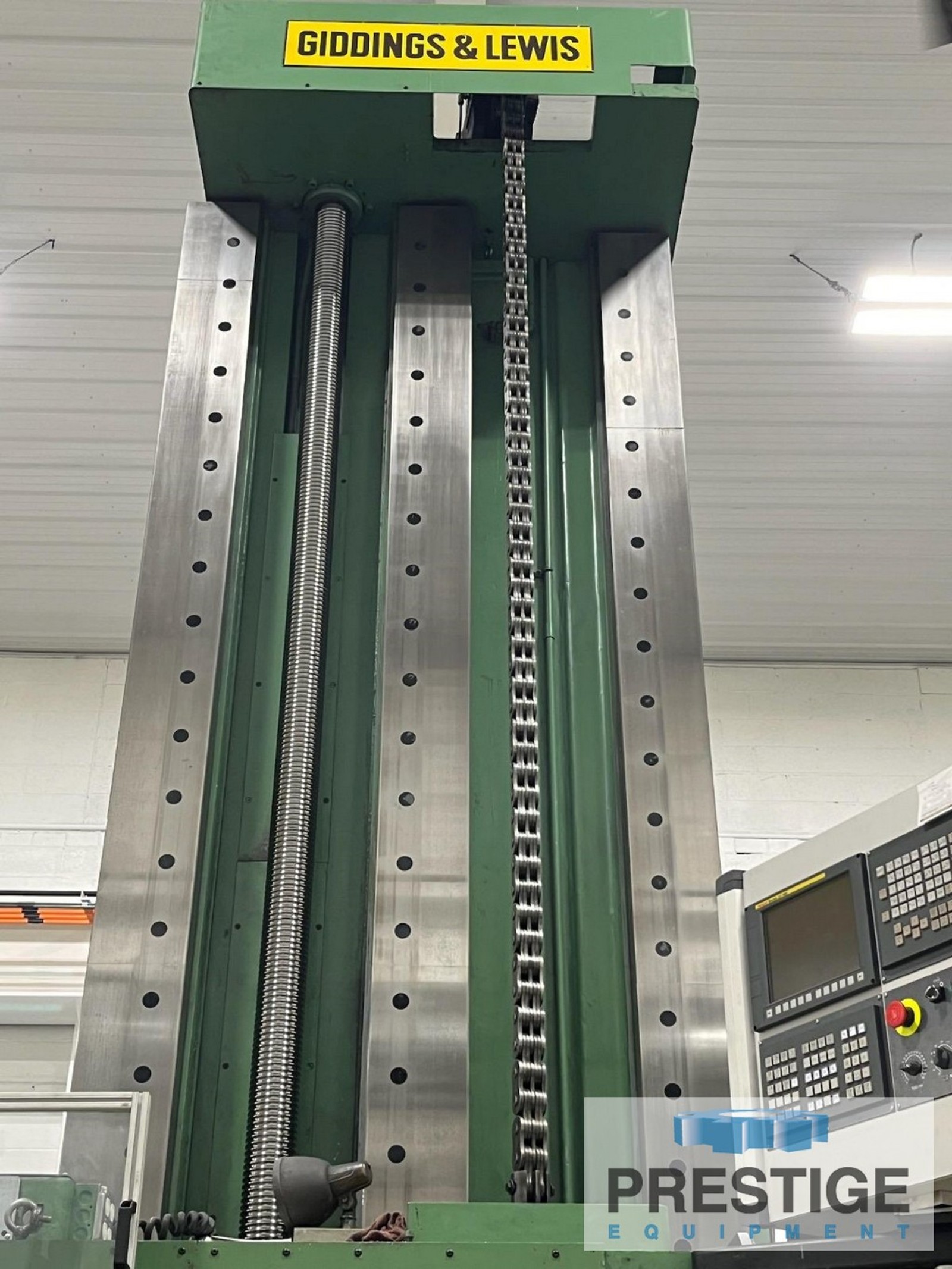

3-Way Vertical Column

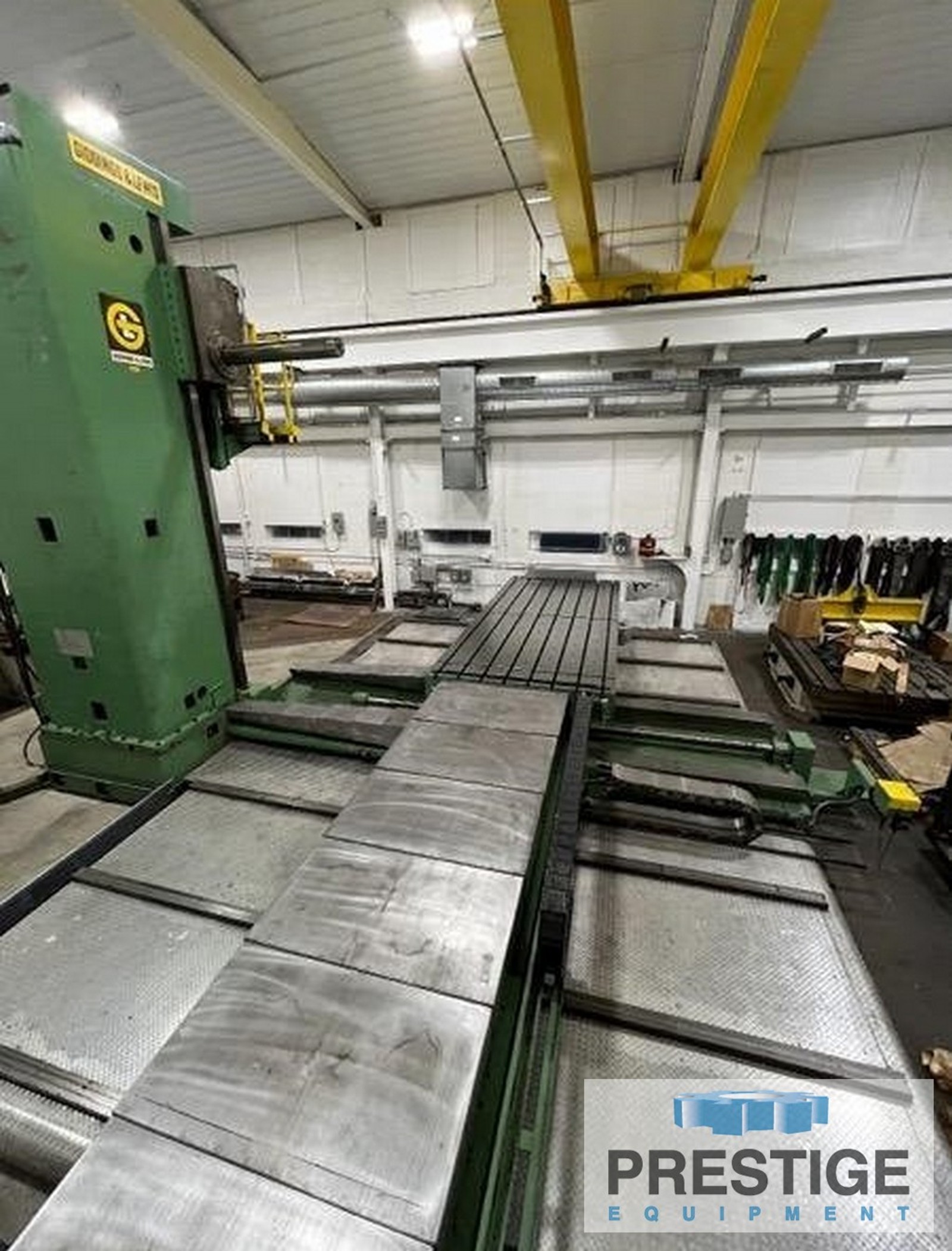

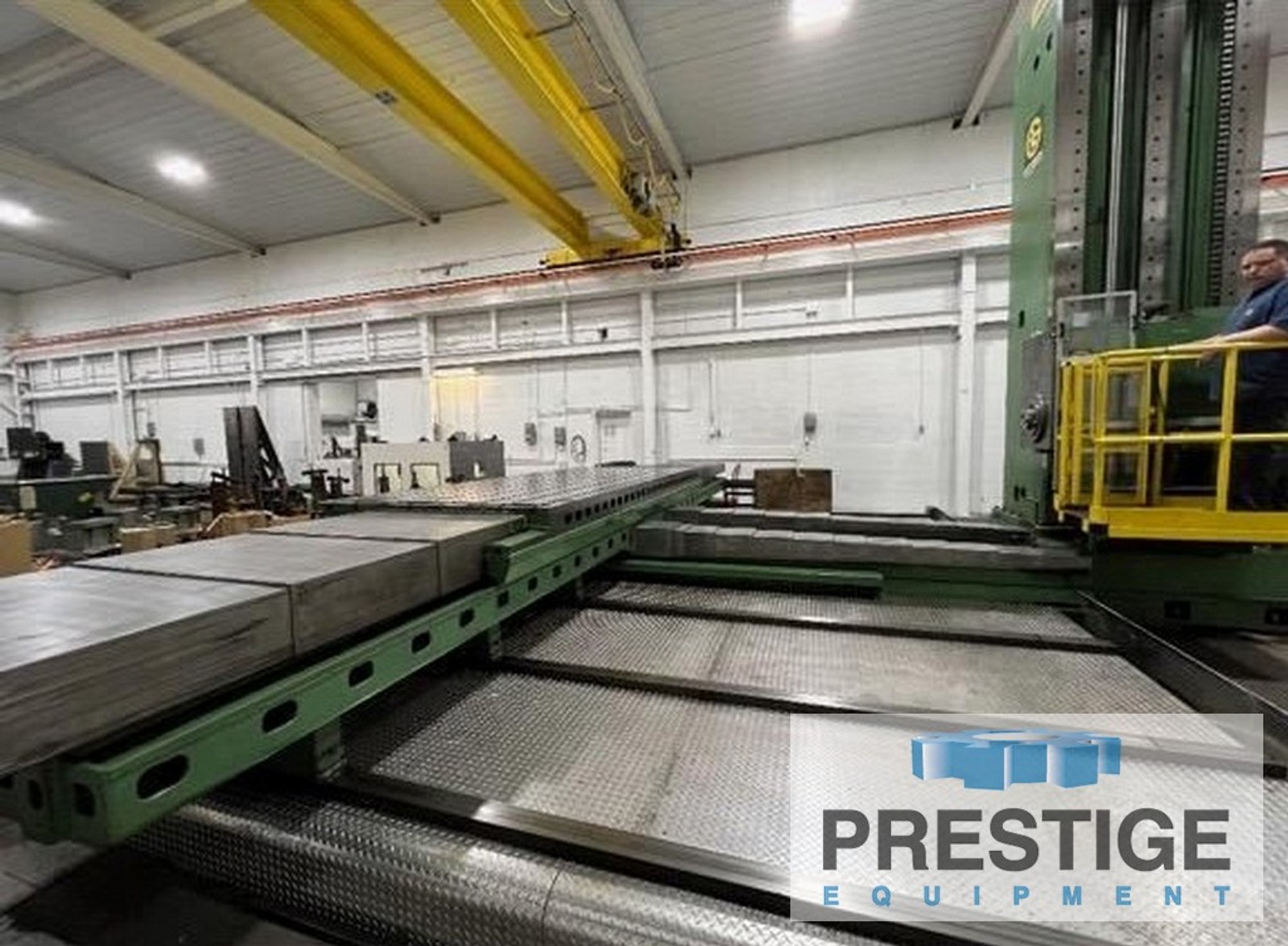

Triple Outrigger Table Supports
Ballscrews & Independent AC Servo Drives On All Axes
Steel Telescoping Way Covers
Giddings & Lewis Right Angle Head

NOTES:
In 2022 Machine Was Retrofit with New Fanuc CNC Controls, Ball Screws Reconditioned, All Hardened Ways Were Examined And Qualified to be in "As New Condition". New AC Drives, New Fagor Servo Motors and Scales, New Fagor 75/100 HP AC Spindle Drive Motor, New Wipers, Re-Conditioned Telescoping Way Covers, New CAT 50 Spindle Taper, Power Draw Bar and Spindle Tested and Qualified.

Inspect Under Power

No Video Available
