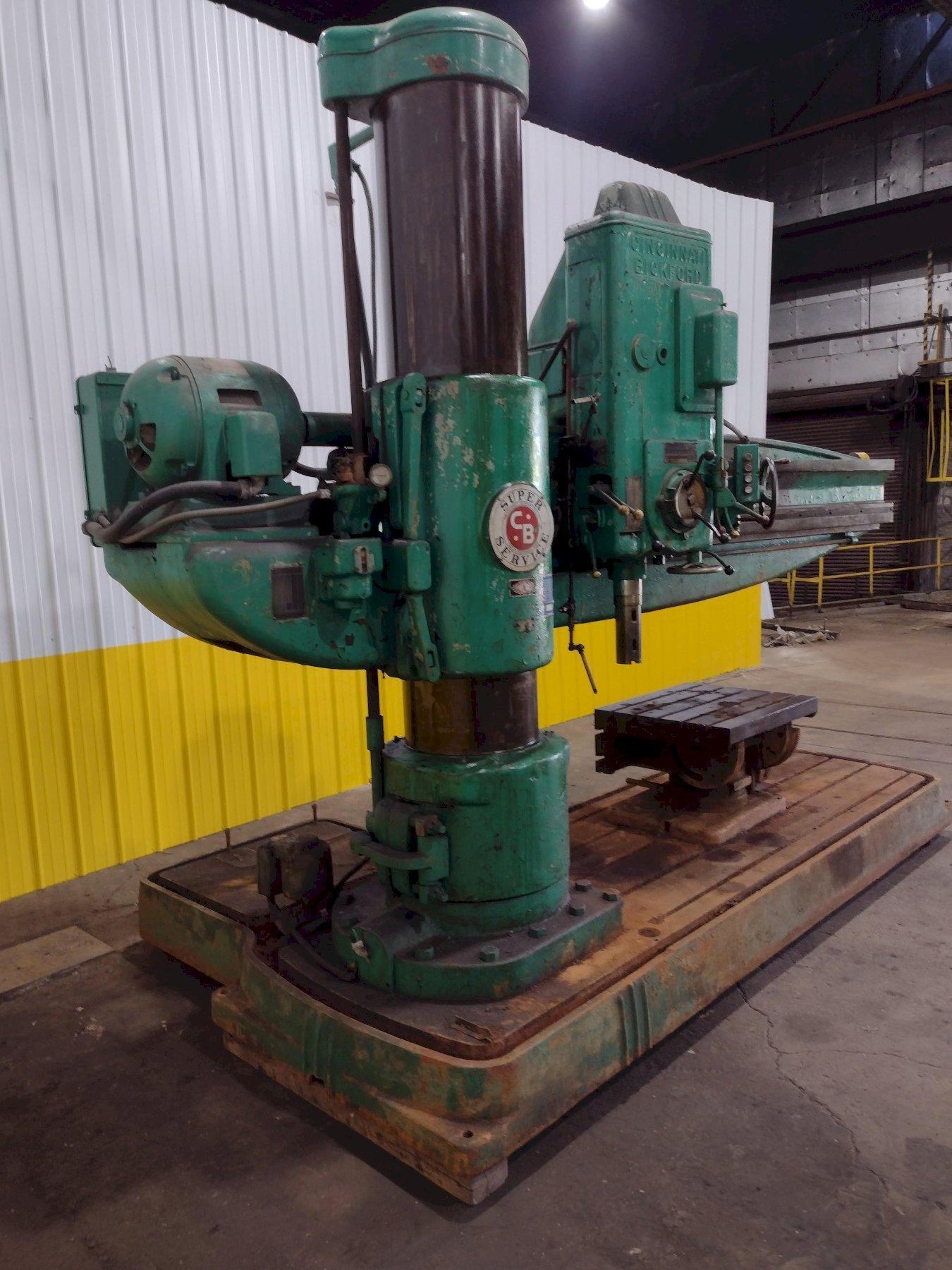

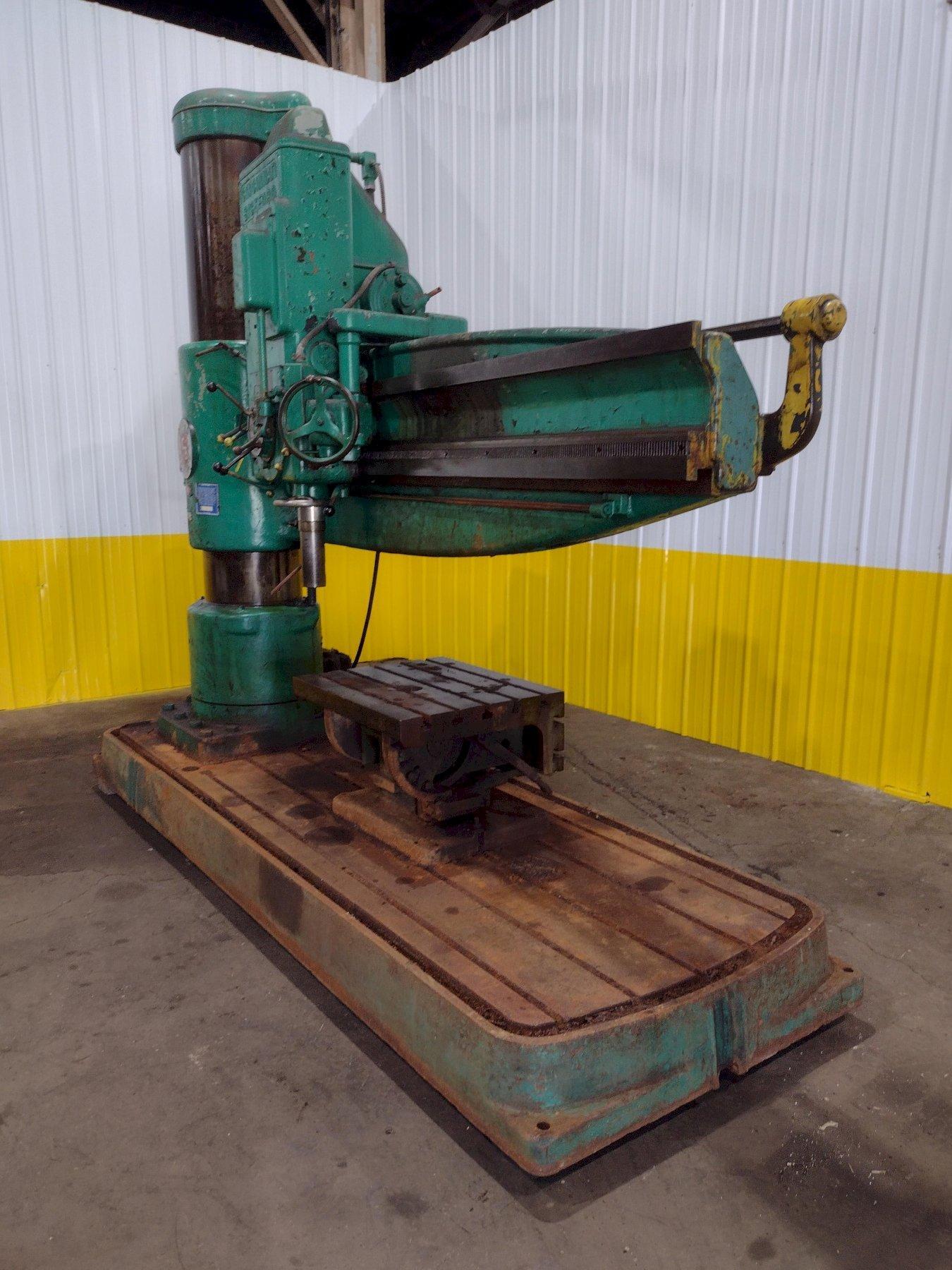

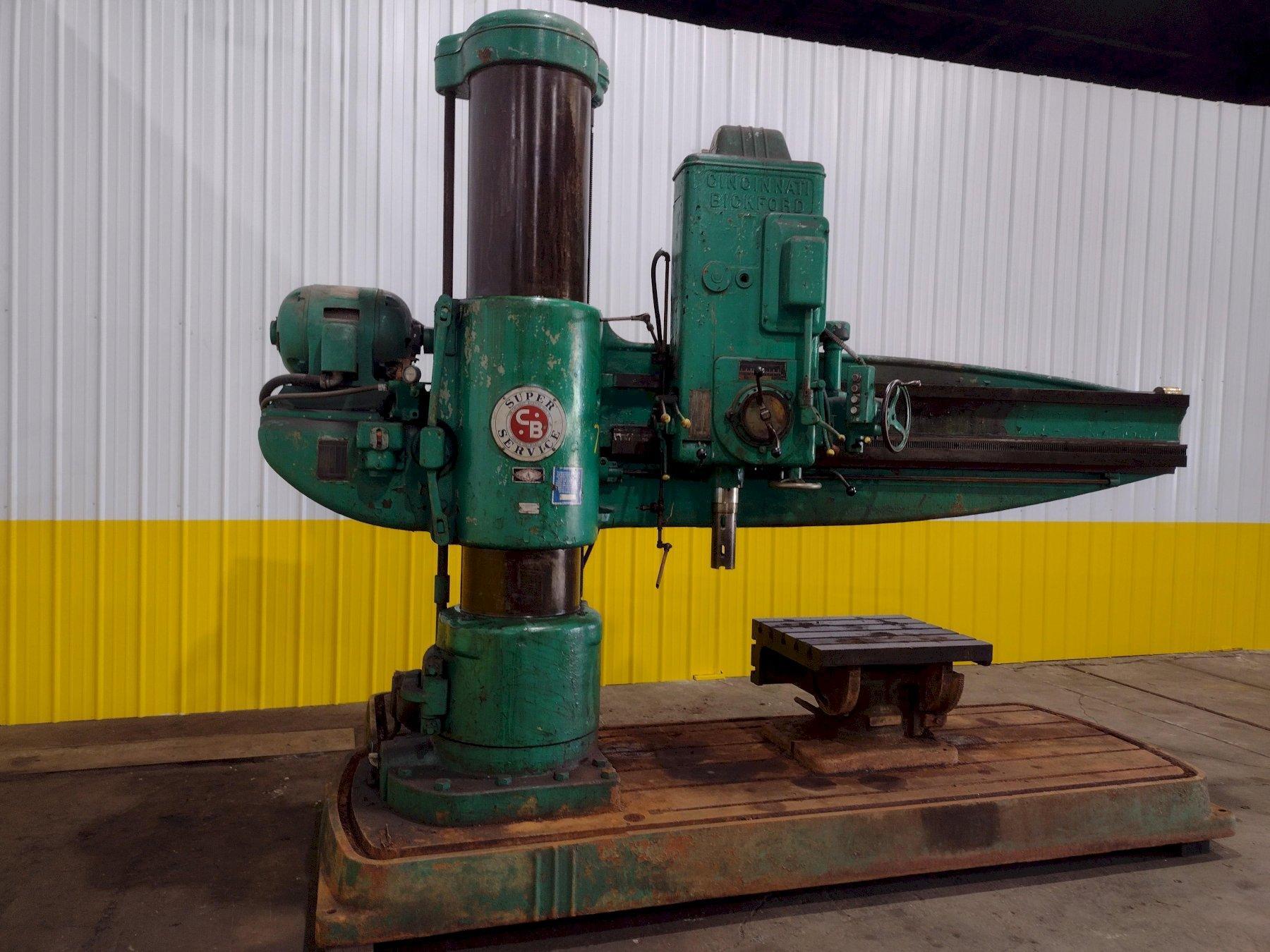

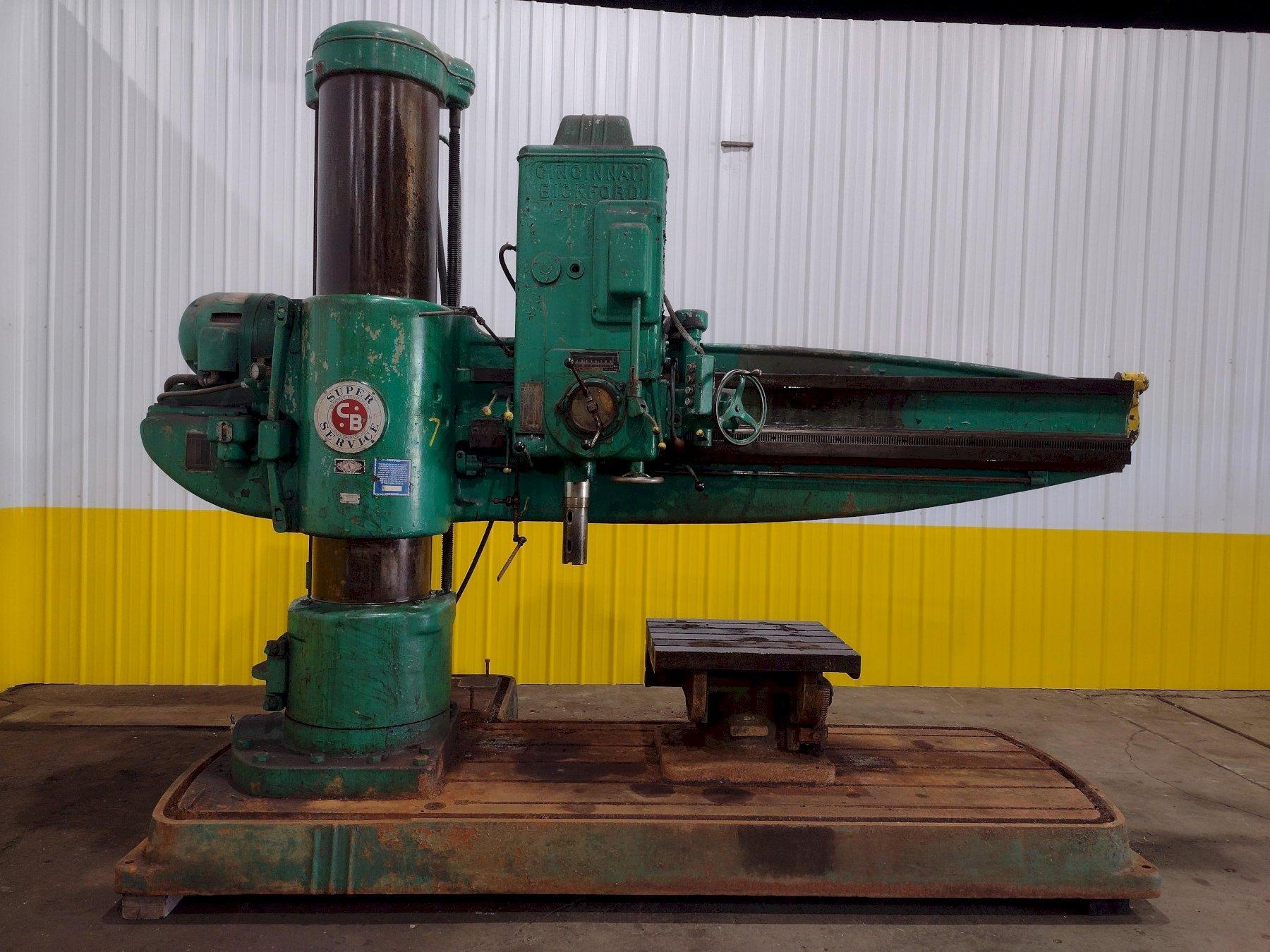

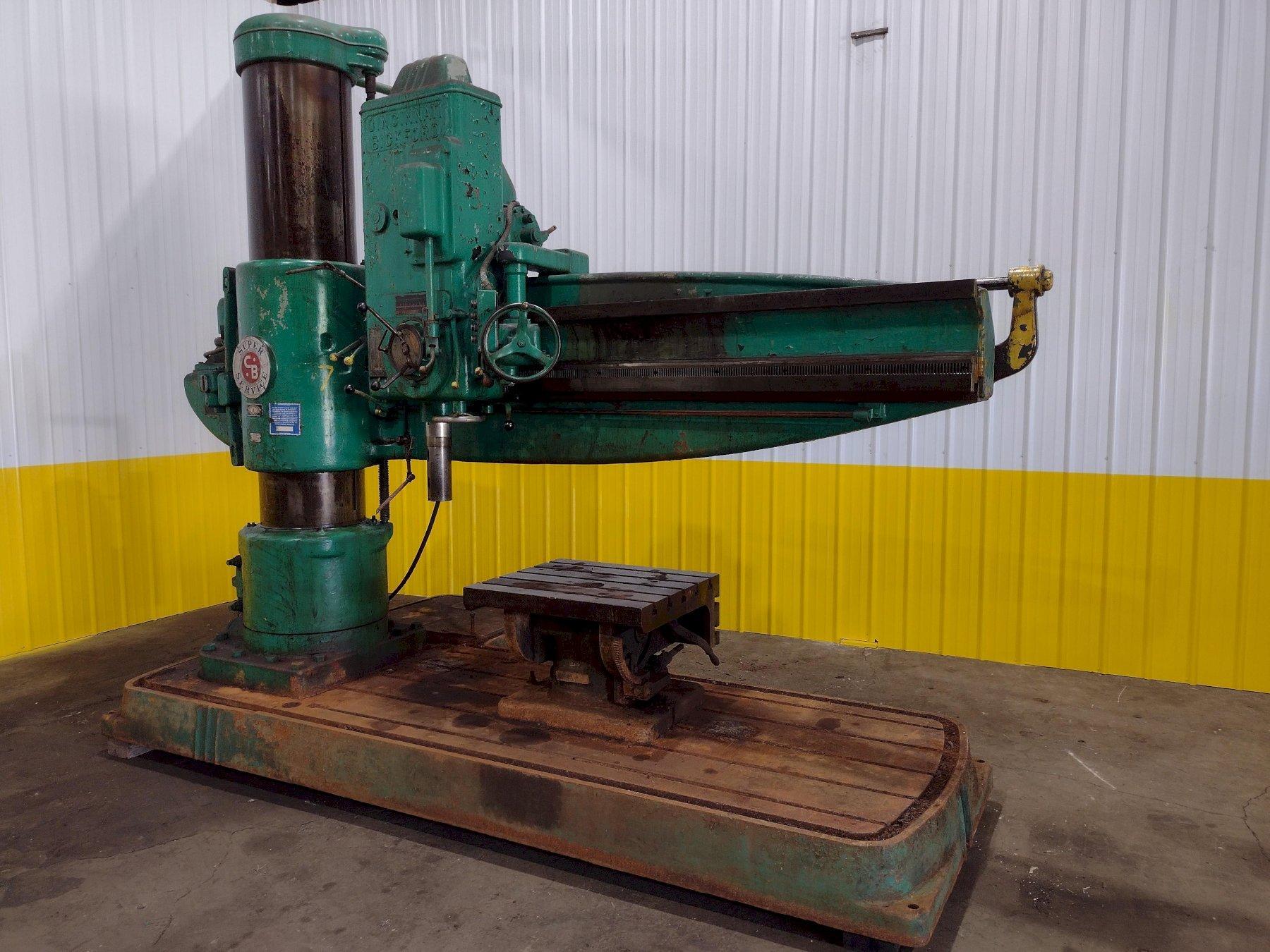

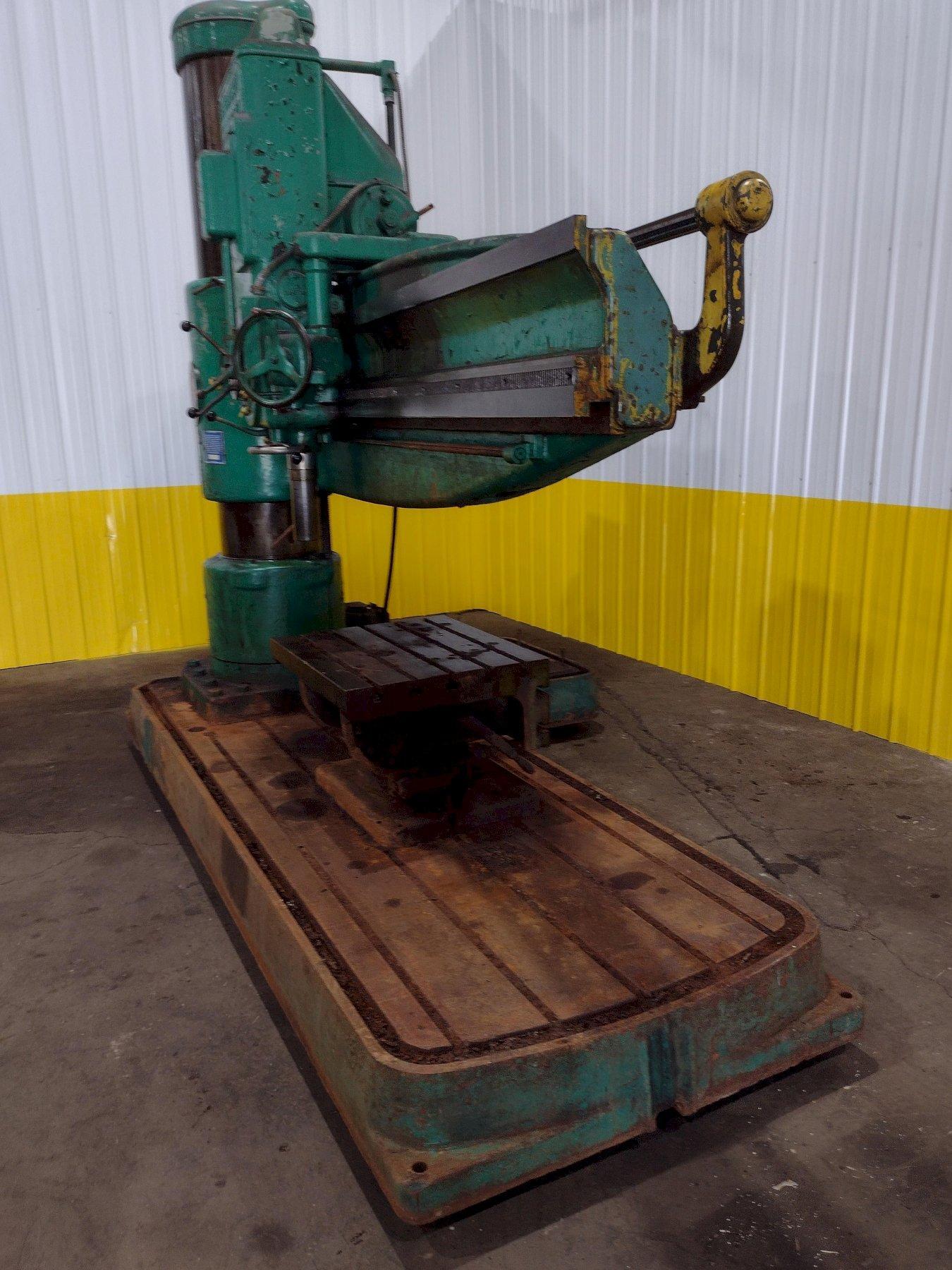

6' X 17"CINCINNATI BICKFORD MODEL #6E SUPER SERVICE RADIAL ARM DRILL: STOCK #18249

Manufacturer

CINCINNATI BICKFORD

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

18249

Model

6E SUPER

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

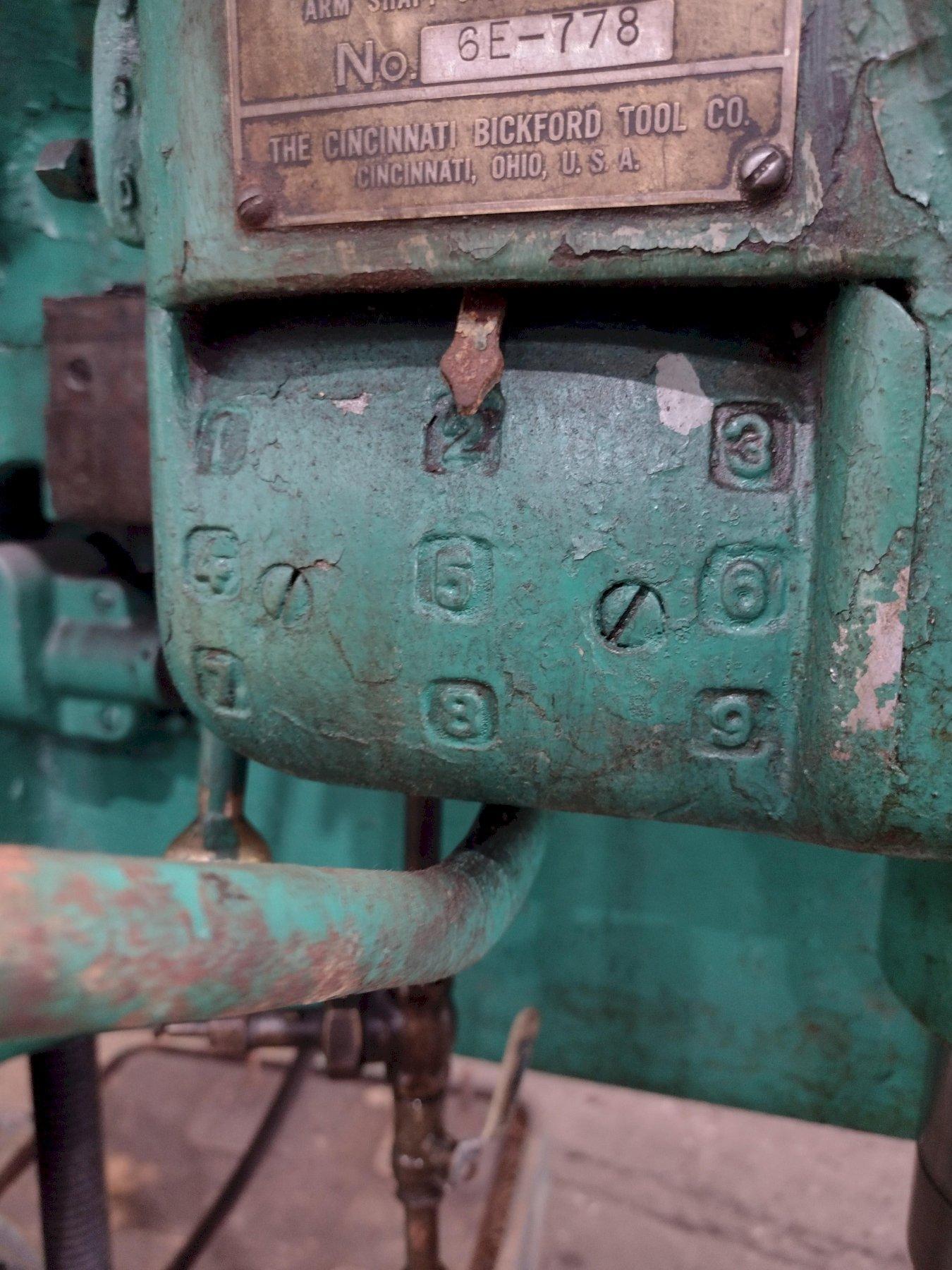

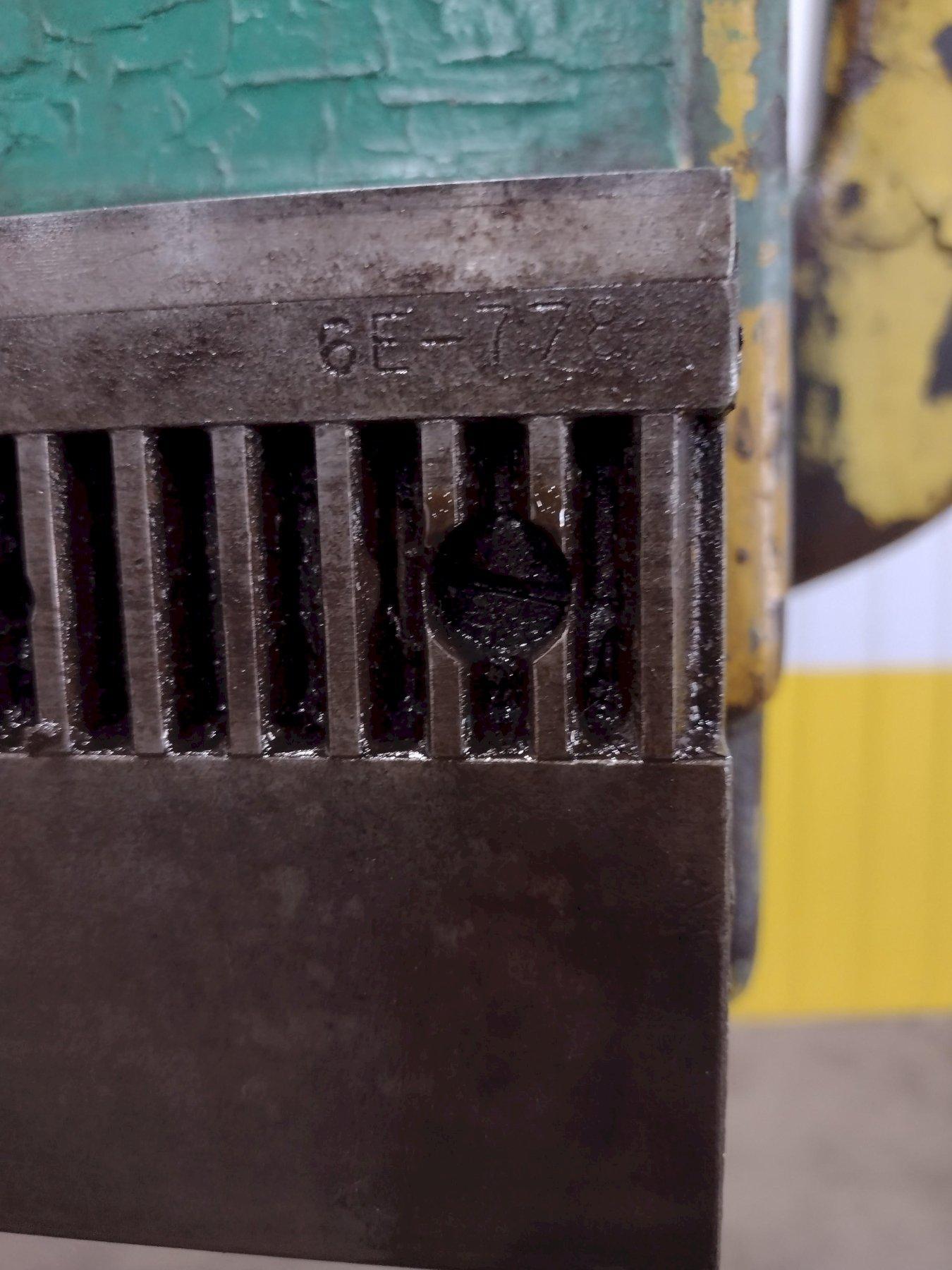

SERIAL ........................... 6E-778
CAPACITY ......................... 6' X 17"
WORKING SURFACE OF BASE .......... 82" X 50"
SPINDLE SPEEDS ................... (30) 8 TO 1000 RPM

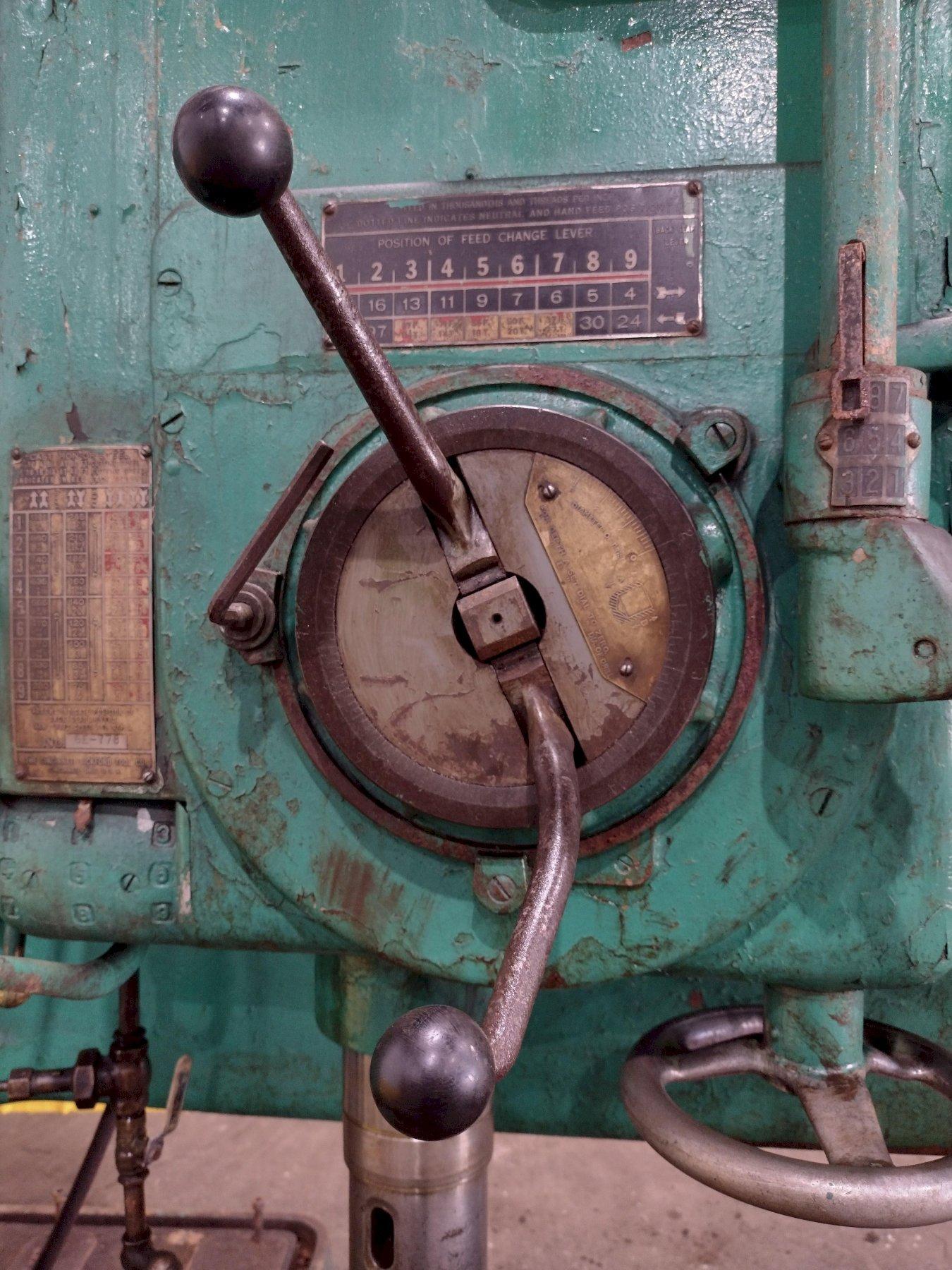

FEEDS ............................ (18) .004 TO .125 TPR
THREADS .......................... 8, 10, 12, 14
SPINDLE TRAVEL ................... 18

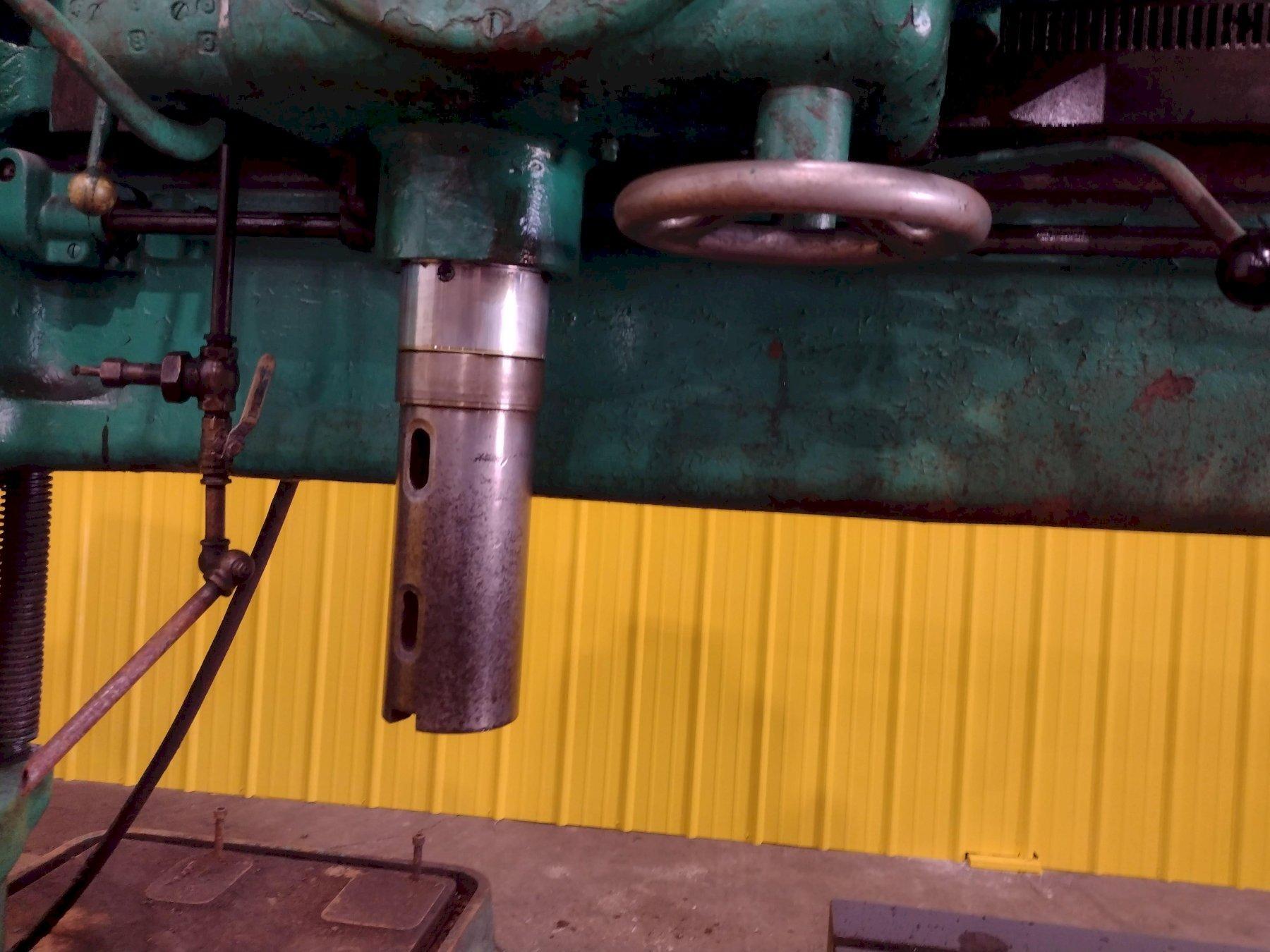

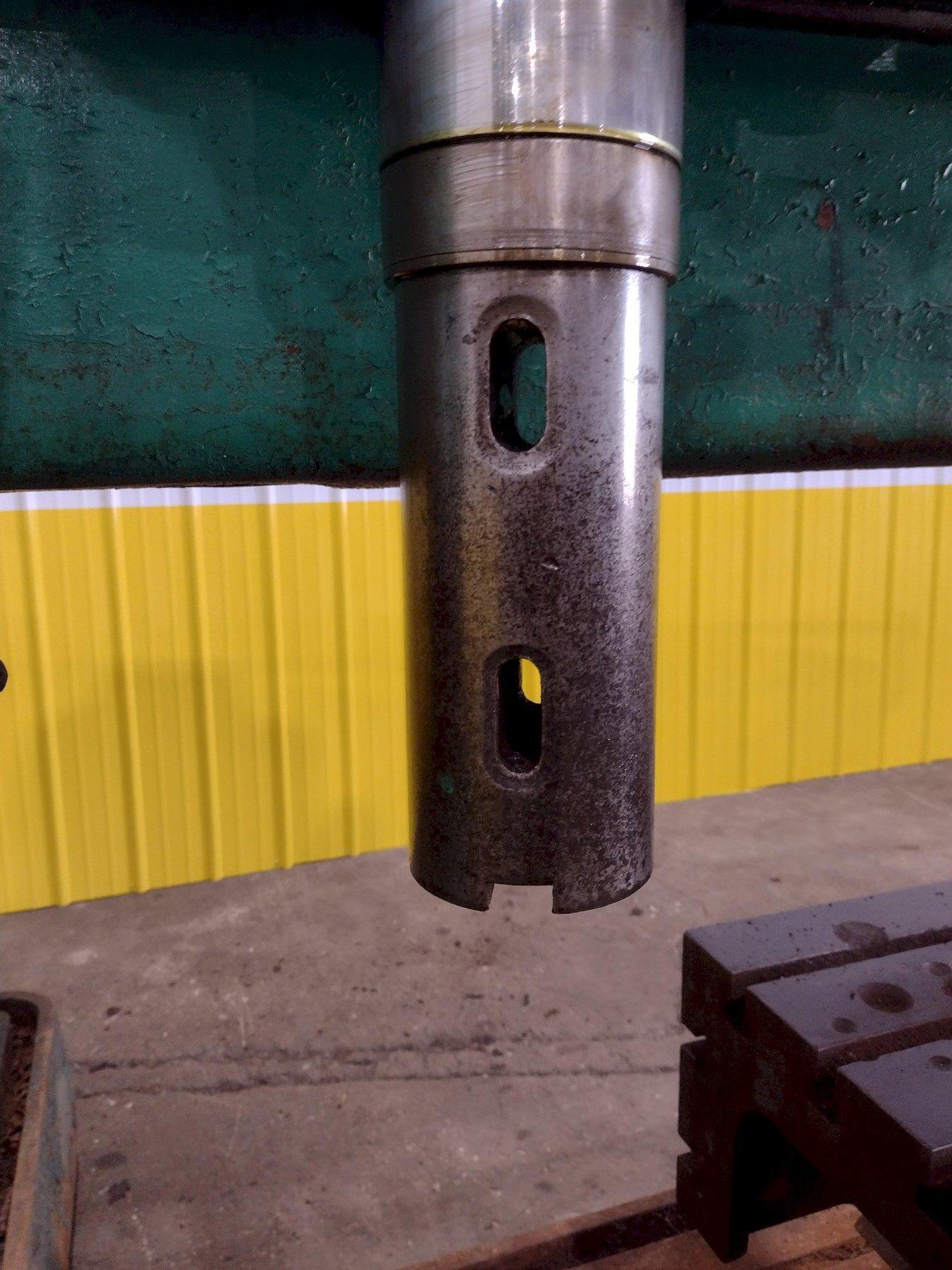

TAPER IN SPINDLE ................. #6
DIAMETER OF SPINDLE .............. 4-1/4"
SPINDLE TO COLUMN ................ 12" MIN, 72" MAX
DISTANCE SPINDLE TO BASE ......... 36" MIN, 78" MAX
TRAVEL OF ARM ON COLUMN .......... 42"

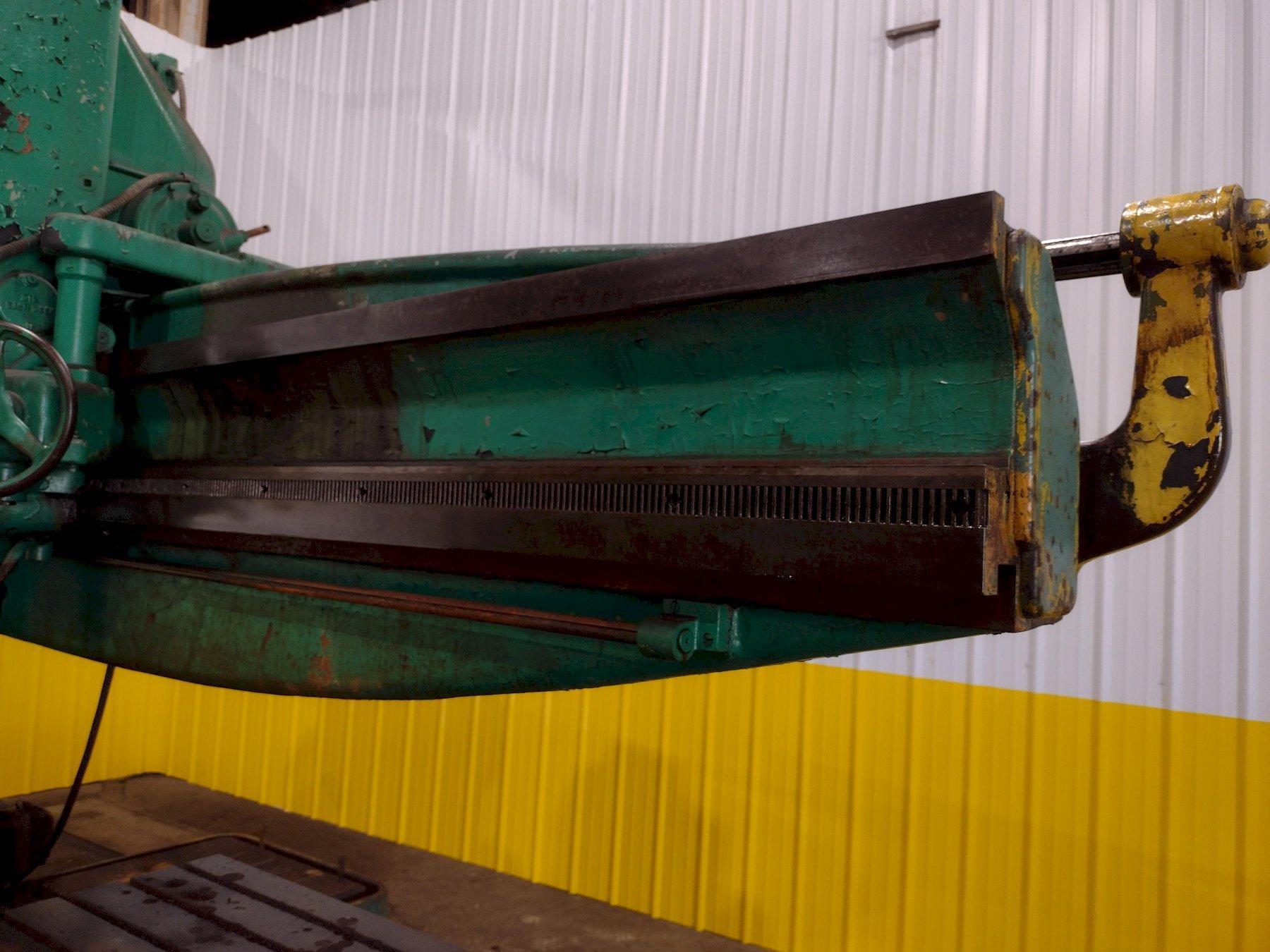

TRAVEL OF HEAD ON ARM ............ 60"
POWER HEAD CLAMPING .............. YES
POWER HEAD TRAVERSE .............. YES

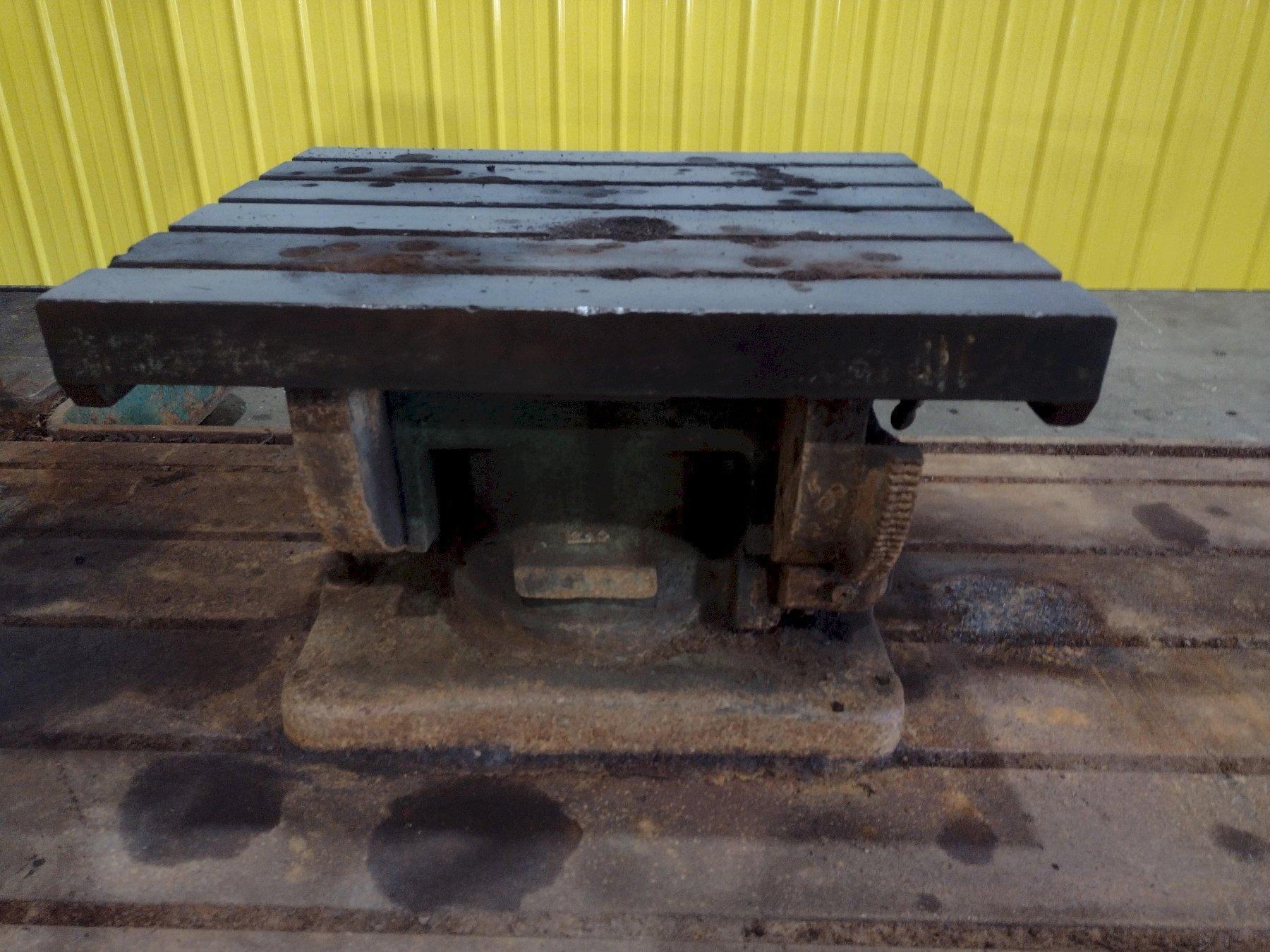

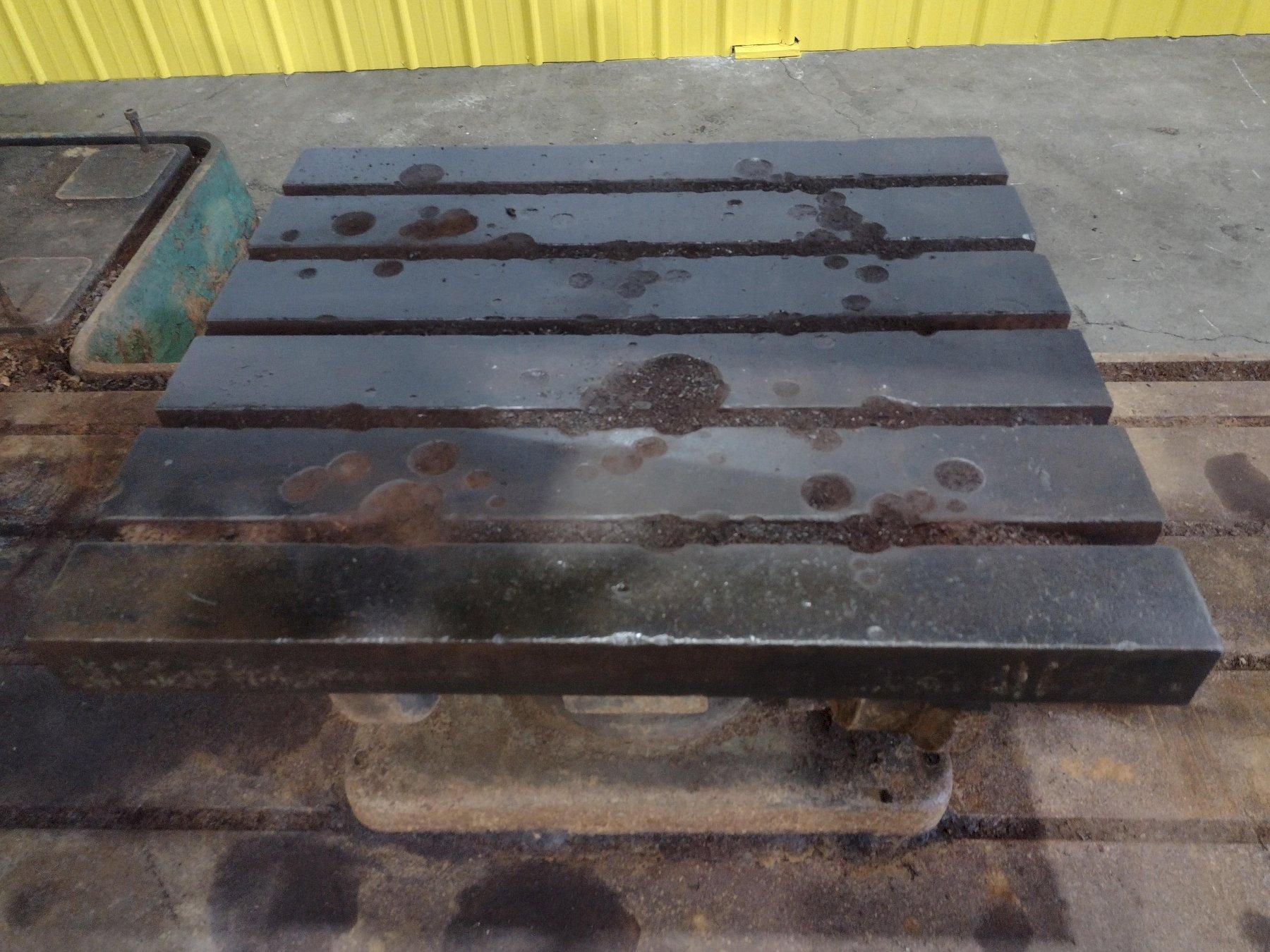

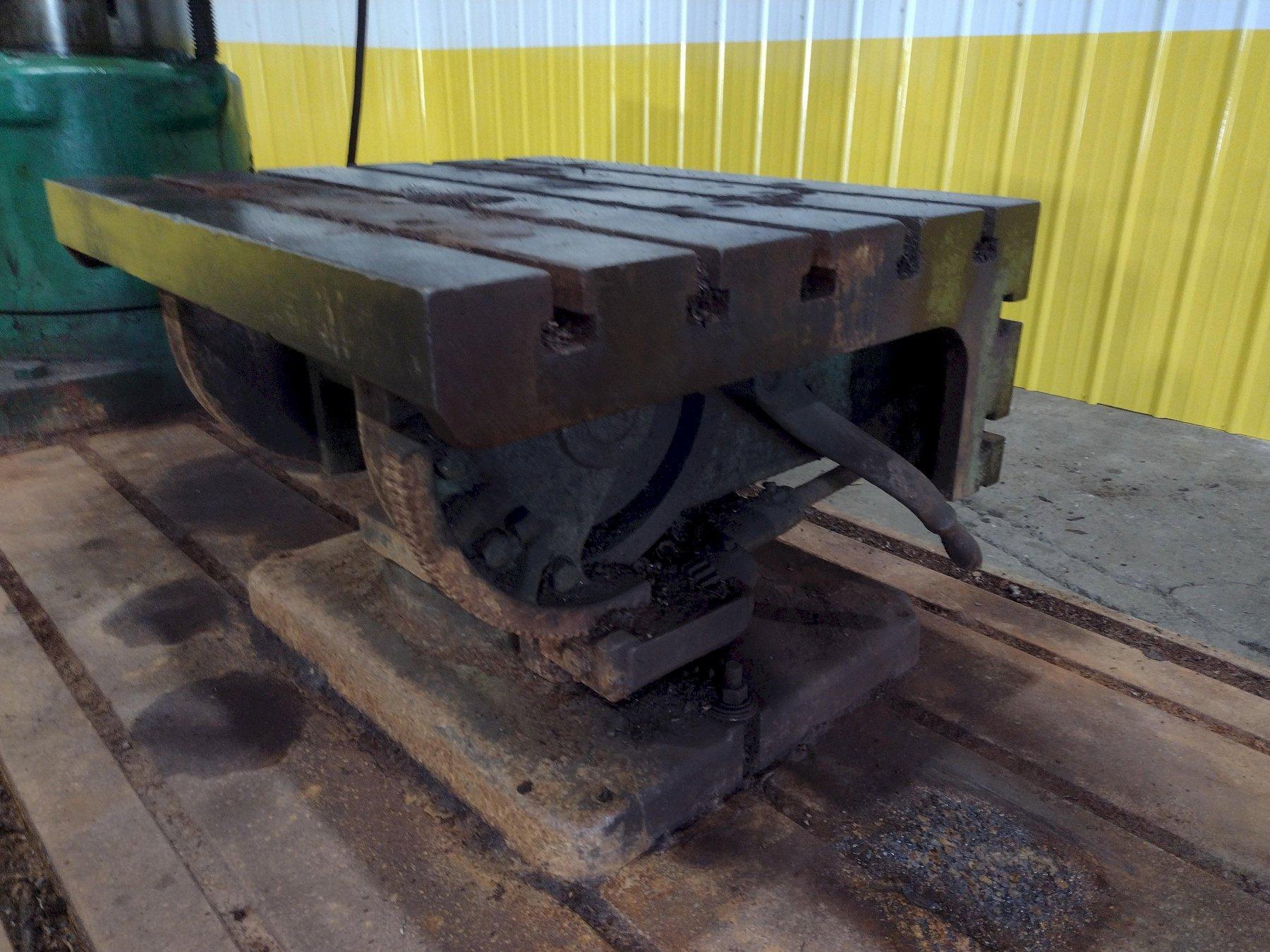

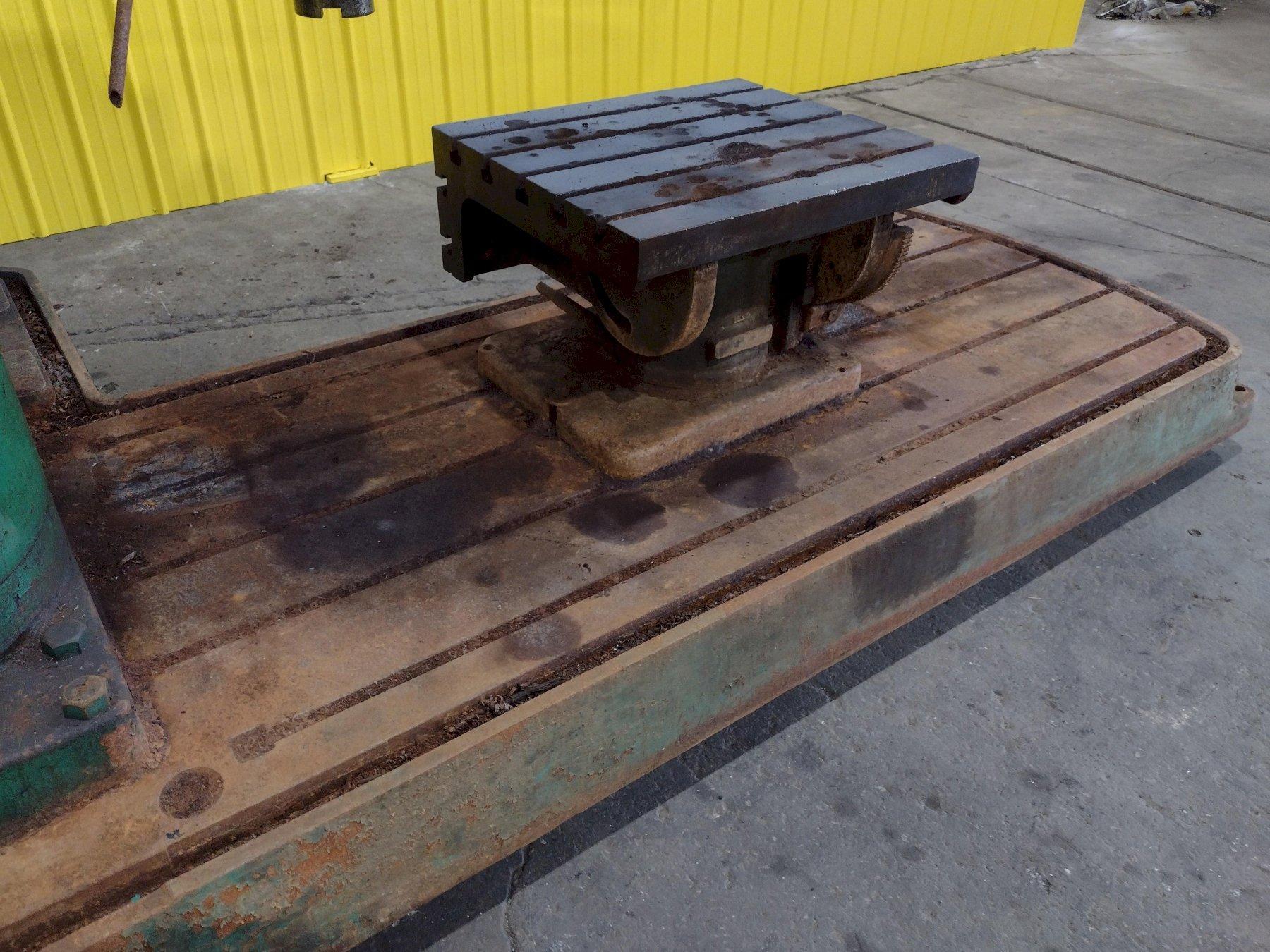

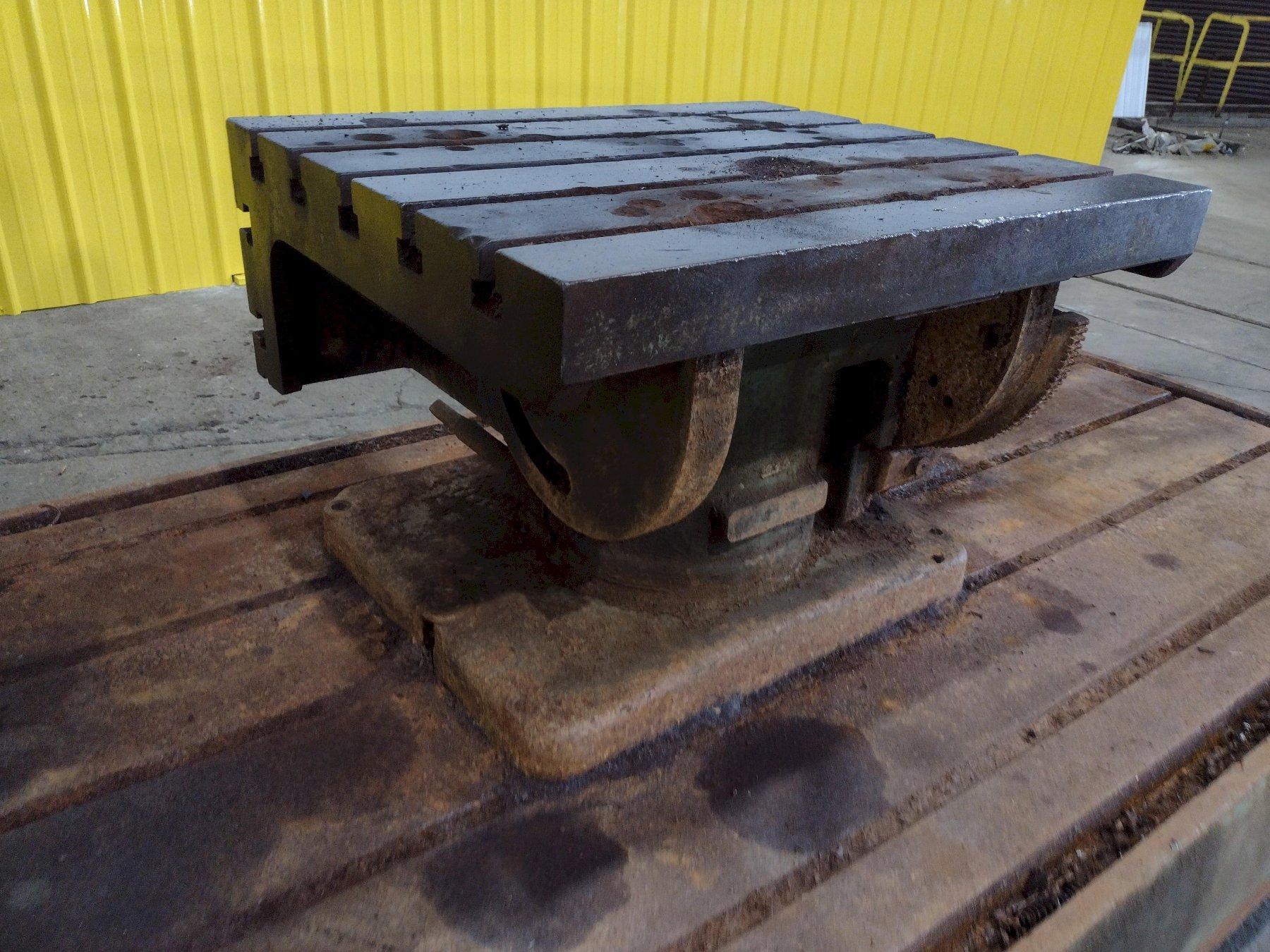

Tilting Box Table ................ 28" x 38" x 30"

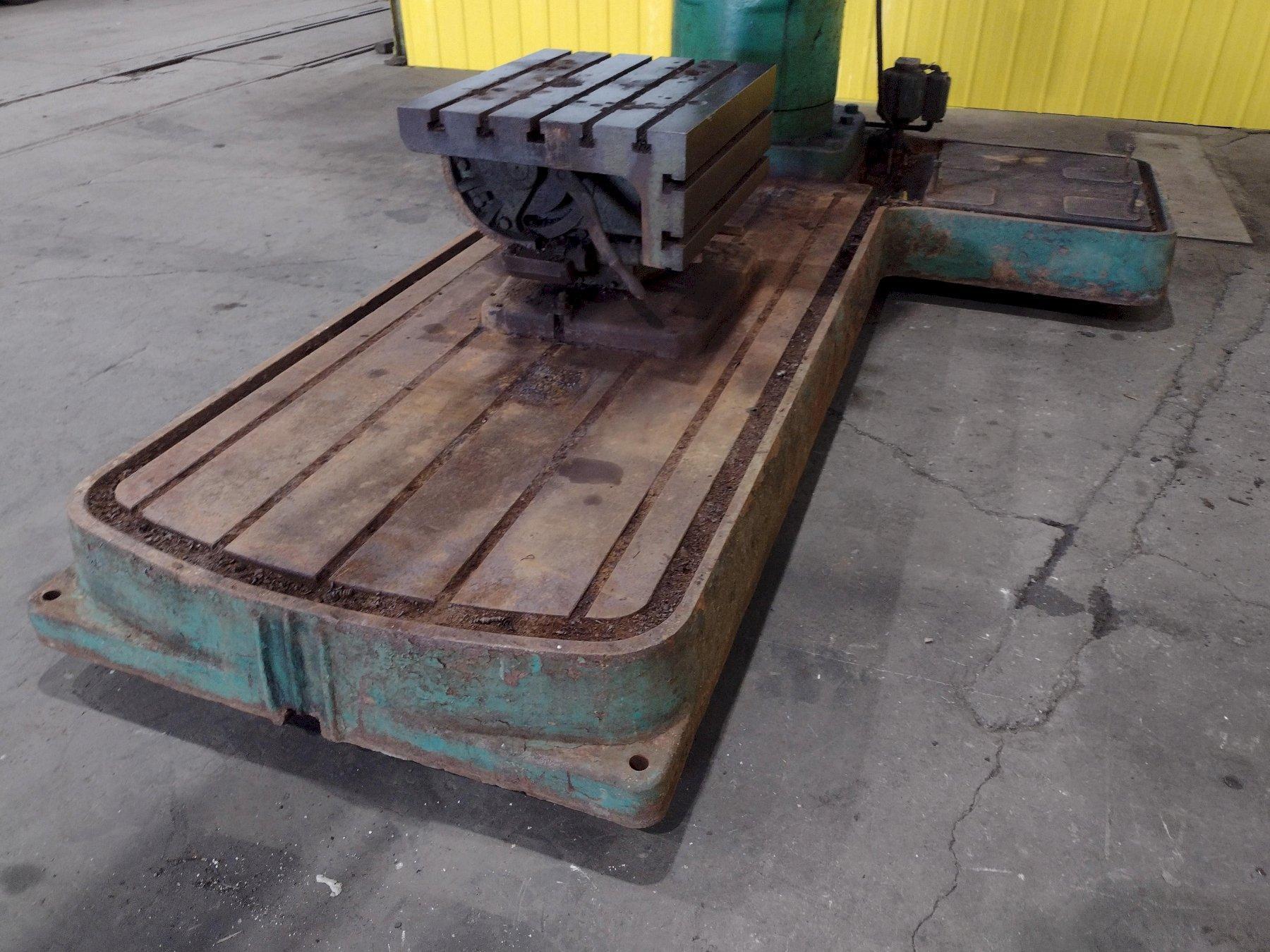

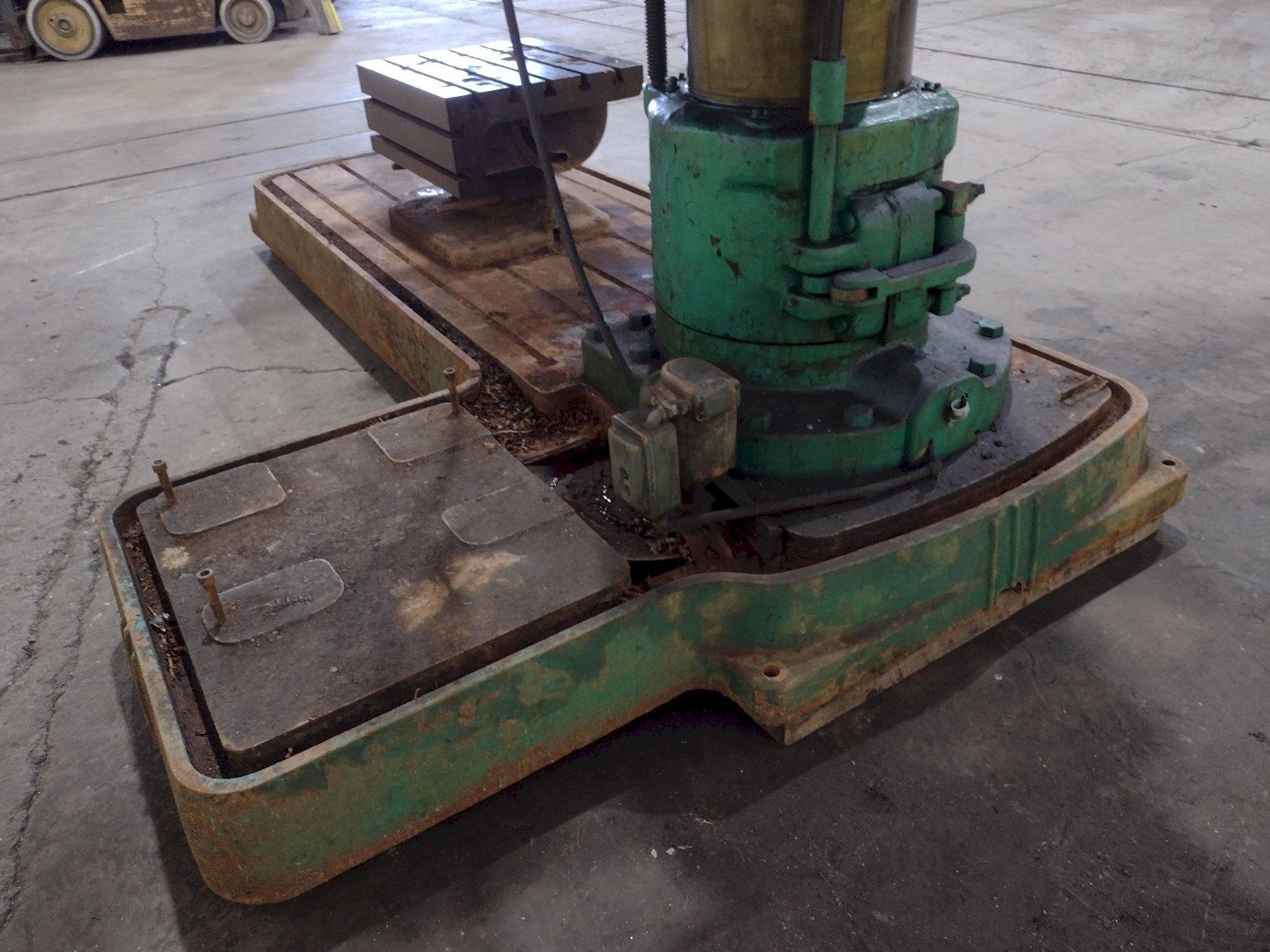

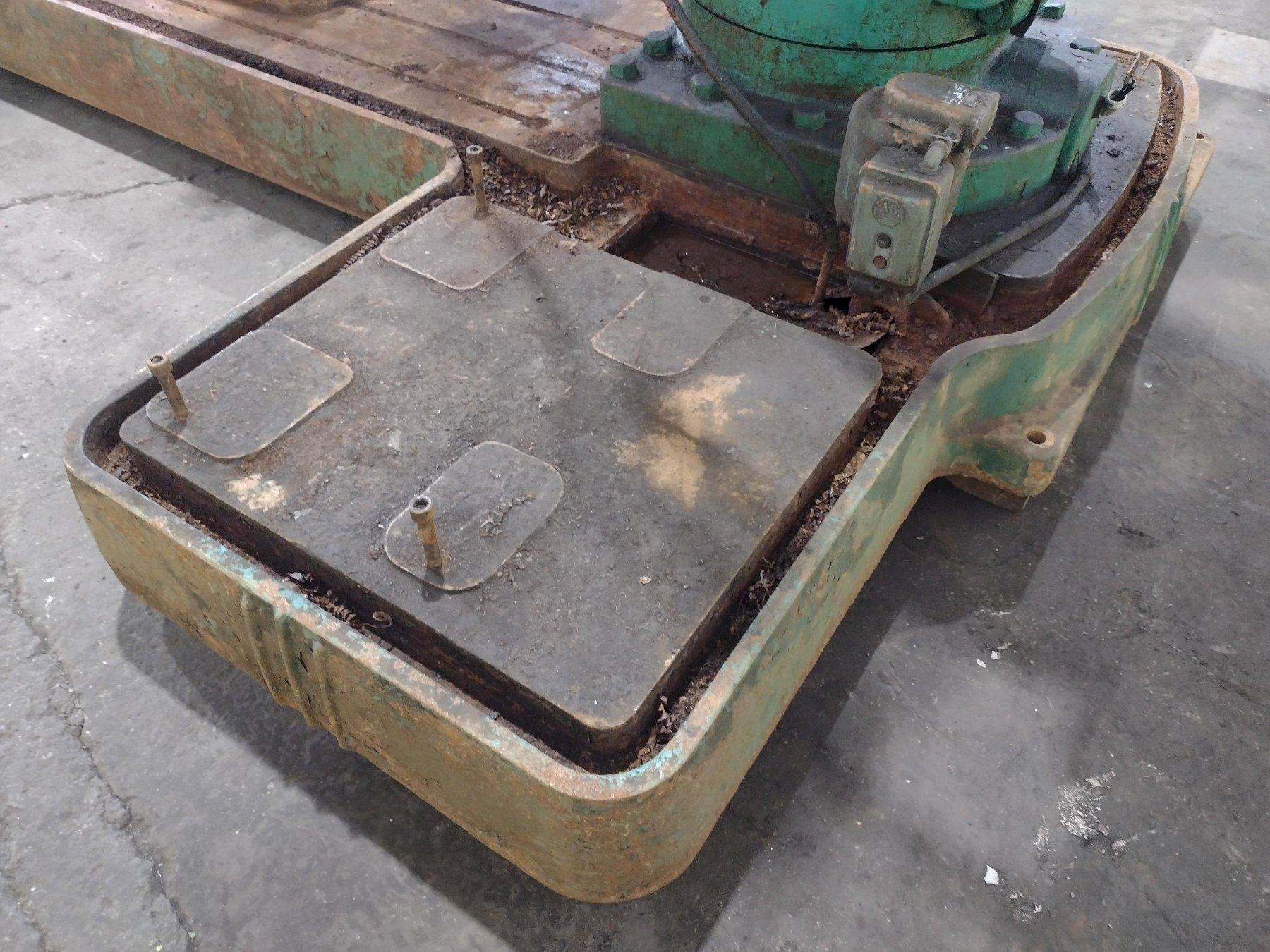

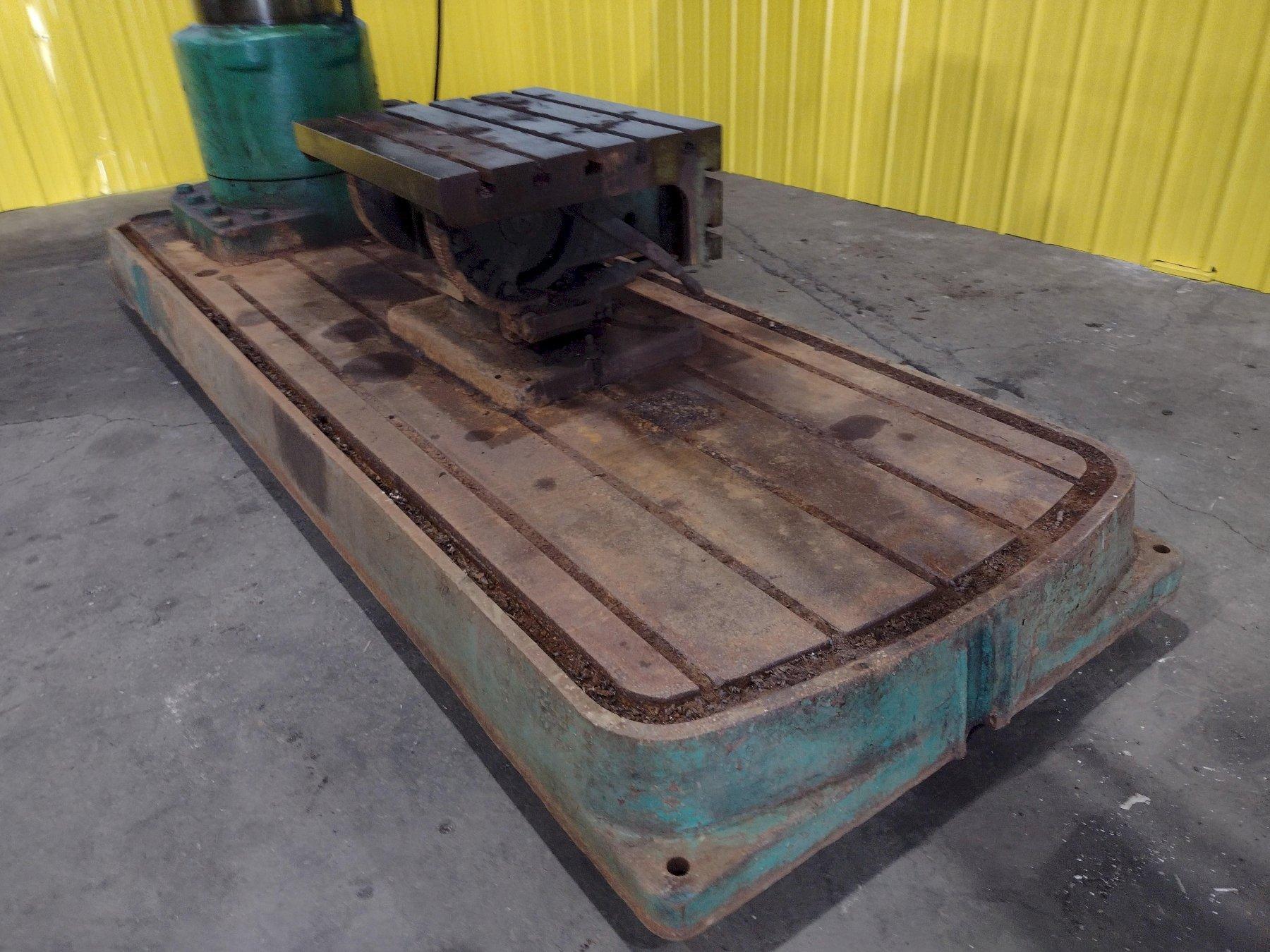

L-Shape Base ..................... 52" x 142"

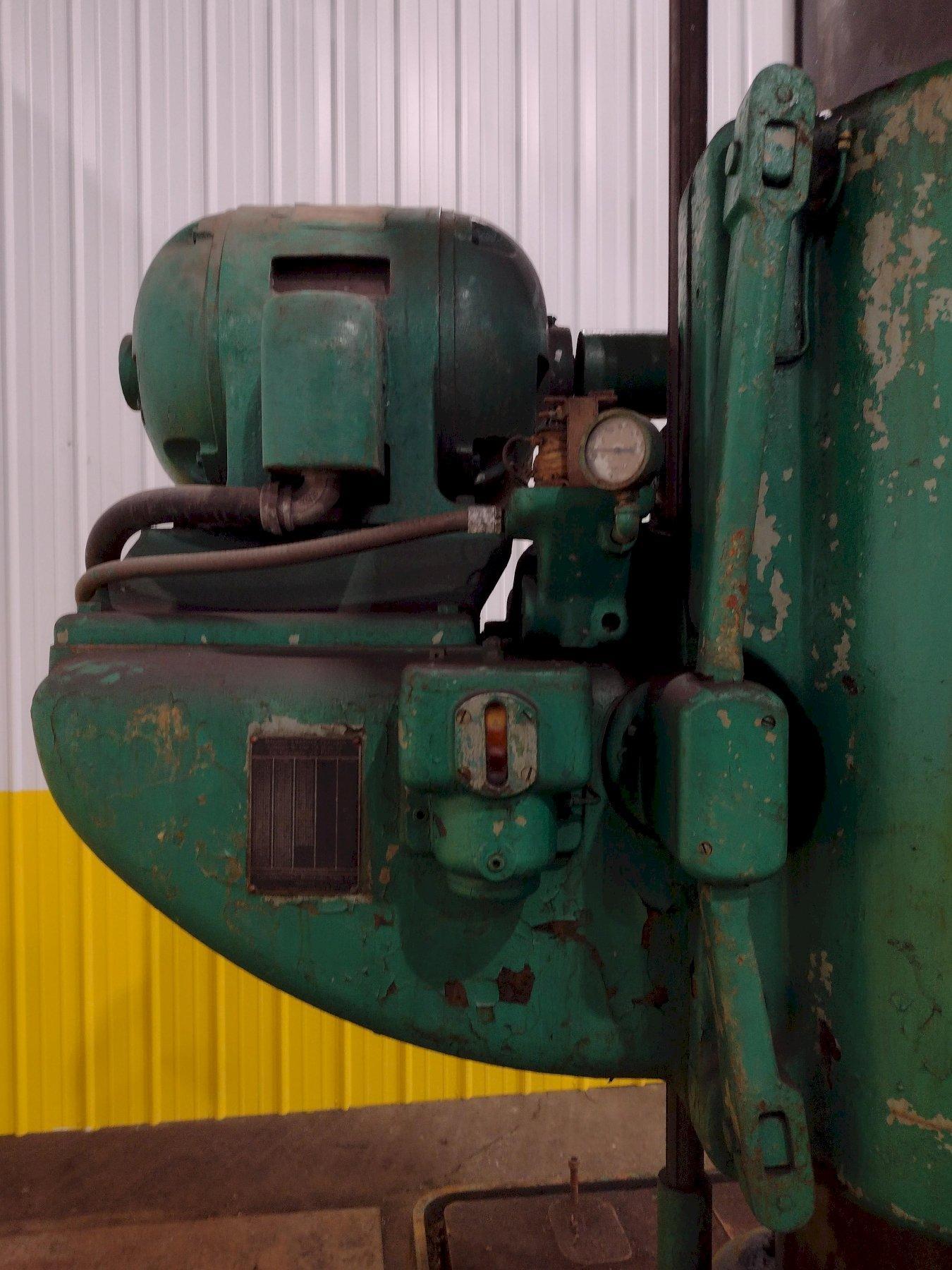

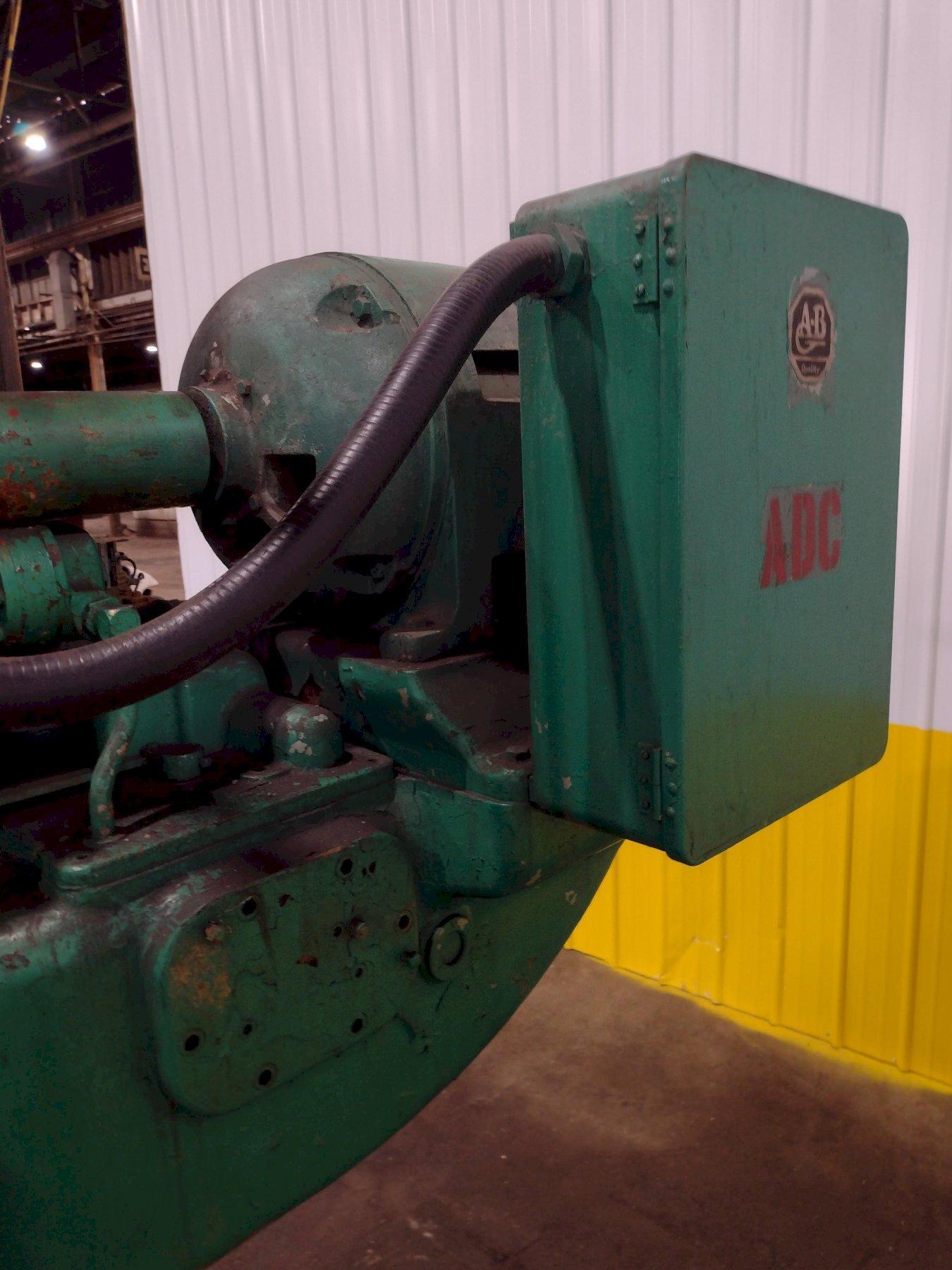

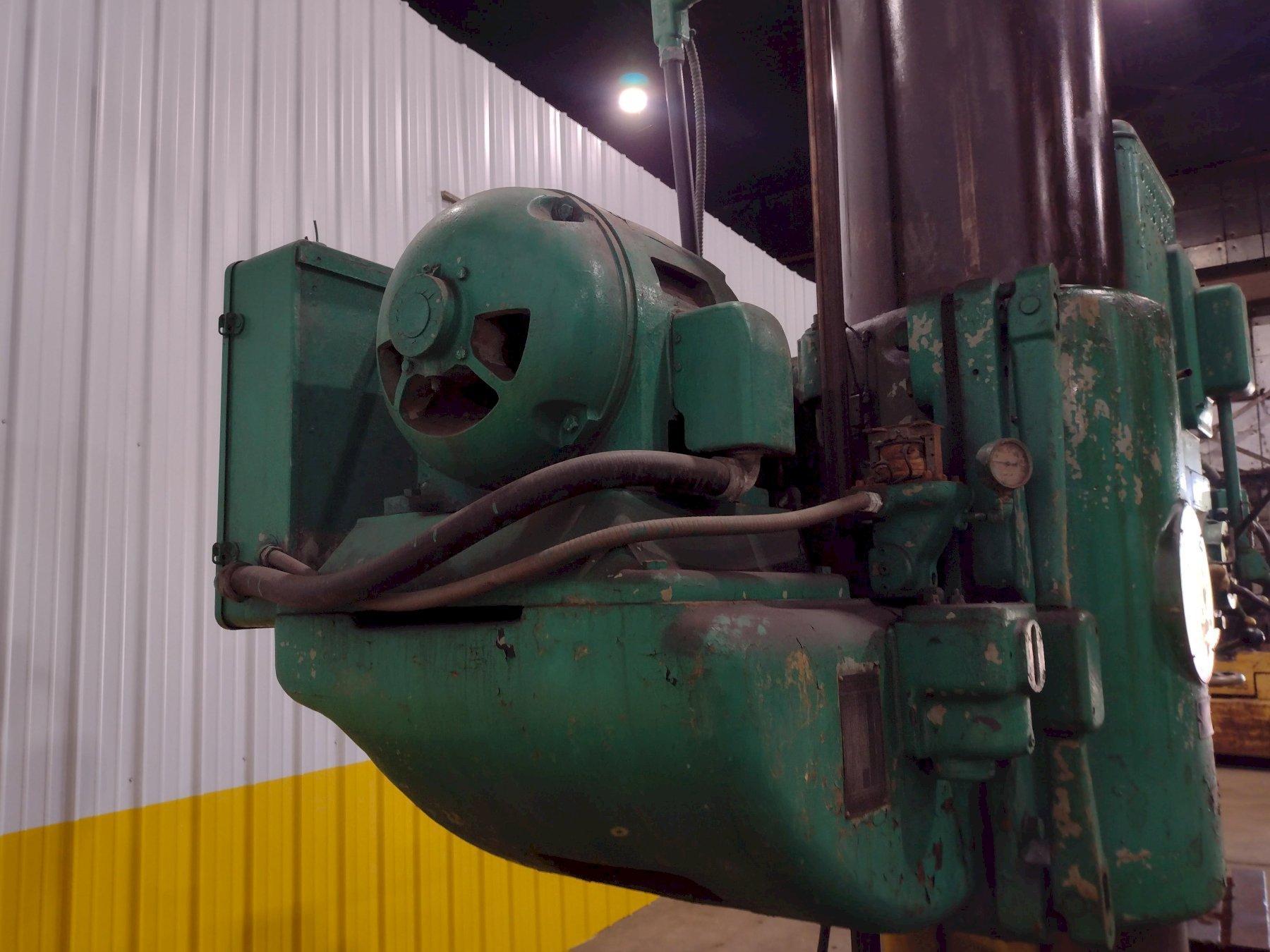

MOTOR ............................ 20 HORSEPOWER
