6000 lbs. x 12" Cooper Weymouth Peterson Servo Coil Feed Line For Metal Stamping, Heavy Duty Cap

Manufacturer

COOPER WEYMOUTH PETERSON

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2854

Model

4R18 / 12HDD / SMX-IV

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 6000 pounds
Coil Width - 12 inches
Coil Thickness - .250 inches

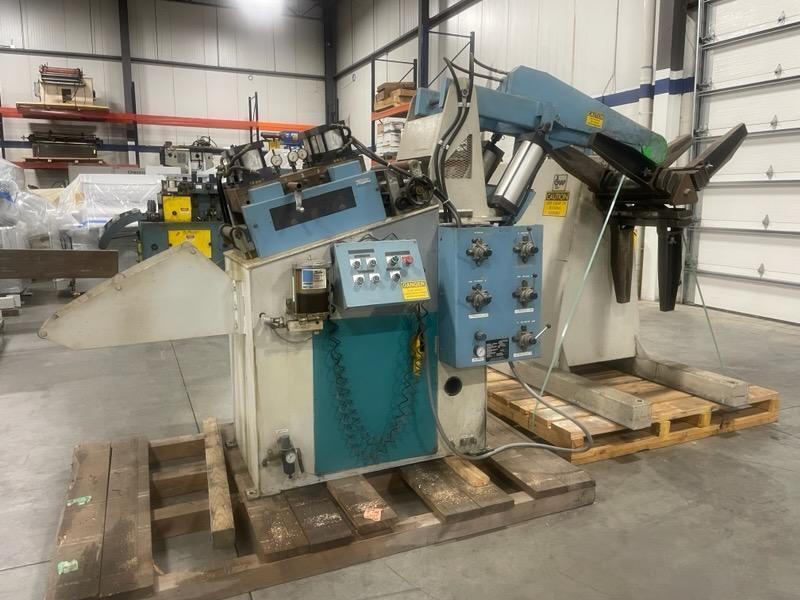

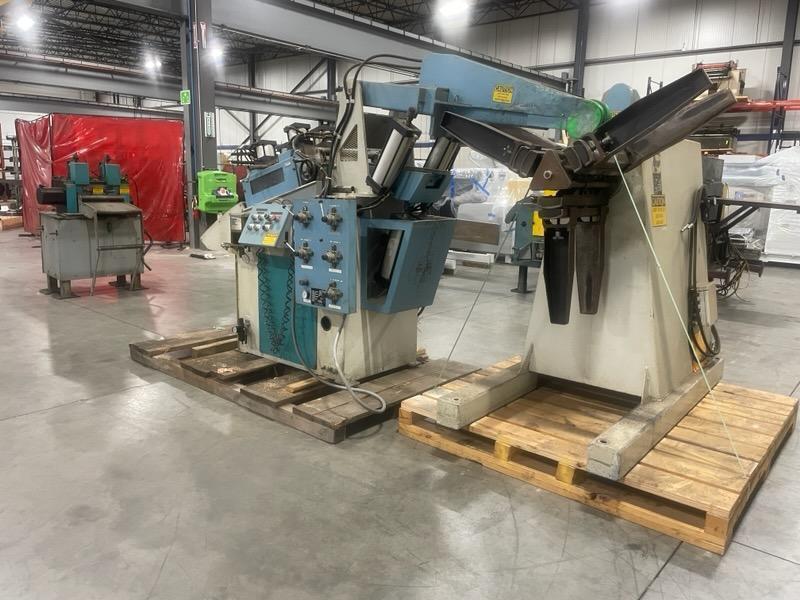

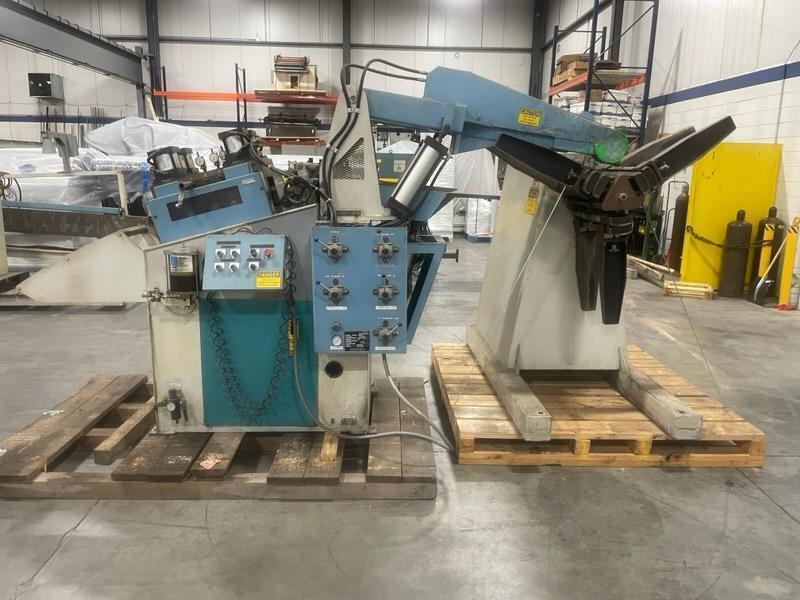

Cooper Weymouth Peterson (CWP) Coil Feed Line

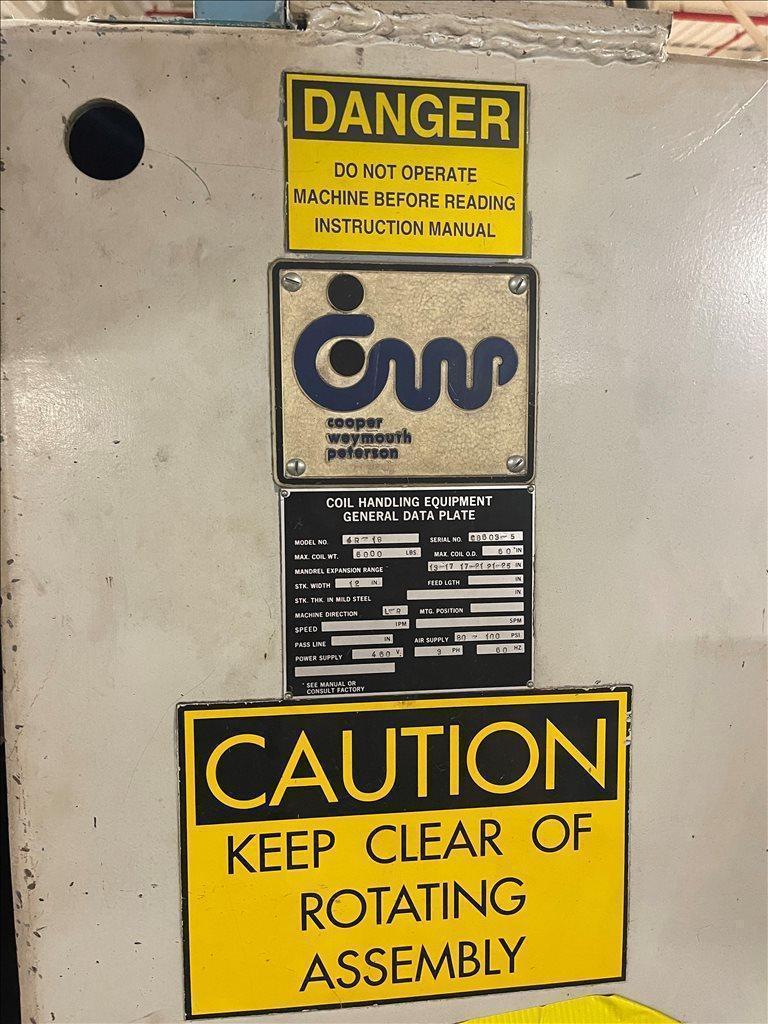

CWP Coil Reel Pull Off Un-coiler Model No. 4R18
Serial No. 68603-5
6,000 Lbs. Maximum Coil Capacity
12" Maximum Coil Width
.250" Maximum Coil Thickness at Full Width
Three leaf mandrel
Full set of adjustable coil keeper arms
Hydraulic mandrel expansion
Expansion range:  13" - 17" / 17" - 21" with included ID risers
Hydraulic threading drive for reel jog forward and reverse
Air brake w/ adjustable pull off tensioning

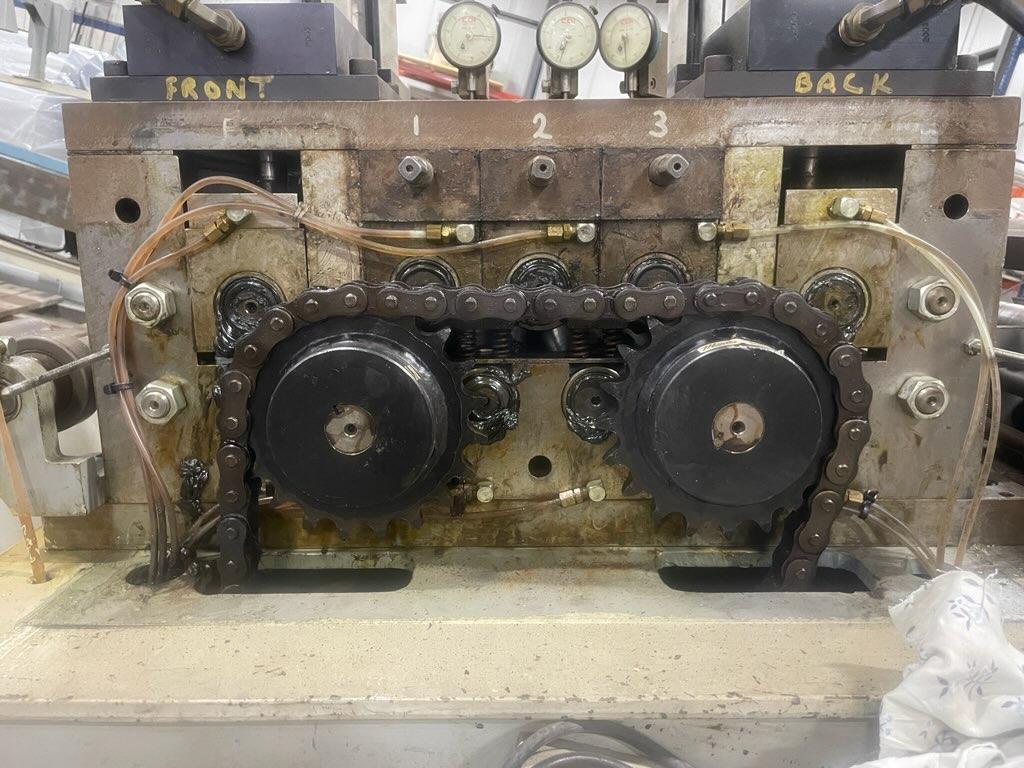

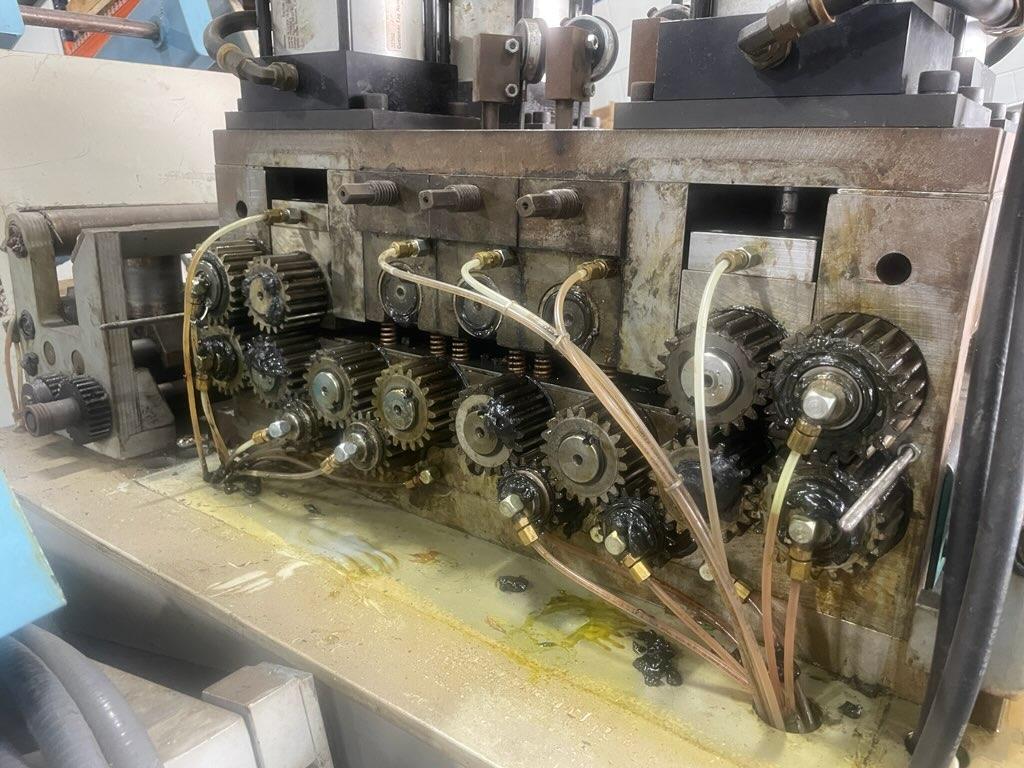

CWP Powered Coil Straightener Model No. 12HDD
Serial No.: 68603-3
Seven straightening rolls
Entry and exit pinch rolls
Coil hold down arm with motorized end wheel
Stock peeler table with integrated stock de-bender
Adjustable stock width edge guides
Exit cascade loop support rollers
Automatic lubrication system
Operator's control station
Jog forward and reverse
Auto / Run cycle with variable speed loop control

CWP Exit Threading Table

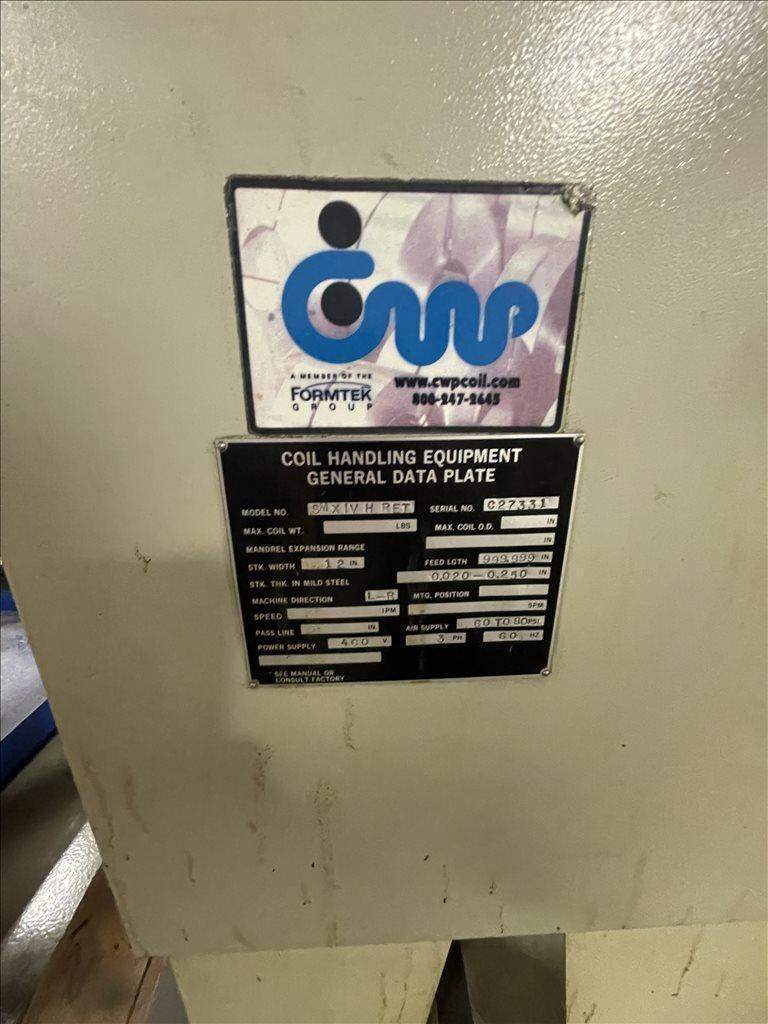

CWP Servo Roll Feed Model No. SMX-IV
Serial No. 27331
Piloting upper feed roll
Cabinet base mounted
Adjustable pass line
Entry cascade loop support rollers
Adjustable edge guides

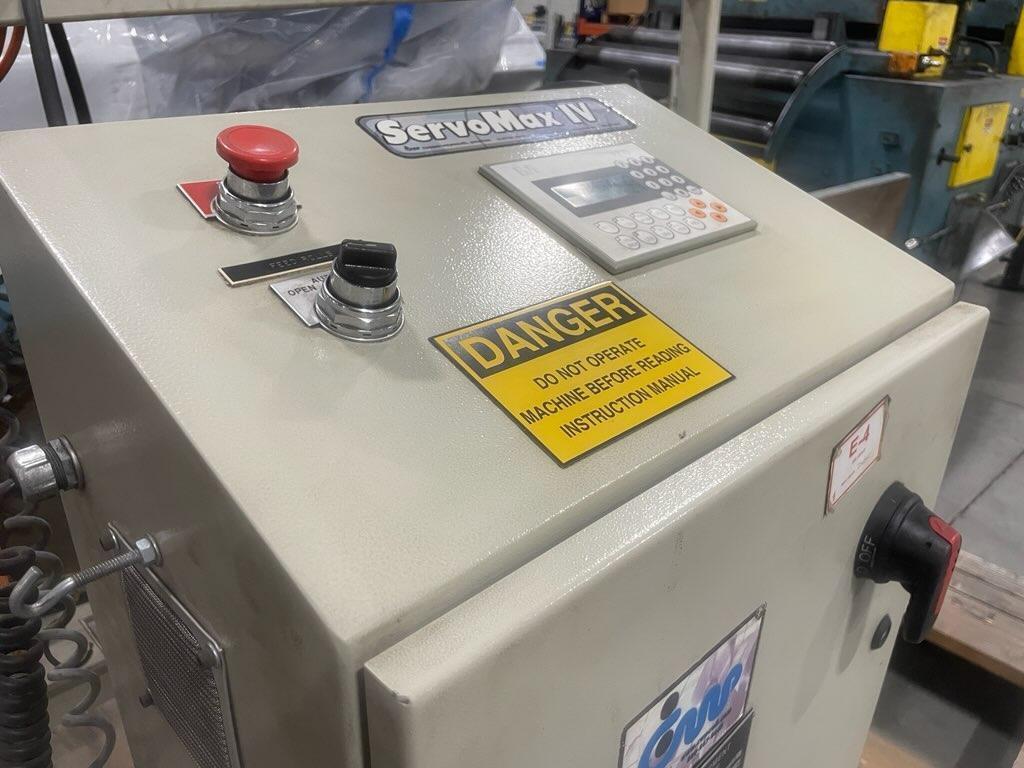

AC Servo controls

This 12" Wide Cooper Weymouth Peterson Complete Servo Coil Feed Line can be seen under power upon request.
