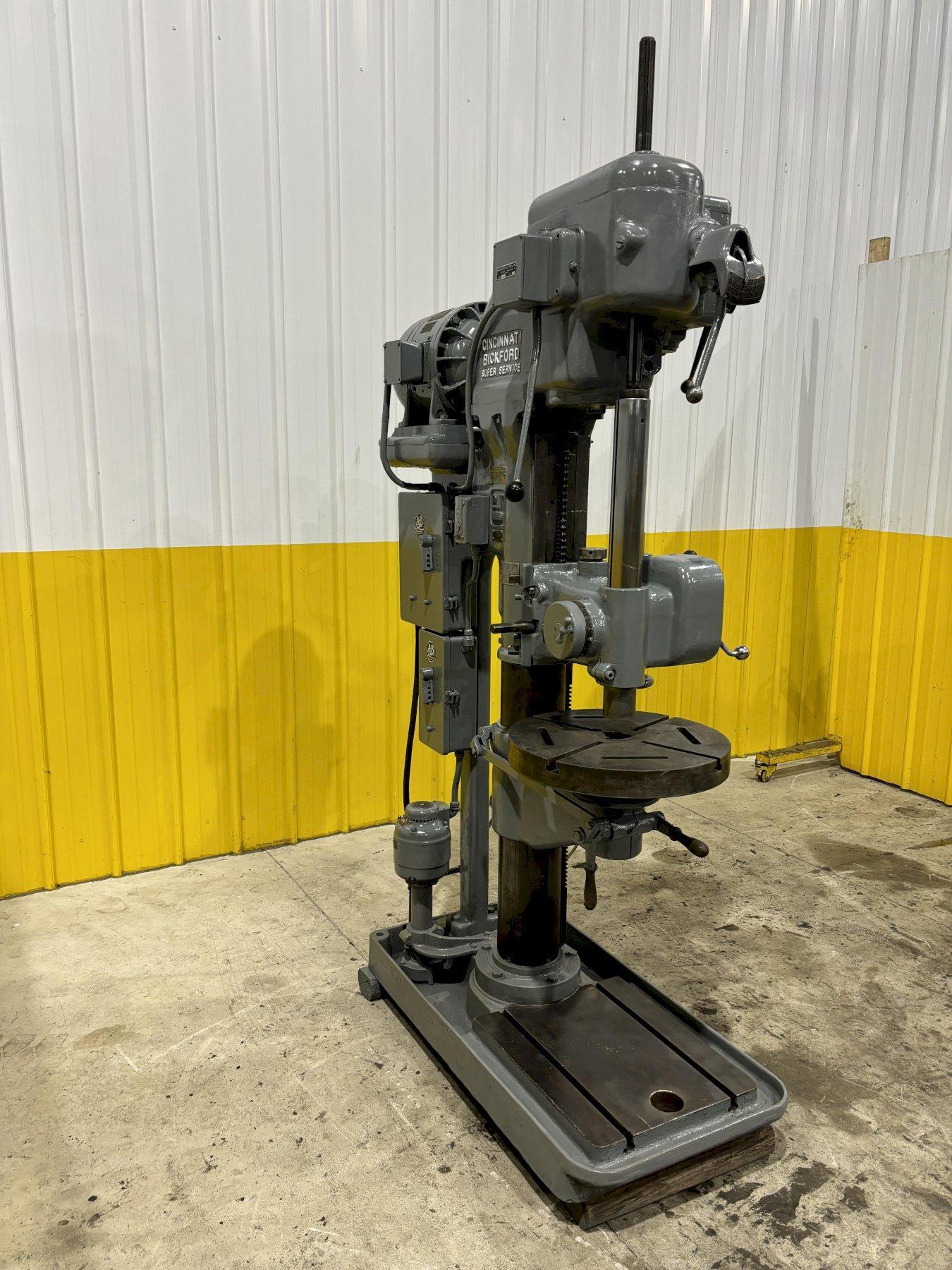

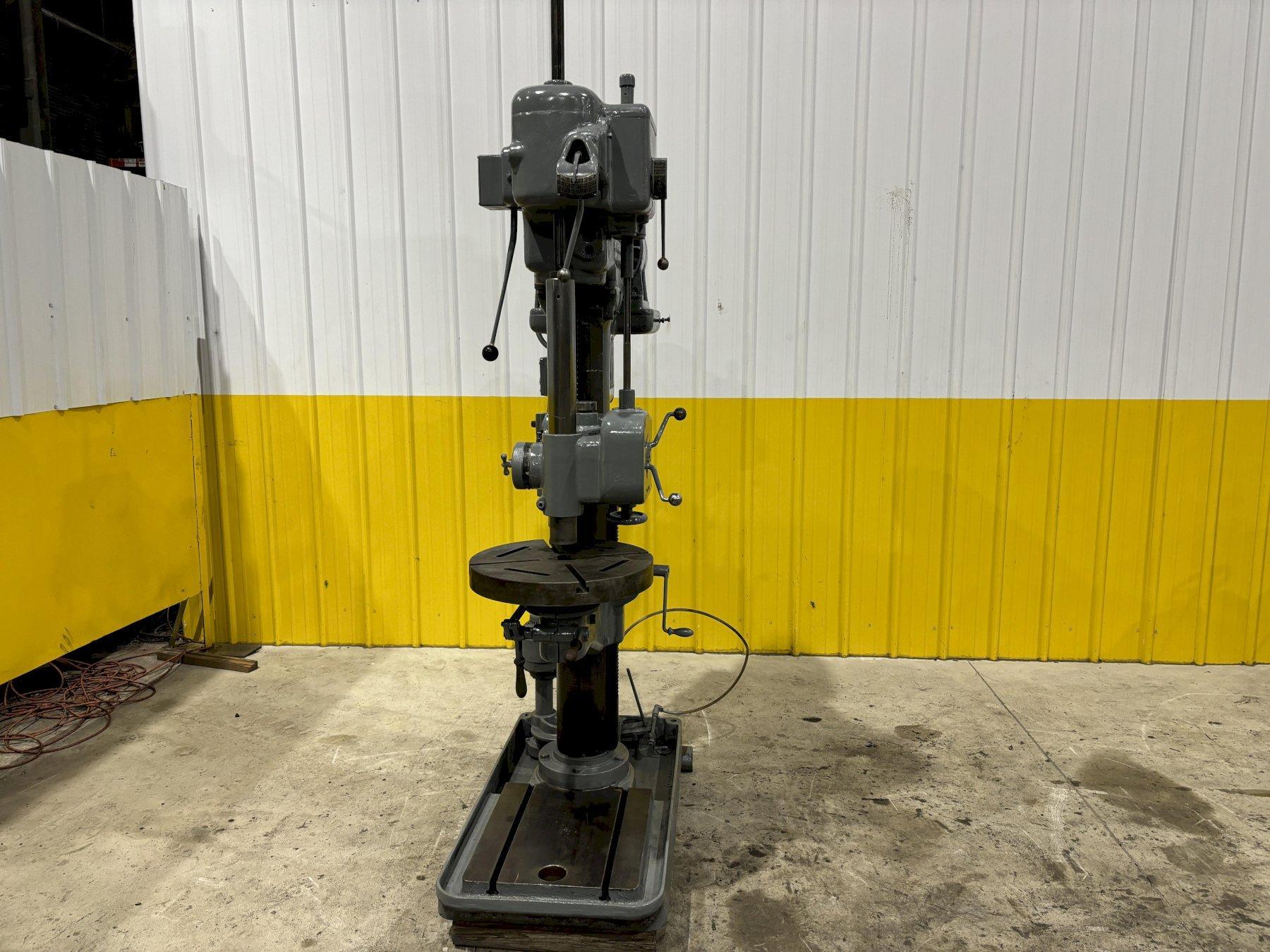

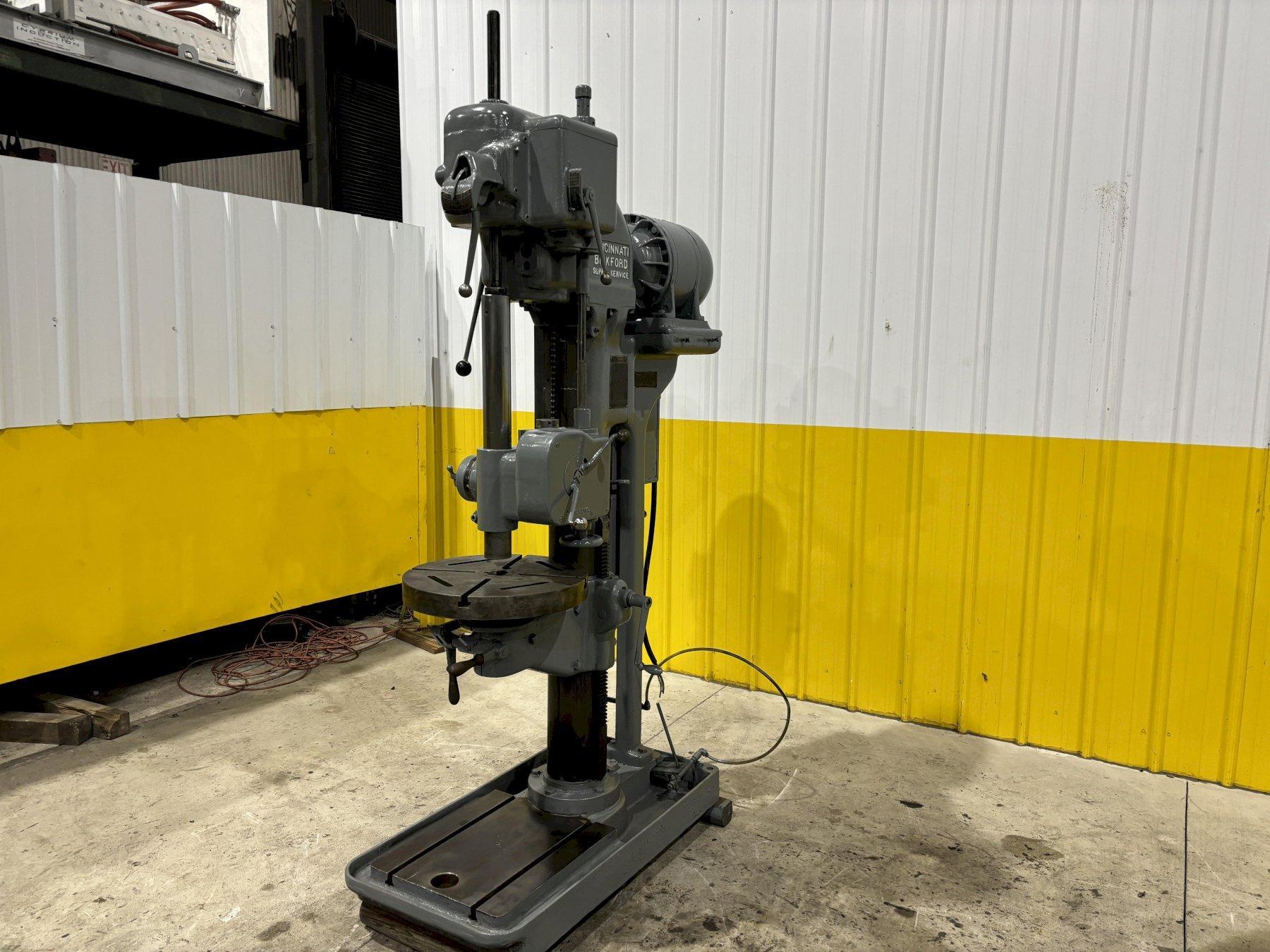

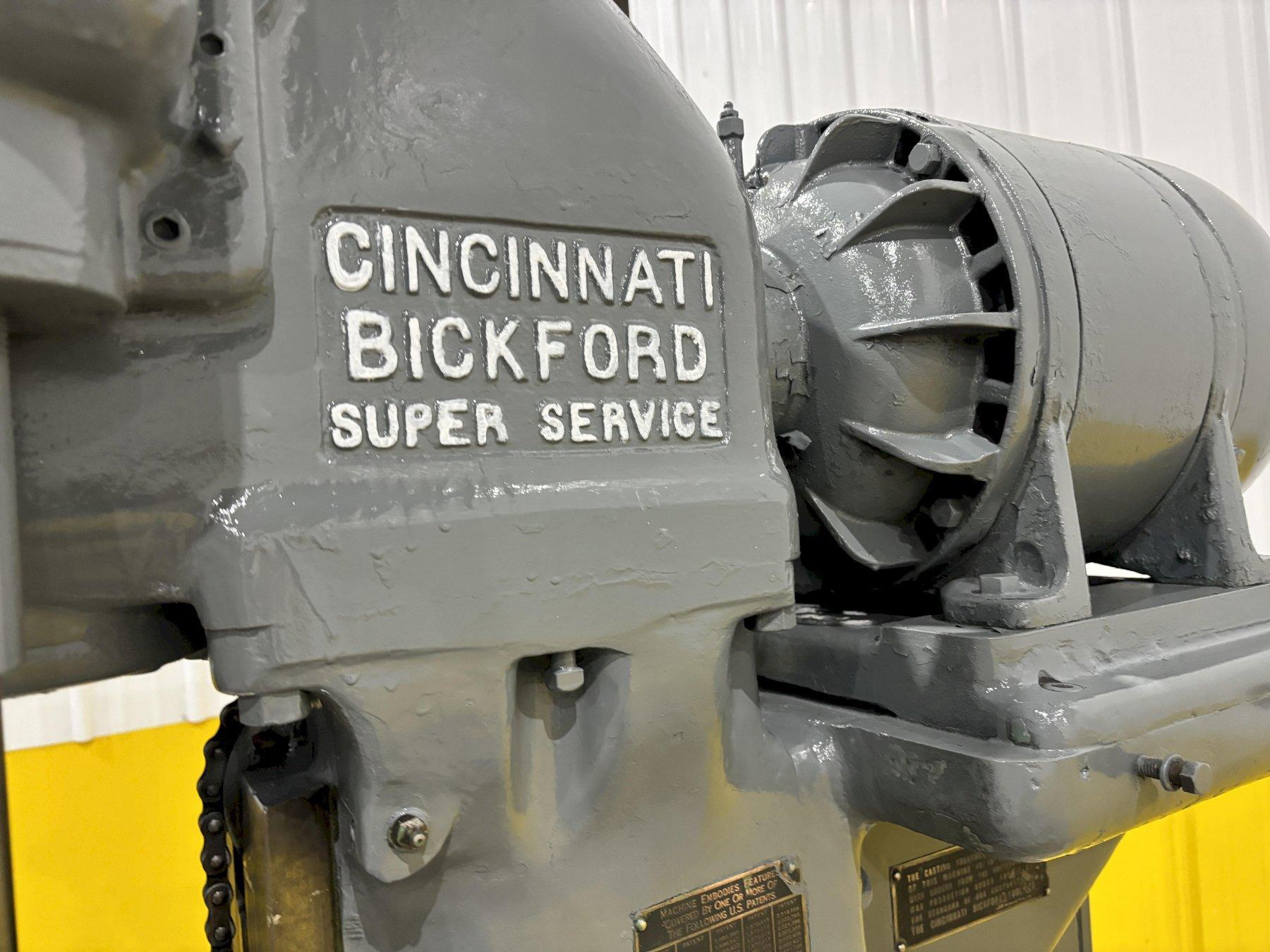

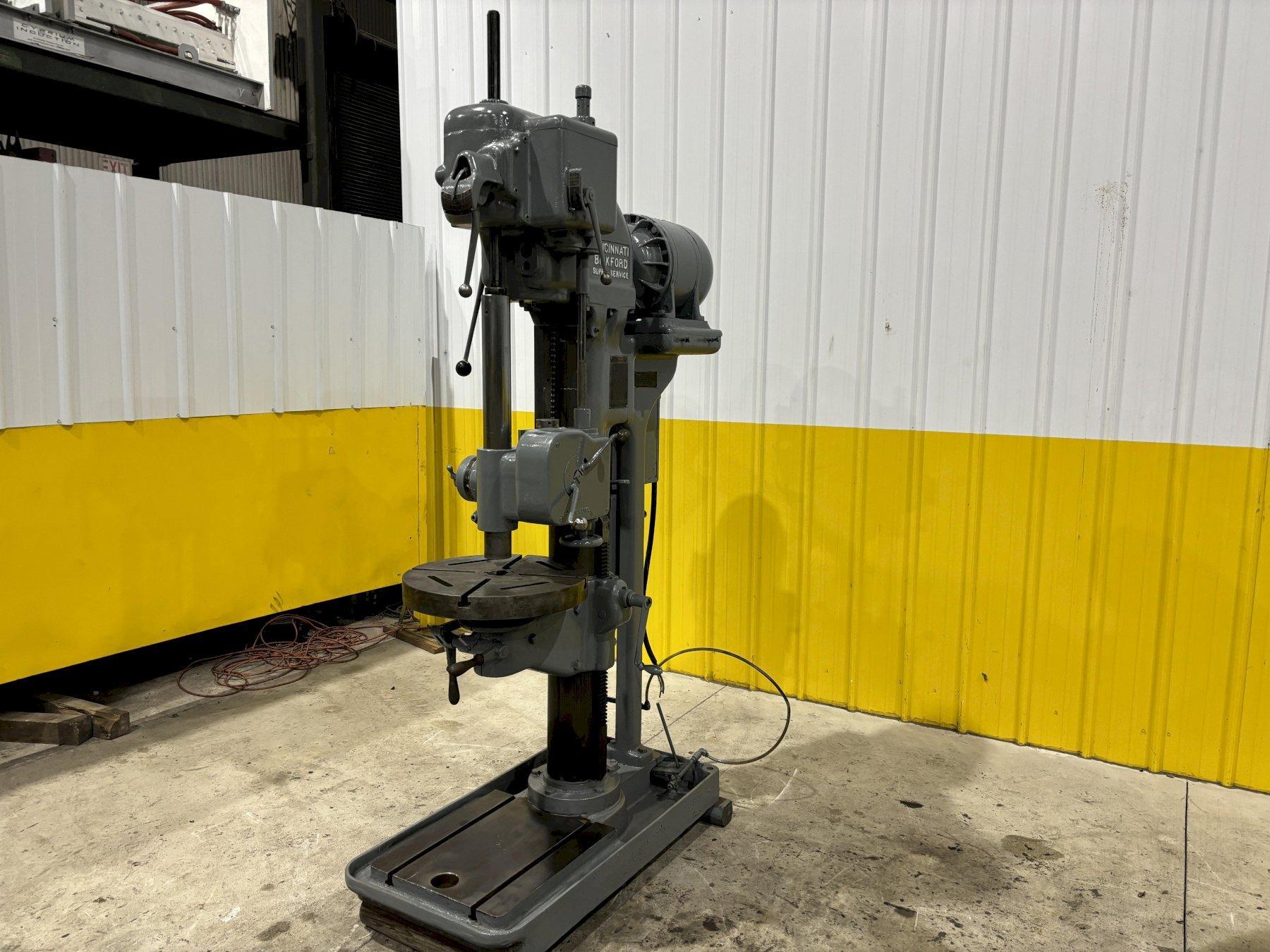

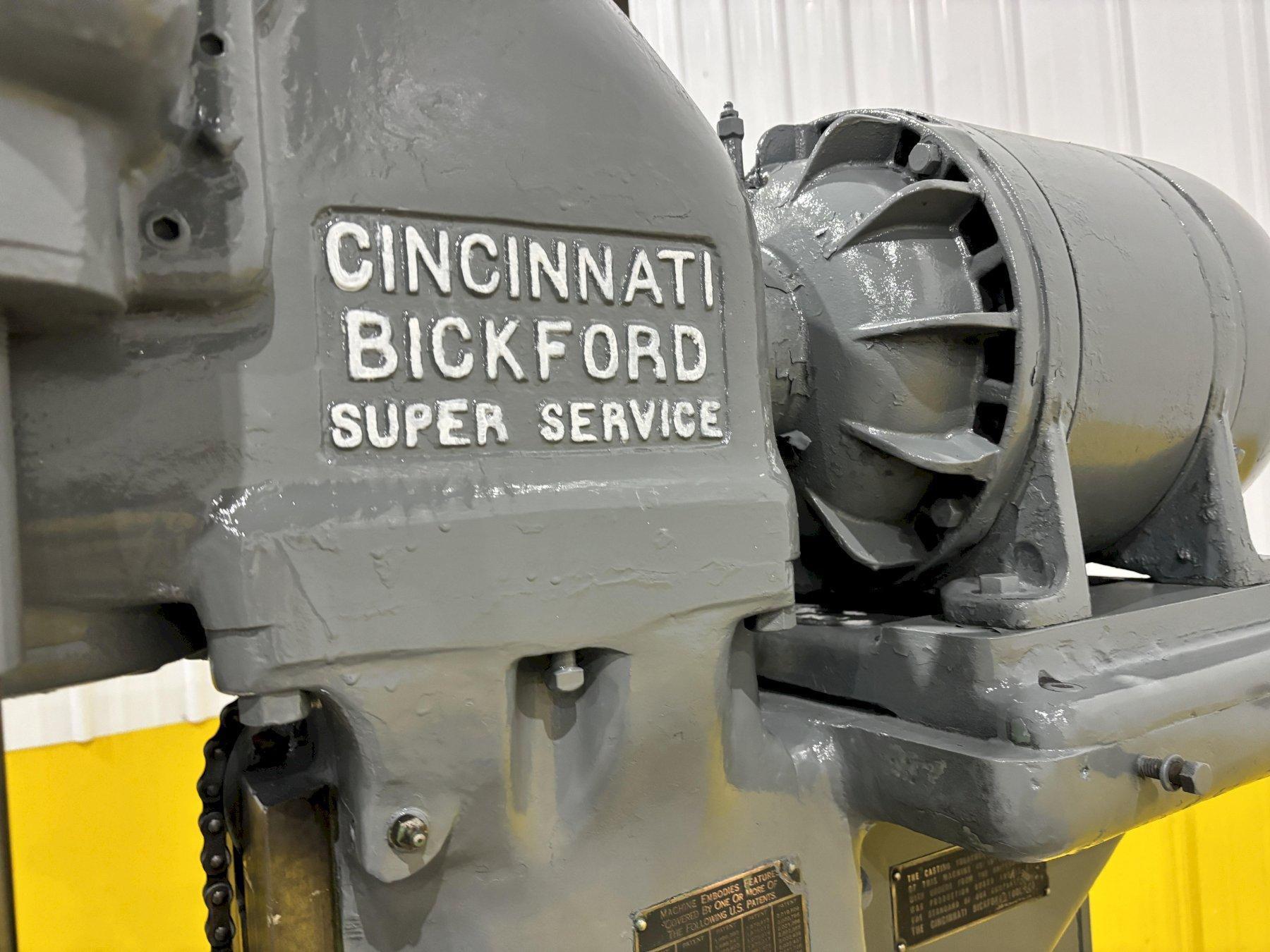

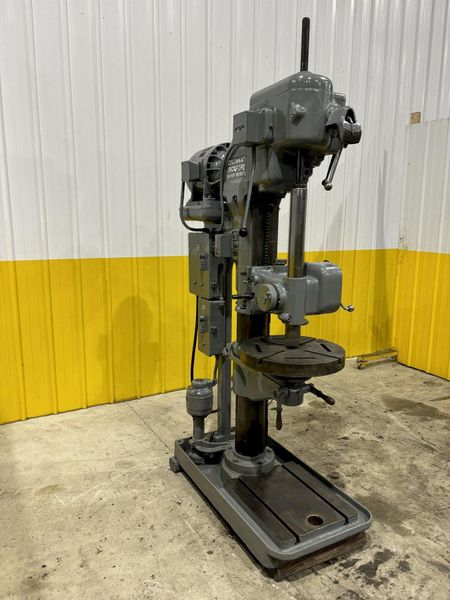

21" CINCINNATI BICKFORD #21 SUPER SERVICE SINGLE SPINDLE DRILL PRESS: STOCK #19038

Manufacturer

CINCINNATI BICKFORD

Category

Drilling Machines

Type

DRILL PRESSES

Stock

19038

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 36" X 50" X 106"


SERIAL ............................. 1L 1396
MODEL .............................. 21" 1L
DEPTH OF THROAT .................... 10-1/2"

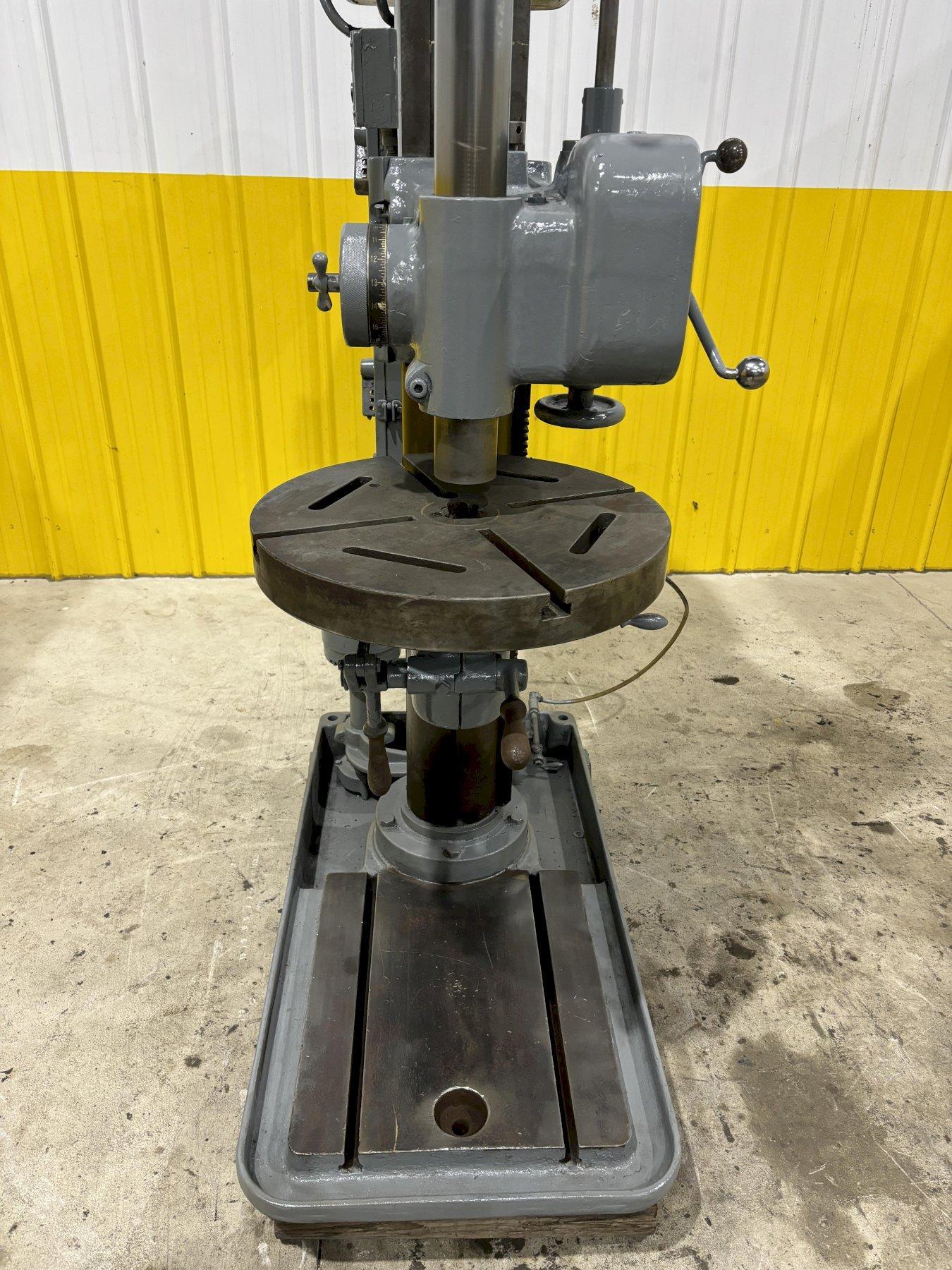

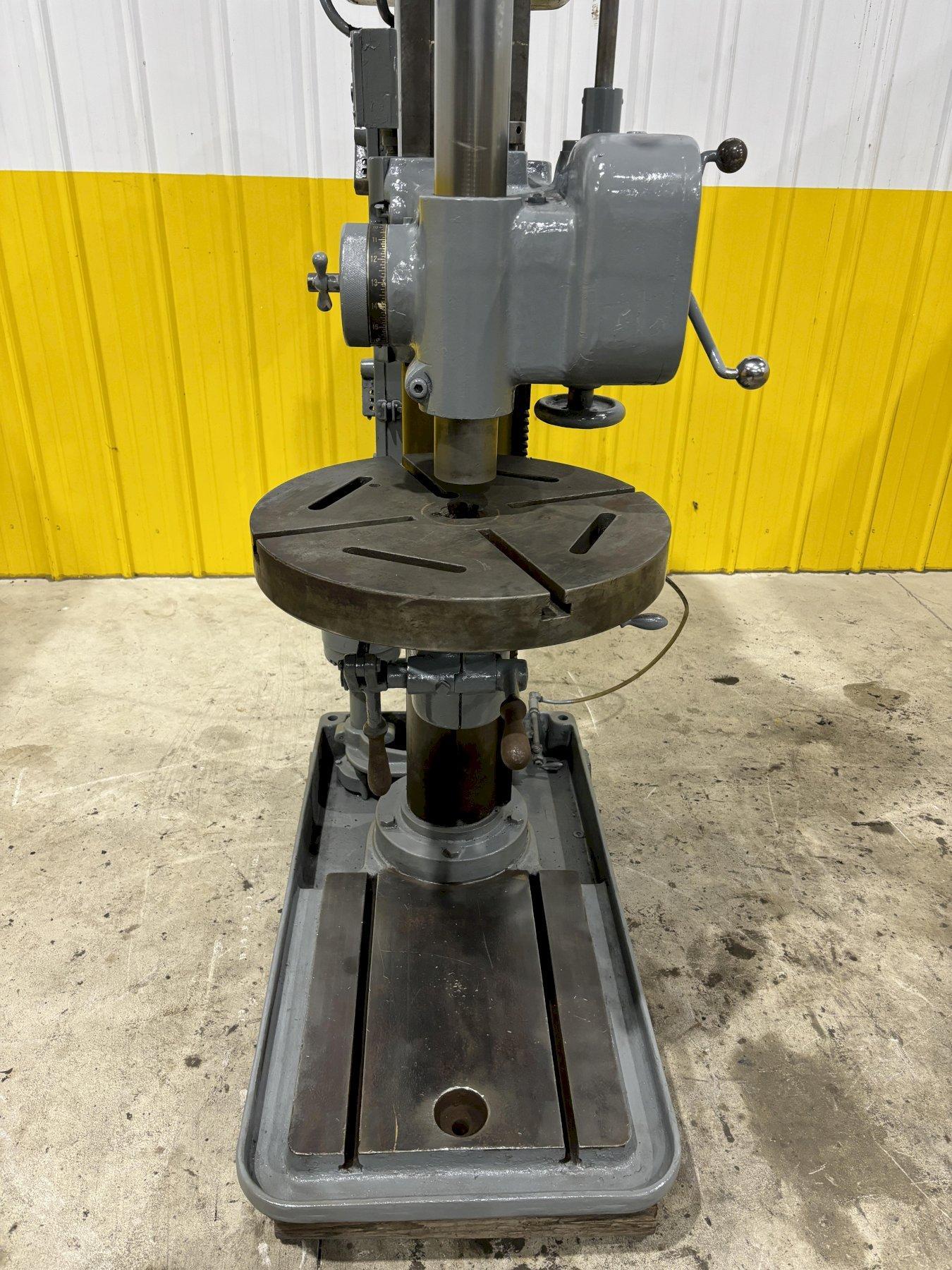

DIAMETER OF SWING AWAY TABLE ....... 19"

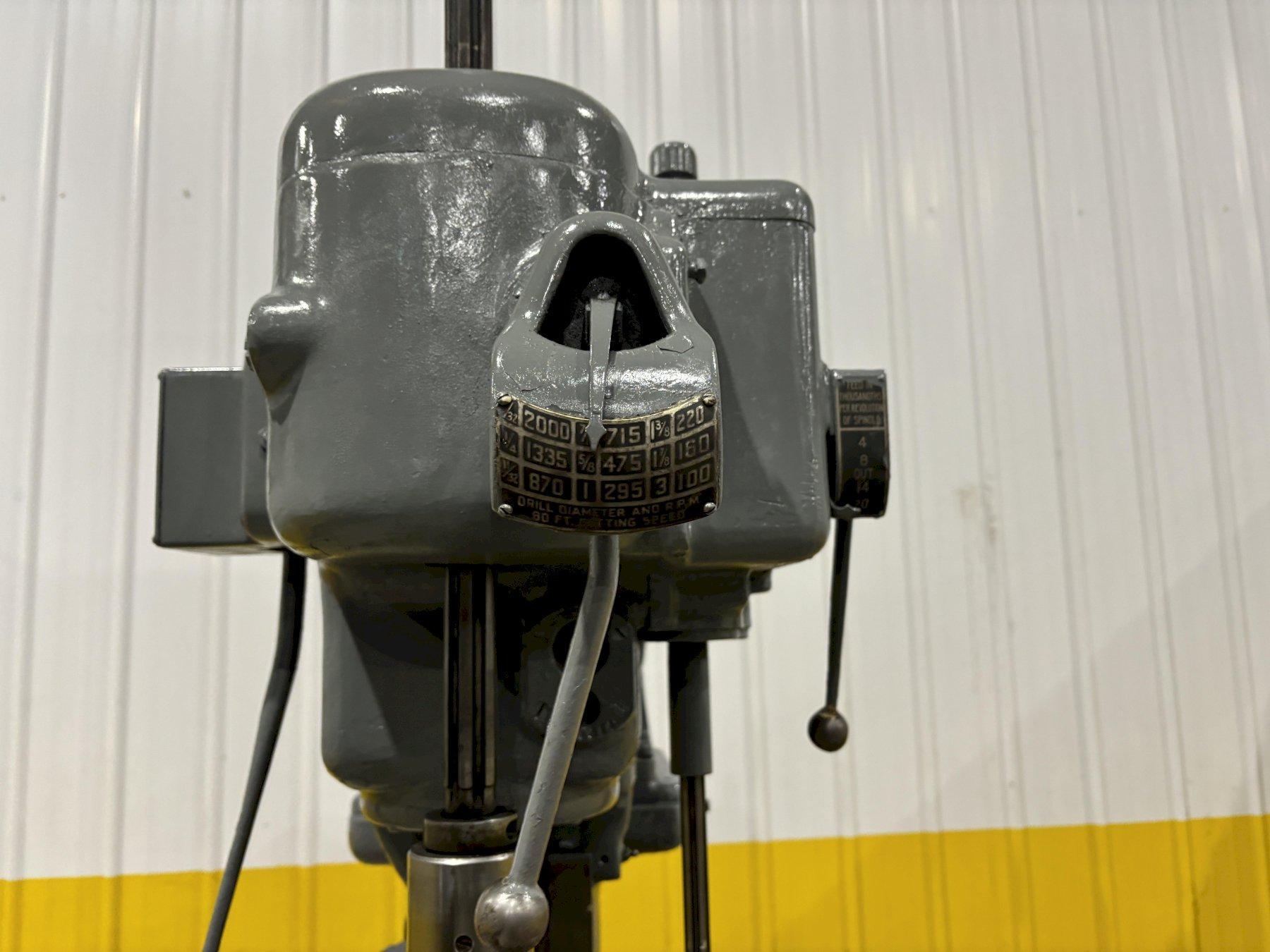

SPINDLE SPEEDS ..................... (9) 75 TO 1500 RPM

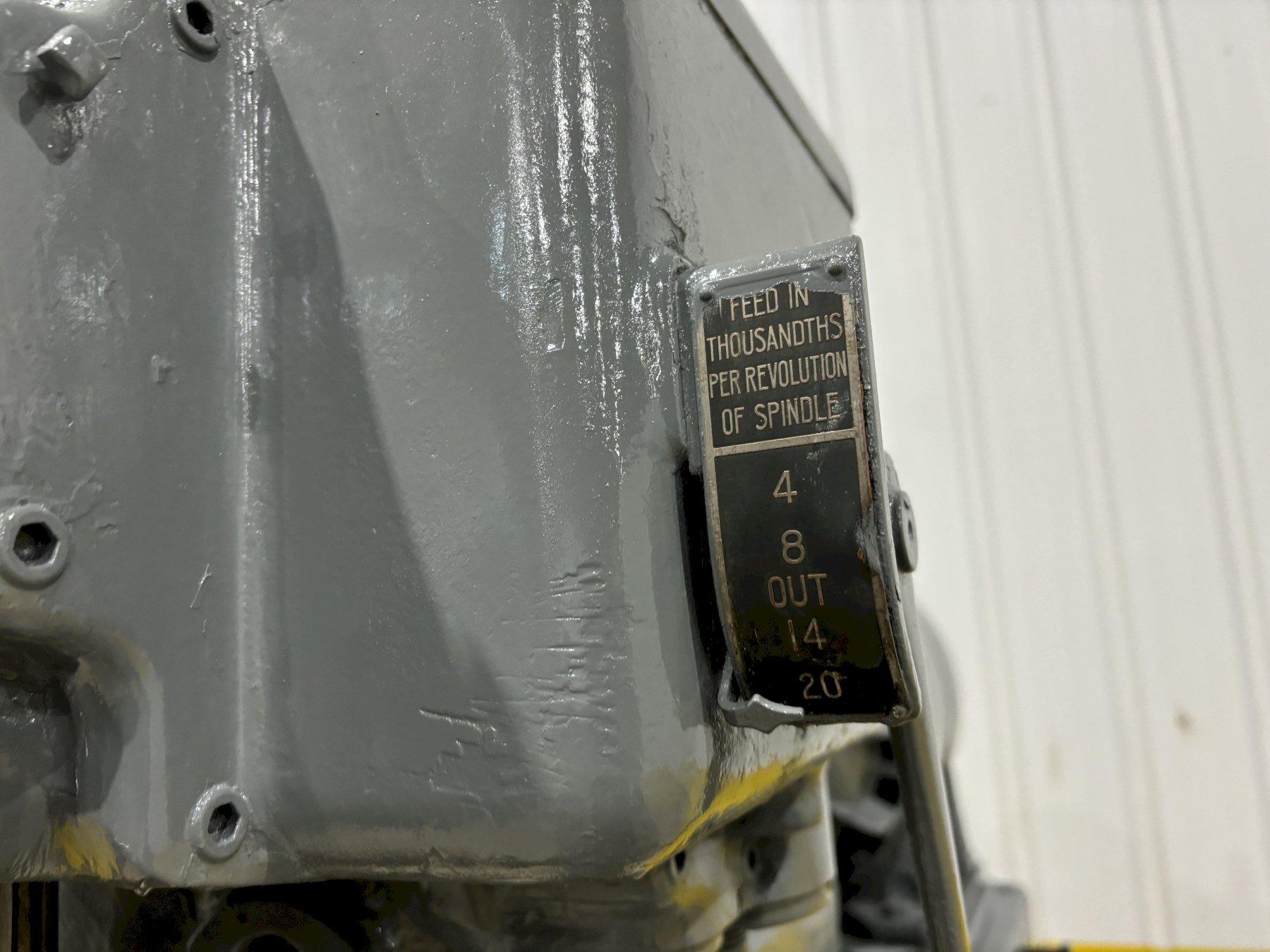

SPINDLE FEEDS ...................... .004, .008, .014, .020 IPR
SPINDLE TRAVEL ..................... 10"
TAPER IN SPINDLE ................... #4 MT
DIAMETER OF SPINDLE ................ 2-3/4"
AREA OF BASE ....................... 20-1/2" X 17-1/2"
TRAVEL OF HEAD ON COLUMN ........... 12"
VERTICAL TRAVEL OF TABLE ........... 18"
DISTANCE SPINDLE TO TABLE .......... 0" MINIMUM TO 30" MAXIMUM
DISTANCE SPINDLE TO BASE ........... 32" MINIMUM TO 44" MAXIMUM
FORWARD AND REVERSE ................ YES

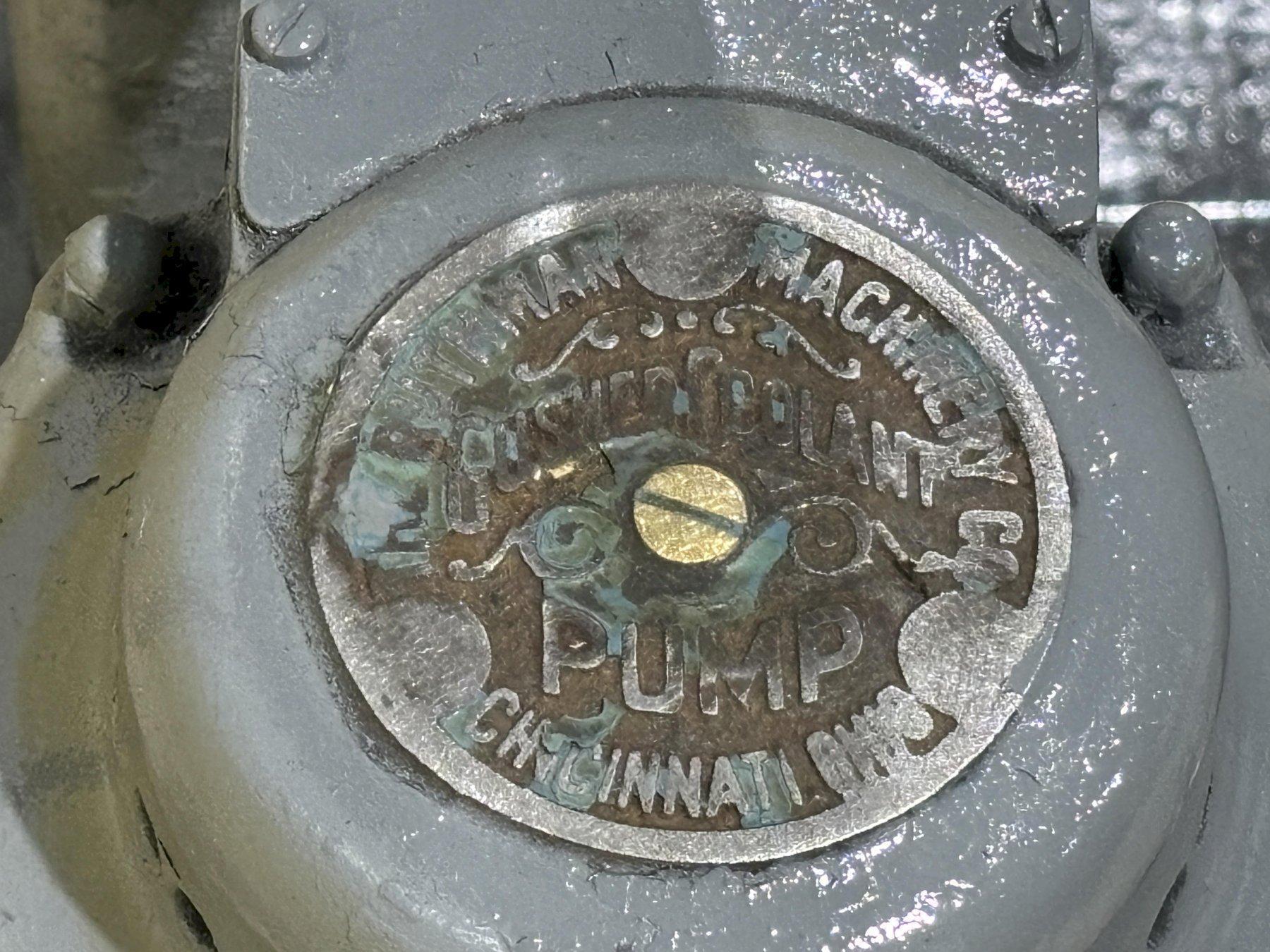

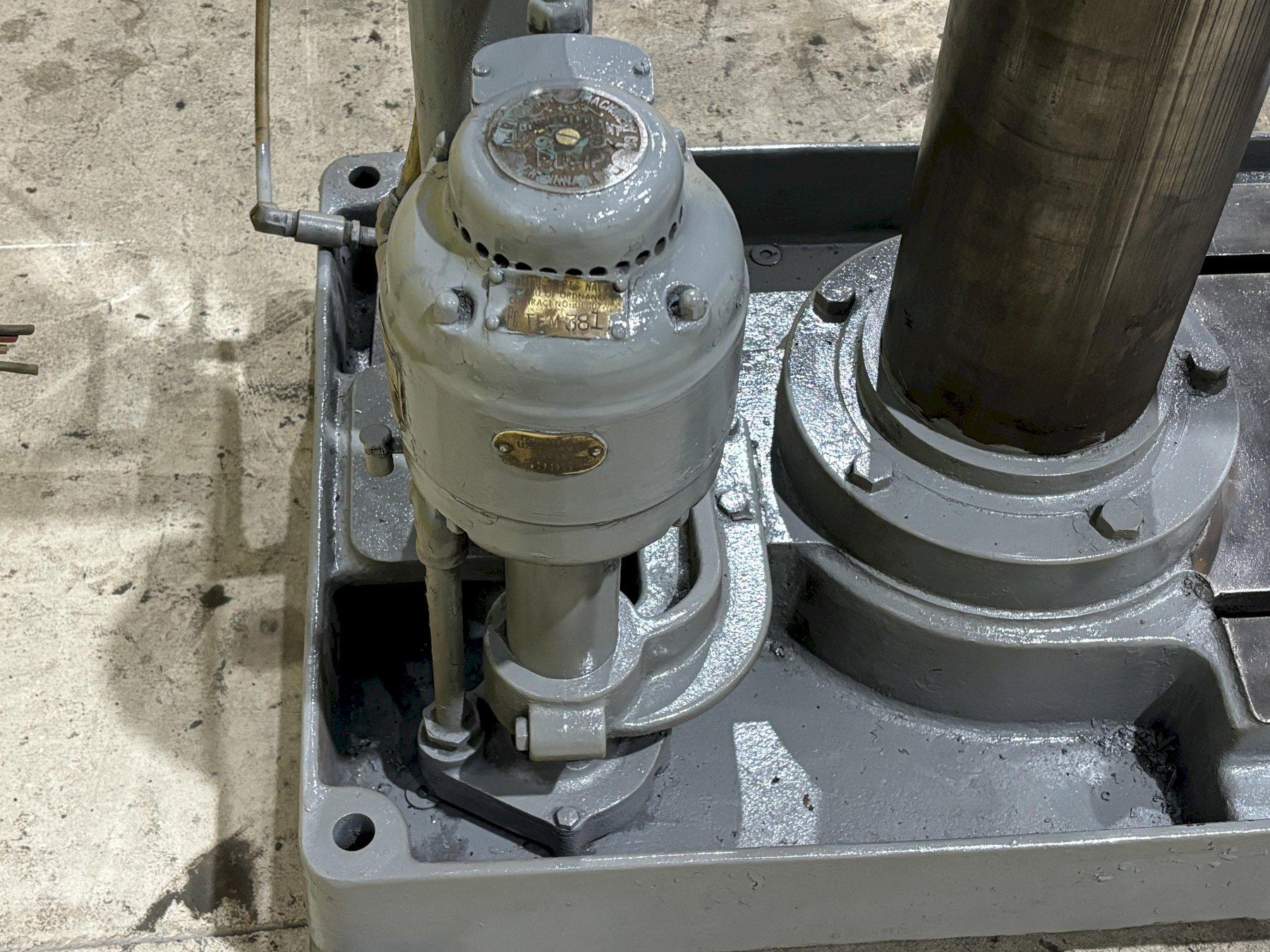

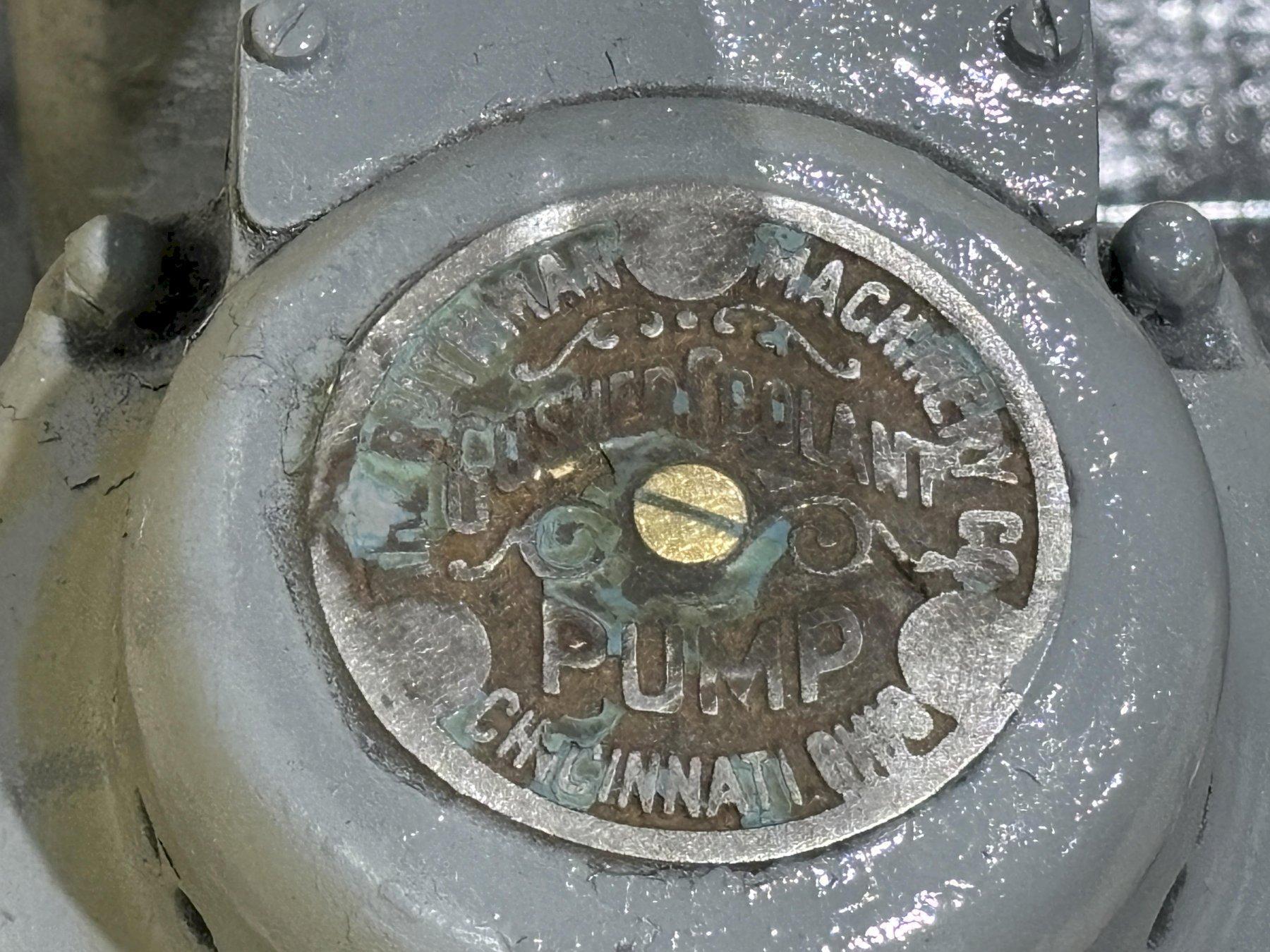

COOLANT ............................ YES

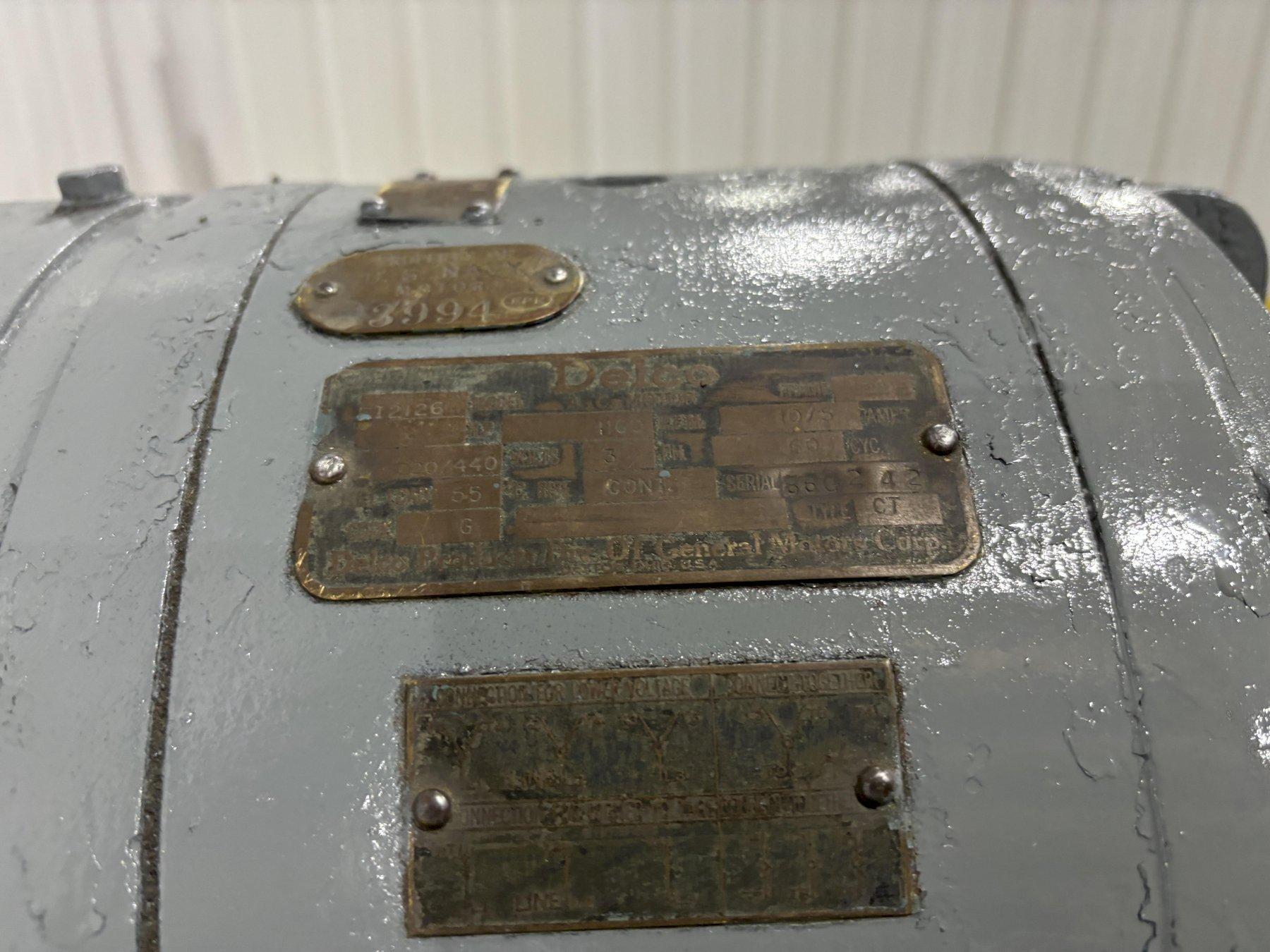

MOTOR .............................. 3 HORSEPOWER
