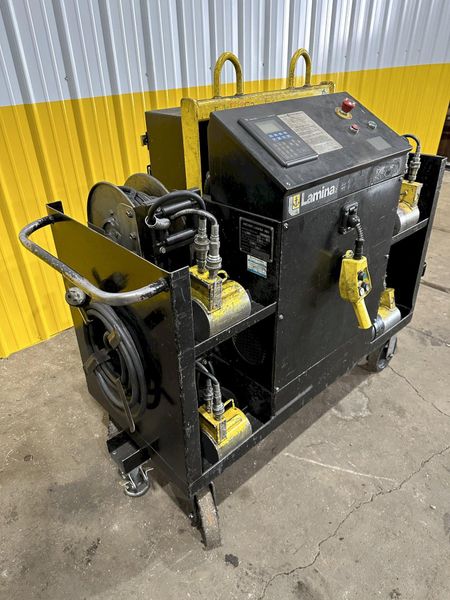

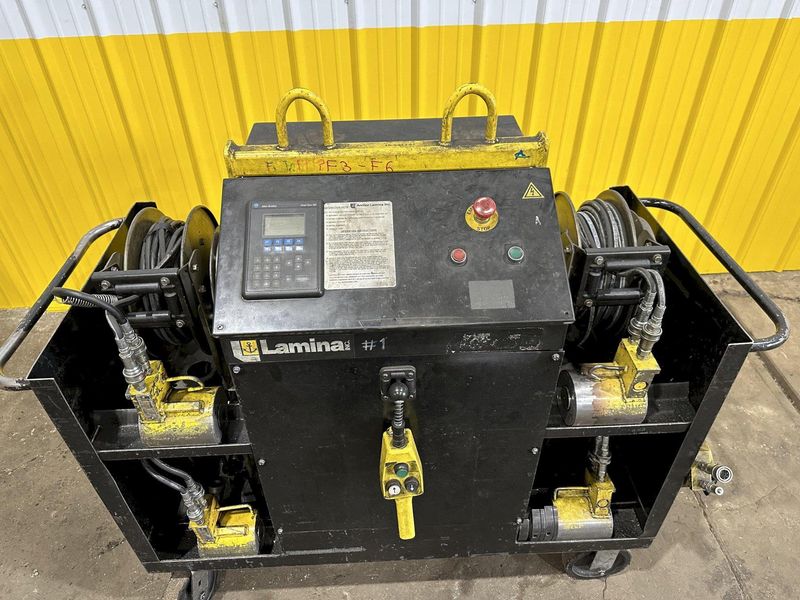

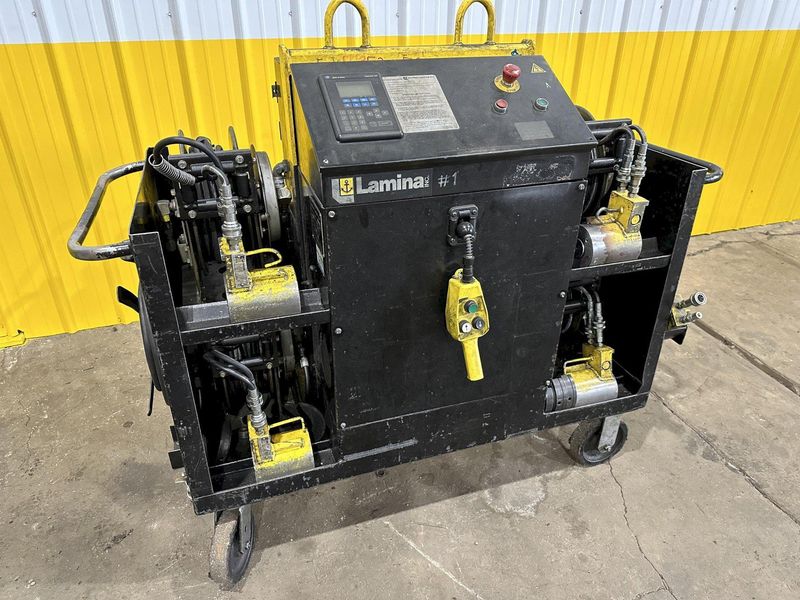

80,000 LBS ANCHOR-LAMINA 4-CYLINDER PORTABLE HYDRAULIC DIE SETTING & SEPARATING SYSTEM: STOCK #1

Manufacturer

LAMINA

Category

Casting/Die Casting Machines

Type

DIE CASTING MACHINES

Stock

18989

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

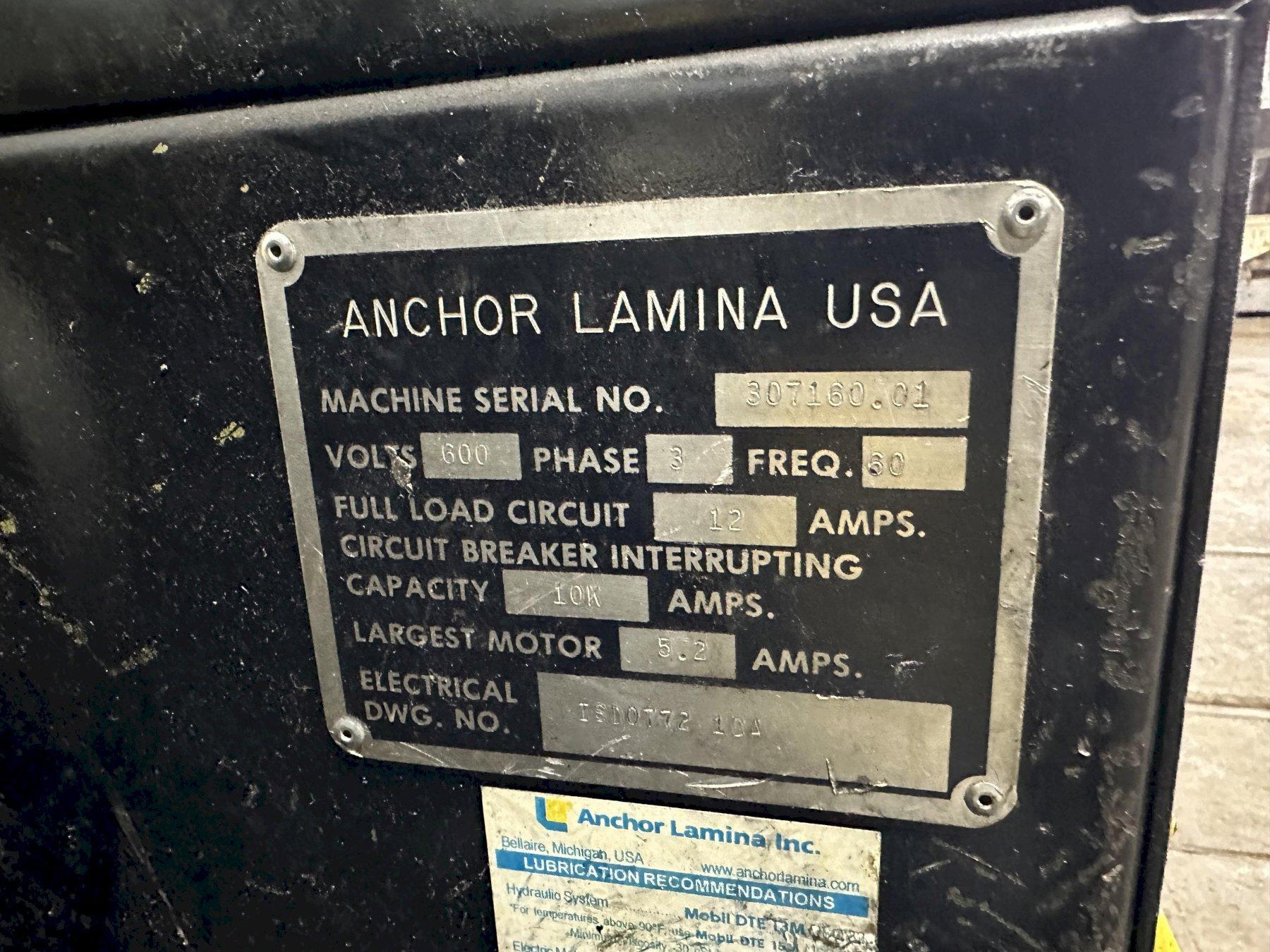

SERIAL ....................... 307160.01

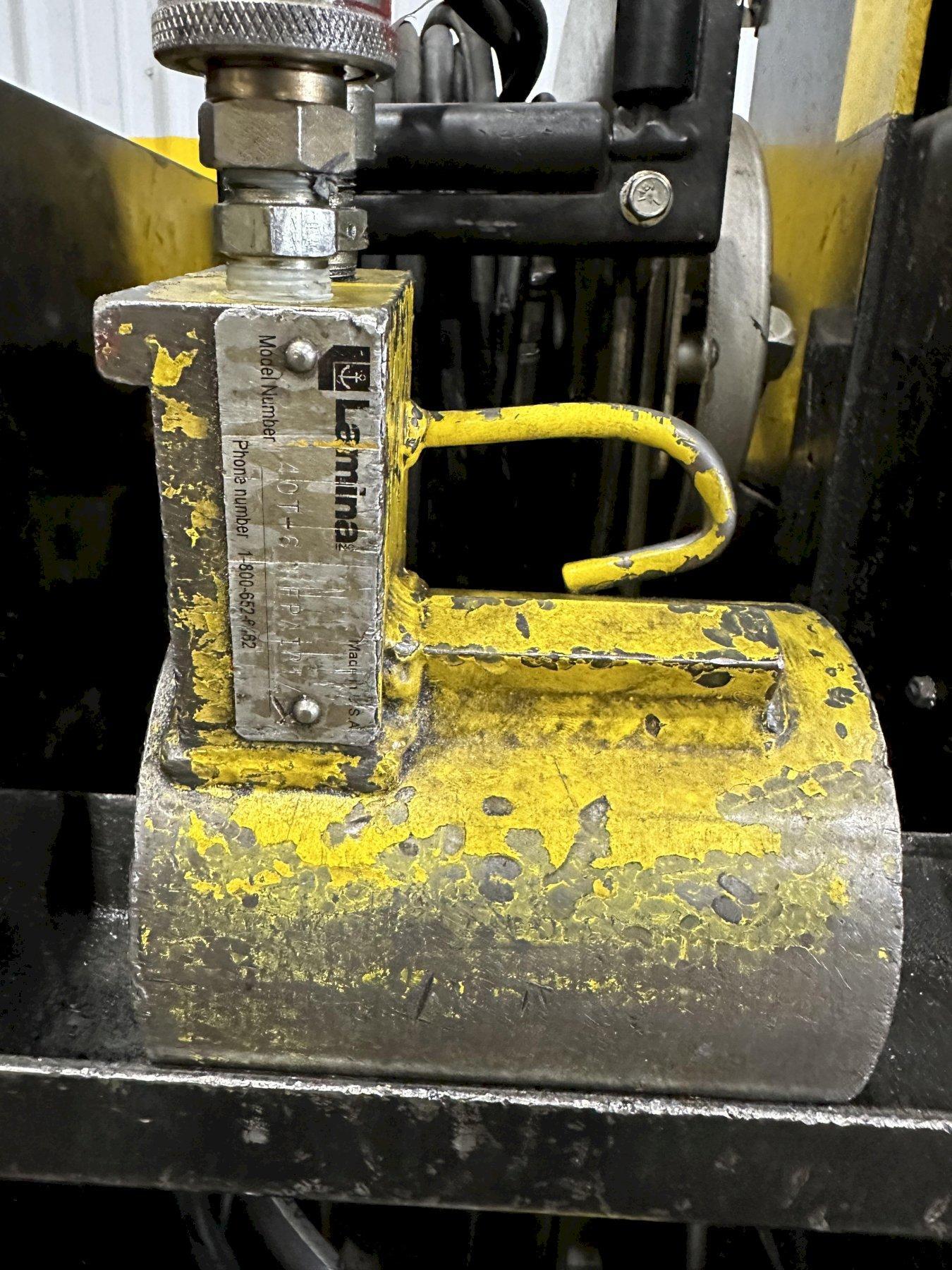

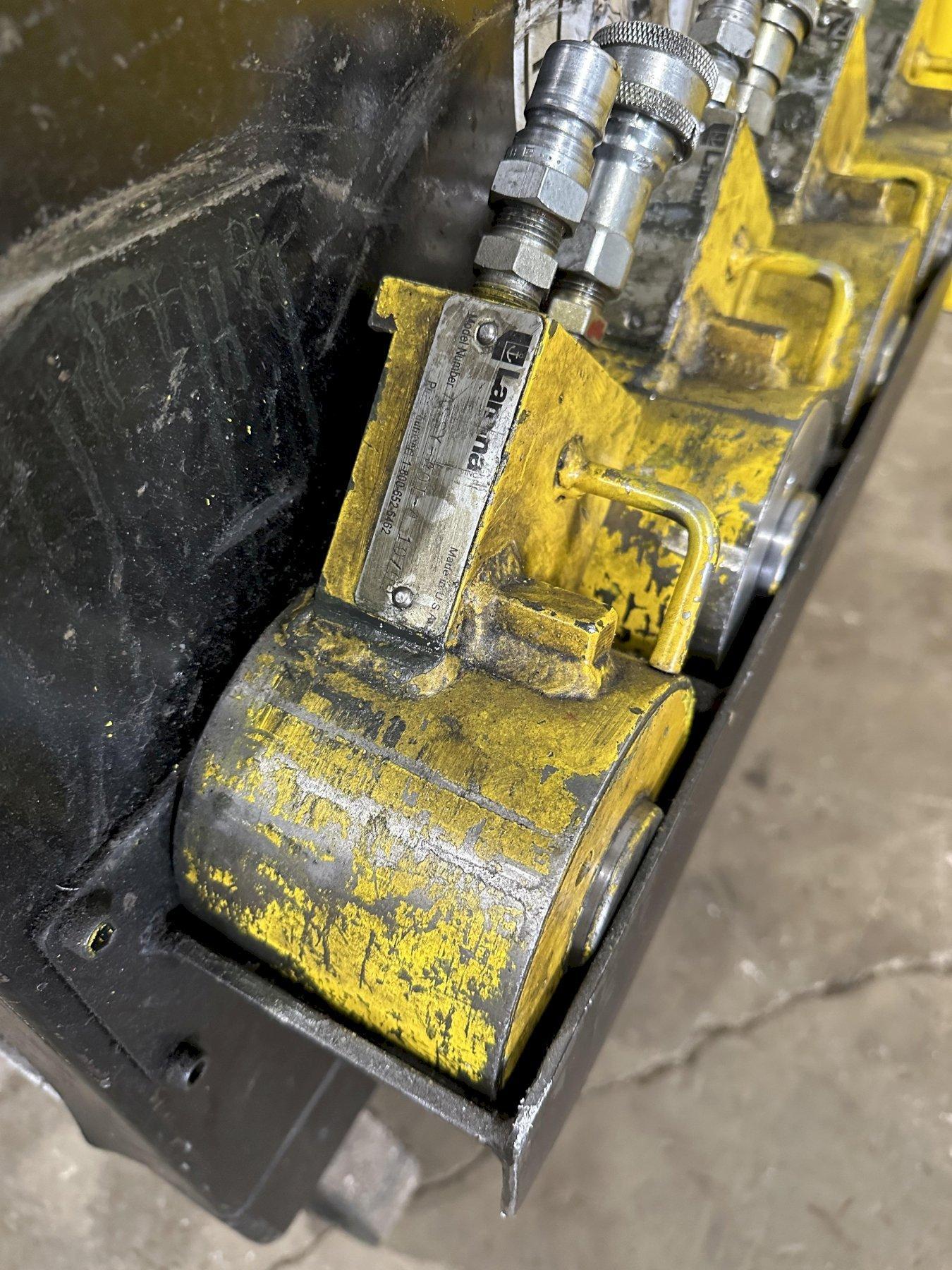

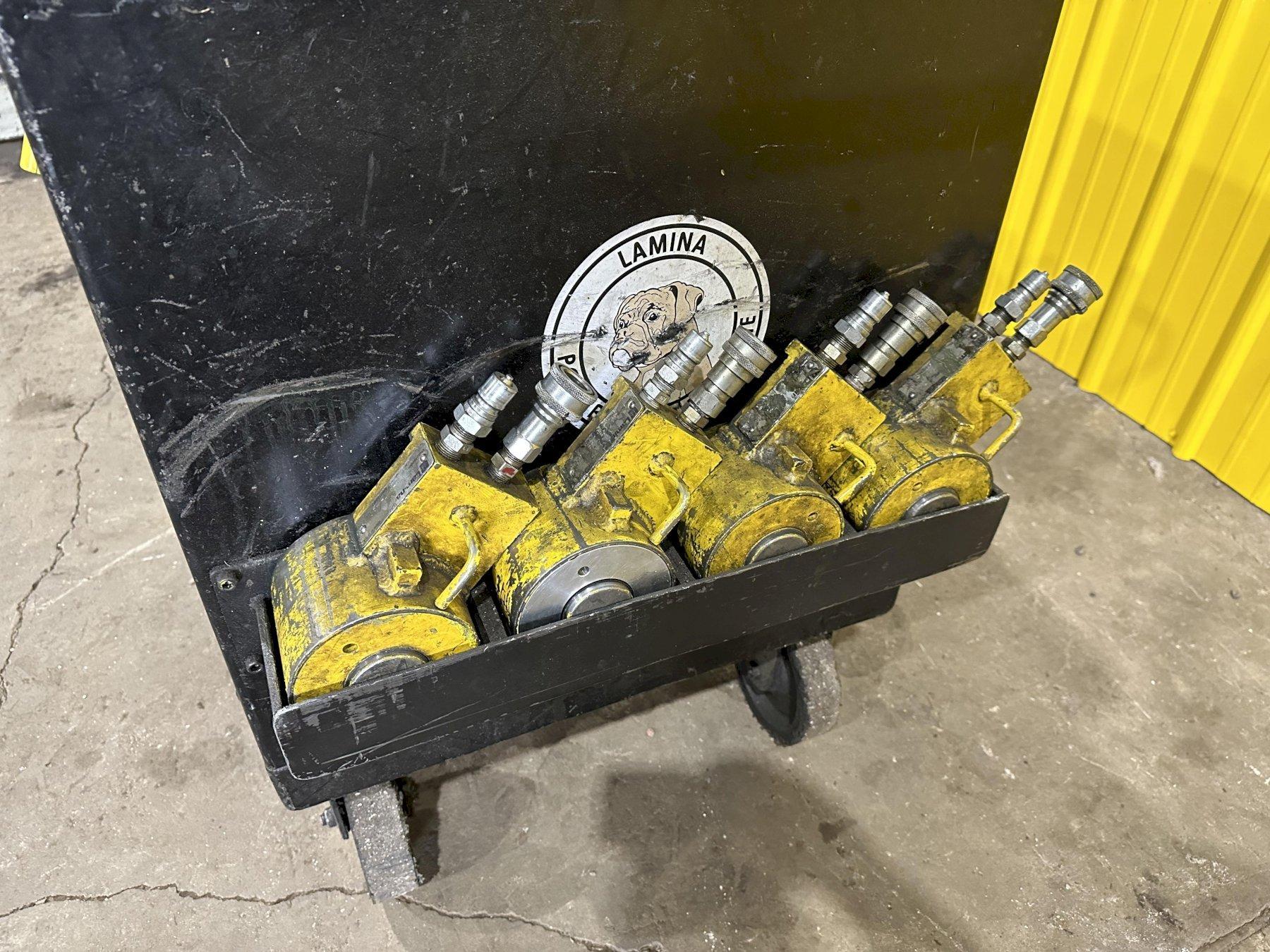

NUMBER OF LIFT CYLINDERS ..... 8 (2 SETS OF 4)

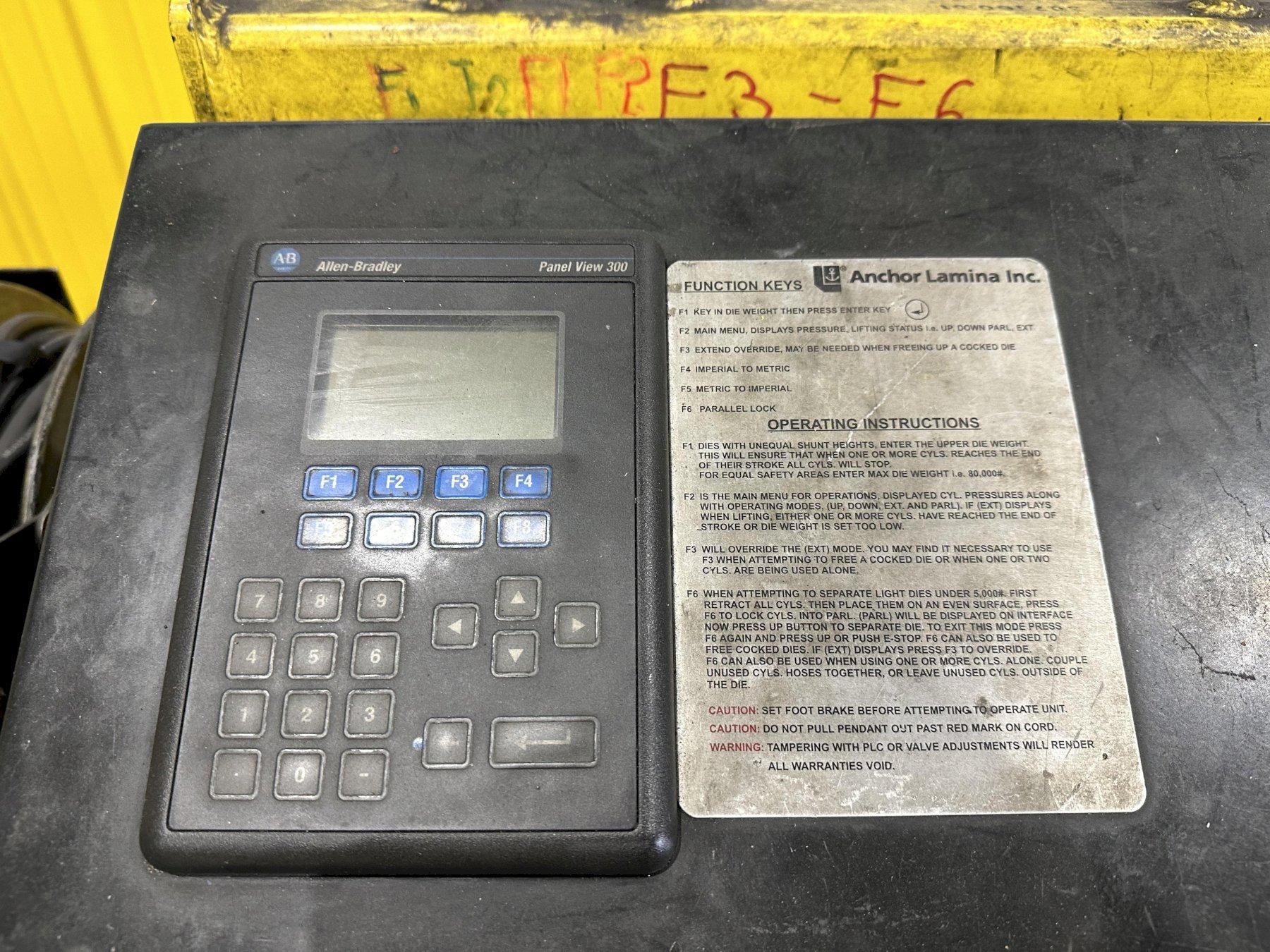

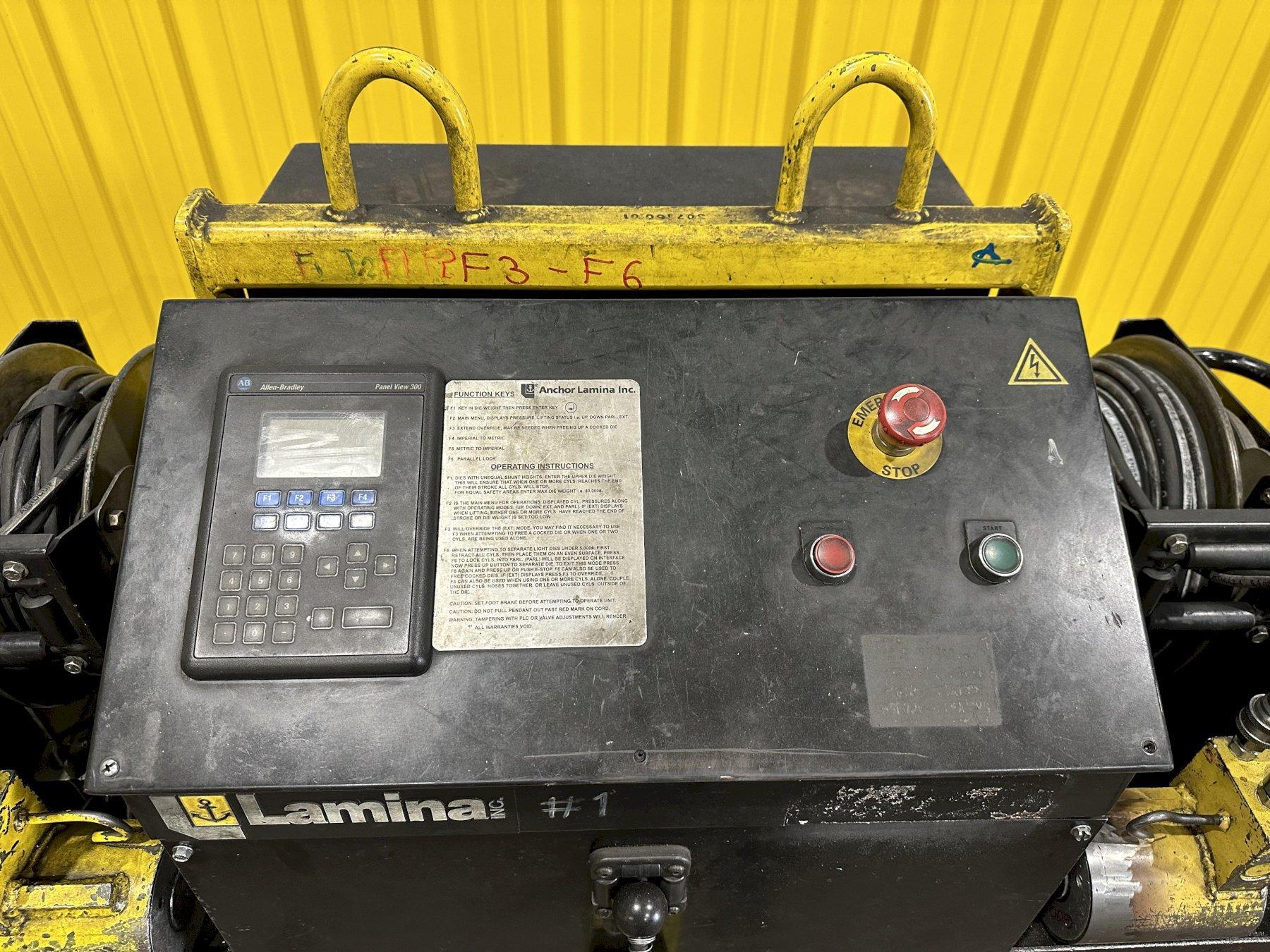

ALLEN BRADLEY PANELVIEW ...... YES
MICROPROCESSOR CONTROL ....... E300 DIGITAL
PENDANT CONTROL .............. YES
PORTABLE CART MOUNTED FRAME .. YES

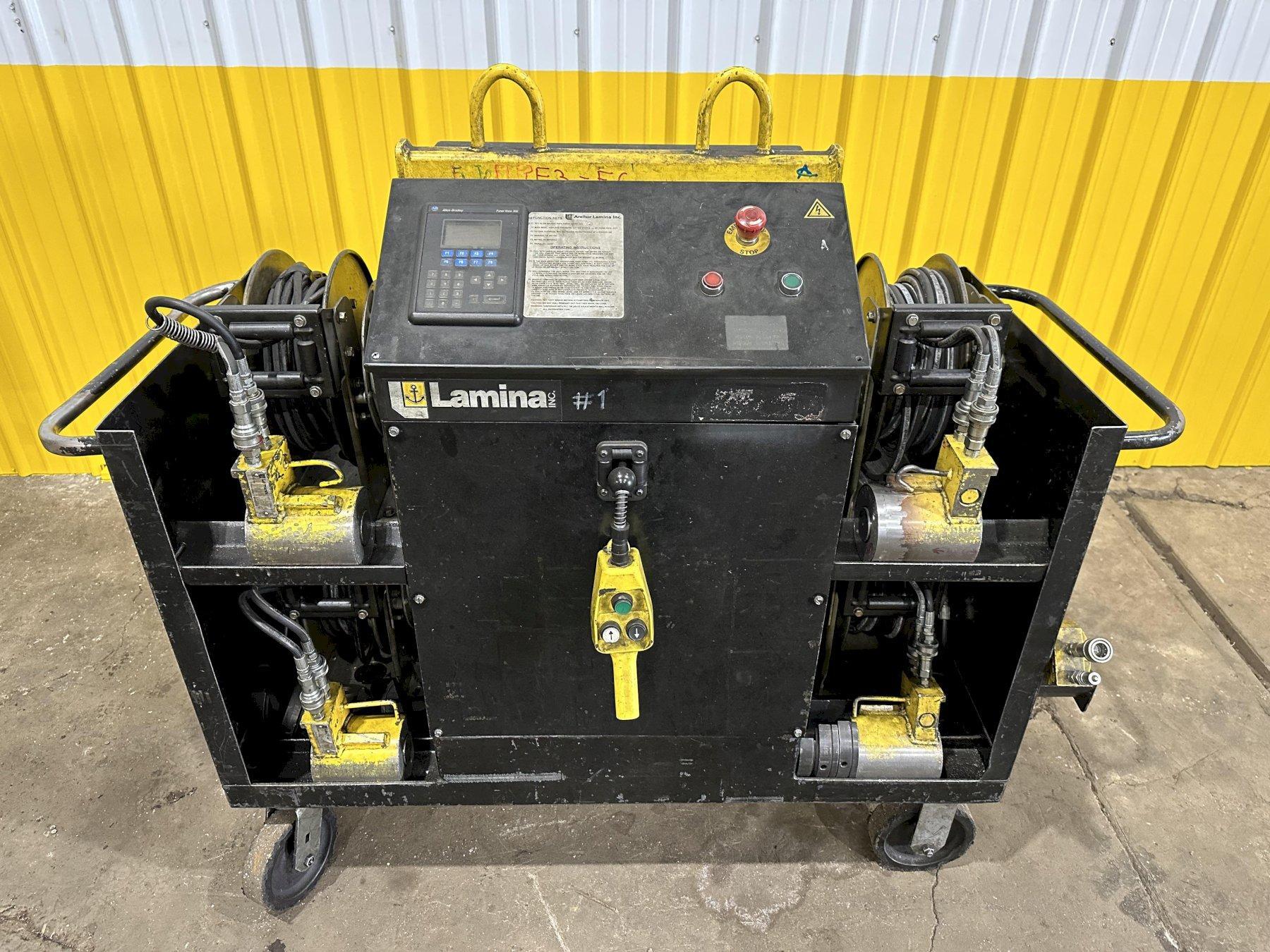

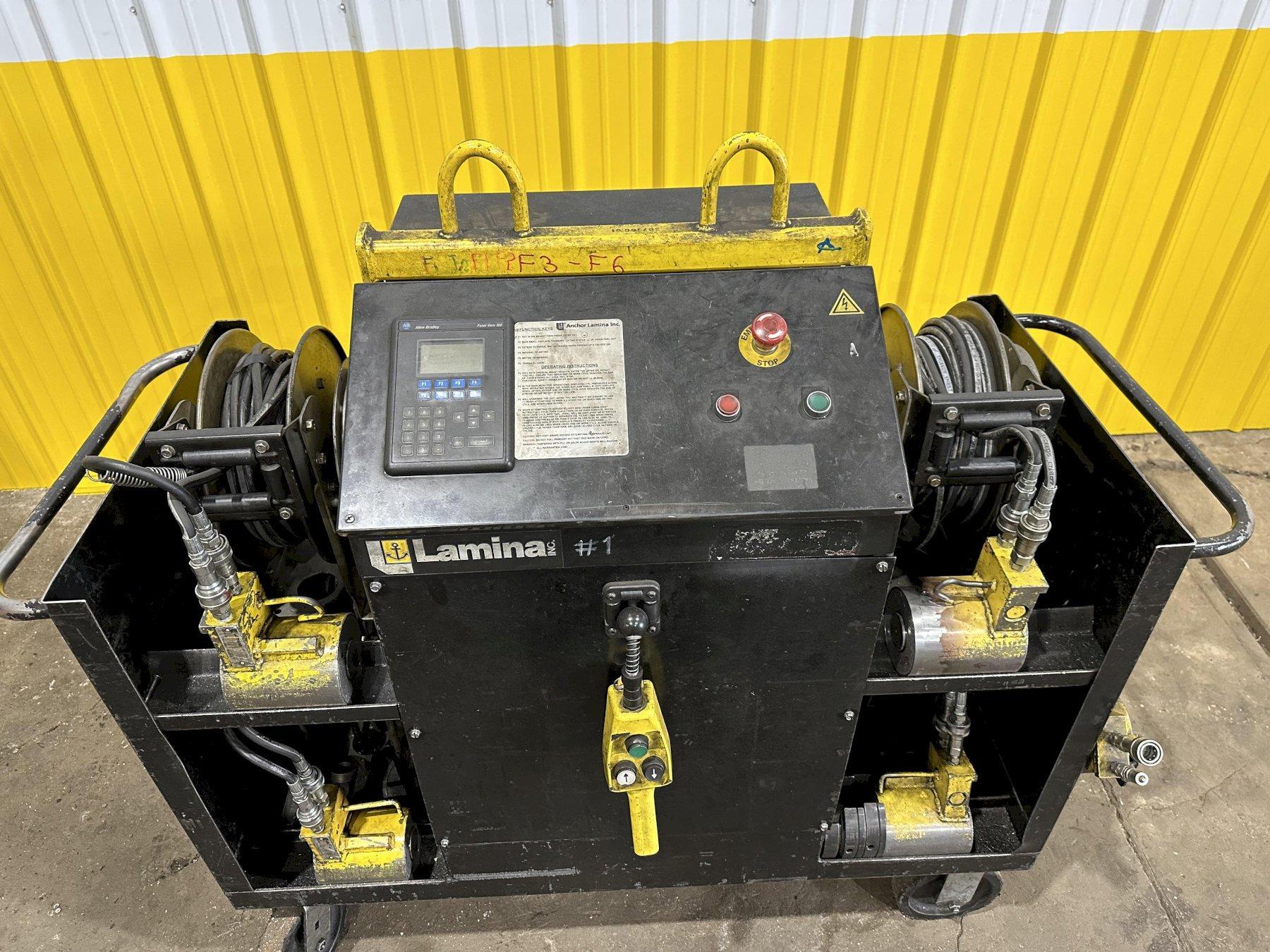

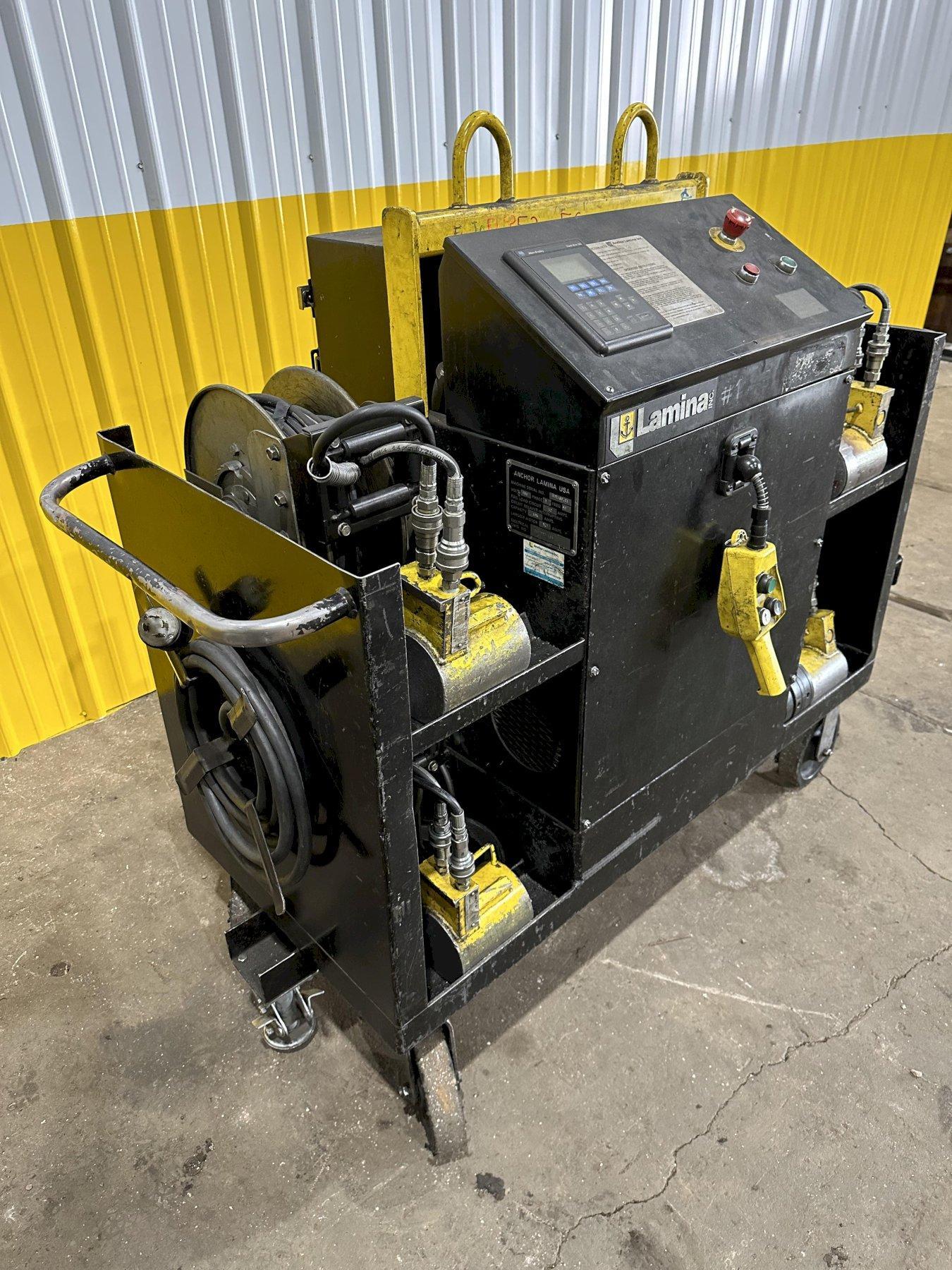

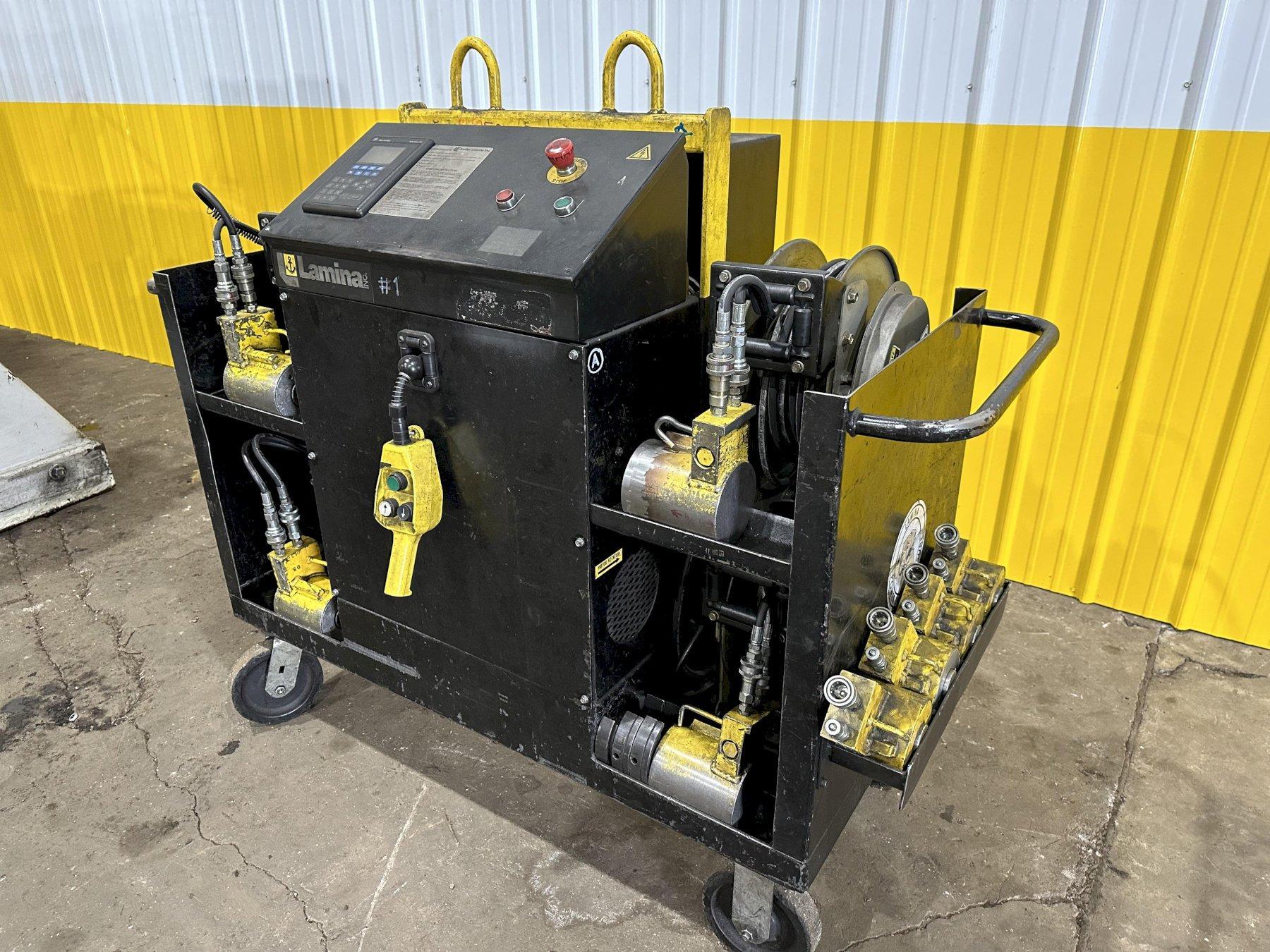

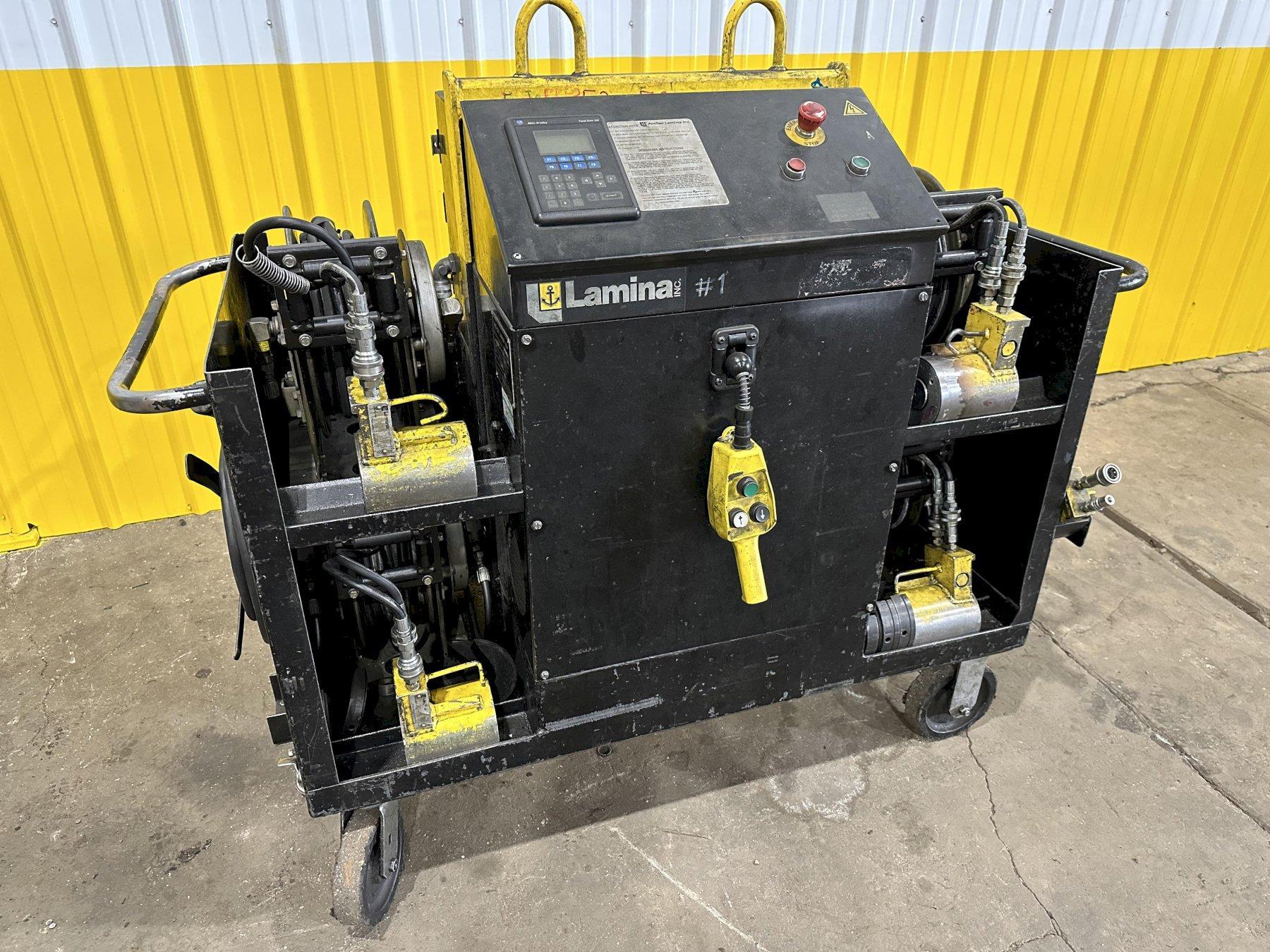

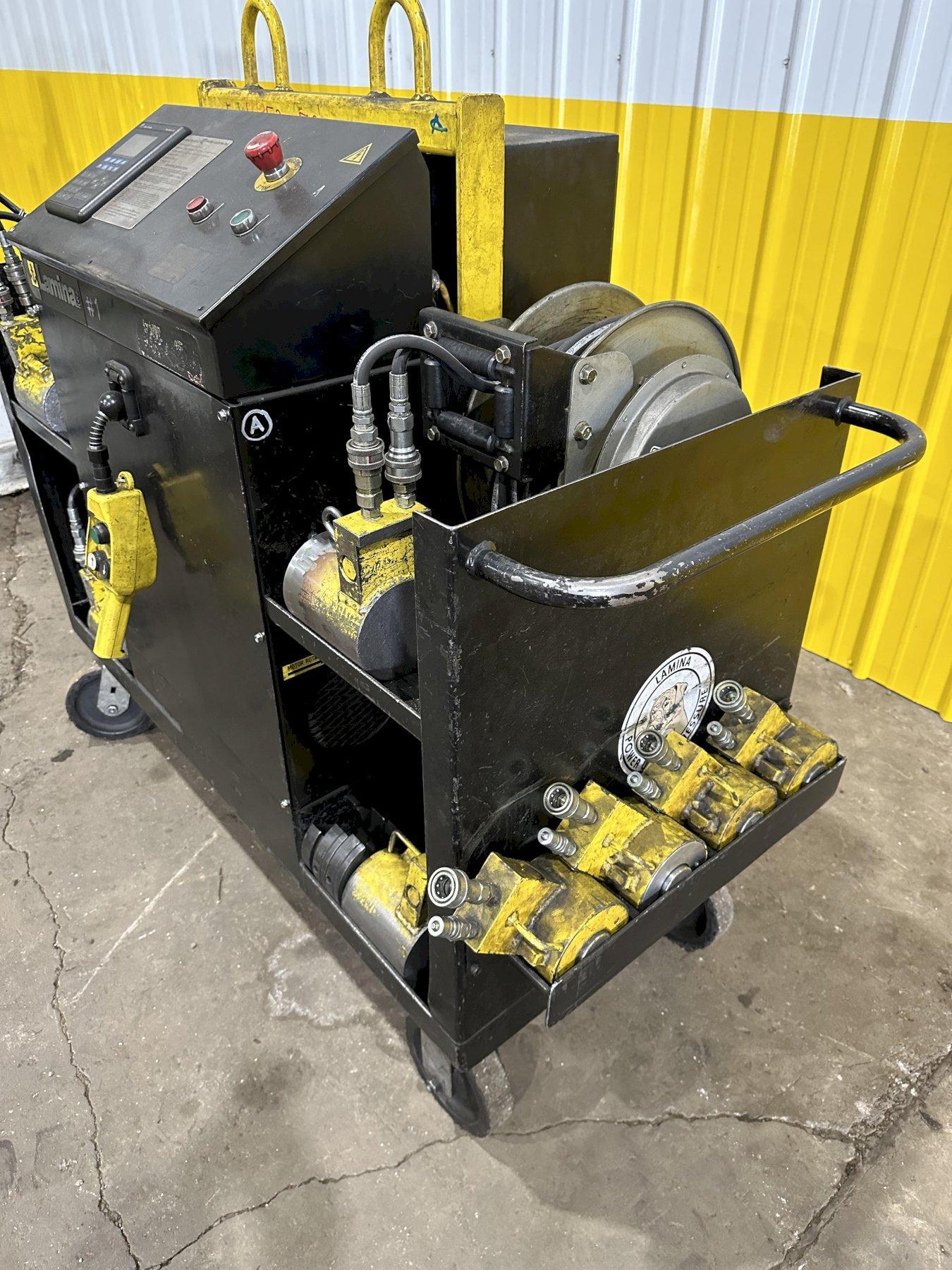

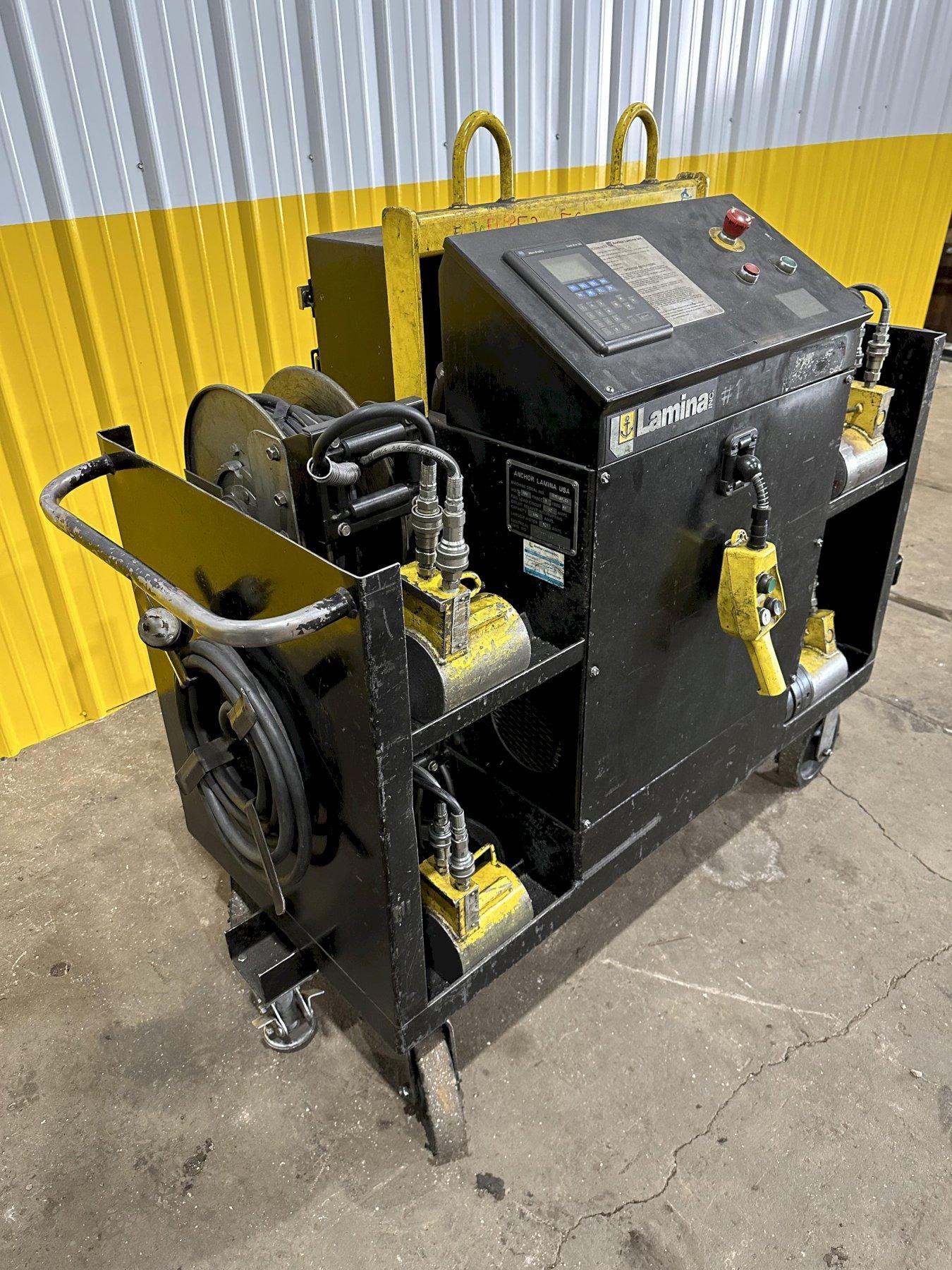

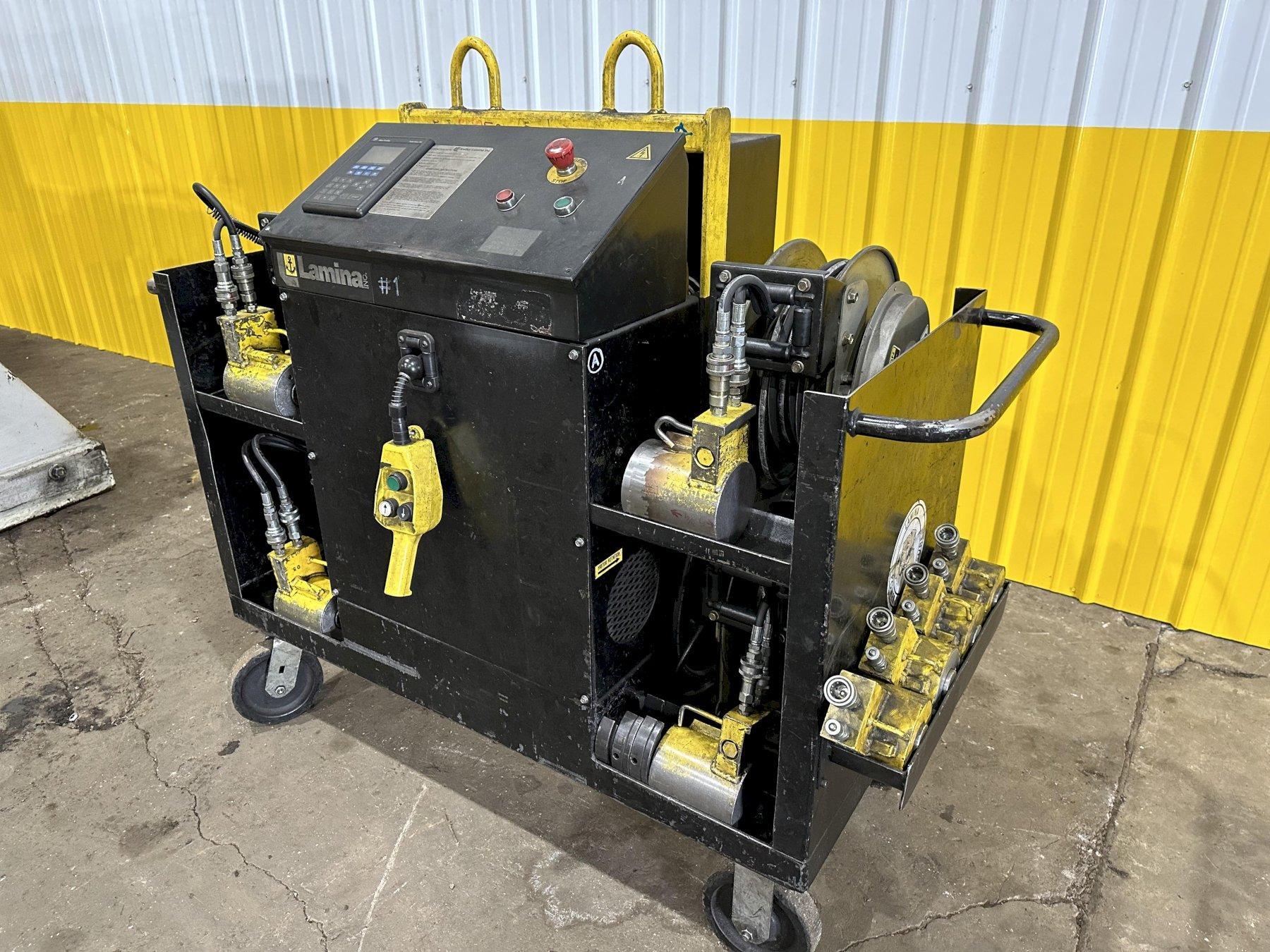

Portable Electronic Die Setter - 4 Cylinders

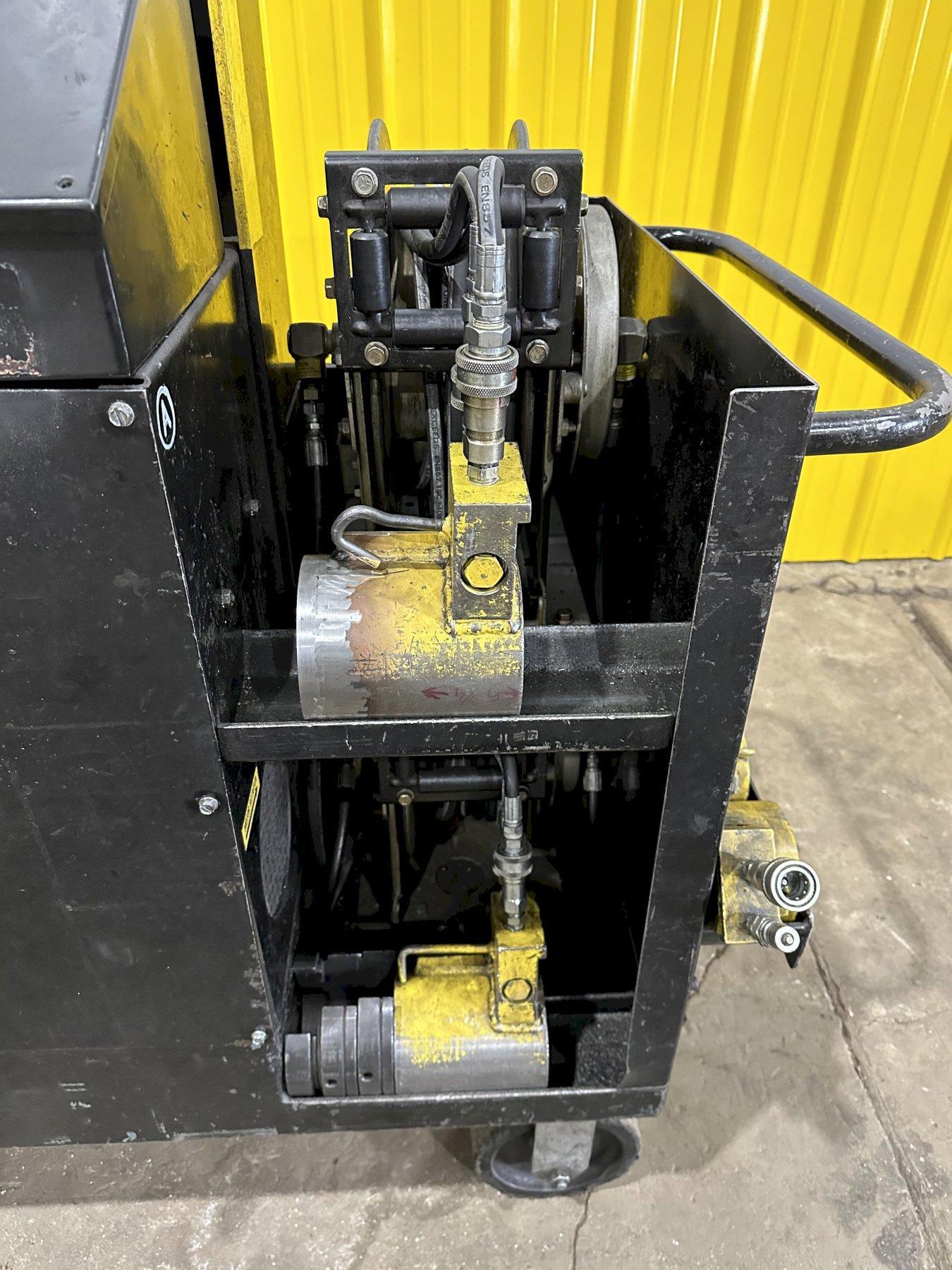

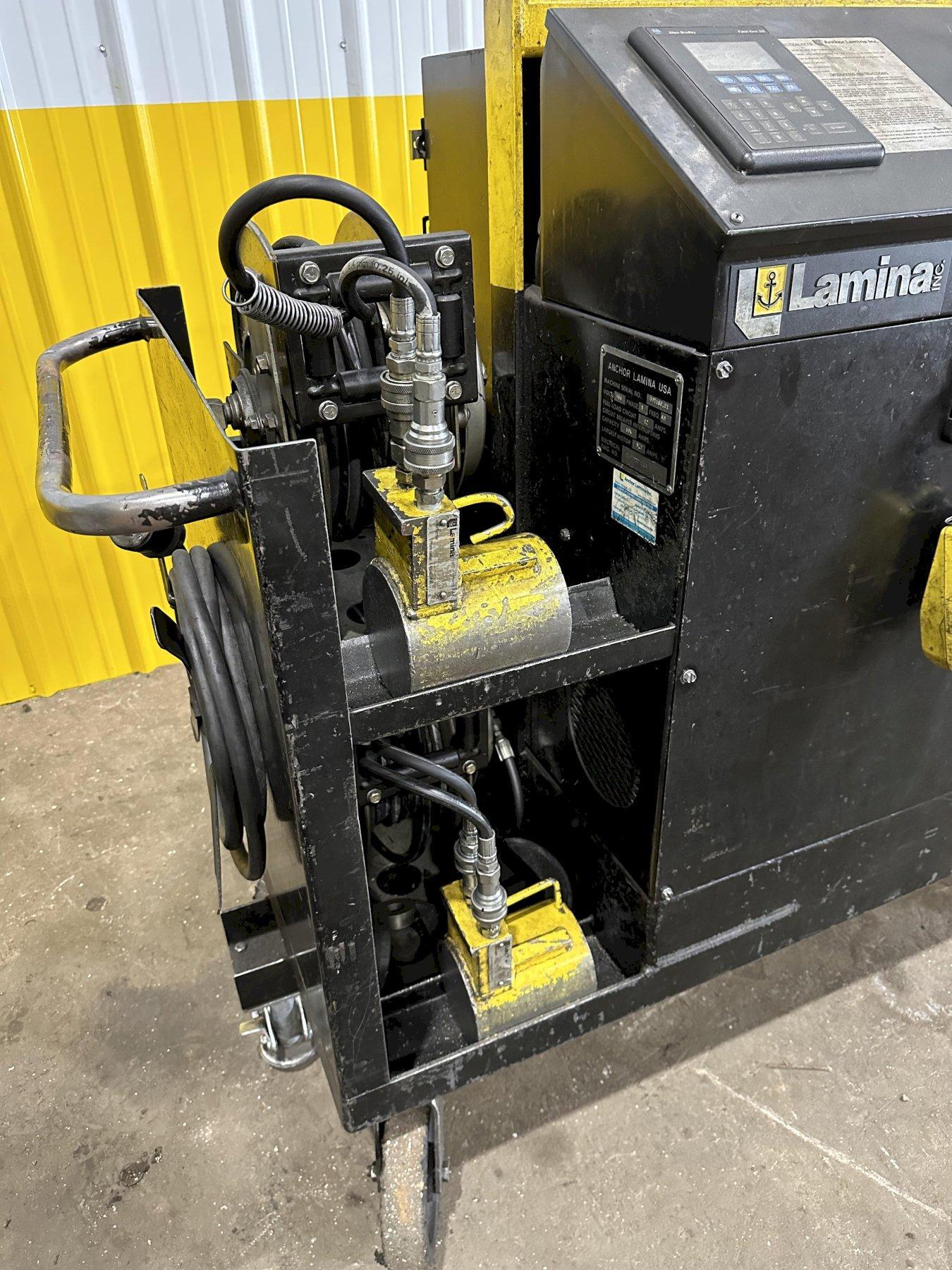

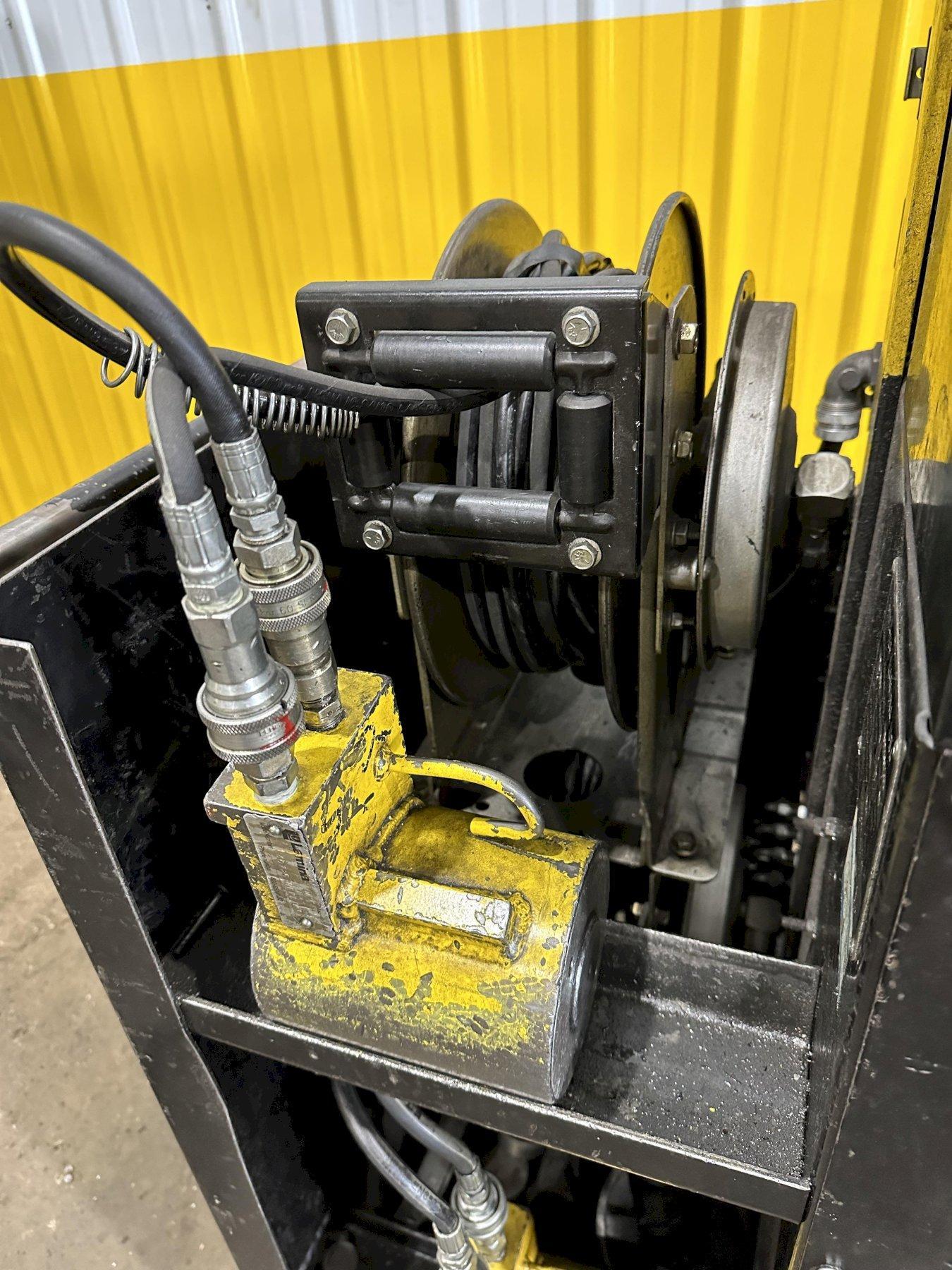

One compact, low profile wheeled cabinet contains all the equipment you need for all the punch spotting, die setting and die separation jobs in your shop. This die setter is completely portable with self-retracting hose reels and pendant.

Each Die Setter has two modes of operation:

1. Unify Mode - Cylinders will extend until each makes contact with the die; cylinders will subsequently lift uniformly, creating a synchronous lifting system.
2. Parallel Mode - Cylinders will extend uniformly, at the same rate, and act as a synchronous jacking system. To initiate this mode, cylinders must be fully extended or fully retracted.
