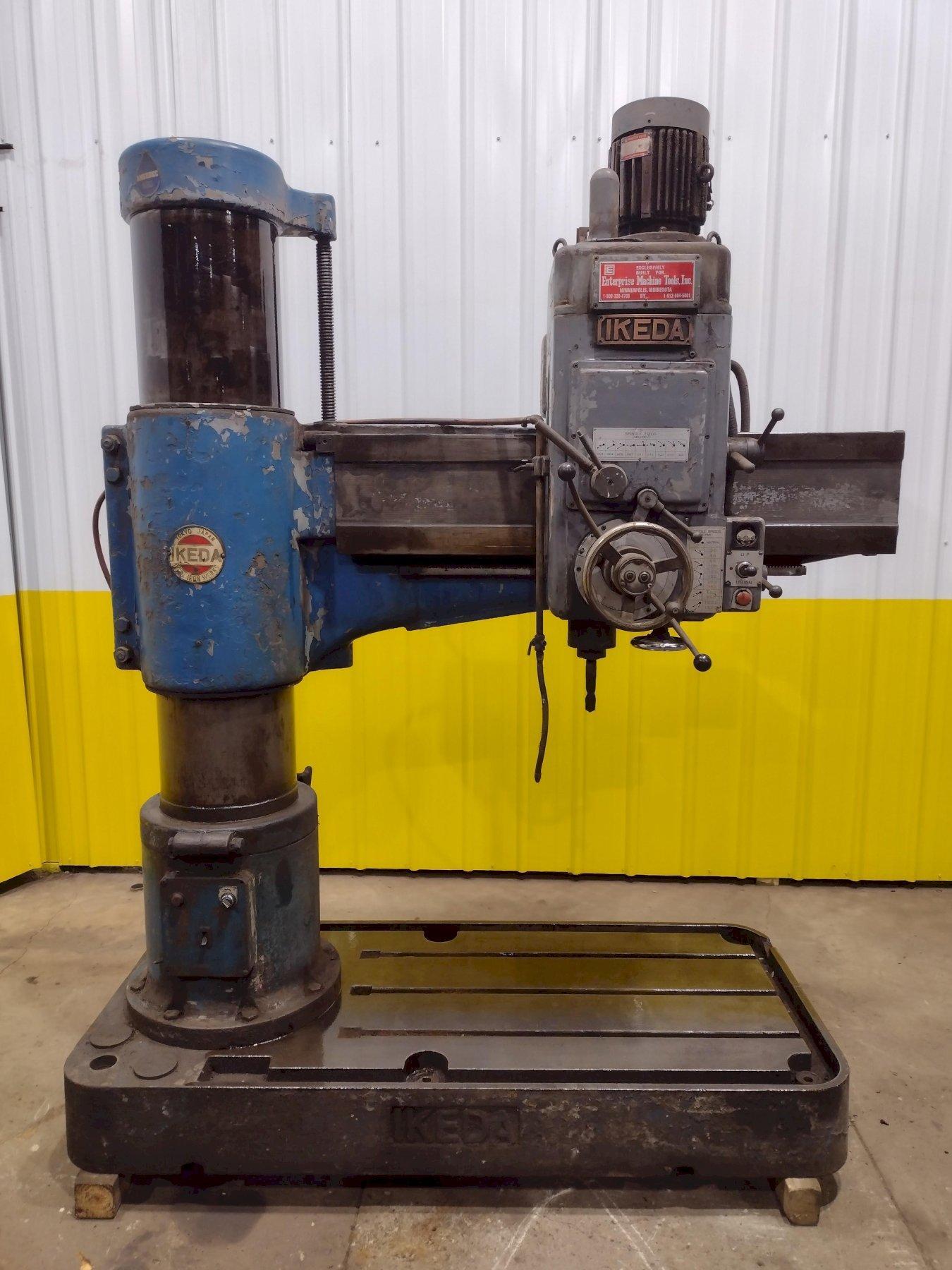

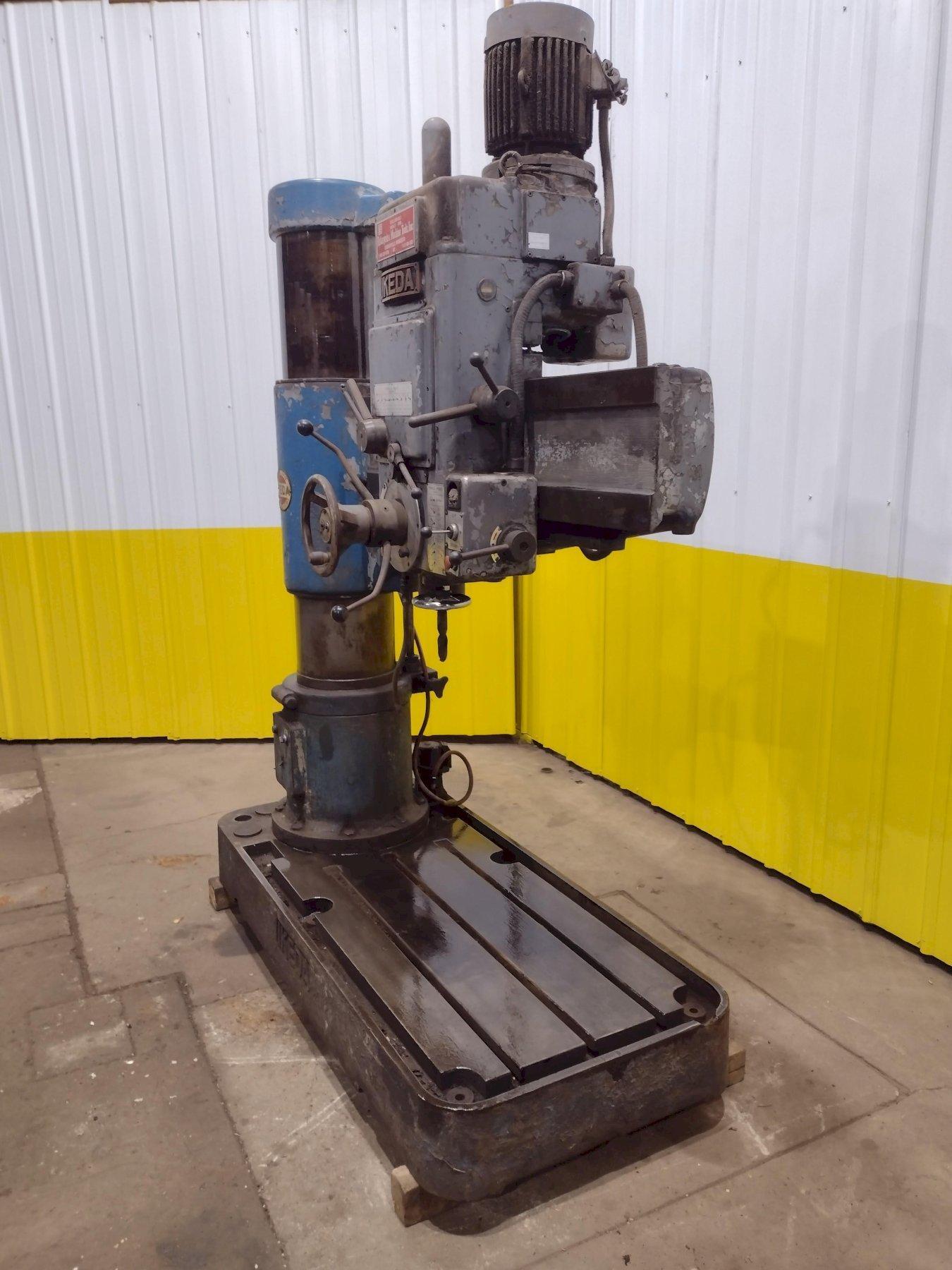

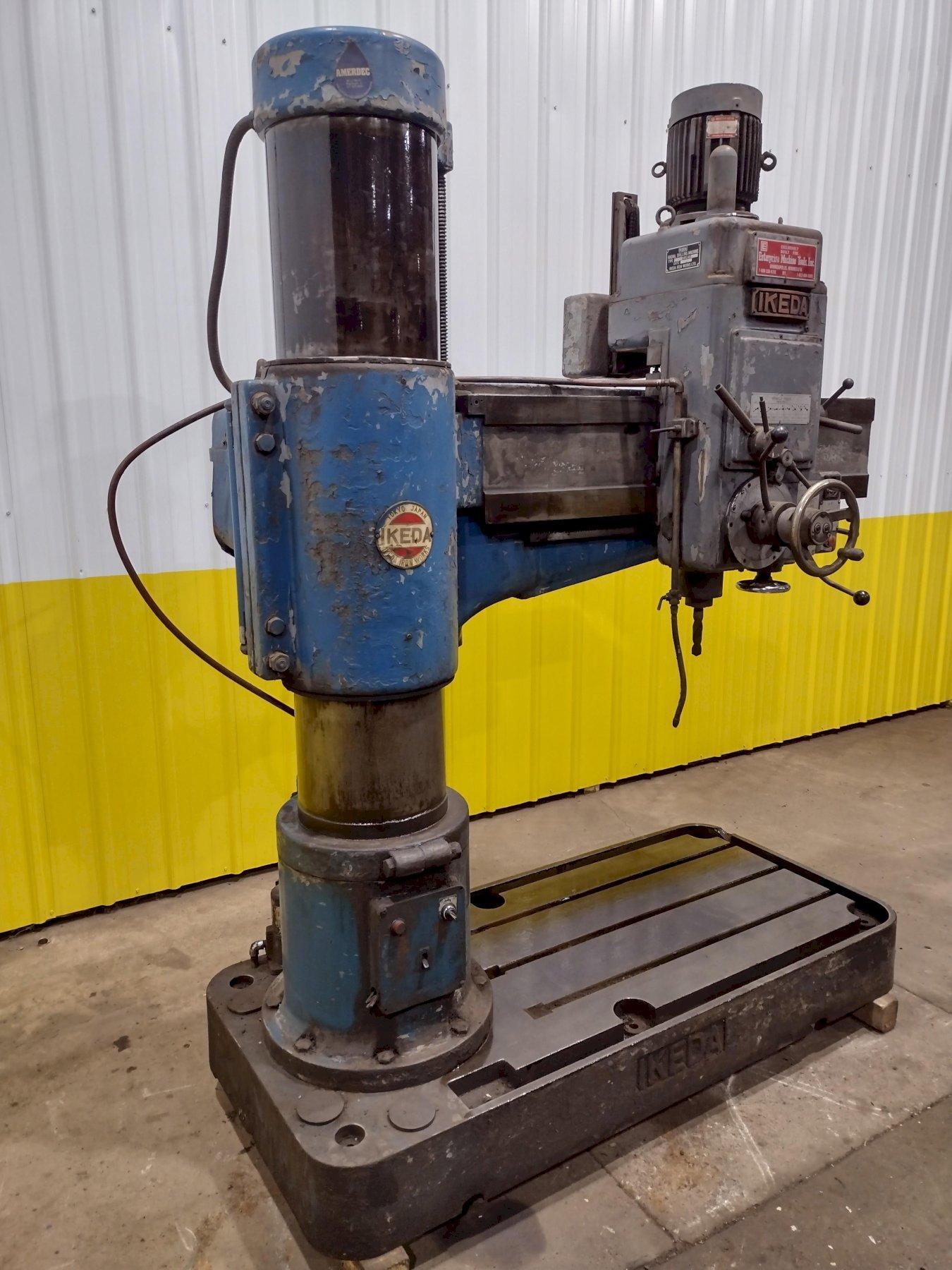

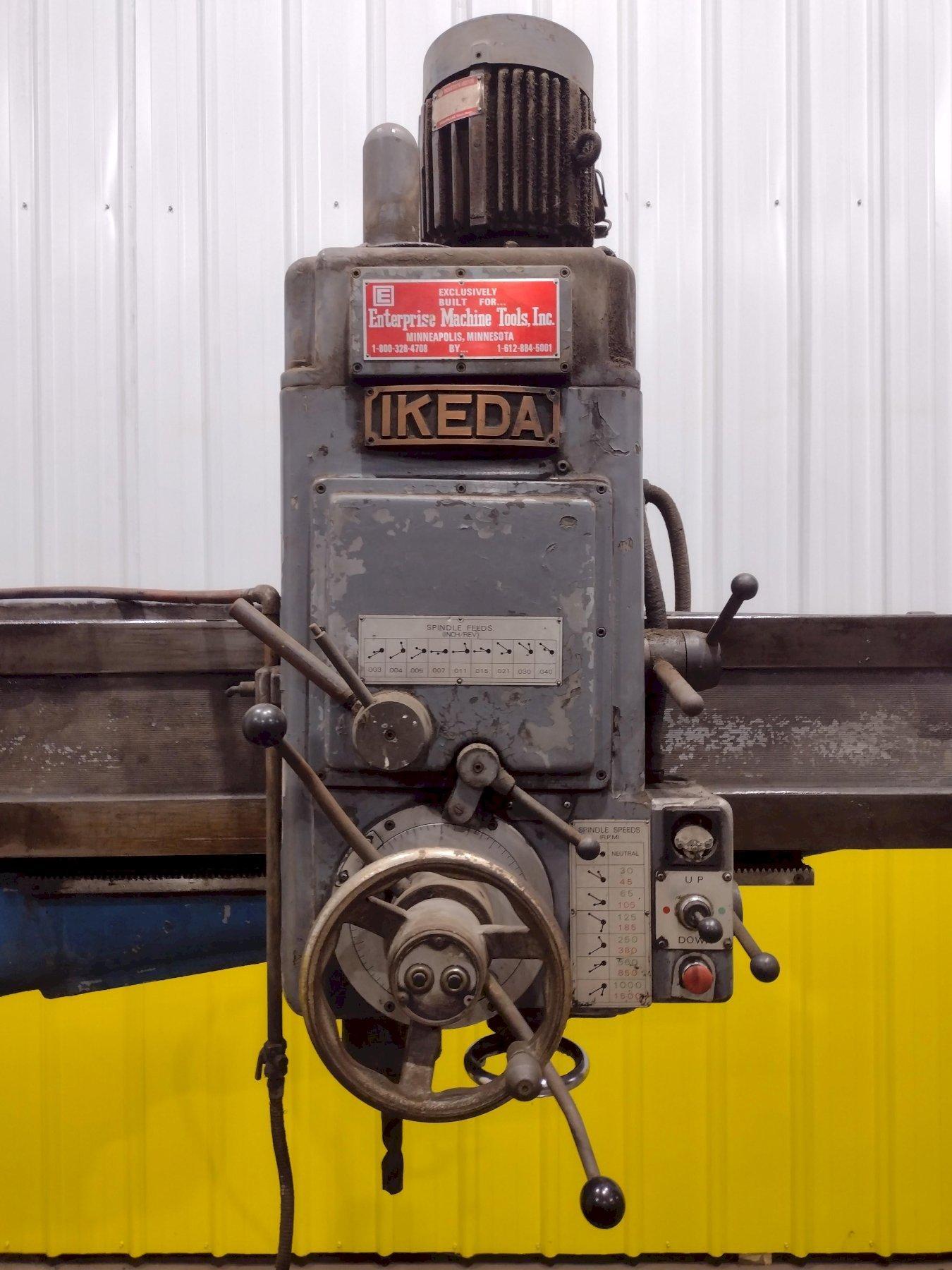

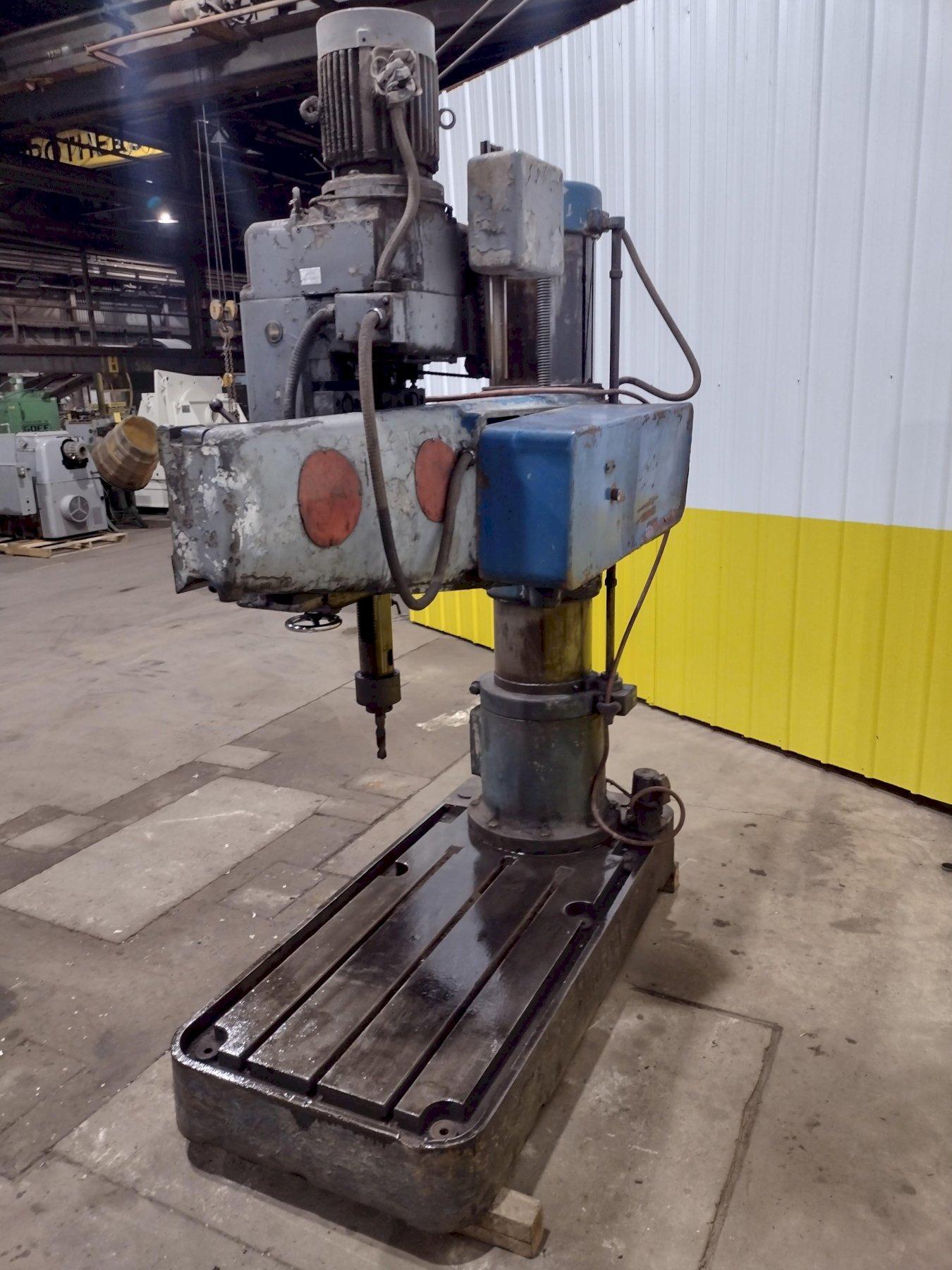

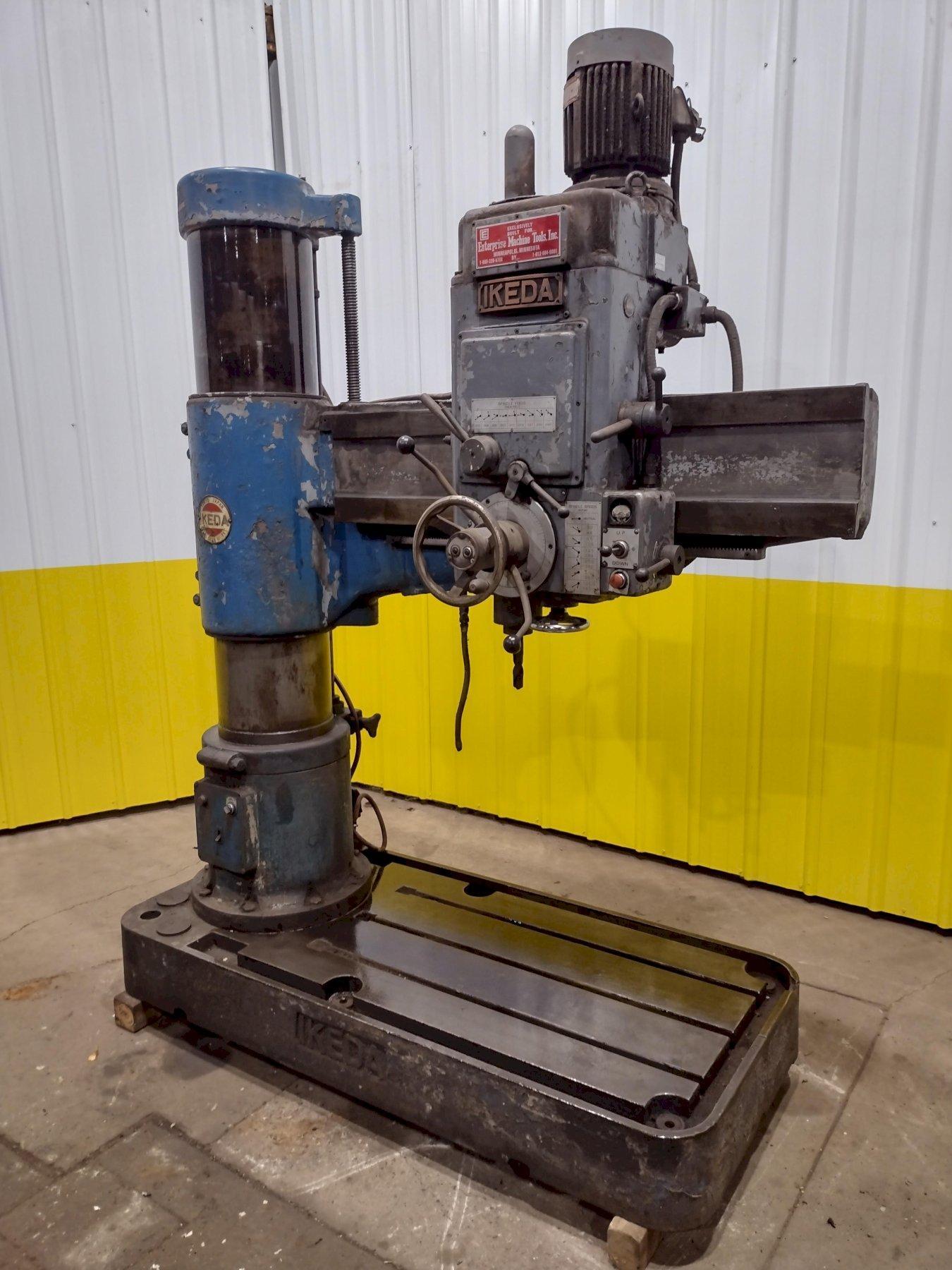

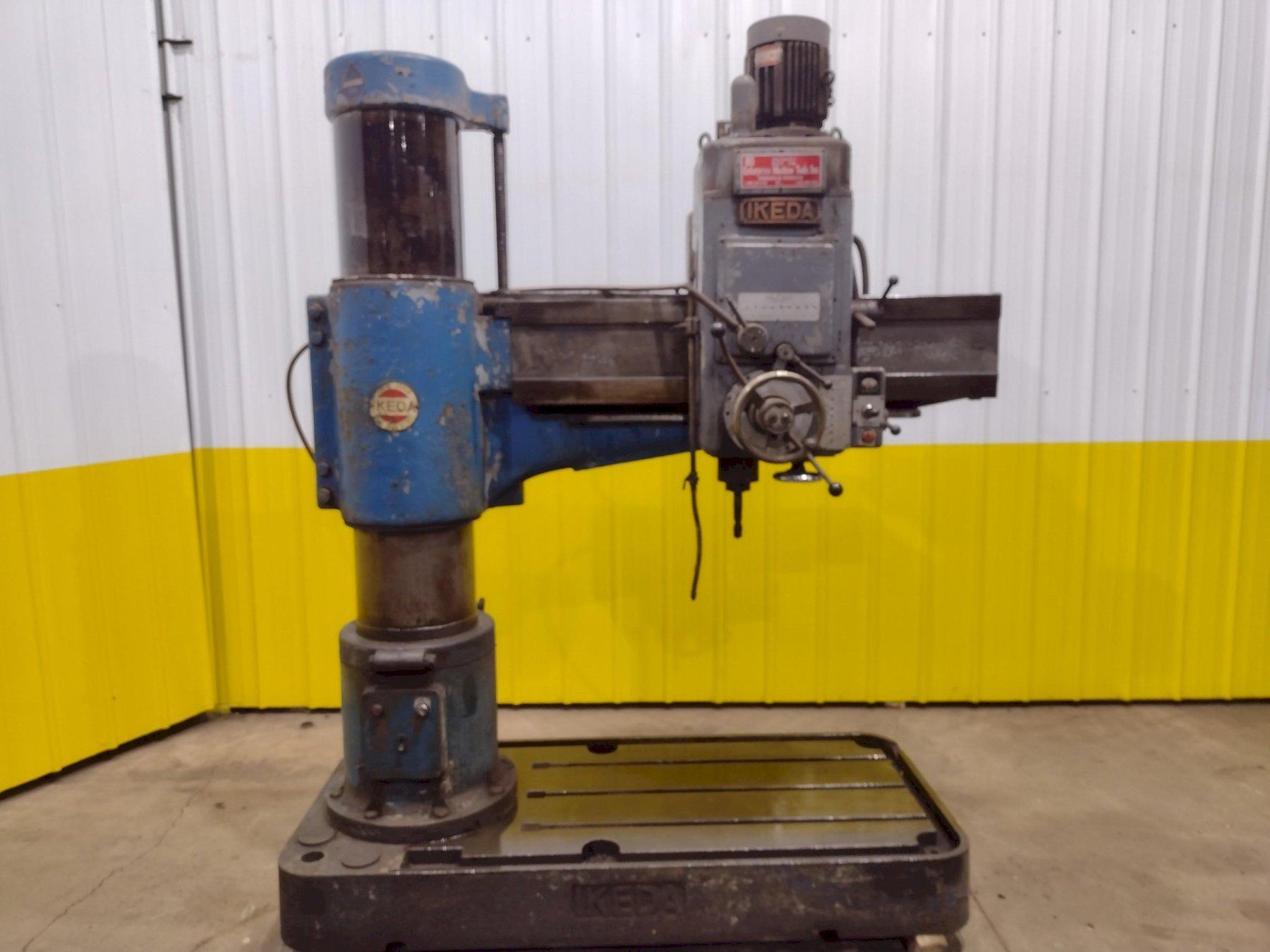

4' x 13" IKEDA MODEL #RM-1175 RADIAL ARM DRILL: STOCK #19134

Manufacturer

IKEDA

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

19134

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

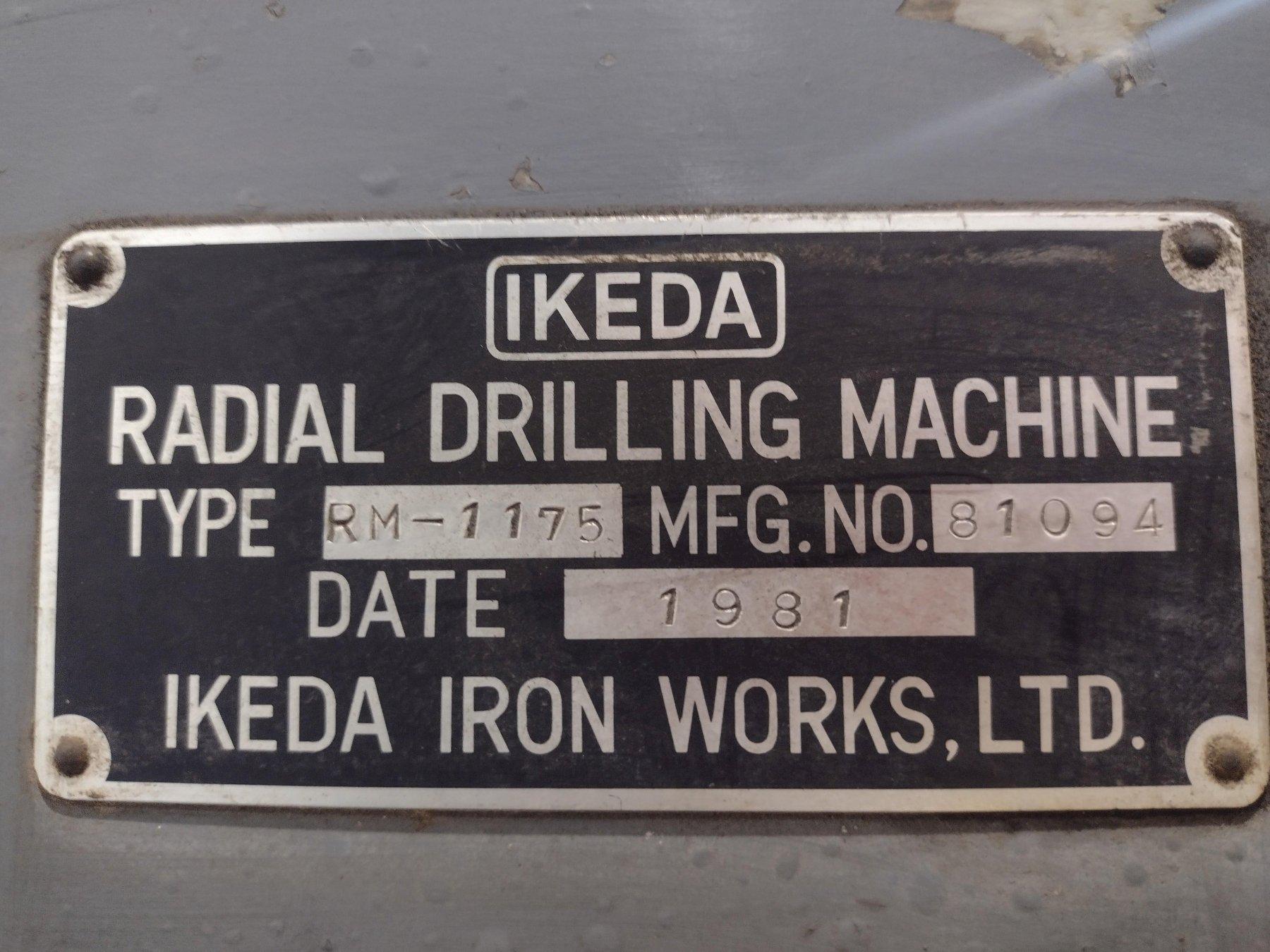

MODEL ...................................... RM-1175
SERIAL ..................................... 81094
YEAR MFG ................................... 1981

DISTANCE COLUMN TO SPINDLE CENTER, MAX ..... 48"

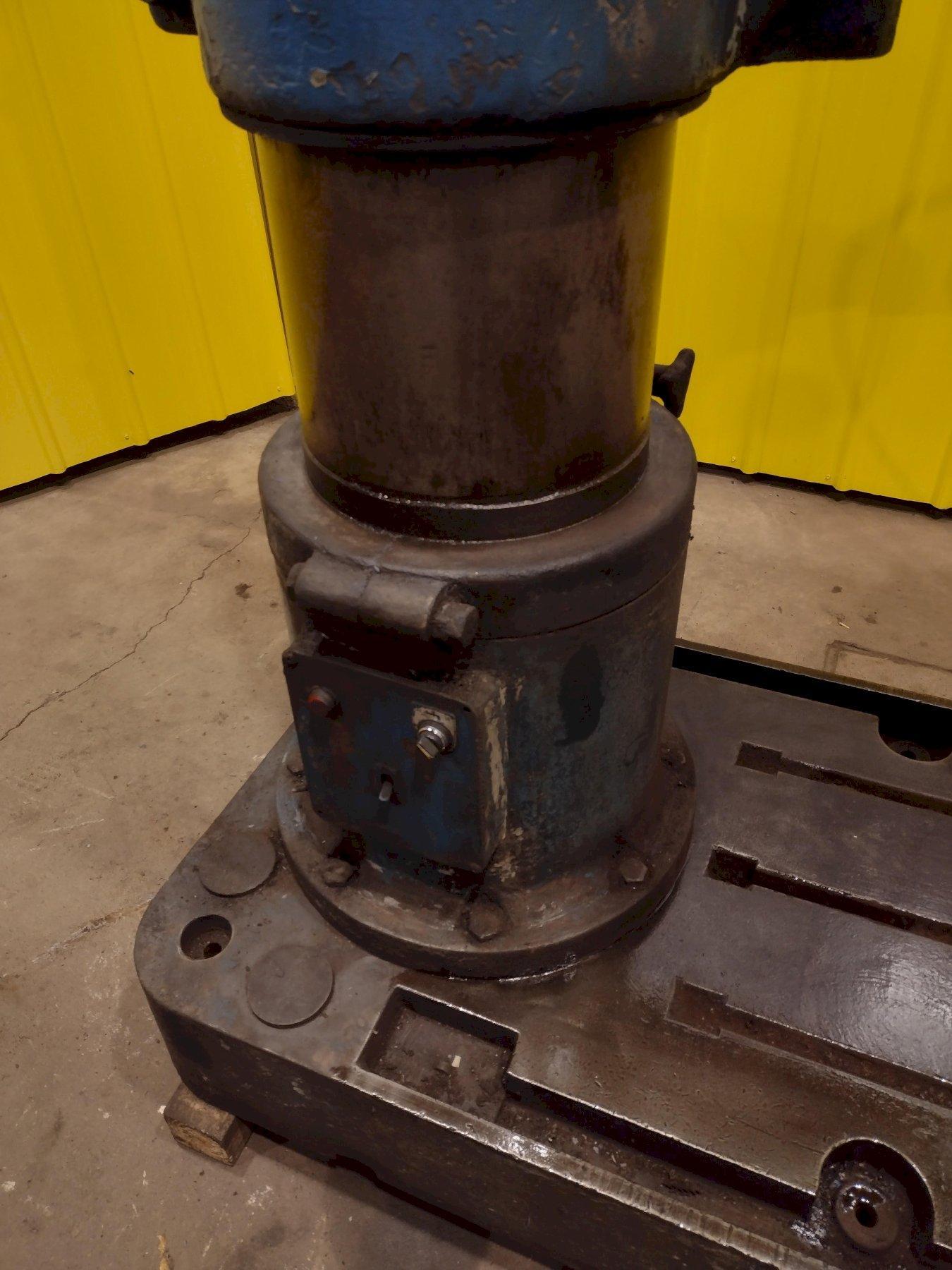

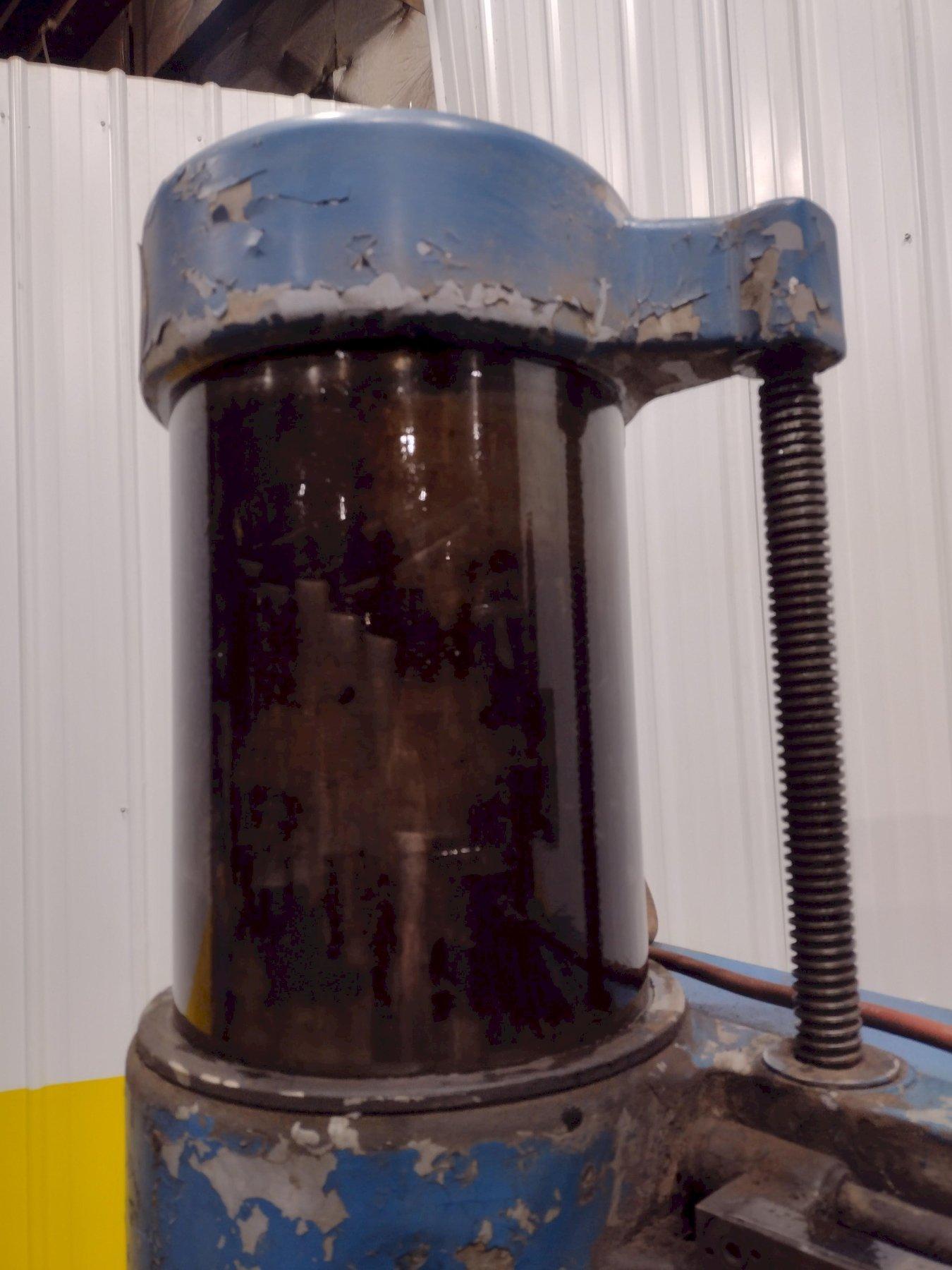

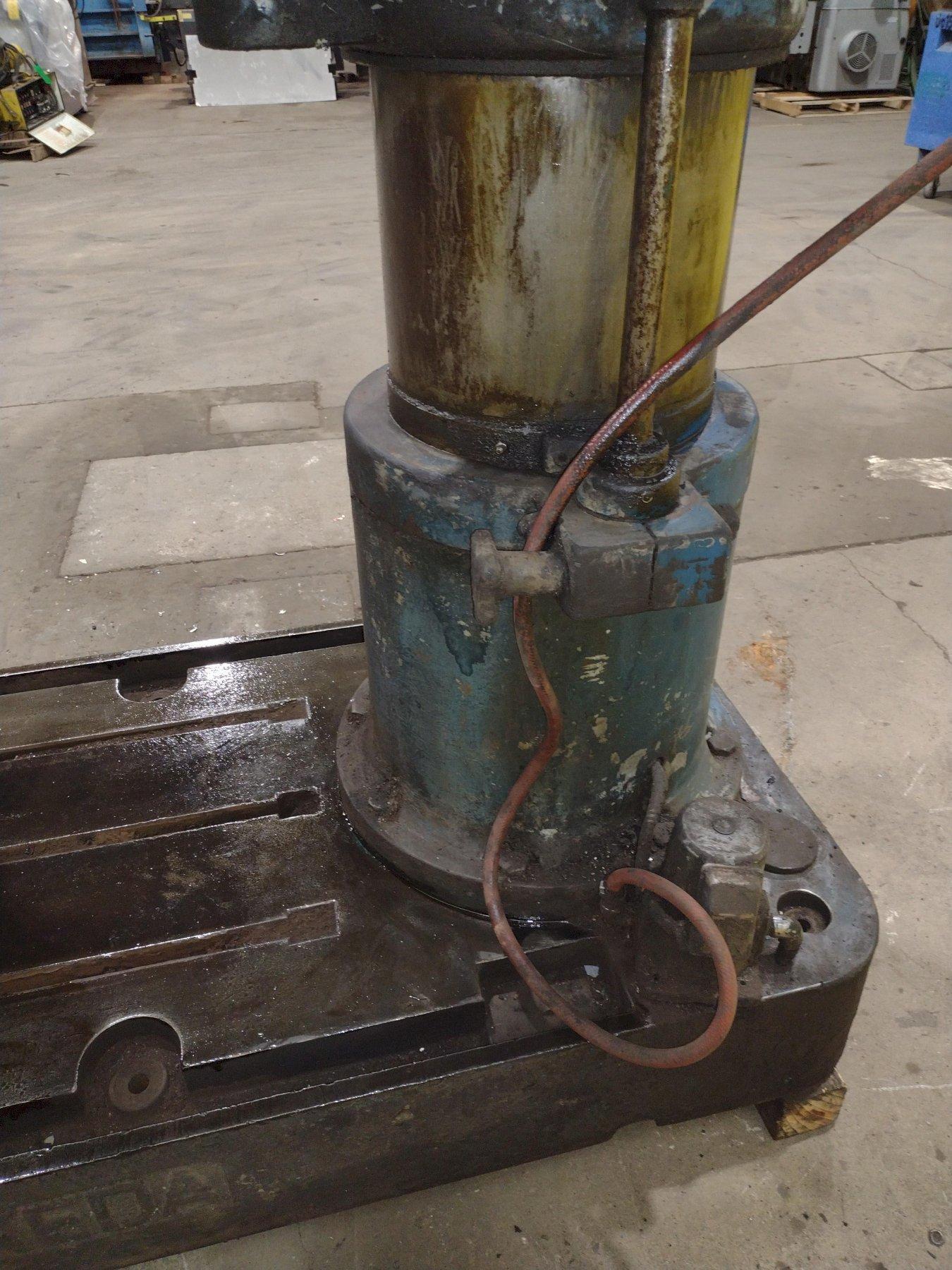

COLUMN DIAMETER ............................ 13 5/8"

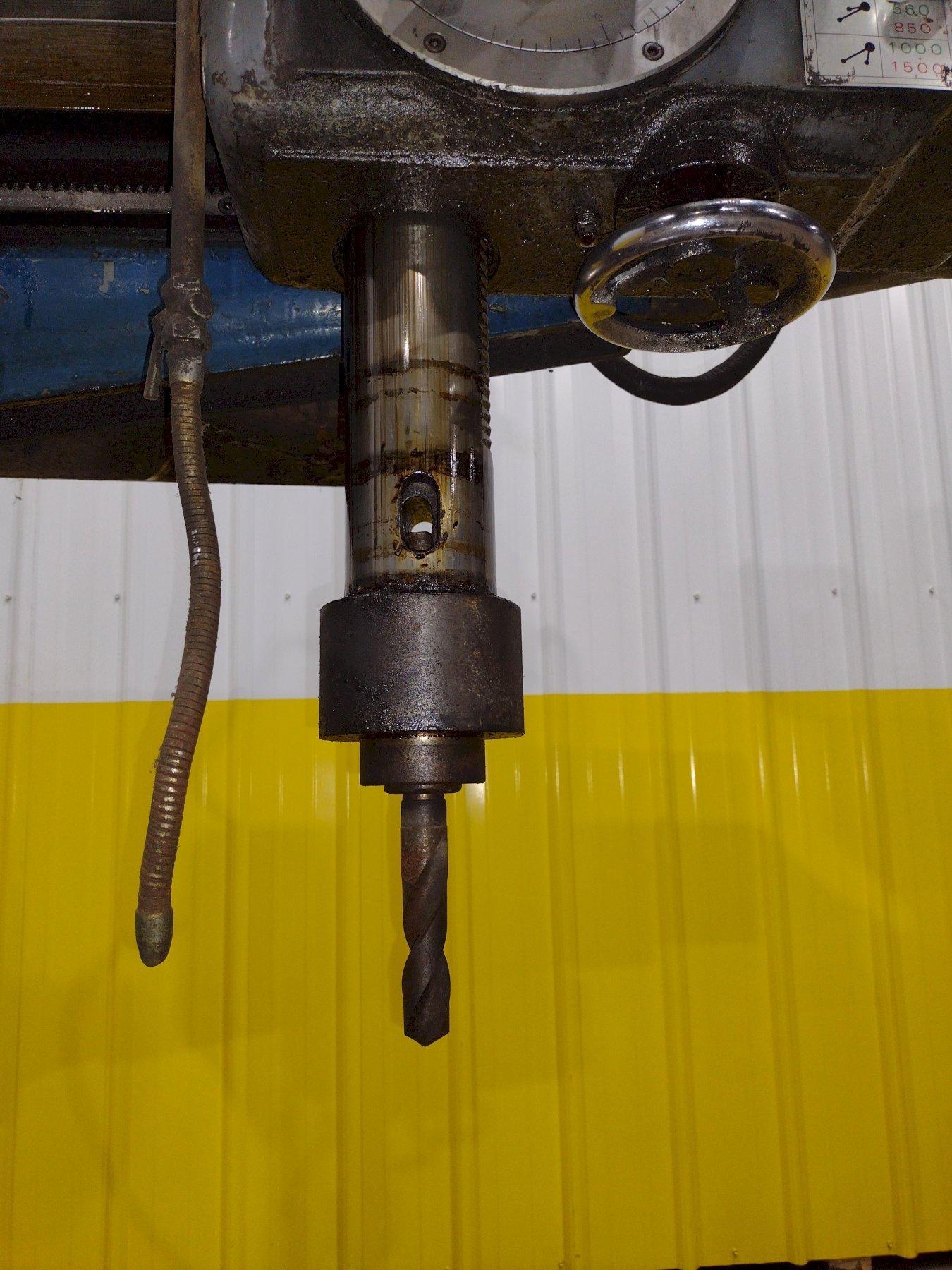

SPINDLE TAPER .............................. NO.5 MORSE
SPINDLE STROKE ............................. 14 1/2"
POWER FEED SPINDLE DRIVE MOTOR RATING (MAIN MOTOR) ... 7.5 H.P.
DISTANCE COLUMN TO SPINDLE CENTER, MIN ...... 10"
DISTANCE SPINDLE TO BASE, MAX ............... 54 1/2"
DISTANCE SPINDLE TO BASE, MIN ............... 12 1/2"
SPINDLE STROKE .............................. 14 1/2"

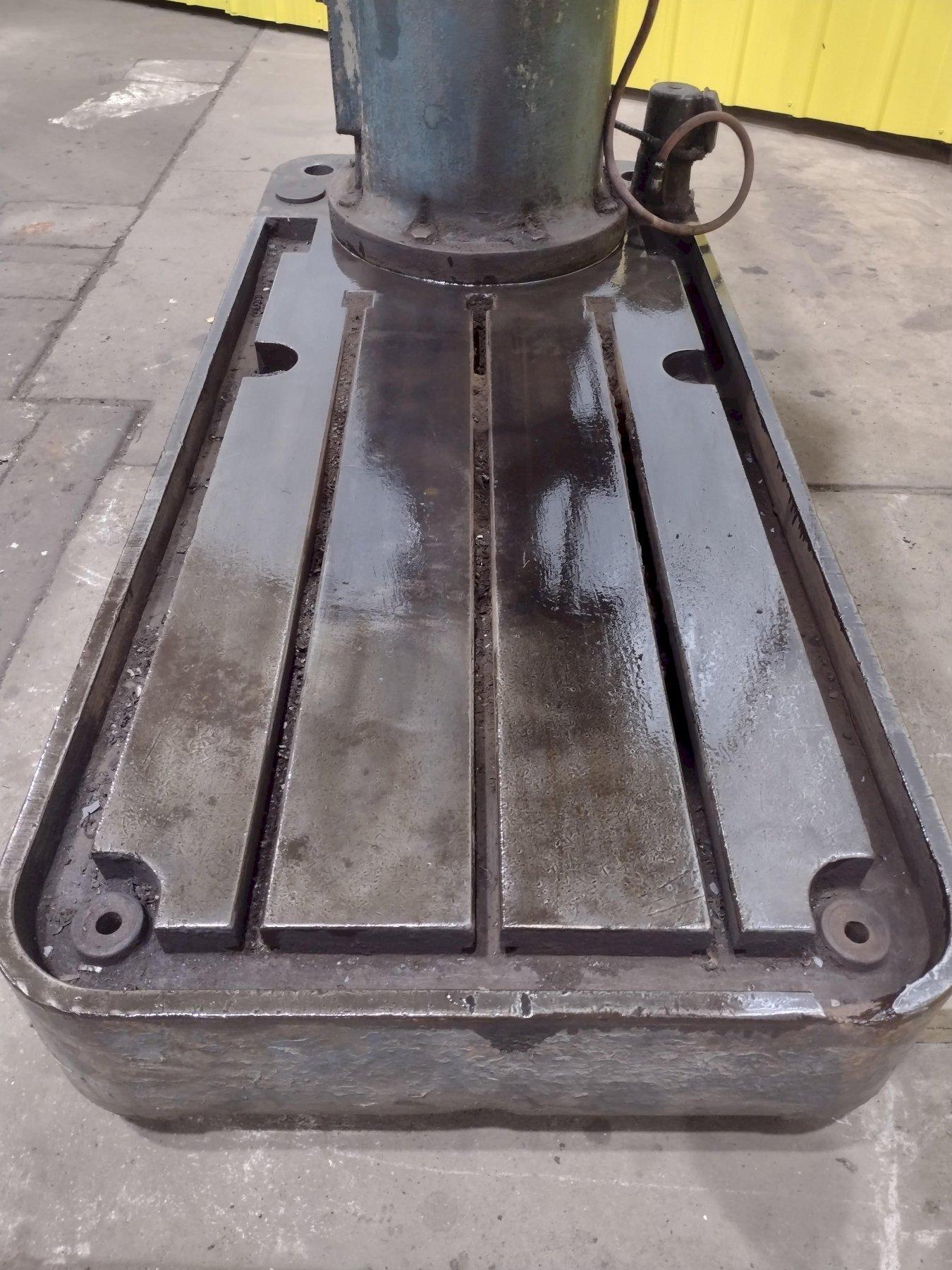

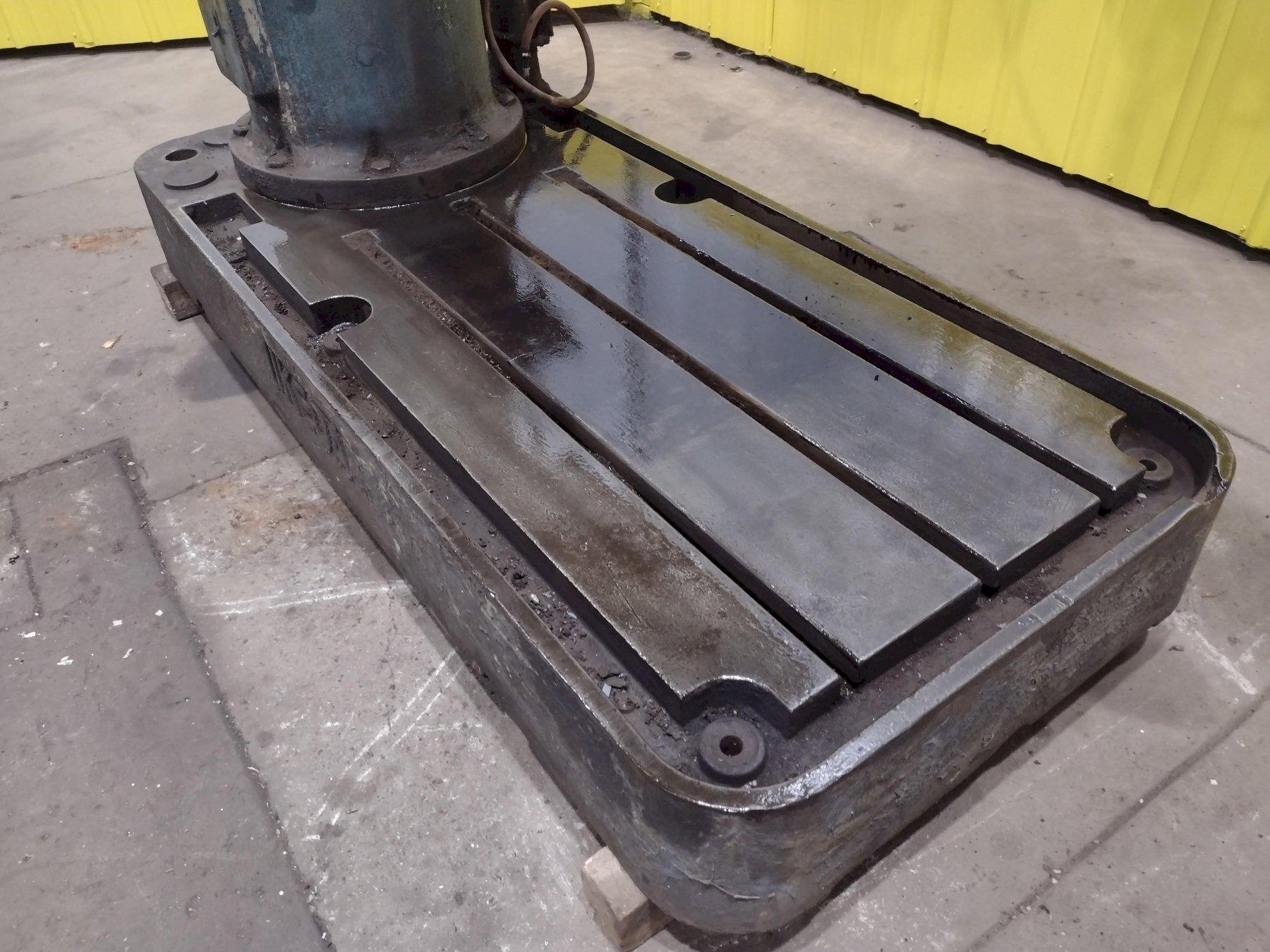

USEABLE SPACE OF T-SLOTTED BASE ............. 50" X 34"
HEIGHT OF T-SLOTTED BASE .................... 7 5/8"
BEARING DIAMETER ............................ 2 5/8"
QUILL DIAMETER .............................. 3 5/8"

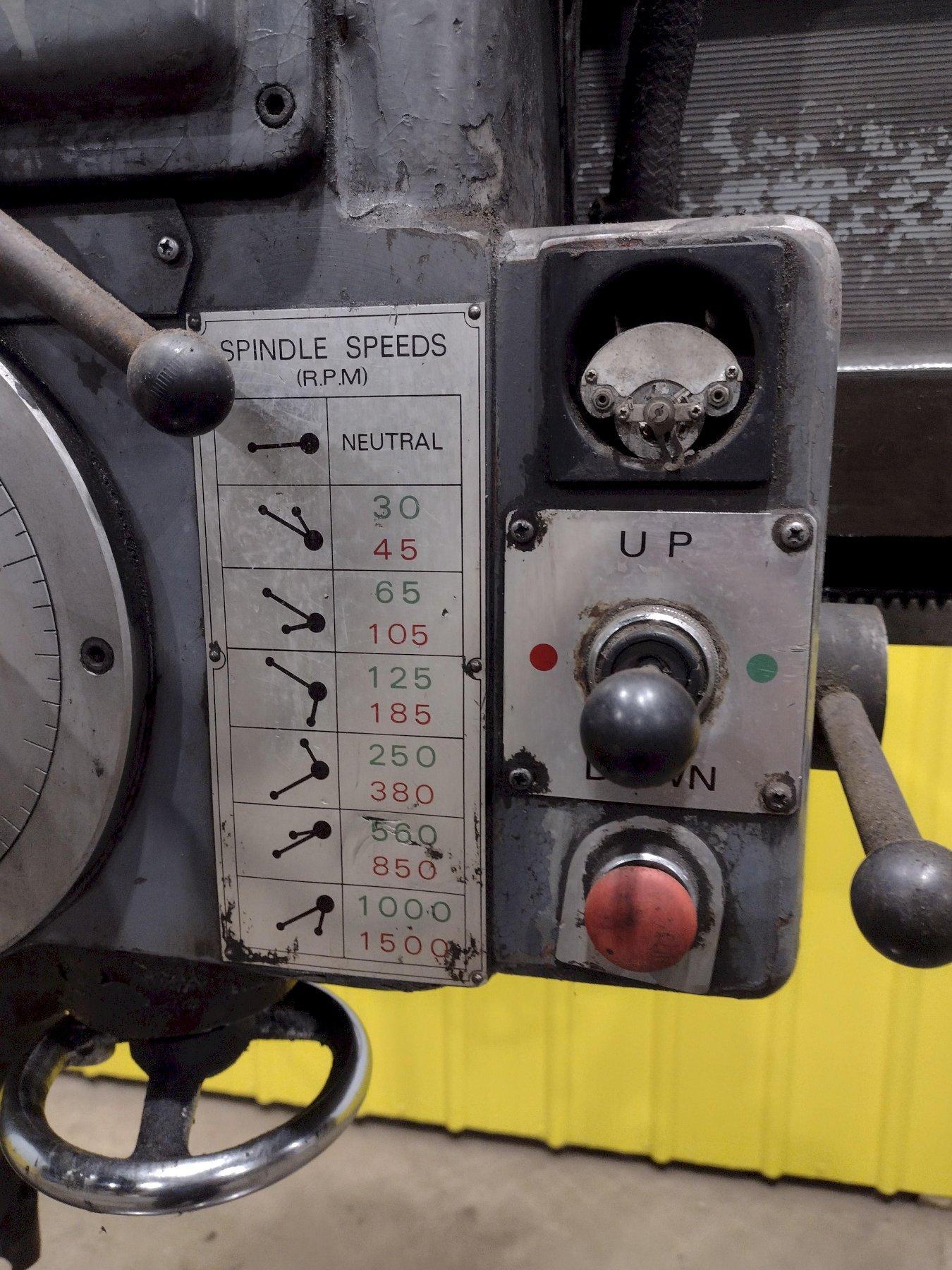

SPINDLE SPEED RANGE (12) .................... 30 - 1500 RPM

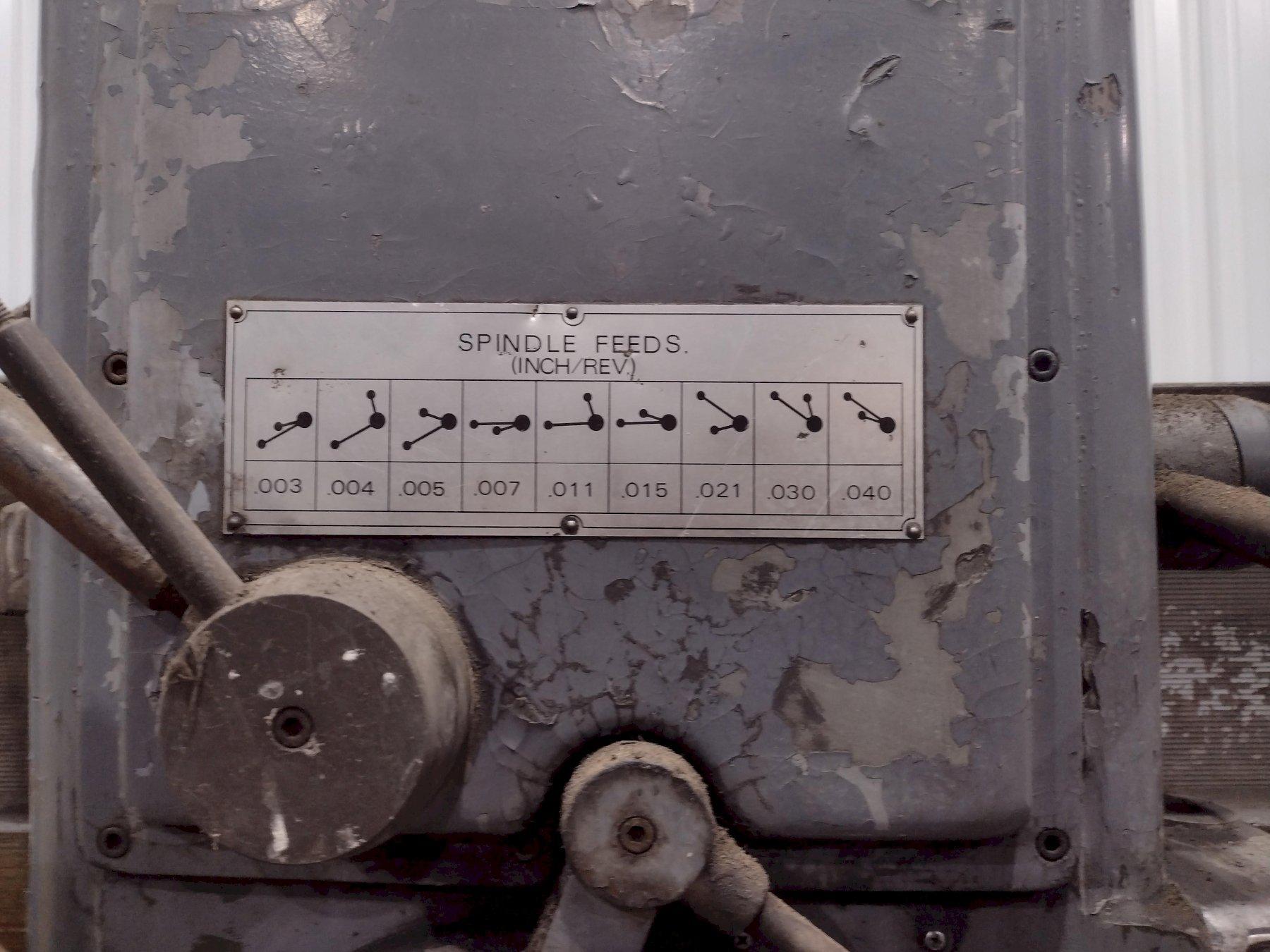

SPINDLE FEED RANGE (9) ...................... 0.003 - 0.040 IPM

CAPACITIES:

DRILLING - STEEL ............................. 2 1/2"
CAST IRON .................................... 2 3/4"

TAPPING - STEEL .............................. 2"
CAST IRON .................................... 2 3/8"

BORING - STEEL ............................... 4"
CAST IRON .................................... 6"
