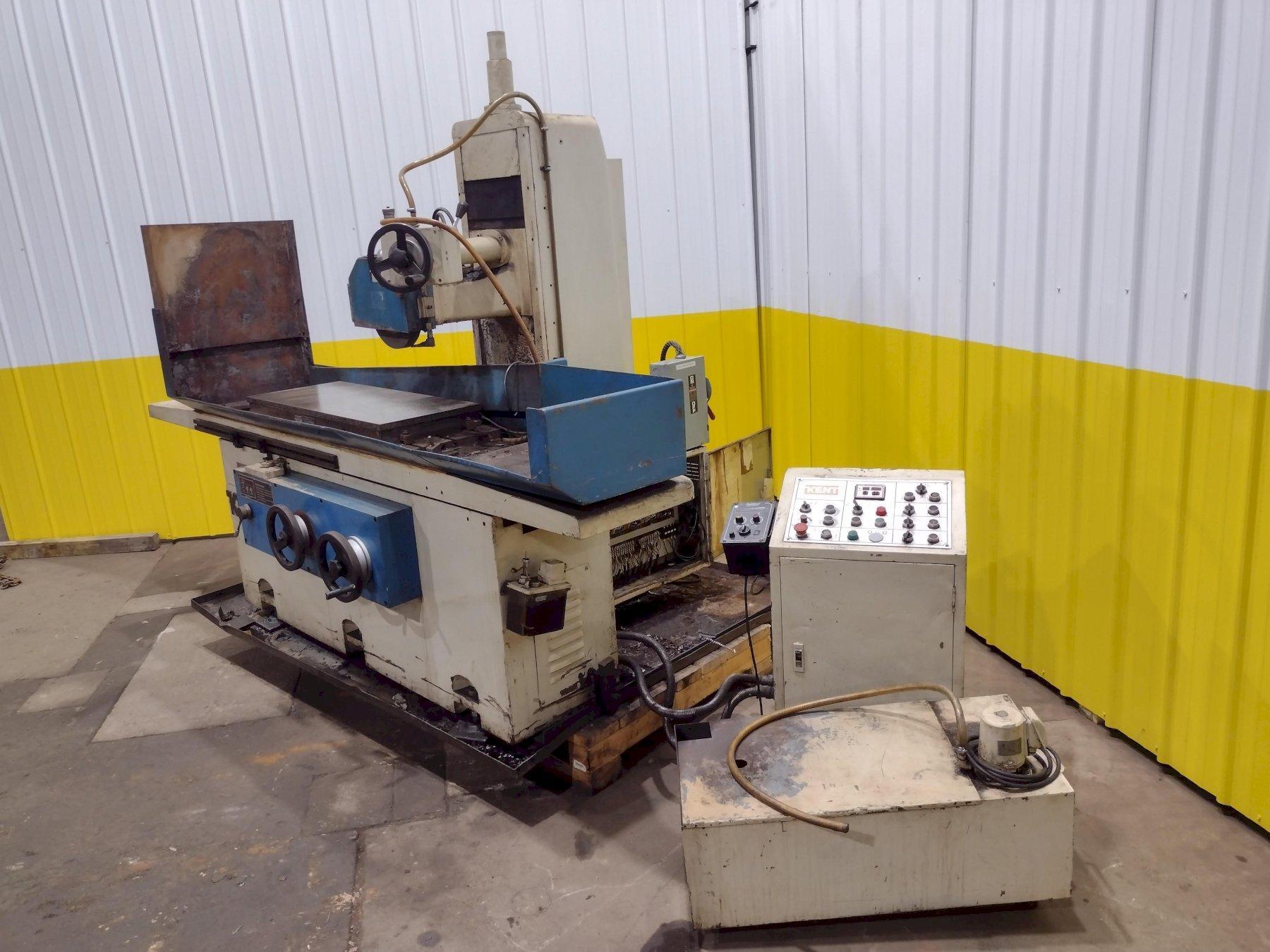

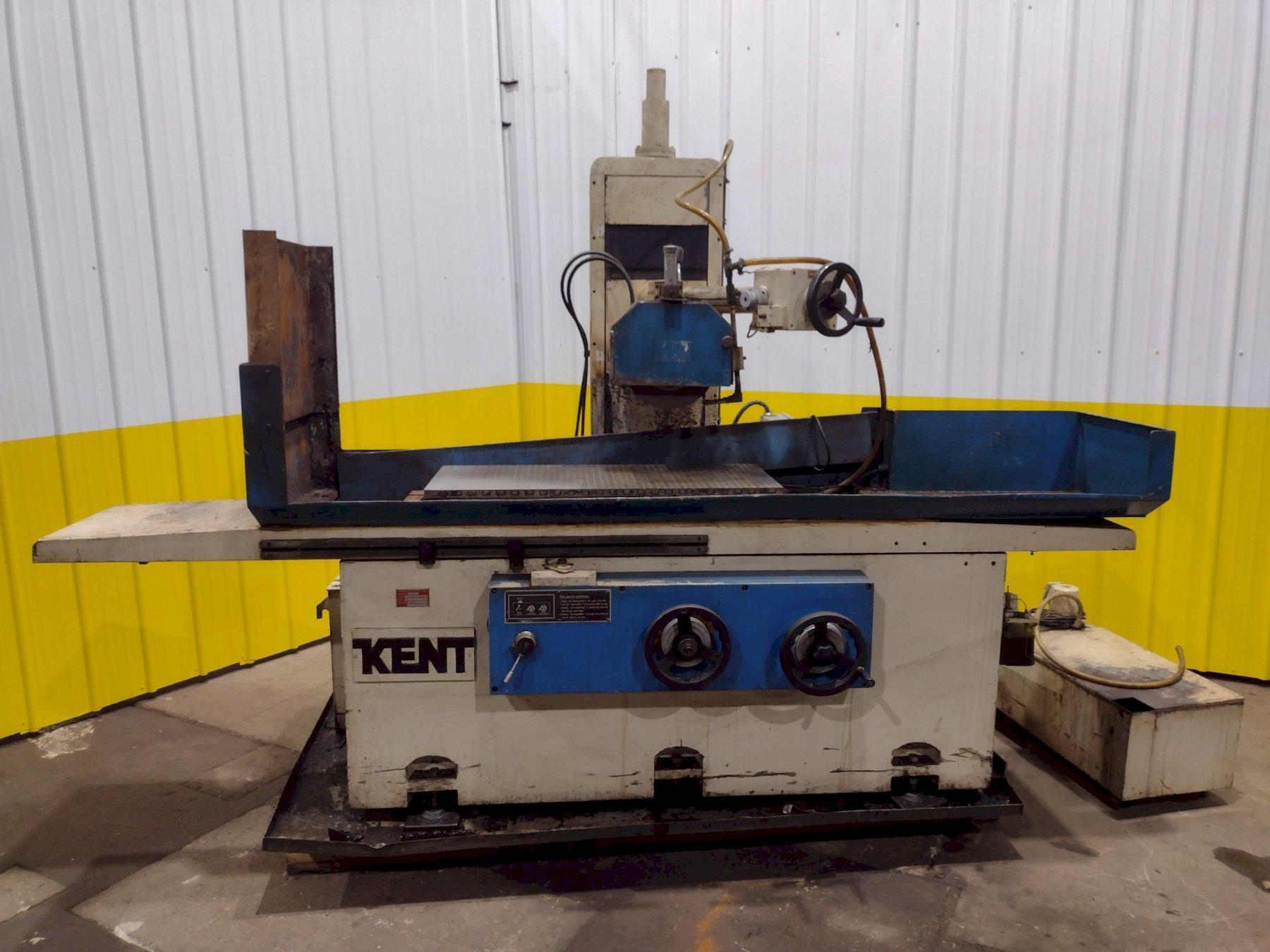

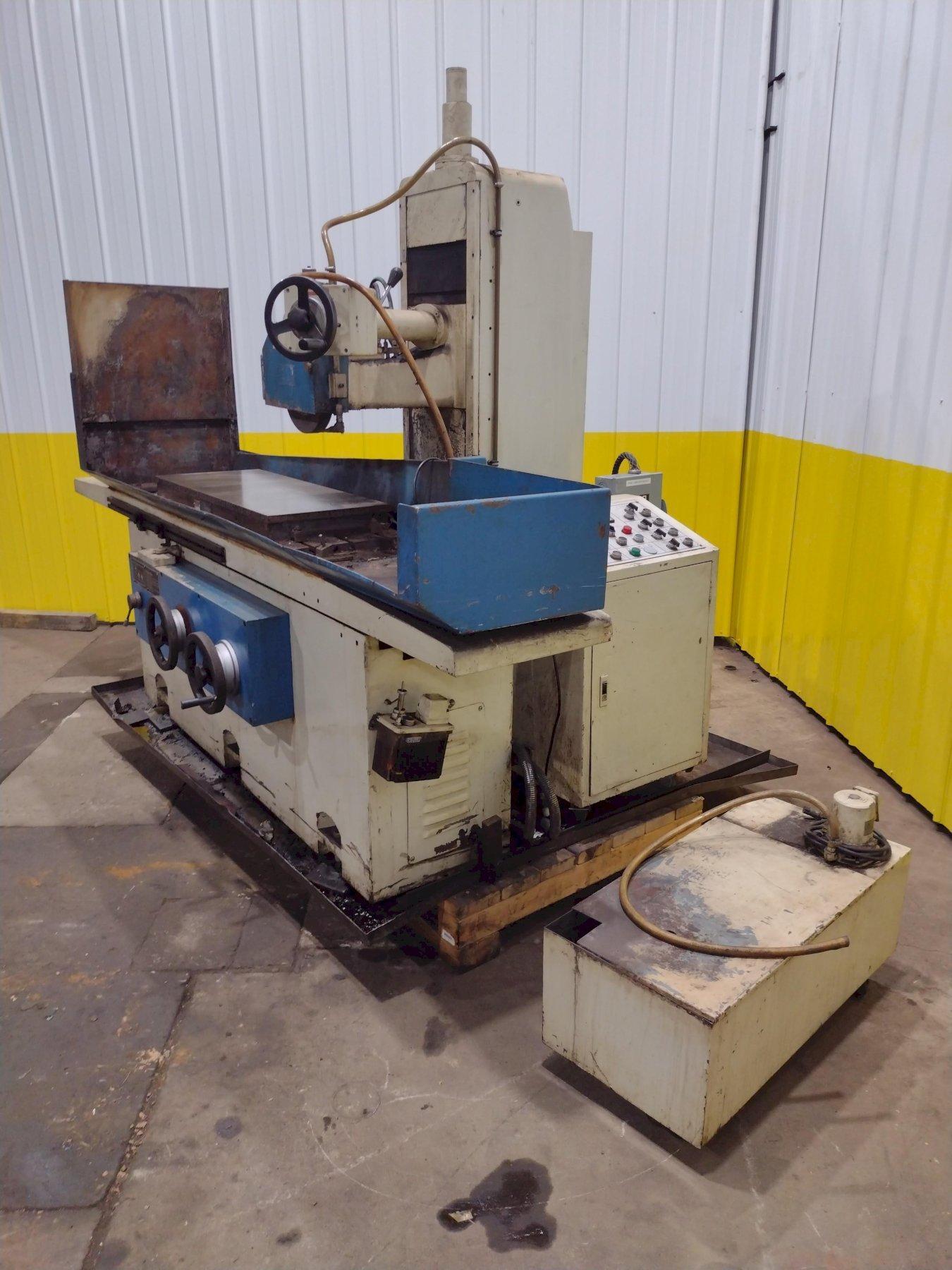

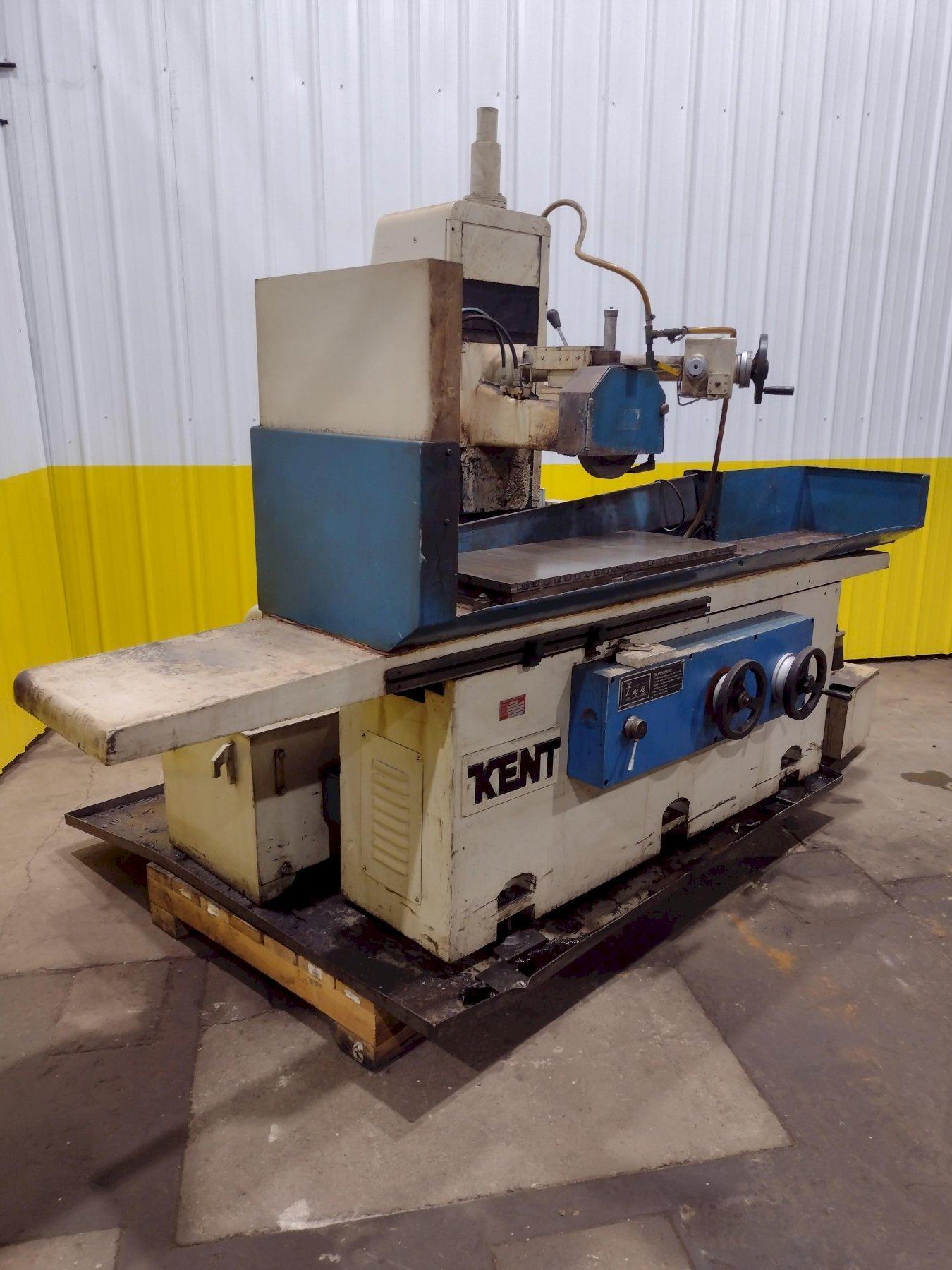

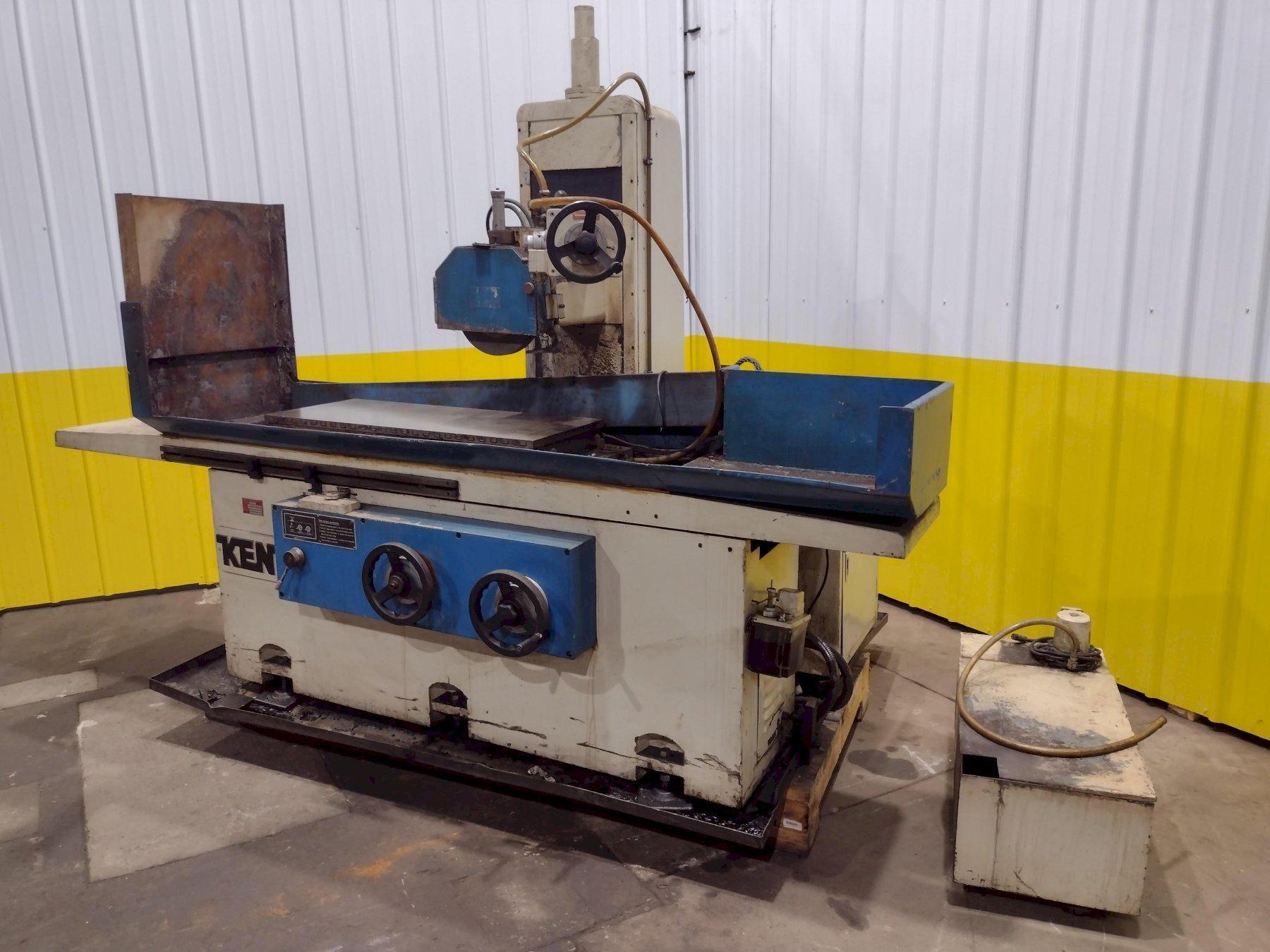

16" x 40" KENT MODEL #KGS-410AHD HORIZONTAL HYDRAULIC SURFACE GRINDER: STOCK 18588

Manufacturer

KENT

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

18588

Model

16 X 40

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 120″ x 72″ x 92″ High
Weight - 8140 pounds

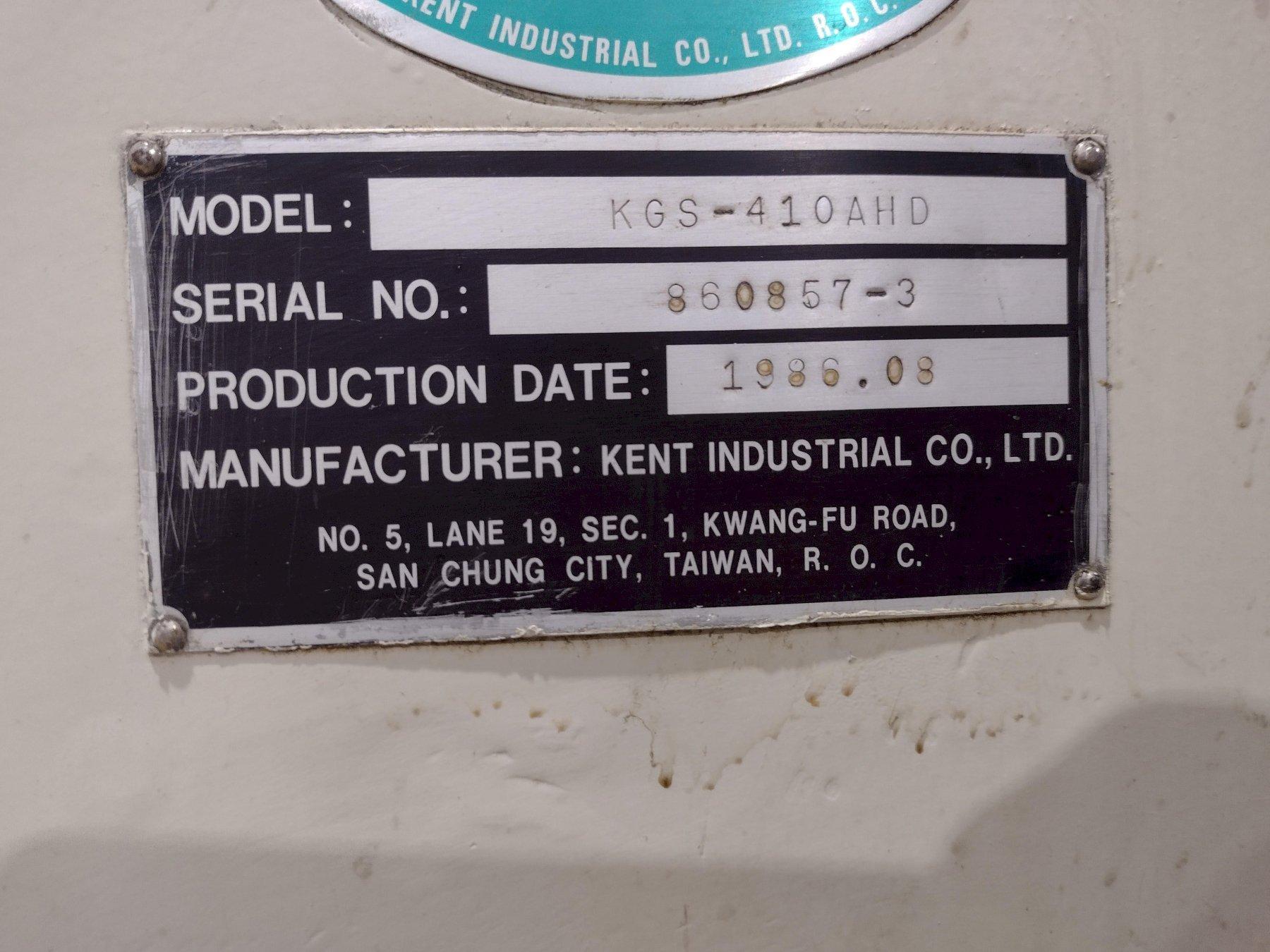

SERIAL .............................. 860857-3
MODEL ............................... KGS-410AHD
CAPACITY ............................ 16″ X 40″

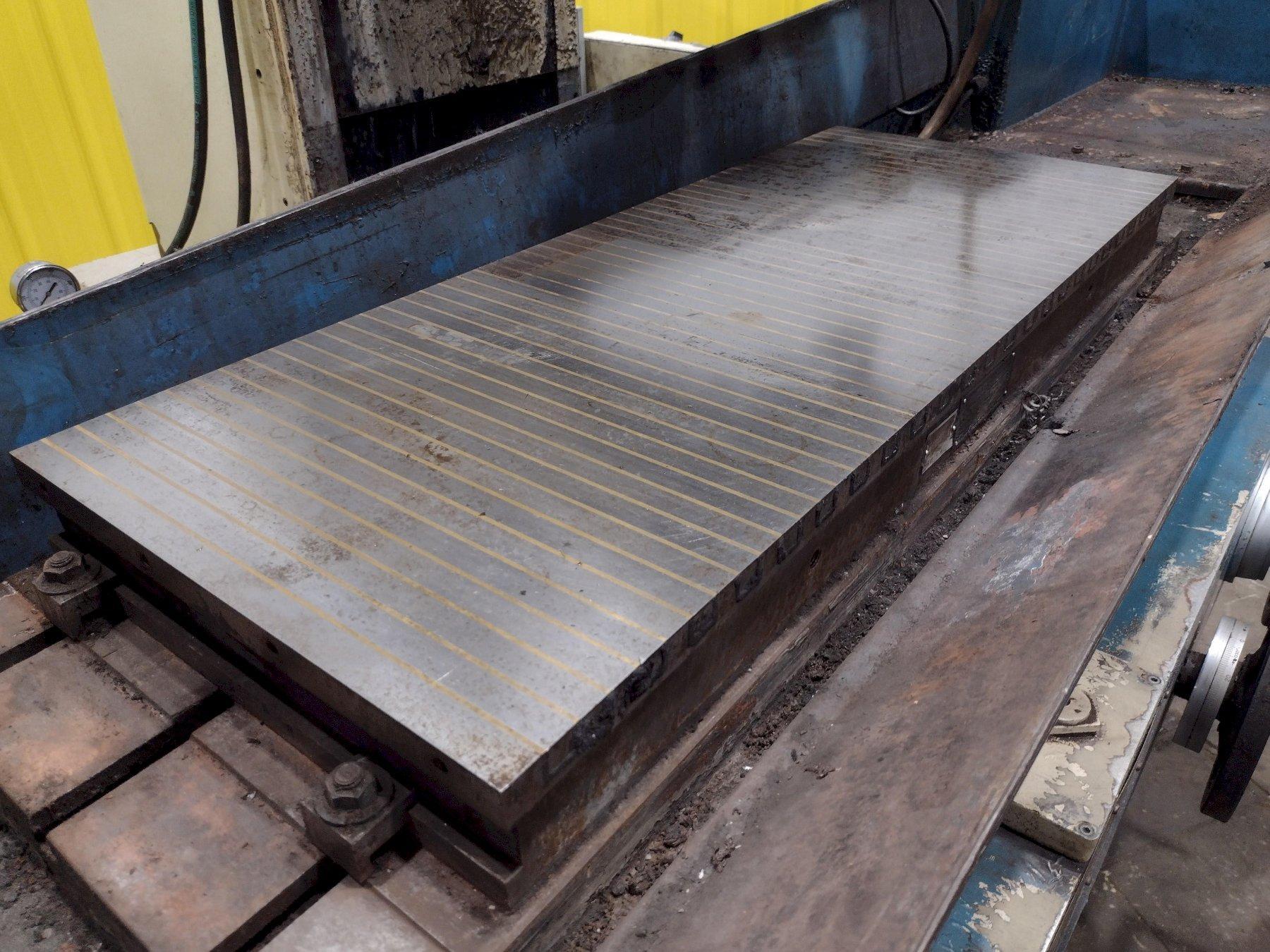

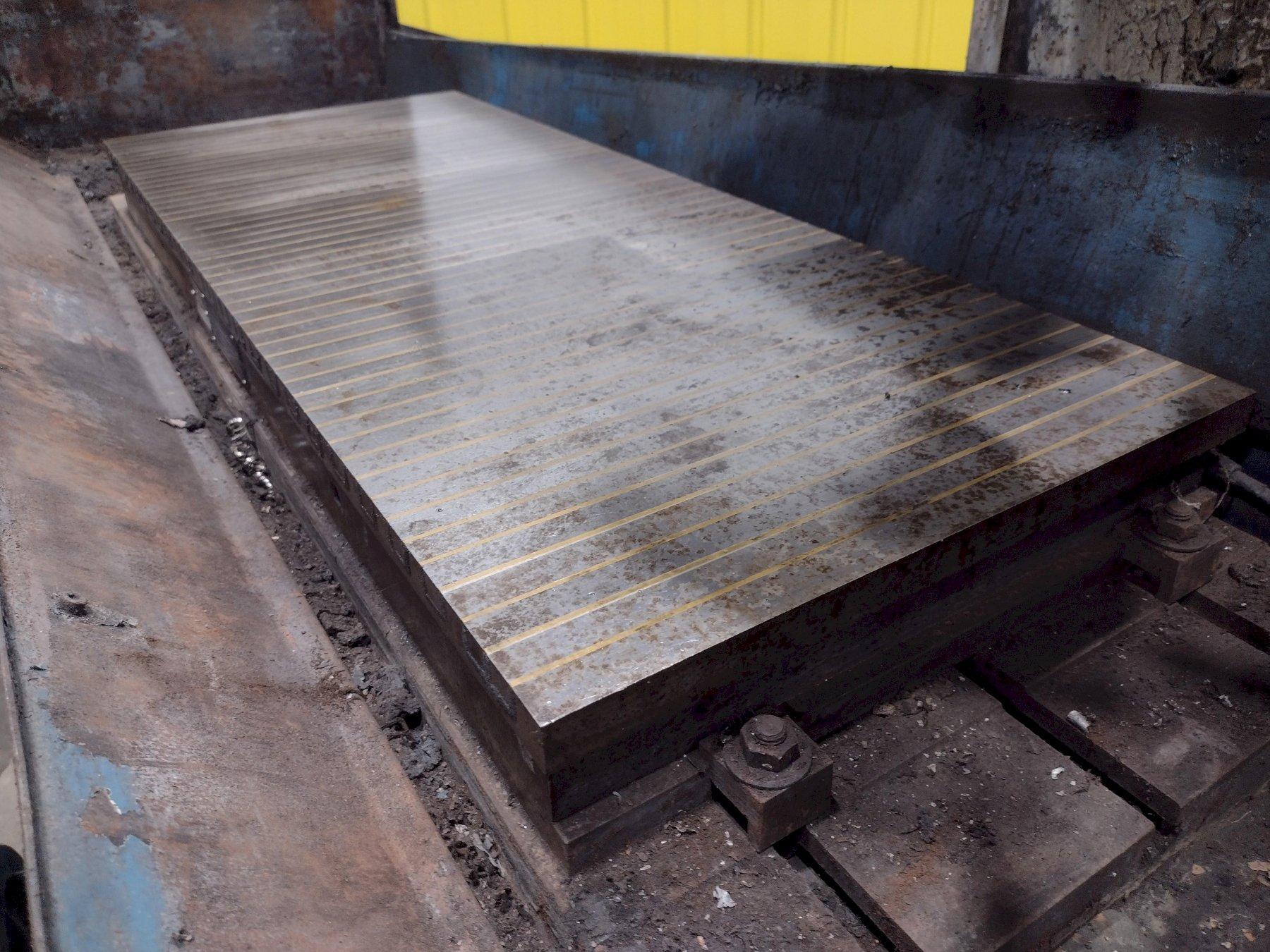

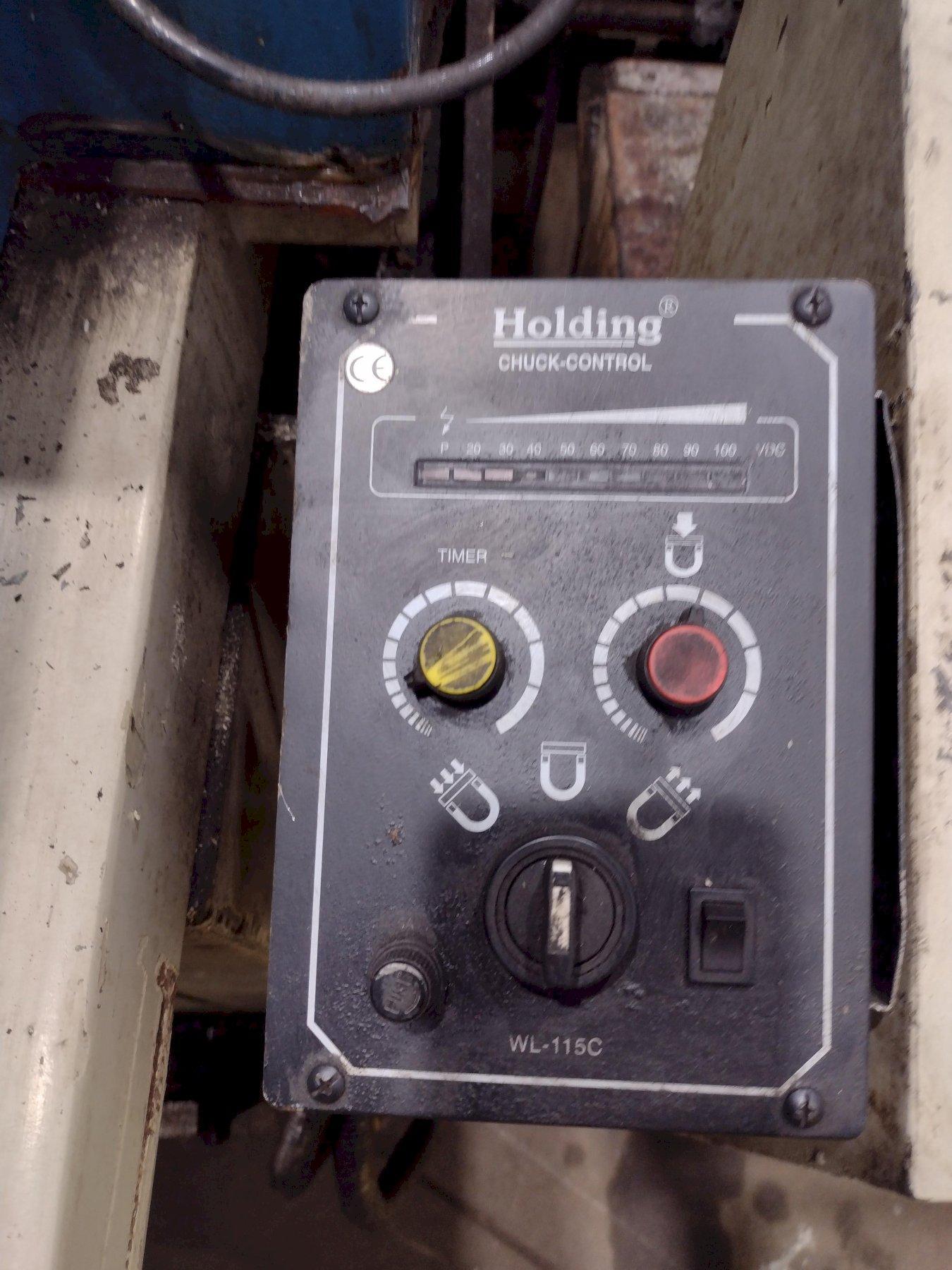

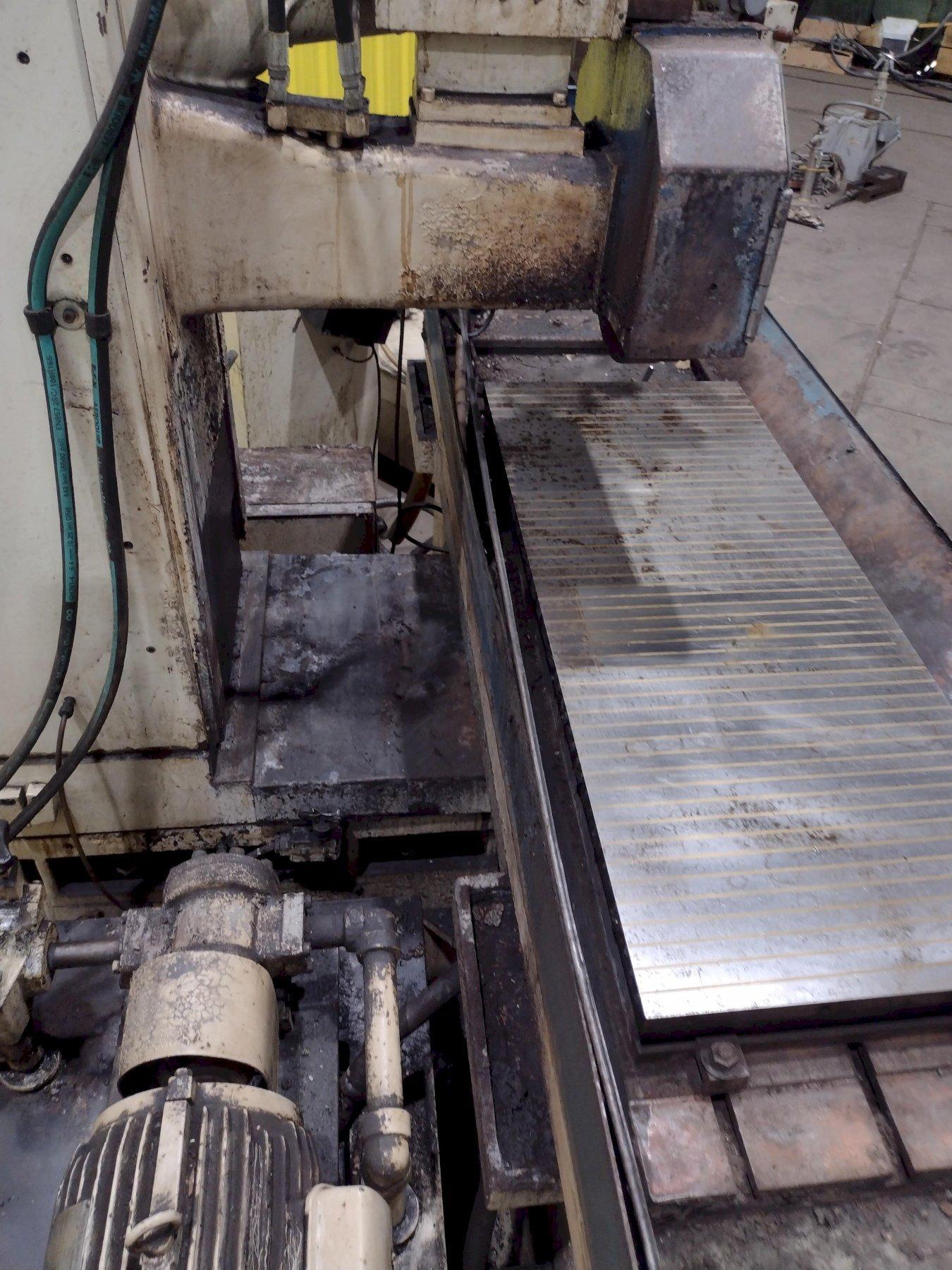

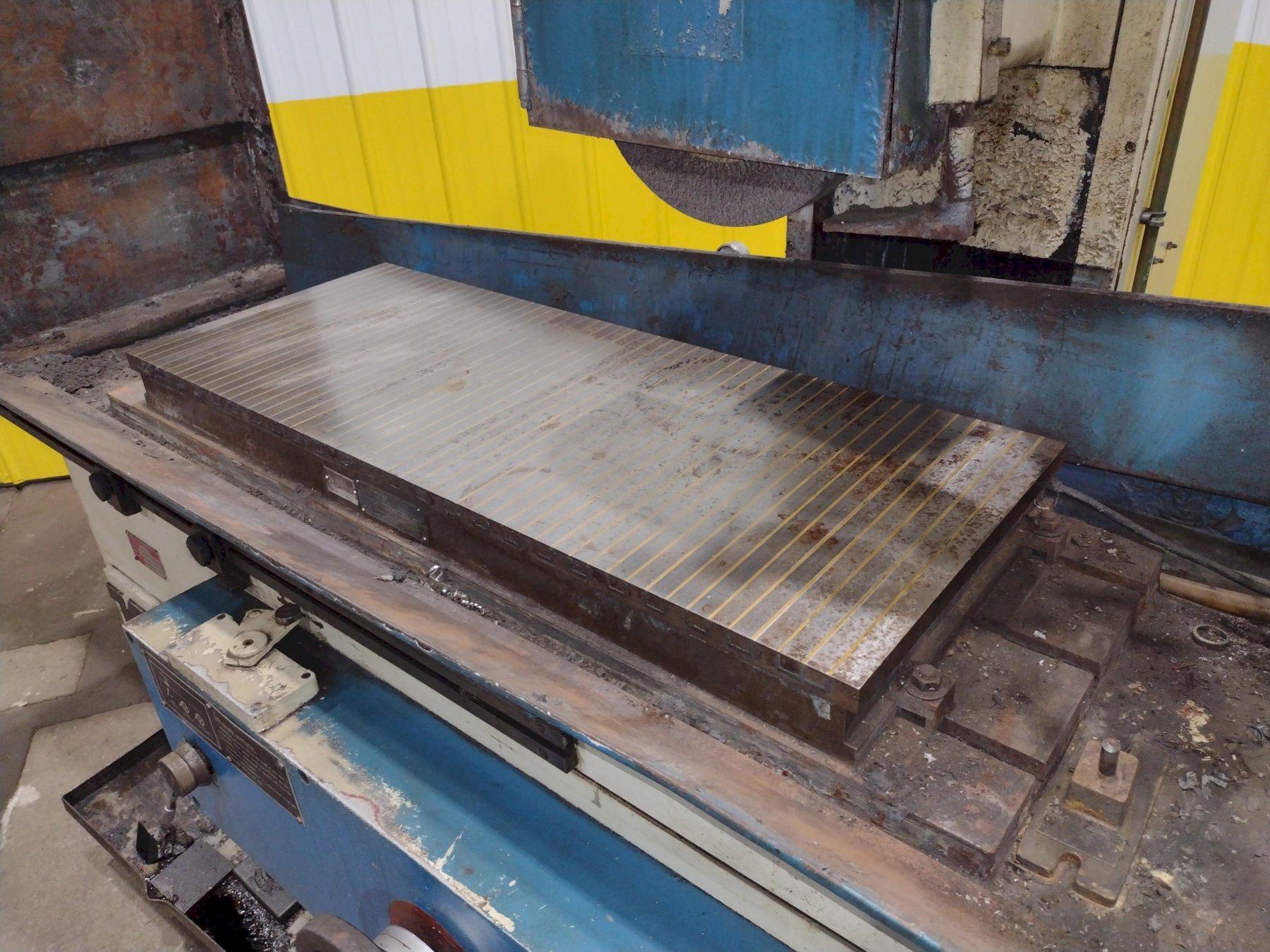

Electromagnetic Chuck ............... 16" X 40"

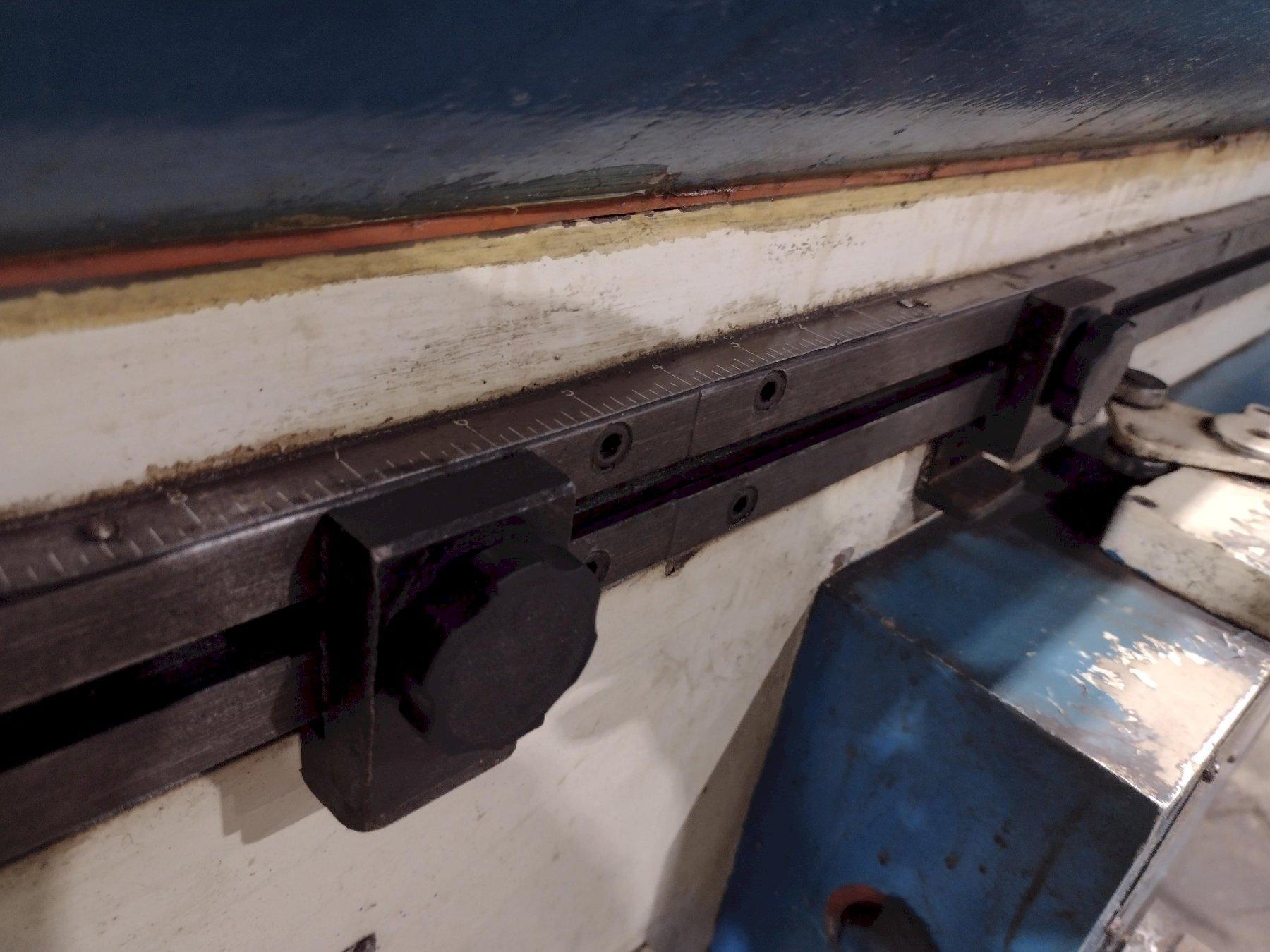

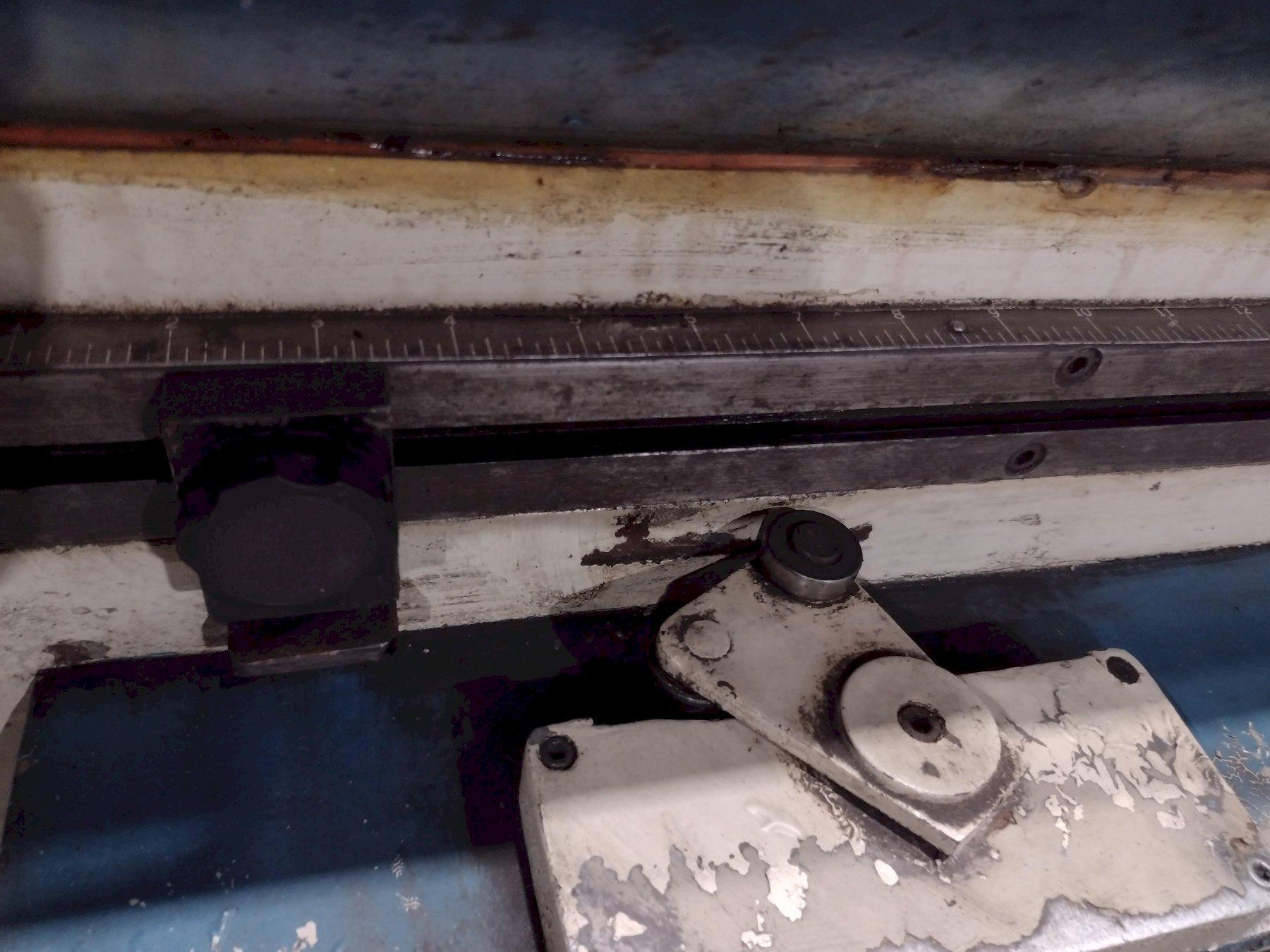

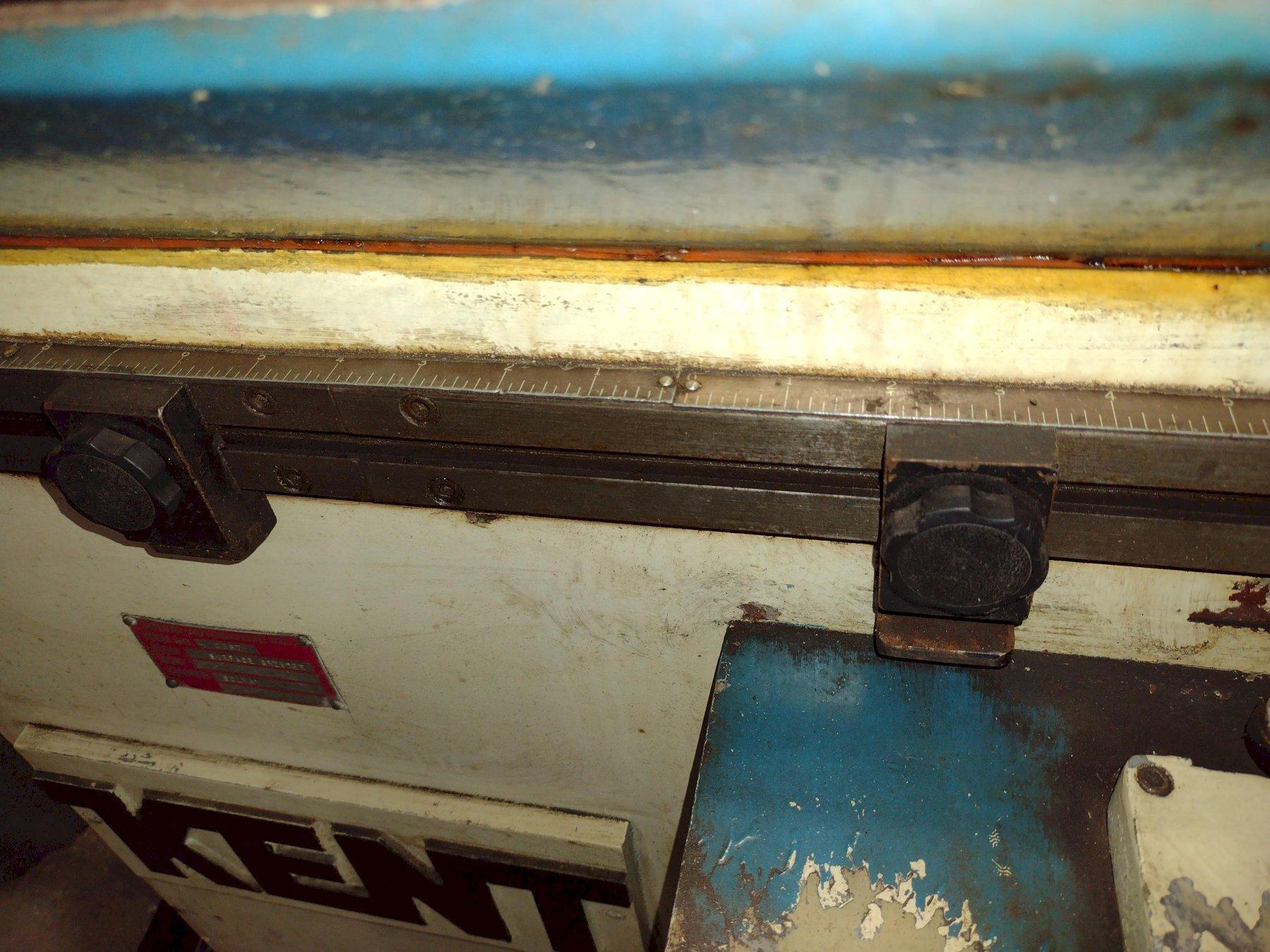

Table Travel – Longitudinal ......... 44.5″
Table Travel – Cross ................ 17″
Table Length x Width ................ 41-3/4″ x 16″
Center of Wheel to Table ............ 23-5/8" High
Table Speed ......................... 13 to 70 ft/min
Power Cross Feed of Column .......... 60 in/min
Power Head Elevation ................ 6 in/min
Automatic Downfeed Increment ........ 0.0002 to 0.0016″ (Six Steps)

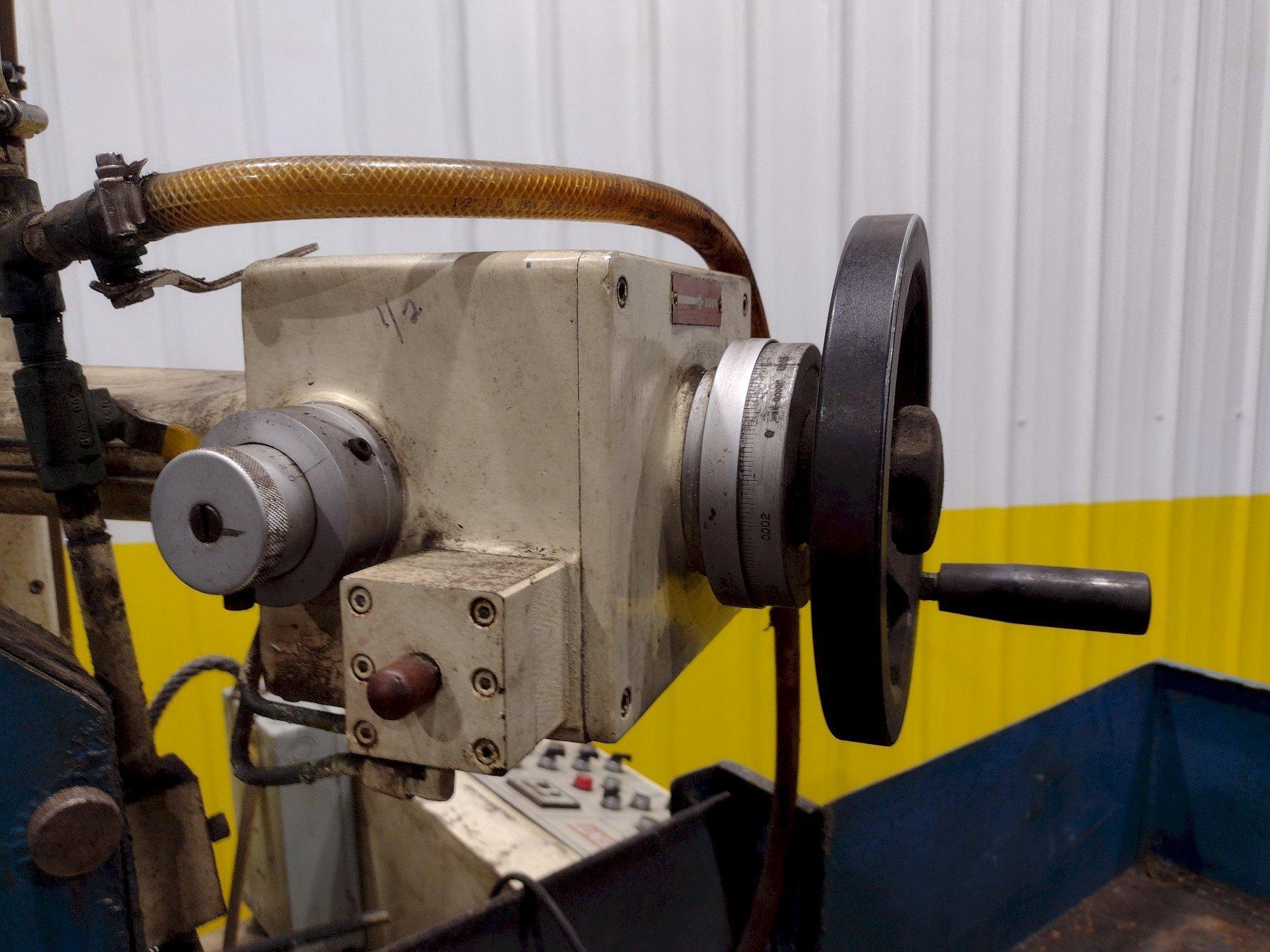

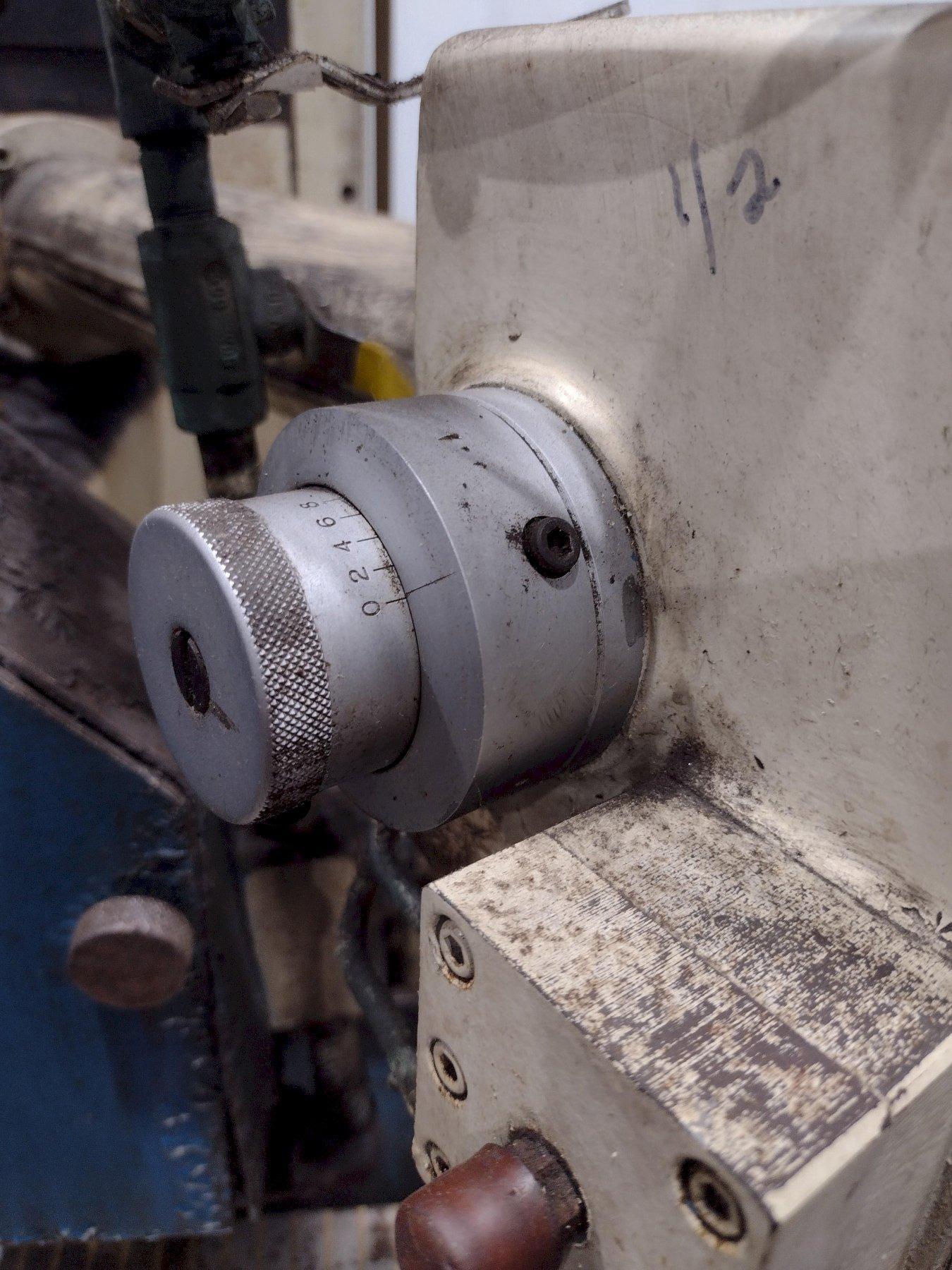

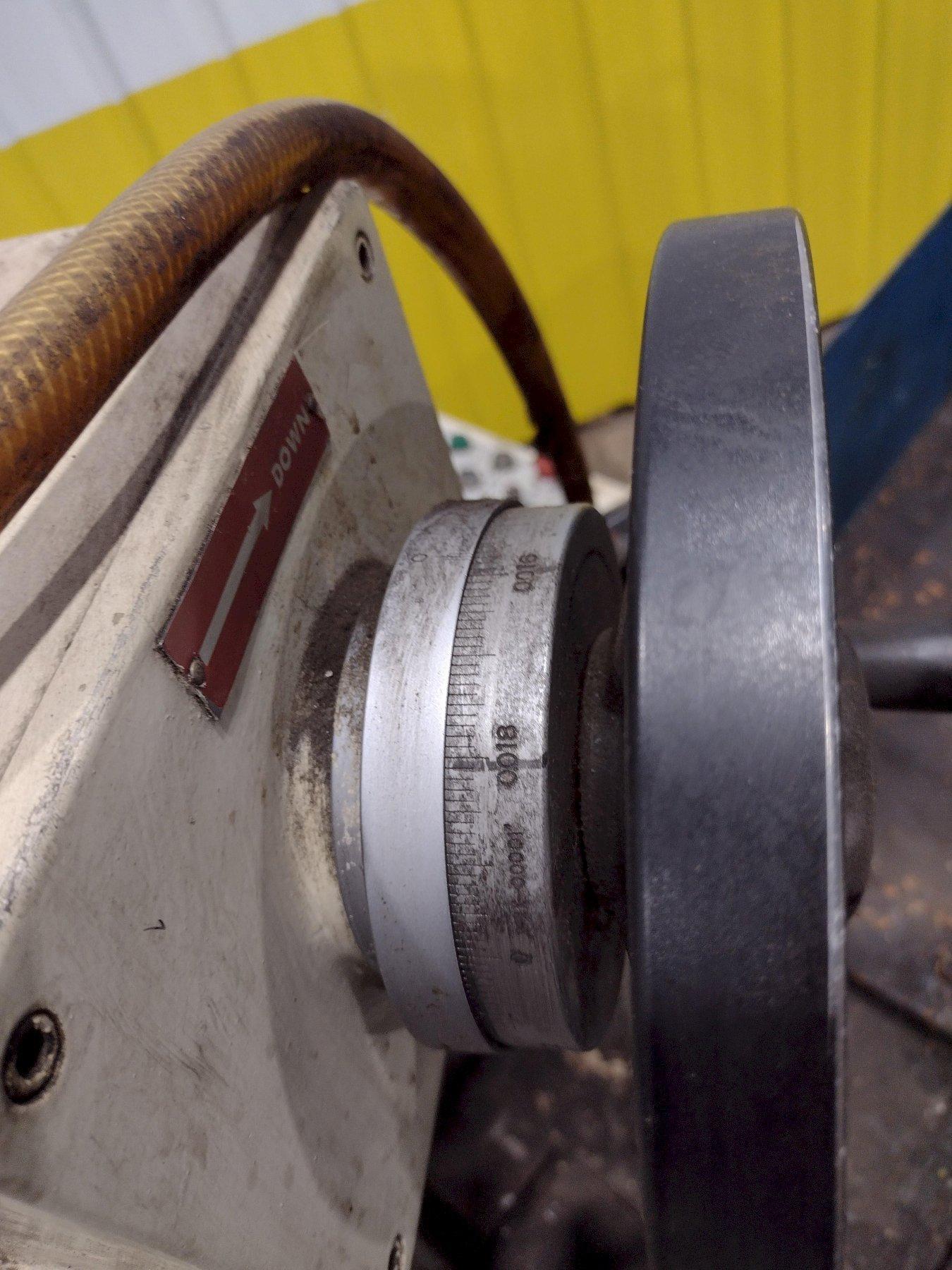

Downfeed per Handwheel Graduation ... 0.0001″
Downfeed per Handwheel Revolution ... 0.02″

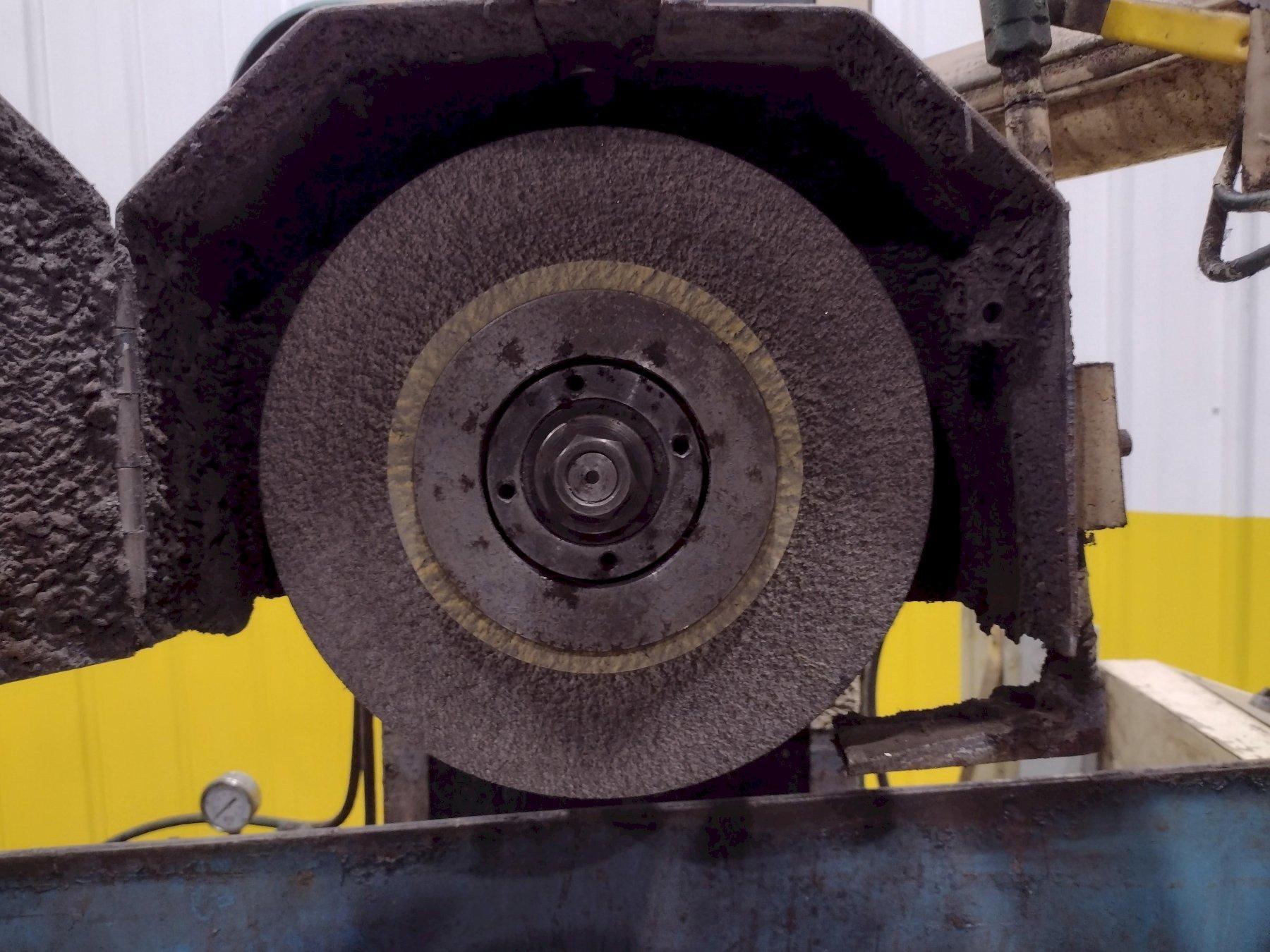

Grinding Wheel Diameter ............. 12″
Grinding Wheel Width ................ 1-1/2″
Grinding Wheel Hole Size ............ 5″
Speed ............................... 1740 rpm

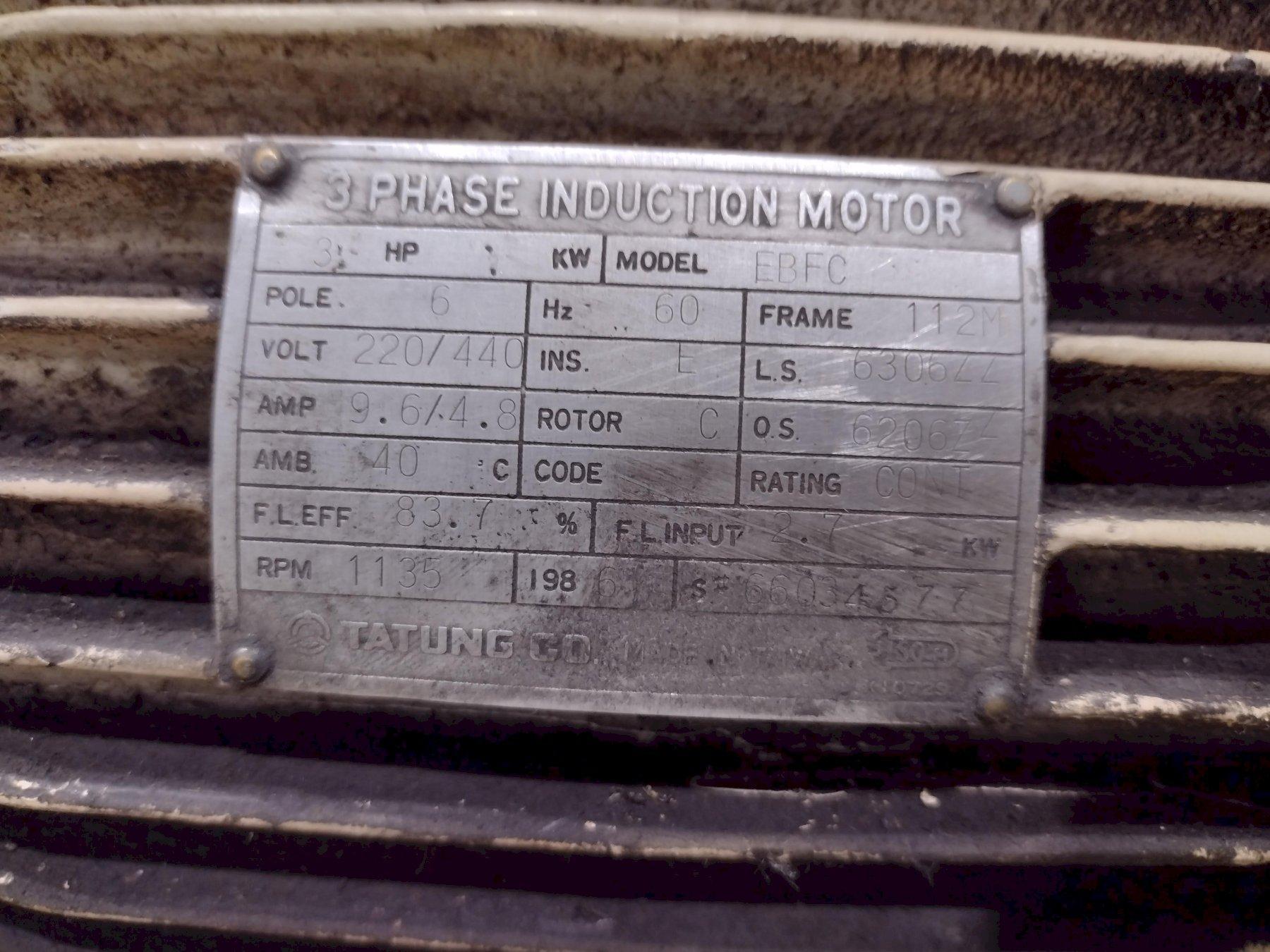

Spindle Motor ....................... 5 HP
Hydraulic Pump Motor ................ 3 HP
Auto Lubrication
