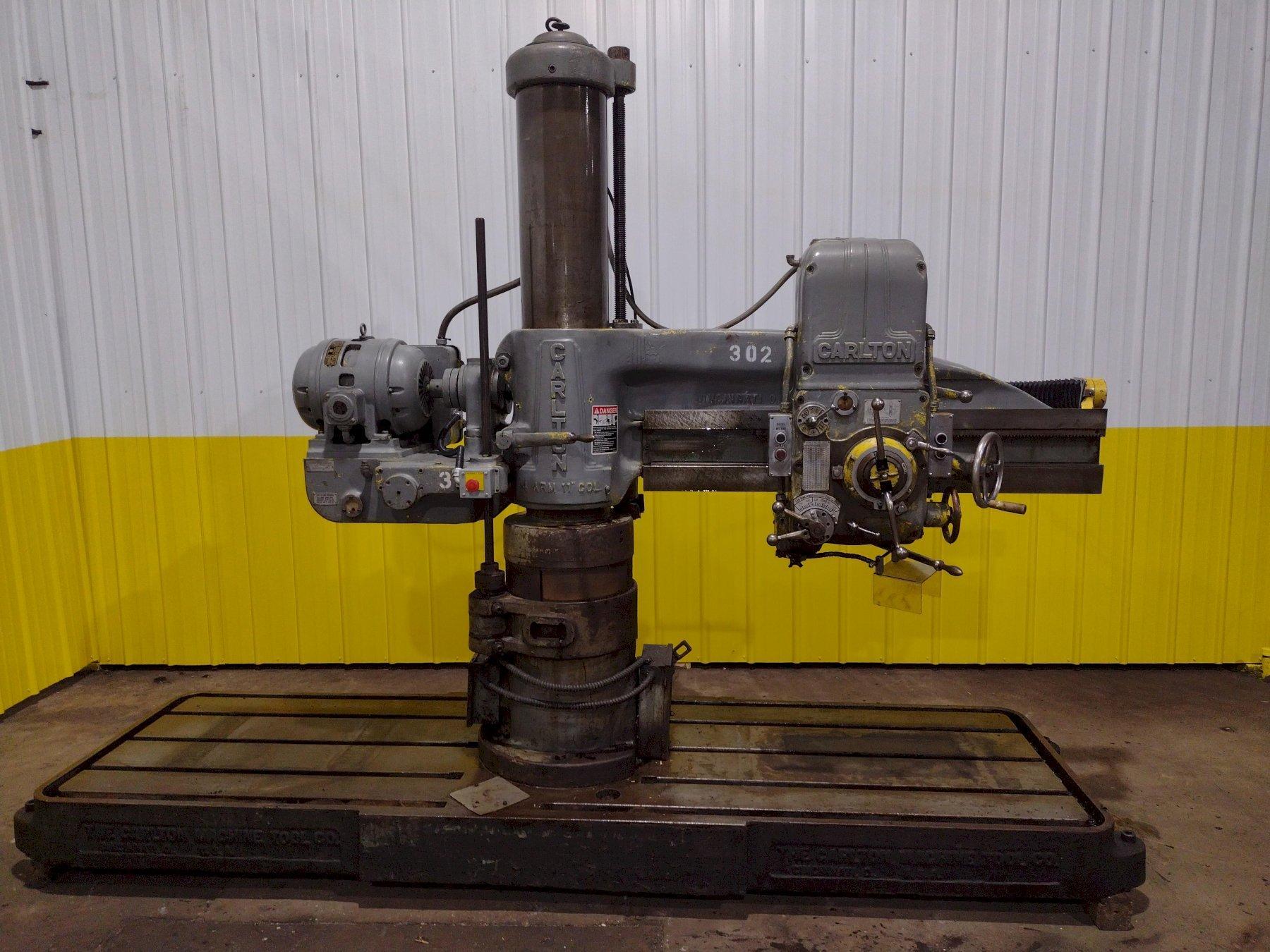

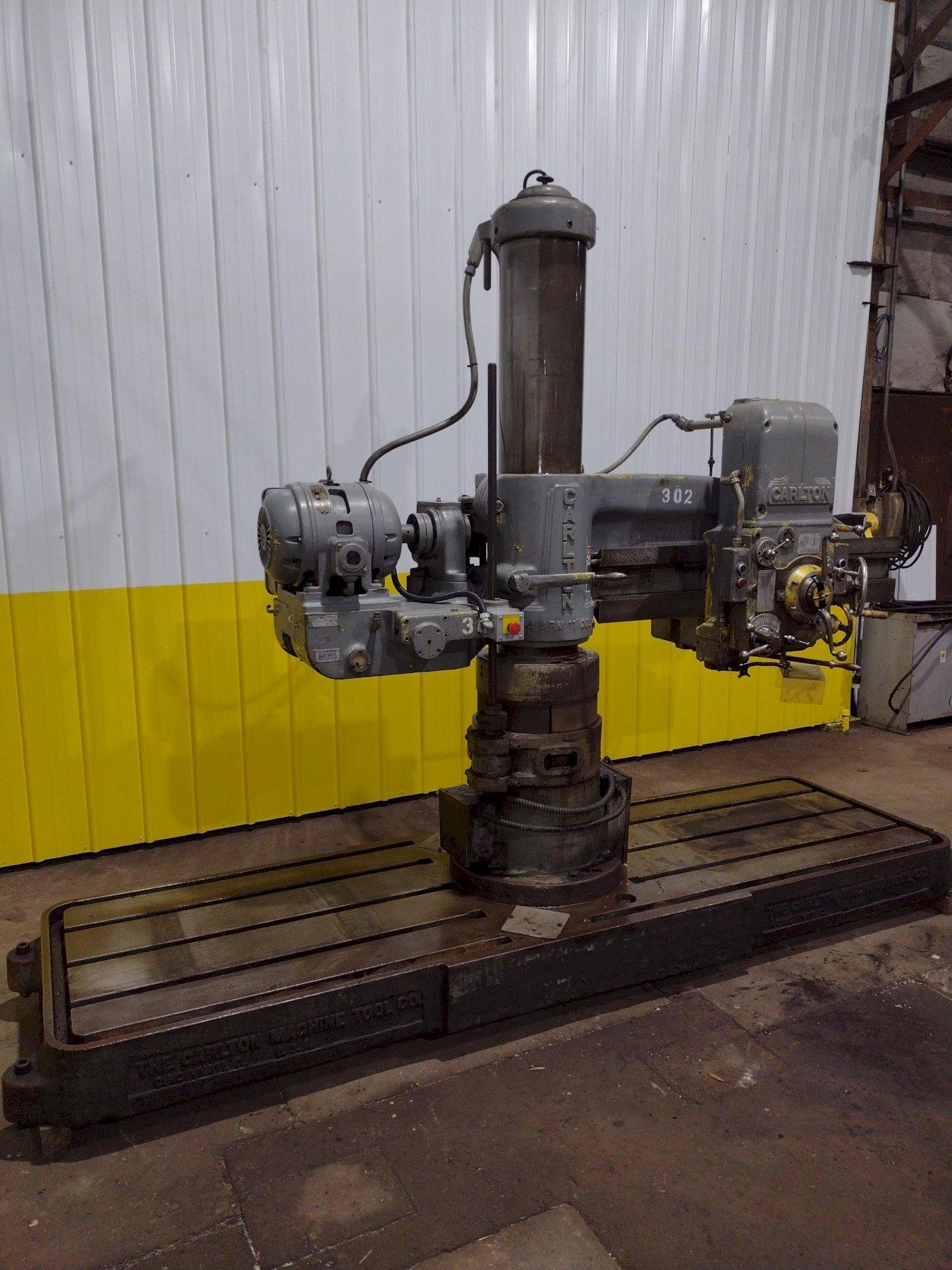

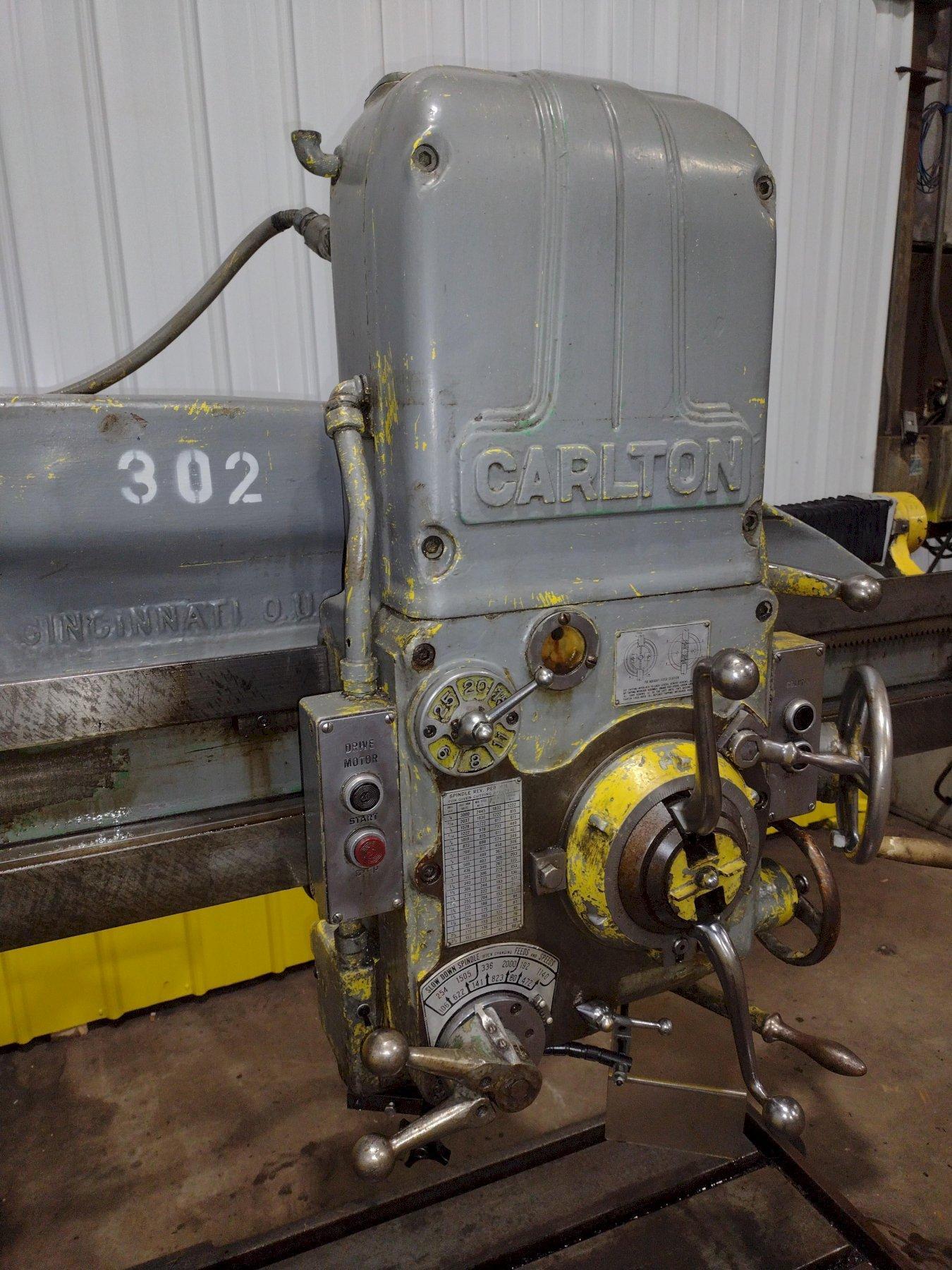

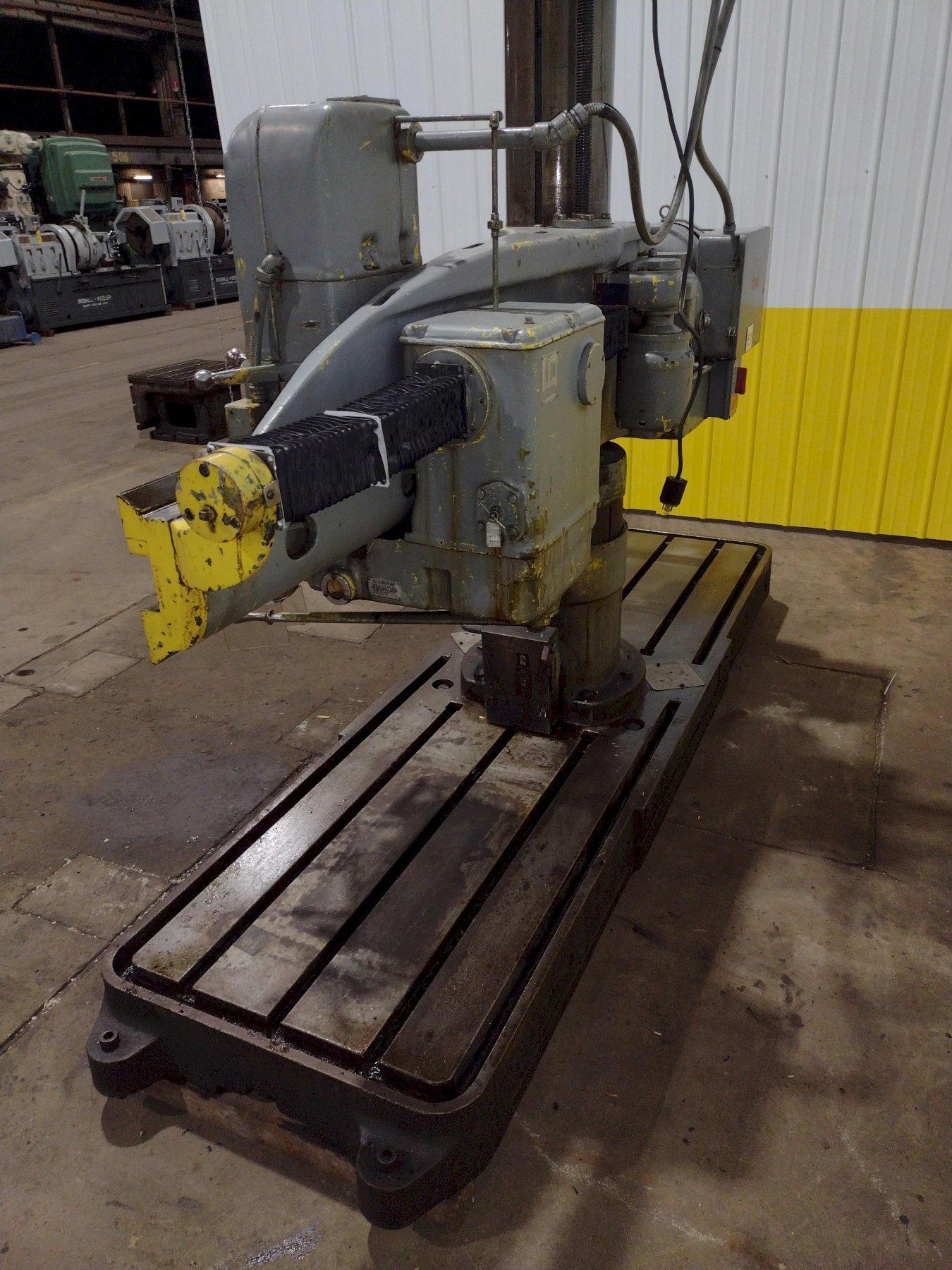

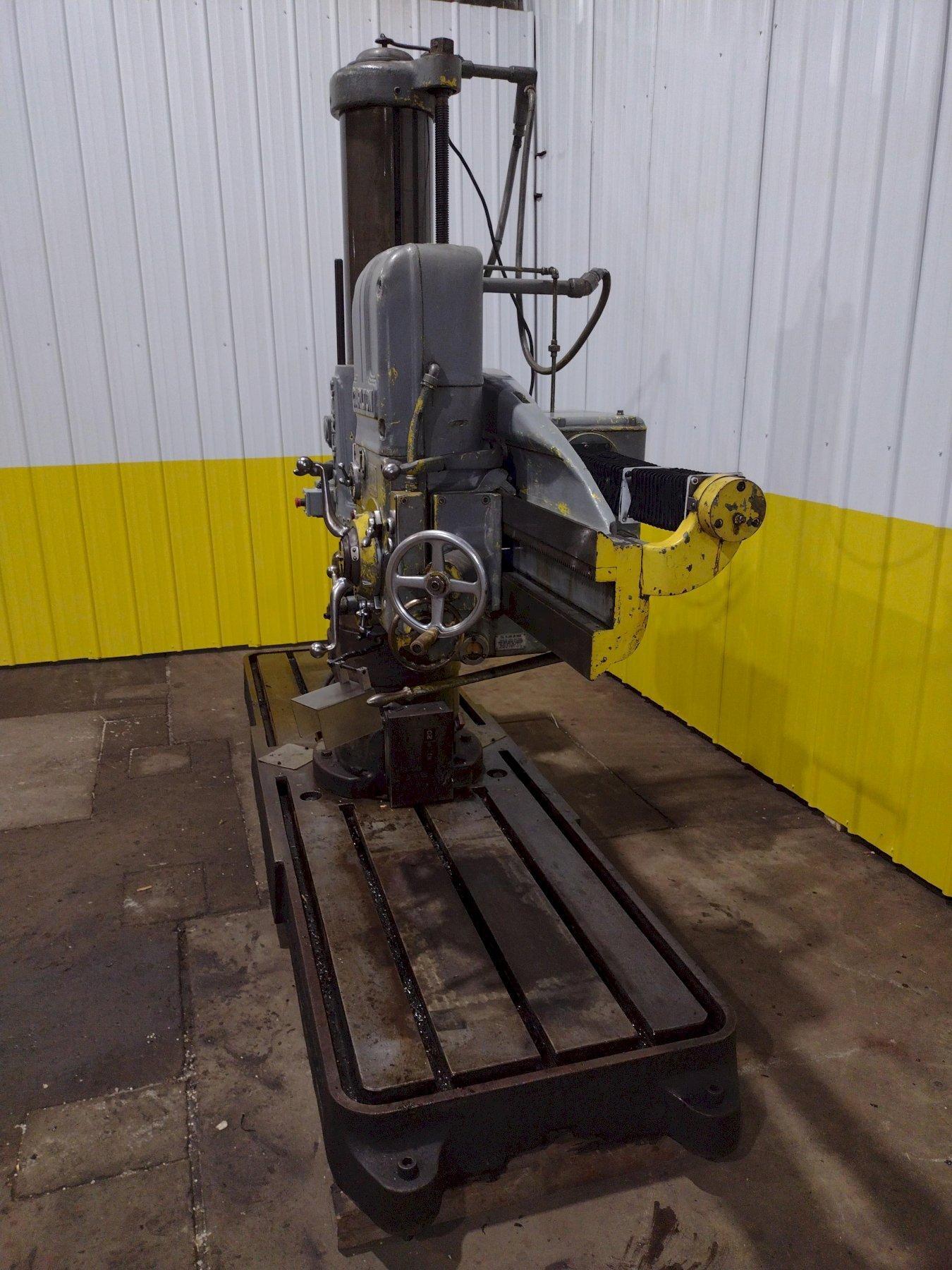

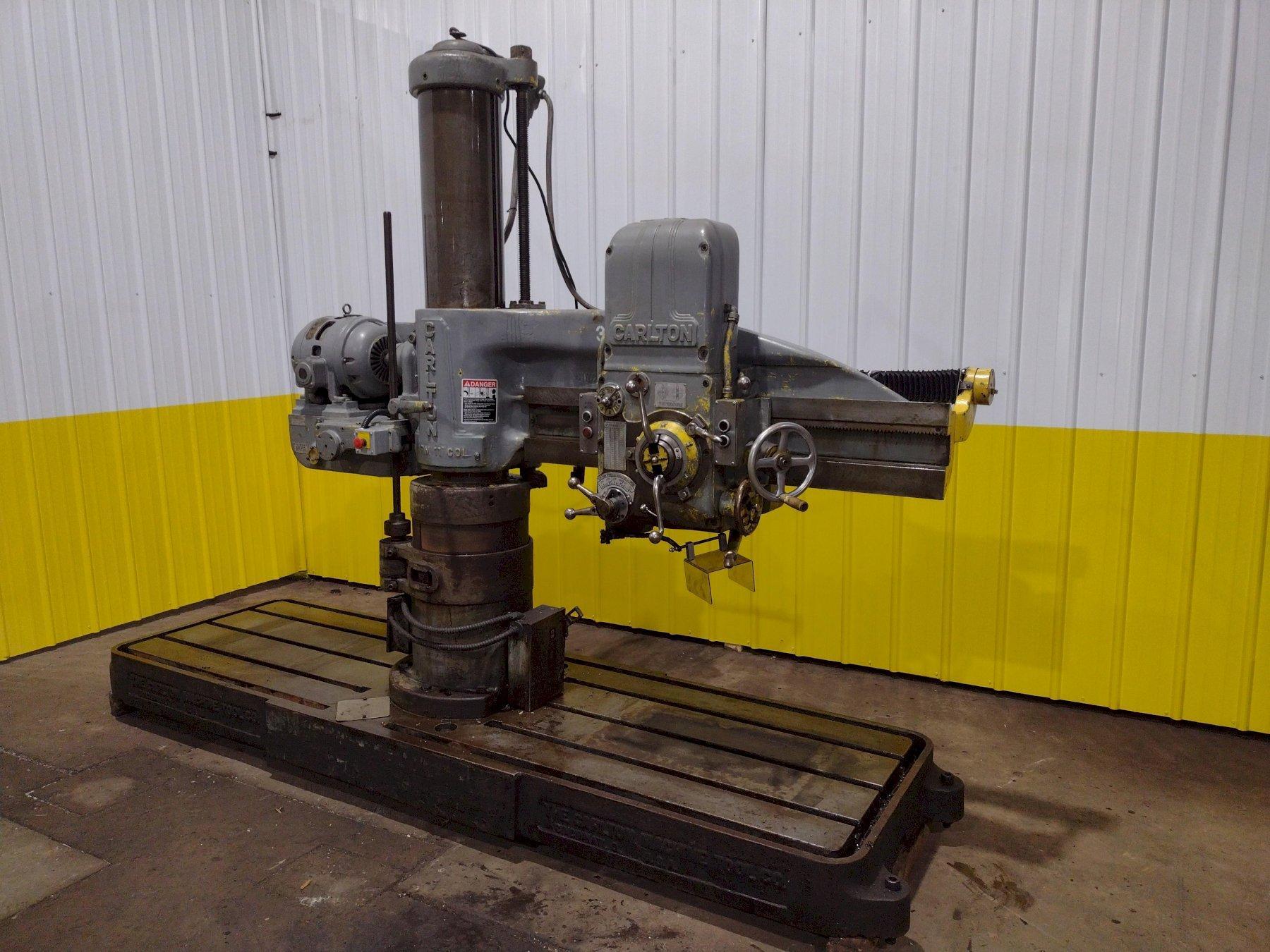

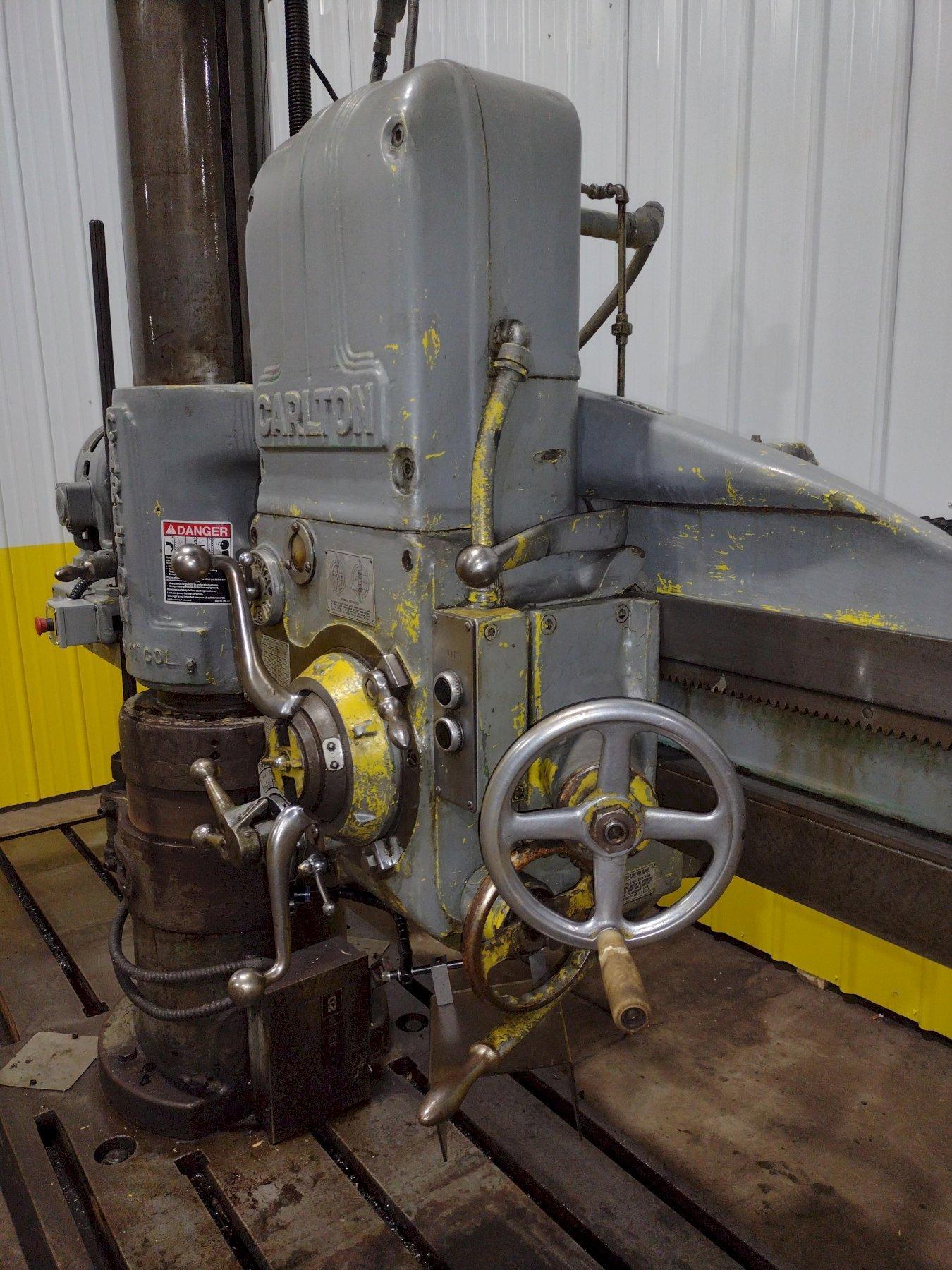

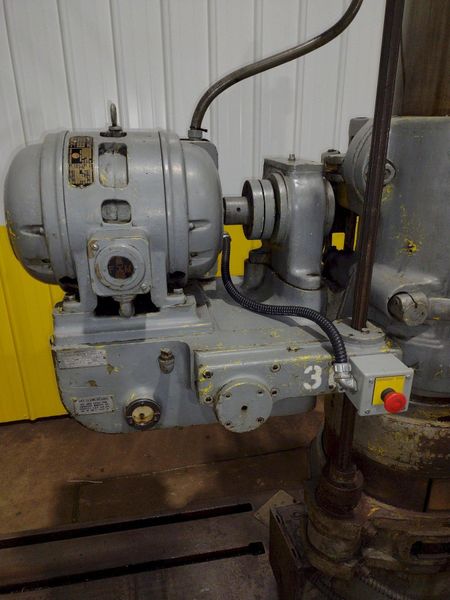

4' X 11" CARLTON MODEL #1A RADIAL ARM DRILL PRESS: STOCK #18320

Stock

18320

Model

04 X 11

Dealer Location

Ohio

Spec Sheet

Arm Length - 48 inches

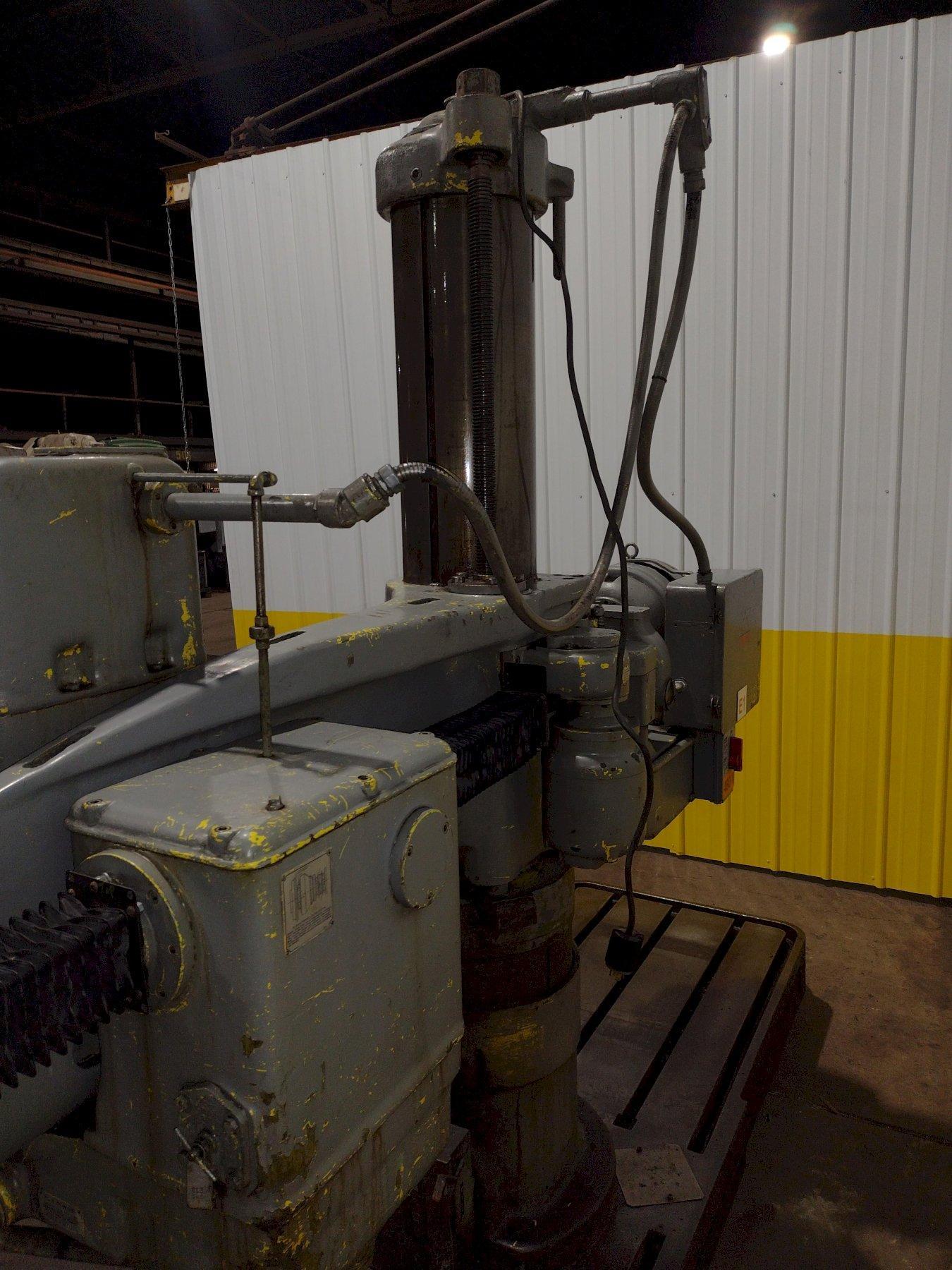

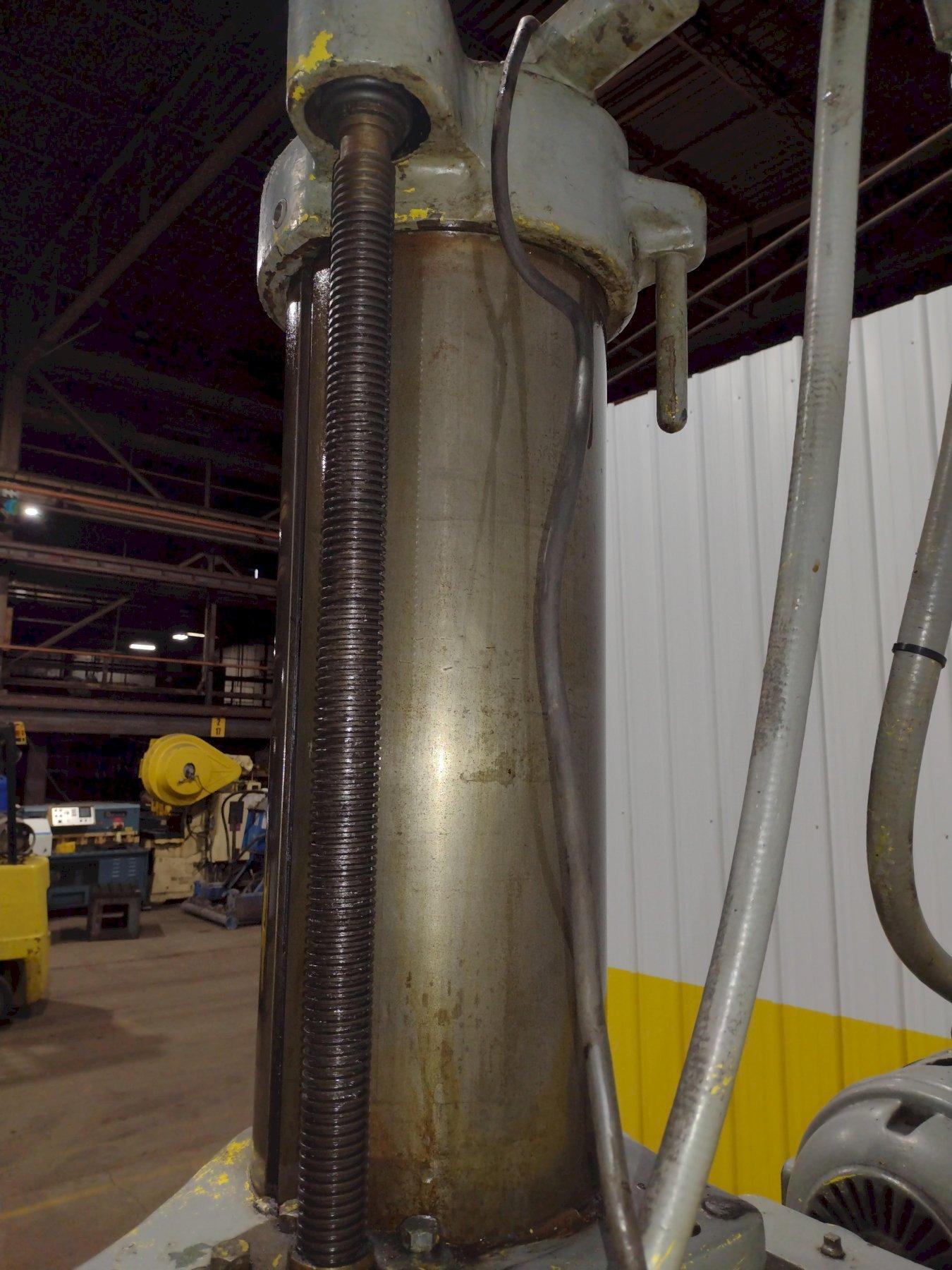

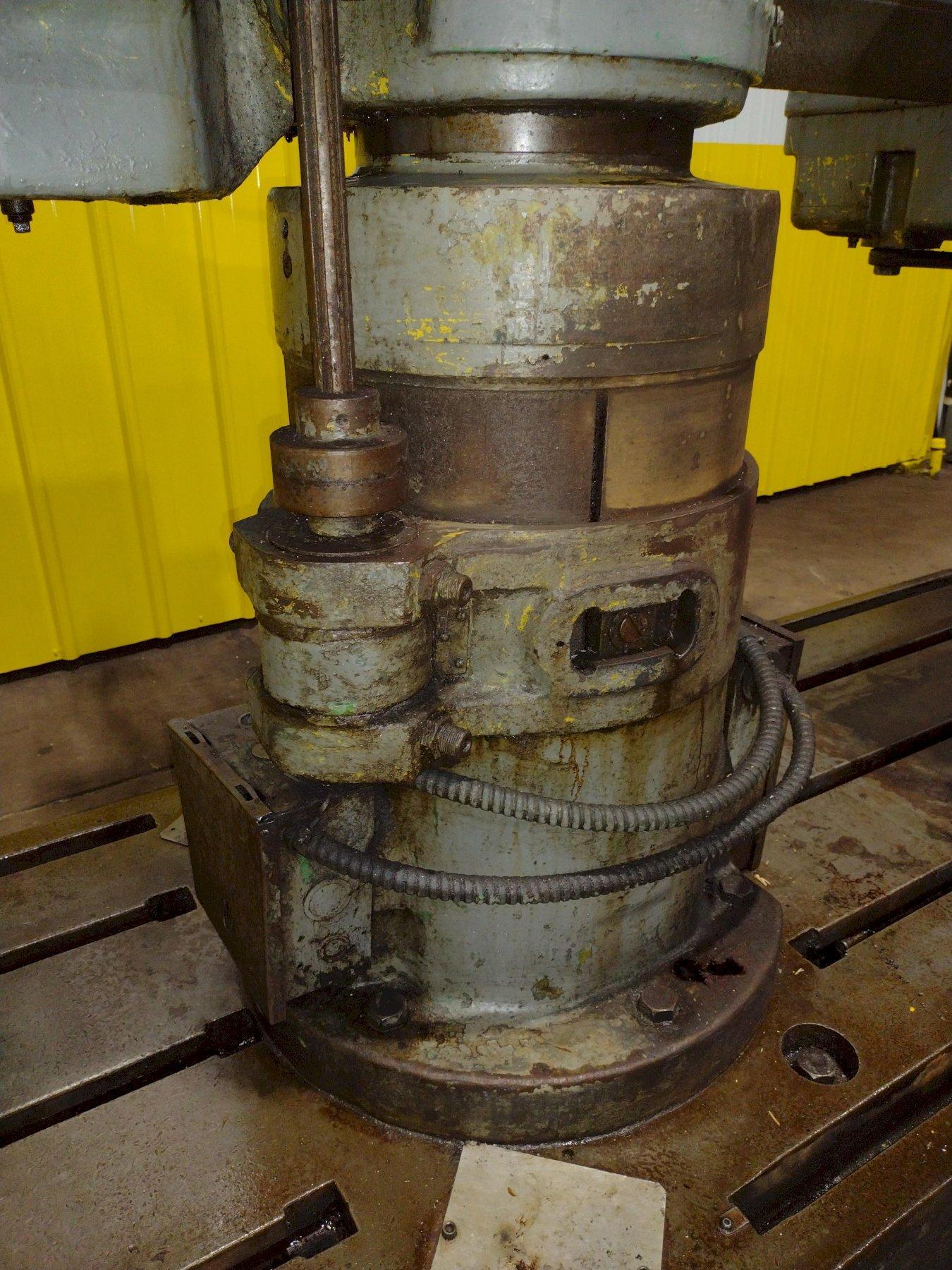

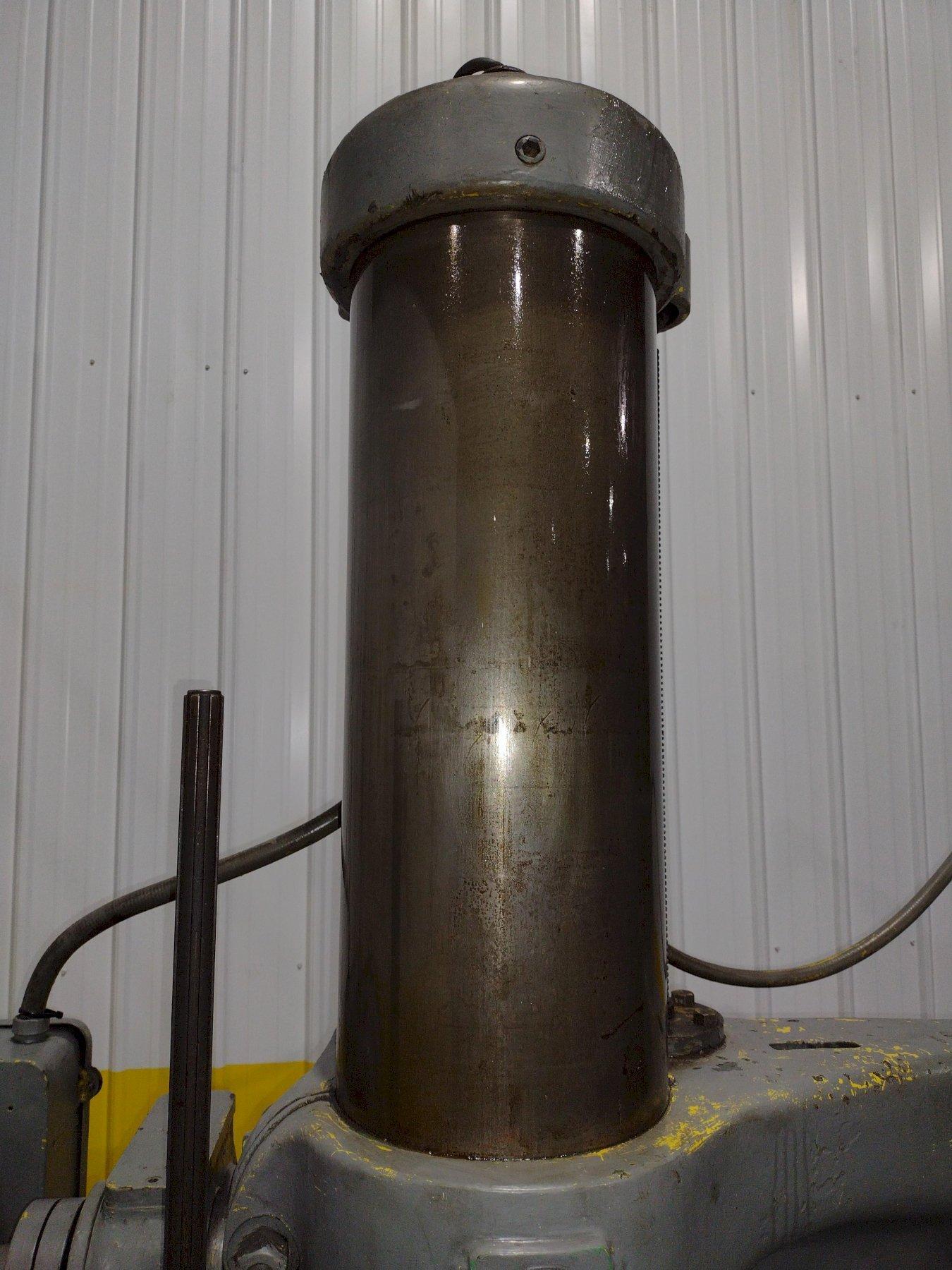

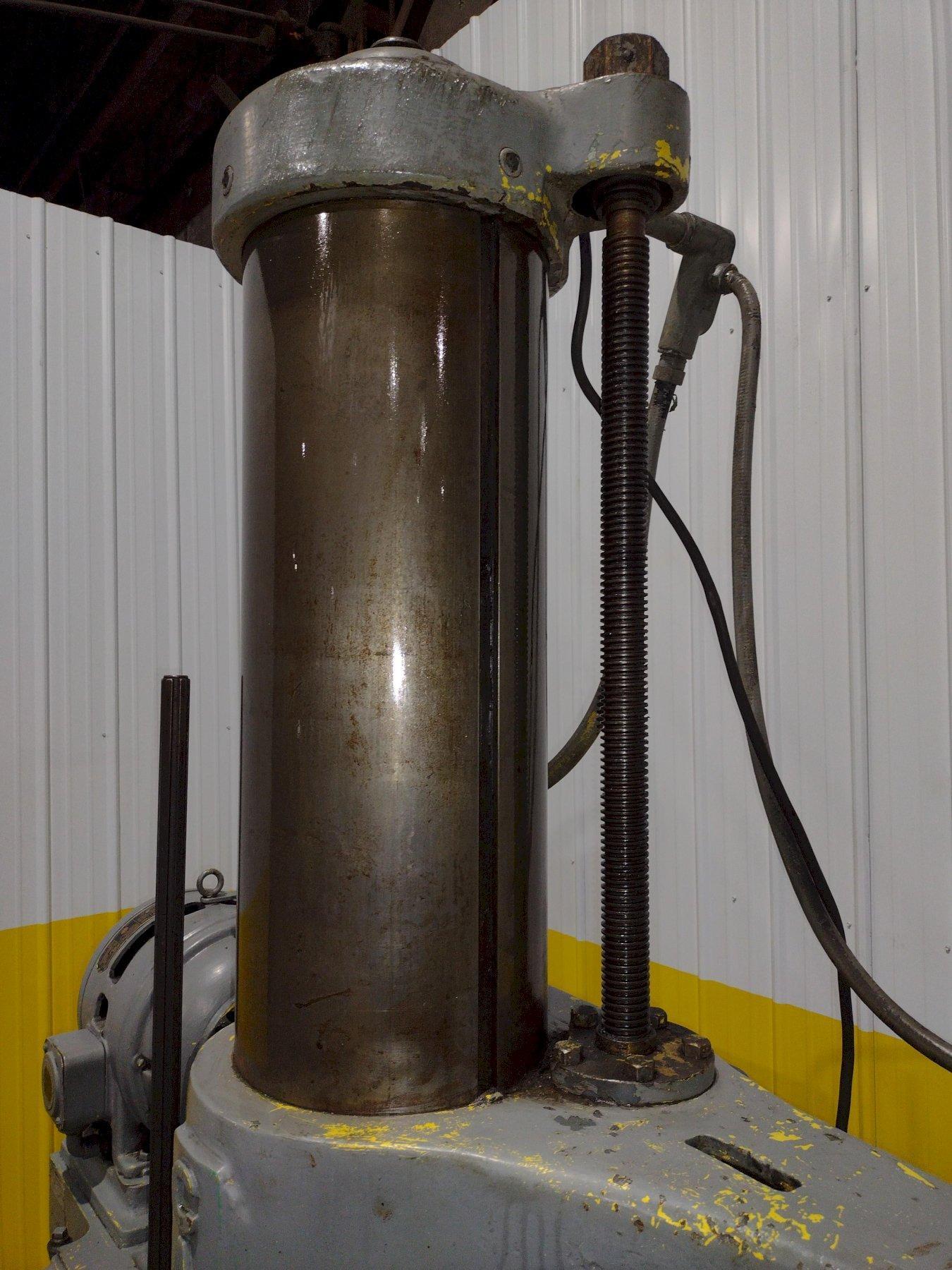

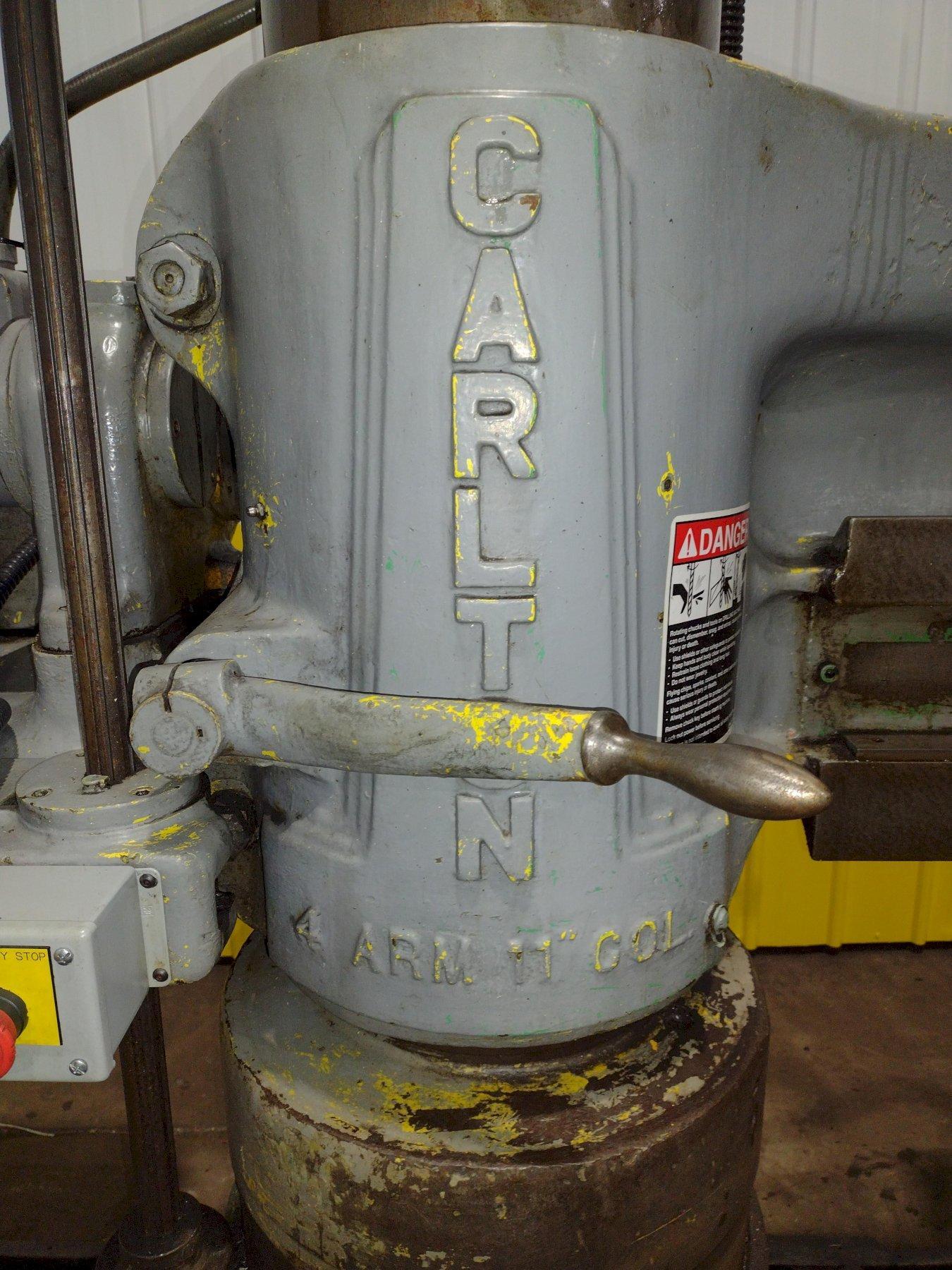

Column Dia. - 11 inches
Weight - 9500 pounds

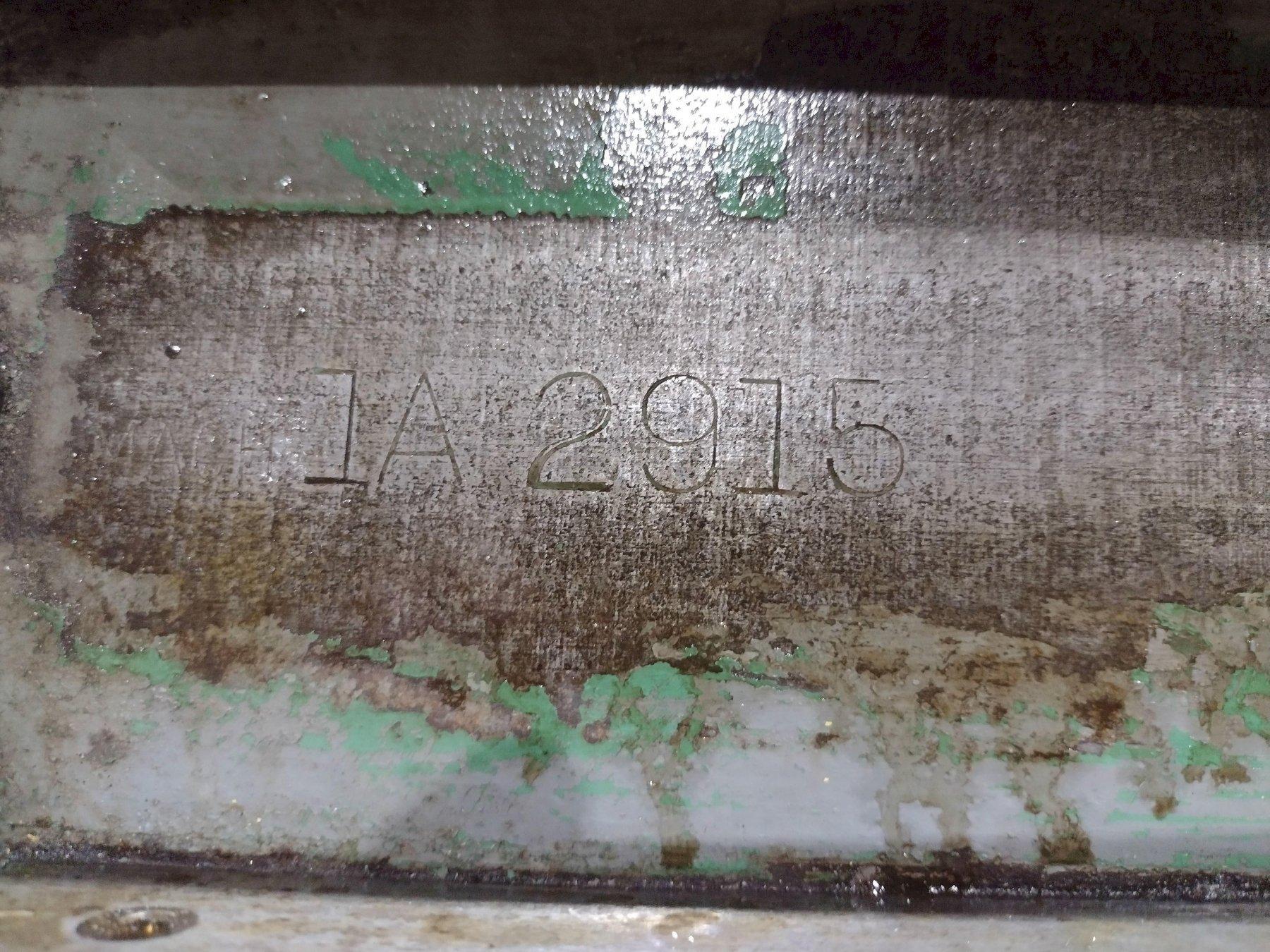

SERIAL .......................... 1A-2915
MODEL ........................... 1A

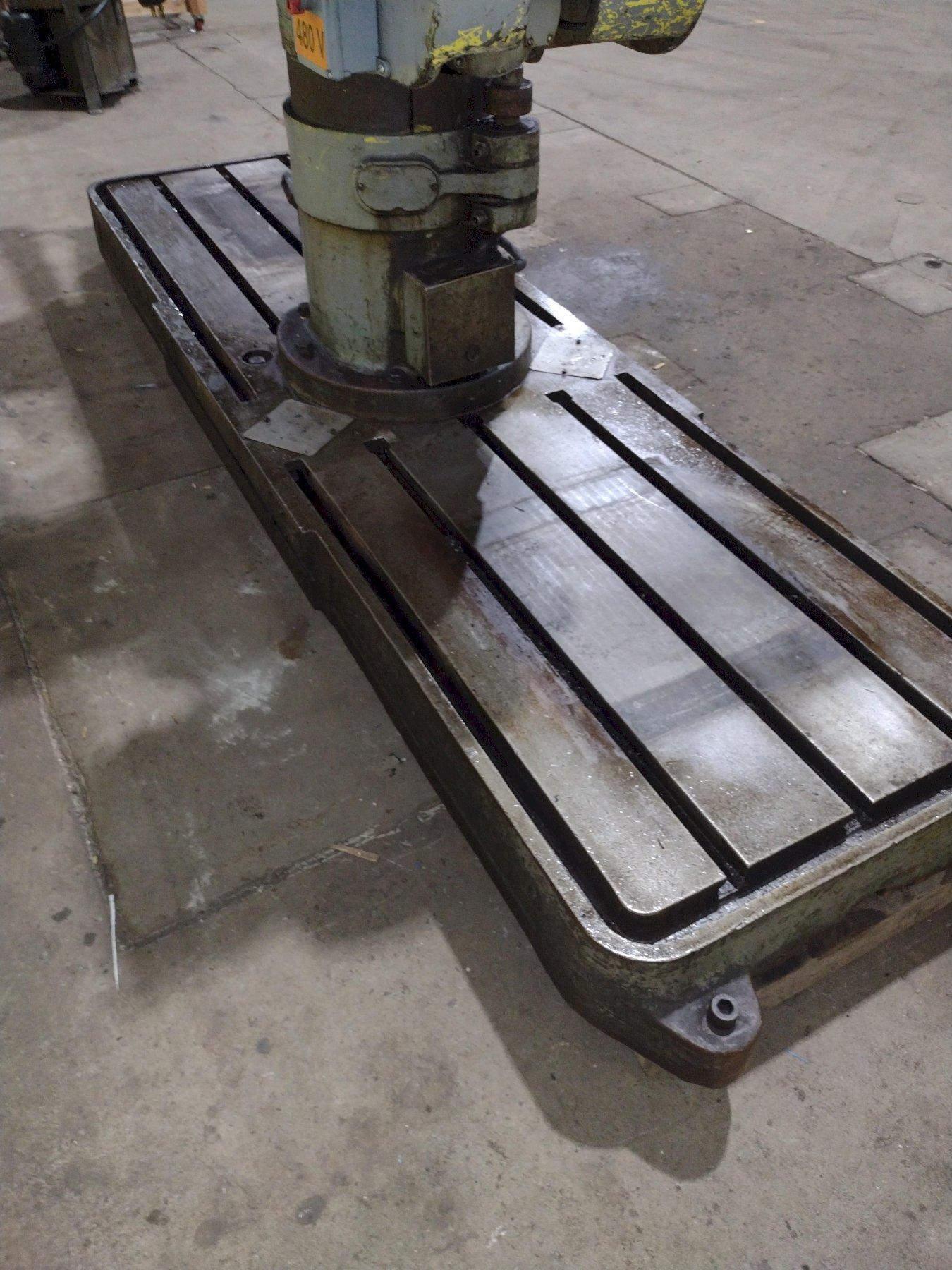

DUAL BASE ....................... YES

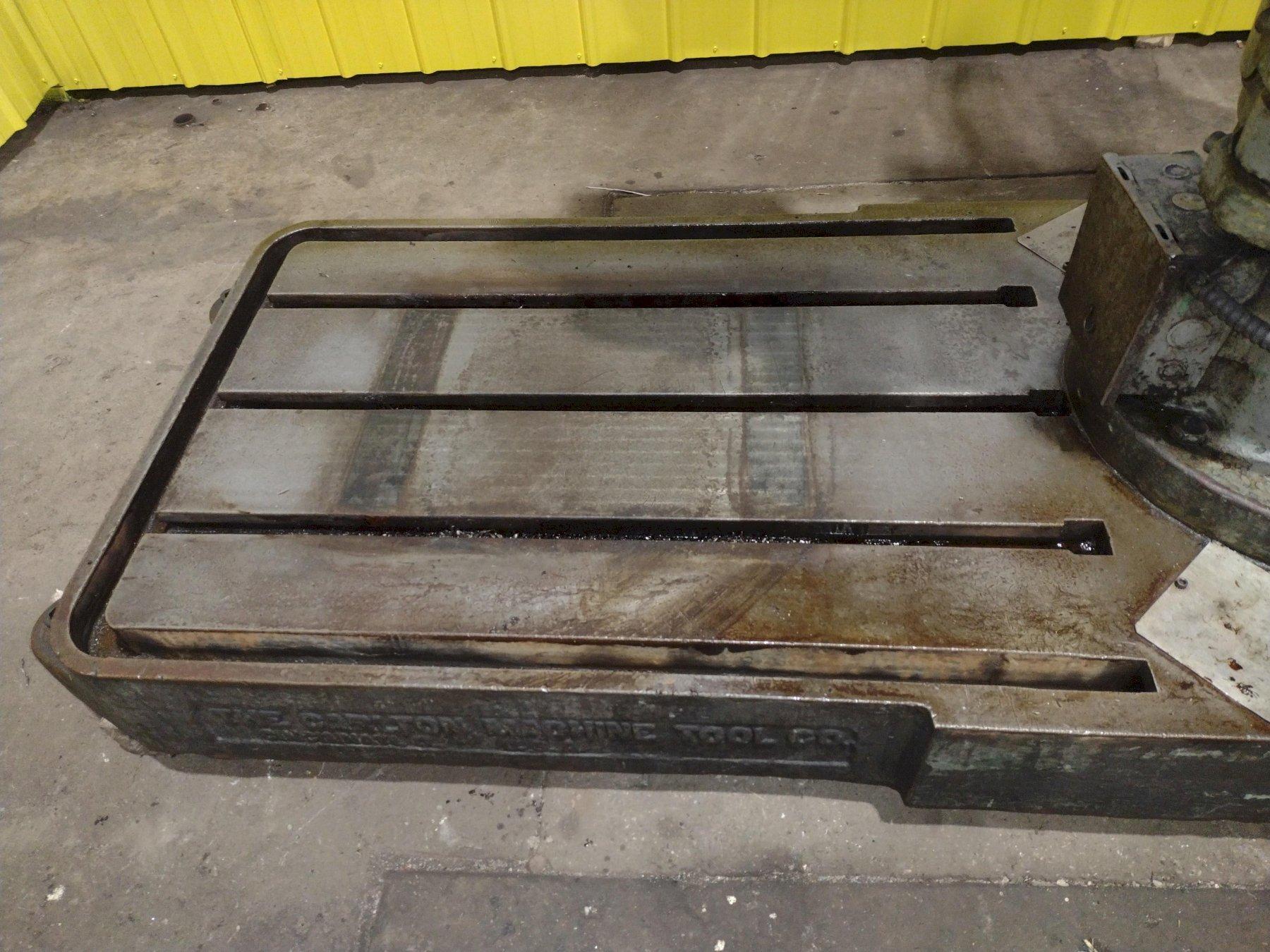

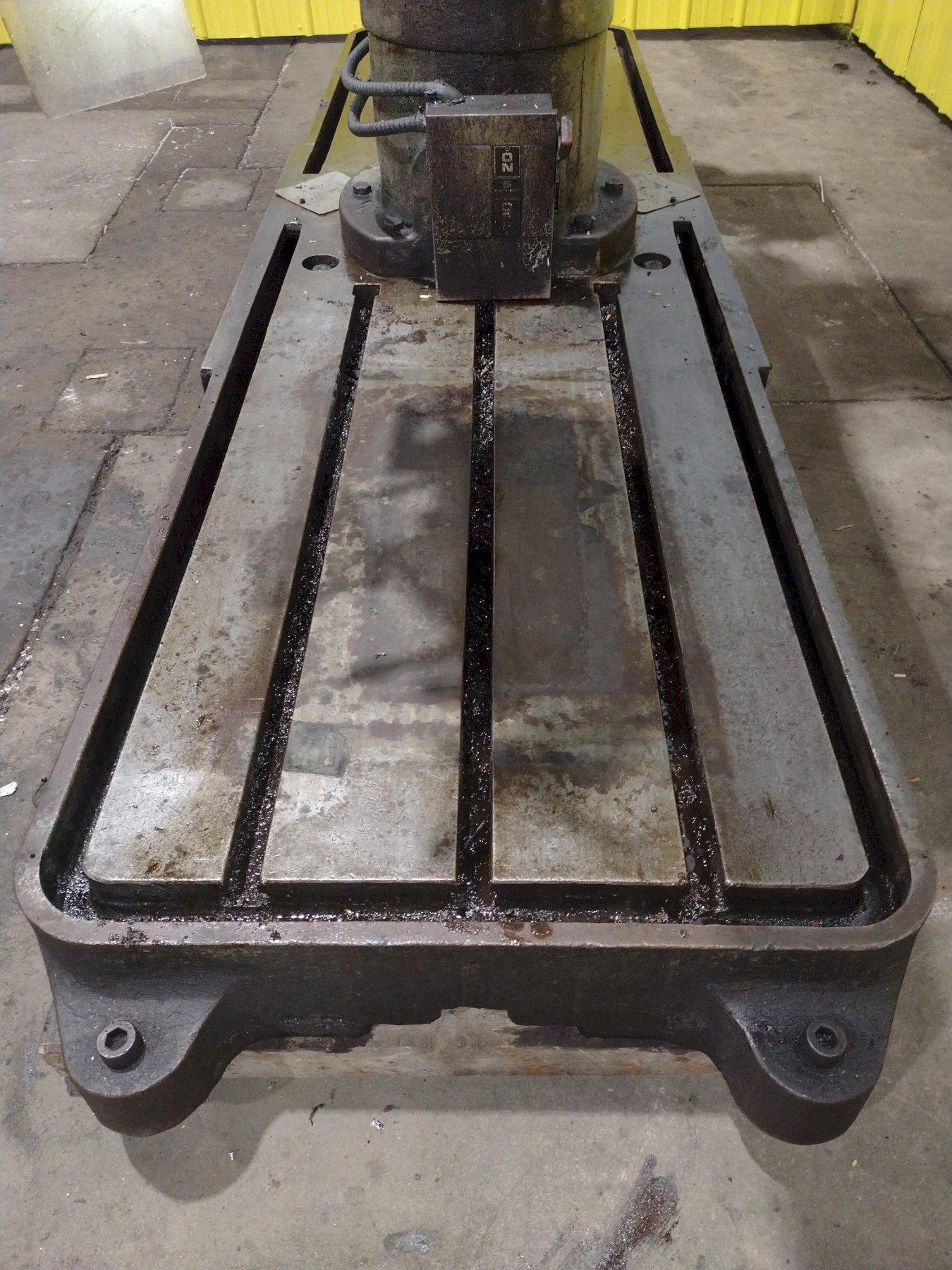

WORKING SURFACE OF EACH BASE .... 54" X 36"

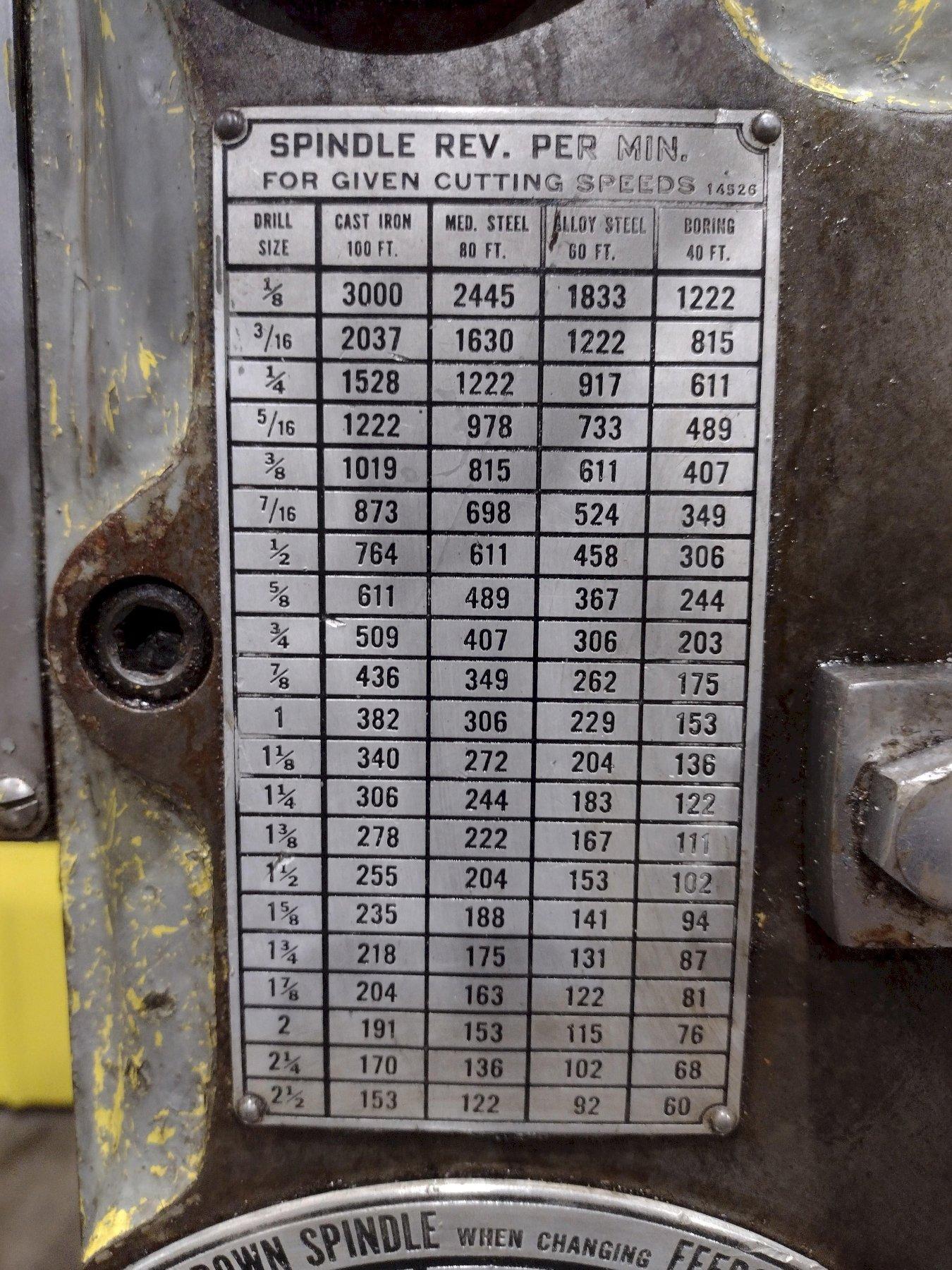

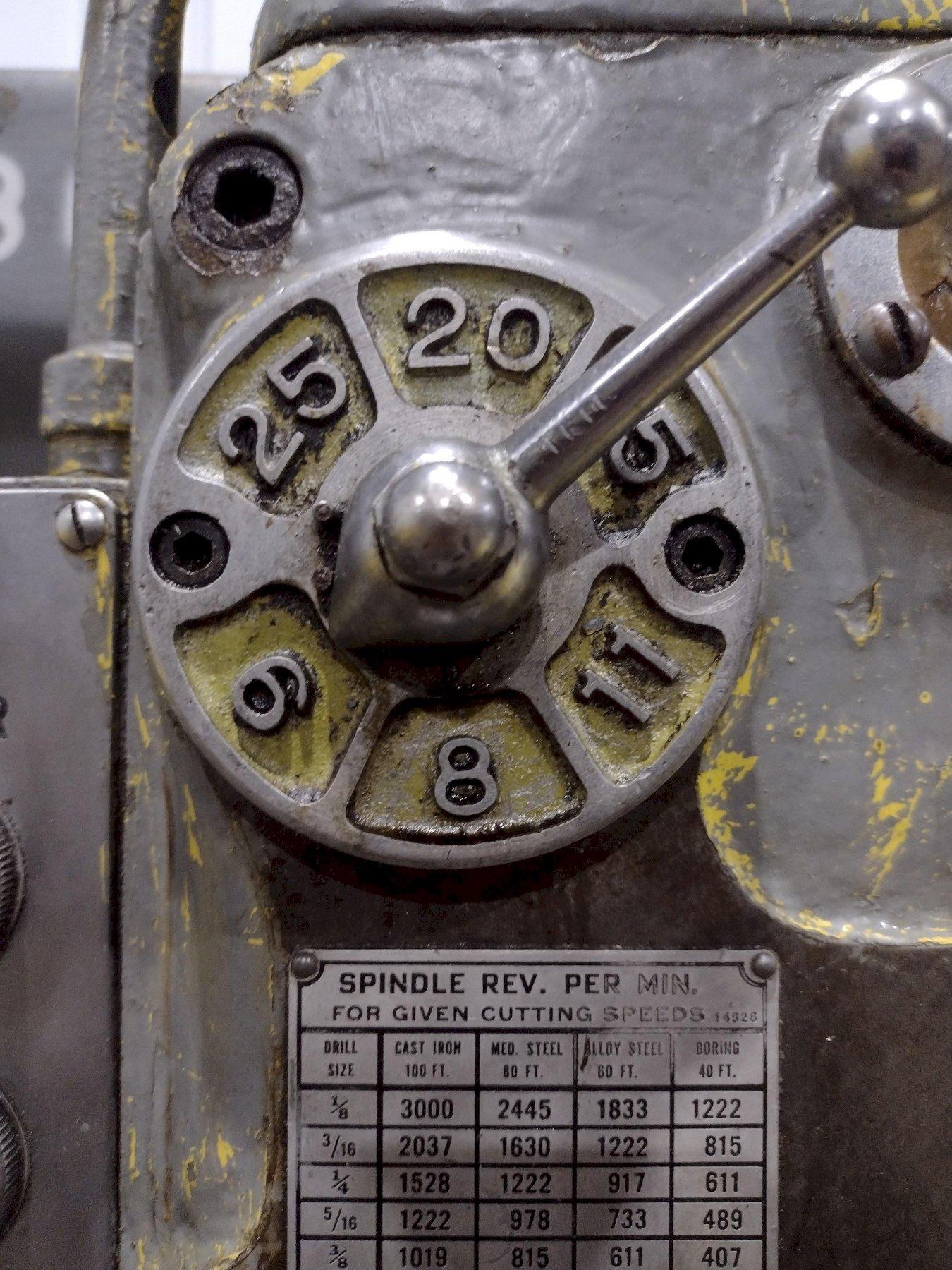

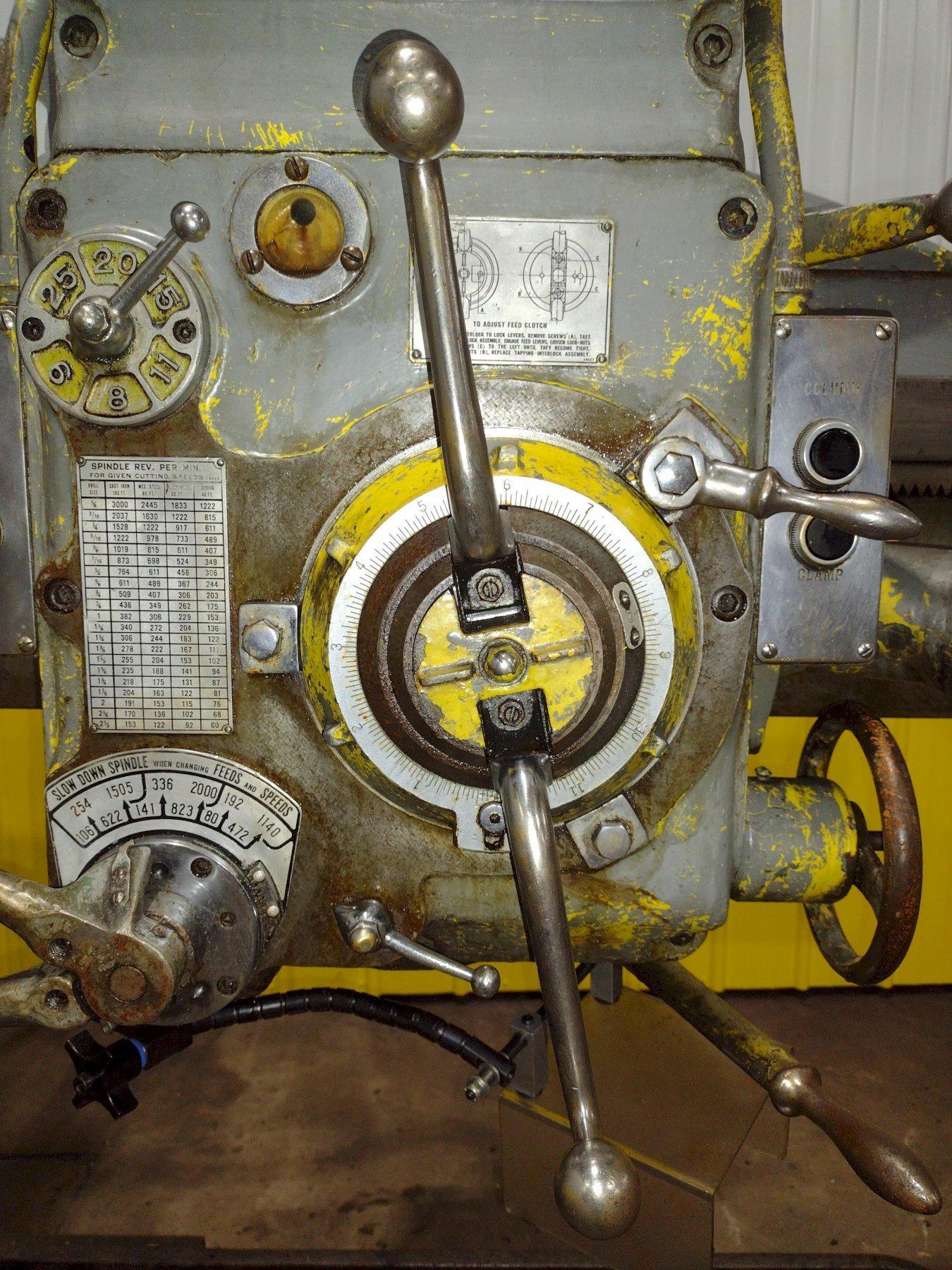

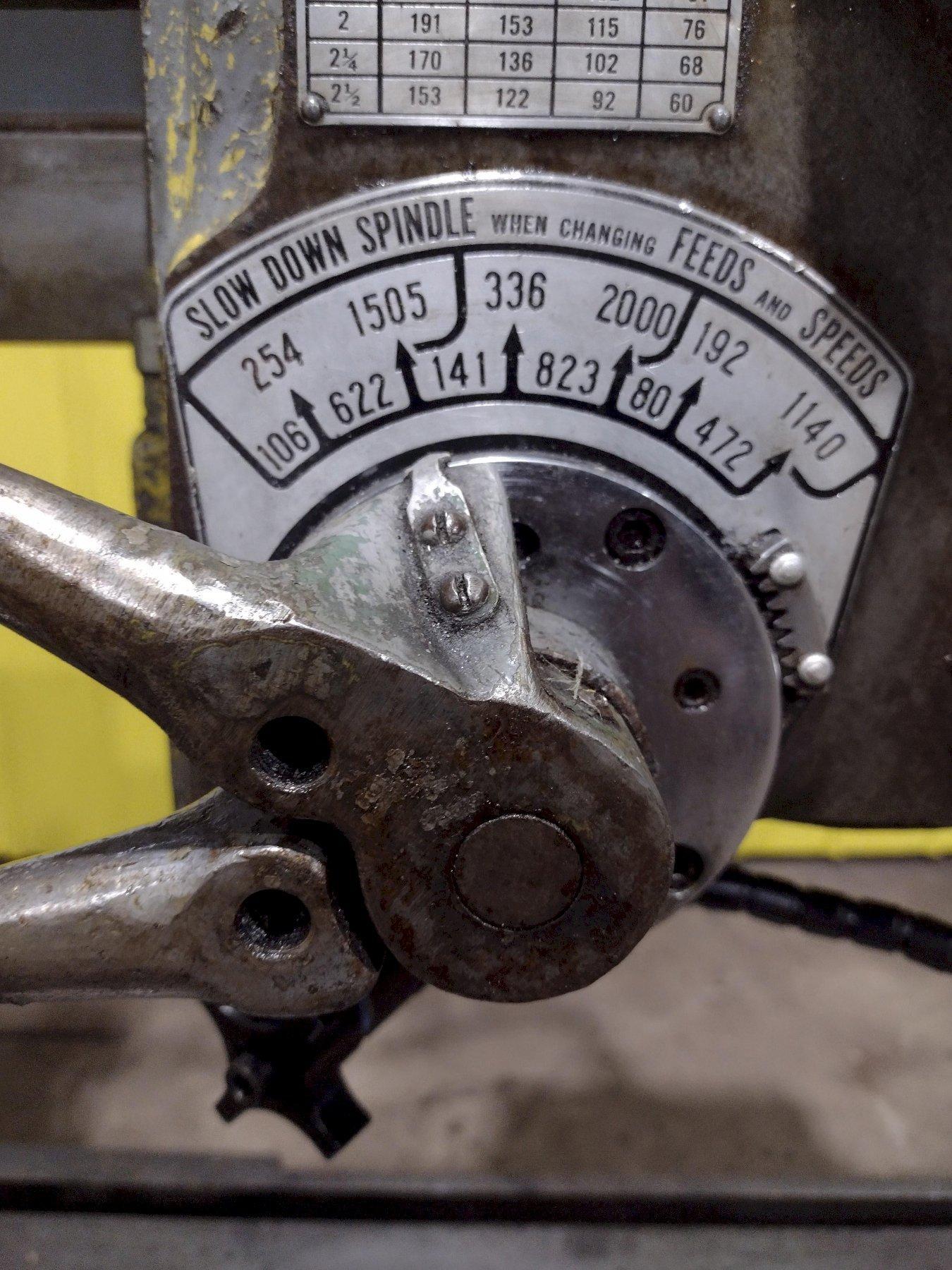

SPINDLE SPEEDS .................. (12) 60 TO 1500 RPM
FEEDS ........................... (6) .004 TO .025 IPR
SPINDLE TRAVEL .................. 12"

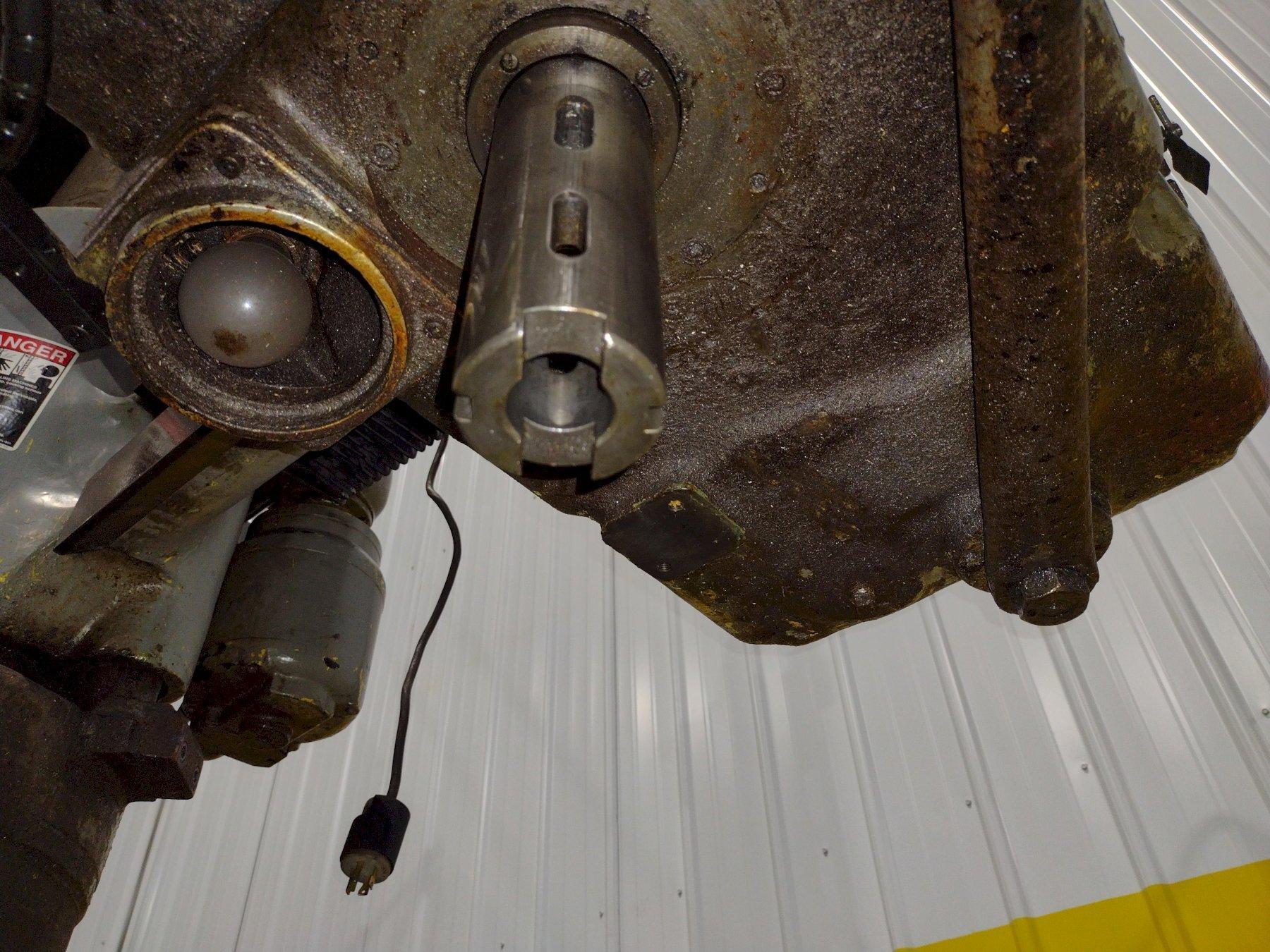

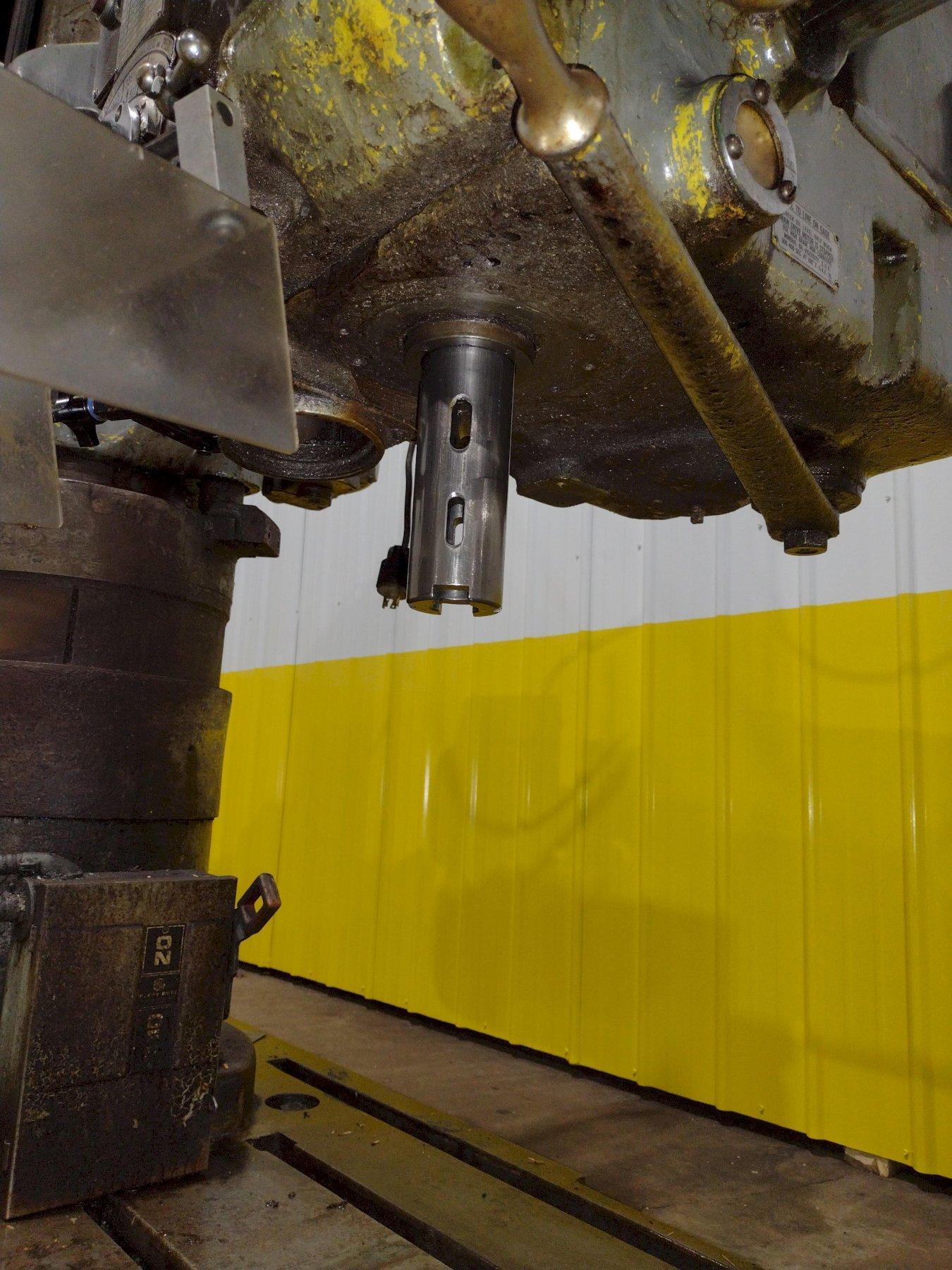

TAPER IN SPINDLE ................ #4MT
DIAMETER OF SPINDLE ............. 2-1/2"
DISTANCE SPINDLE TO BASE ........ 26" MINIMUM, 54" MAXIMUM
TRAVEL OF ARM ON COLUMN ......... 28-1/2"

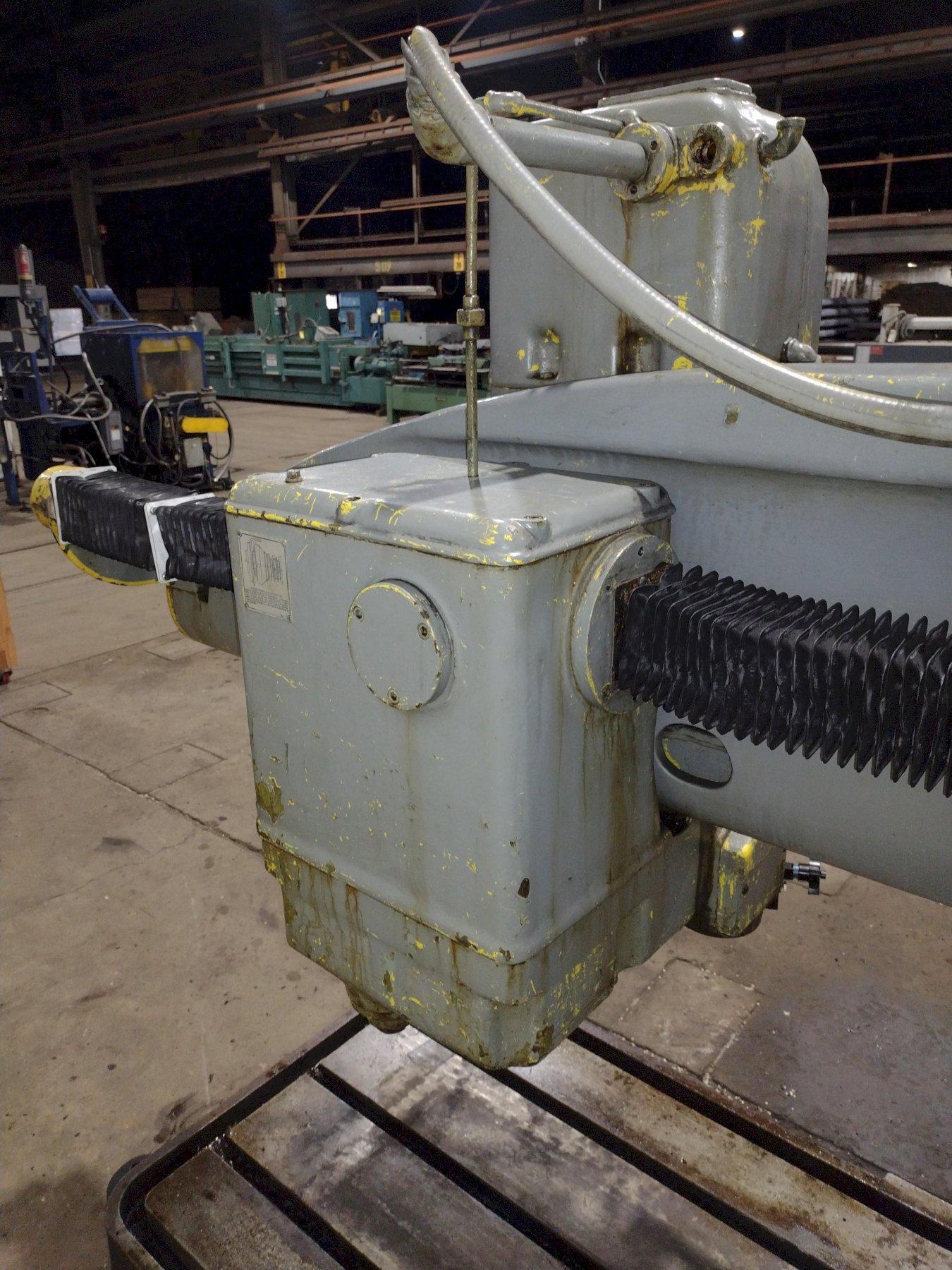

TRAVEL OF HEAD ON ARM ........... 39"

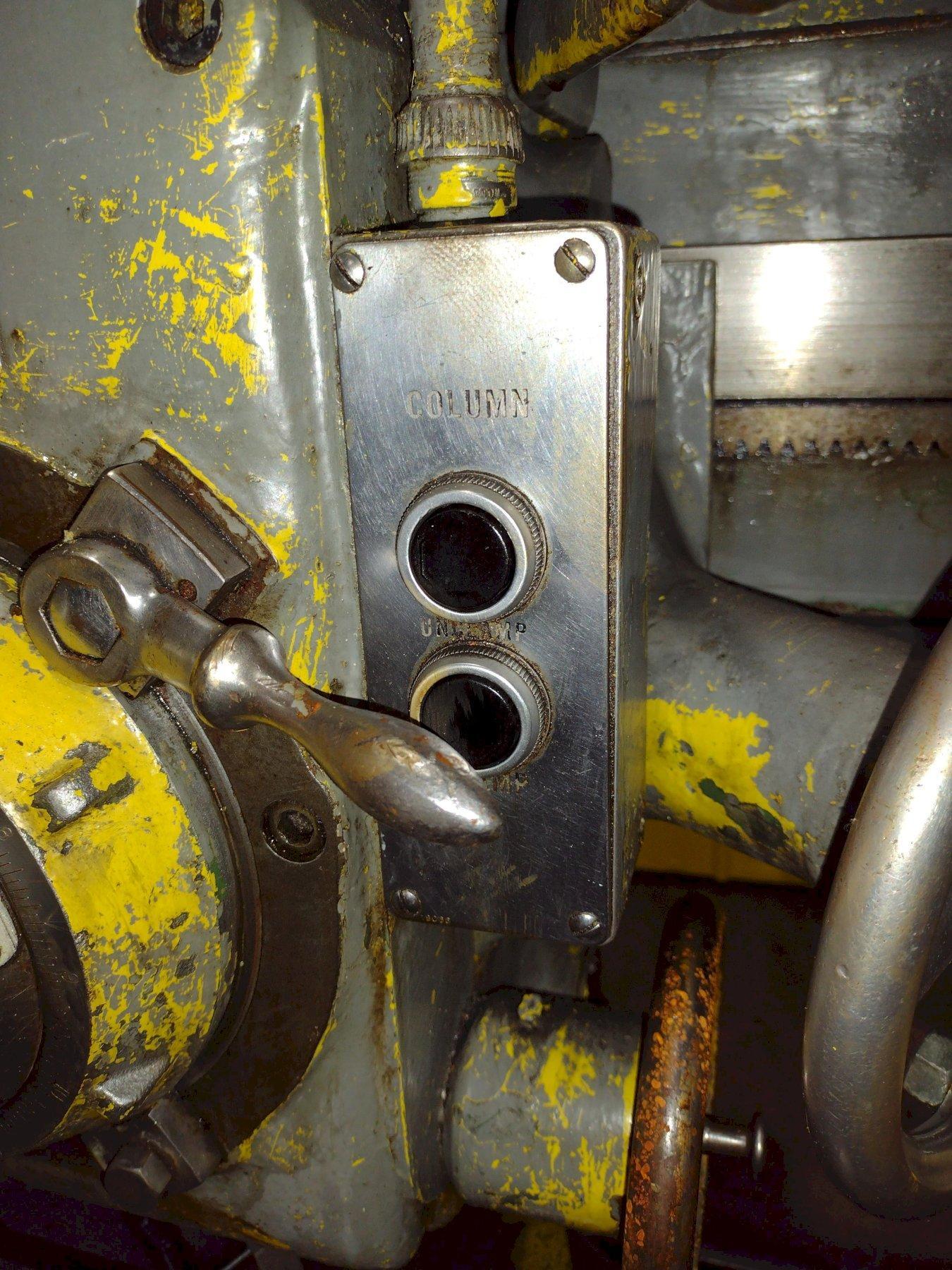

POWER COLUMN CLAMP .............. YES
POWER ELEVATION ................. YES

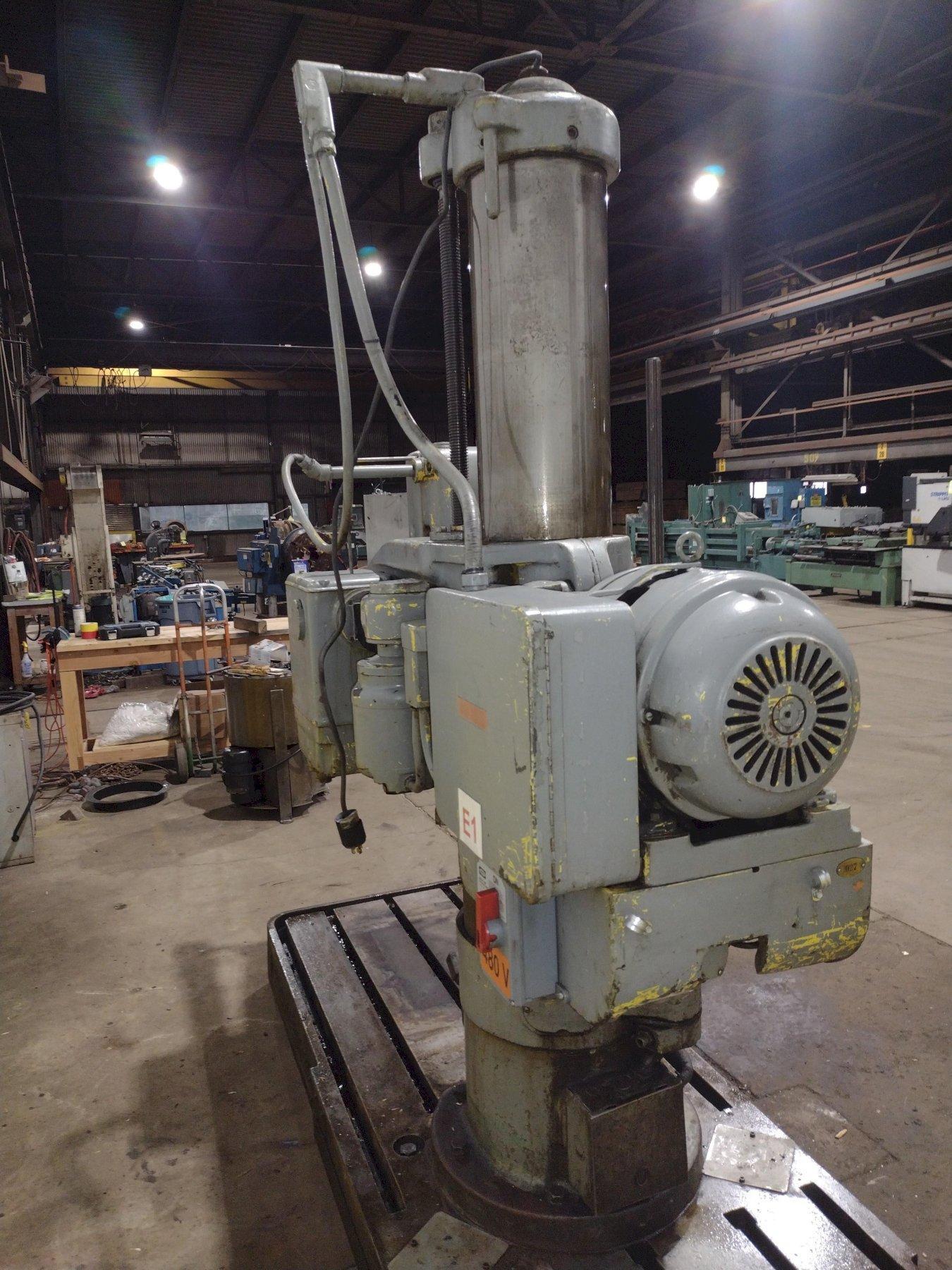

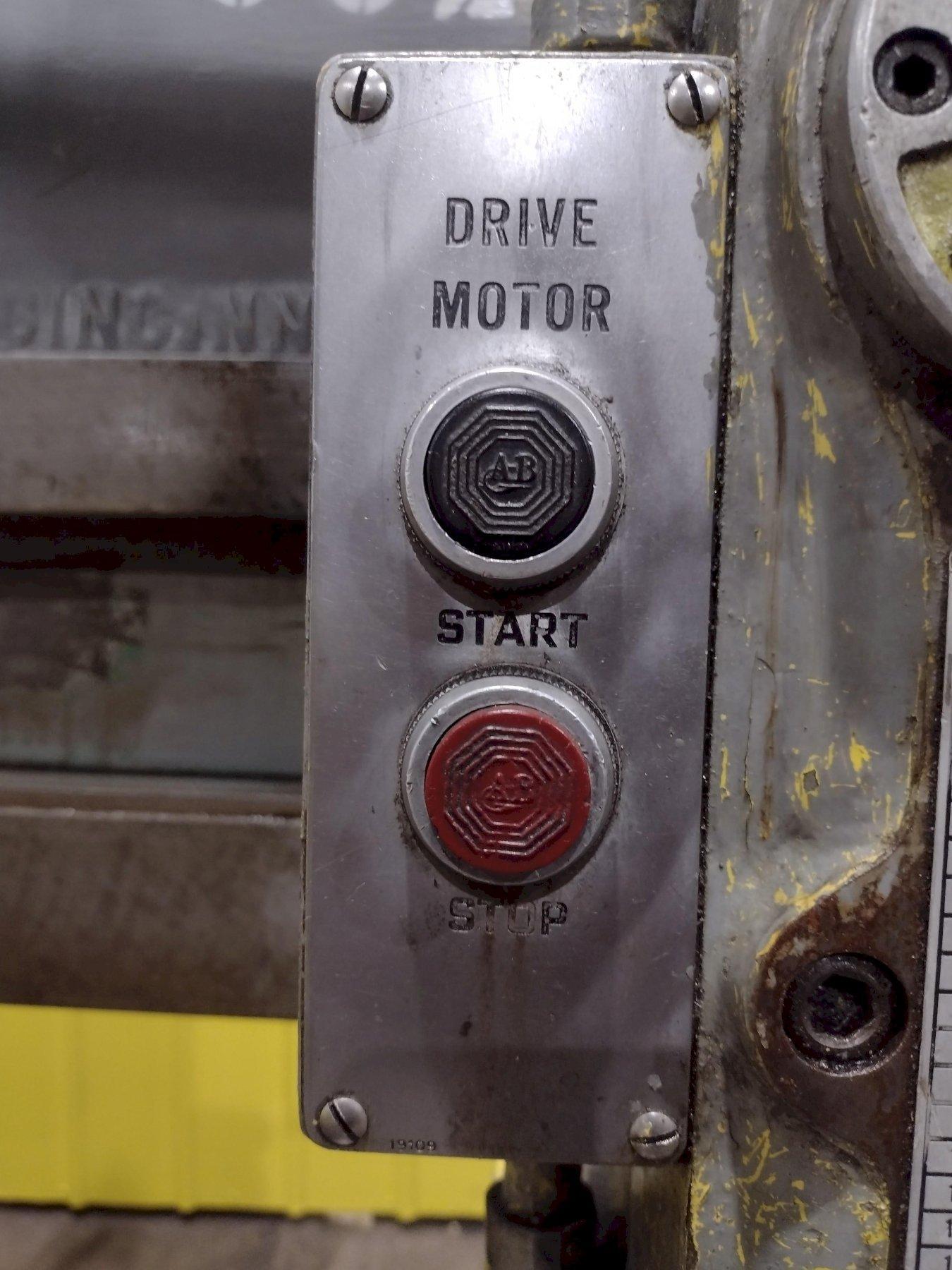

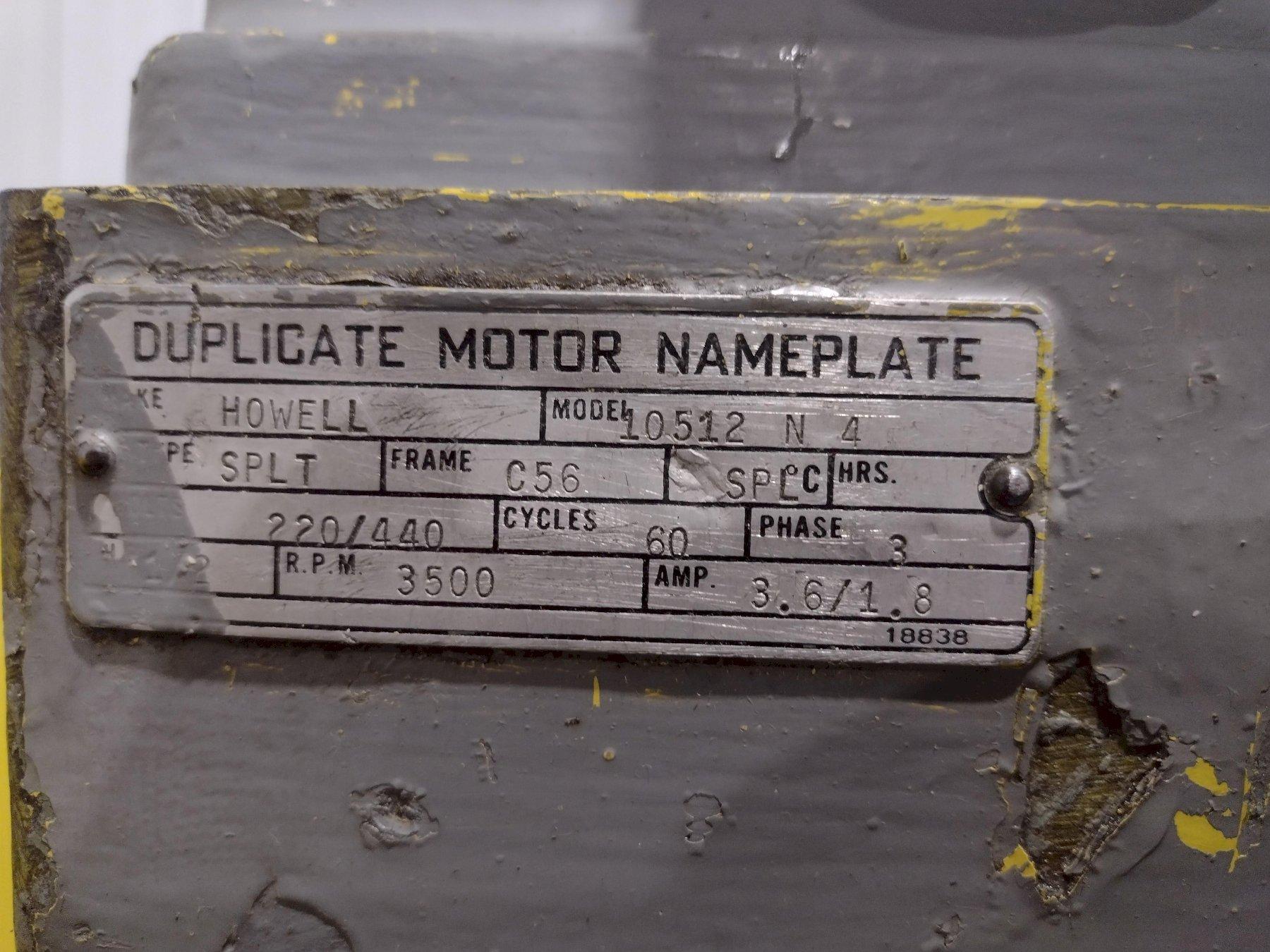

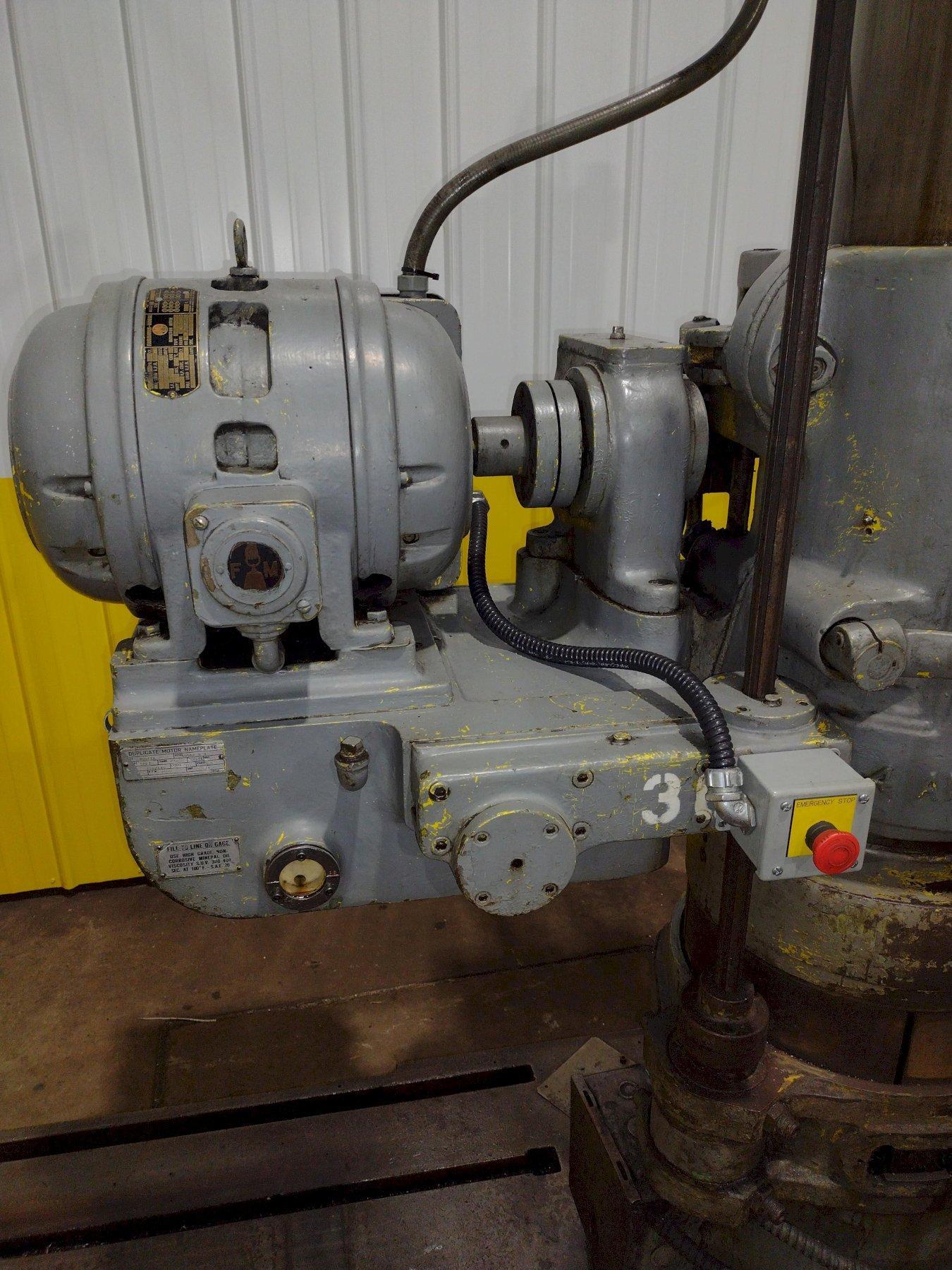

MOTOR ........................... 5 HORSEPOWER
