Daewoo ACE-B130T, 5.12" Spindle, X-118", Y-78", Z-27.5", W-63", 63" x 71" Tbl, Fanuc 16iM CNC, #32381

Manufacturer

DAEWOO

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32381

Model

ACE-B130T

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32381

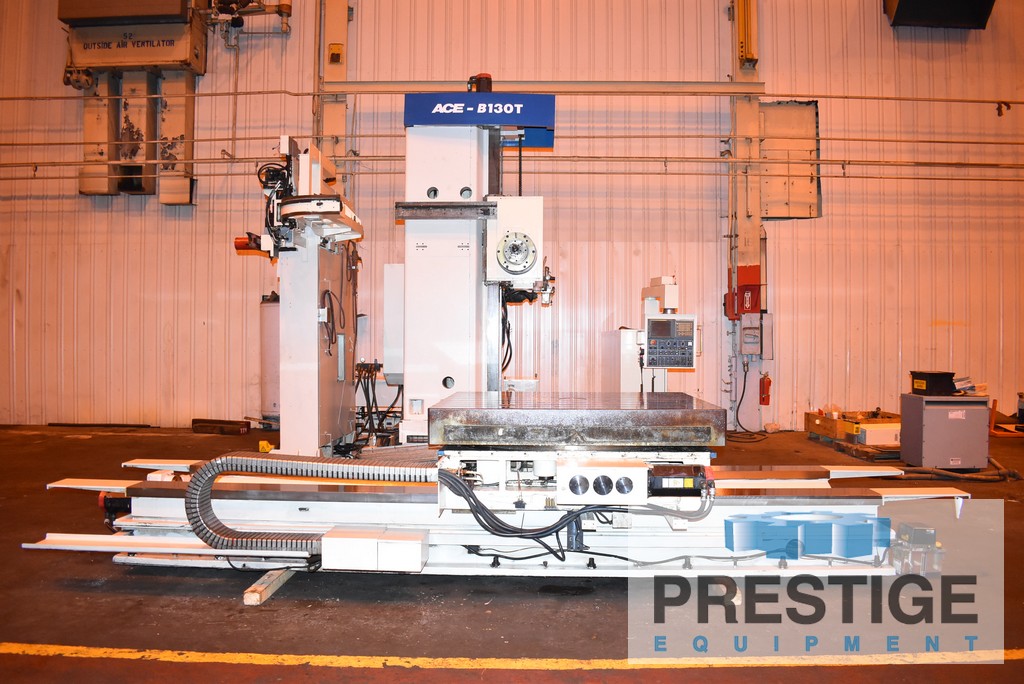

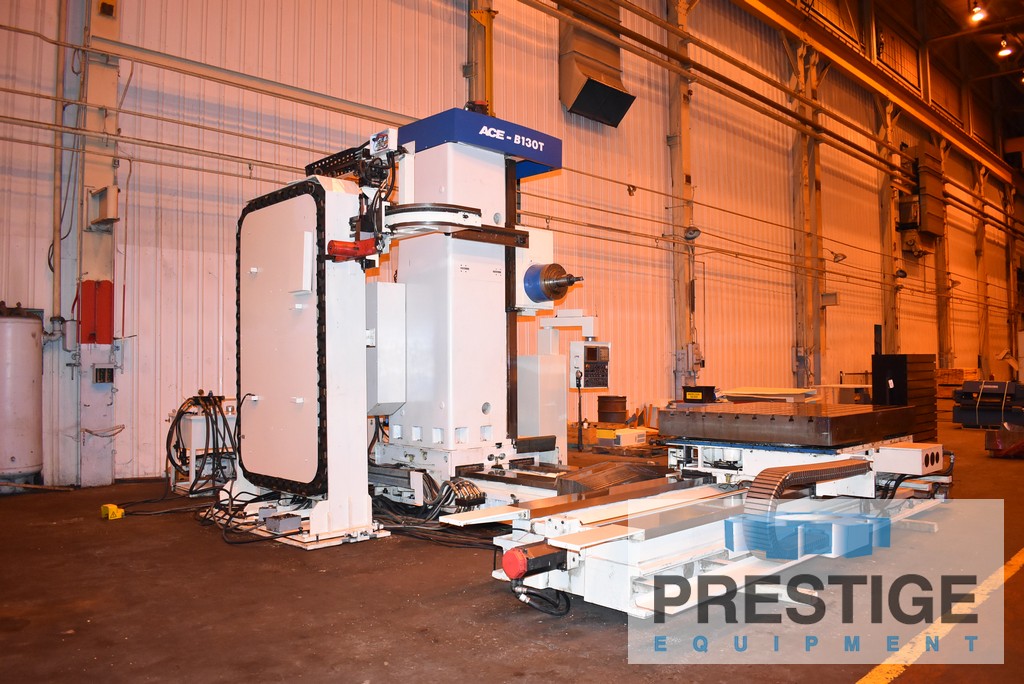

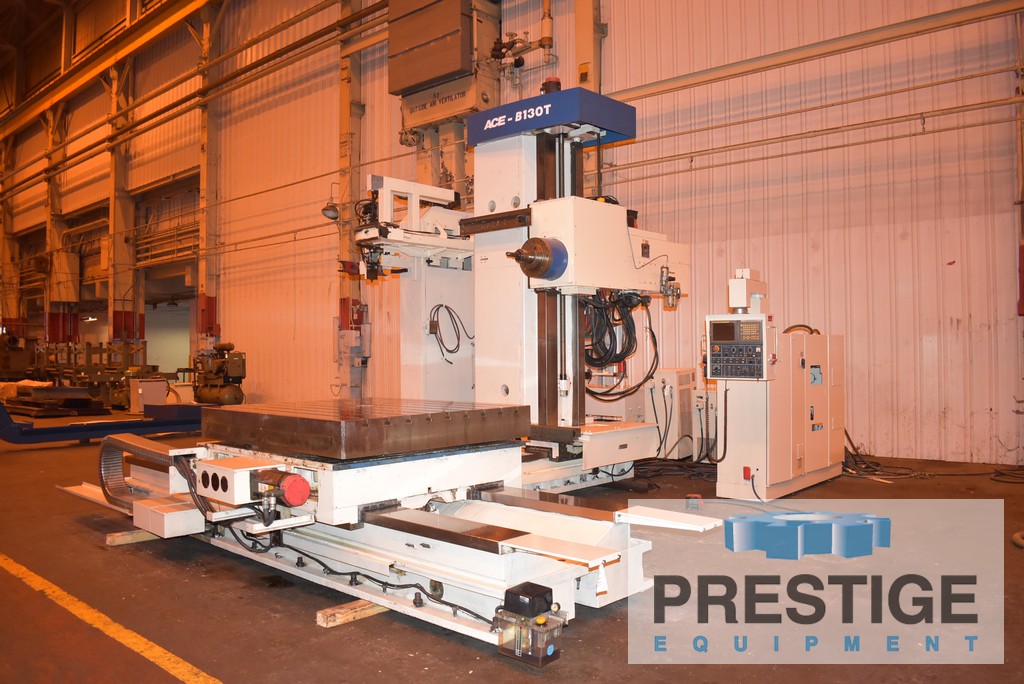

Daewoo 5.12" ACE-B130T CNC Table Type Horizontal Boring Mill

FEATURES:
Fanuc 16i-M CNC Control
60-Station Automatic Tool Changer
60" x 60" x 32" T-Slotted Angle Plate
Through Spindle Coolant

SPECIFICATION:

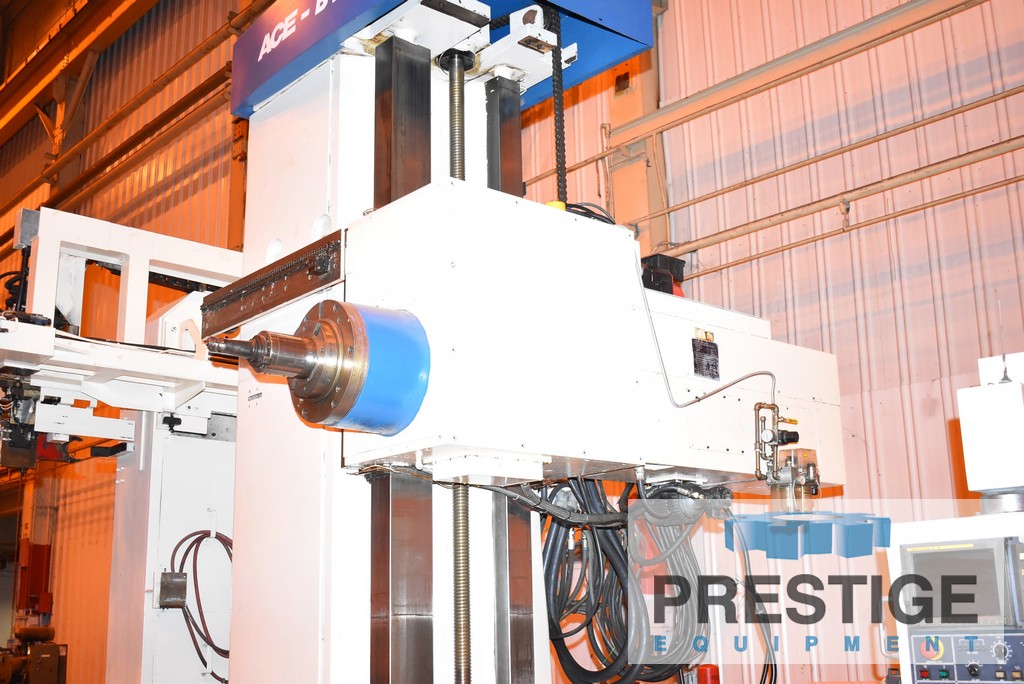

Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... CAT 50
Vertical Travel Of Headstock, Y-Axis .. 78.74"
Cross Travel Of Table, X-Axis ......... 118.11"
Spindle Travel, Z-Axis ................ 27"
Column Travel In & Out, W-Axis ........ 63"
Table Size (Built In B-Axis) .......... 63" x 71"
Spindle Speeds (2 Ranges) ............. 5-2000 RPM

EQUIPPED WITH:

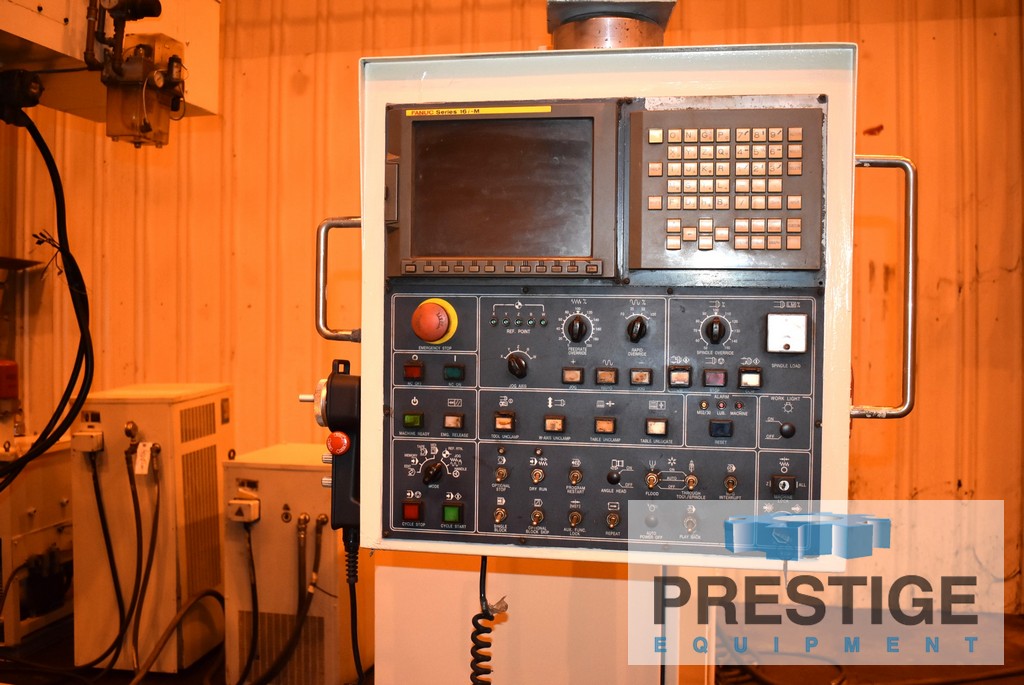

Fanuc 16i-M CNC Control
60-Station Automatic Tool Changer
60" x 60" x 32" T-Slotted Angle Plate
Through Spindle Coolant
Chip & Splash Guards
Programmable CNC Rotary Table
High Volume Flood Coolant System
Telescoping Way Covers
Chip Conveyor
30 HP/25 HP Spindle Motor

Note:

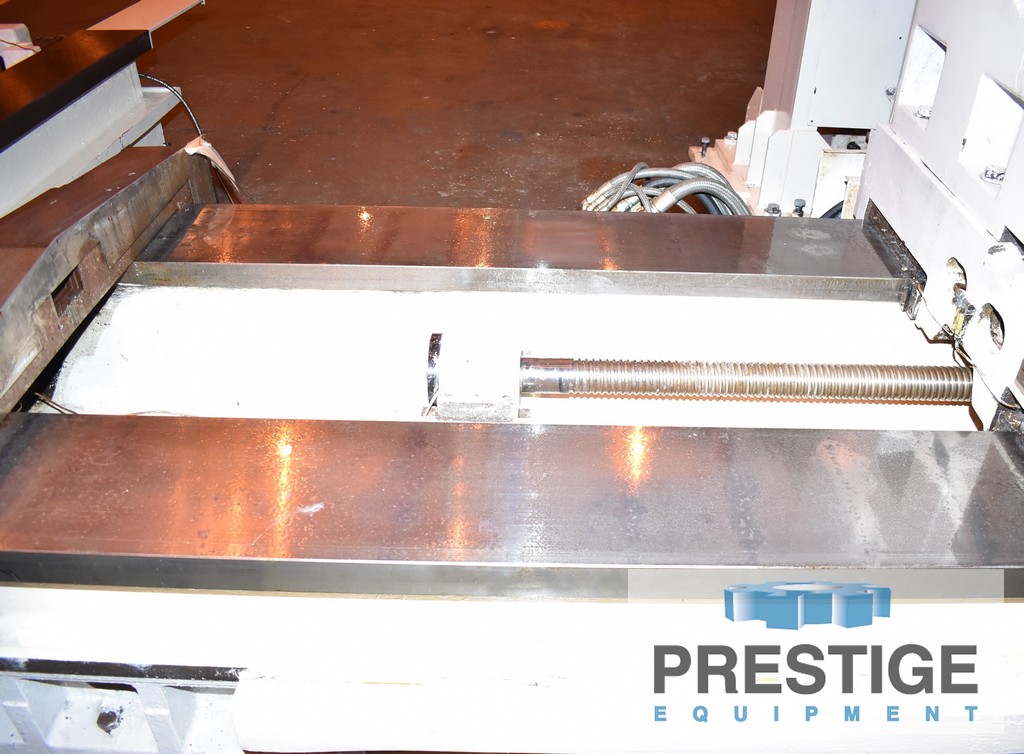

X-Axis Ways reground and refit in 2023
X-Axis Ball Screw Reconditioned in 2023

INSPECT:
Under power in Our Philadelphia, PA Warehouse
Price includes Disassembly & Loading to Trucks
