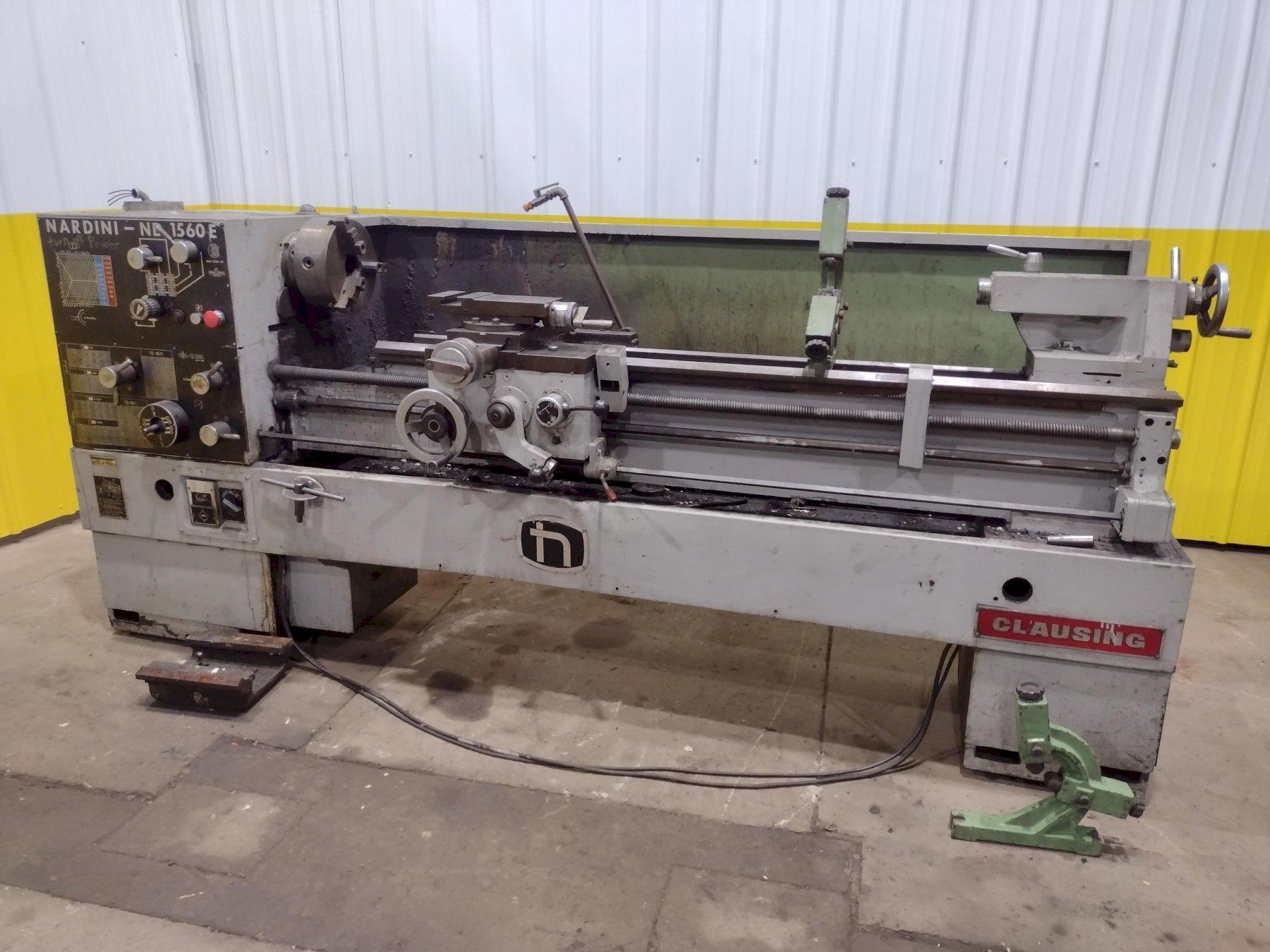

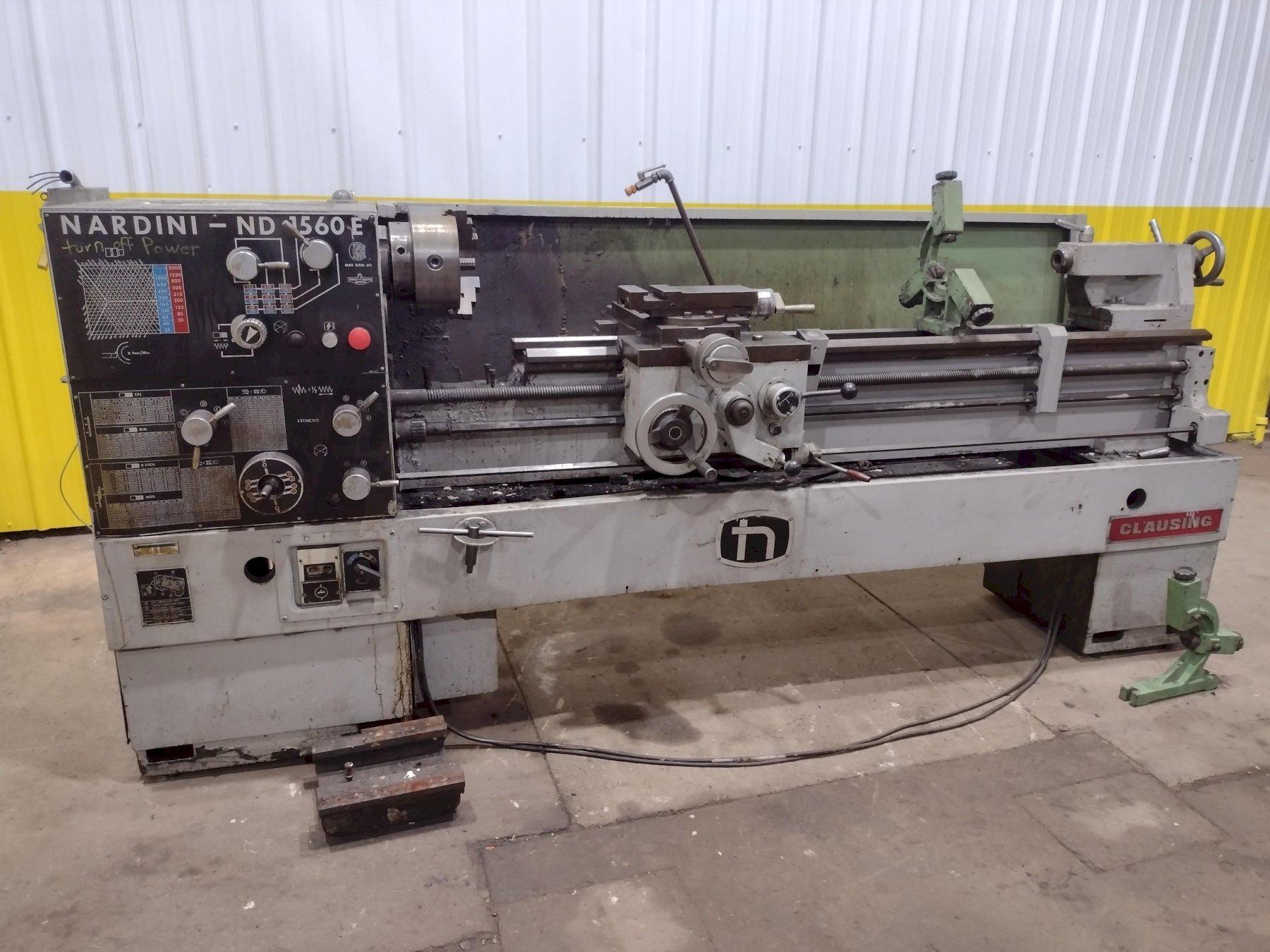

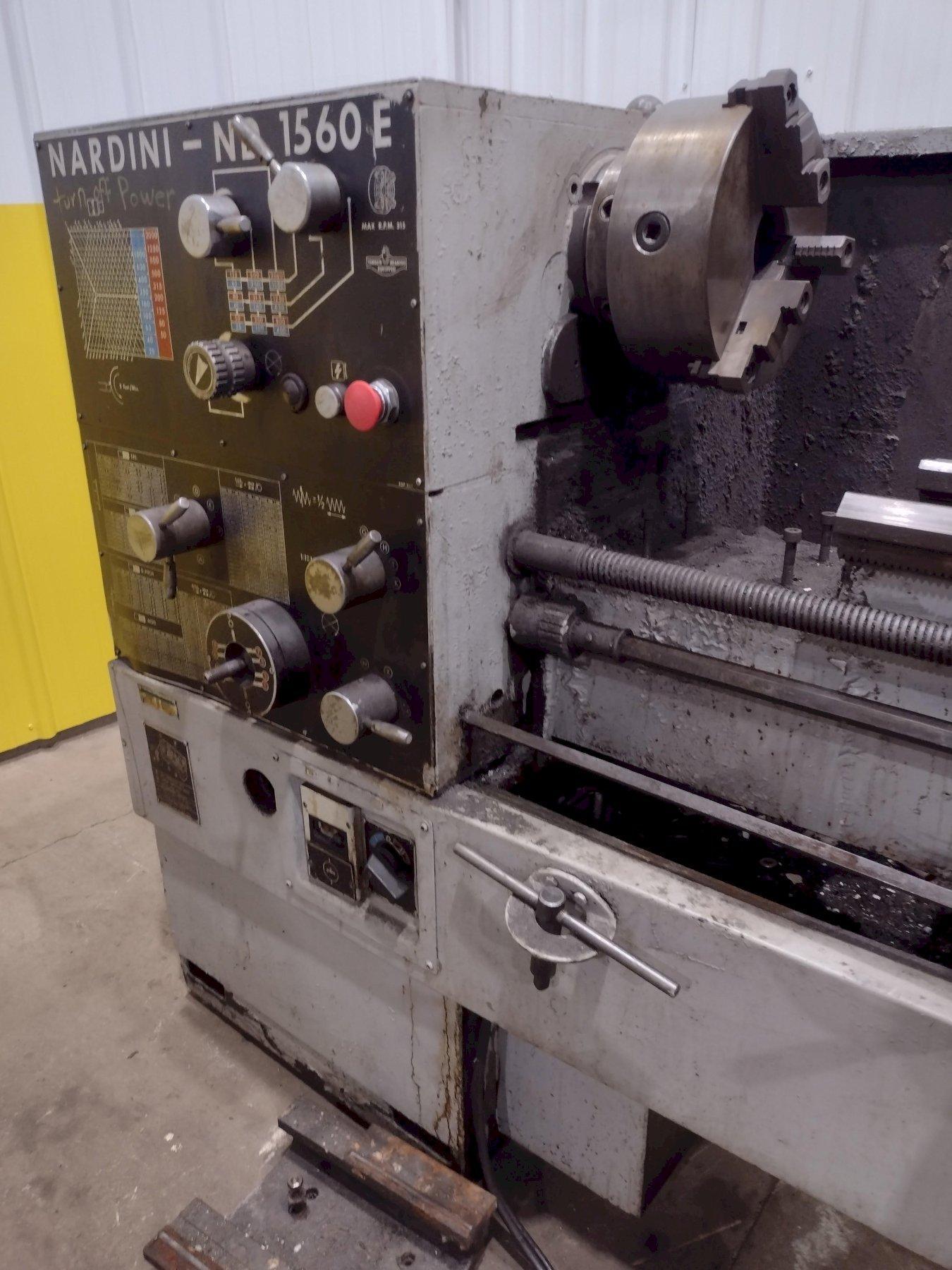

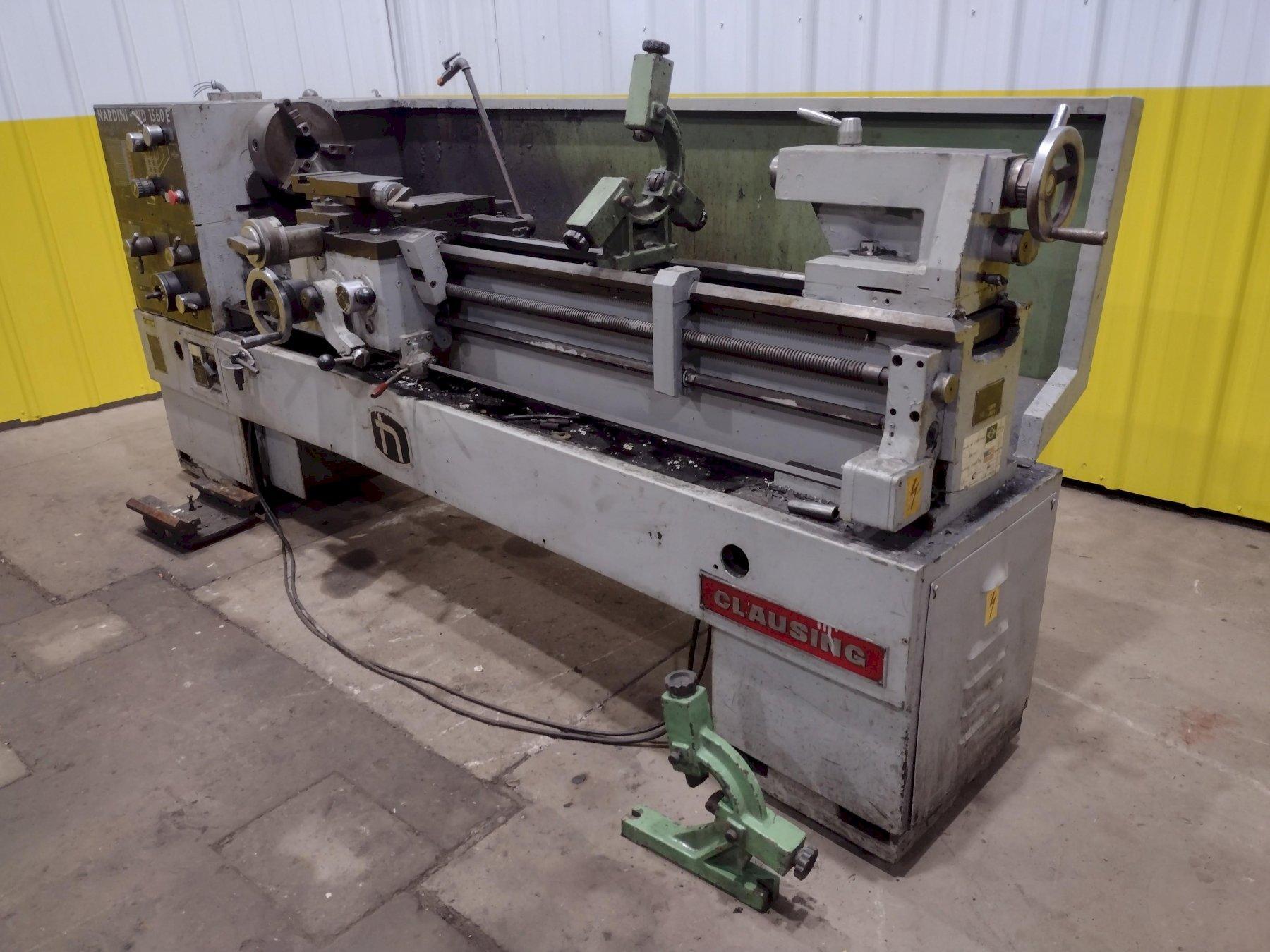

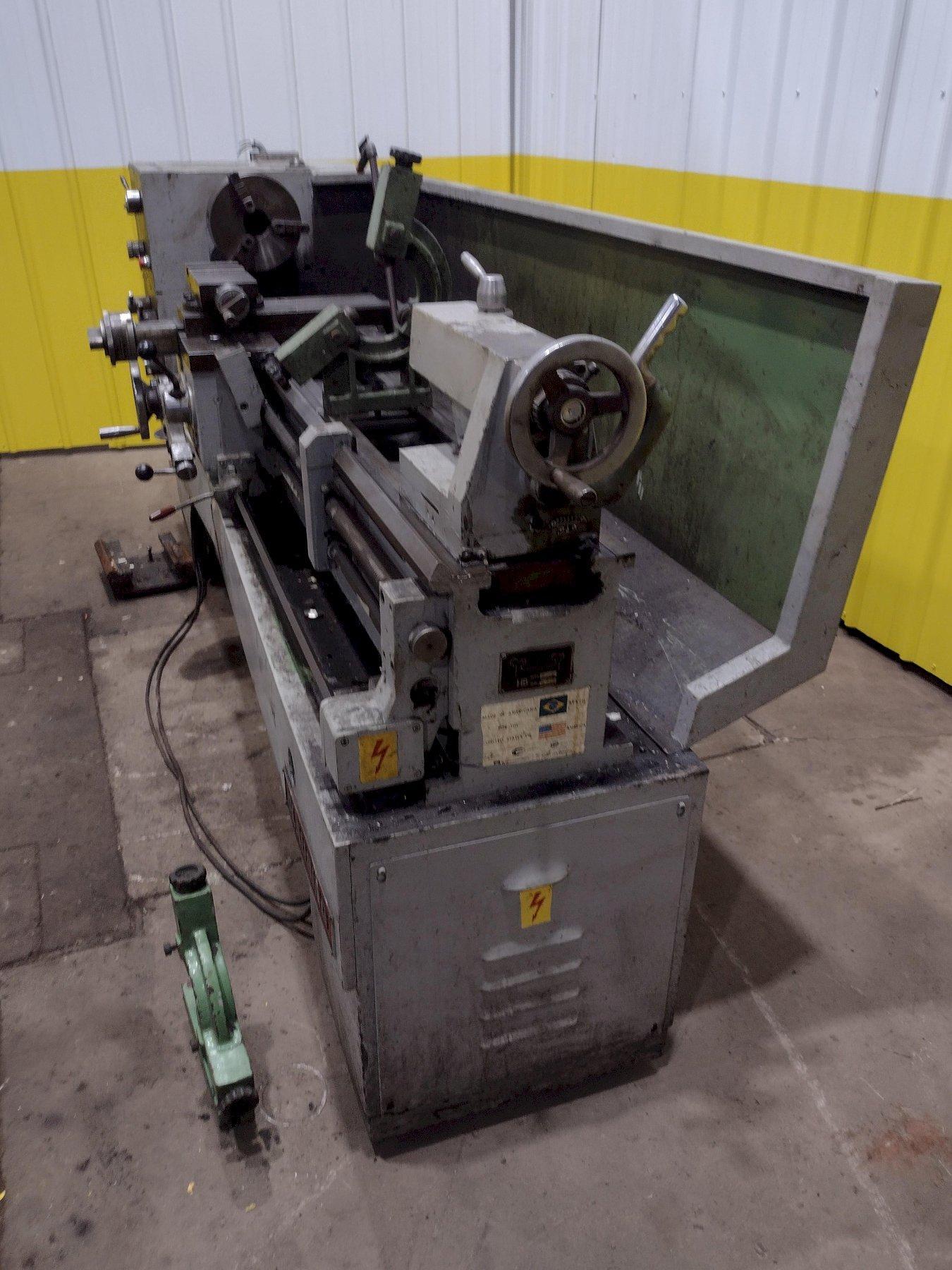

15" X 60" CLAUSING NARDINI MODEL #ND1560 GAP BED ENGINE LATHE, 2" HOLE: STOCK #19154

Manufacturer

CLAUSING NARDINI

Category

Lathes

Type

LATHES, ENGINE

Stock

19154

Model

ND1560

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 118” x 40” x 58” High
Weight - 3700 pounds


MODEL ............................... ND 1560E
Swing Over Bed ...................... 15-3/8″
Swing Over Carriage ................. 8-5/8″
Swing In Gap ........................ 22.7"
Gap Length In Front Of Face Plate ... 7-7/8"
Spindle Bore ........................ 2-1/32″
Between Centers ..................... 60″

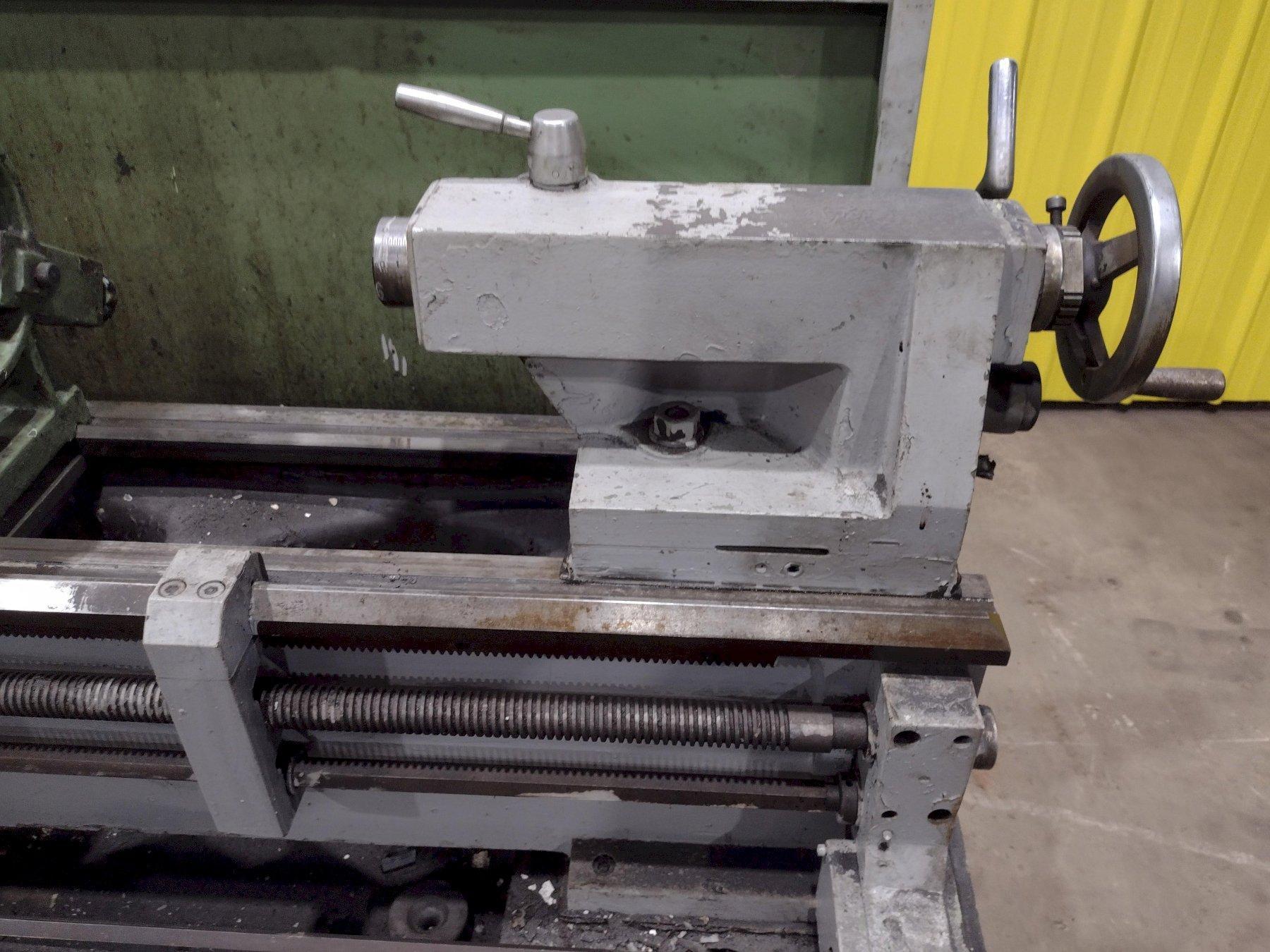

Tailstock, Spindle Travel ........... 8-1/2″
Tailstock, Spindle Diameter ......... 2-3/8″
Tailstock, Spindle Taper ............ #4MT

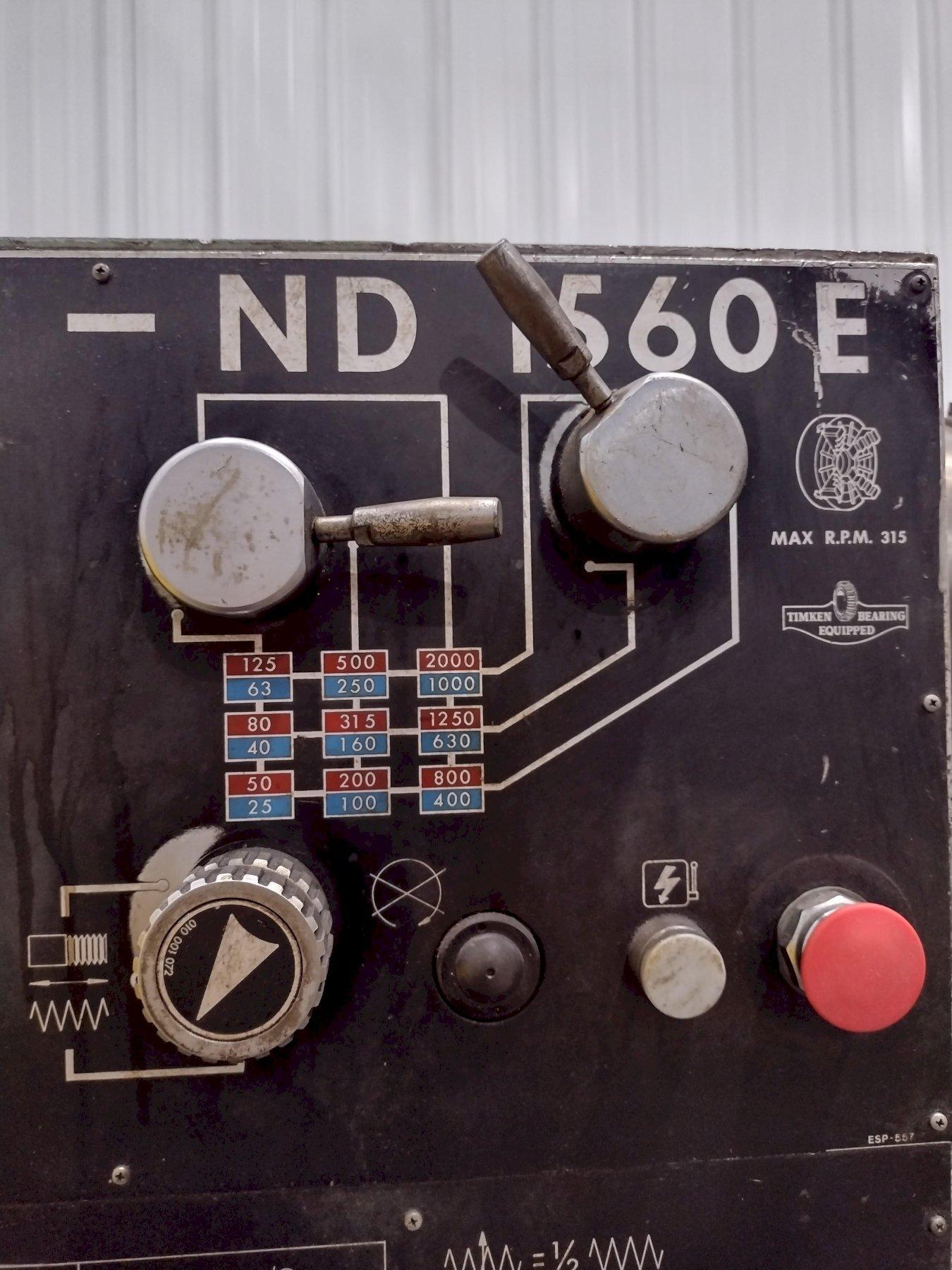

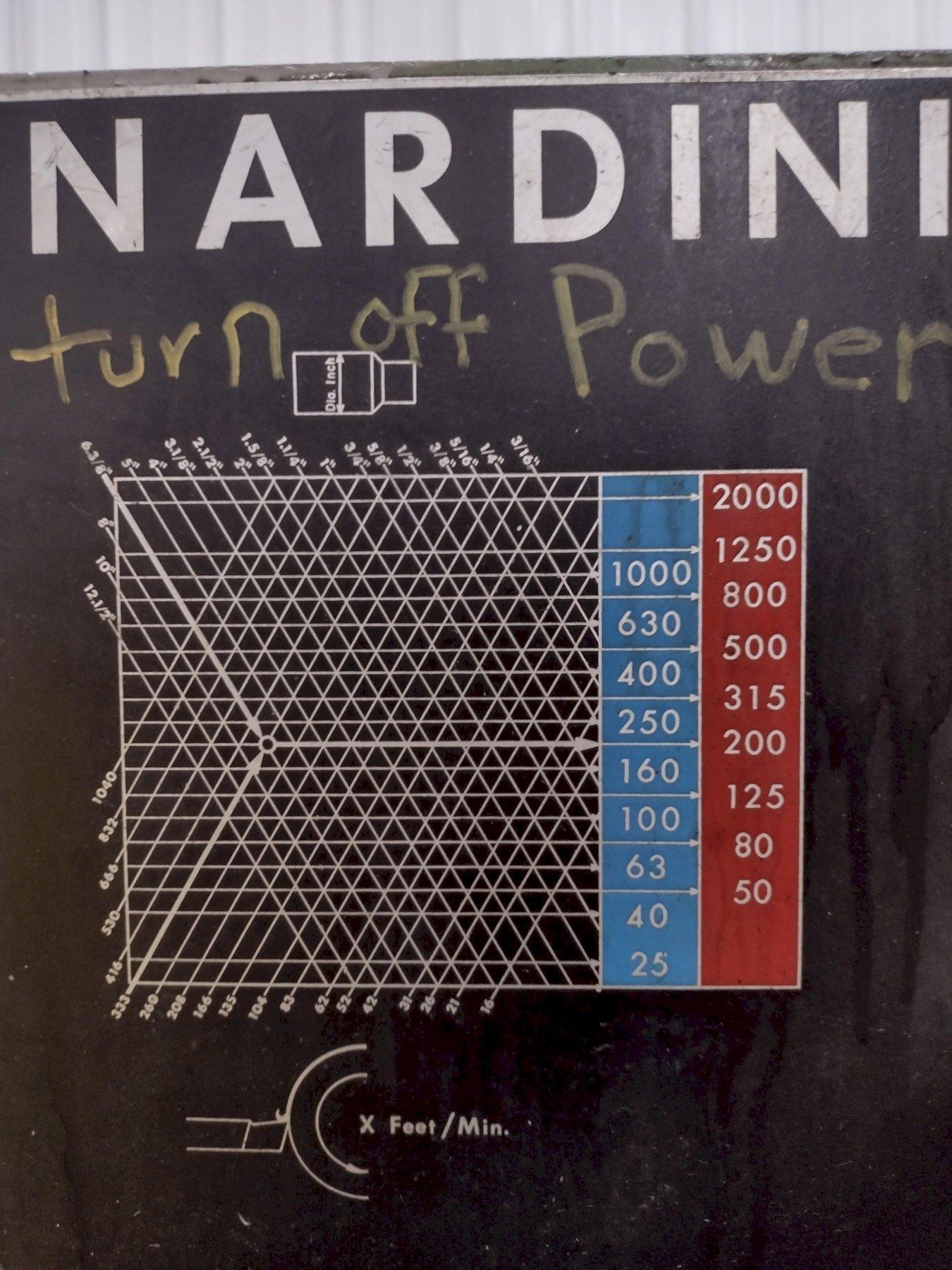

Spindle Speeds ...................... (18) 25 to 2000 RPM
Spindle Nose ........................ D1-6

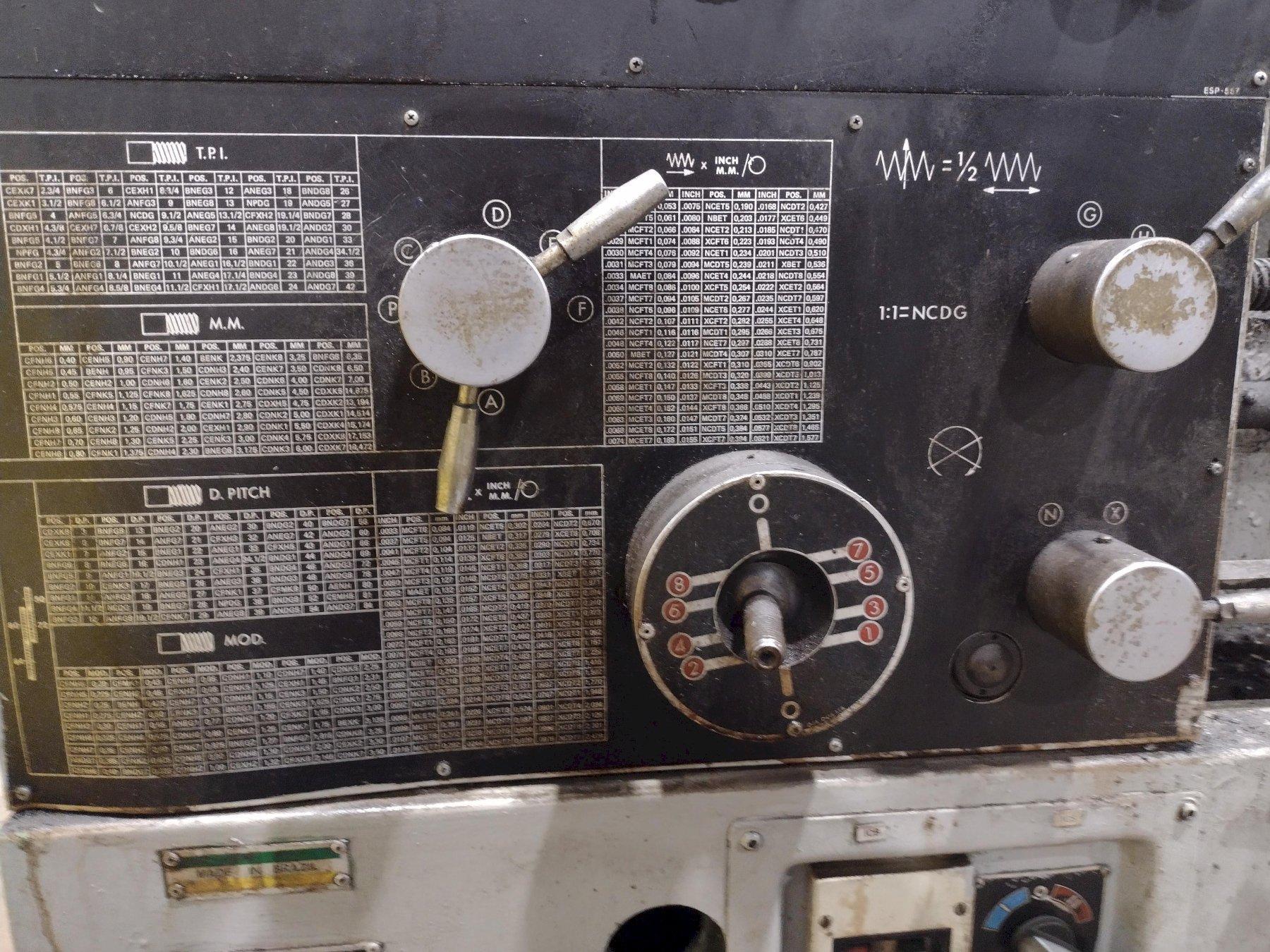

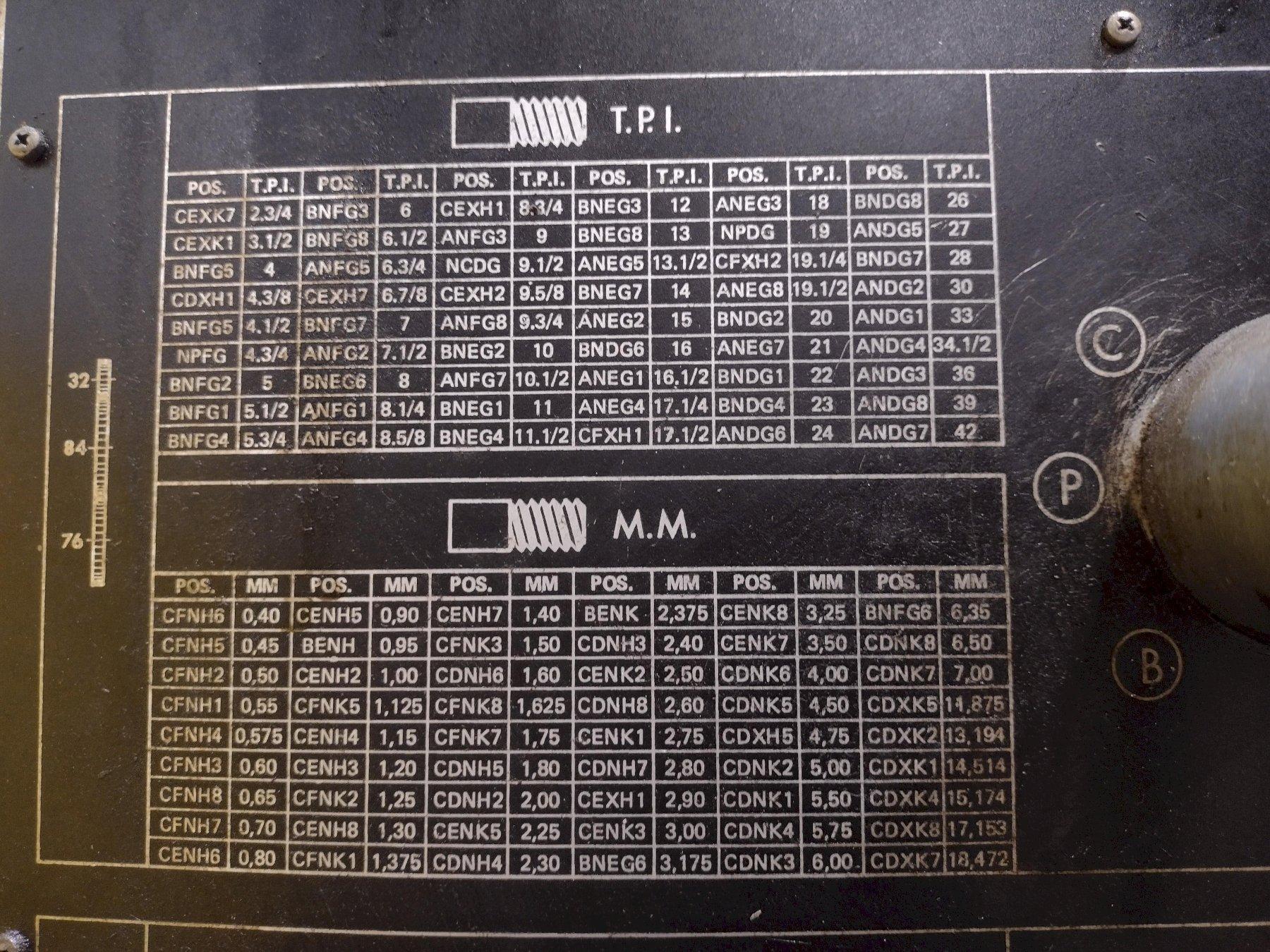

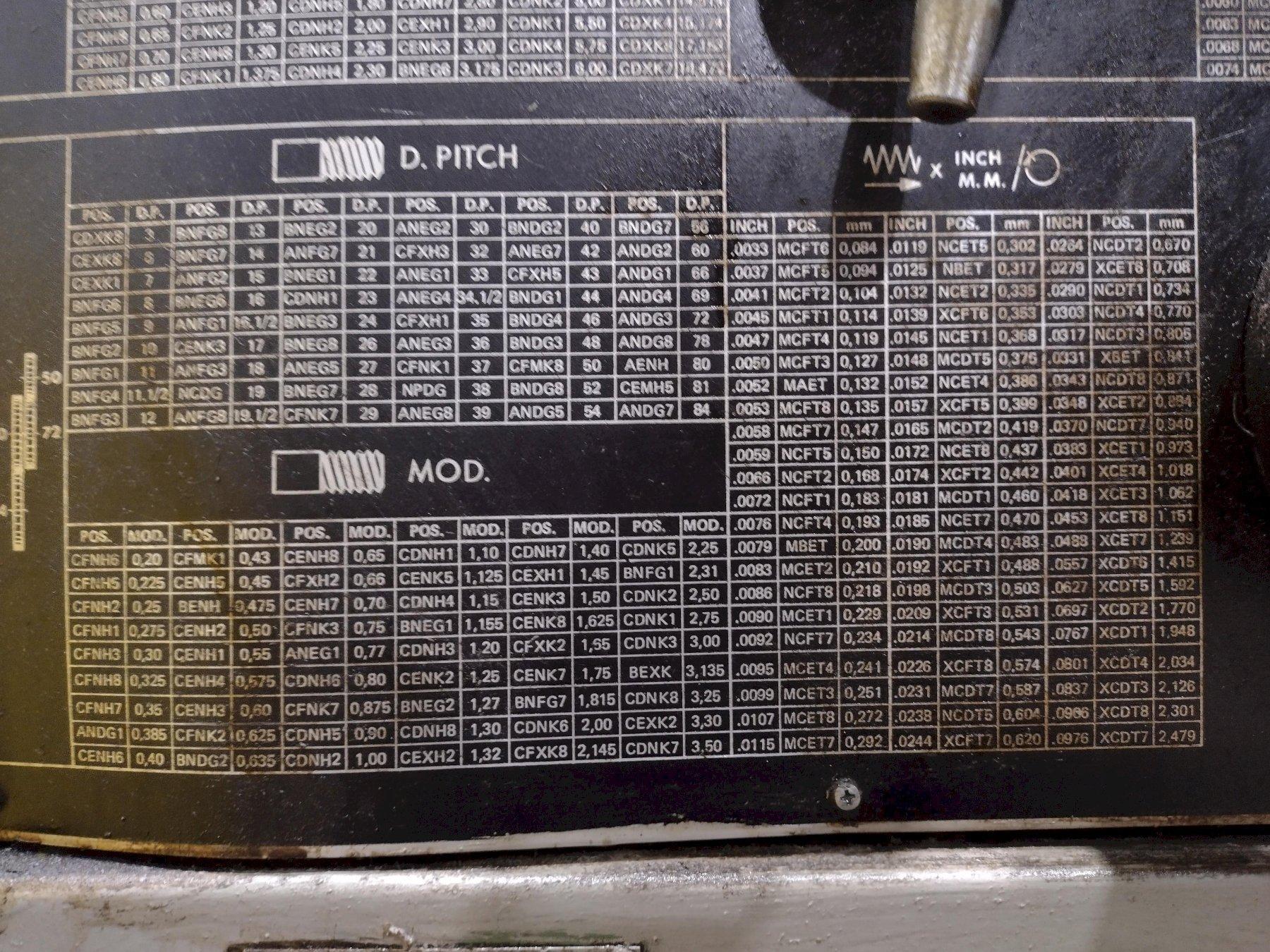

Metric Threads ...................... (54) 0.40 - 18.472
Inch Threads ........................ (54) 42-2.3/4
Module Threads ...................... (54) 0.2 - 3.5
Diametral Pitch Threads ............. (54) 84-3

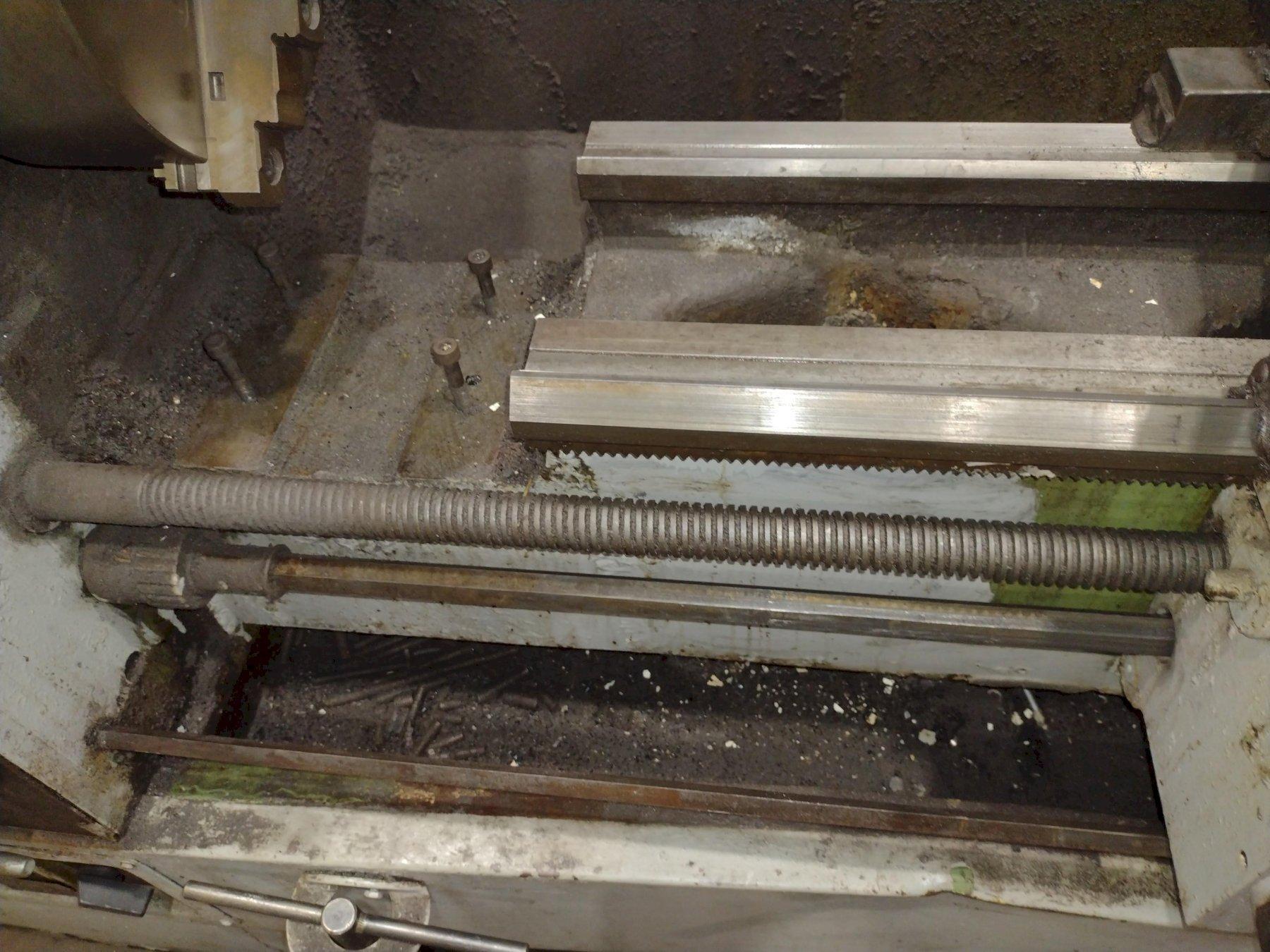

Pitch of Leadscrew .................. 4 TPI

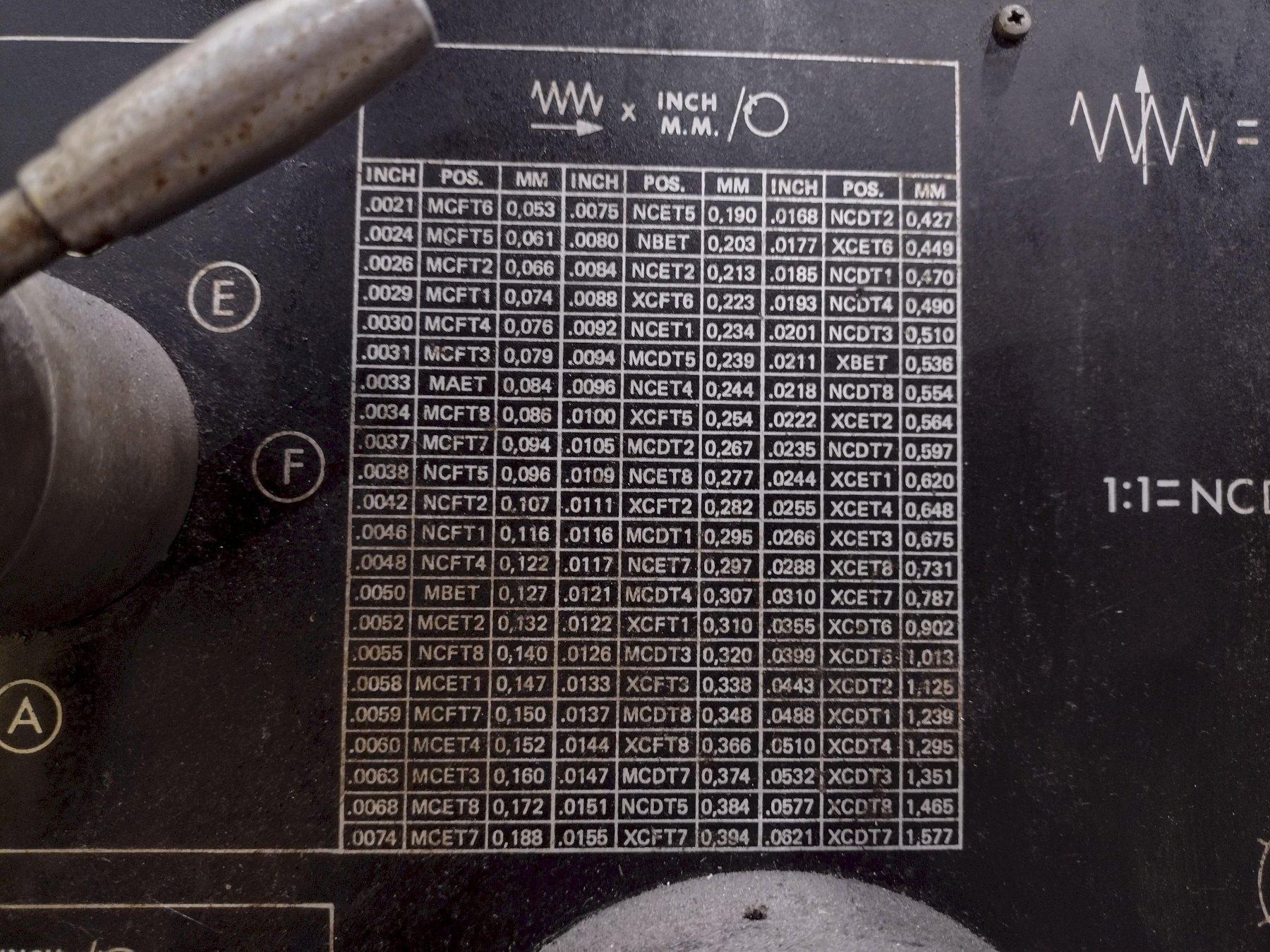

Cross Feeds ......................... 0008-0.0406” / rev
Longitudinal Feeds .................. 0.0021-0.0976”/ rev
Spindle Horsepower .................. 7.5 HP
