Dimensions - 92" X 47" X 95"

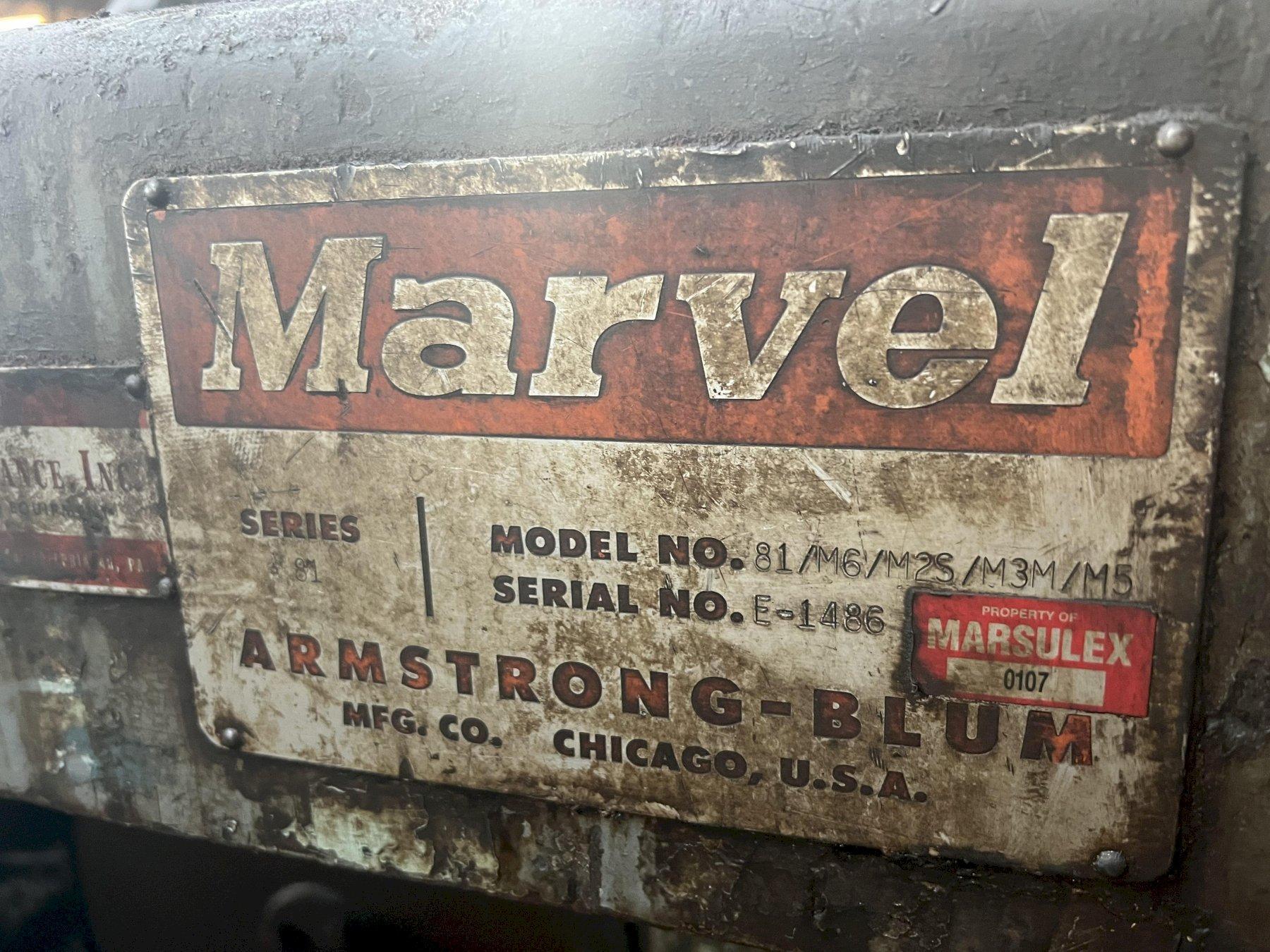

SERIAL .................... E-1486
MODEL ..................... 81/M6/M2S/M3M/M5
CAPACITY AT 90 DEGREES .... 18 X 20"
CAPACITY AT 45 DEGREES .... 18 X 11.5" (LEFT); 18 X 13.5" (RIGHT)
BLADE SIZE ................ 1-1/4" X .042 X 14'6"
TABLE WORK SURFACE ........ 30 X 33"
VISE OPENS ................ 21.5" MAXIMUM
BLADE FEED FORCE .......... UP TO 300 LBS
BLADE SPEEDS .............. 60 TO 400 FPM (VARIABLE)
BLADE DRIVE & TENSION ..... HYDRAULIC
FEED & COLUMN TRAVERSE .... HYDRAULIC
UPPER BLADE GUIDE ......... HYDRAULIC
MOTOR ..................... 10 HP
