16" PIPE OIL-PATCH-TECHNOLOGIES (OPT) (NEW 2015) MODEL #TDS-150 MAGNETIC PARTICLE PIPE & TUBE IN

Manufacturer

Stock

19389

Model

TDS-150

Dealer Location

Ohio

Spec Sheet

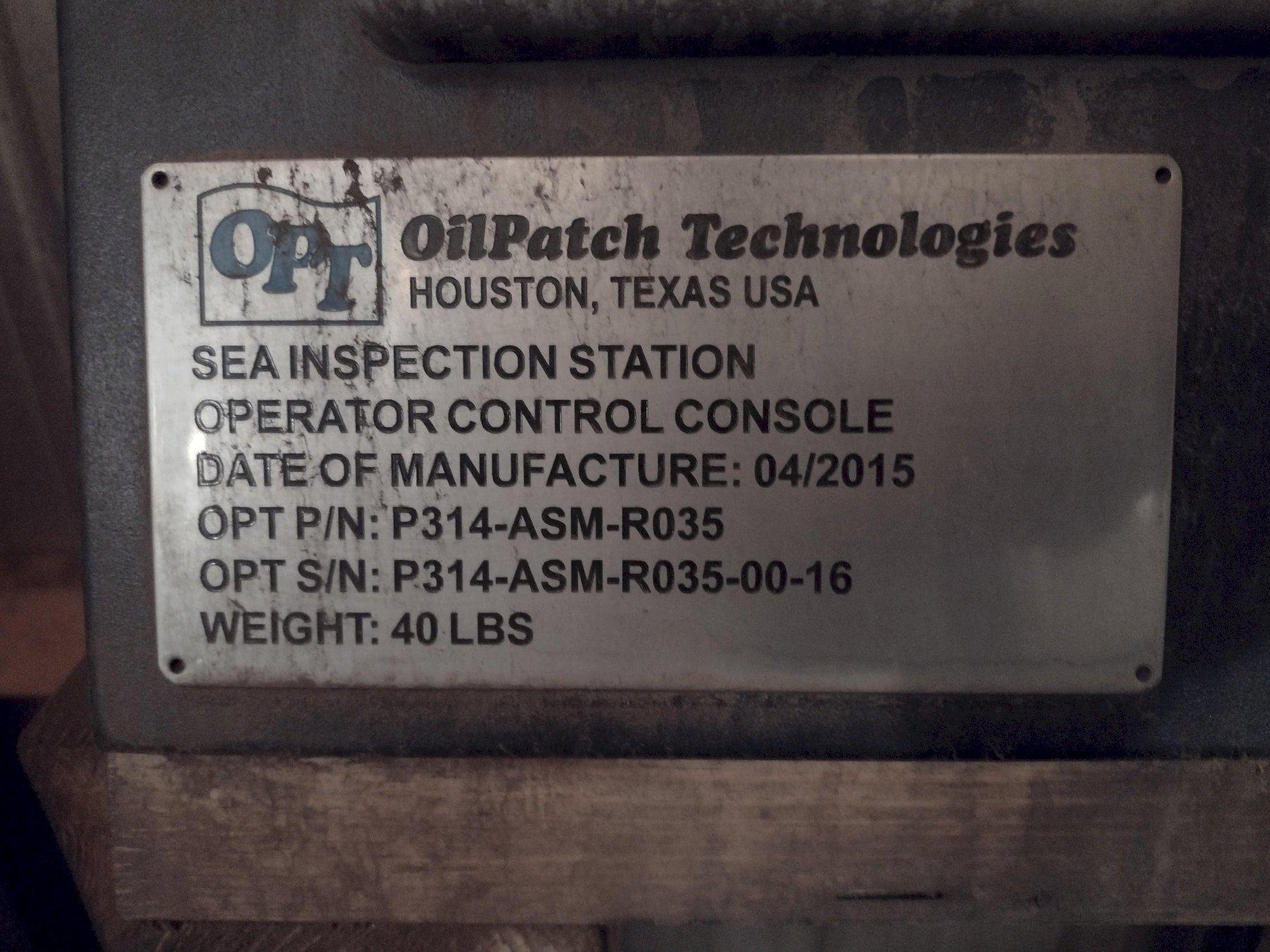

SERIAL ...................... P314-ASM-R035

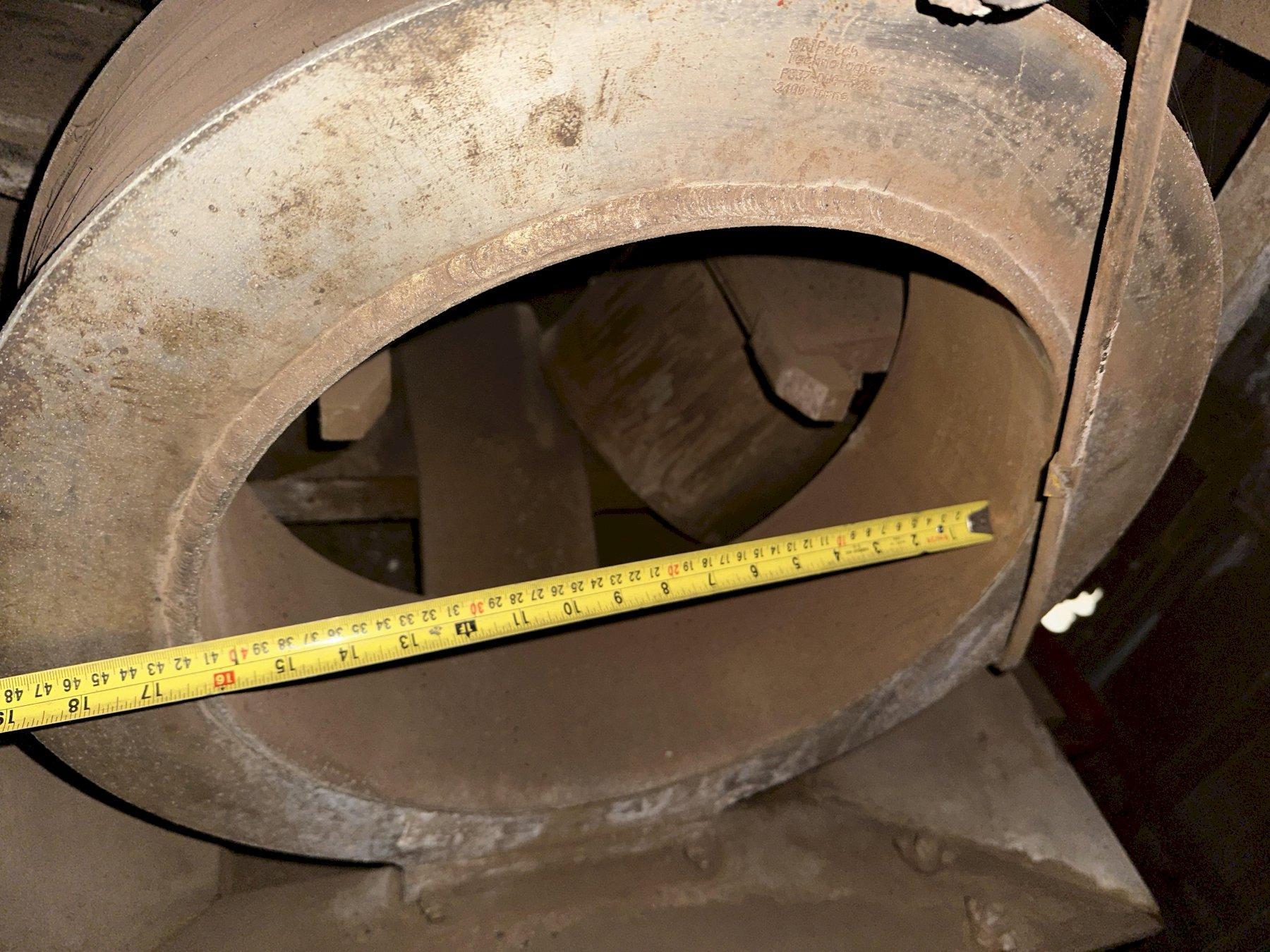

I.D. OF INSPECTION COILS .... 16"

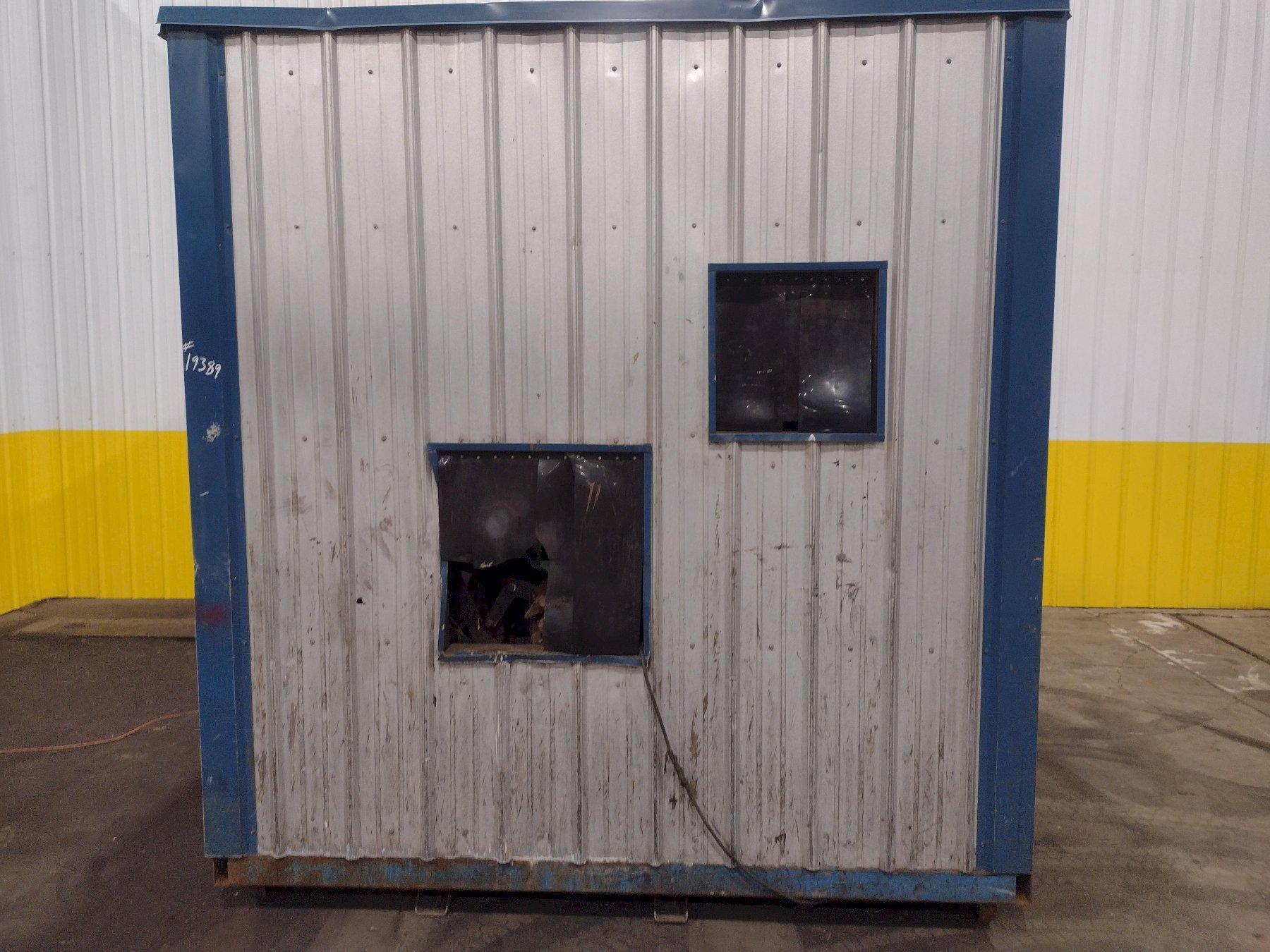

SKID MOUNTED ................ YES

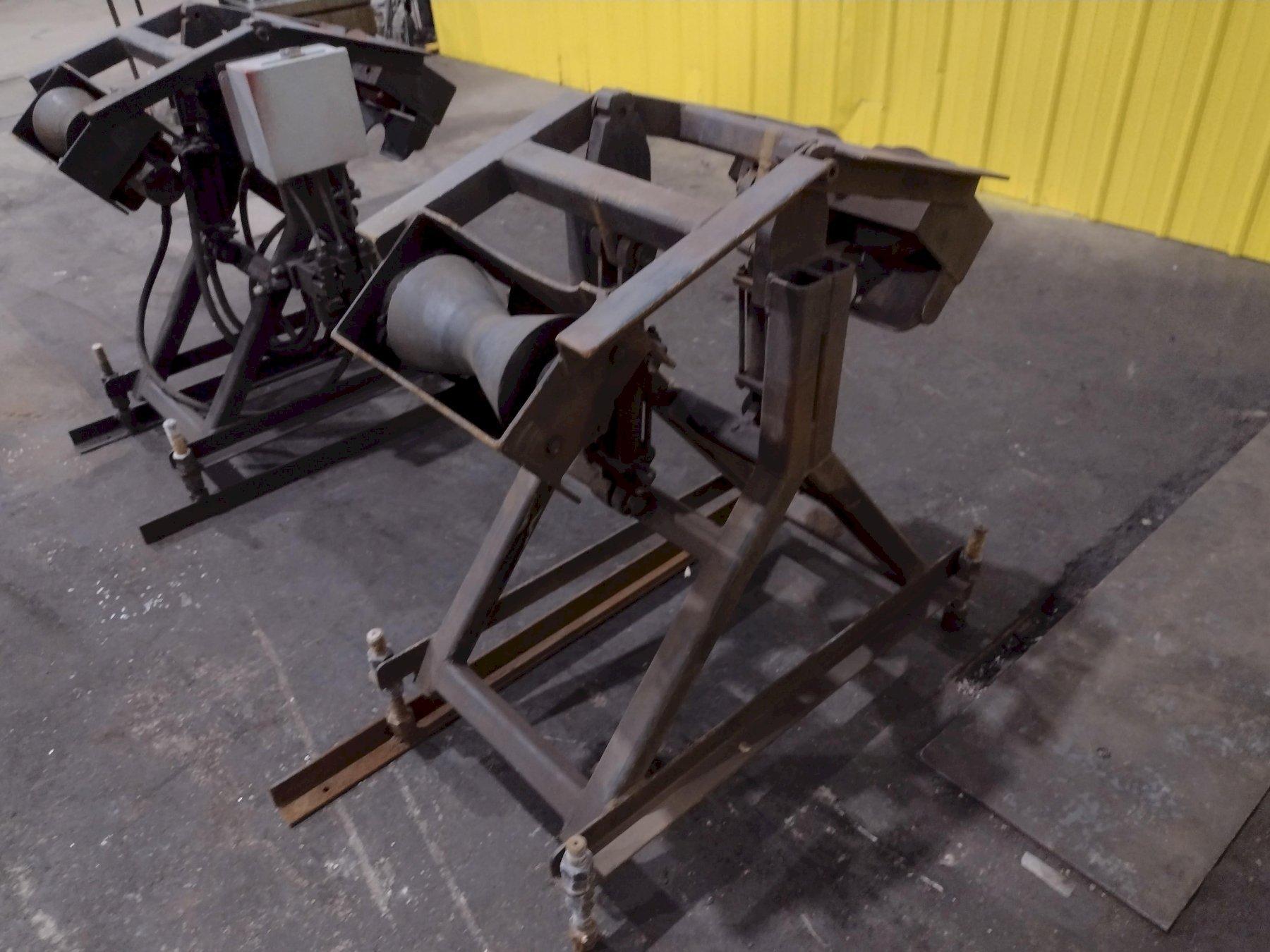

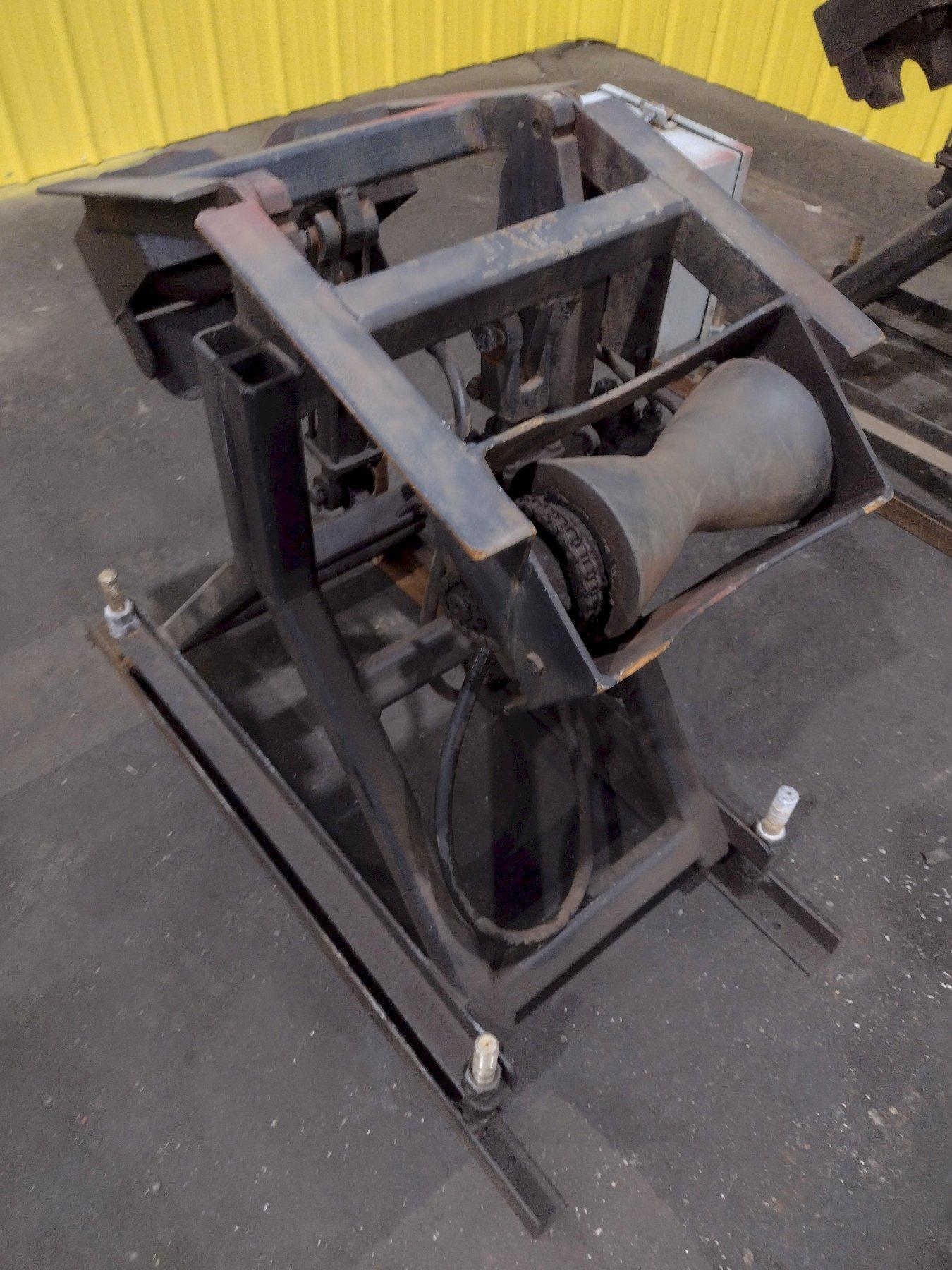

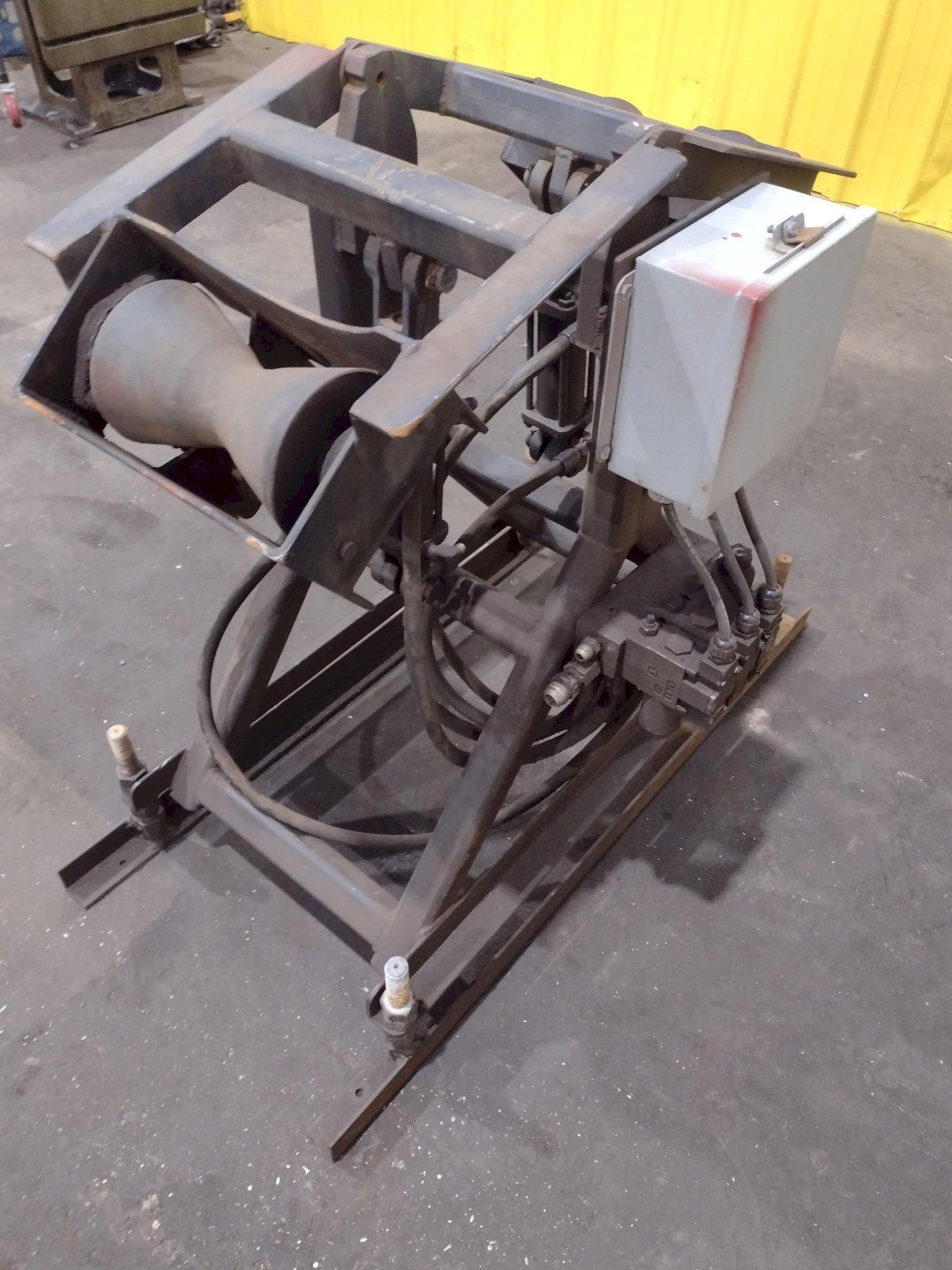

INCLUDES: POWERED PIPE ROTATER / TURNING ROLLS

OPT DESIGNS AND MANUFACTURES MPI SYSTEMS FOR SPECIAL END AREA PIPE INSPECTION. HIGH PRODUCTION RATES ARE ACHIEVABLE FOR PIPE MILL OUTPUT. FOUR BASIC COMPONENTS ARE CUSTOM DESIGNED TO MEET PIPE SIZES AND WEIGHTS UP TO 16” OD:

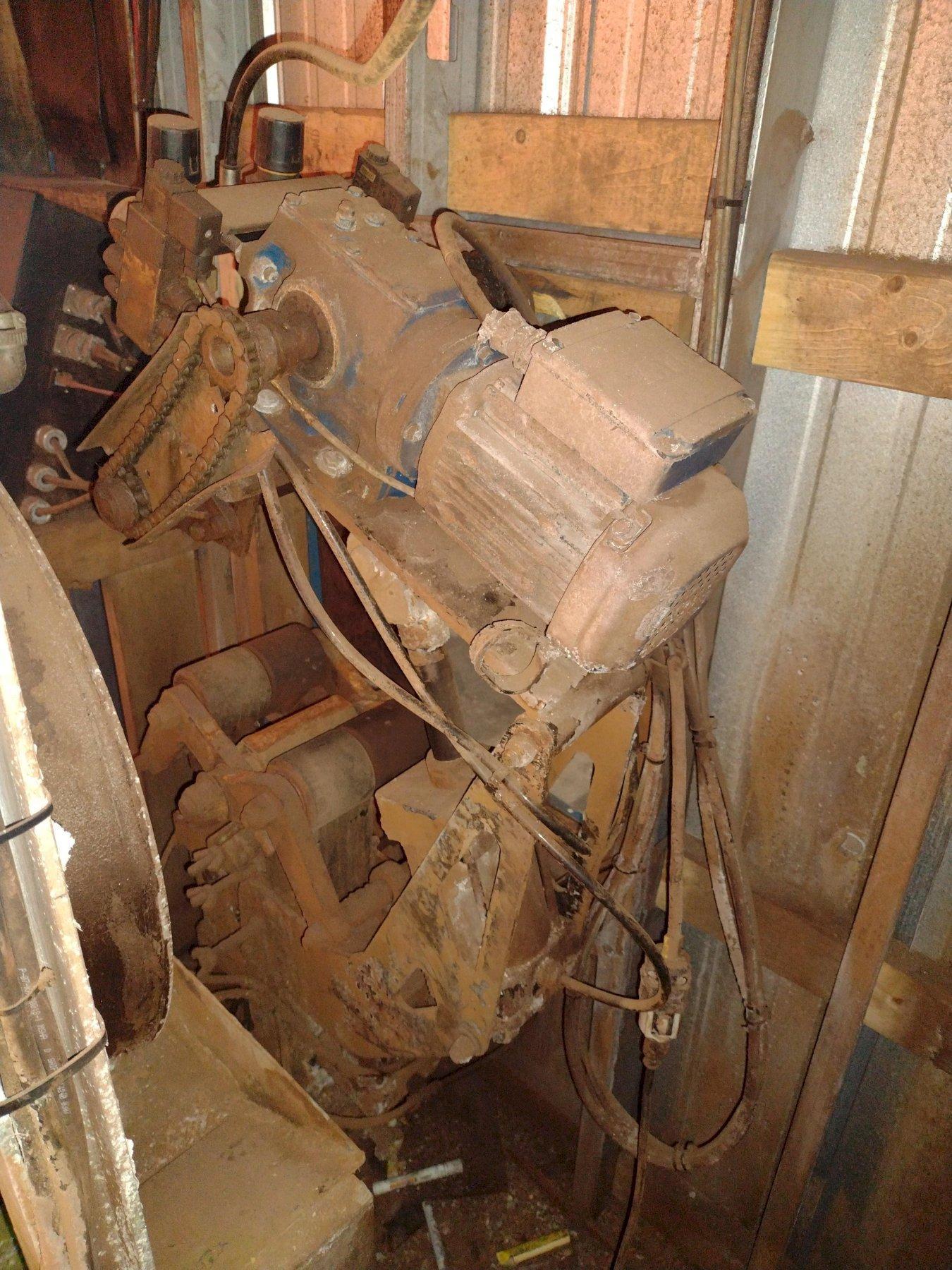

  • MECHANICS TO FEED THE SYSTEM (LIFT, ENDO, ROTATE) ARE MODULAR

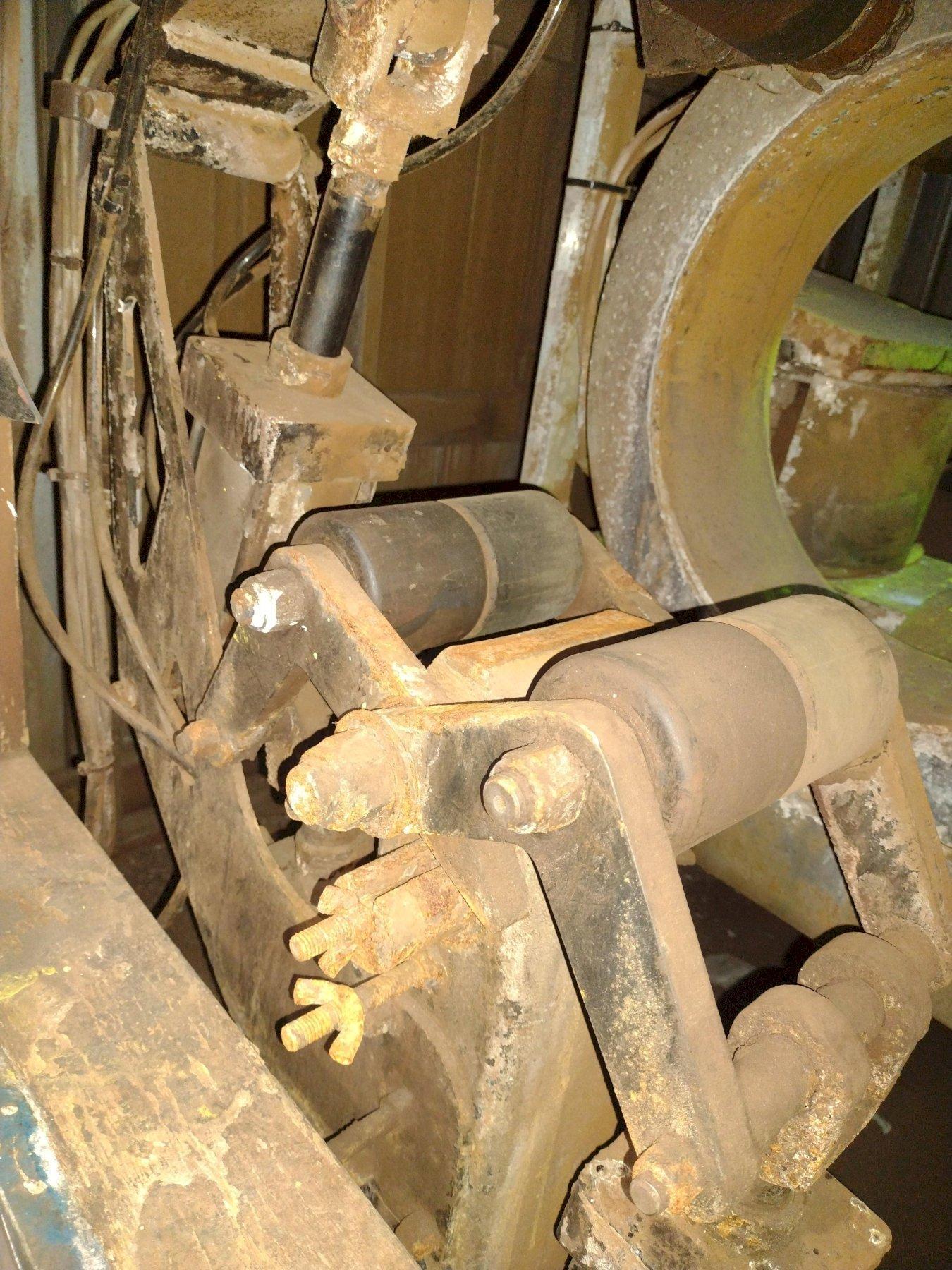

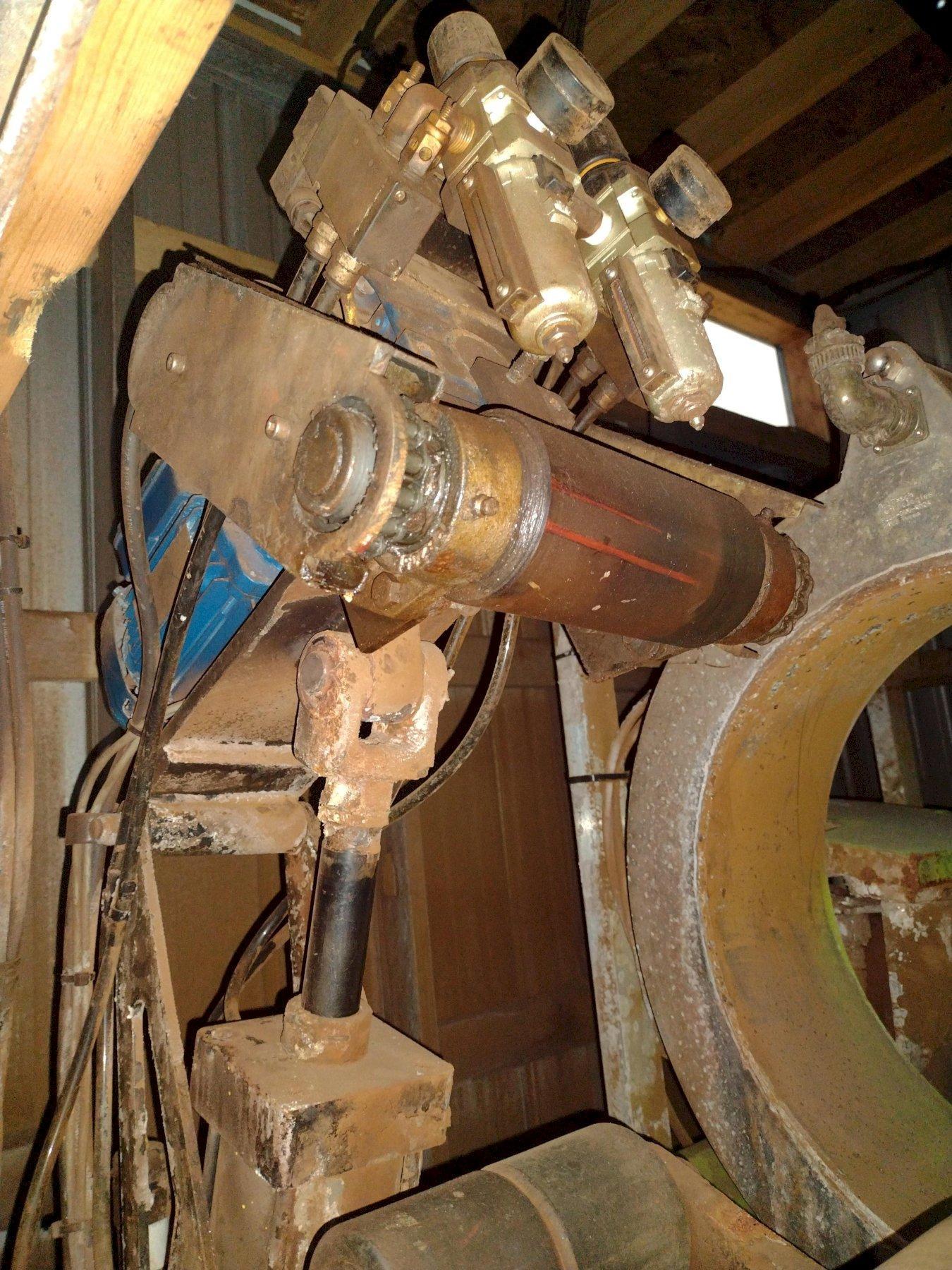

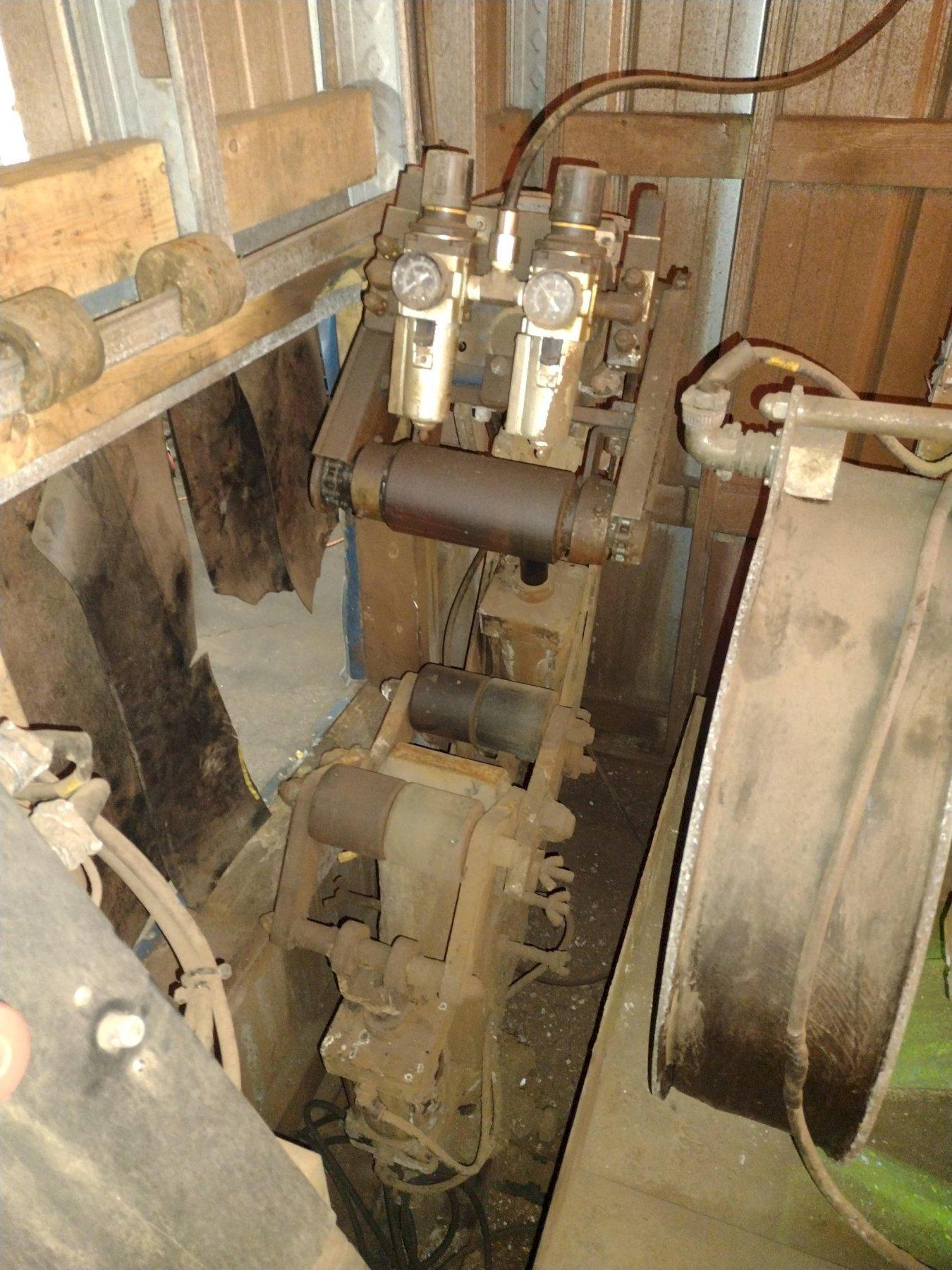

  • A PNEUMATIC CLAMP TO RESTRAIN AND ROTATE THE PIPE IS FLOOR MOUNTED

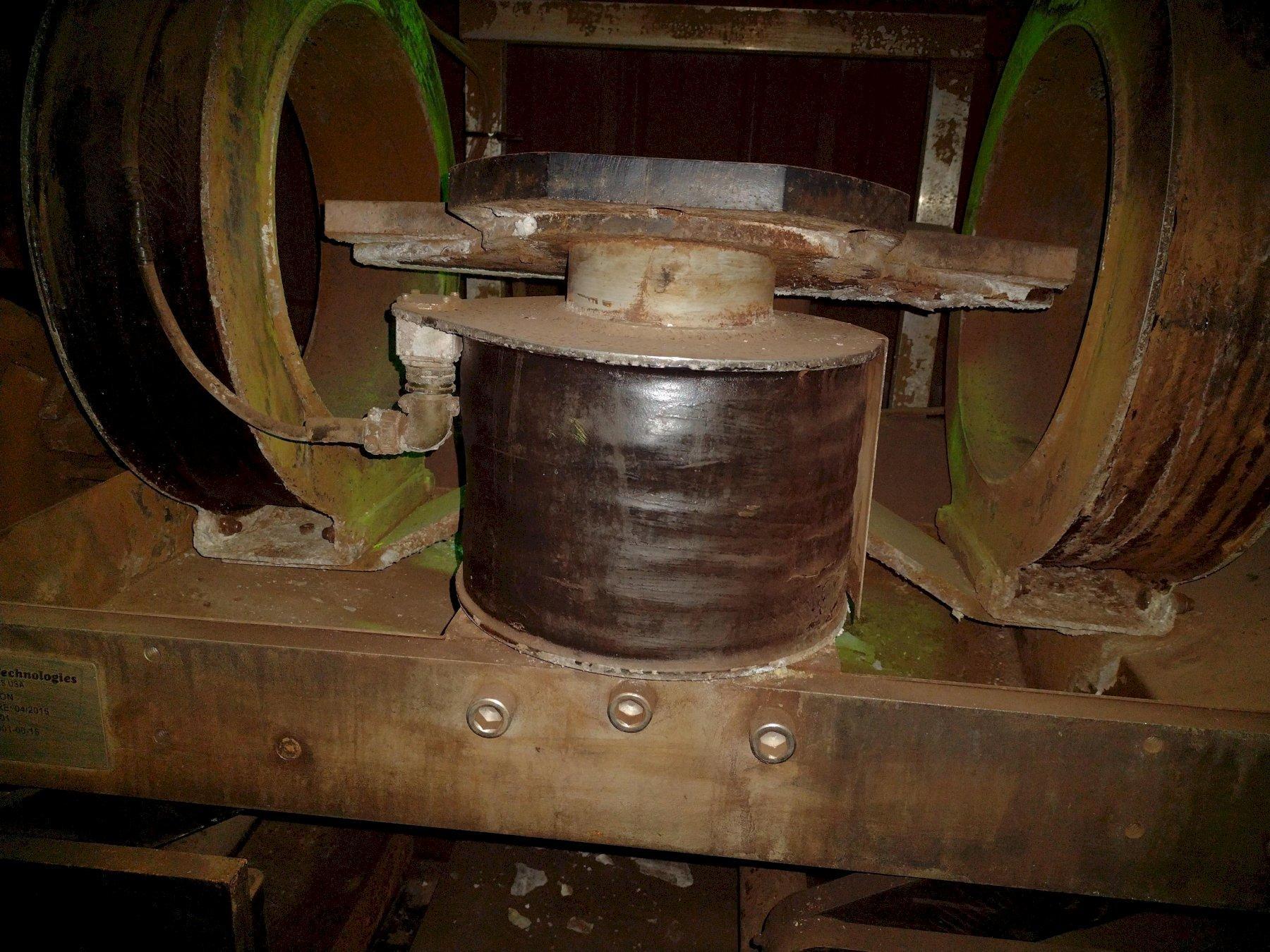

  • A FLOOR-MOUNTED FRAME PROVIDES HEIGHT ADJUSTMENT AND SUPPORT FOR THE MAG COILS

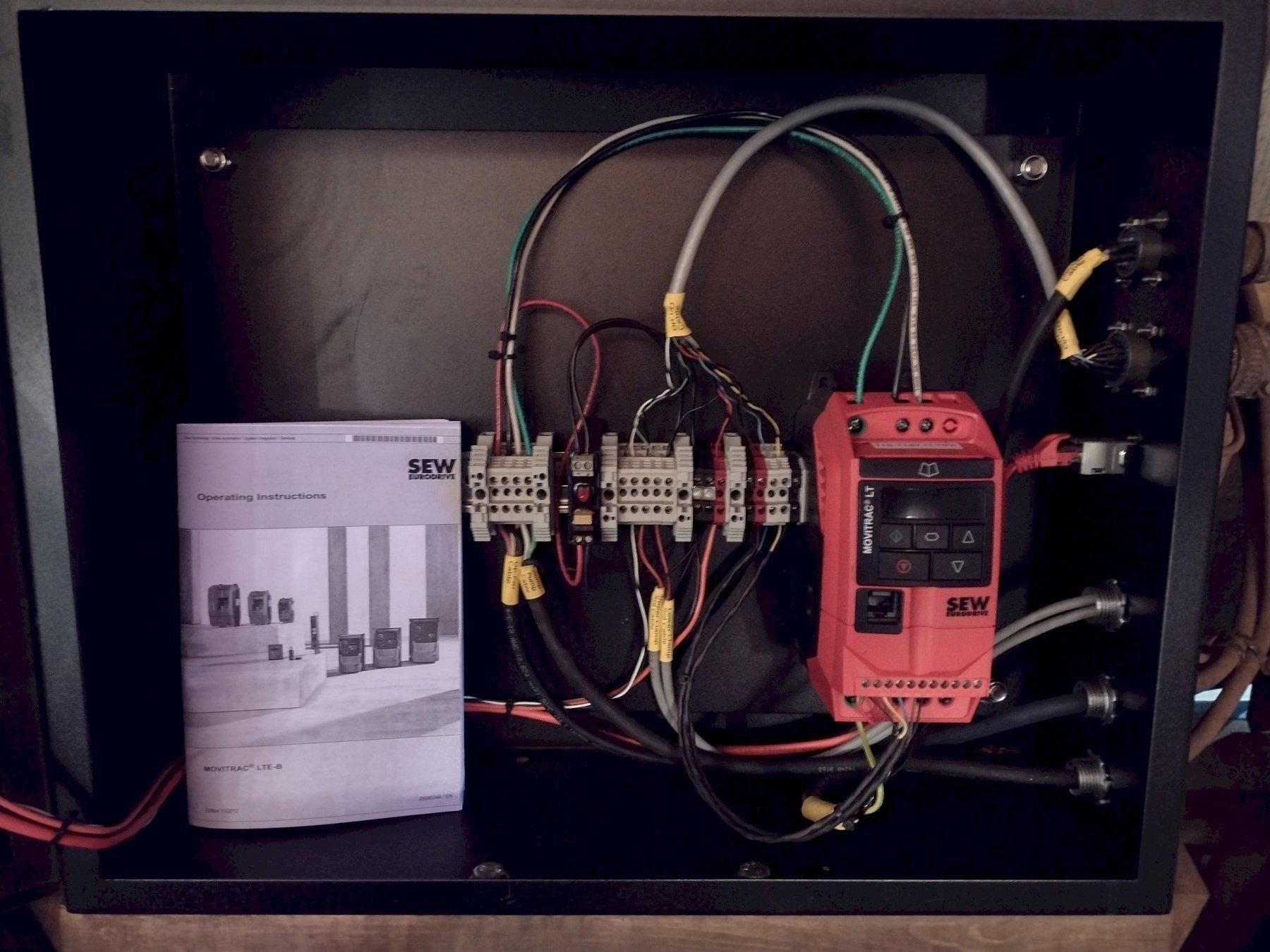

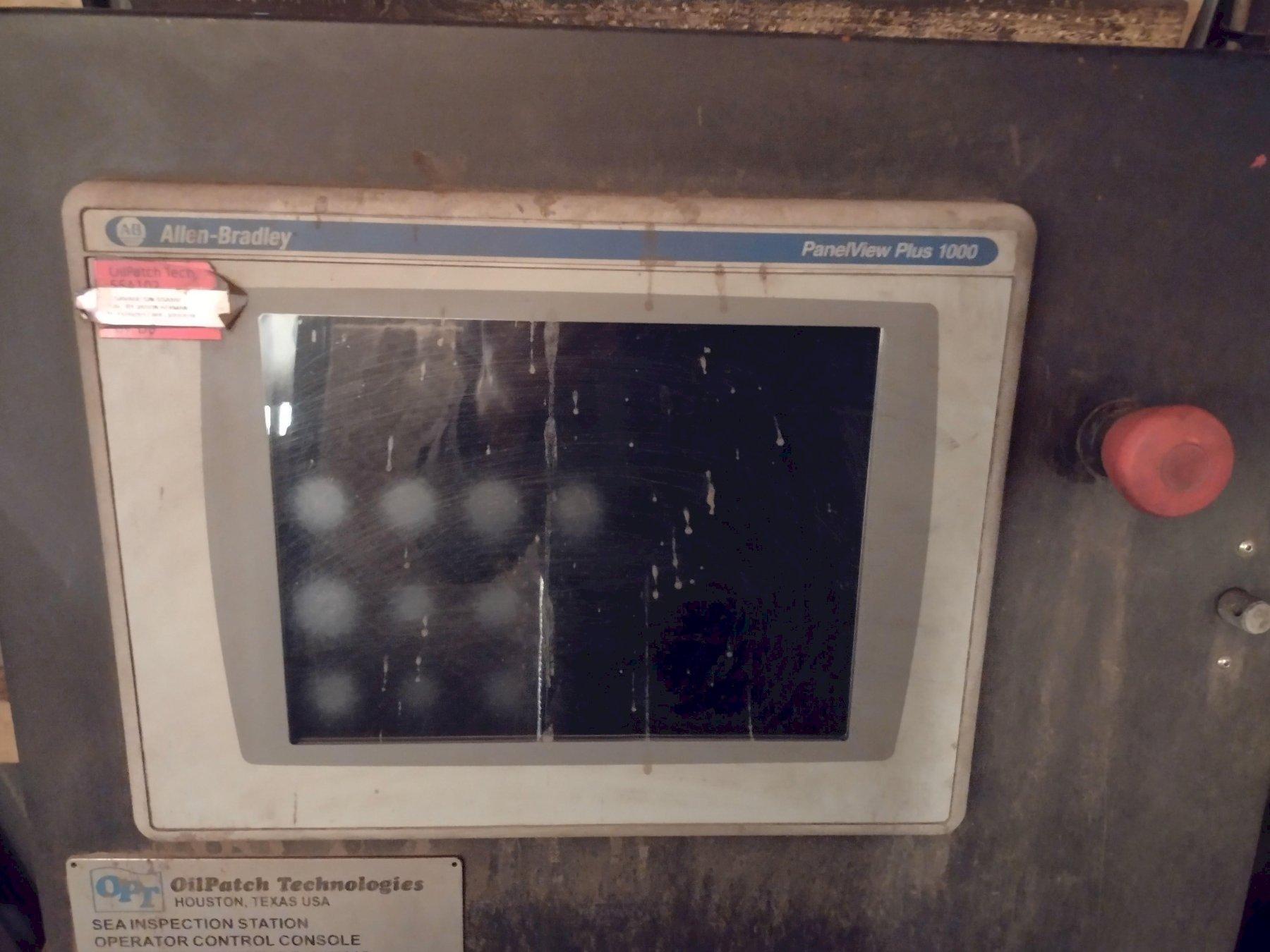

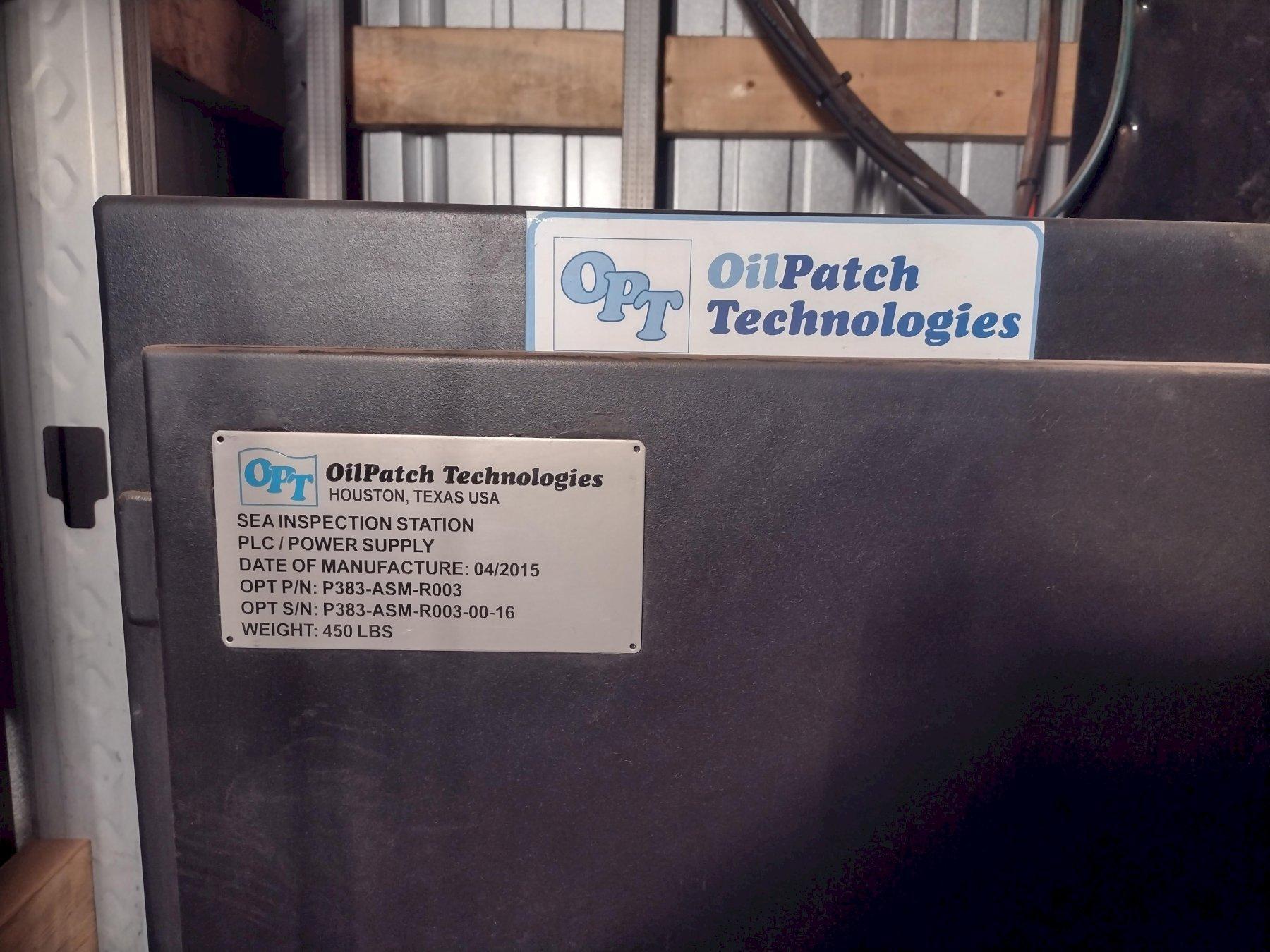

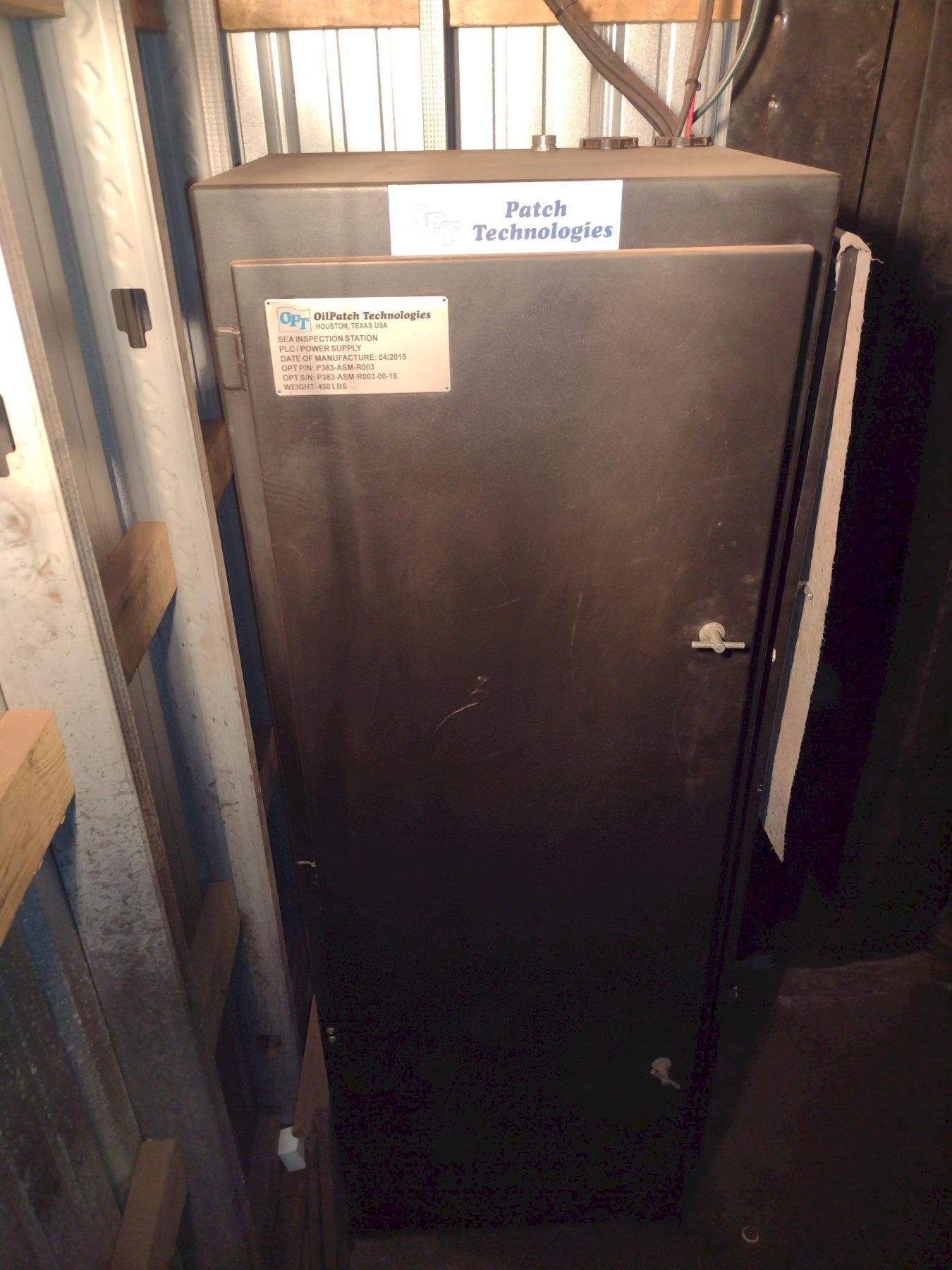

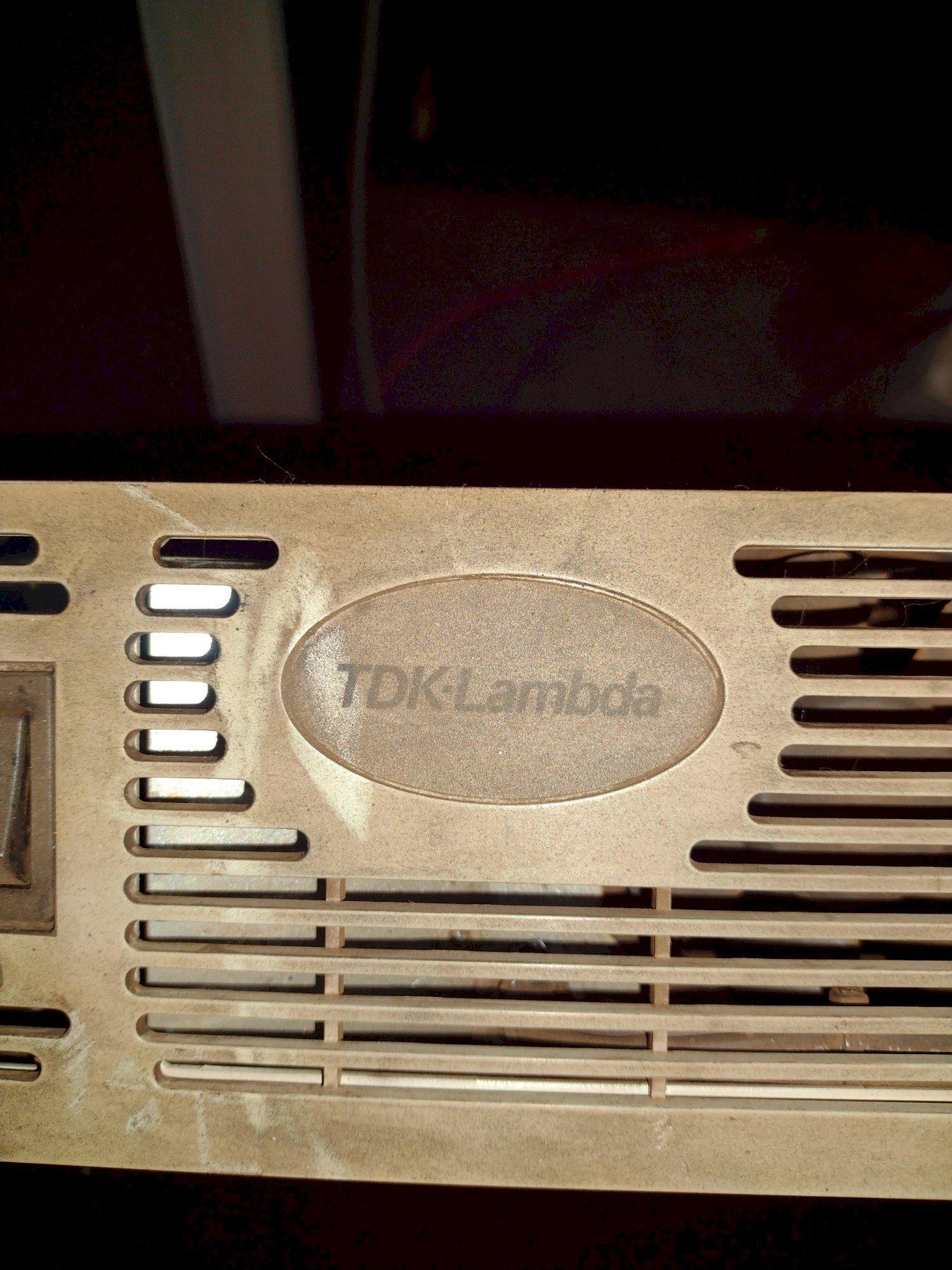

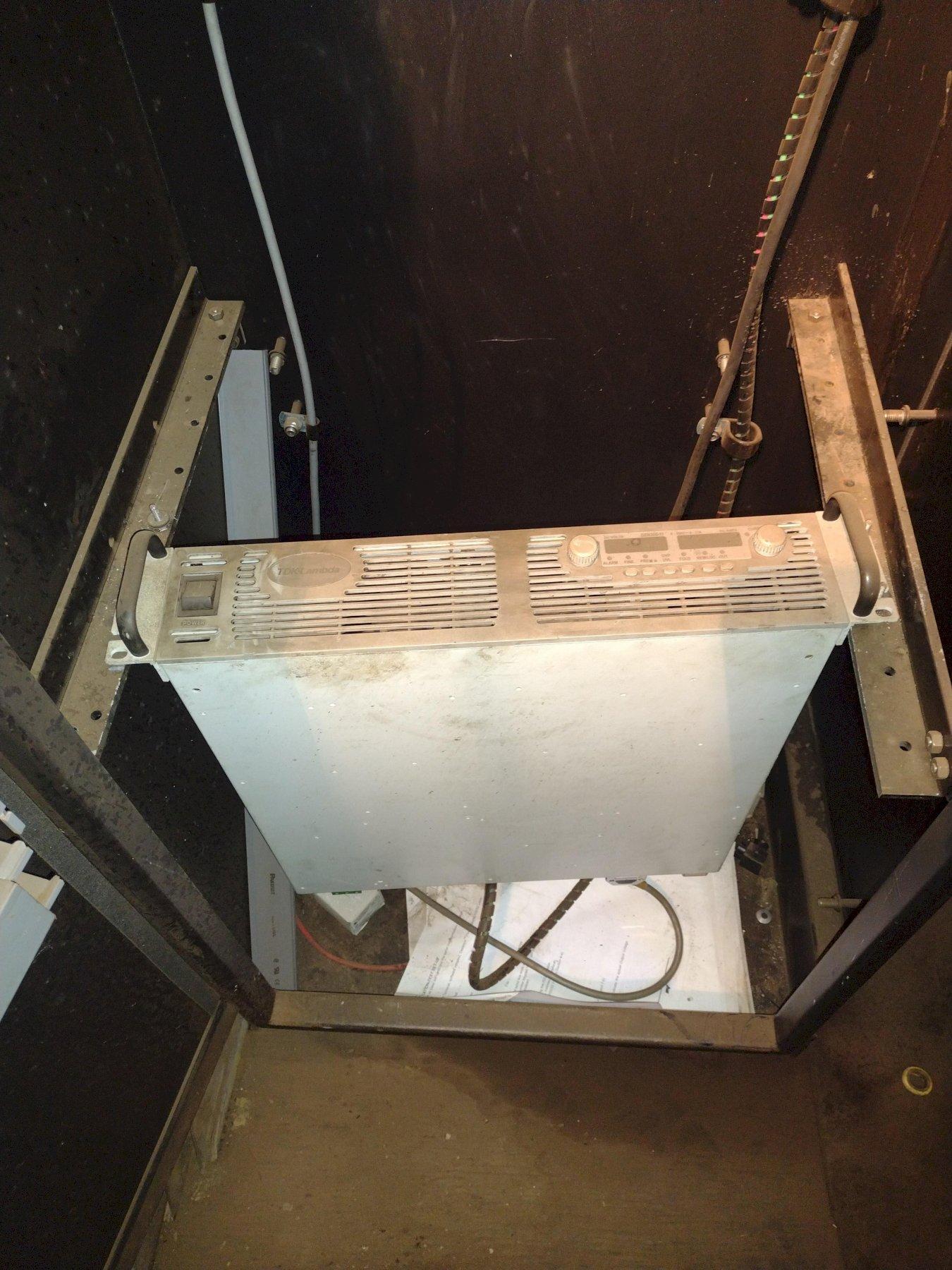

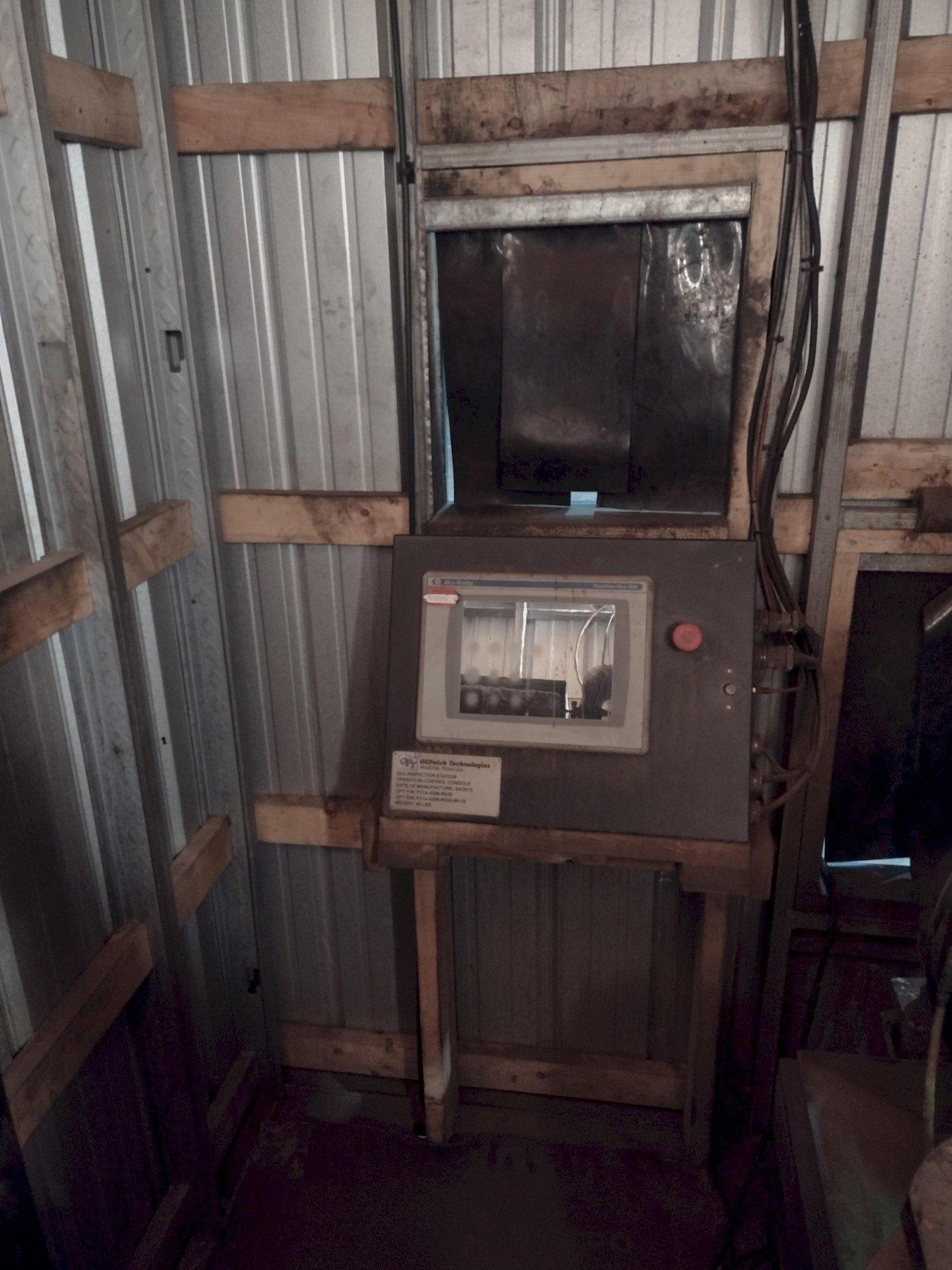

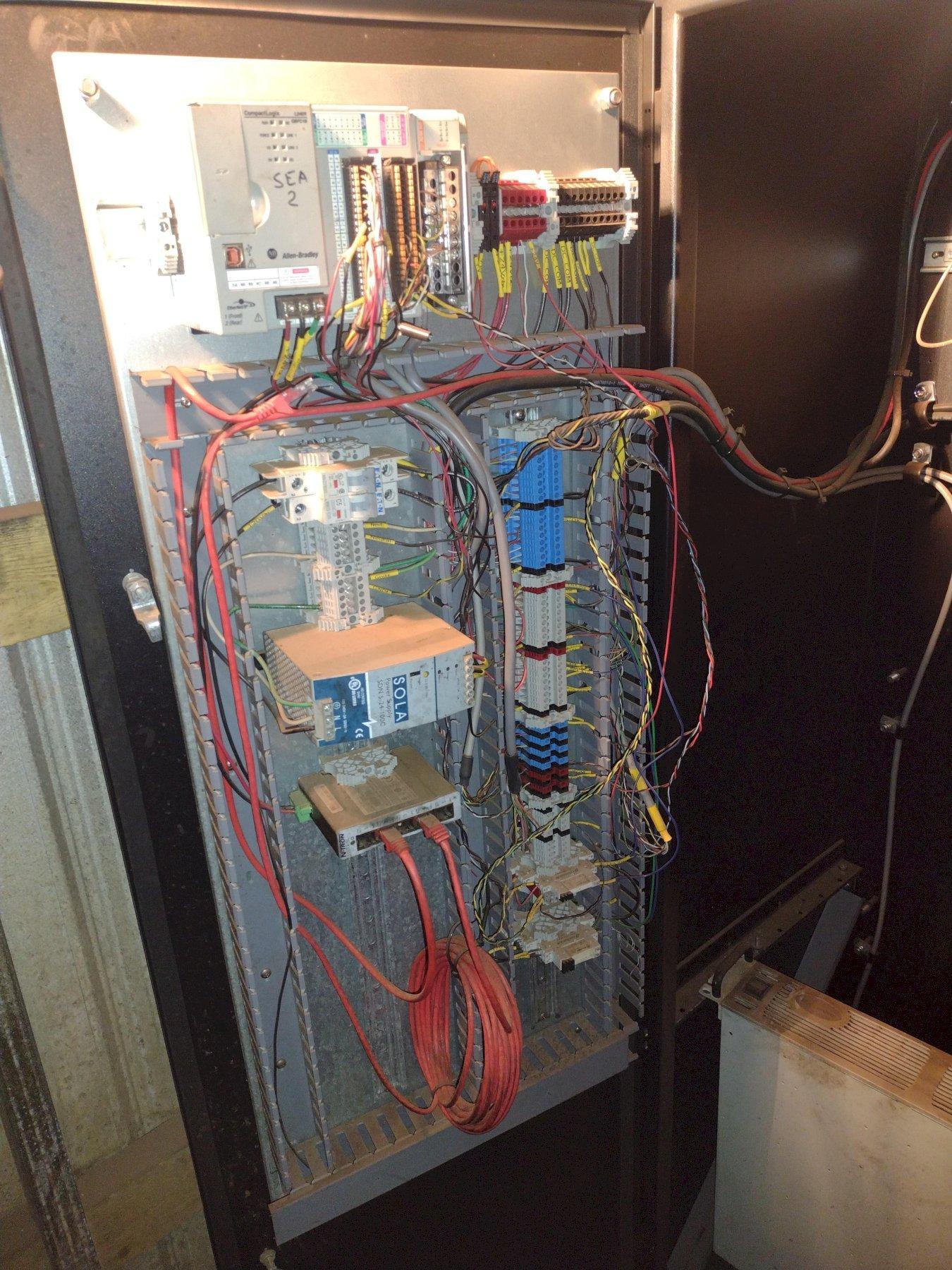

  • ELECTRICAL ENCLOSURES FOR COIL POWER SUPPLIES AND PLC CONTROLLER
SPECIAL END AREA (SEA) INSPECTION UNIT

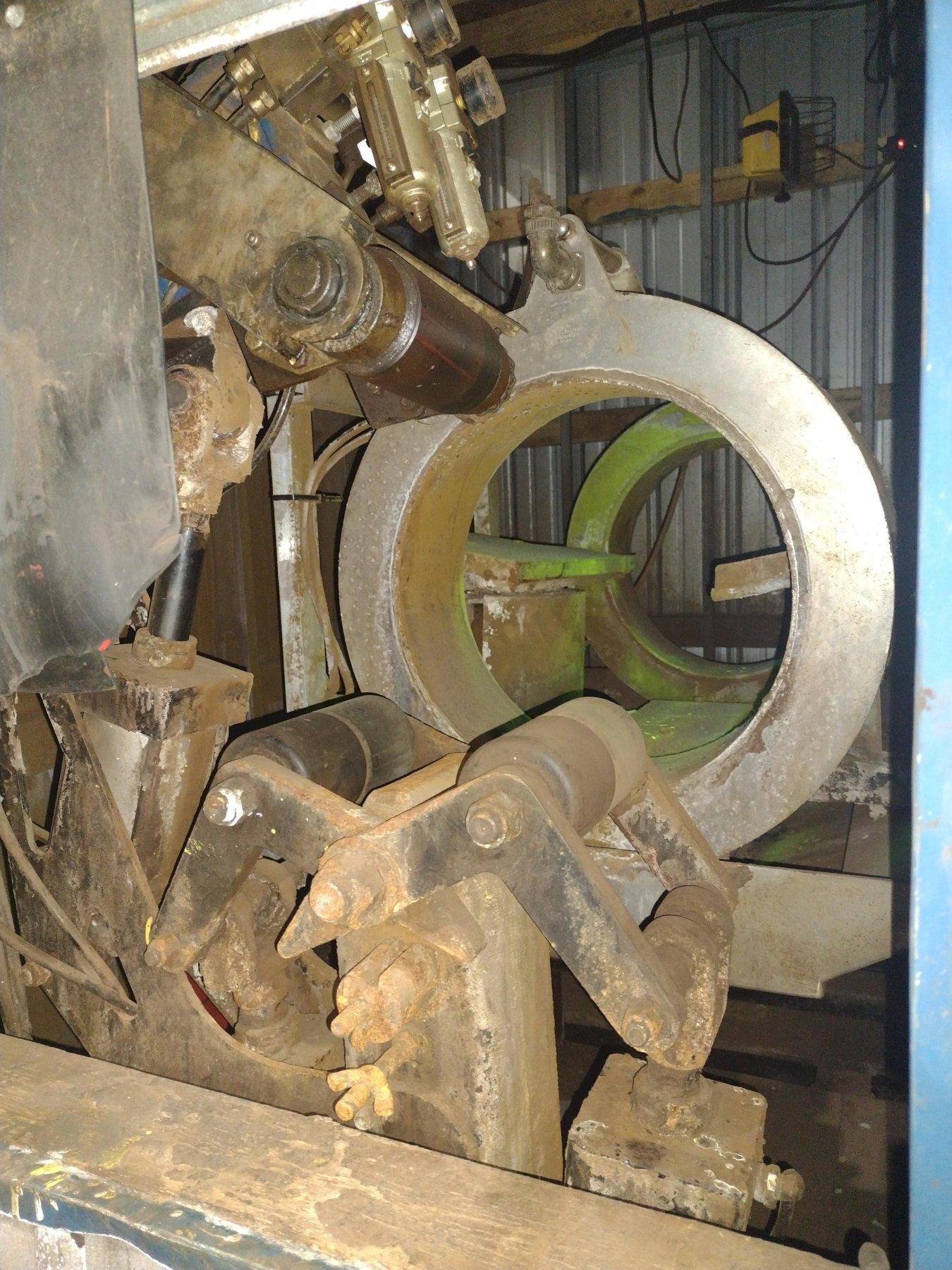

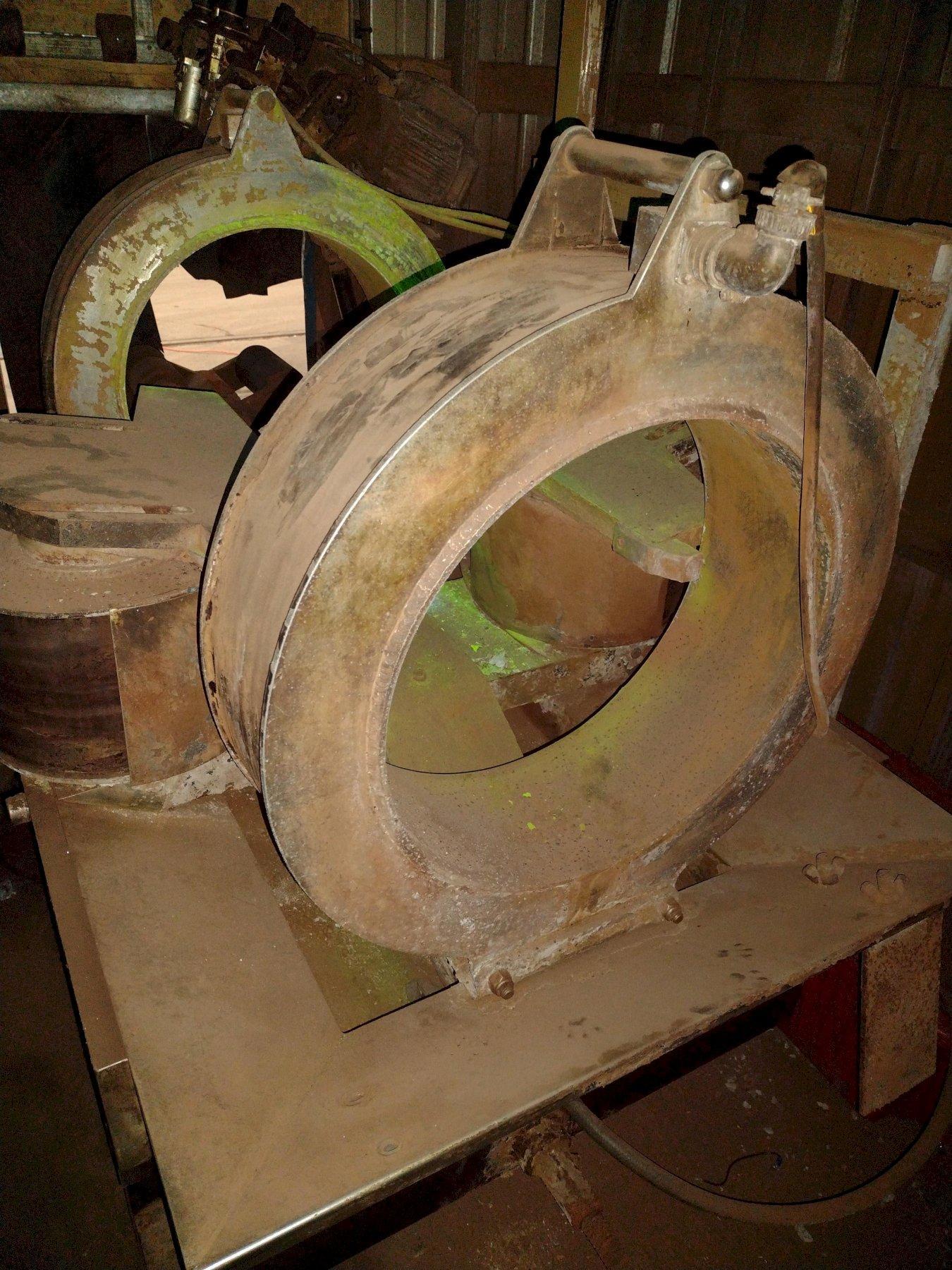

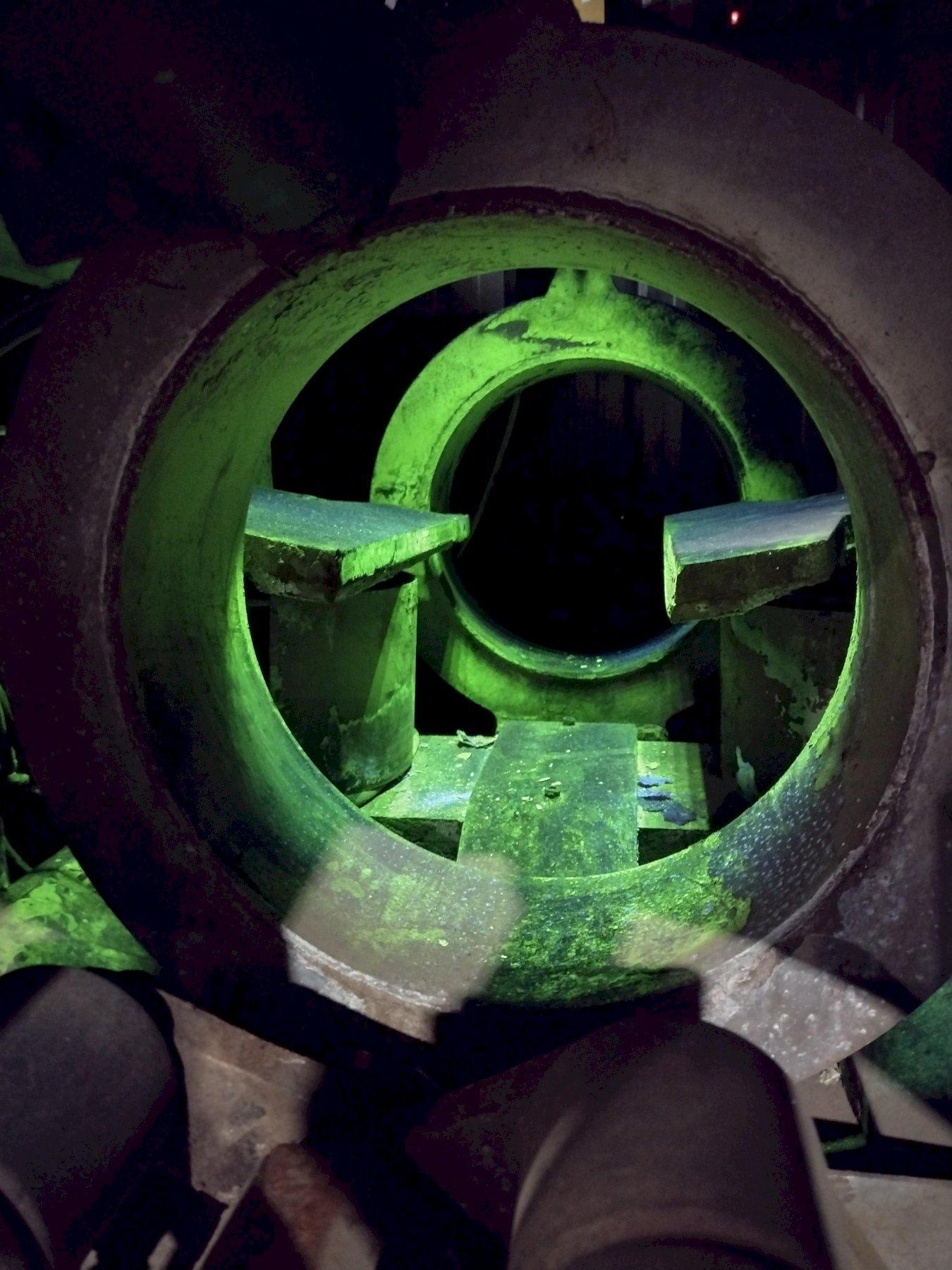

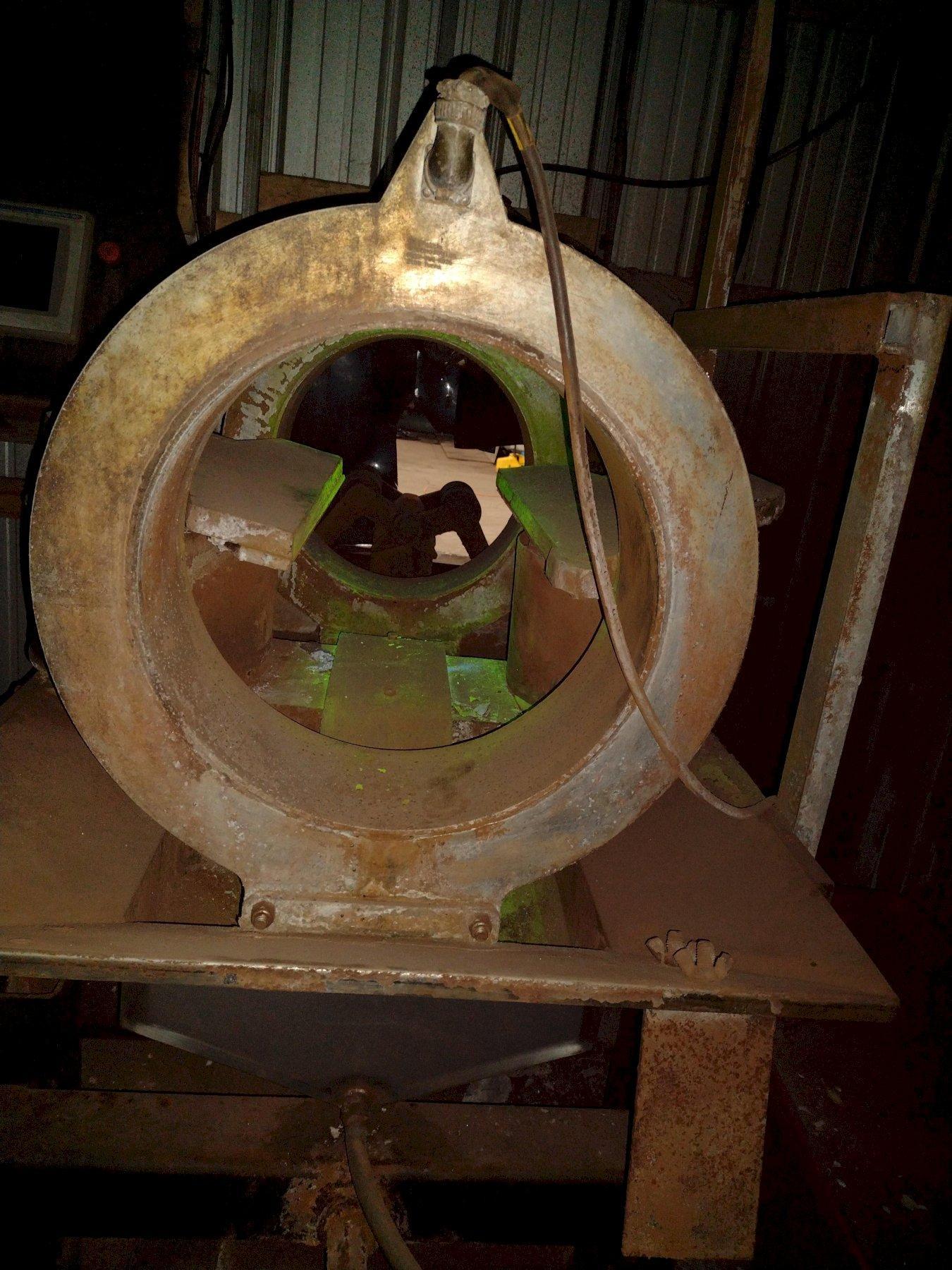

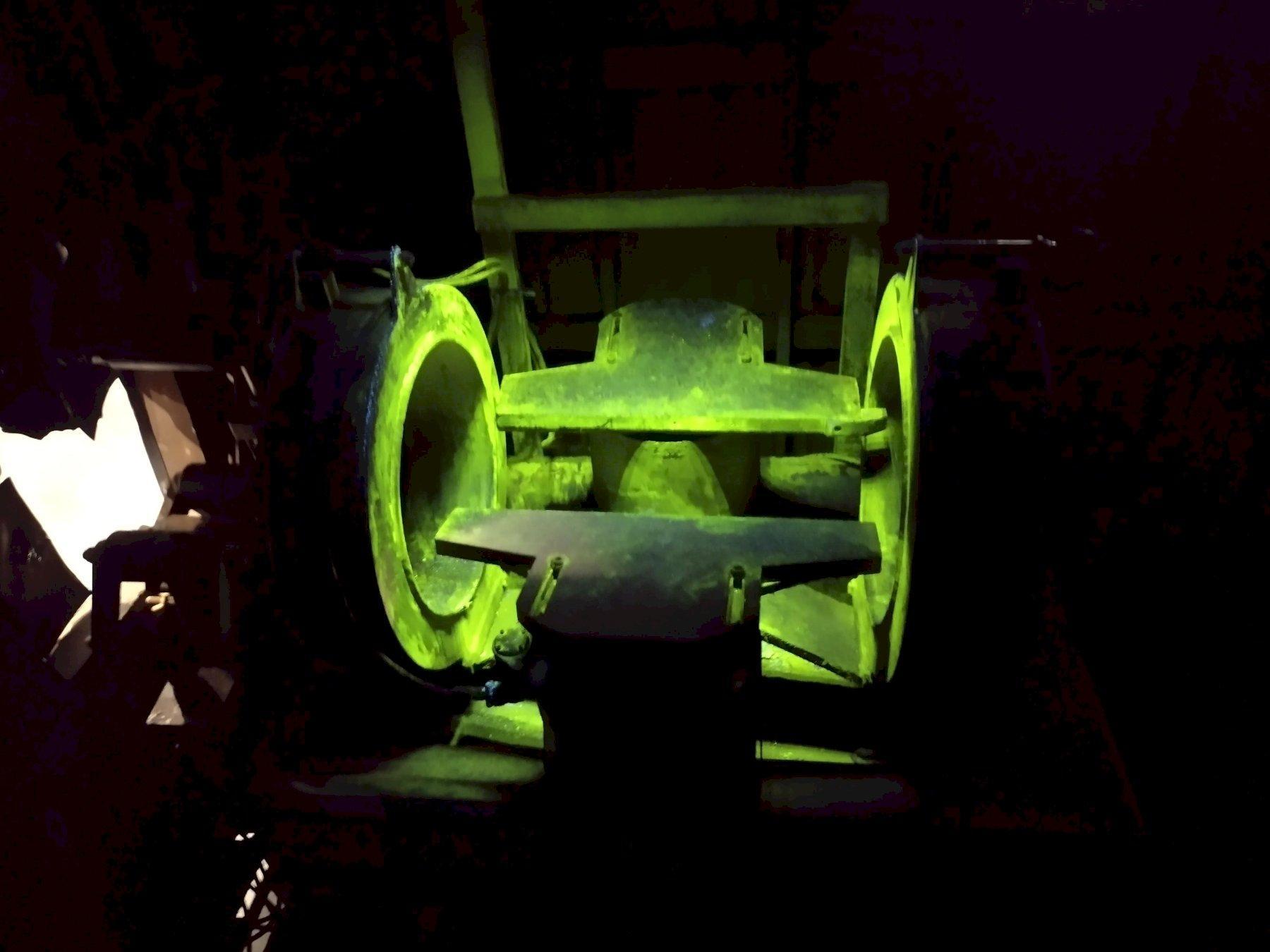

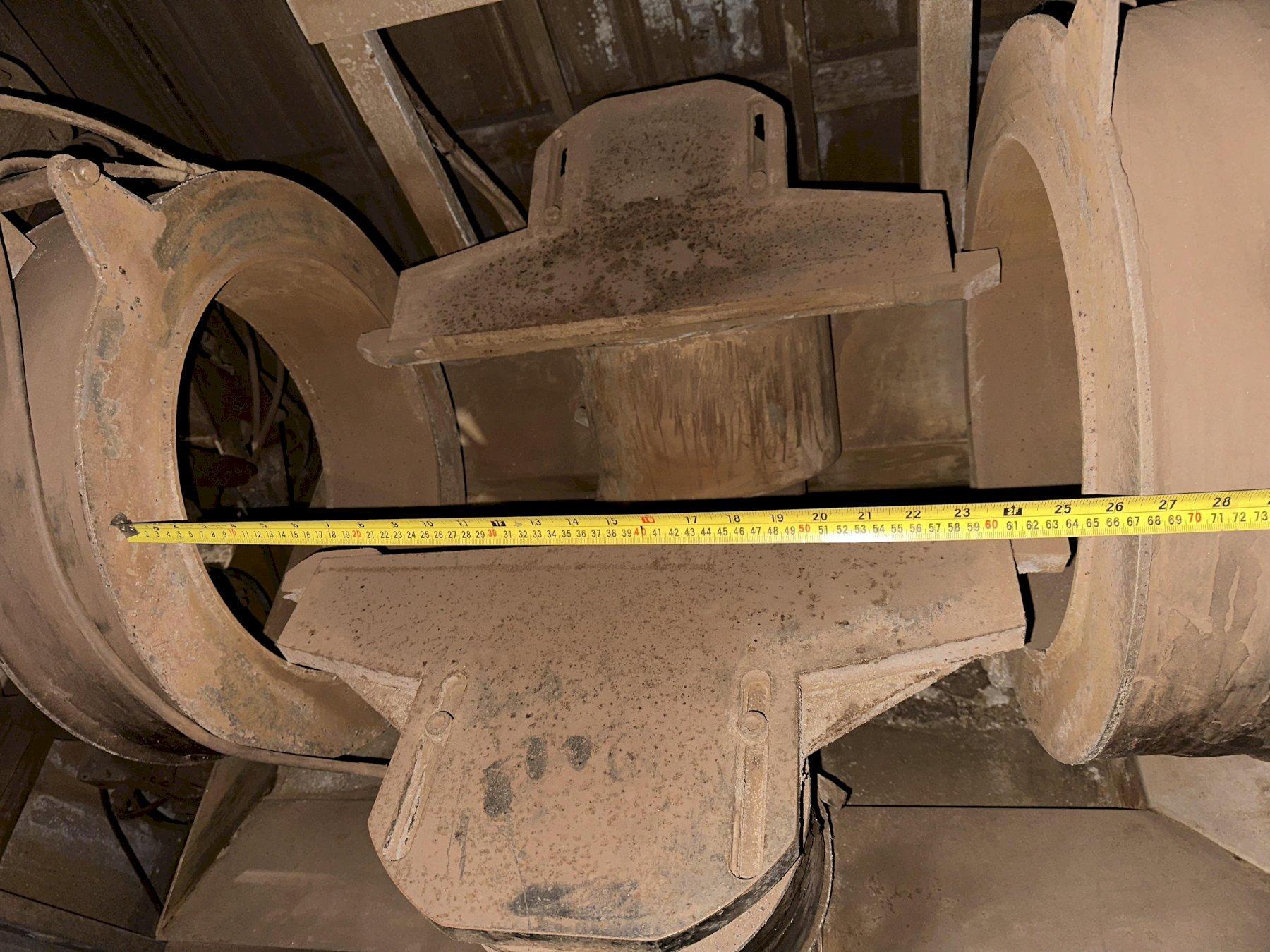

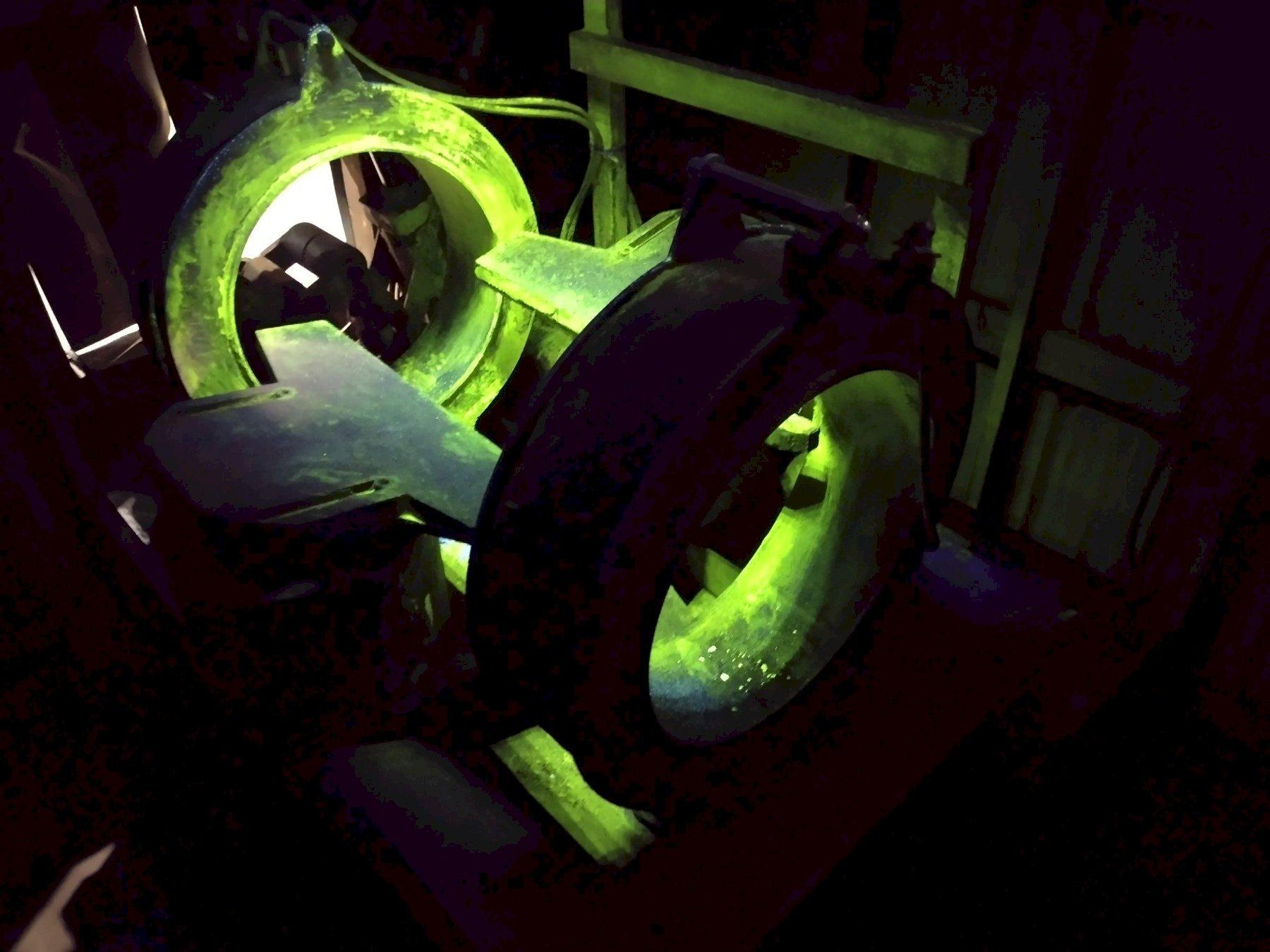

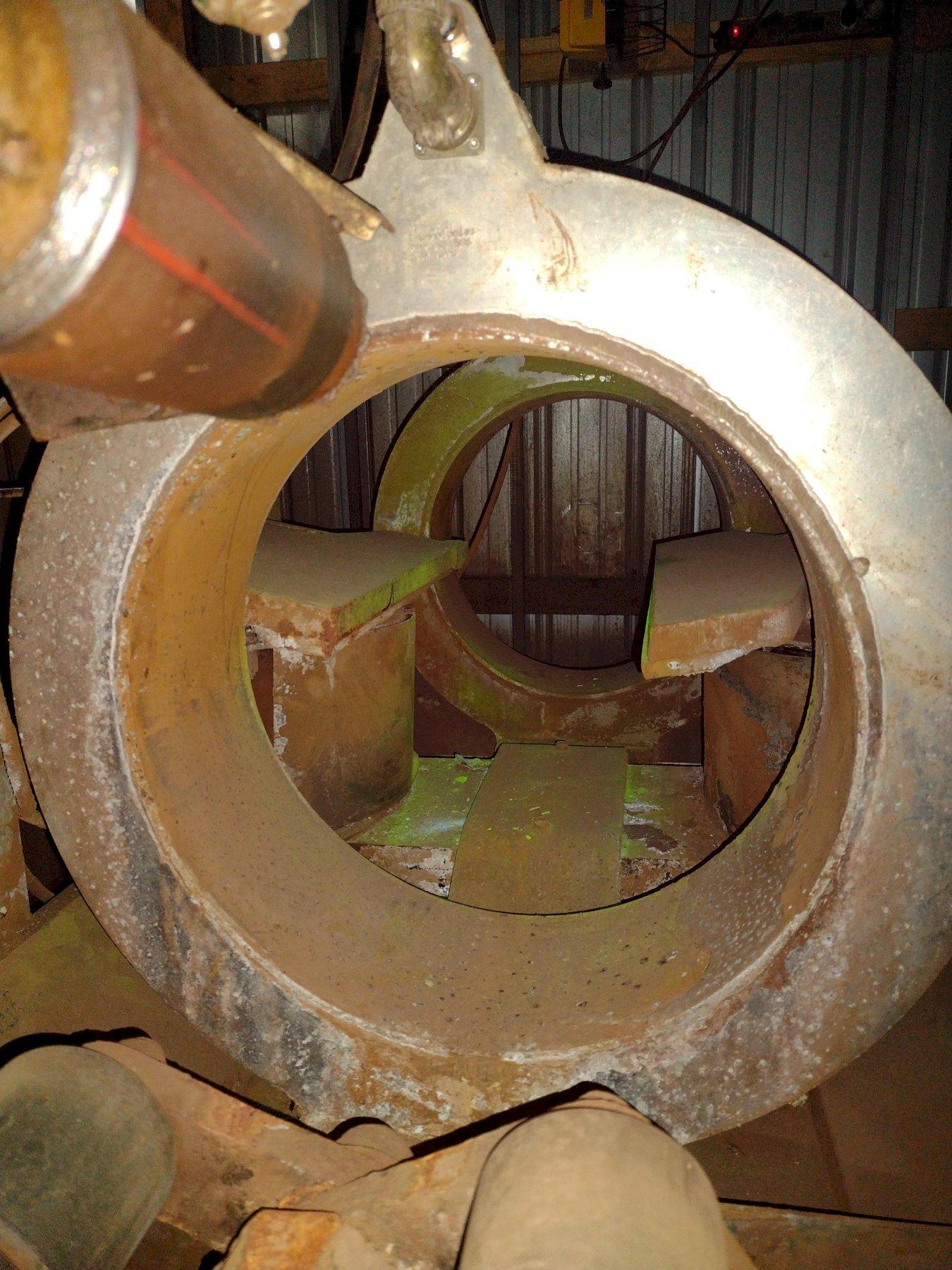

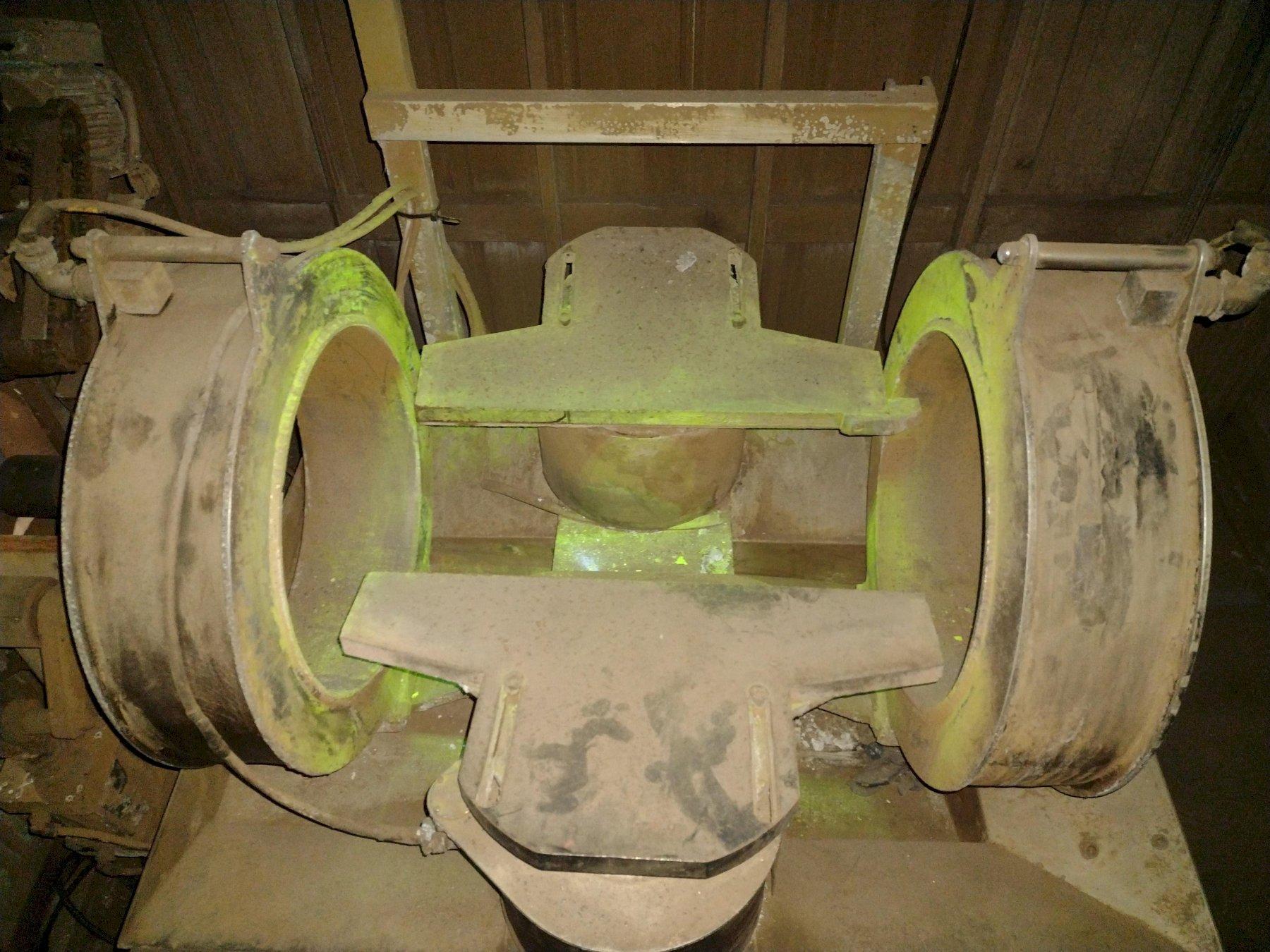

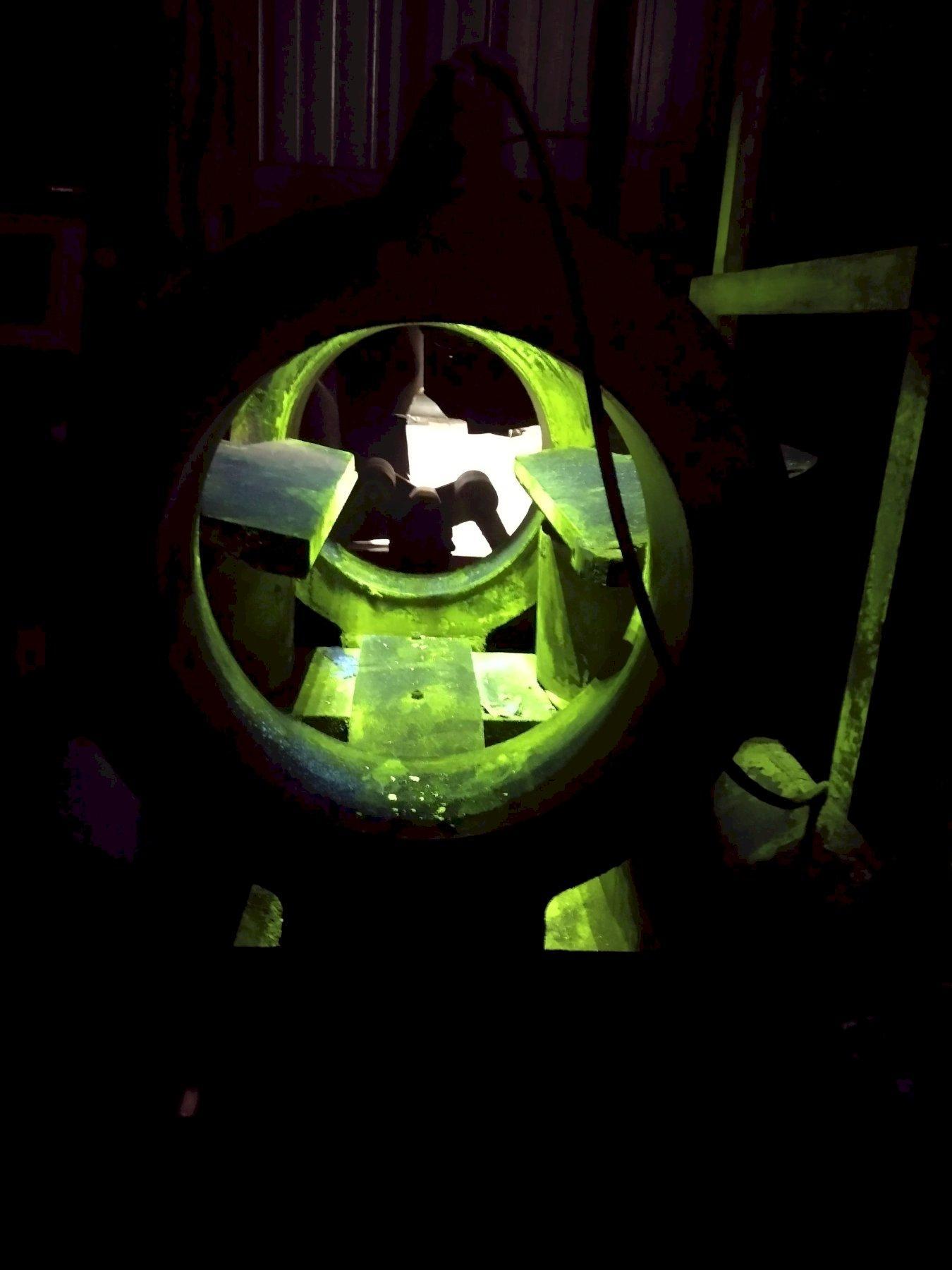

THE SEA INSPECTION UNIT IS BASED ON MAGNETIC PARTICLE INSPECTION (MPI) AND MAGNETIC FLUX LEAKAGE (MFL), BOTH ROBUST AND WELL ESTABLISHED INSPECTION TECHNOLOGIES WITH A PROVEN TRACK RECORD FOR ACCURACY AND RELIABILITY.  TWO MAG COILS COUPLED WITH AN ADJUSTABLE FLUX EXTENDER BAR ALLOWS FOR LONGITUDINAL INSPECTION OF TUBULAR GOODS; WHILE TWO I.D. MAG COILS ALLOW FOR TRANSVERSE INSPECTION.
