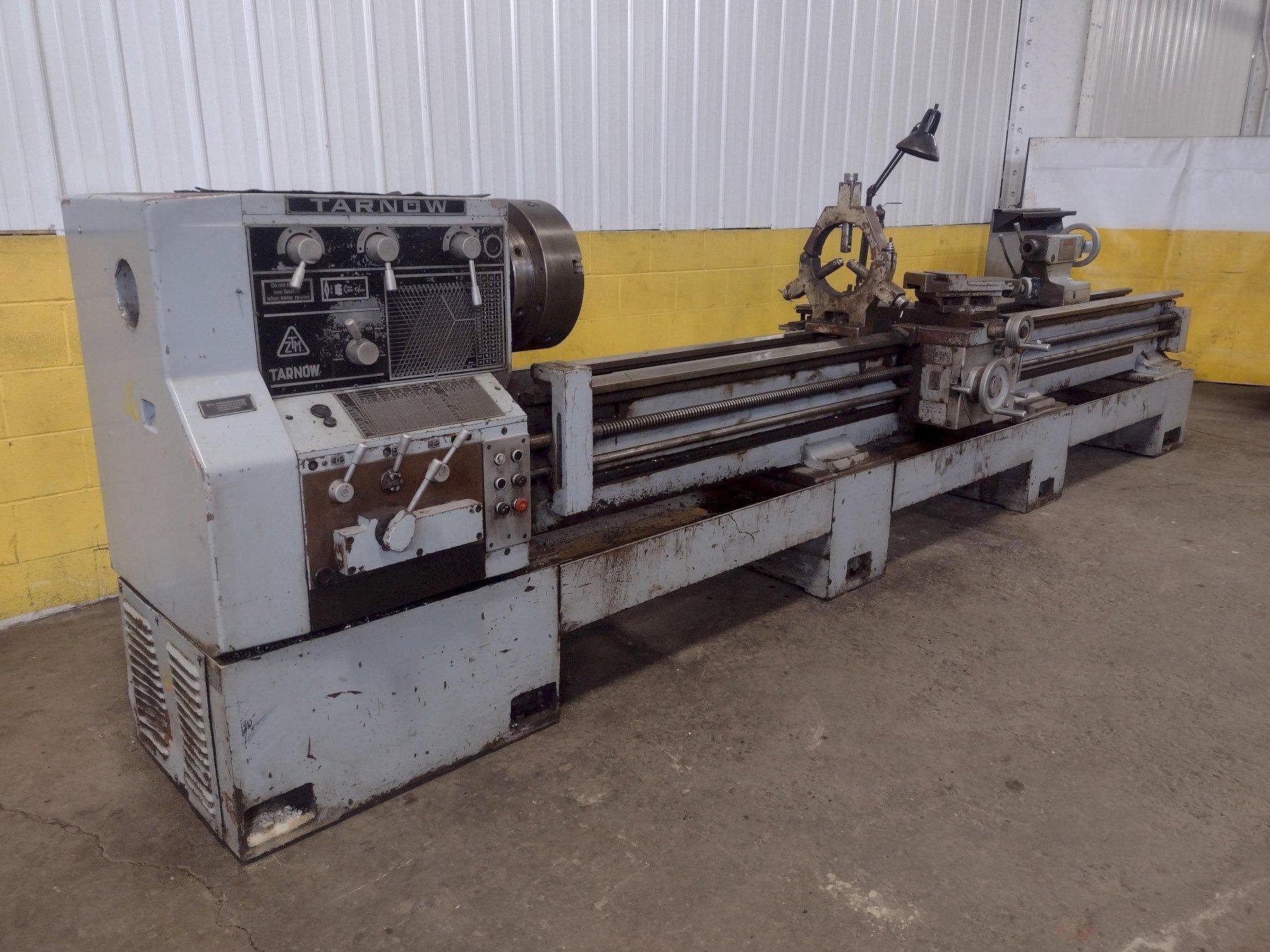

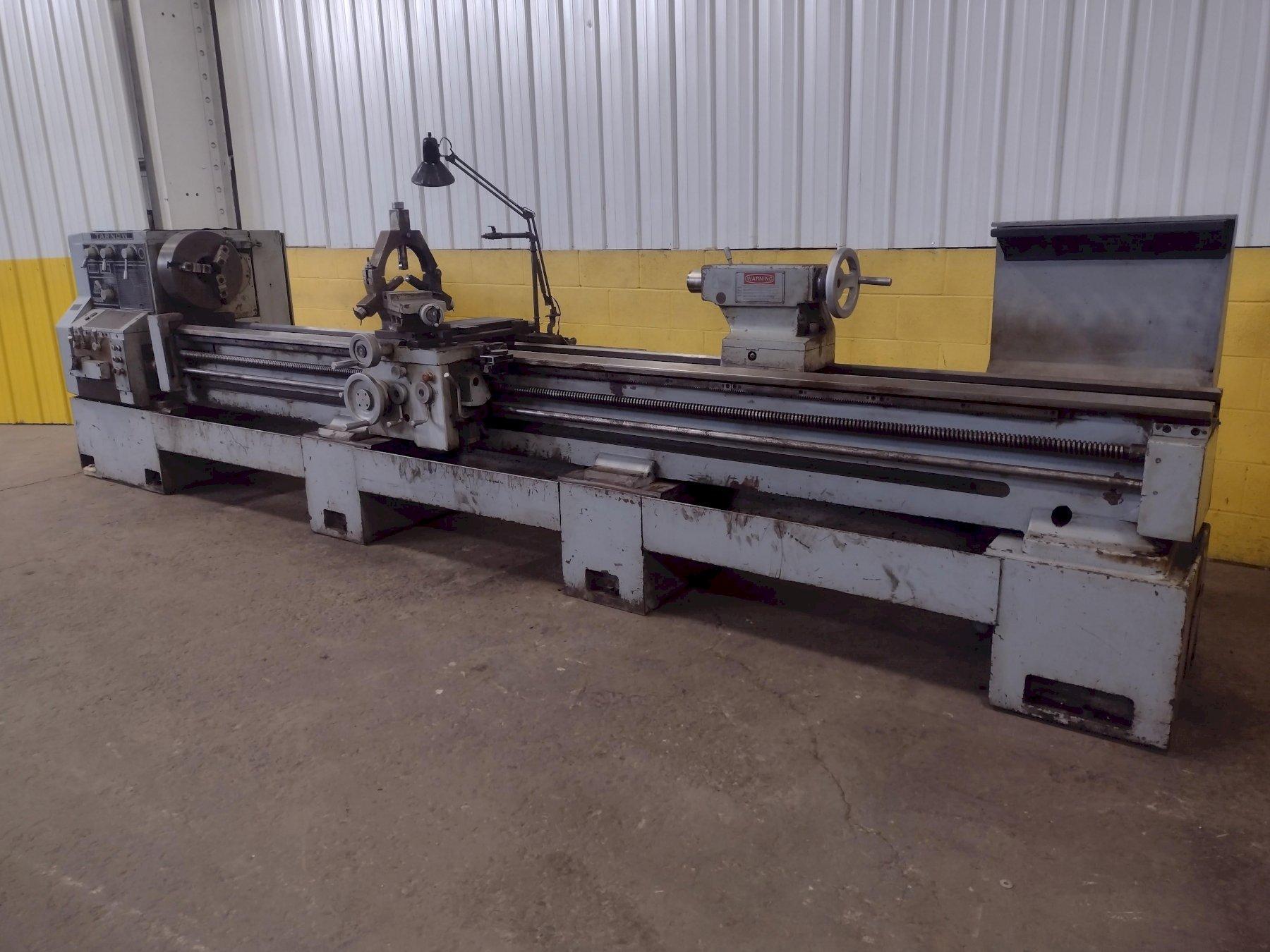

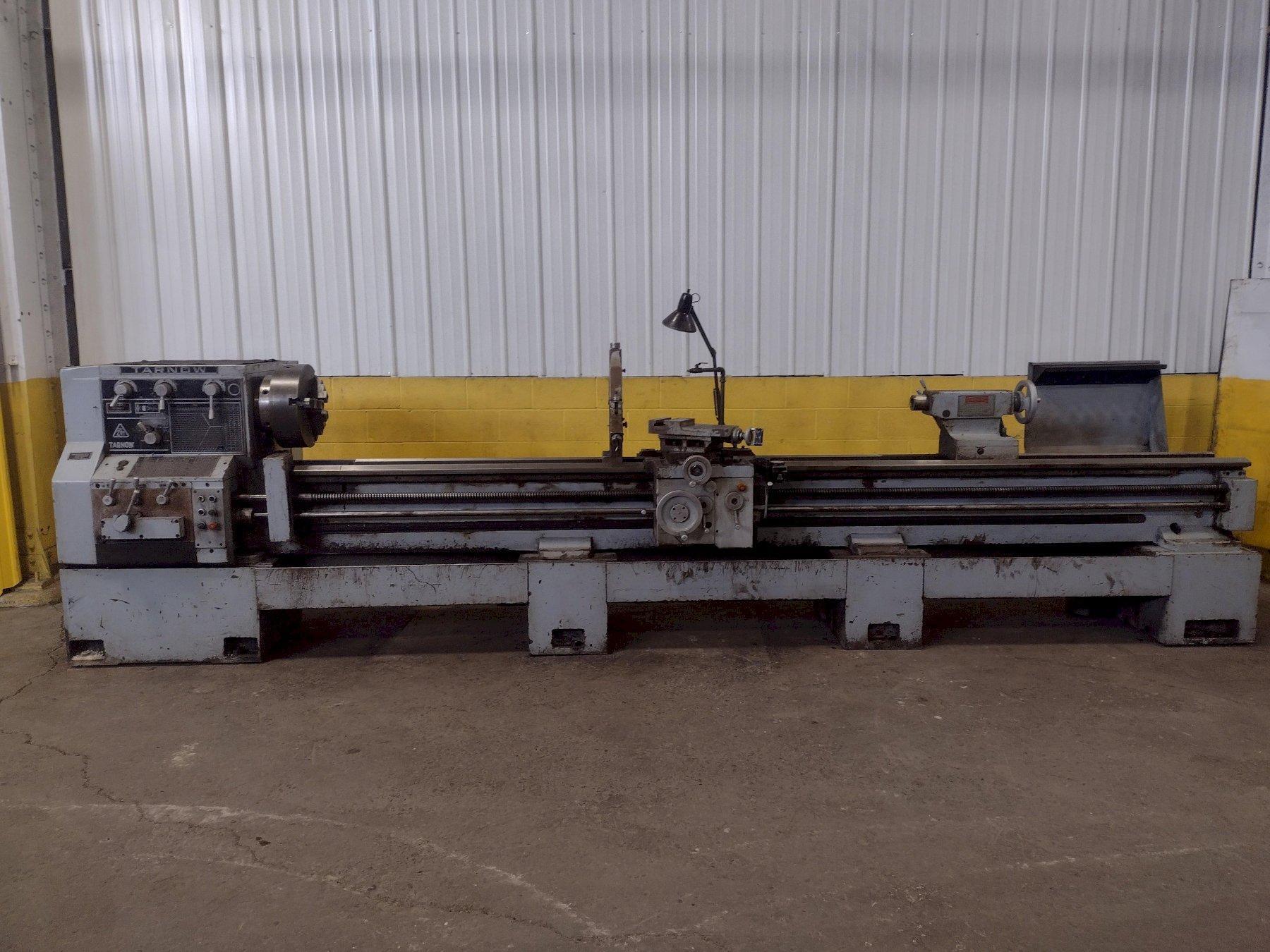

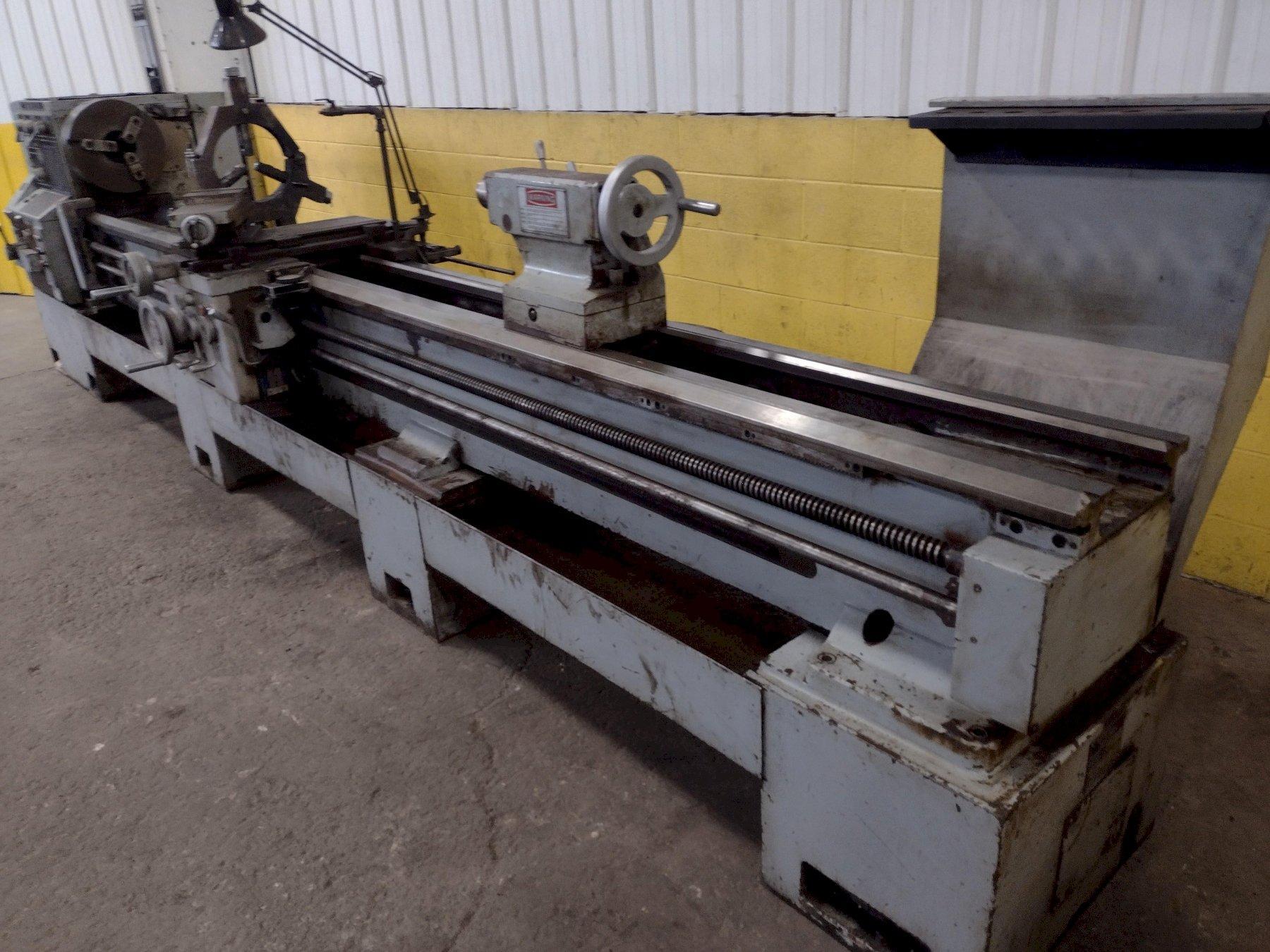

22" X 157" TARNOW MODEL TUJ 50M GAP BED ENGINE LATHE, 3.5" HOLE: STOCK 17547

Manufacturer

TARNOW

Category

Lathes

Type

LATHES, GAP, SLIDING BED

Stock

17547

Model

TUJ 50

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

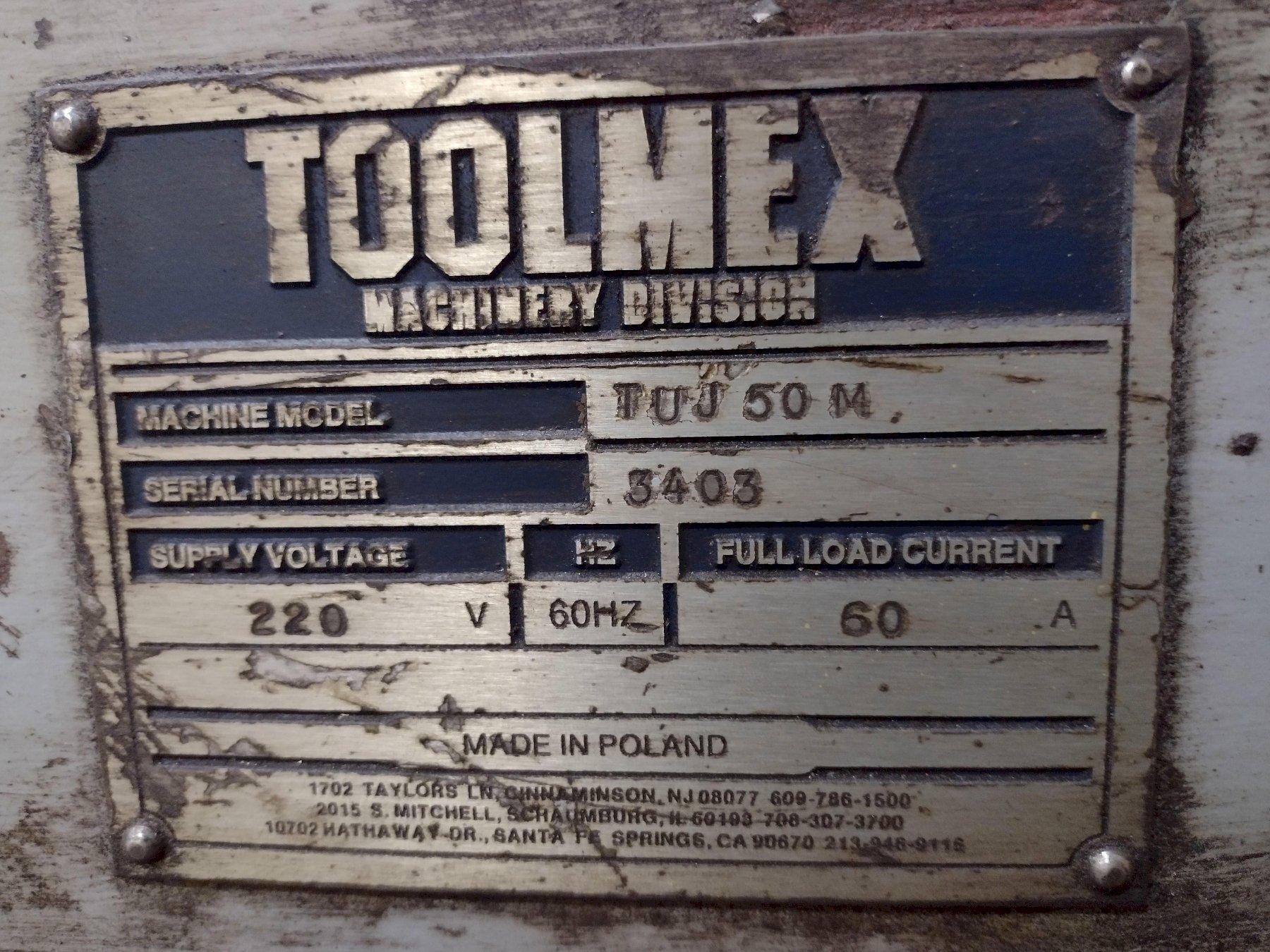

SERIAL .................... 3403
MODEL ..................... TUJ 50M
SWING OVER BED ............ 22-3/8"
SWING OVER CARRIAGE ....... 14-1/2"
SWING IN GAP .............. 31-1/2"
DISTANCE BETWEEN CENTERS .. 157"
CROSS SLIDE TRAVEL ........ 13"
COMPOUND TRAVEL ........... 8"

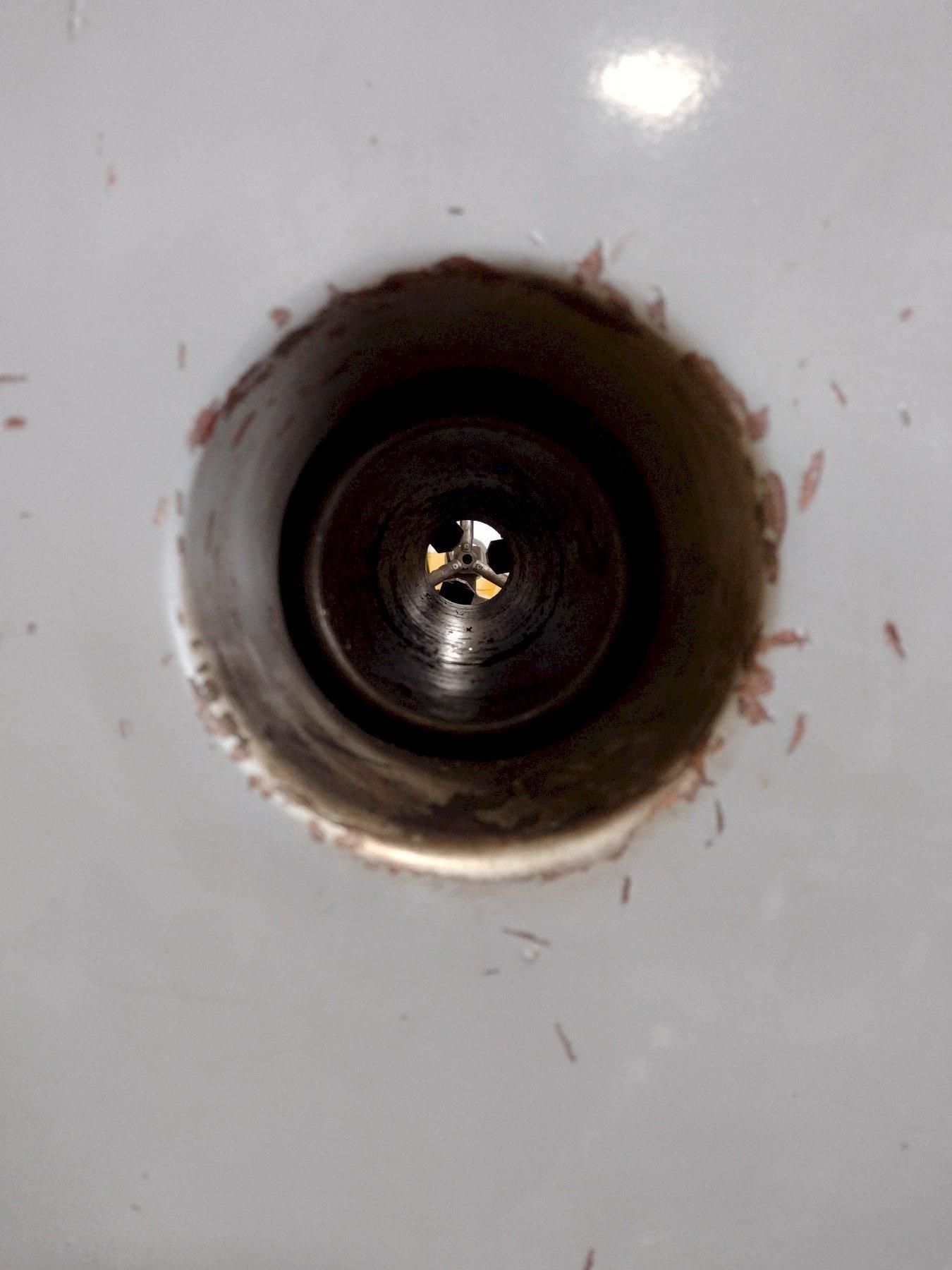

SPINDLE BORE .............. 3-3/5"
SPINDLE SPEEDS ............ 20-1600 RPM
SPINDEL NOSE .............. D1-11
LONGITUDINAL FEEDS (98) ... .0007 TO .72 IPR
CROSS FEEDS (98) .......... .0004 TO .36 IPR
INCH THREADS .............. 1 TO 112 TPI
METRIC THREADS ............ 1/4 TO 28MM

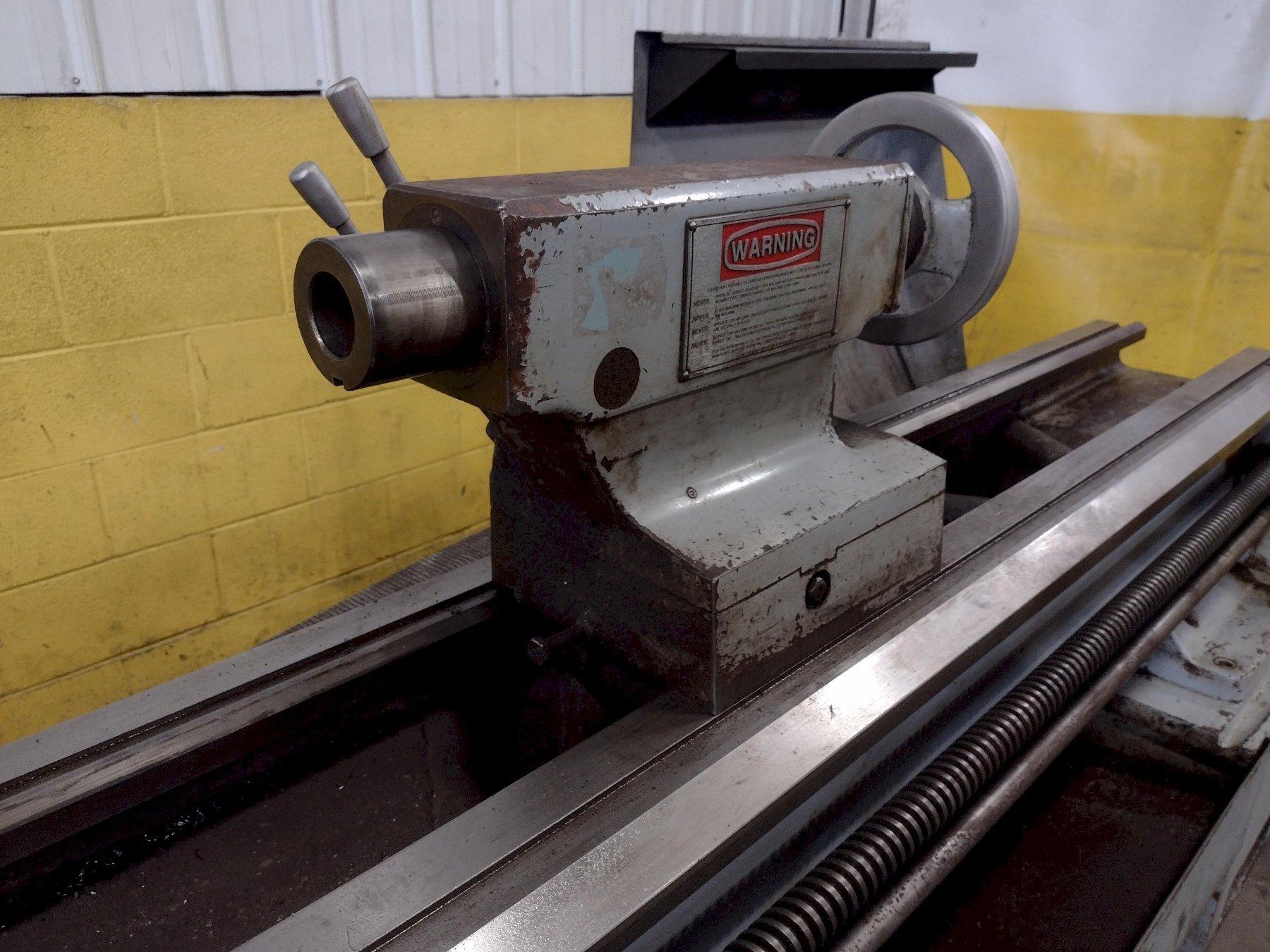

TAILSTOCK QUILL DIAMETER .. 3-1/8"
QUILL TRAVEL .............. 6"
QUILL TAPER ............... #5 MT
SPINDLE MOTOR ............. 15HP/220V/60HZ
