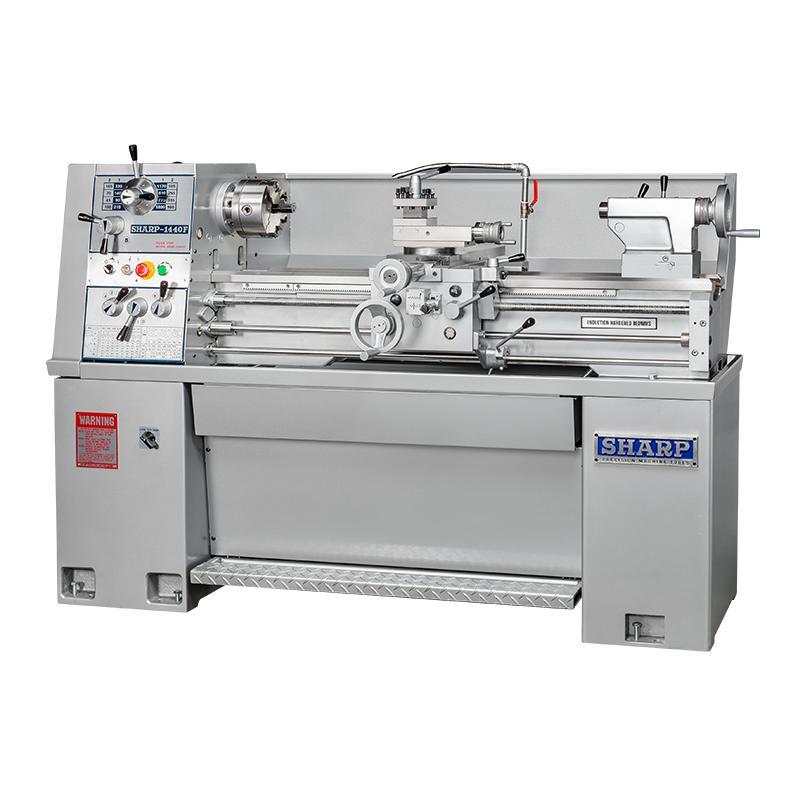

14" X 40" SHARP Precision Lathe, NEW

Manufacturer

SHARP

Category

Lathes

Type

LATHES, ENGINE

Stock

19970

Model

1440F

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



SWING OVER BED: 14"
SWING OVER CROSS SLIDE: 8-5/8"
SWING IN GAP: 20"
GAP LENGTH: 8-1/2"
DISTANCE BETWEEN CENTERS: 40"
SPINDLE SPEEDS: (INF. VAR.) 30 - 2200 RPM
SPINDLE MOTOR: 3 HP
SPINDLE NOSE: D1-4 CAMLOCK
SPINDLE BORE: 1-1/2"
LONGITUDINAL FEEDS: (40) 0.0012 - 0.0294 IPR
CROSS FEEDS: (40) 0.0003 - 0.01 IPR
INCH THREADS: (40) 4 - 112 TPI
METRIC THREADS: (22) 0.45 - 7.5 MM
LEADSCREW PITCH X DIAMETER: 8 TPI X 7/8"
SADDLE WIDTH: 13-1/4"
APRON WIDTH: 11"
CROSS SLIDE WIDTH: 6-3/4"
CROSS SLIDE TRAVEL: 7"
COMPOUND REST TRAVEL: 4"
COMPOUND WIDTH X LENGTH: 3-1/2" X 8-1/2"
BED LENGTH: 66"
BED WIDTH: 8-1/8"
TAILSTOCK QUILL DIAMETER: 1-3/4"
TAILSTOCK QUILL TAPER: MT 3
TAILSTOCK QUILL TRAVEL: 4-1/2"
WEIGHT (APPROXIMATE): 1,650 LBS.

HOUSTON STOCK MACHINE EQUIPPED WITH:

8" 3 JAW CHUCK
QUICK CHANGE TOOL POST WITH 7 HOLDER
WORK LIGHT
2 AXIS NEWALL DRO
