Weight - 10500 pounds

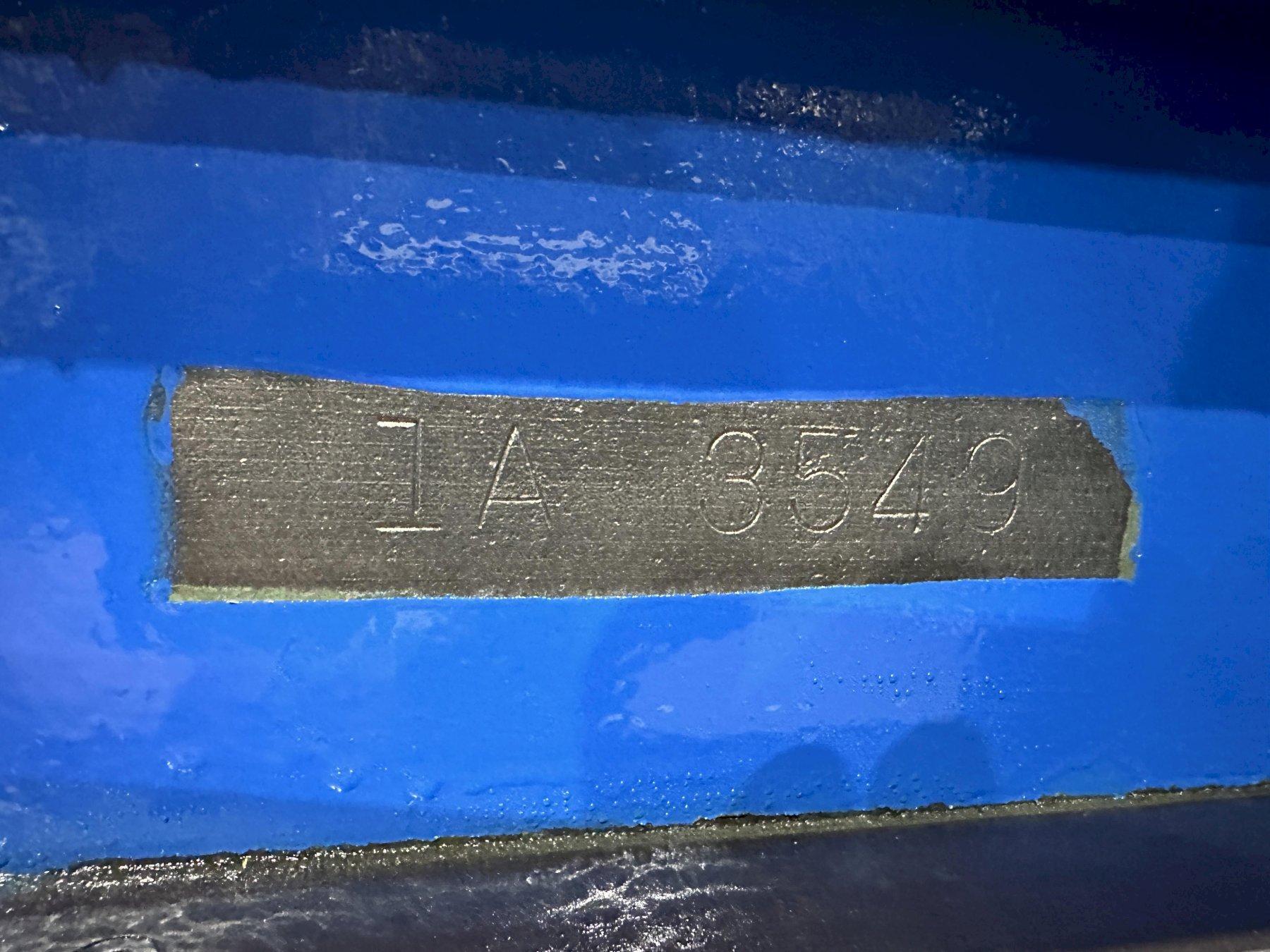

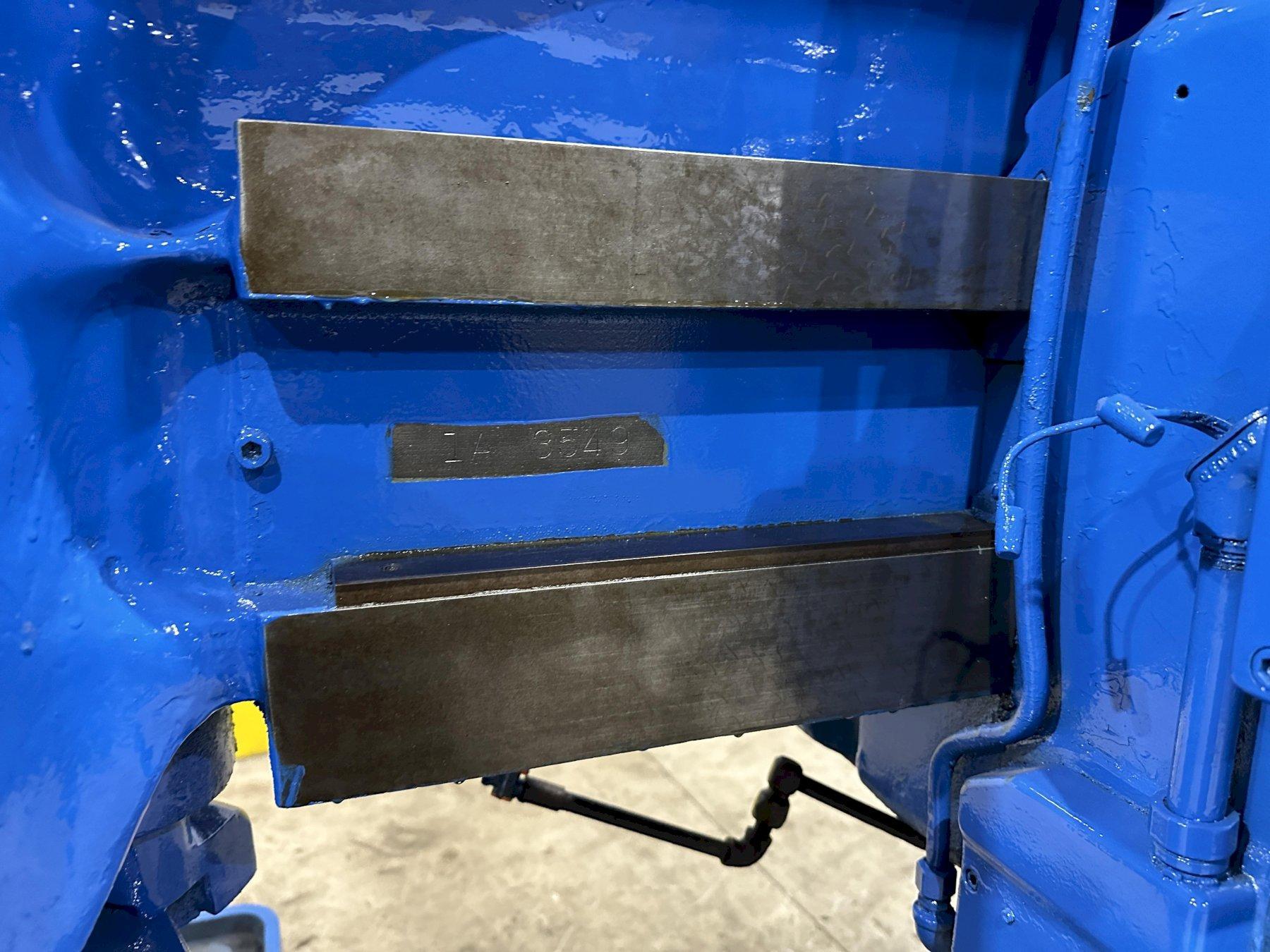

SERIAL ...................... 1A-3549
MODEL ....................... 1A

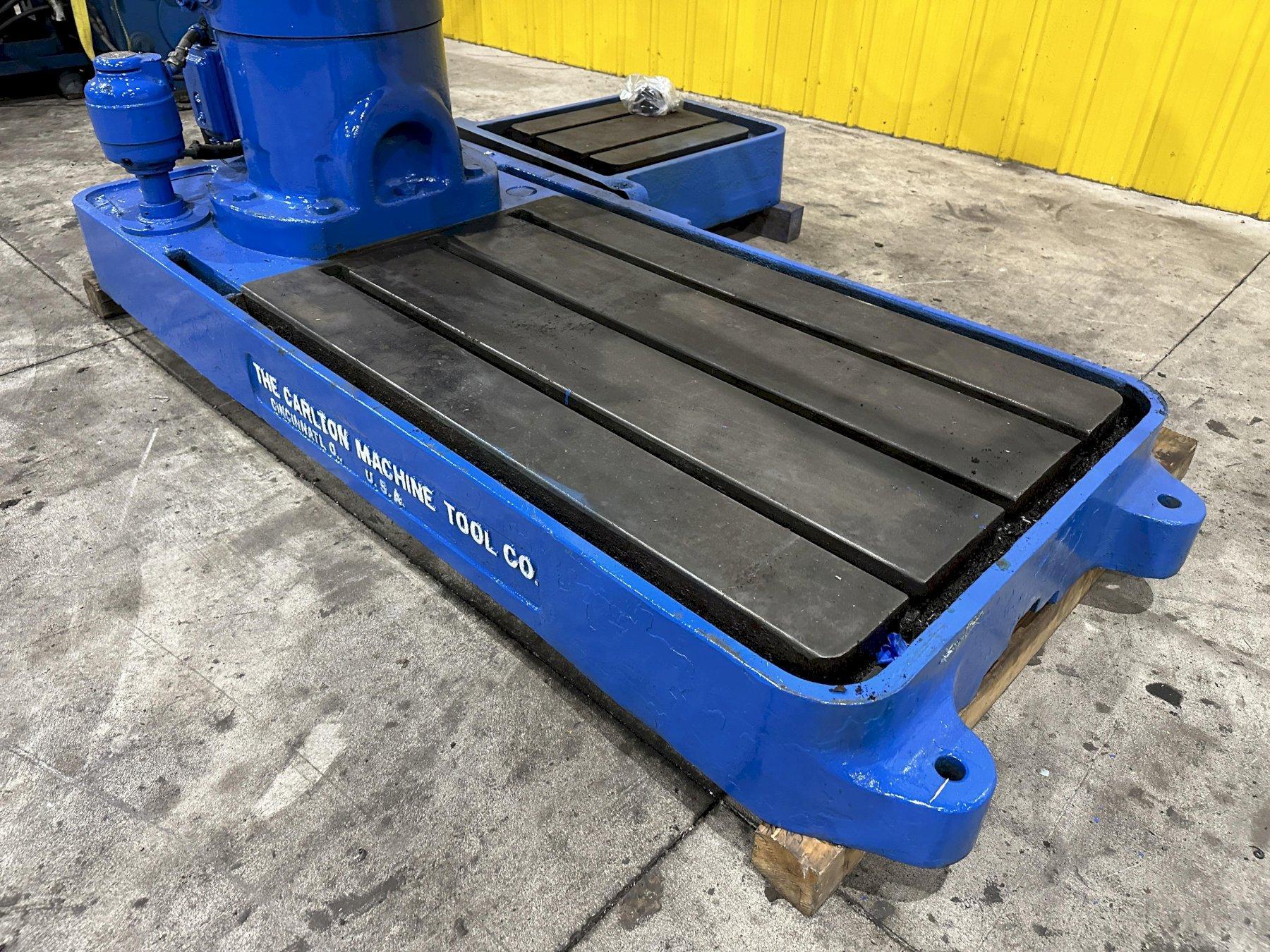

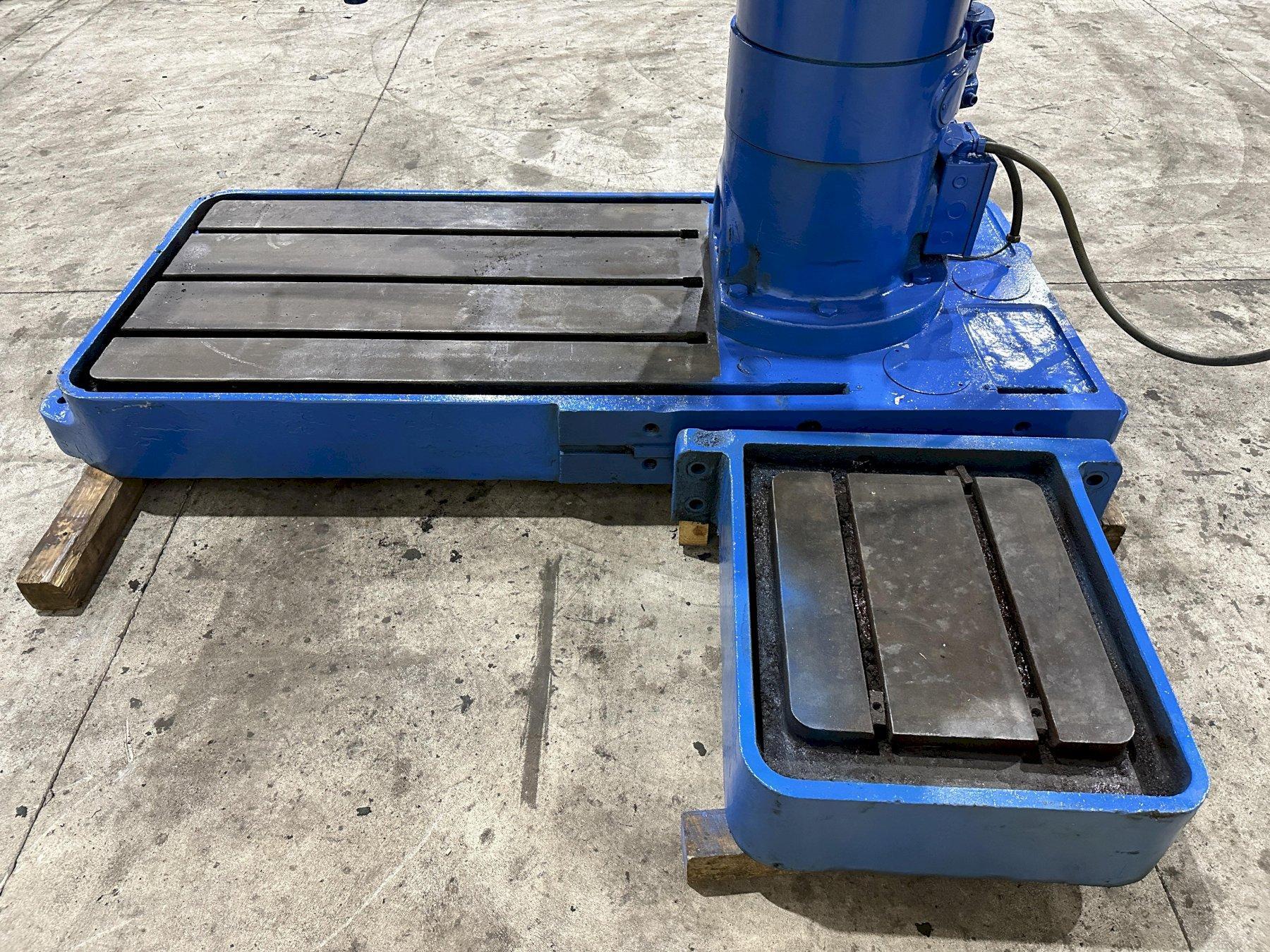

BASE AREA ................... 54" X 36"

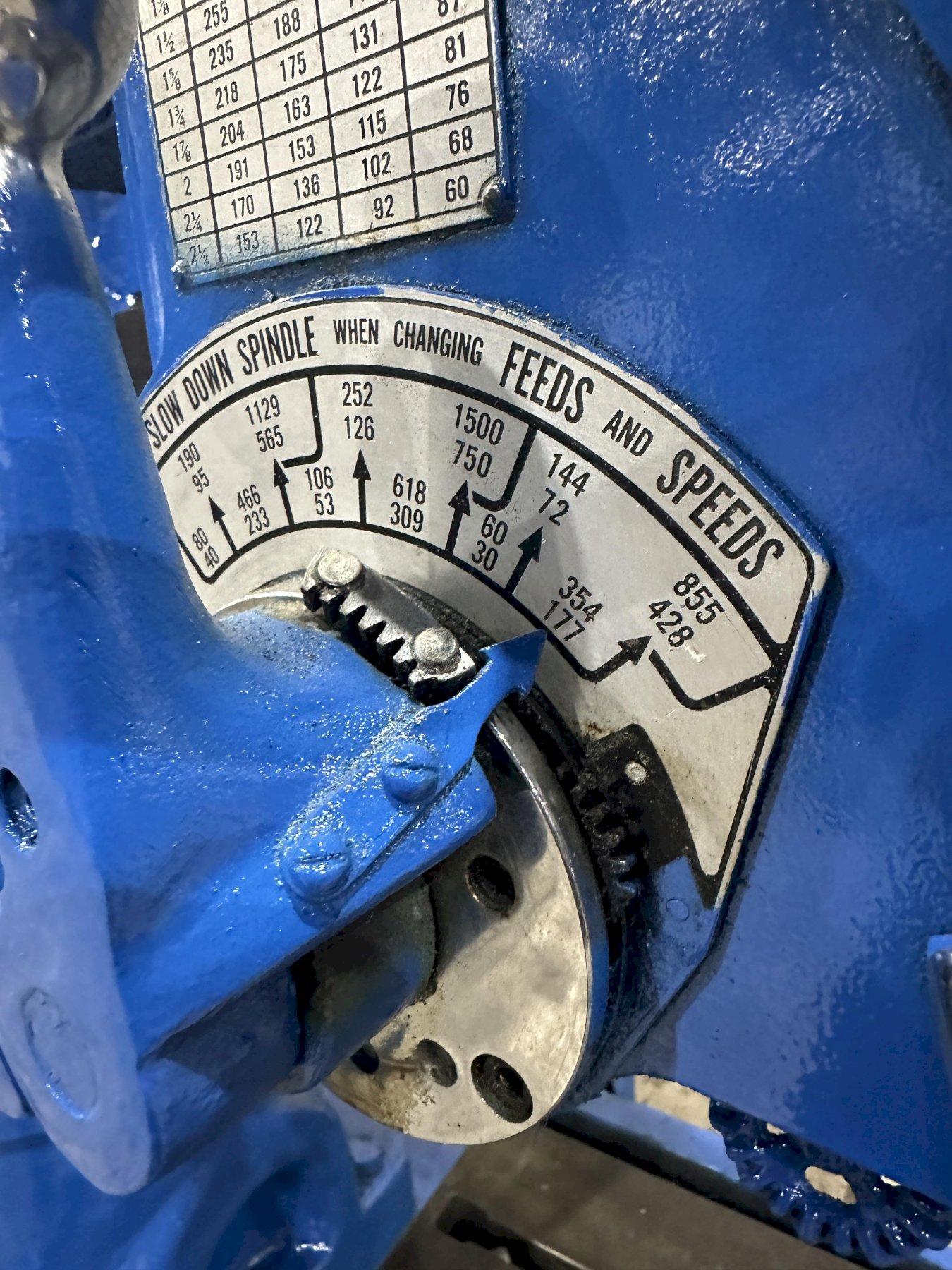

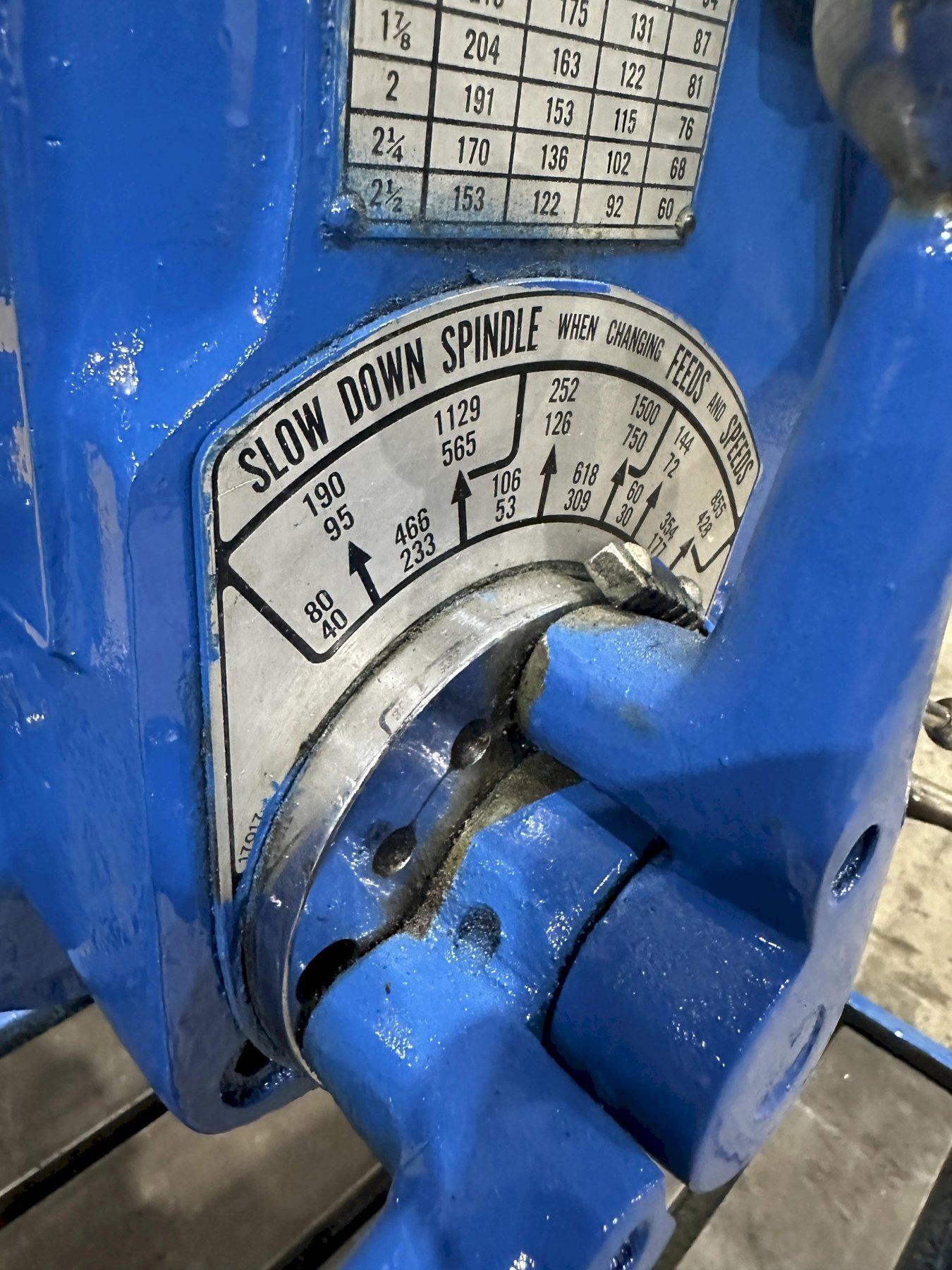

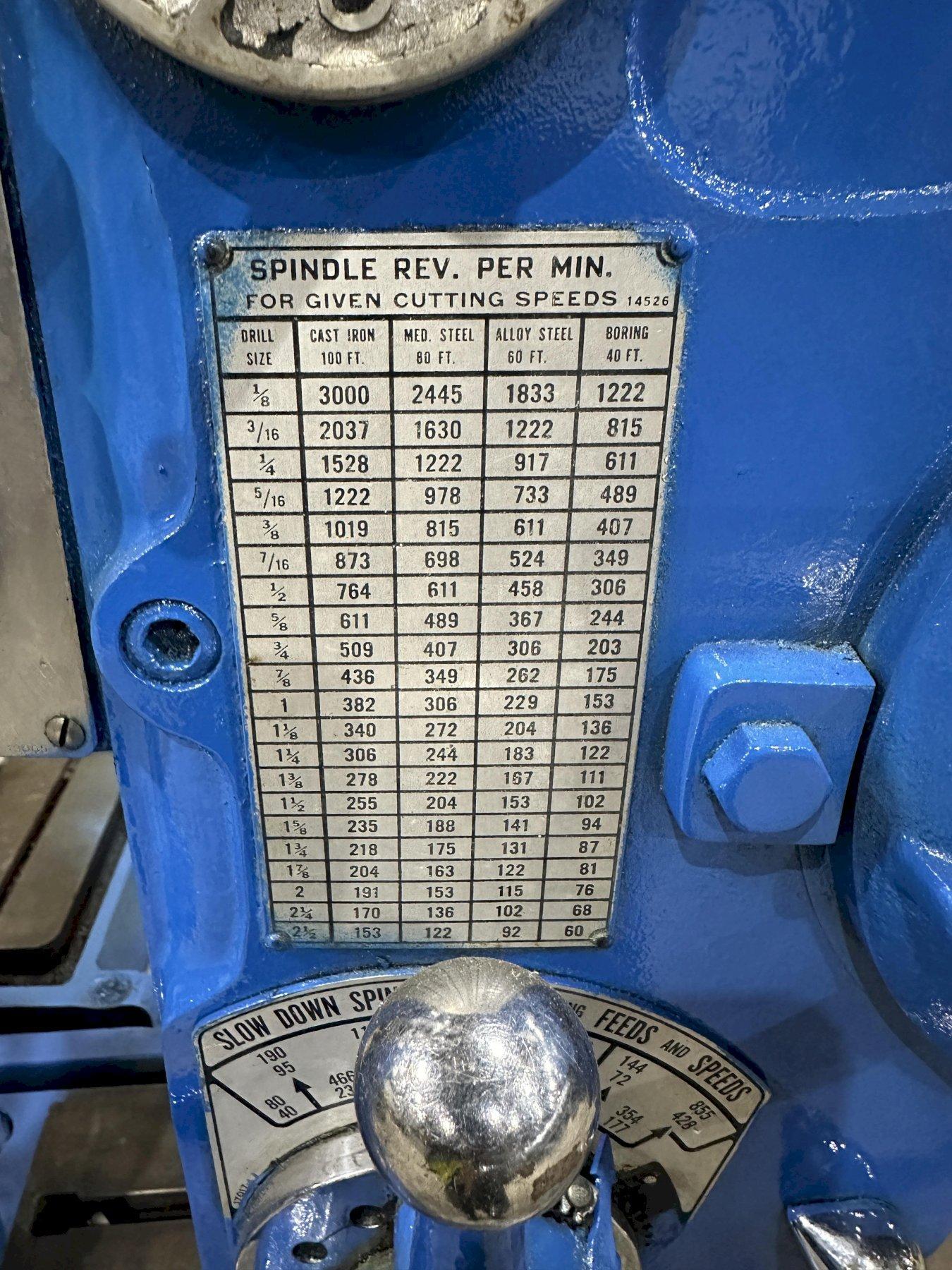

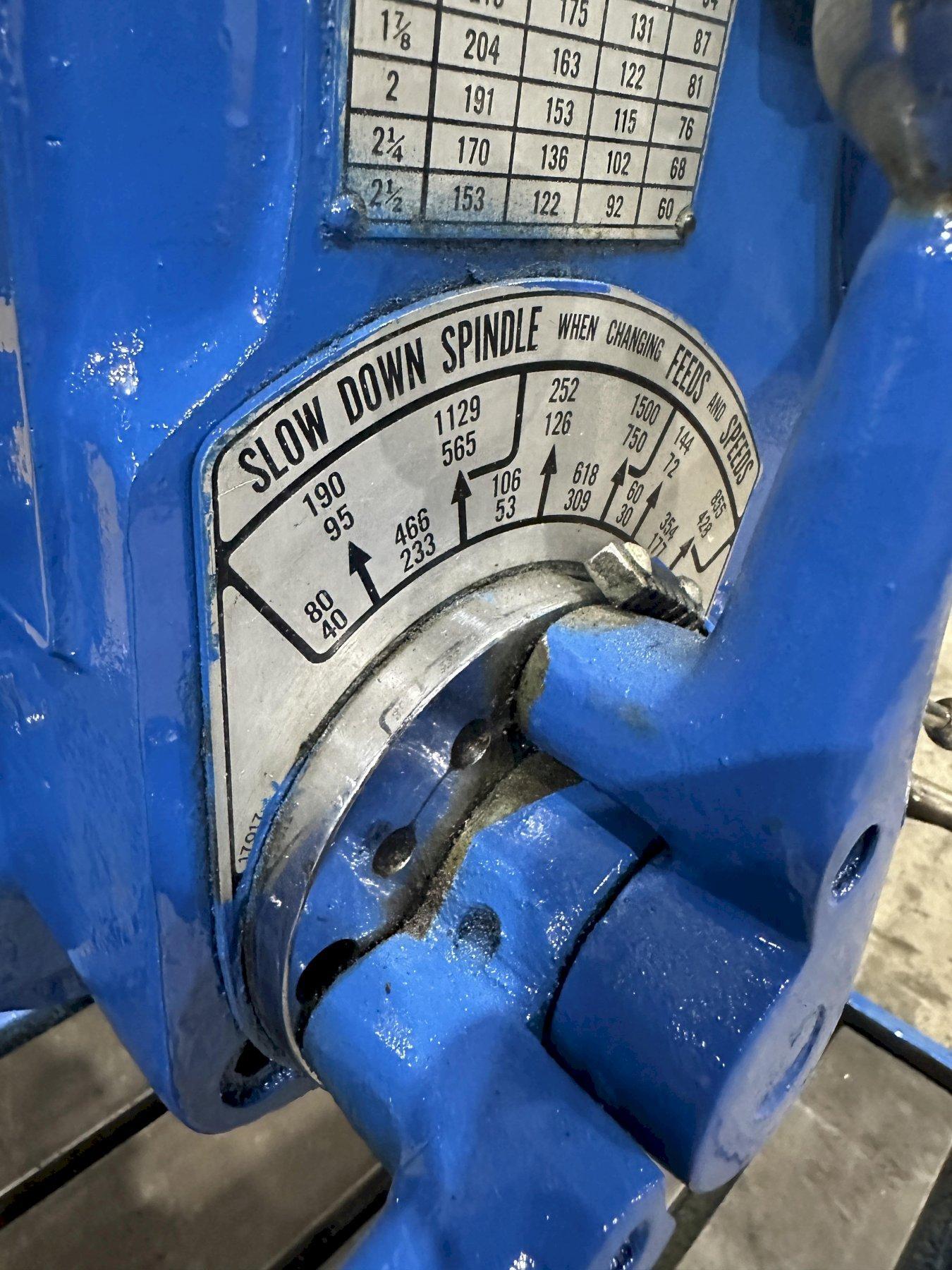

SPINDLE SPEEDS .............. (12) 60 TO 1500 RPM

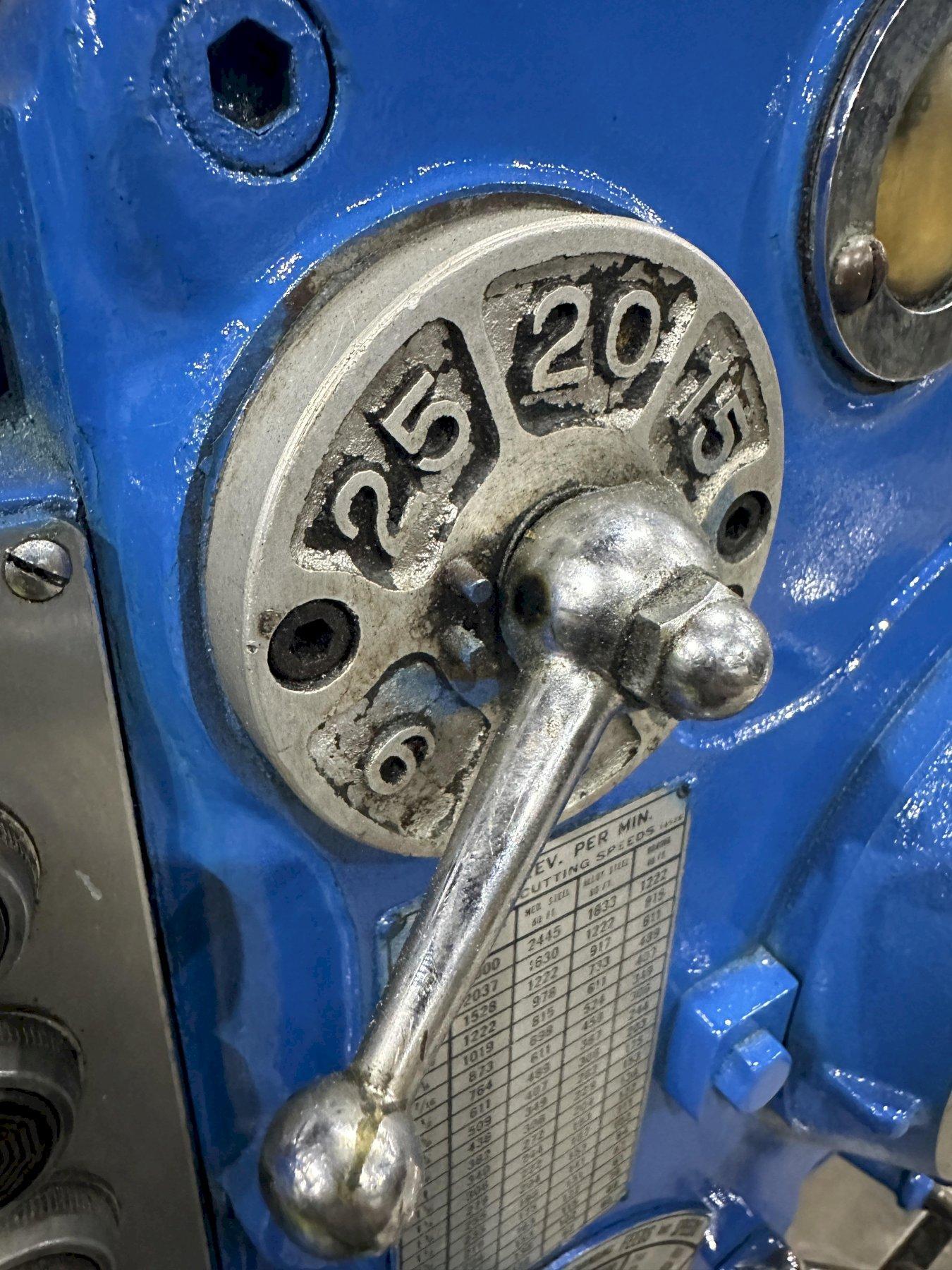

FEEDS ....................... (6) .004 TO .025 IPR
SPINDLE TRAVEL .............. 12"
TAPER IN SPINDLE ............ #4MT

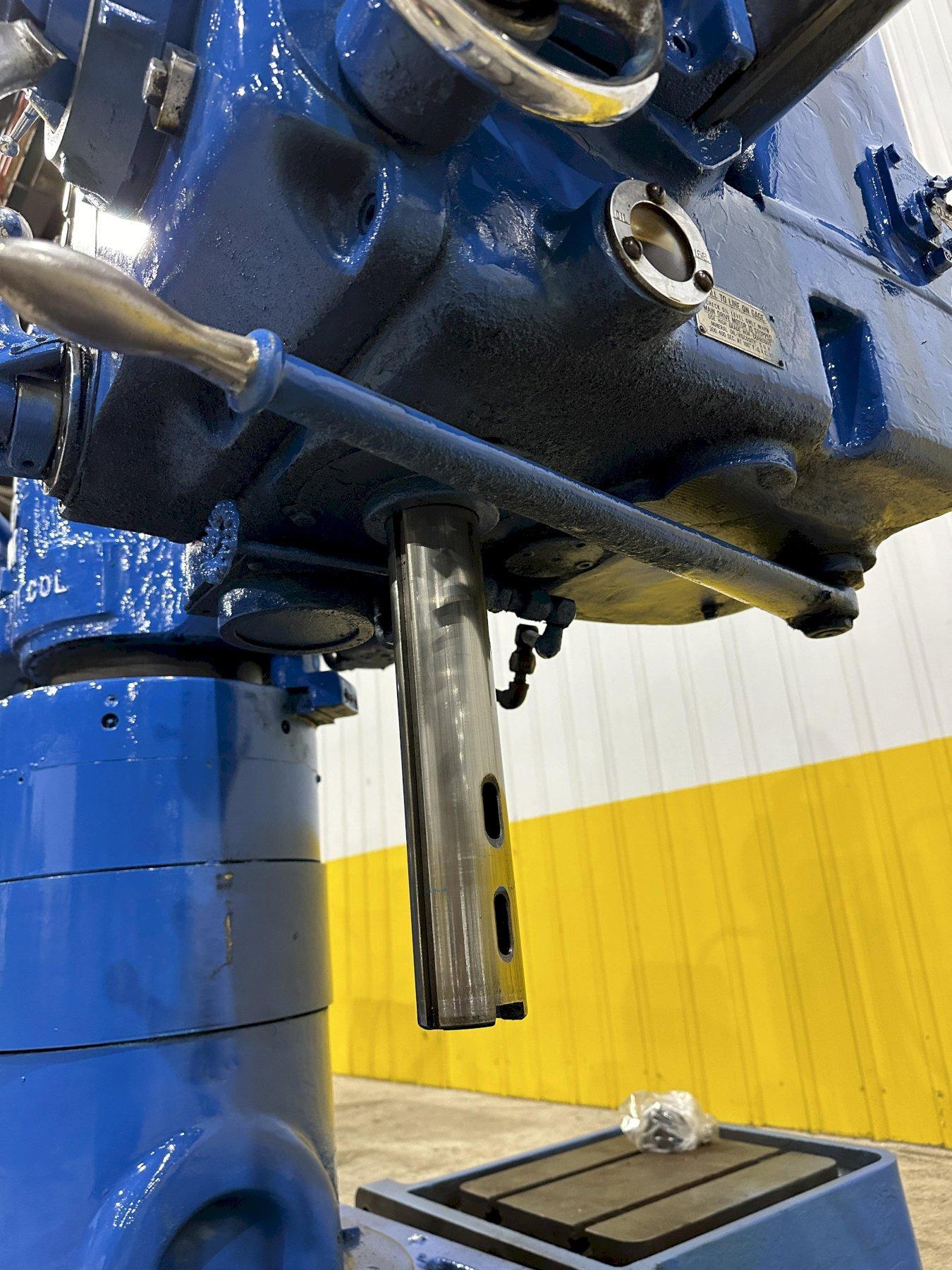

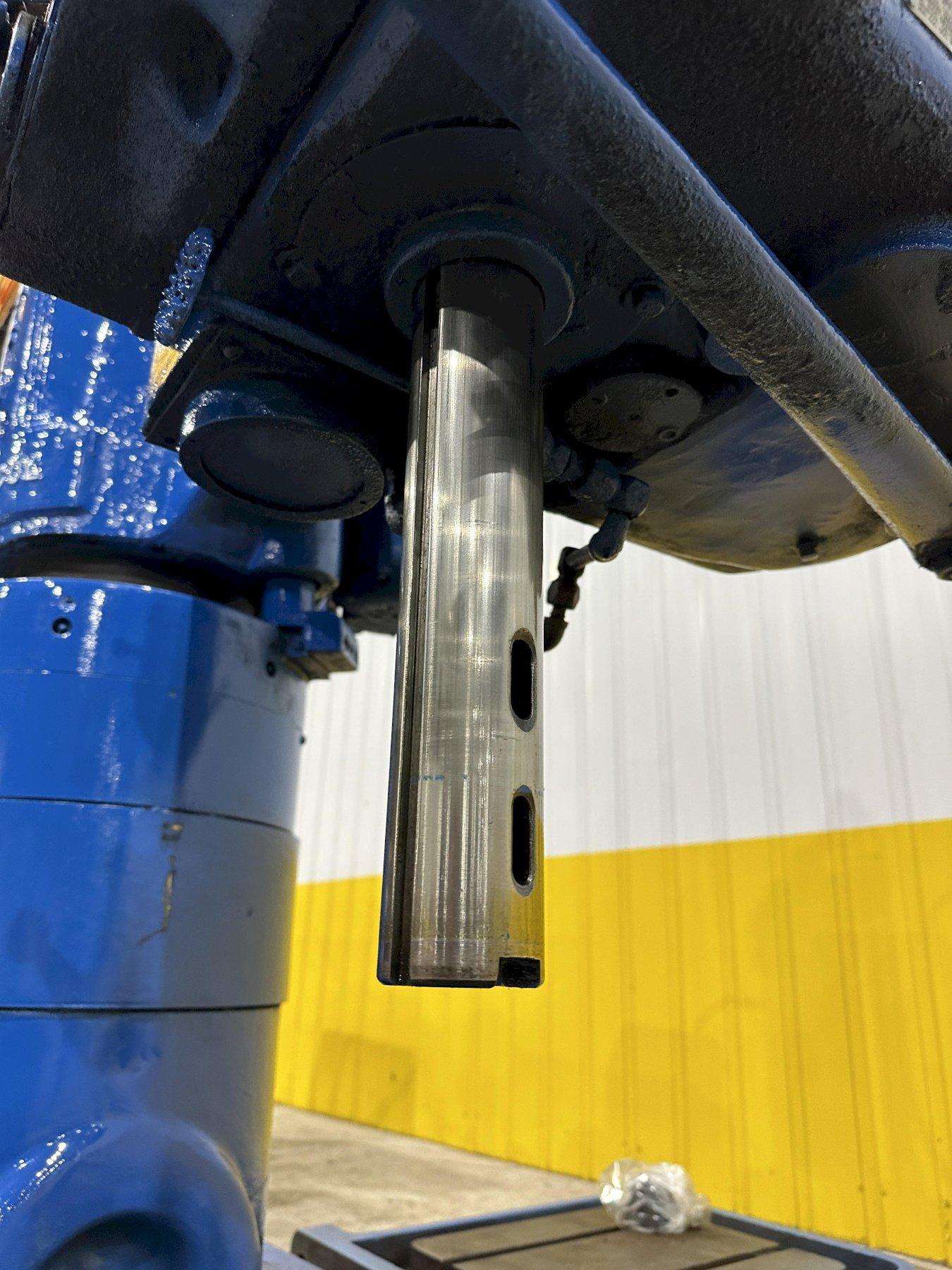

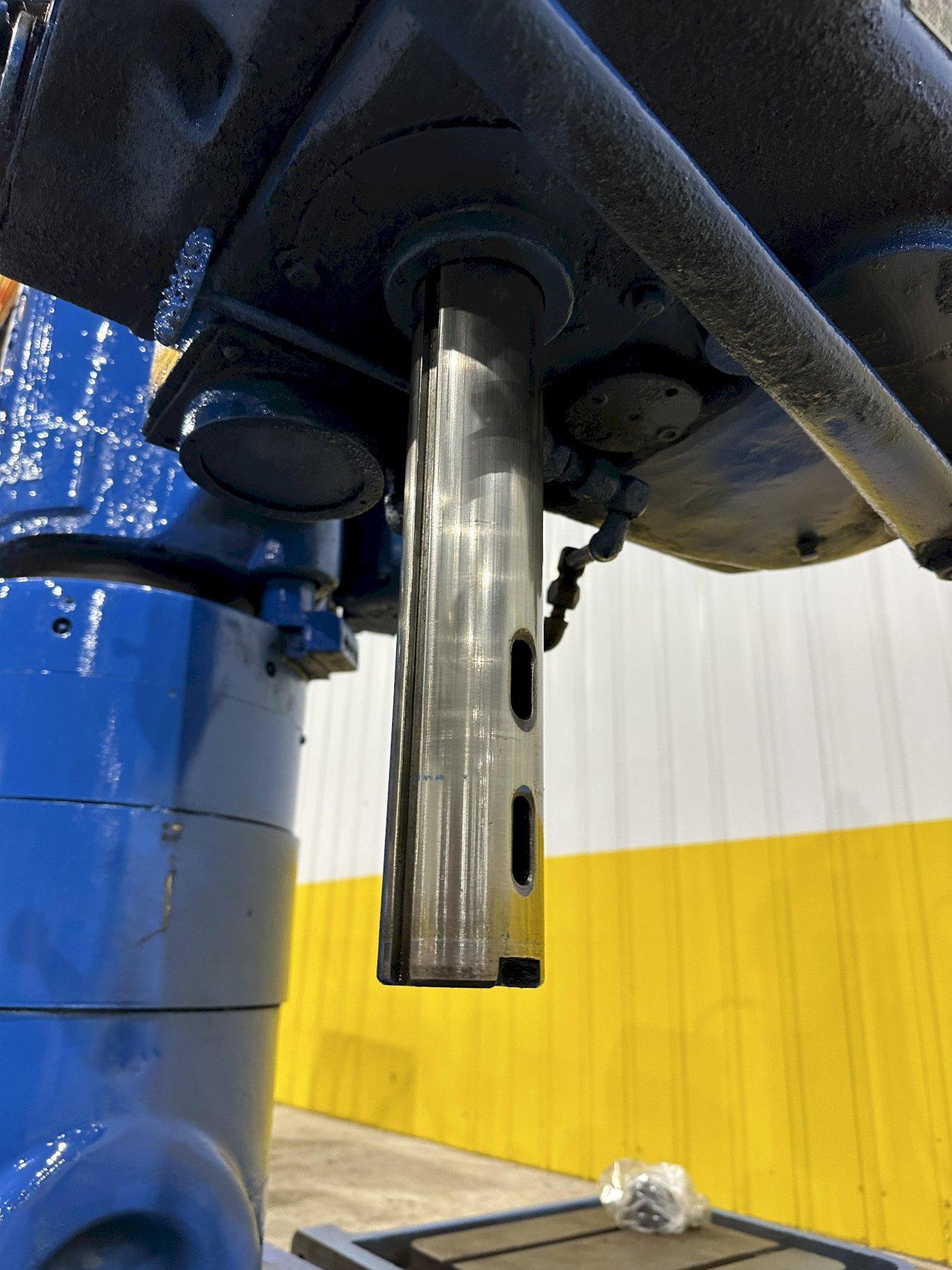

DIAMETER OF SPINDLE ......... 2-1/2"
DISTANCE SPINDLE TO BASE .... 26" MINIMUM, 54" MAXIMUM
TRAVEL OF ARM ON COLUMN ..... 28-1/2"

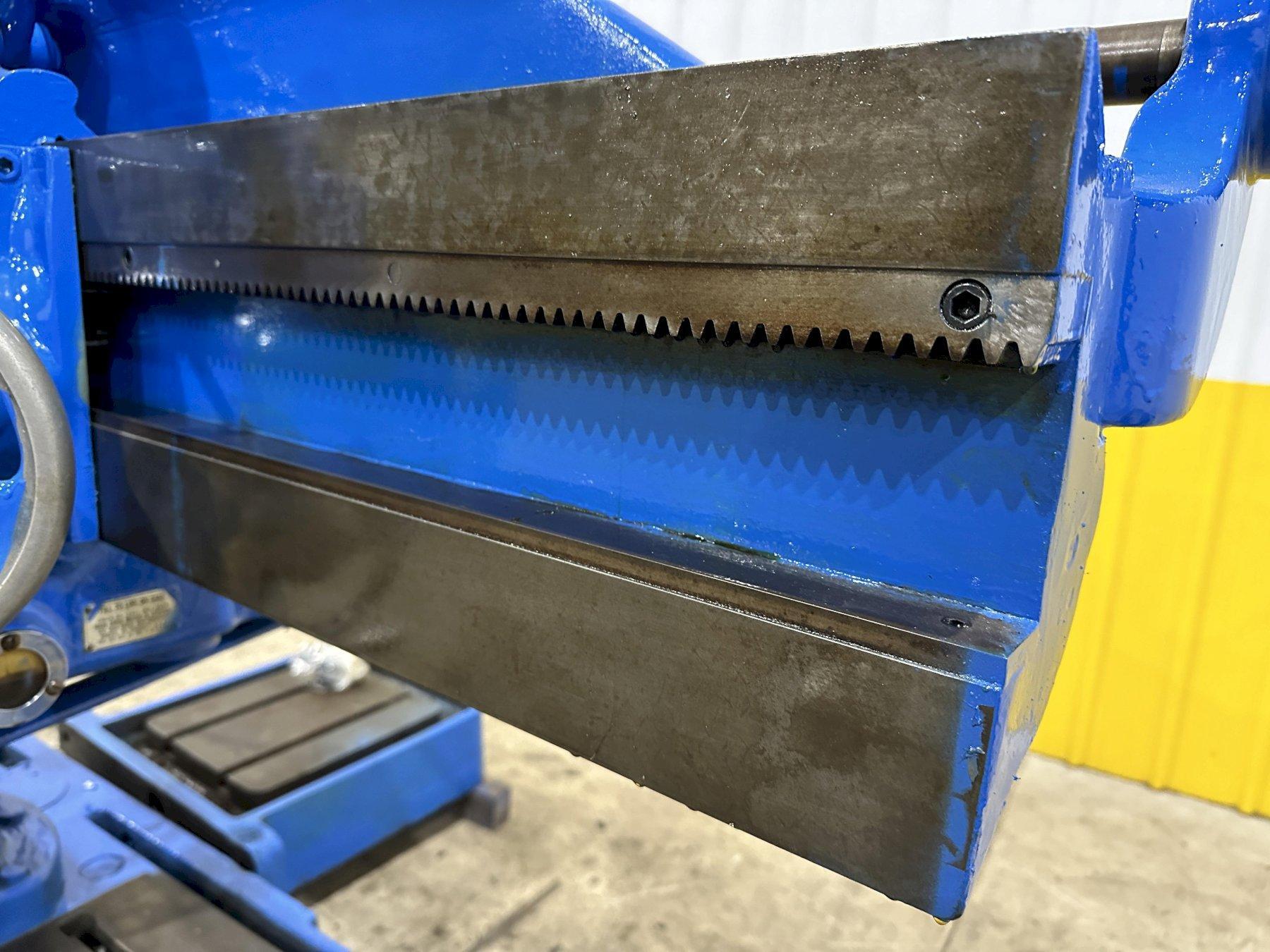

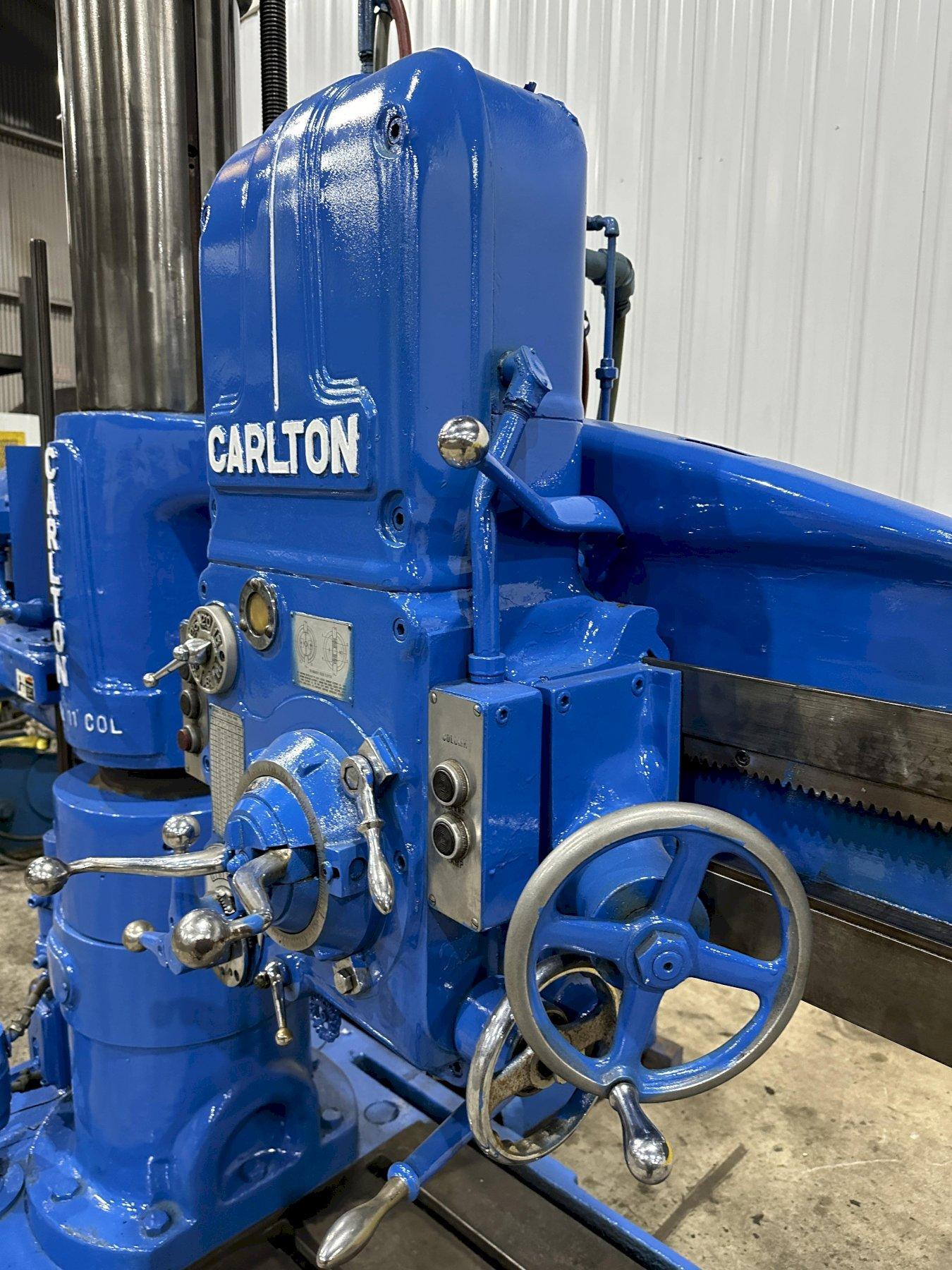

TRAVEL OF HEAD ON ARM ....... 39"
POWER COLUMN CLAMP .......... YES
POWER ELEVATION ............. YES

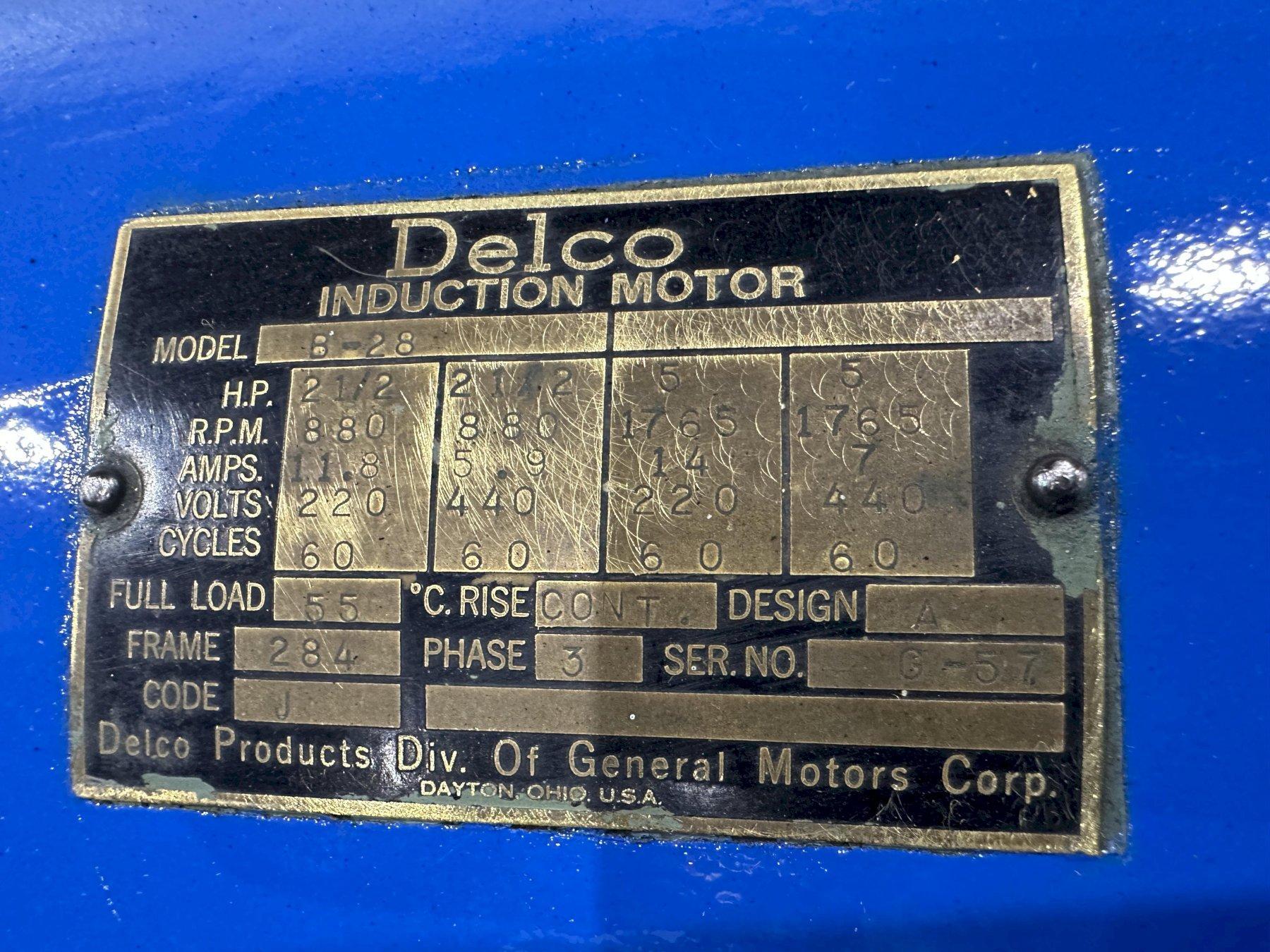

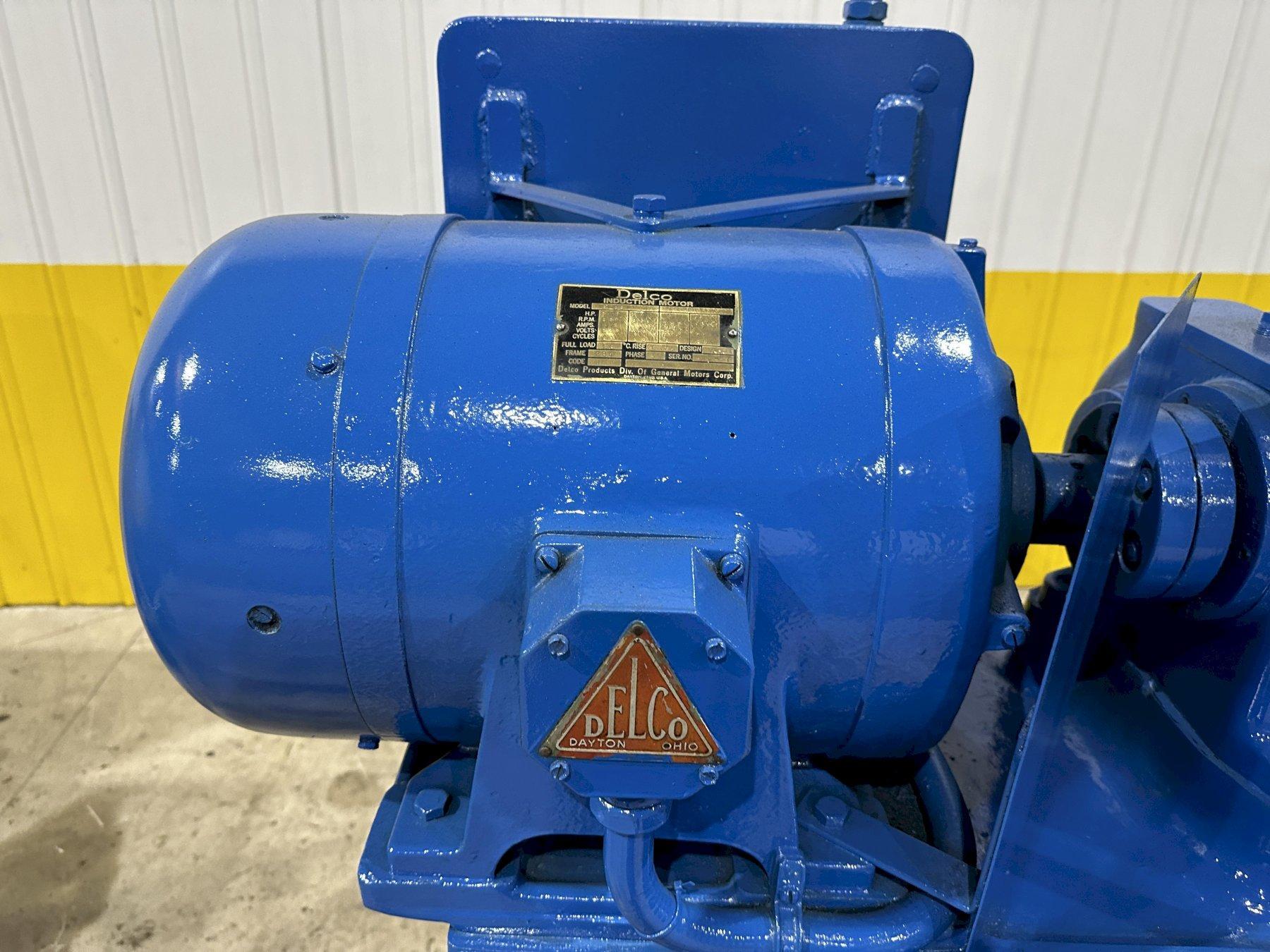

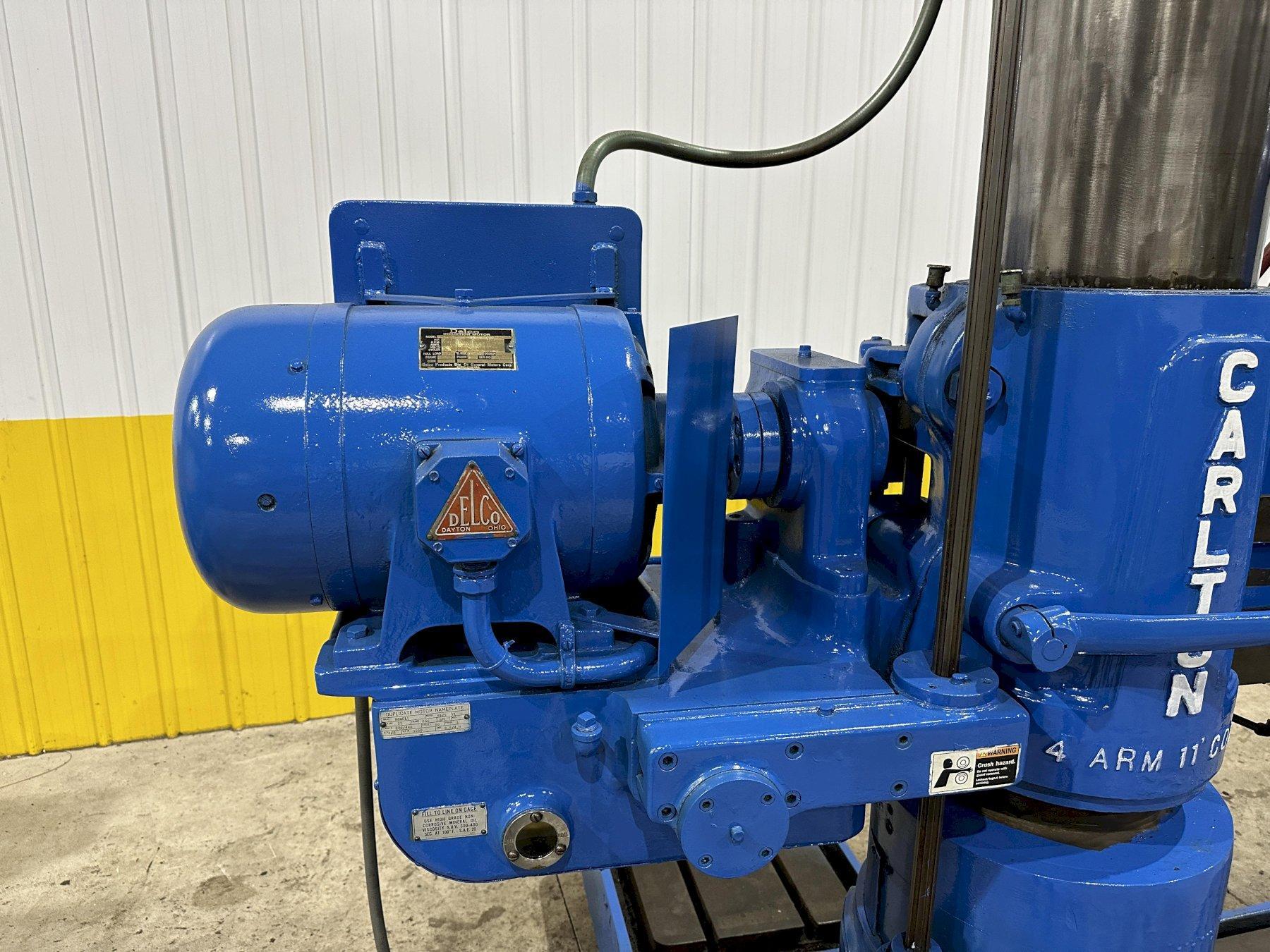

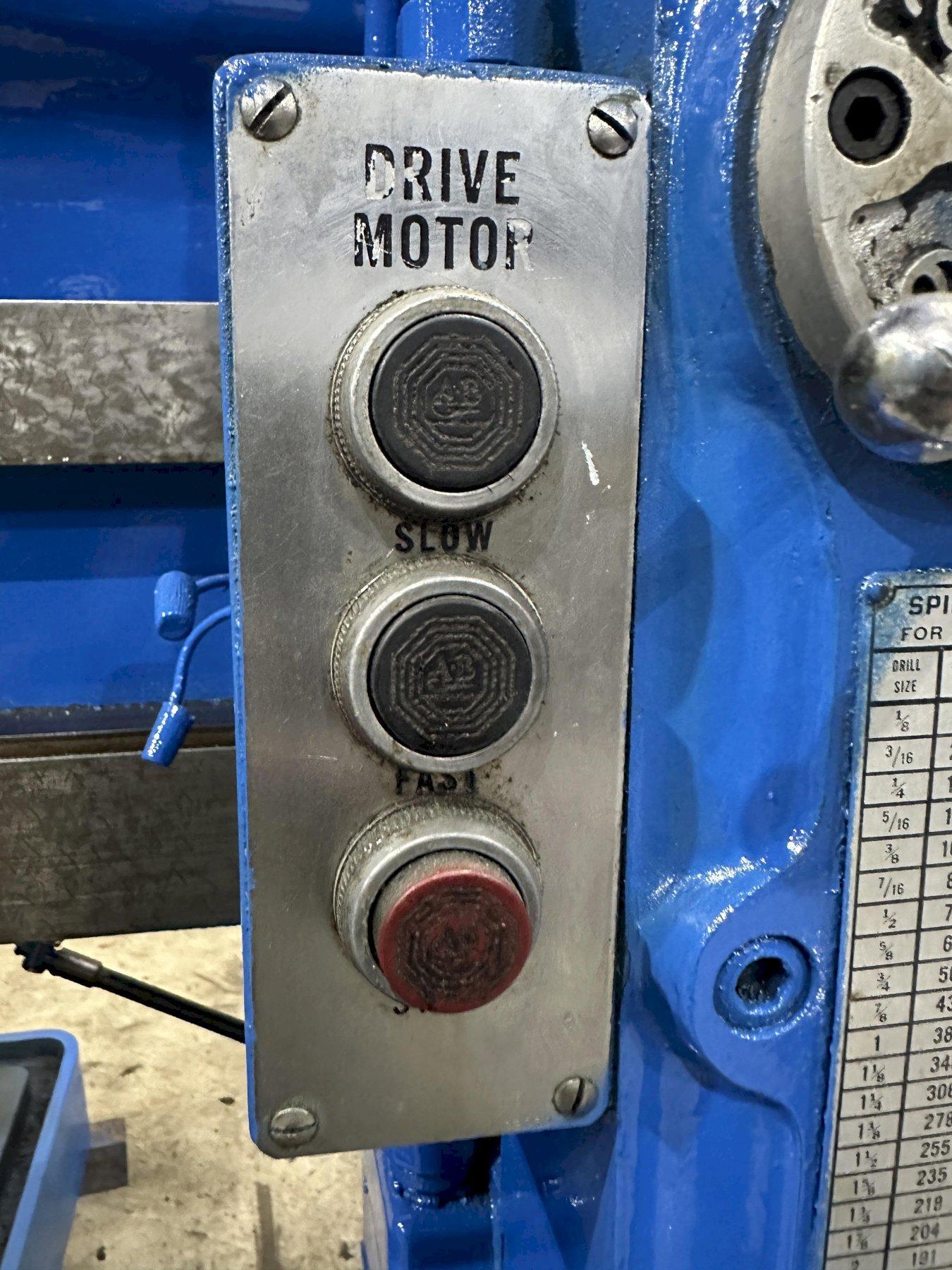

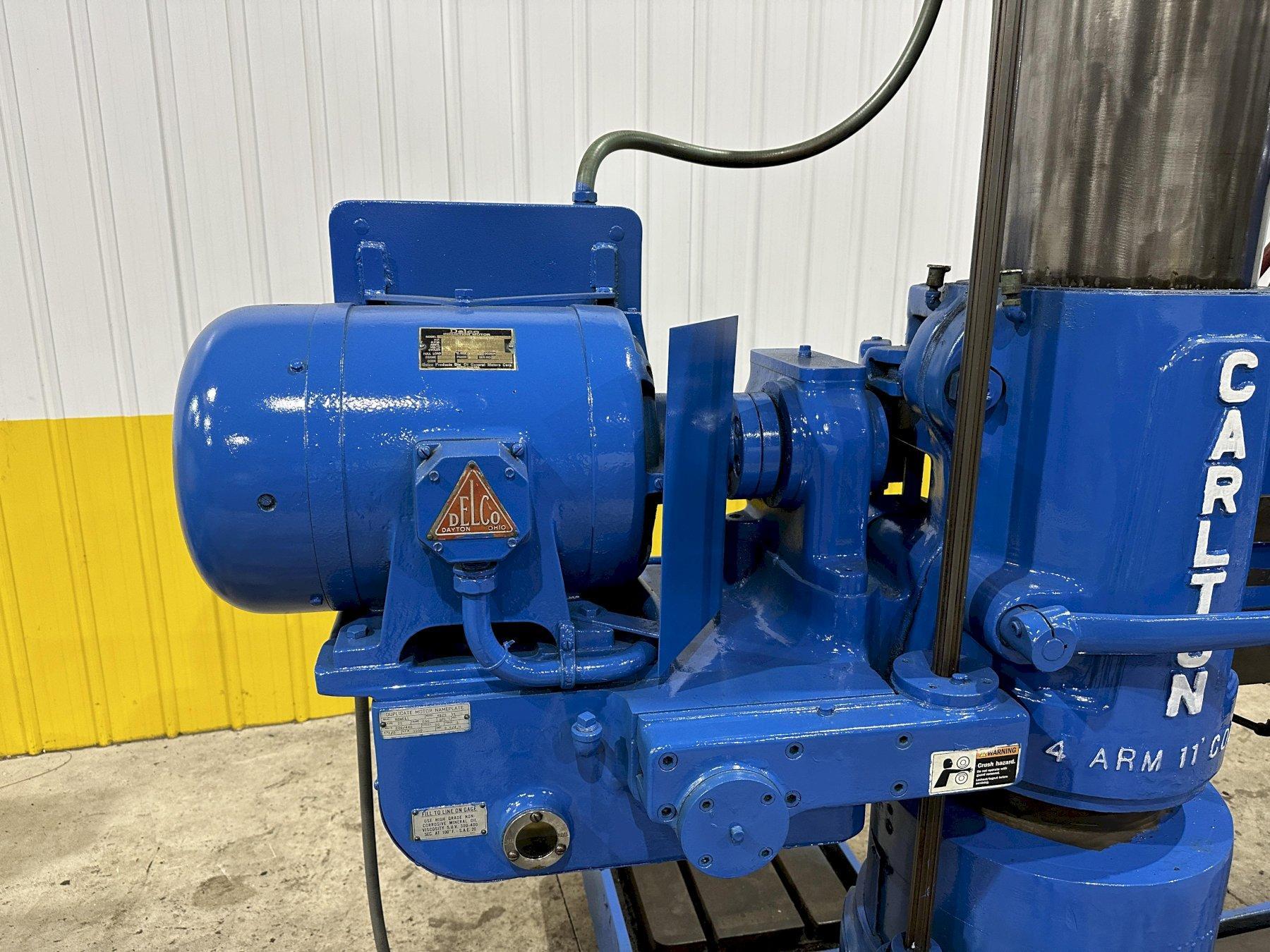

MOTOR ....................... 5 HORSEPOWER
