CIDAN Forma 30 Combi Beam, 11 Ga x 122", 61" BG, Multifold Tooling Sys., Crowning, Pro-Link Touchscreen. 2018 #32913

Manufacturer

CIDAN

Stock

32913

Model

Forma 30

Dealer Location

New York

Spec Sheet

Reference #32913

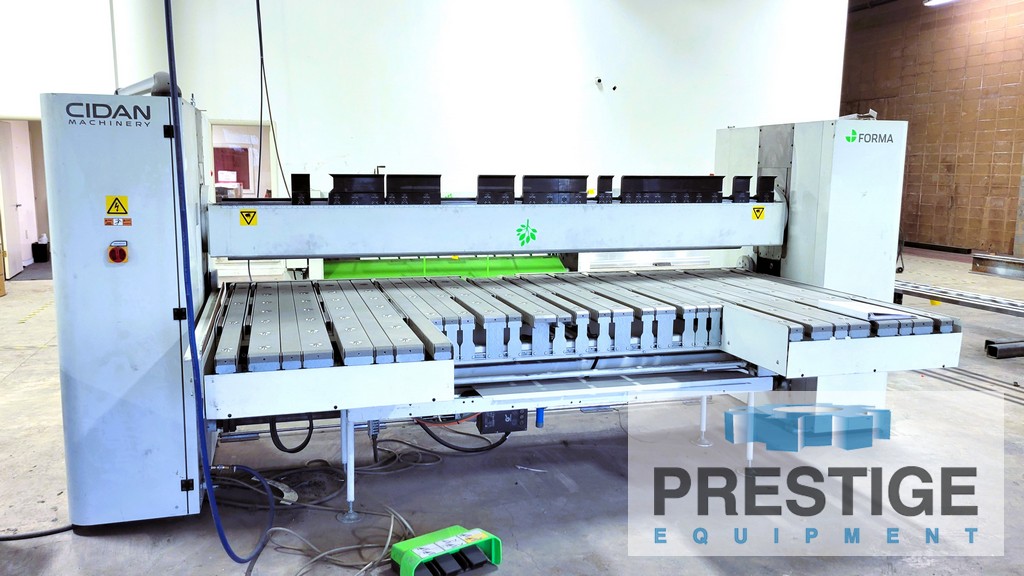

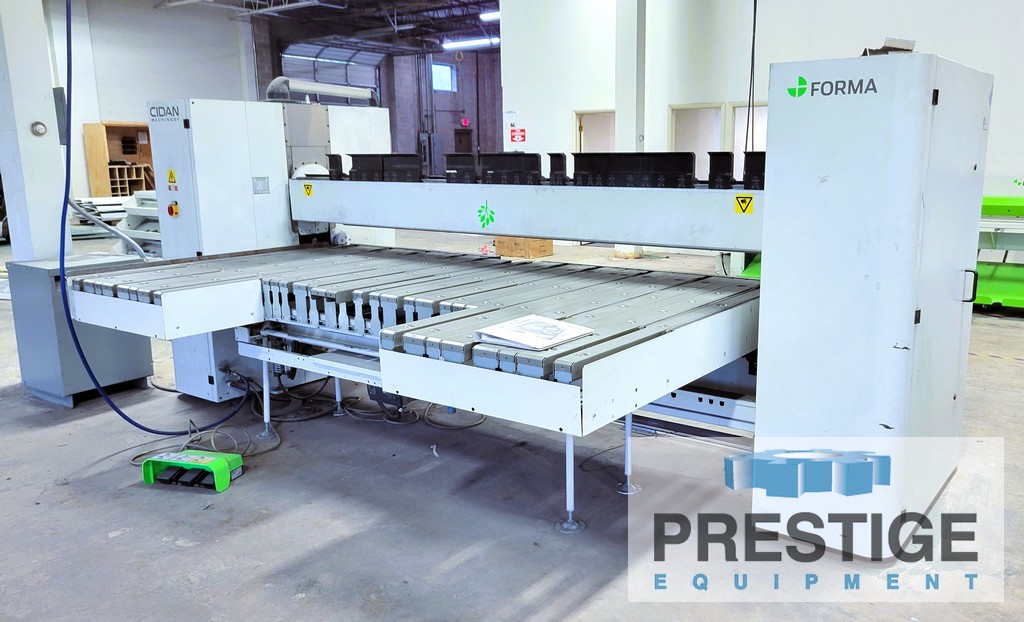

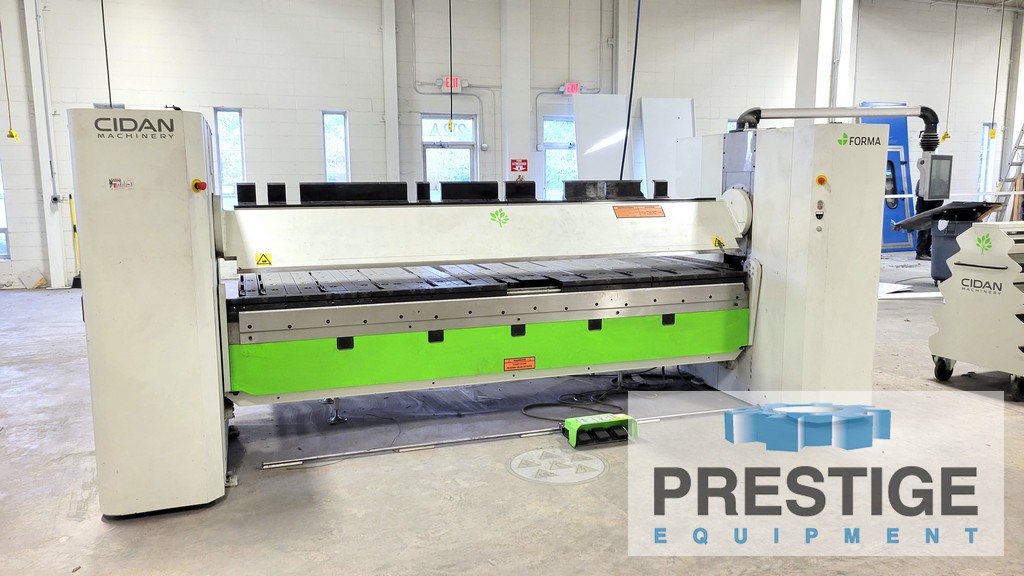

CIDAN Forma 30 11 Ga x 122" Combi Beam CNC Folding Machine

FEATURES:

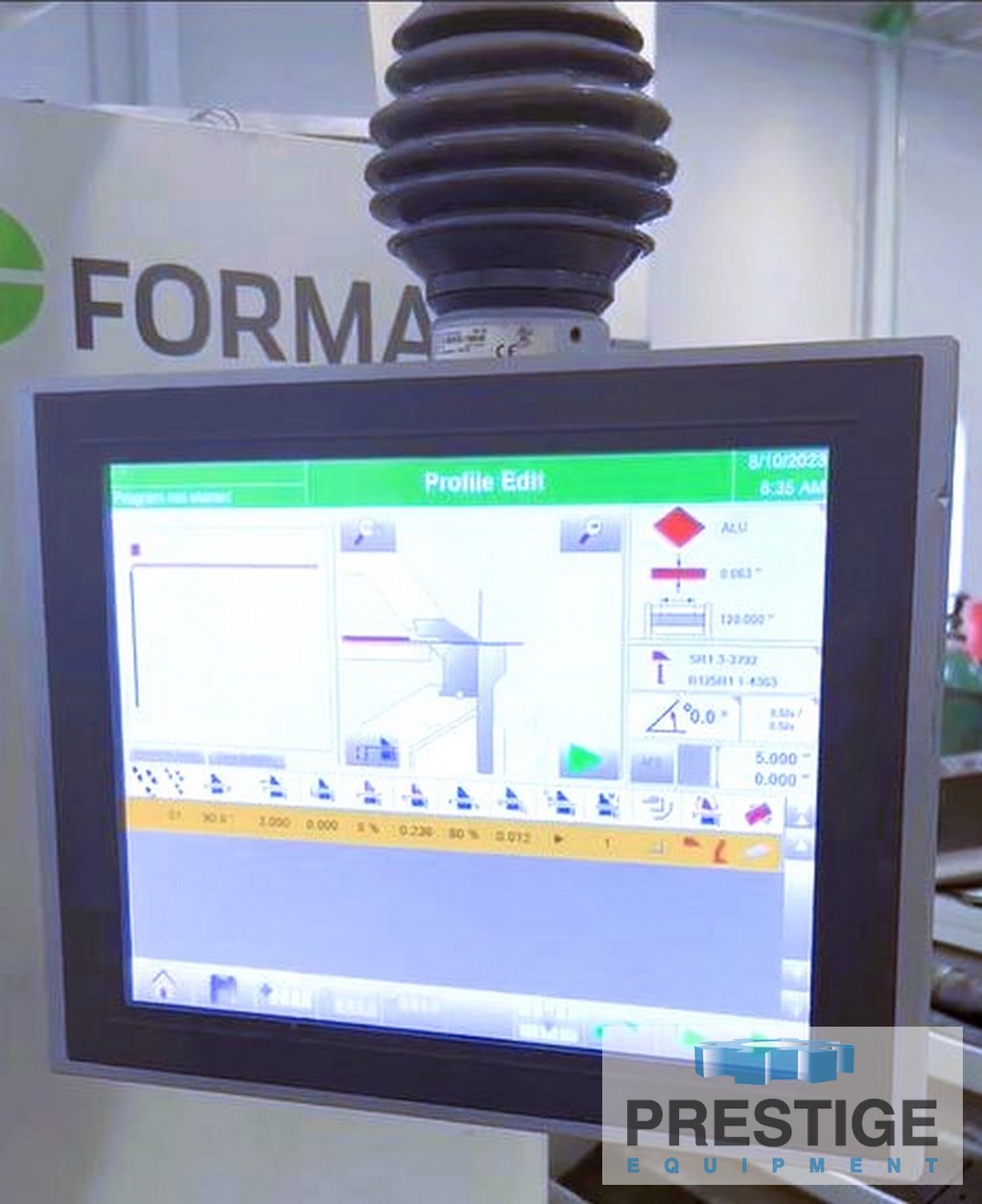

Pro-Link Touchscreen CNC Control
Automatic Combi-Beam
61" AGS Modular Adjustable Height Back Gauge
61" Squaring Arm

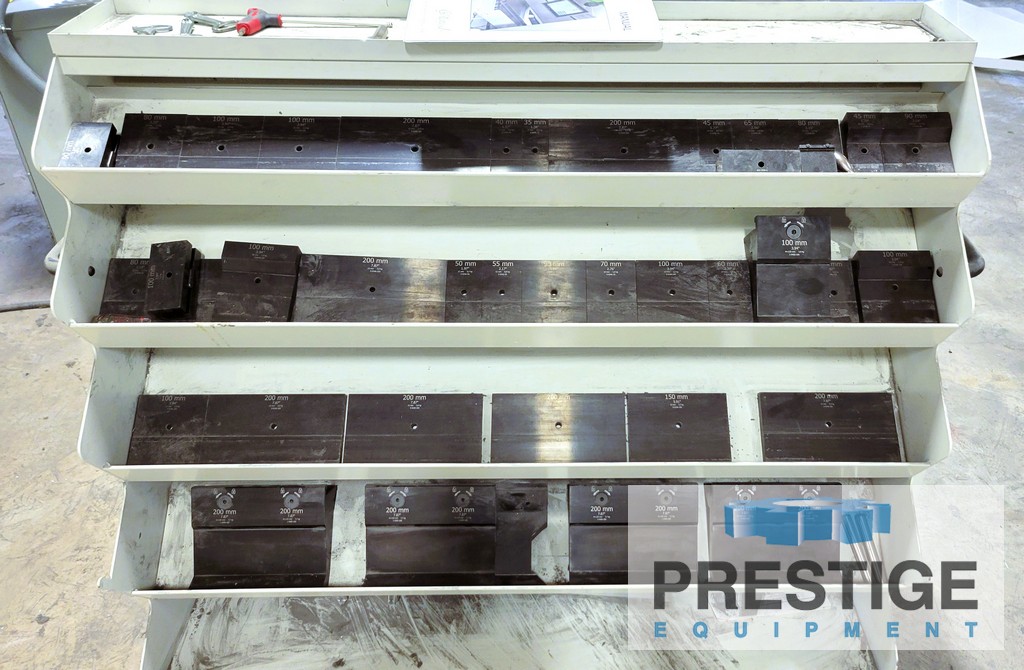

Multi-Fold Tooling System enables high precision forming with segmented tooling
Segmented folding & Lower beam tooling
Crowning Adjustment

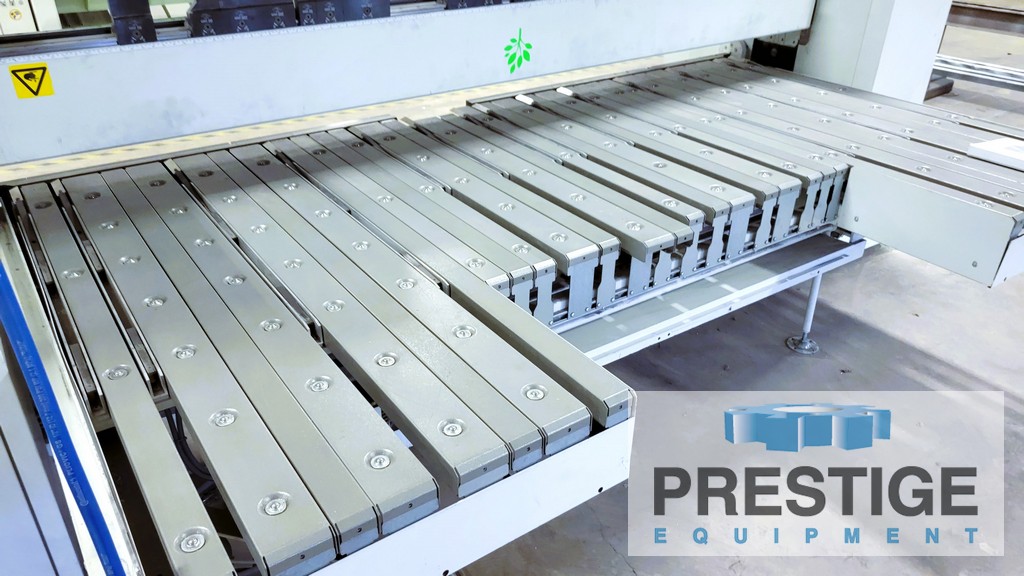

Ball Casters On Back Gauge Table
Front & Rear Foot Switches

SPECIFICATIONS:
Folding Capacity Mild Steel ........... 11 Ga.
Maximum Bending Width ................. 122"
Clamping Beam Open Height ............. 7.7"
Back Gauge Range ...................... 61"
Main Motor ............................ 10.59 HP
Approximate Machine Weight ............ 9,920 Lbs
Approximate Machine Dimensions ........ 16"" H x 71" W x 73" H

EQUIPPED WITH:
Pro-Link Touchscreen CNC Control
Automatic Combi-Beam
61" AGS Modular Adjustable Height Back Gauge
61" Squaring Arm
Multi-Fold Tooling System enables high precision forming with segmented tooling
Segmented folding & Lower beam tooling
Crowning Adjustment
Ball Casters On Back Gauge Table
Front & Rear Foot Switches

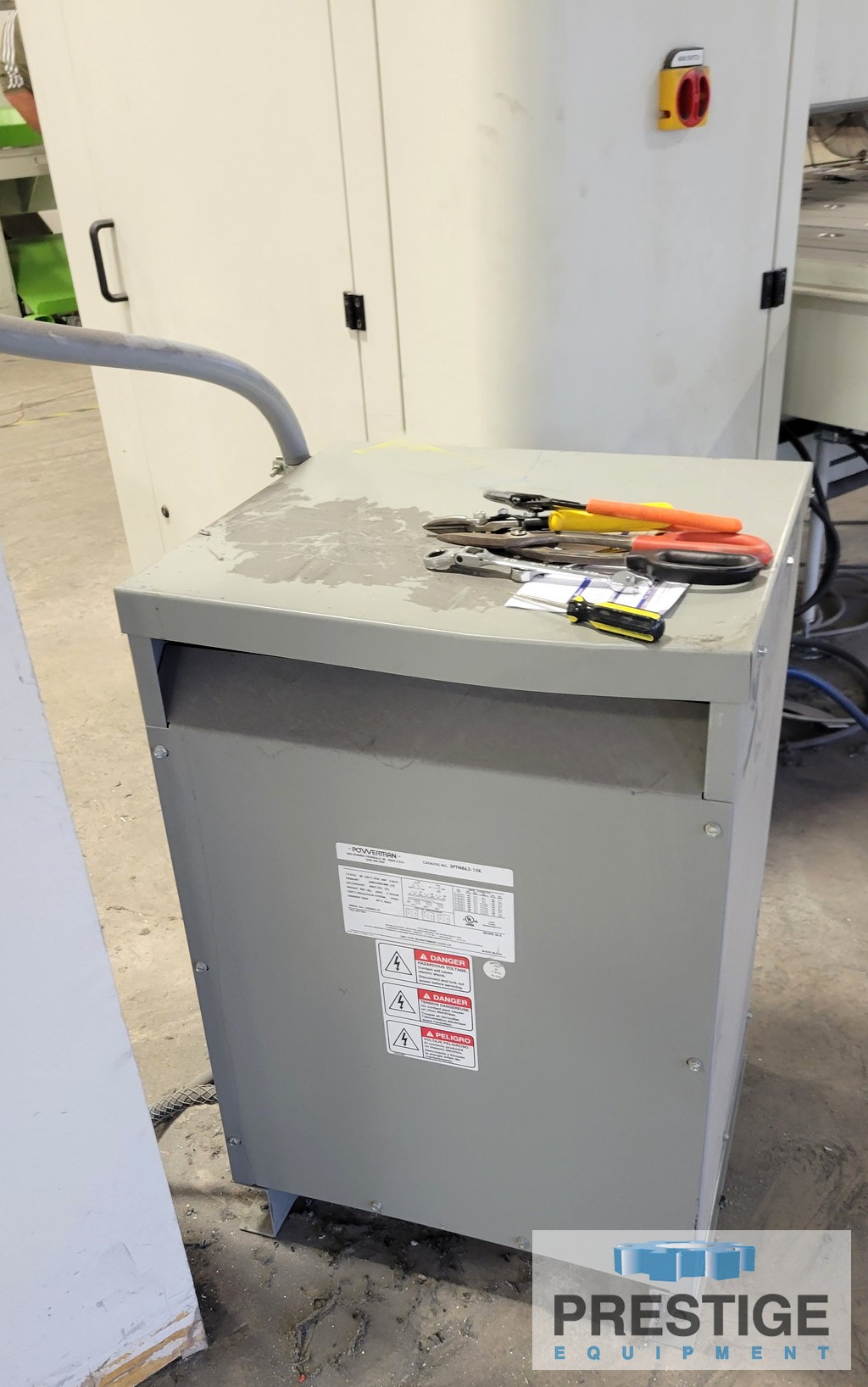

Transformer
Tool Cart

NOTE:
Inspect In Our Philadelphia PA Warehouse
