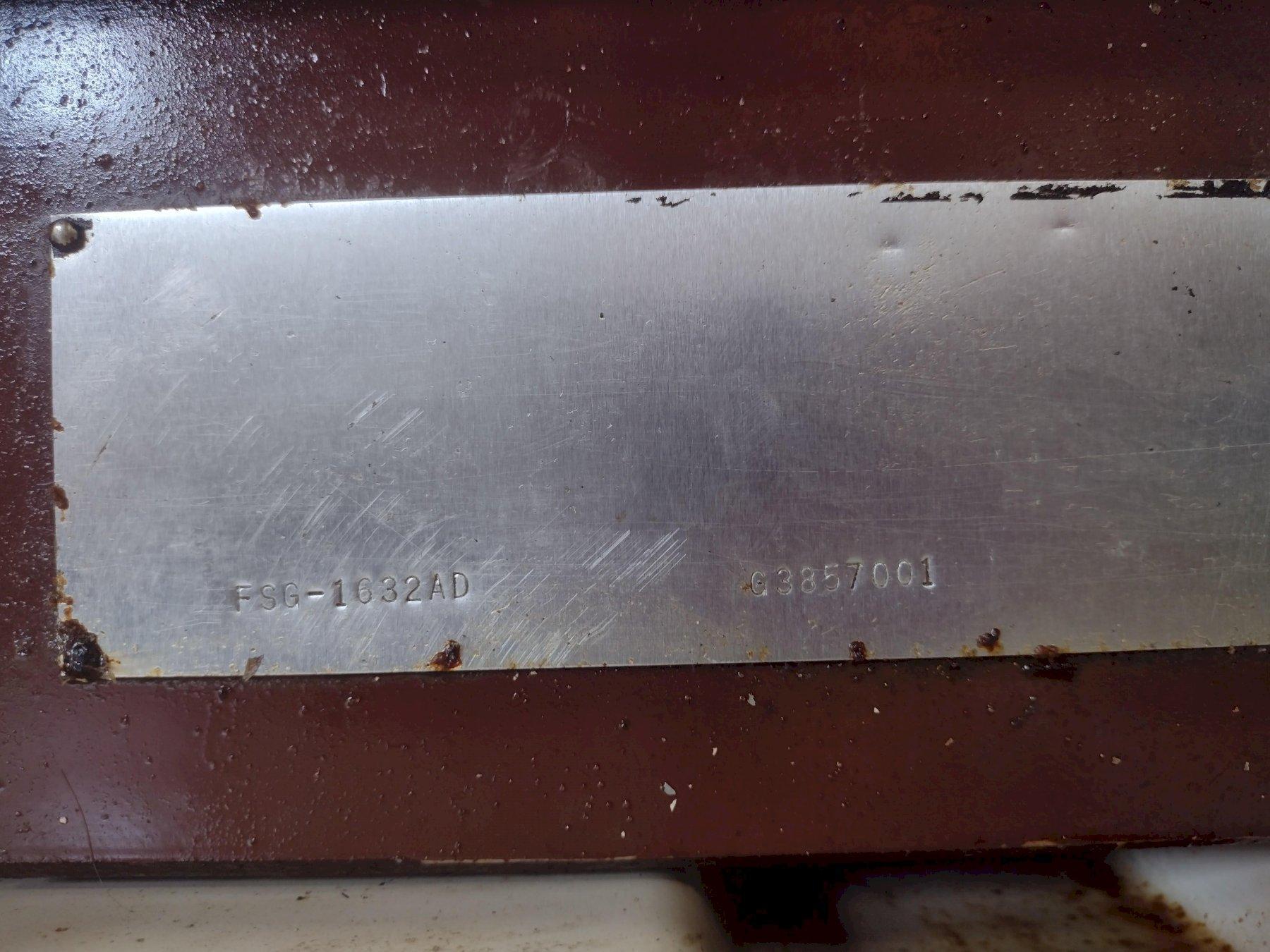

SERIAL ....................... G3857001
NEW .......................... 1996

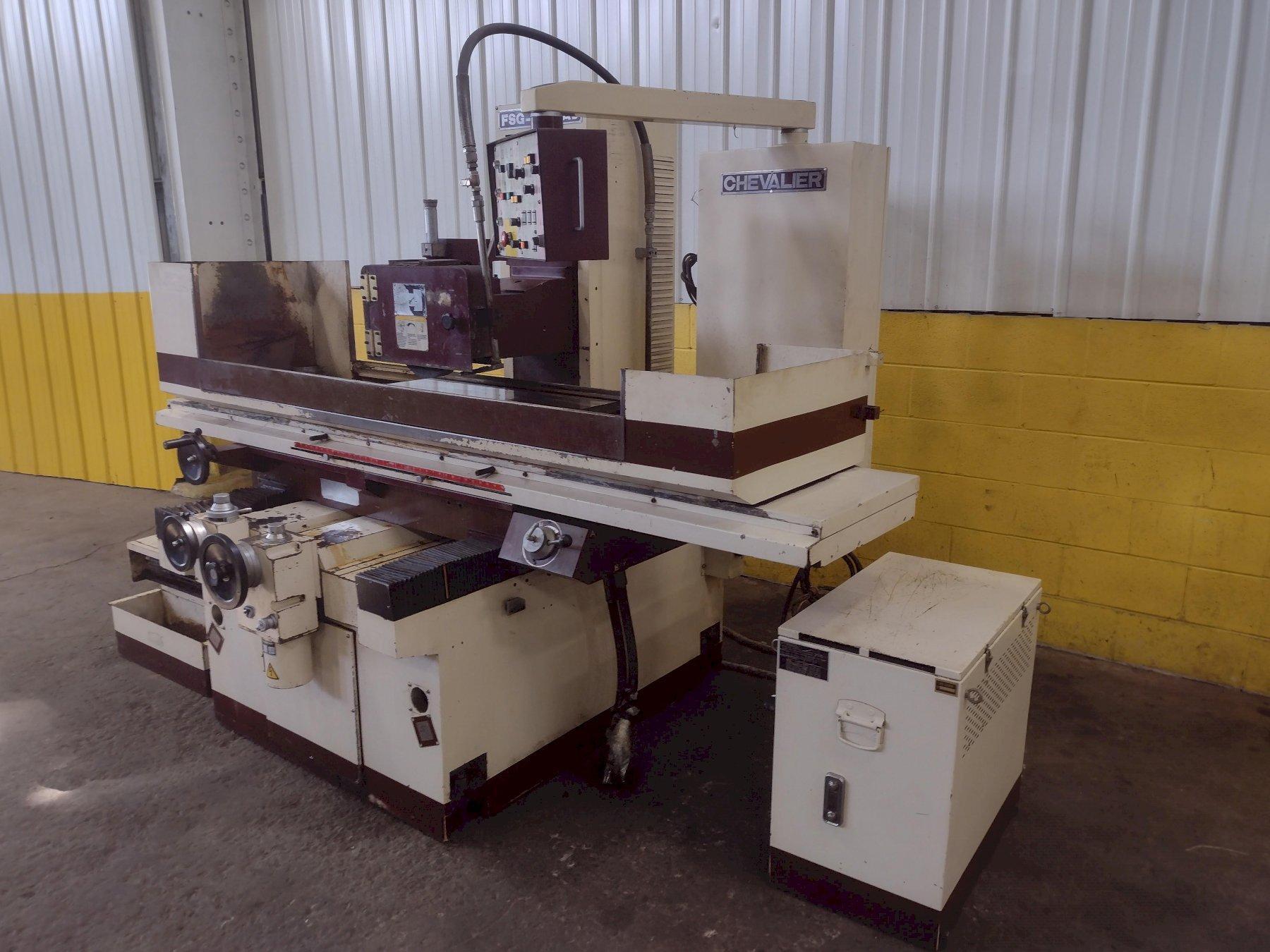

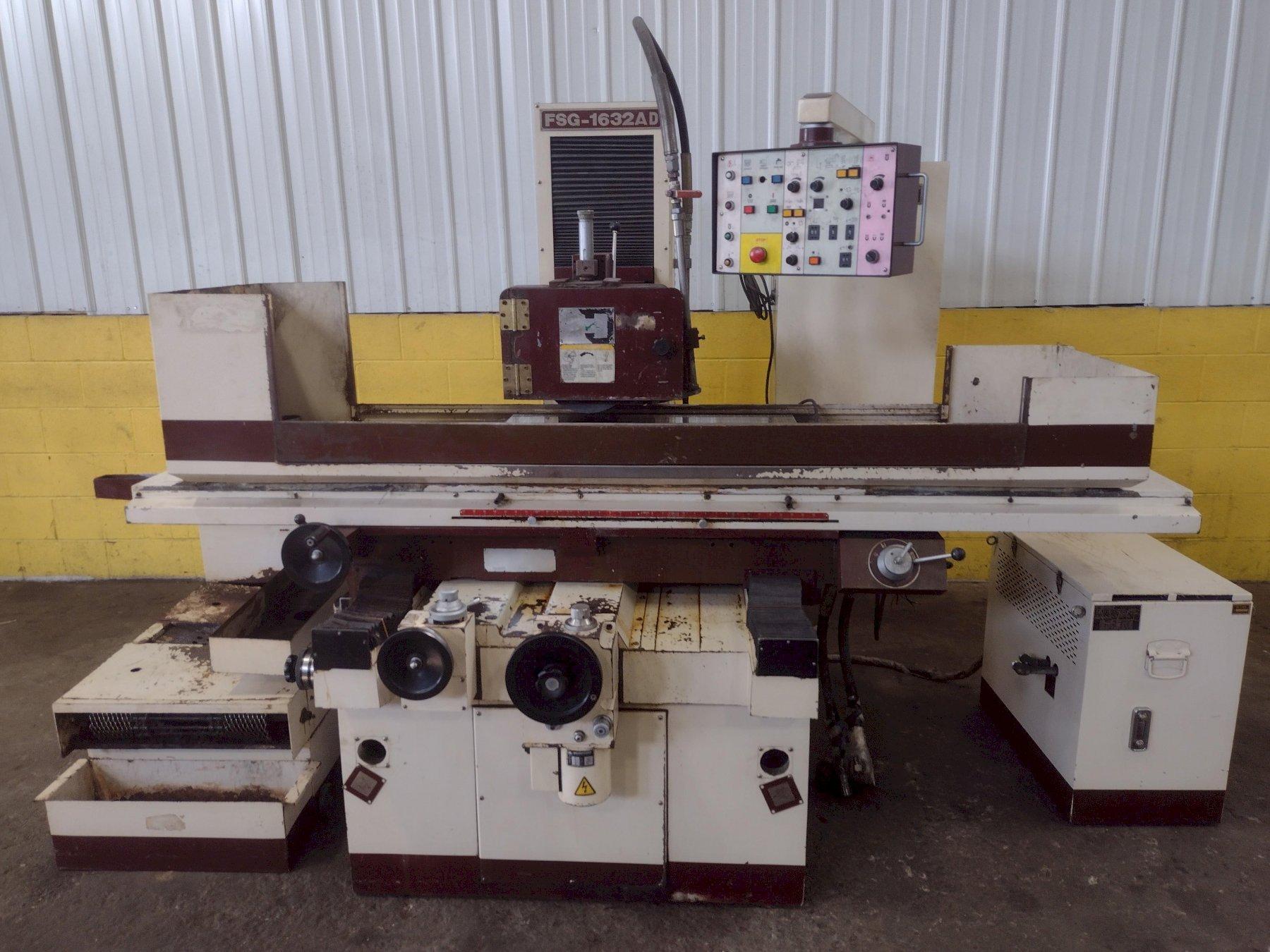

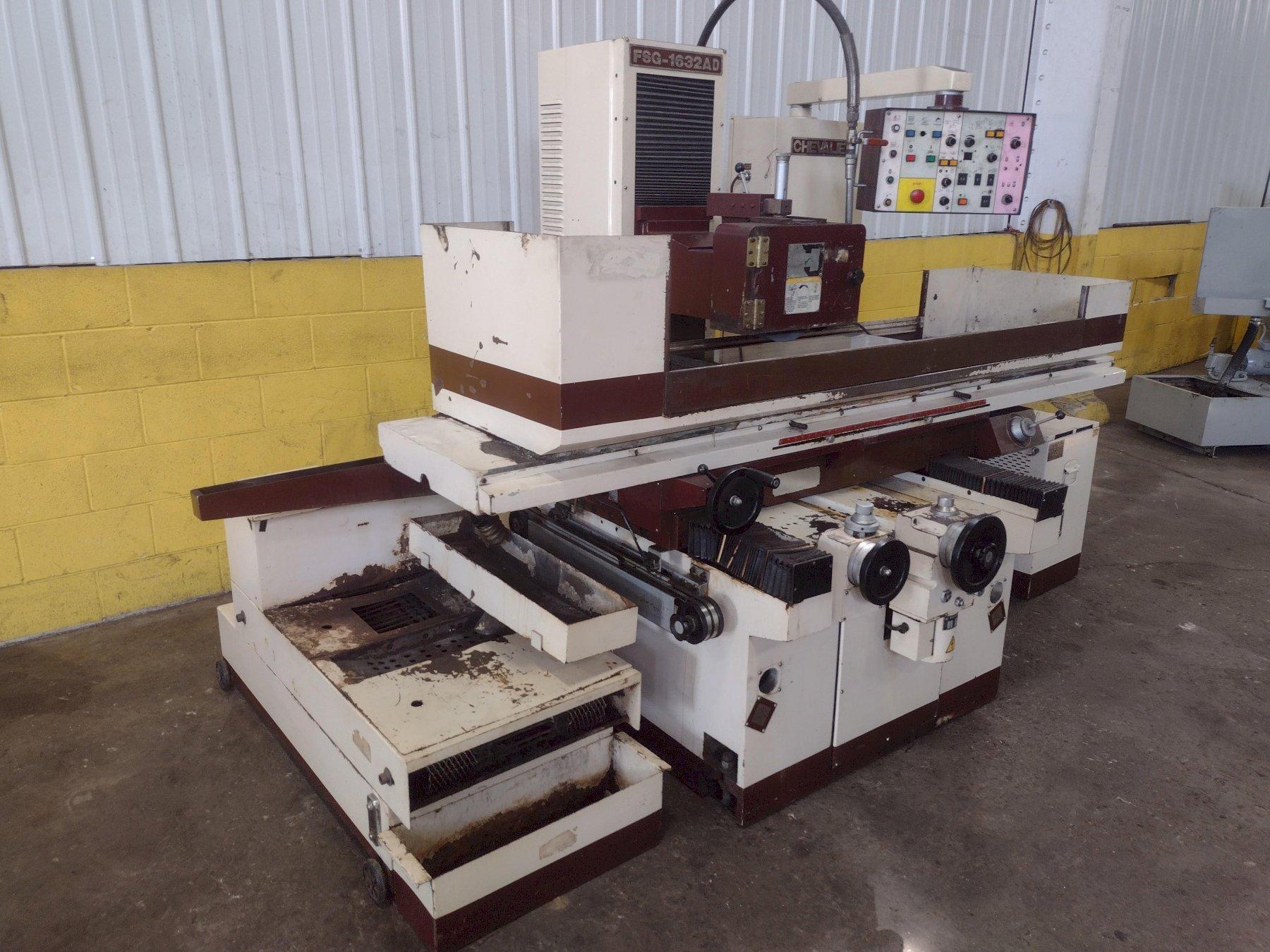

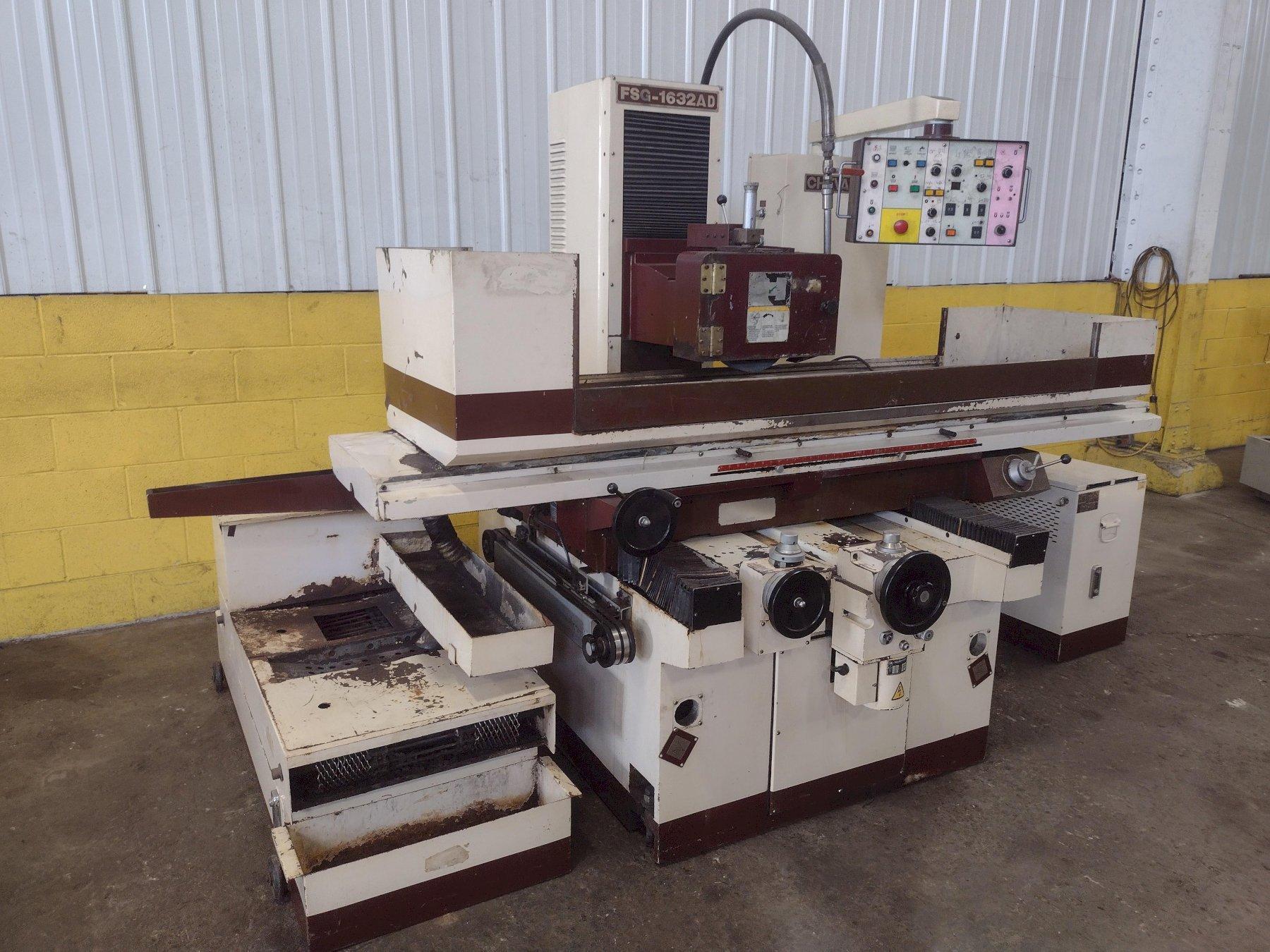

MODEL ........................ FSG-1632AD
GRINDING CAPACITY ............ 16" X 32"
SPINDLE TO TABLE (MAXIMUM) ... 24"
LONGITUDINAL TABLE TRAVEL .... 35-3/8"
CROSS TABLE TRAVEL ........... 18"
TABLE SPEED (VARIABLE) ....... 5 TO 25 FPM
SPINDLE SPEED ................ 3450 RPM

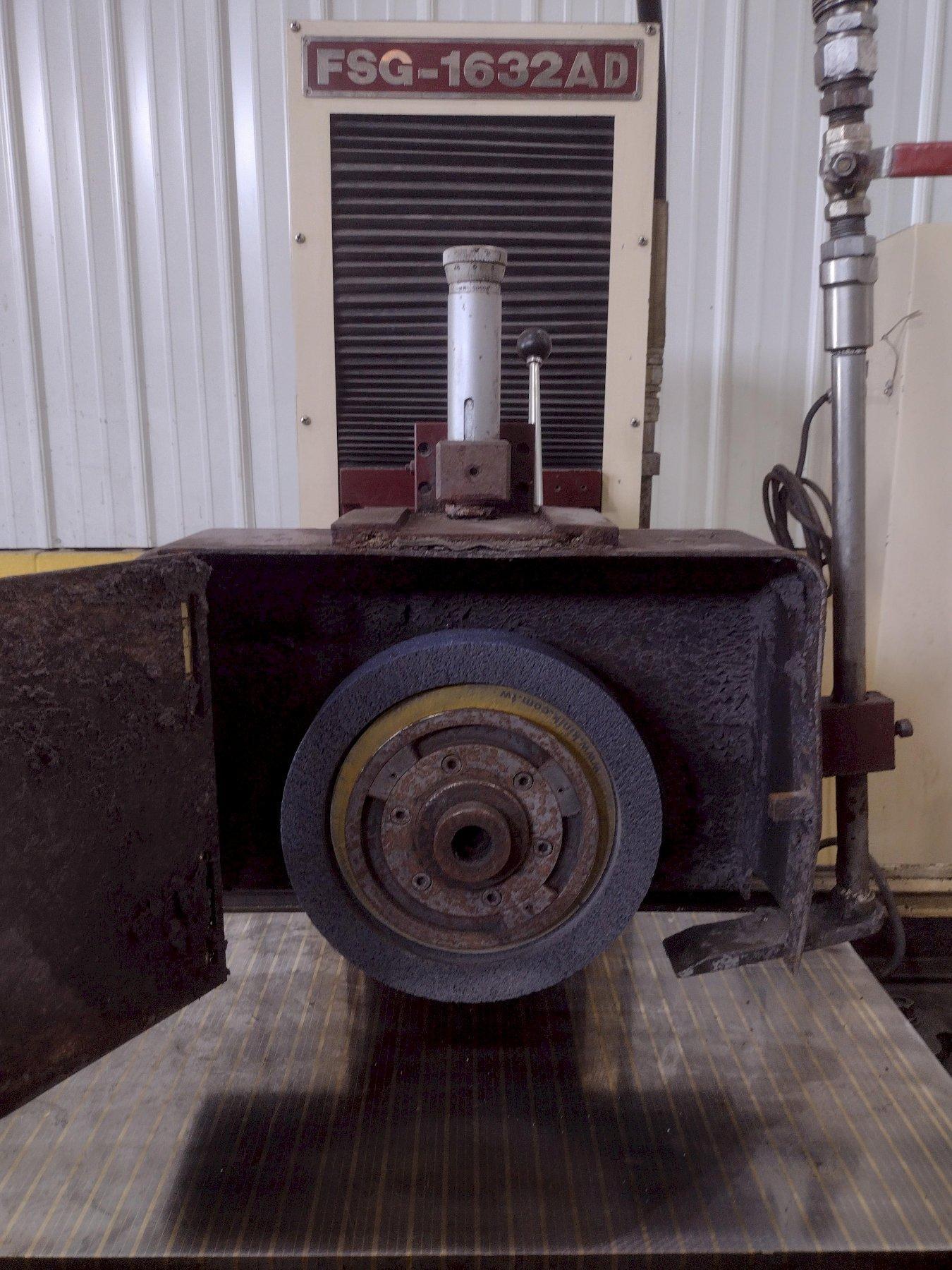

GRINDING WHEEL SIZE .......... 14" X 2" X 5"

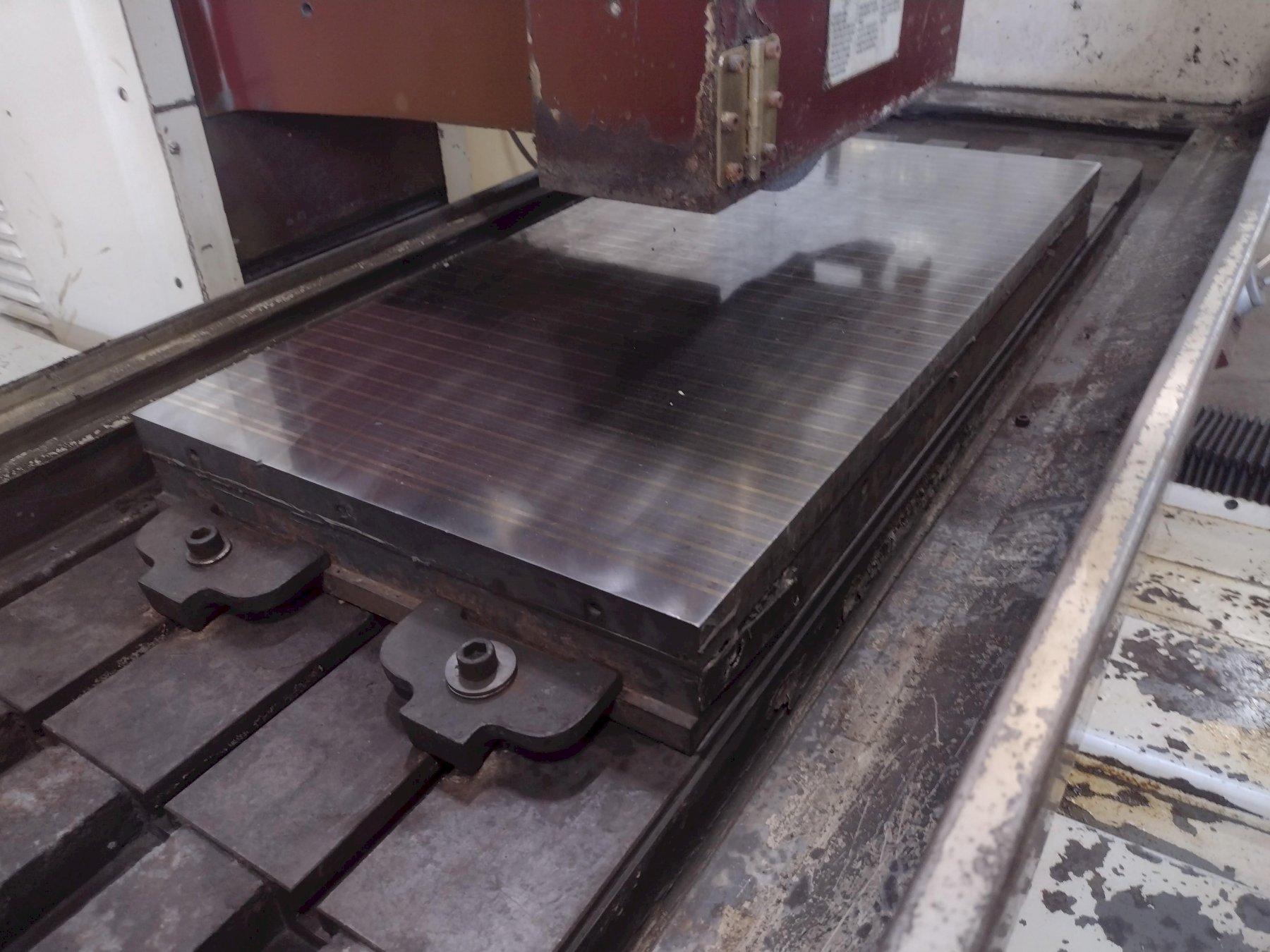

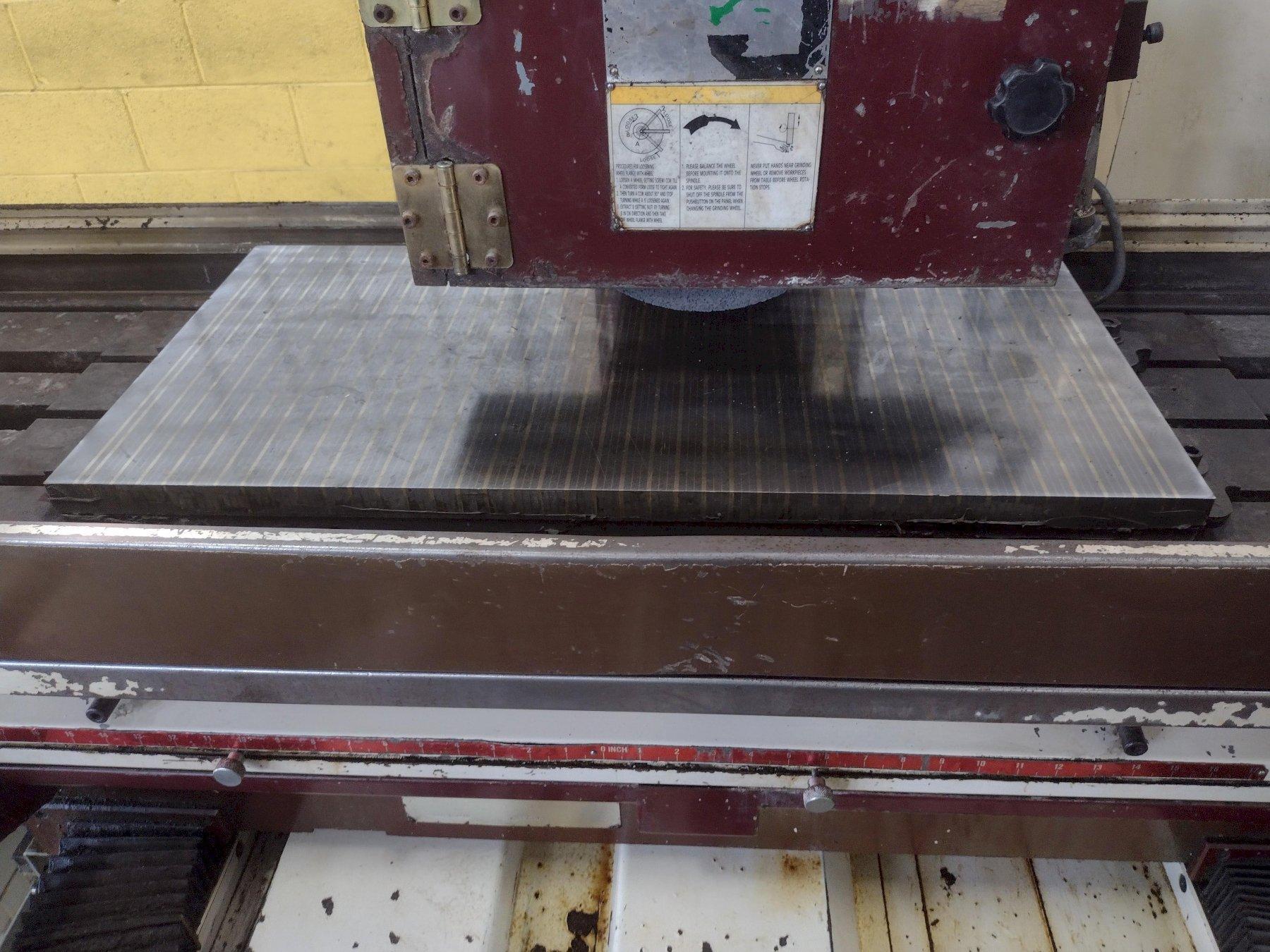

ELECTRO-MAGNETIC CHUCK SIZE .. 32-3/8" X 15-3/4"
INCREMENTAL DOWNFEED ......... 0.00005" TO 0.002"
AUTOMATIC CROSSFEED .......... 0.005 IPR
POWER ELEVATION .............. 12 FPM

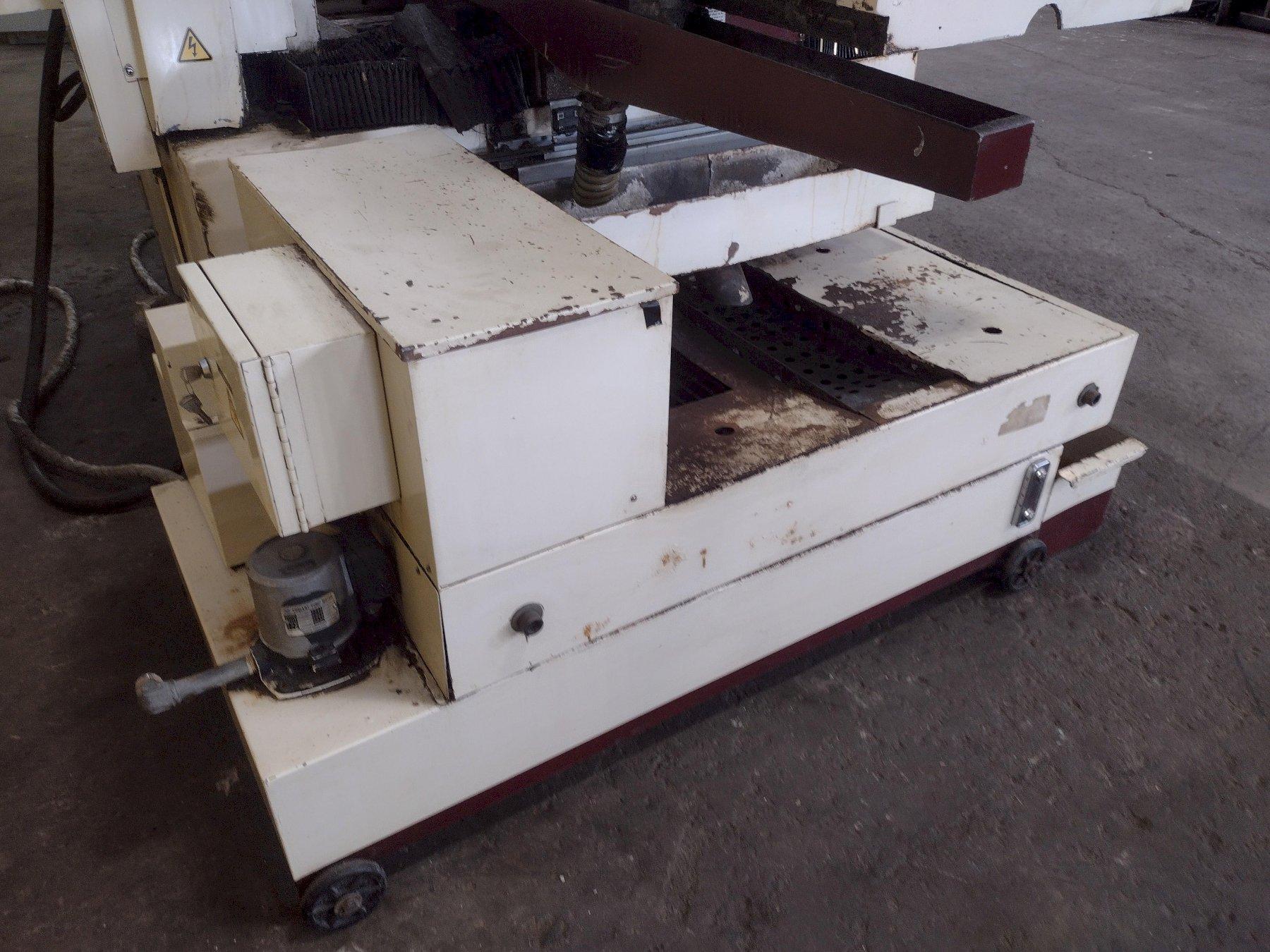

COOLANT W/PAPER FILTRATION ... YES
OVER THE WHEEL DRESSER ....... YES
ELECTRO-MAGNETIC CHUCK ....... YES
SPINDLE MOTOR ................ 5 HORSEPOWER
HYDRAULIC MOTOR .............. 2 HORSEPOWER
