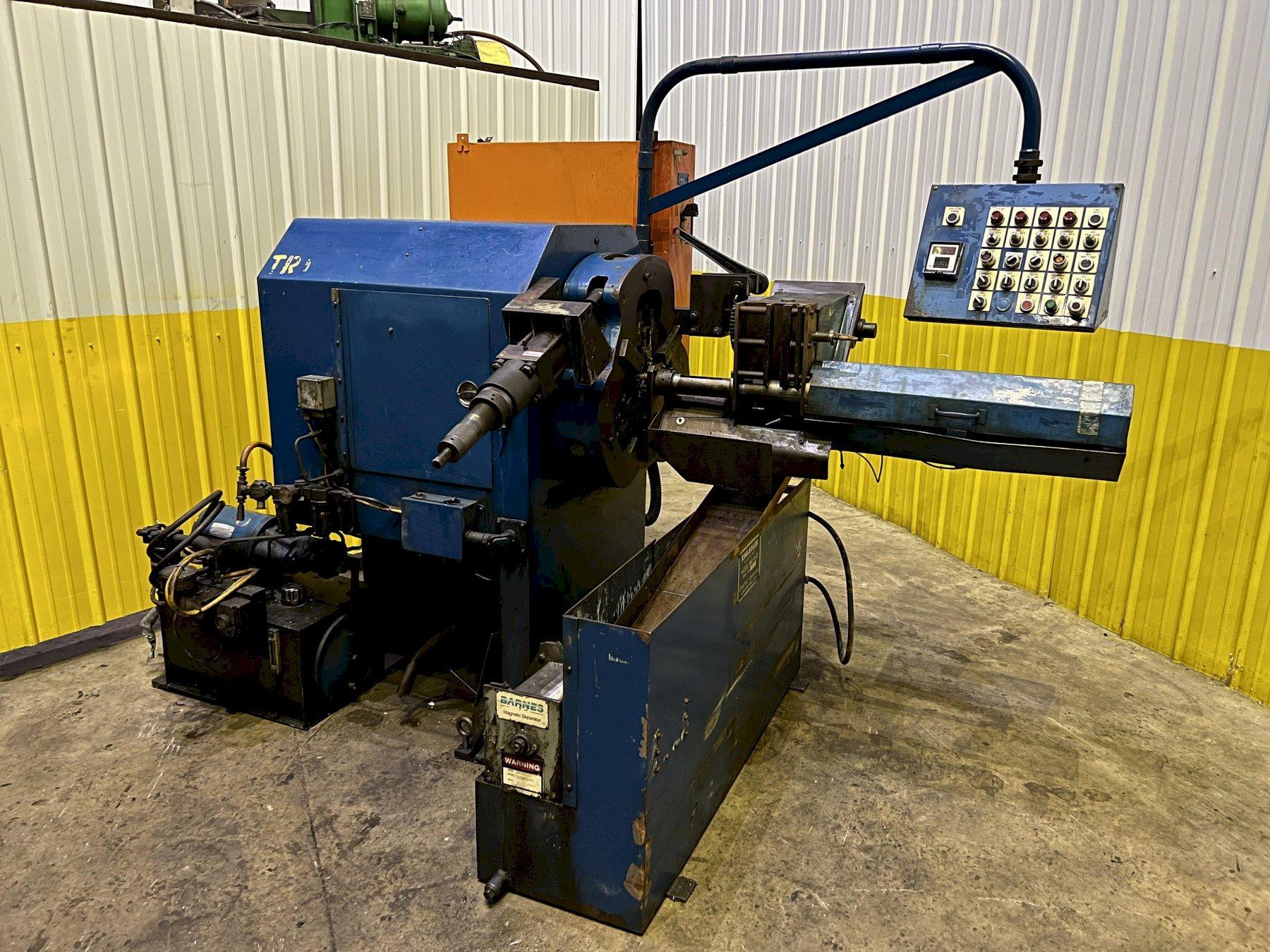

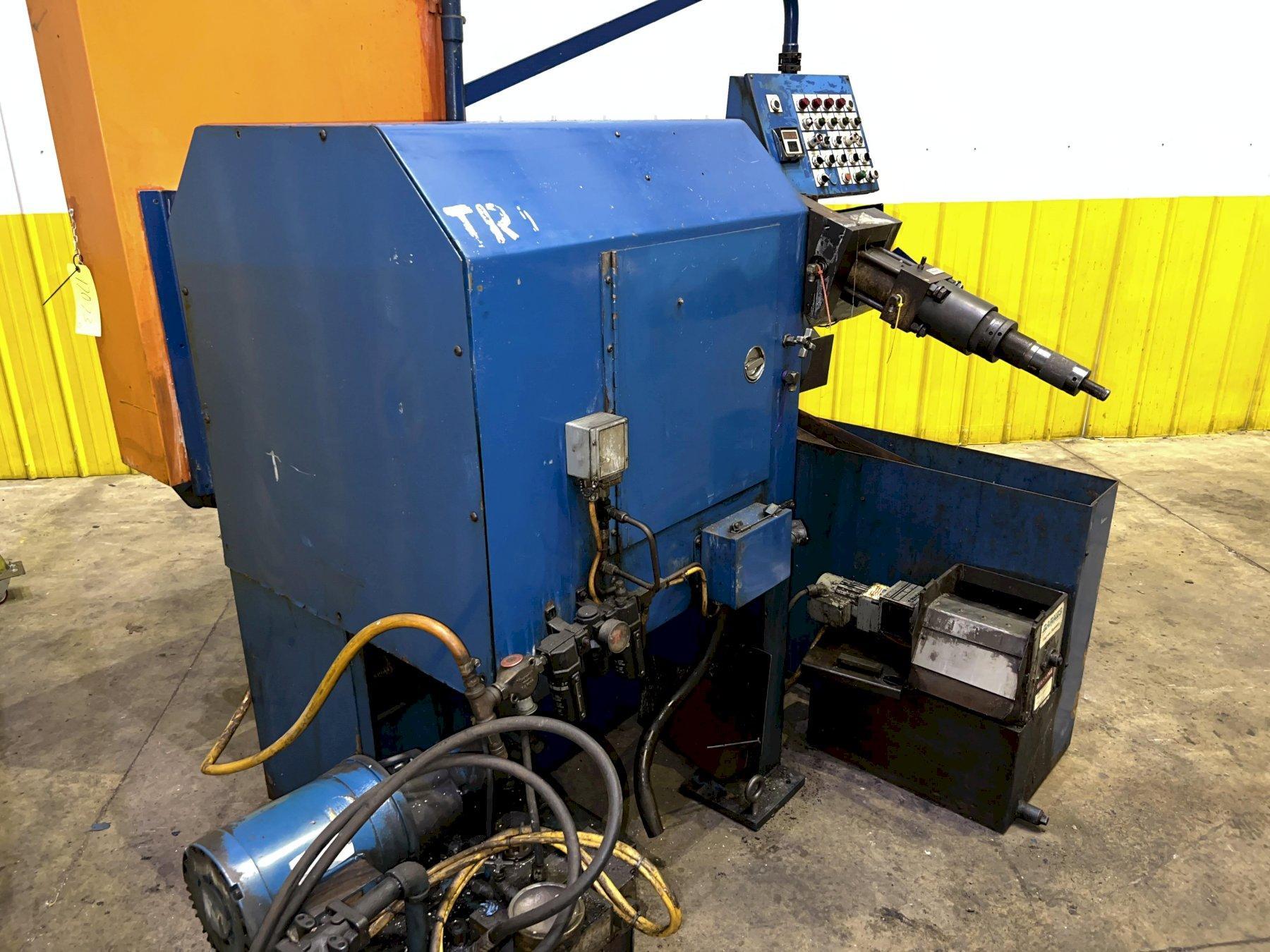

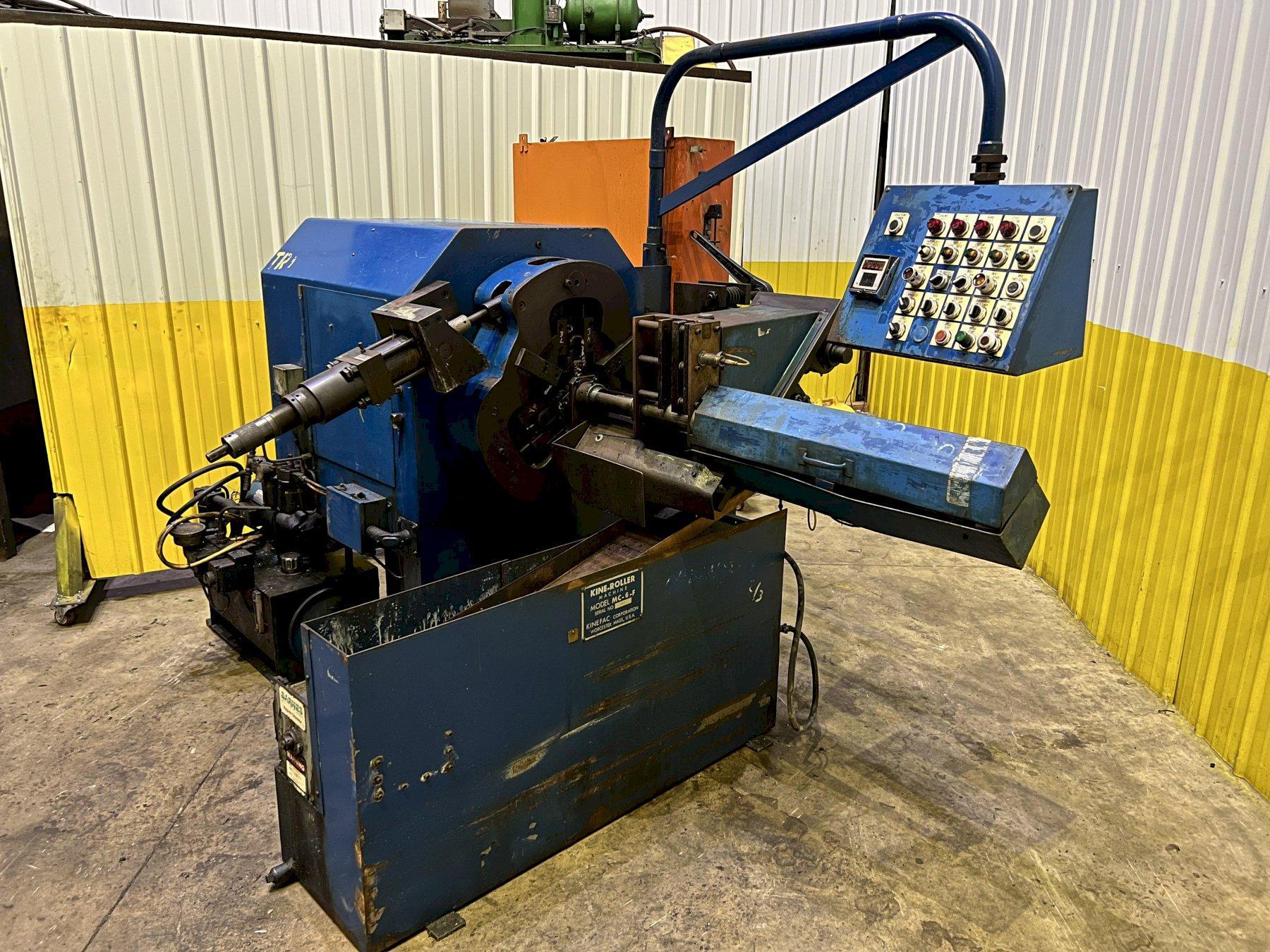

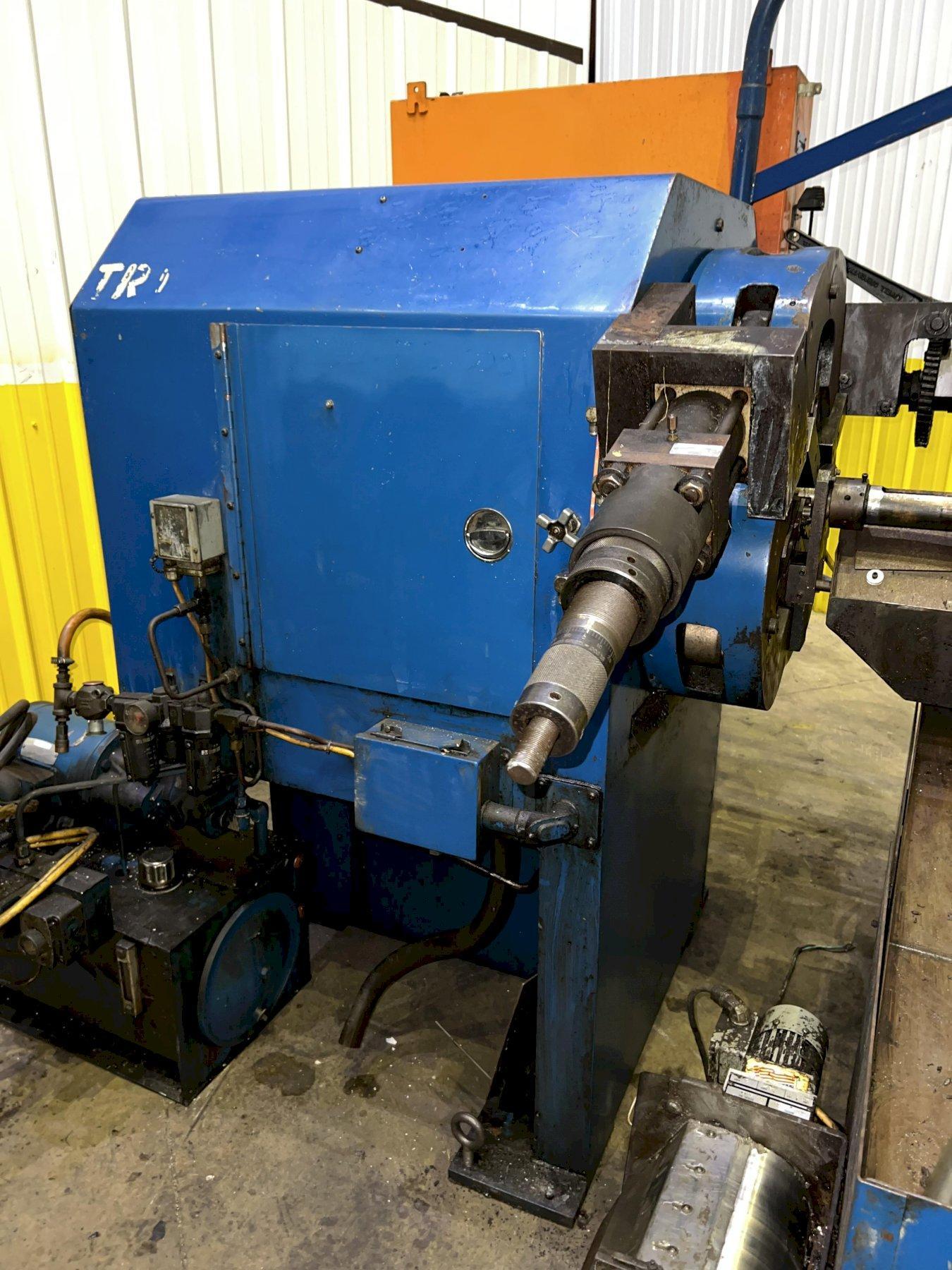

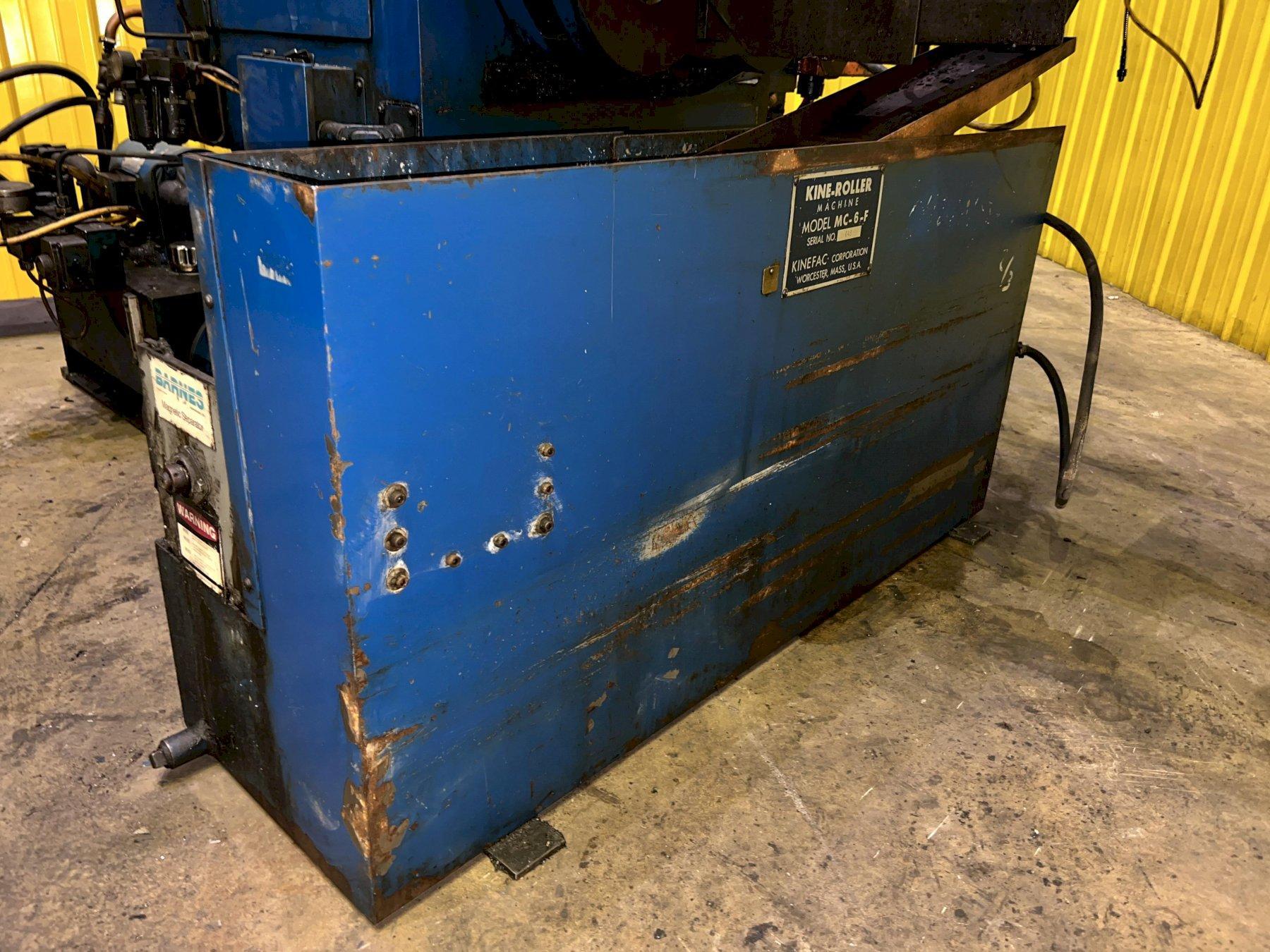

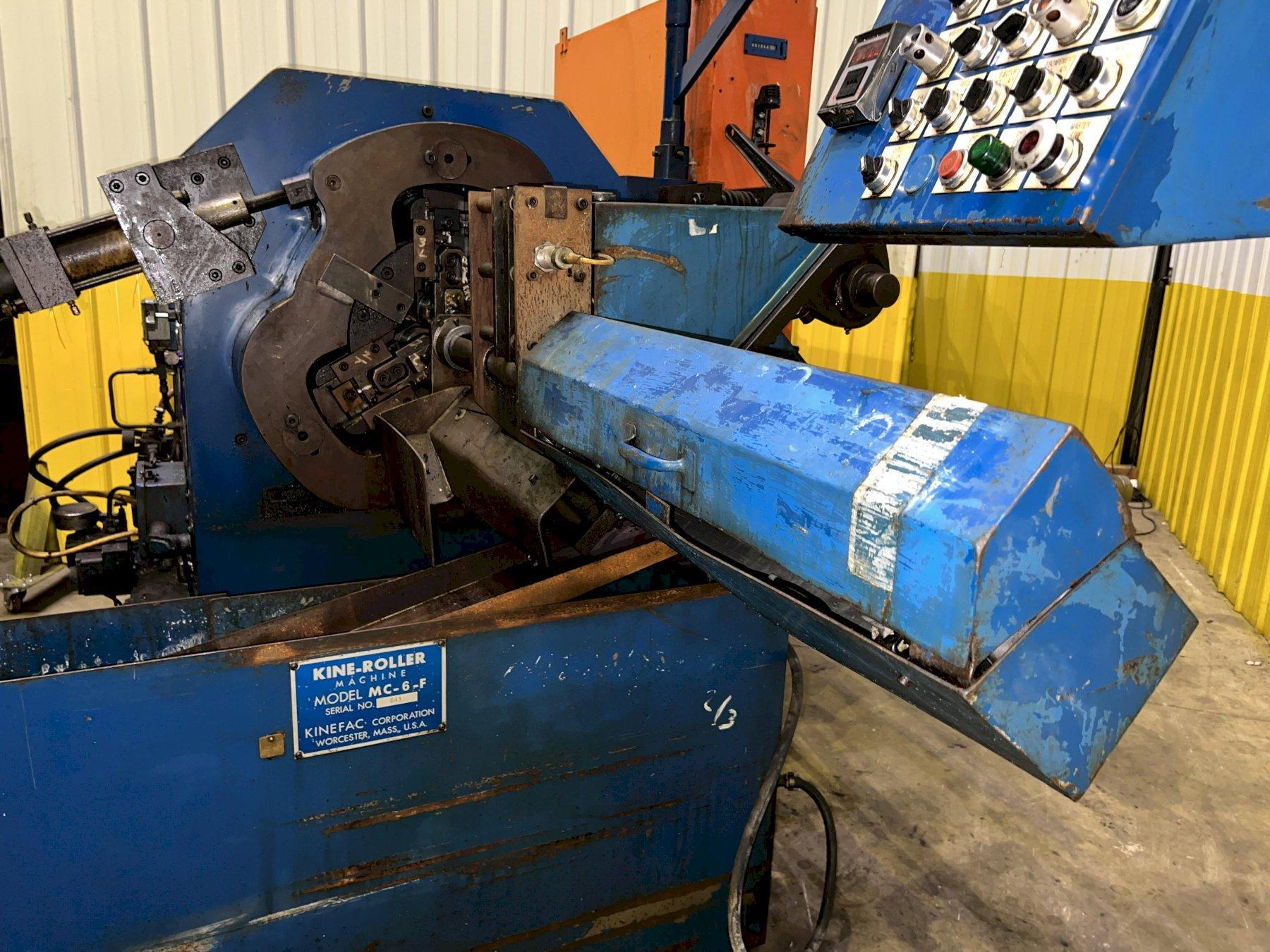

3" KINEFAC MODEL #MC-6-F "KINE-ROLLER" 3-DIE AUTOMATIC THREAD ROLLER THREADER: STOCK #17073

Manufacturer

KINEFAC

Stock

17073

Model

None listed

Dealer Location

Ohio

Spec Sheet

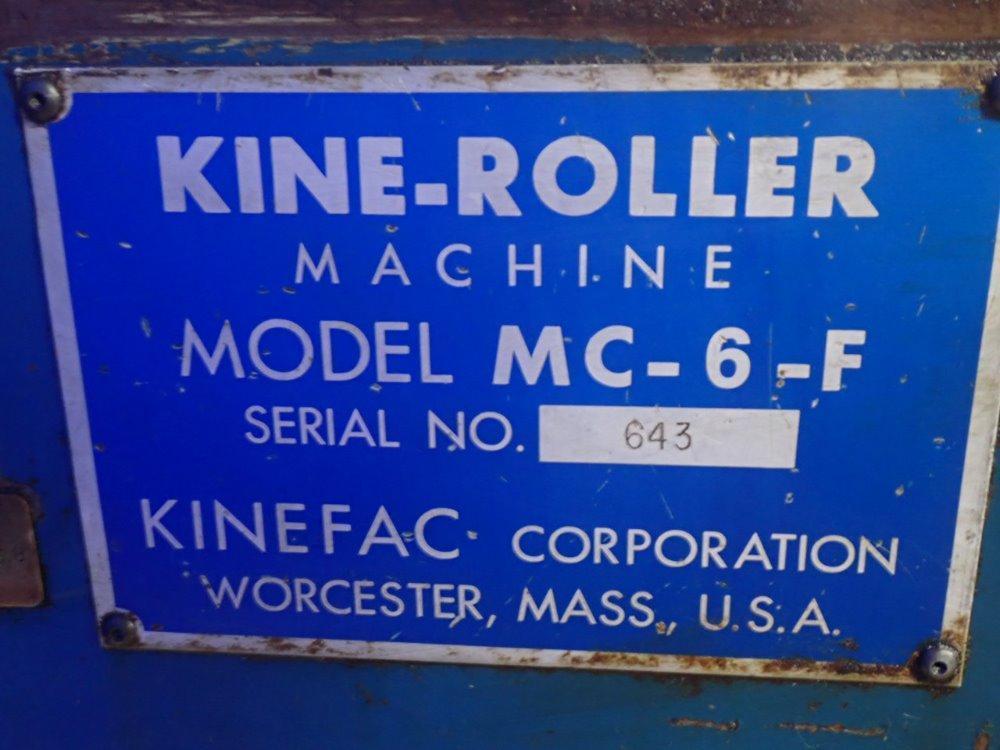

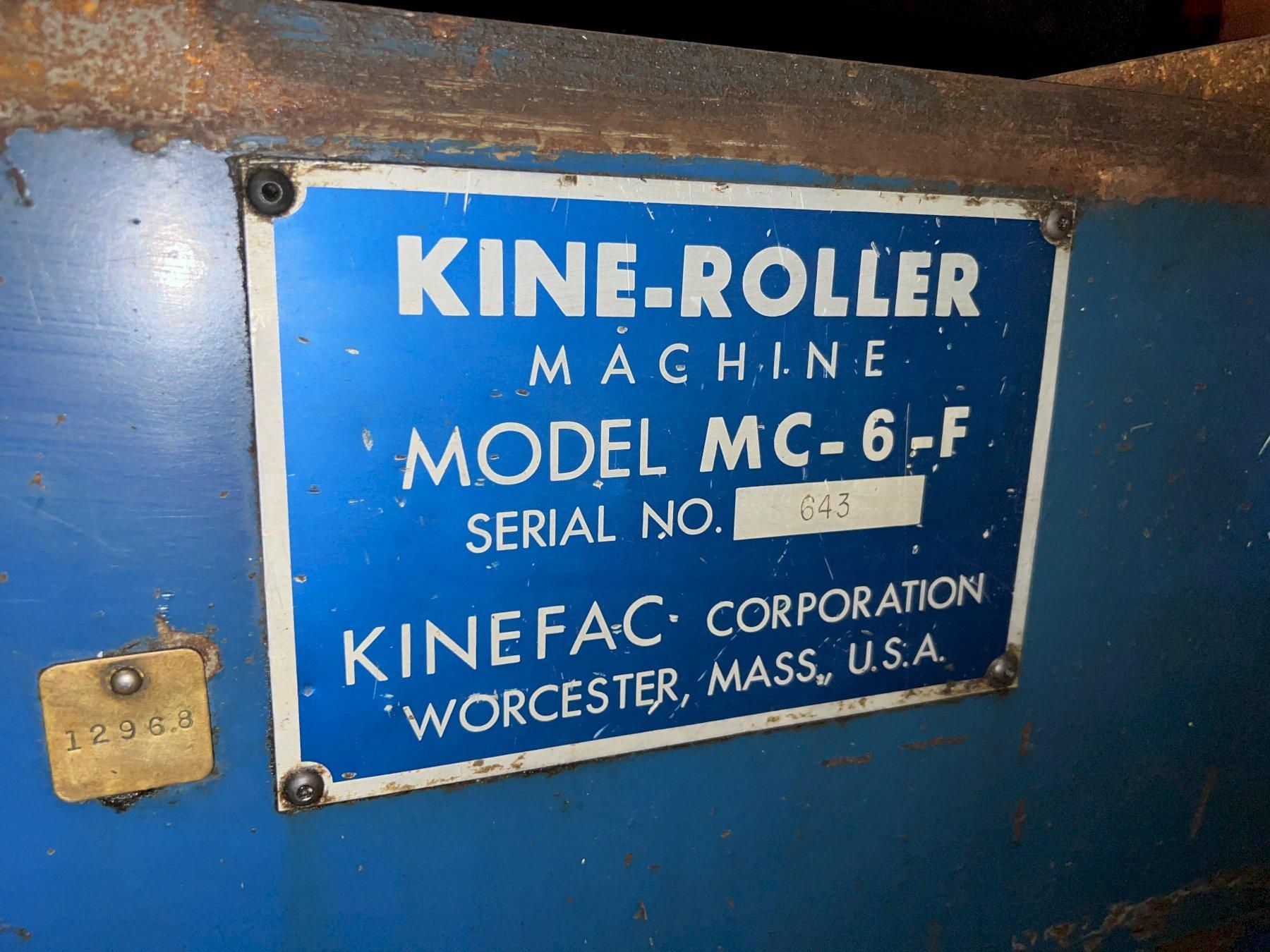

SERIAL ......................... 643

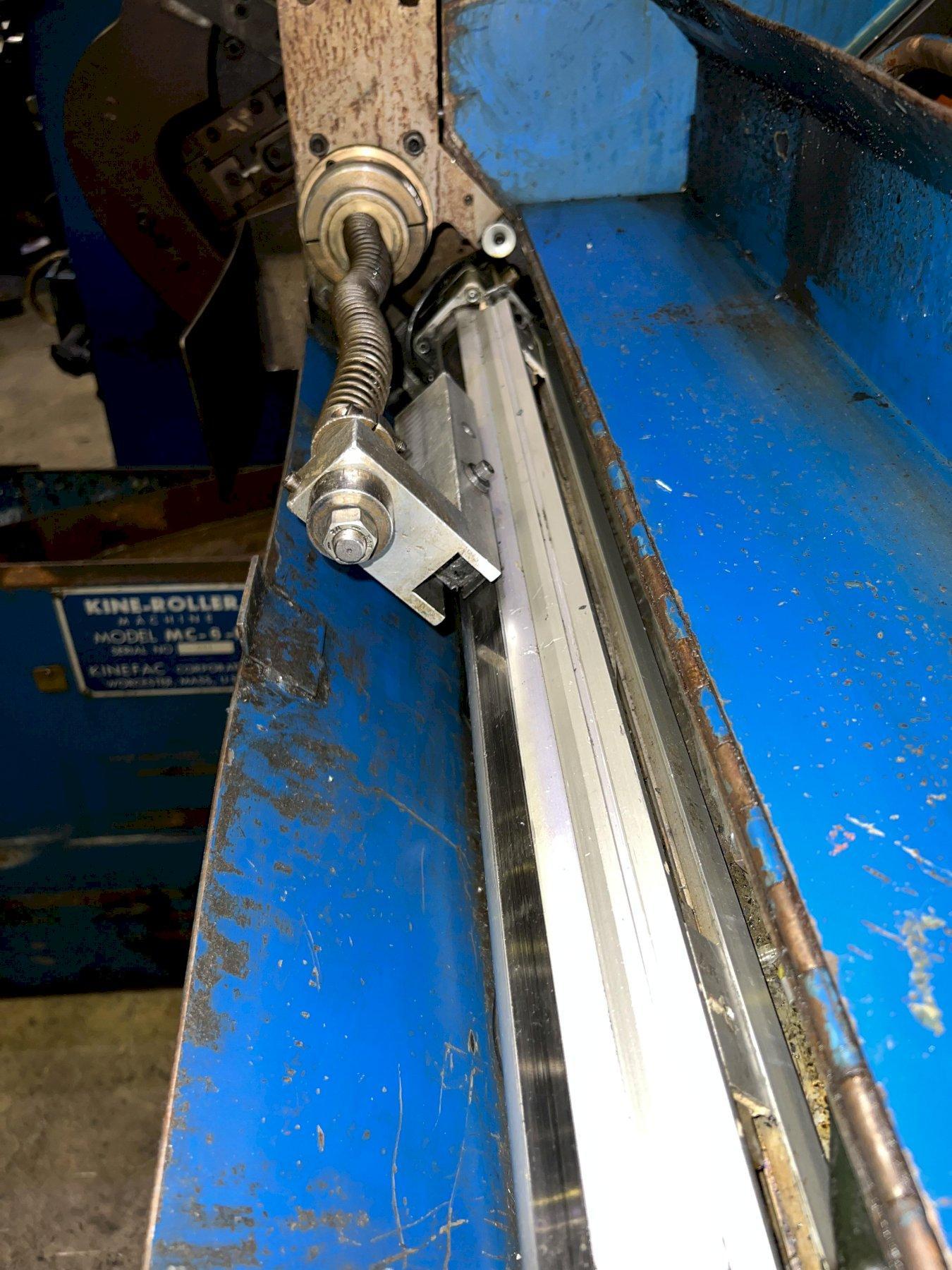

MODEL .......................... MC-6-F
ROLLING AXIS ................... HORIZONTAL

DIAMETER PART CAPACITY ......... 5/8" TO 3"
PART CAPACITY (REAR EJECTING) .. 2-1/2" MAX

SPINDLE DIAMETER ............... 1-1/2

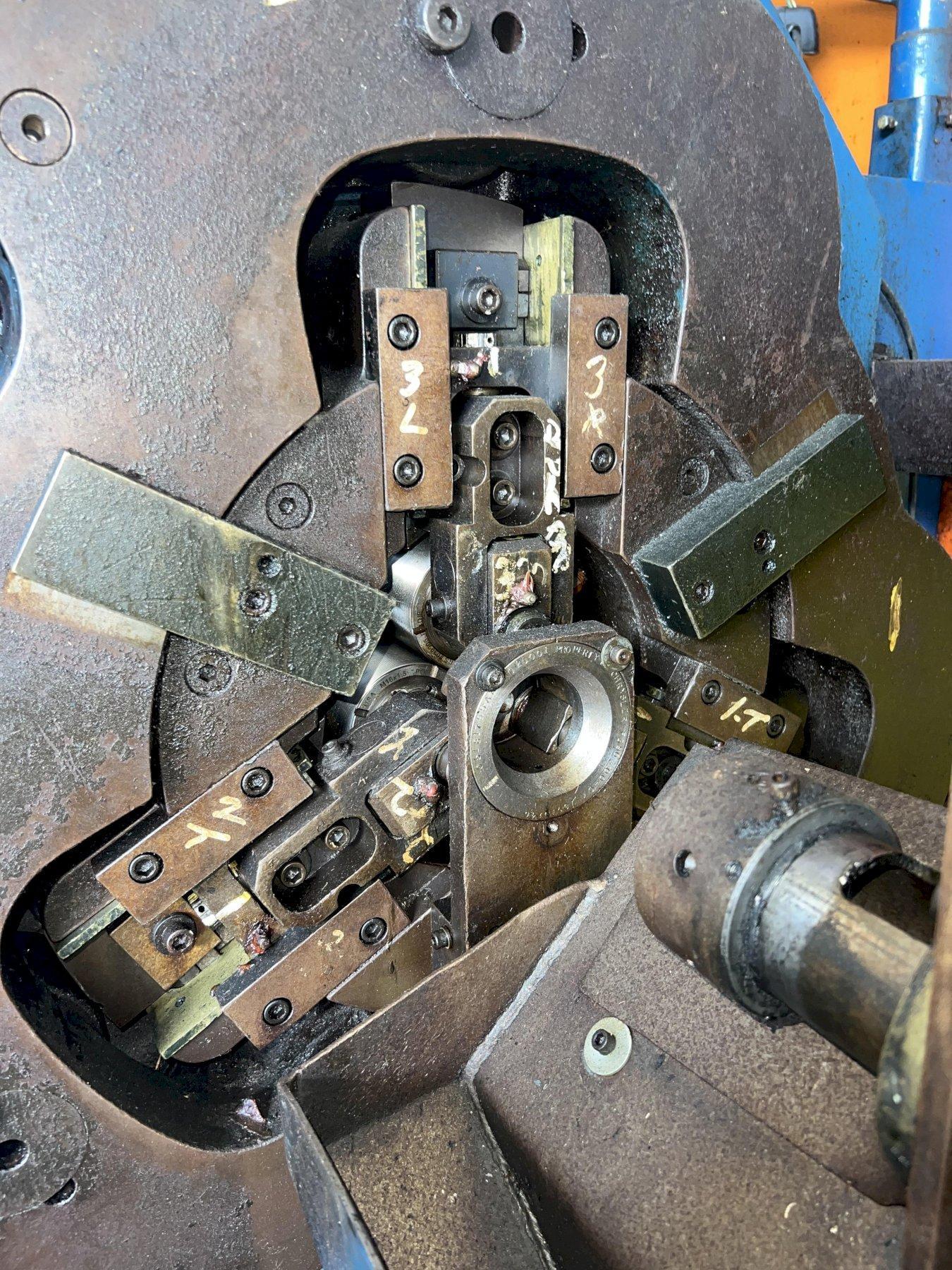

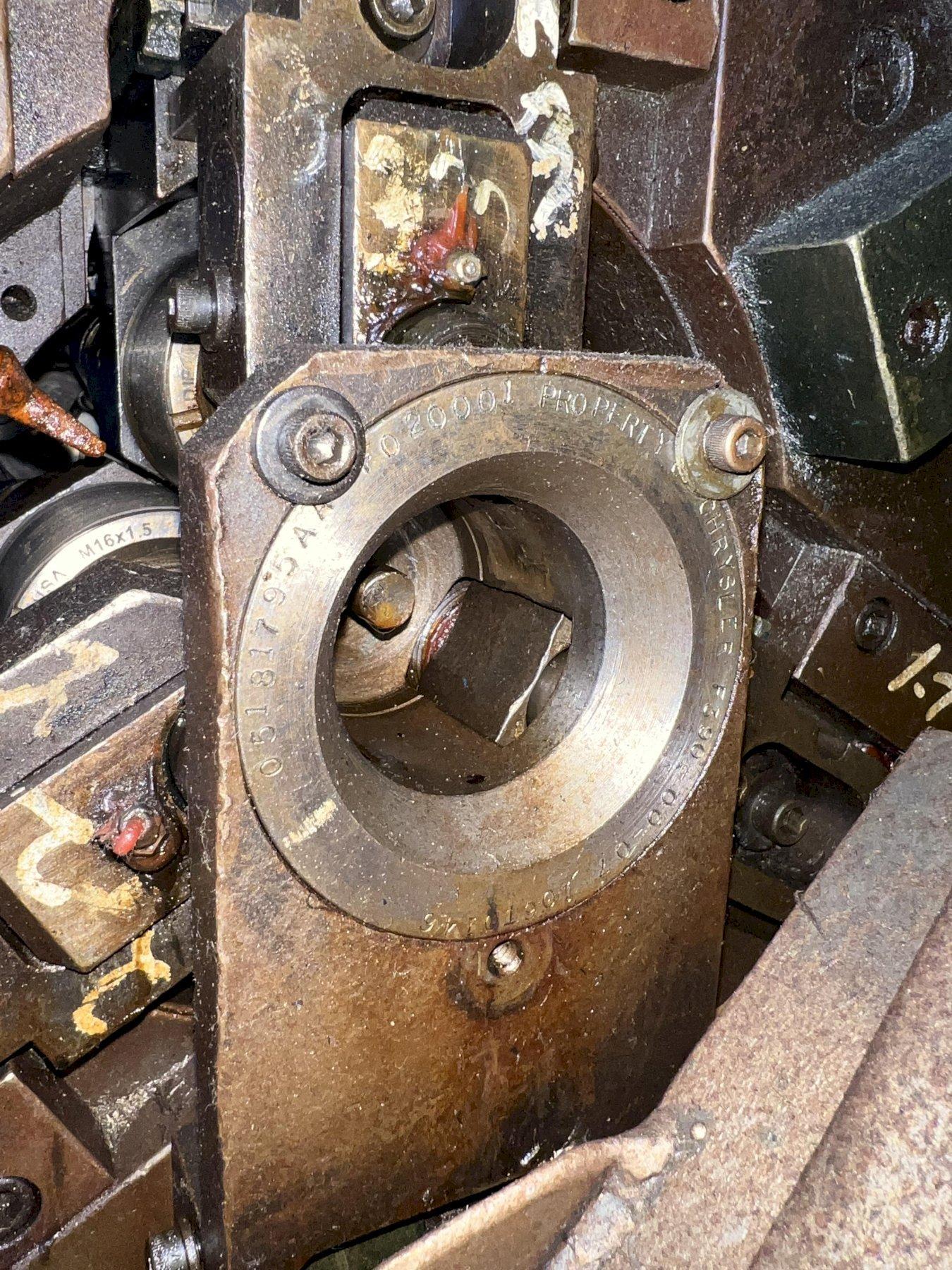

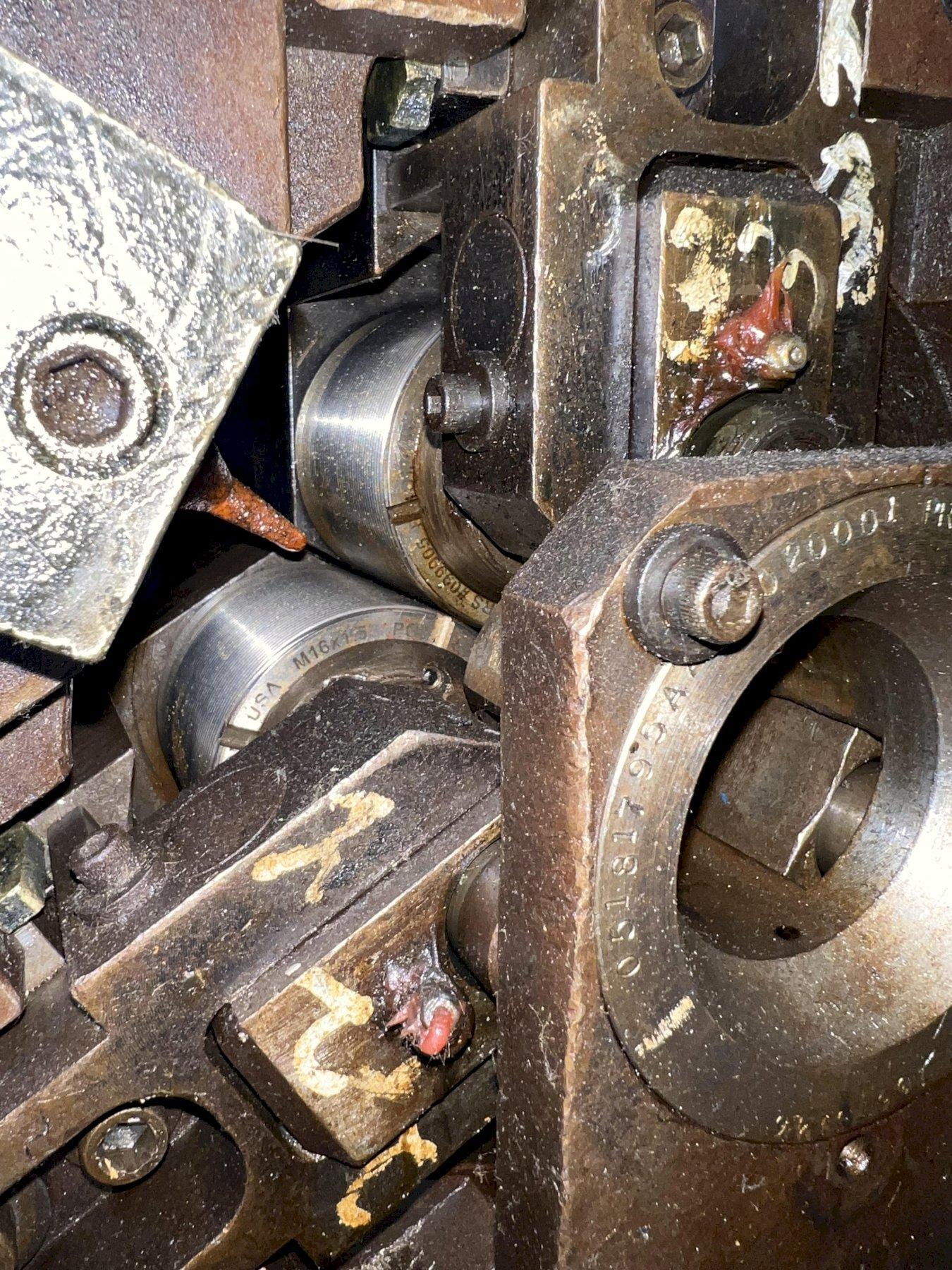

NUMBER OF ROLLING DIES ......... 3
DIE ACTUATION .................. SYMMETRICALLY
DIE RING ENGAGEMENT ............ OSCILLATING CAMS
DIE DIAMETER ................... 2-3/4" TO 4"
DIE FACE WIDTH ................. 2-5/8"

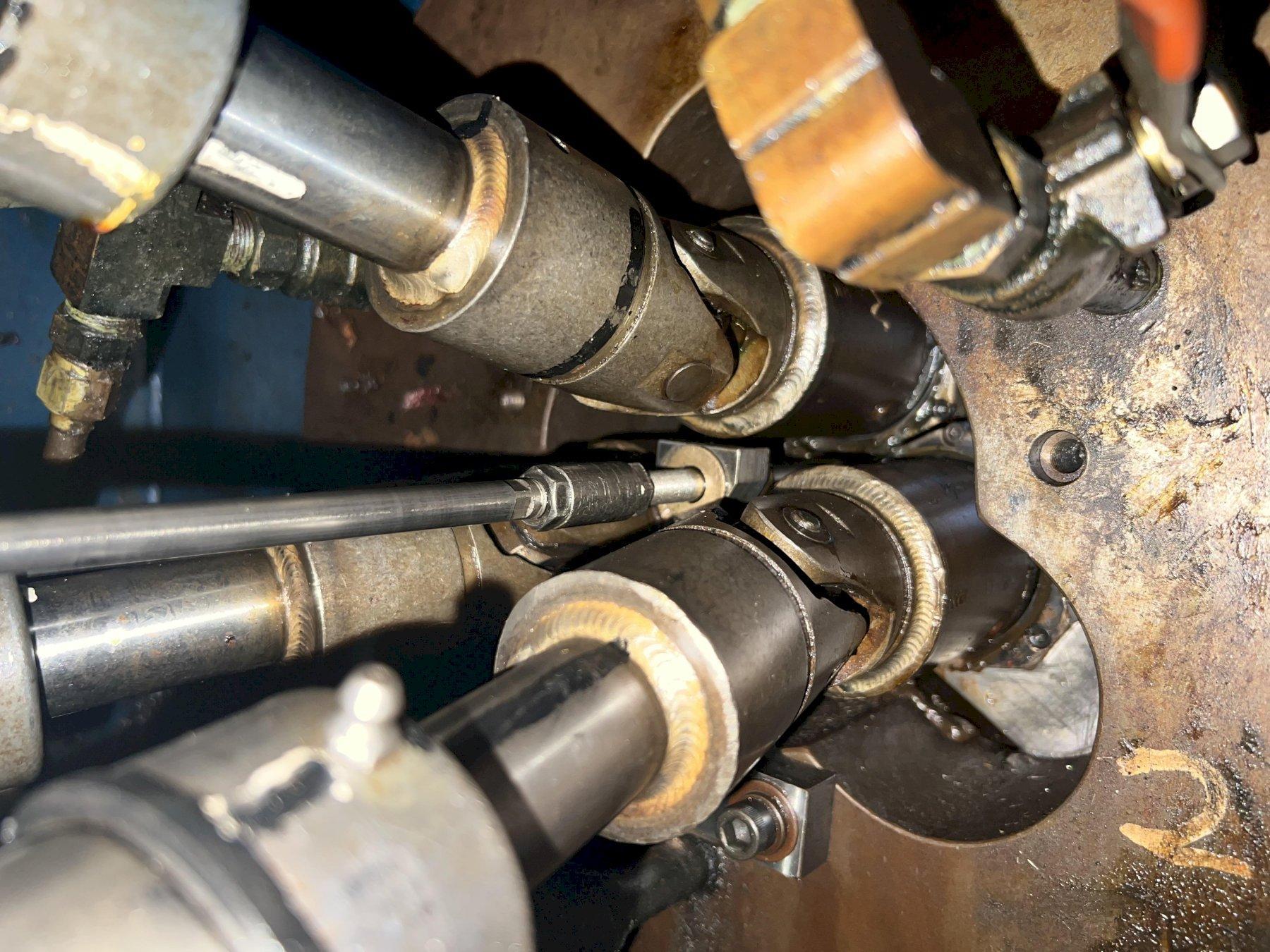

DIE DRIVE ...................... SPUR GEARS
DIE CENTRALIZATION ............. YES
SINGLE POINT ADJUSTMENT ........ YES
AUTOMATIC PART EJECTOR ......... YES, PNEUMATIC

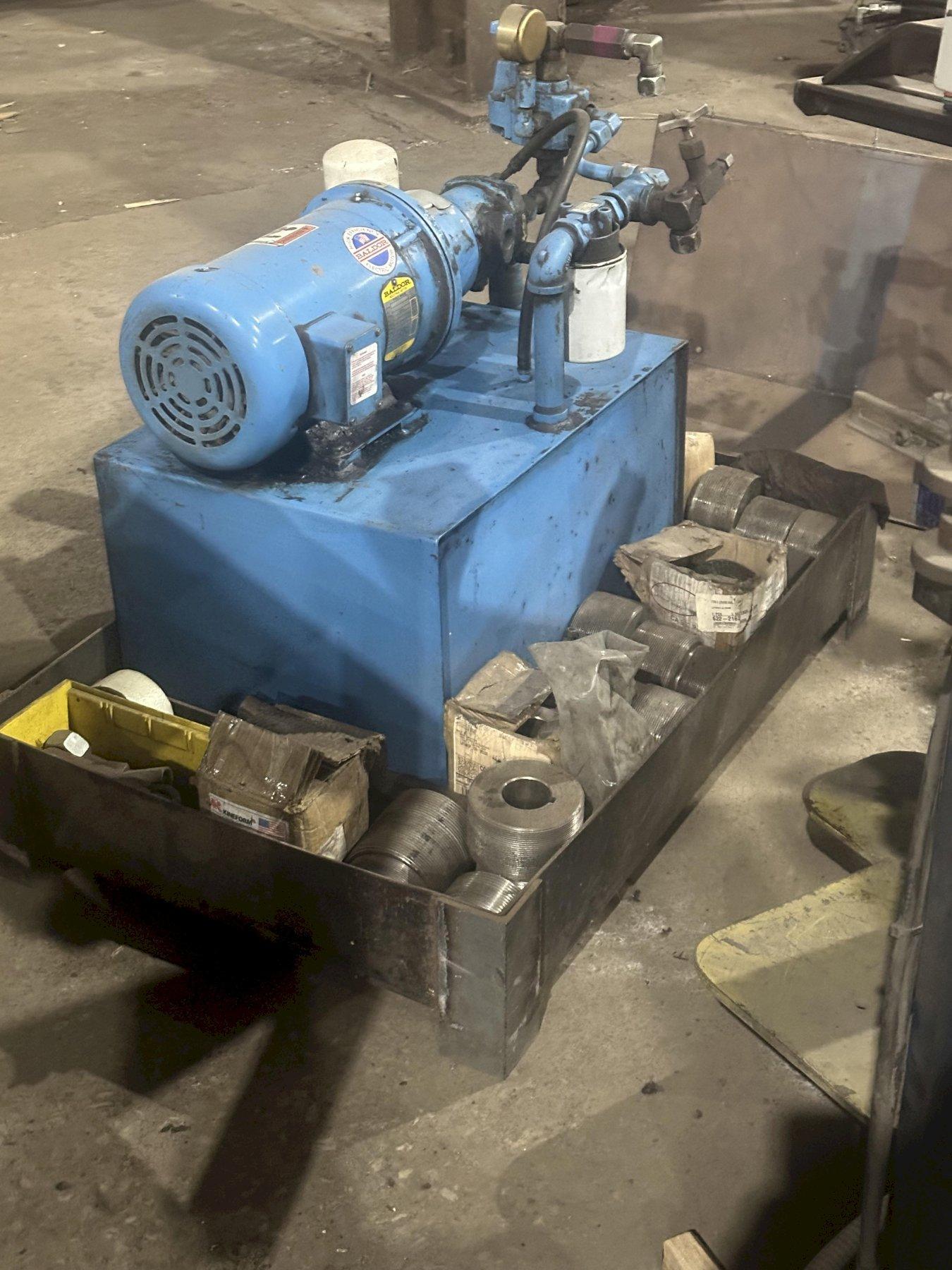

COOLANT SYSTEM ................. YES

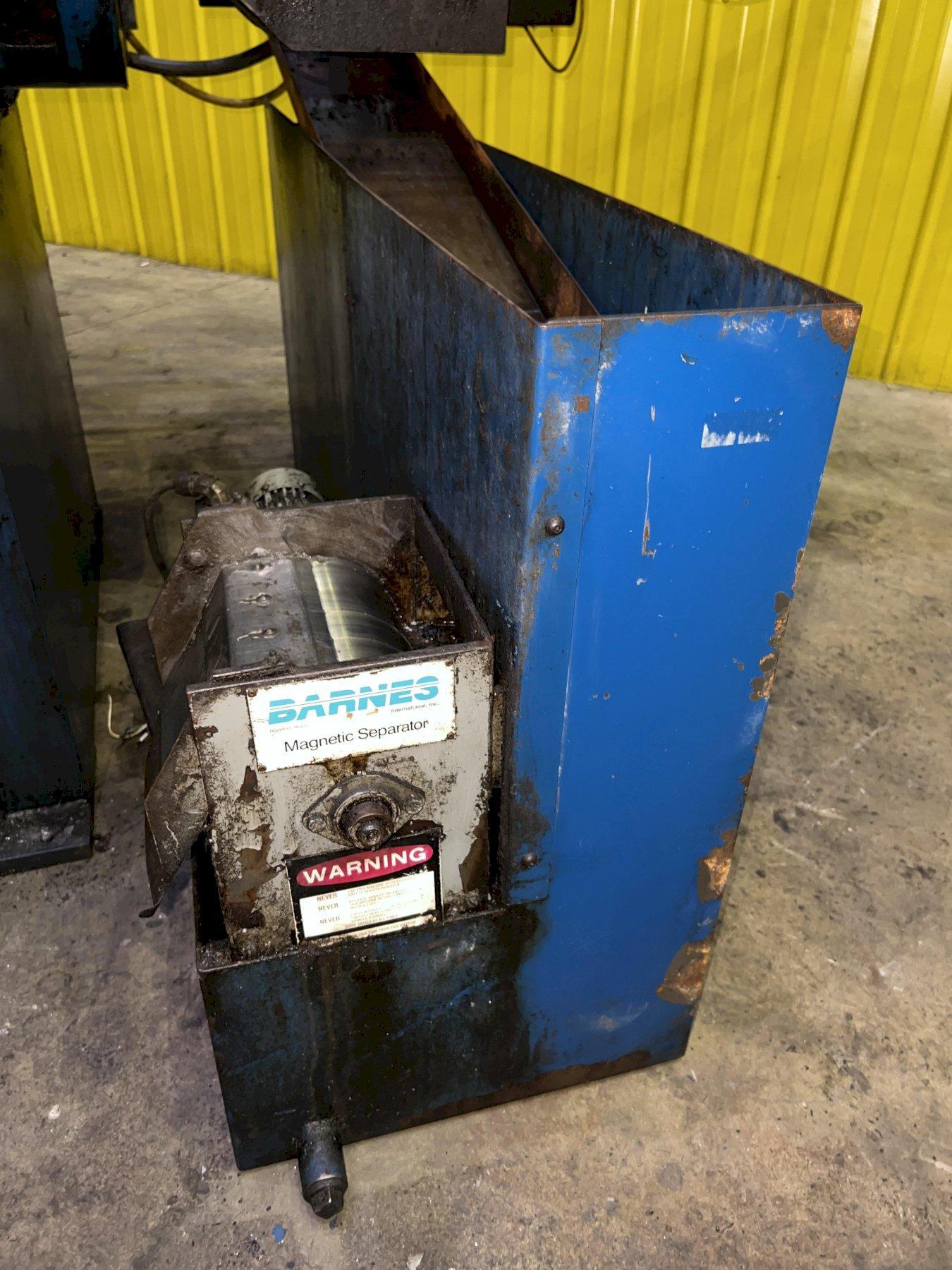

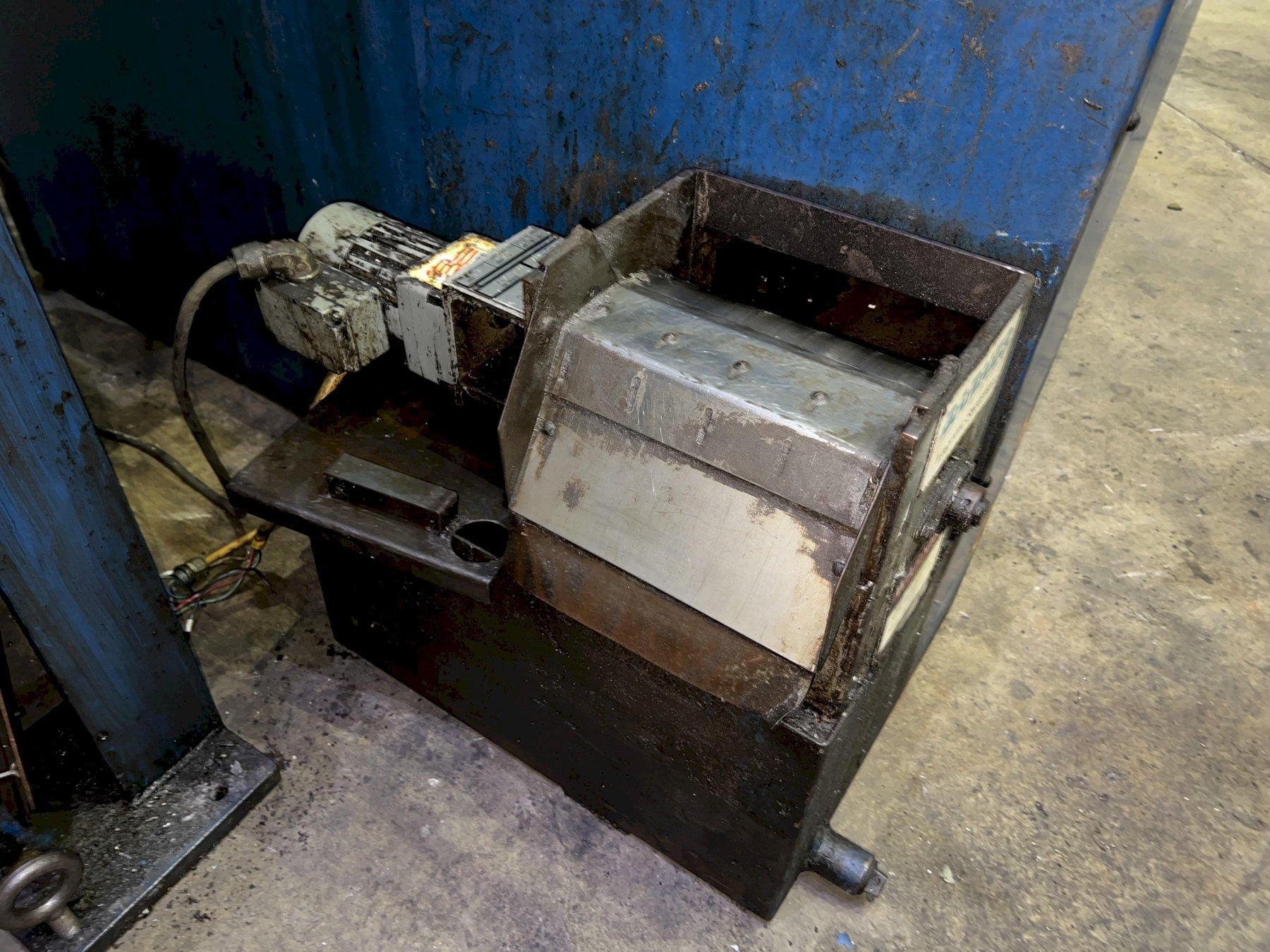

BARNES MAGNETIC SEPERATOR ...... YES
DRIVE MOTOR .................... 15 HP

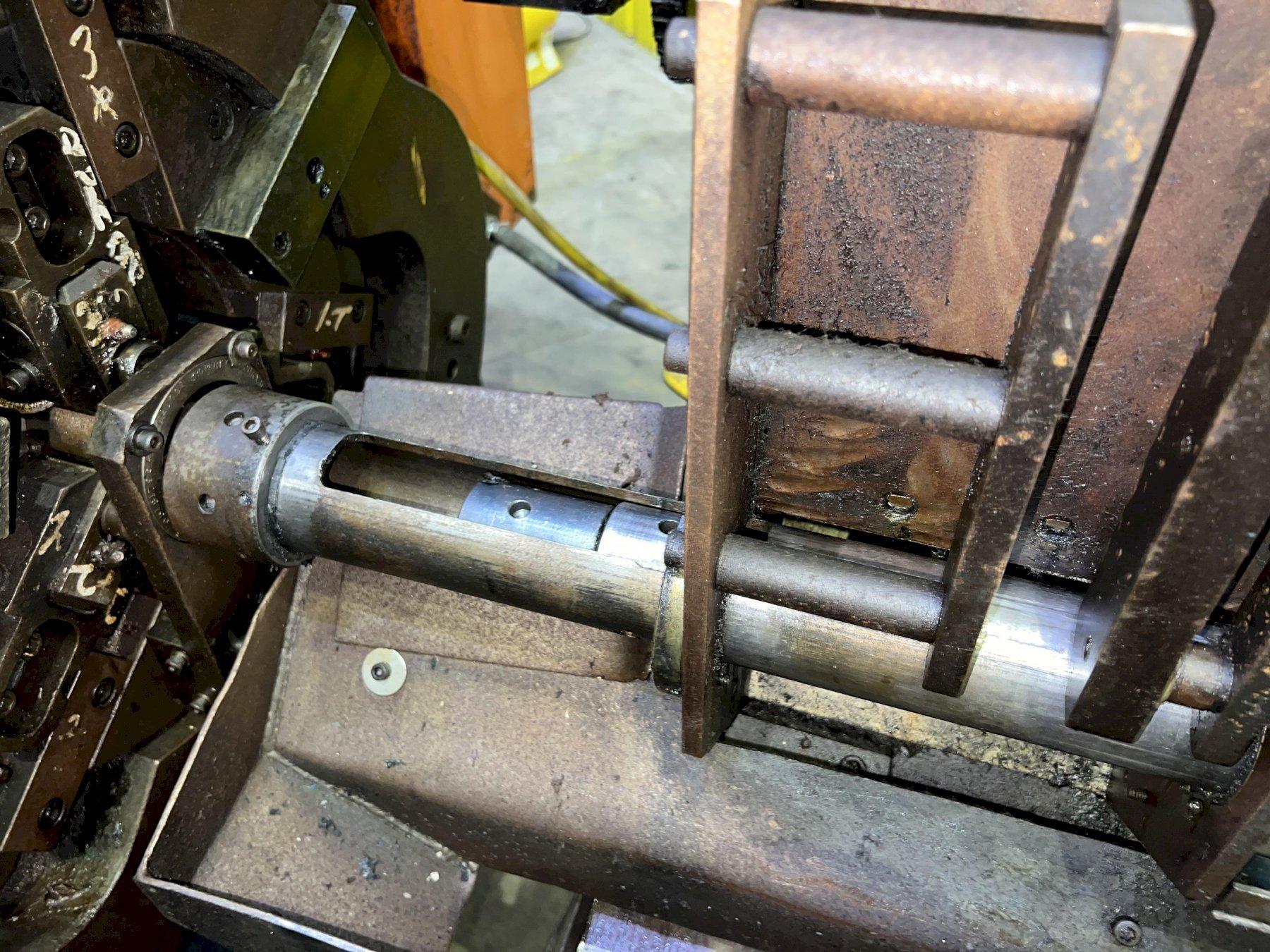

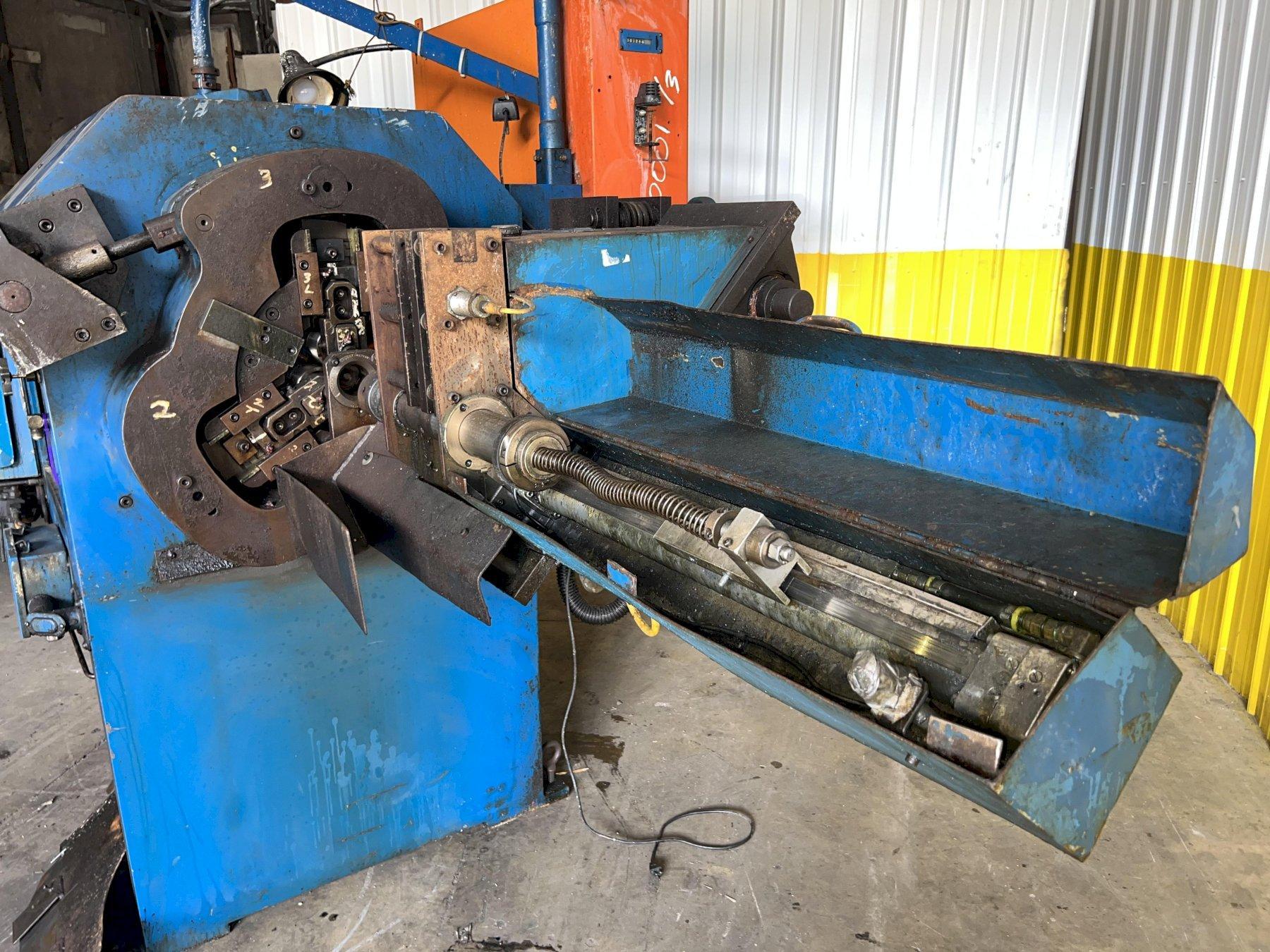

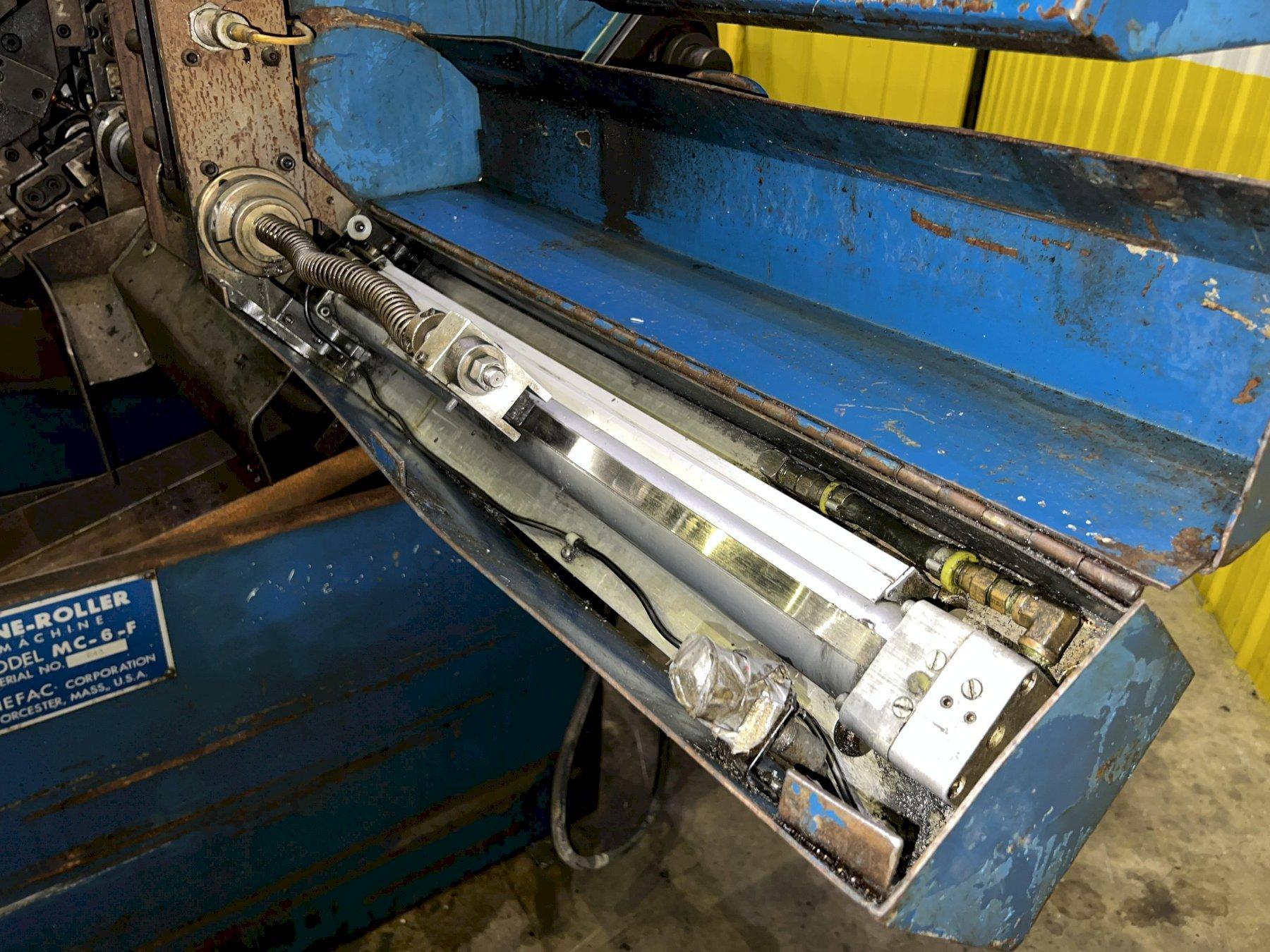

EQUIPPED WITH INFEED SYSTEM
STROKE ......................... 12"
HYDRAULIC PRESSURE ............. 1600 PSI

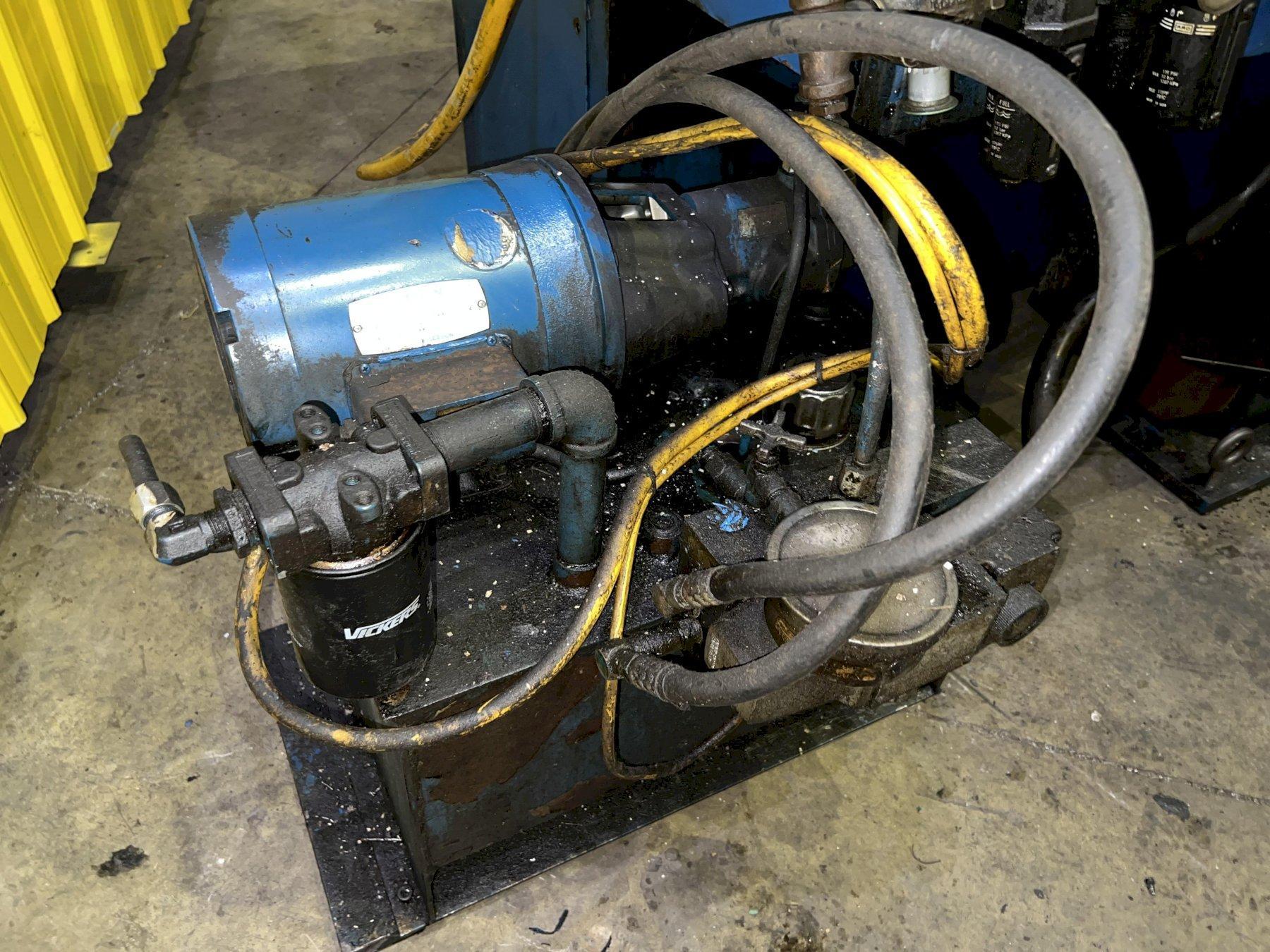

HYDRAULIC MOTOR ................ 5 HP
