OGDEN AUTOMATIC HORIZONTAL TANK SEAM SUBMERGED ARC-WELDING MACHINE: STOCK #17134

Manufacturer

OGDEN

Category

Welding Machines

Type

WELDERS, LONGITUDINAL, SEAM

Stock

17134

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ....................... 1963
MODEL ........................ TANK WELDER
HORIZONTAL TRAVEL ............ YES, "3 O'CLOCK"
TANK DIAMETER - MINIMUM ...... 15'
VERTICAL CAPACITY FROM TOP ... 120" MAX
PLATE THICKNESS .............. 1/4" TO 2"
WELDING SPEED ................ 100 IPM MAX

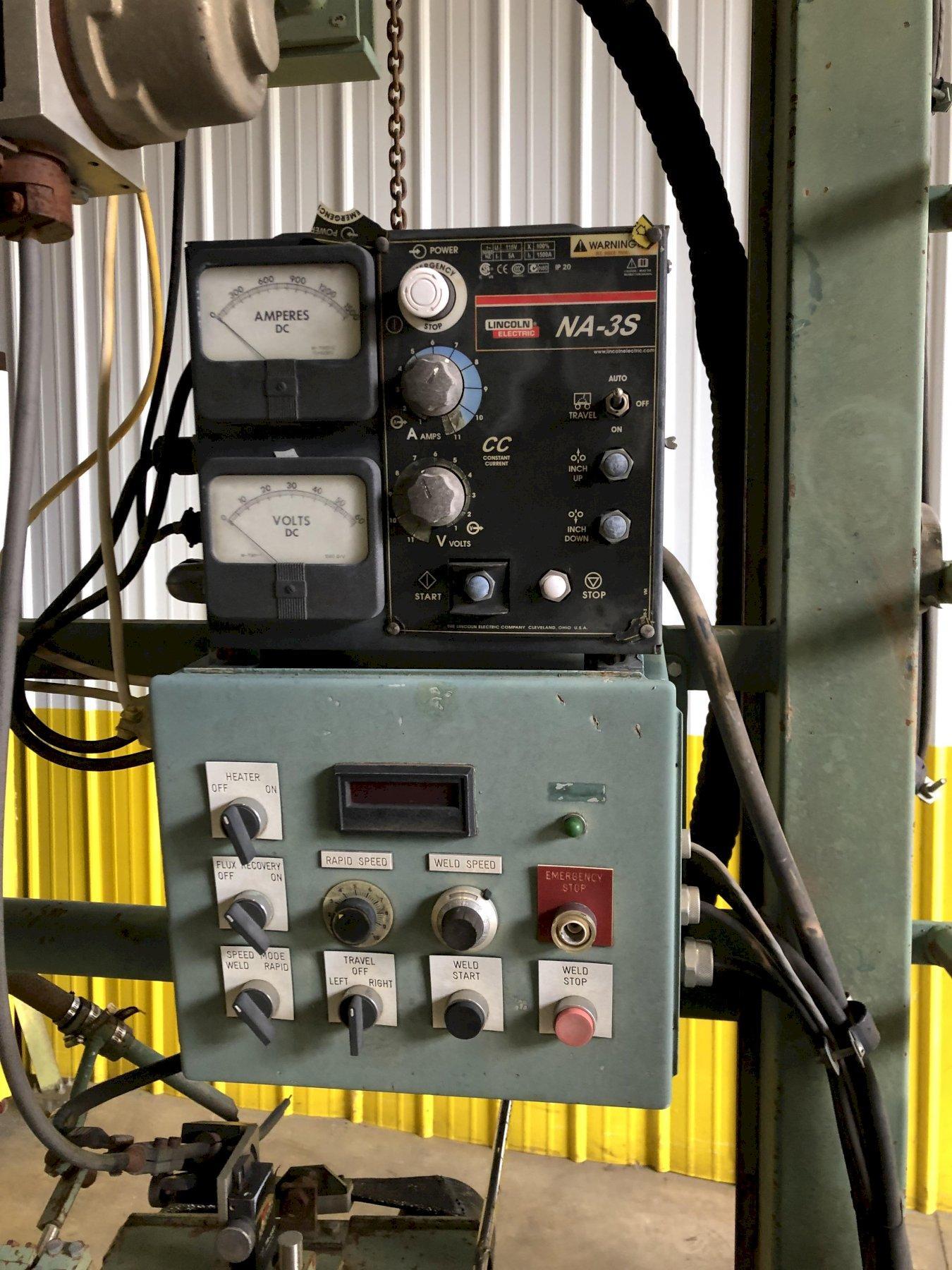

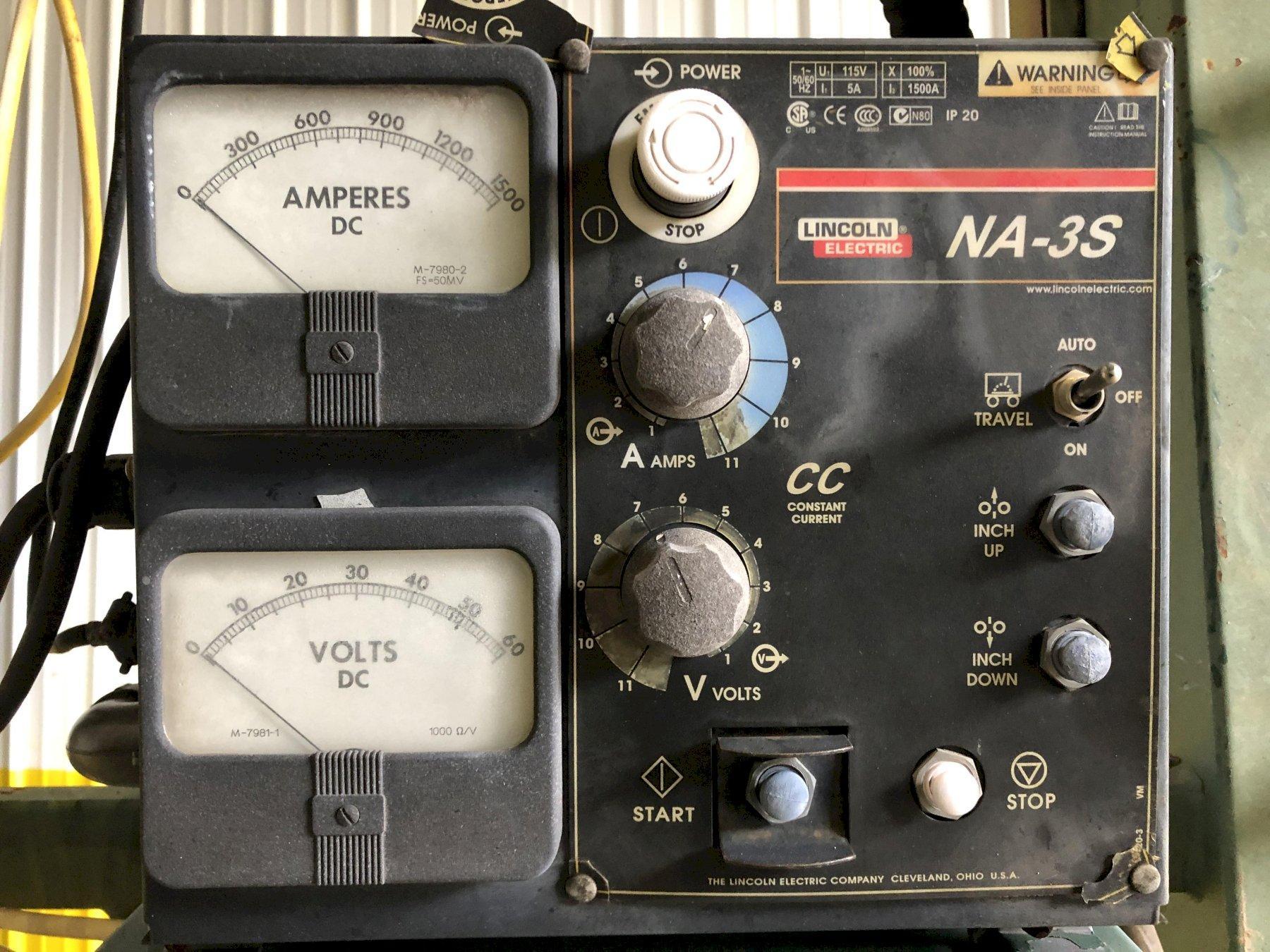

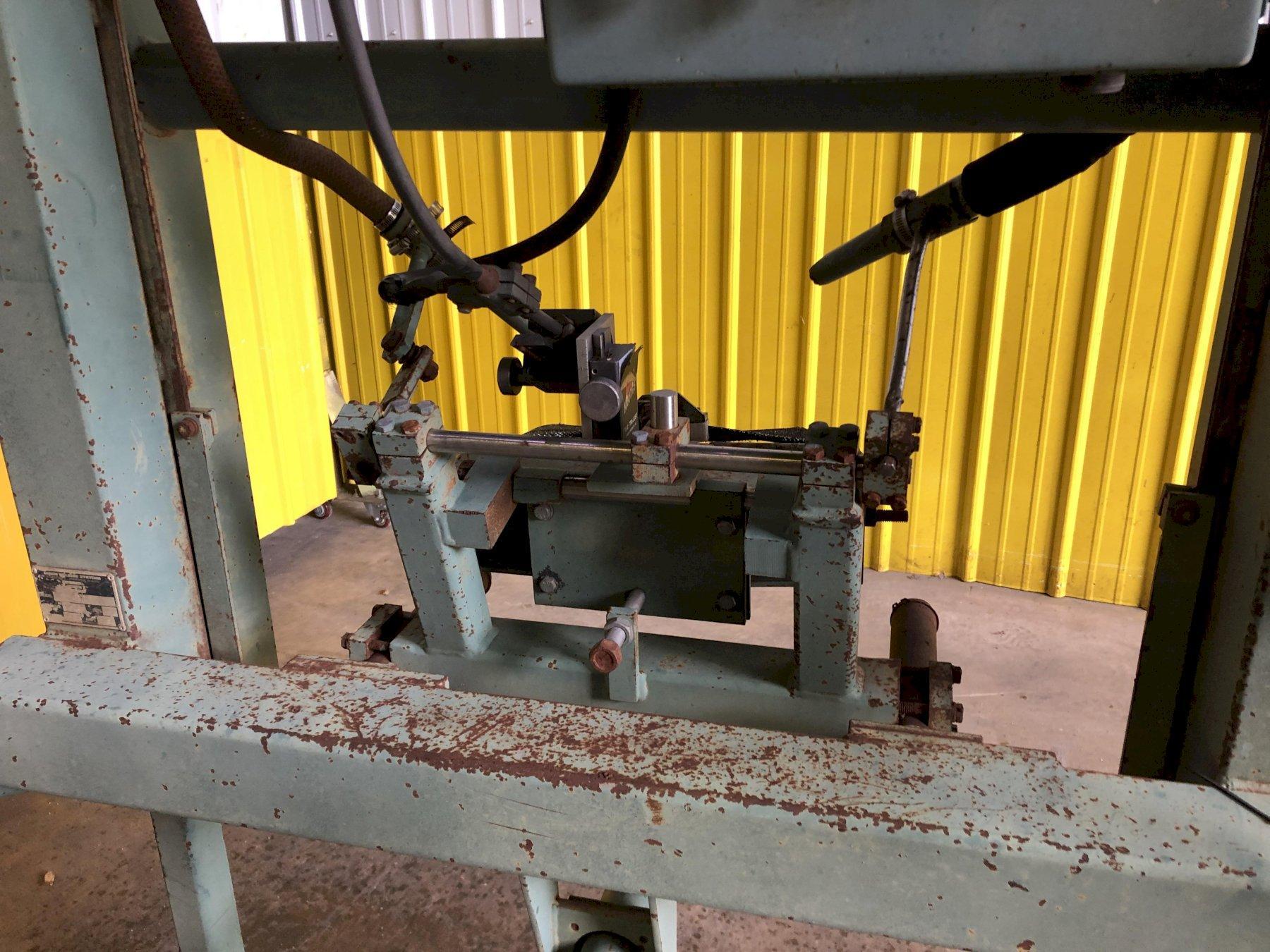

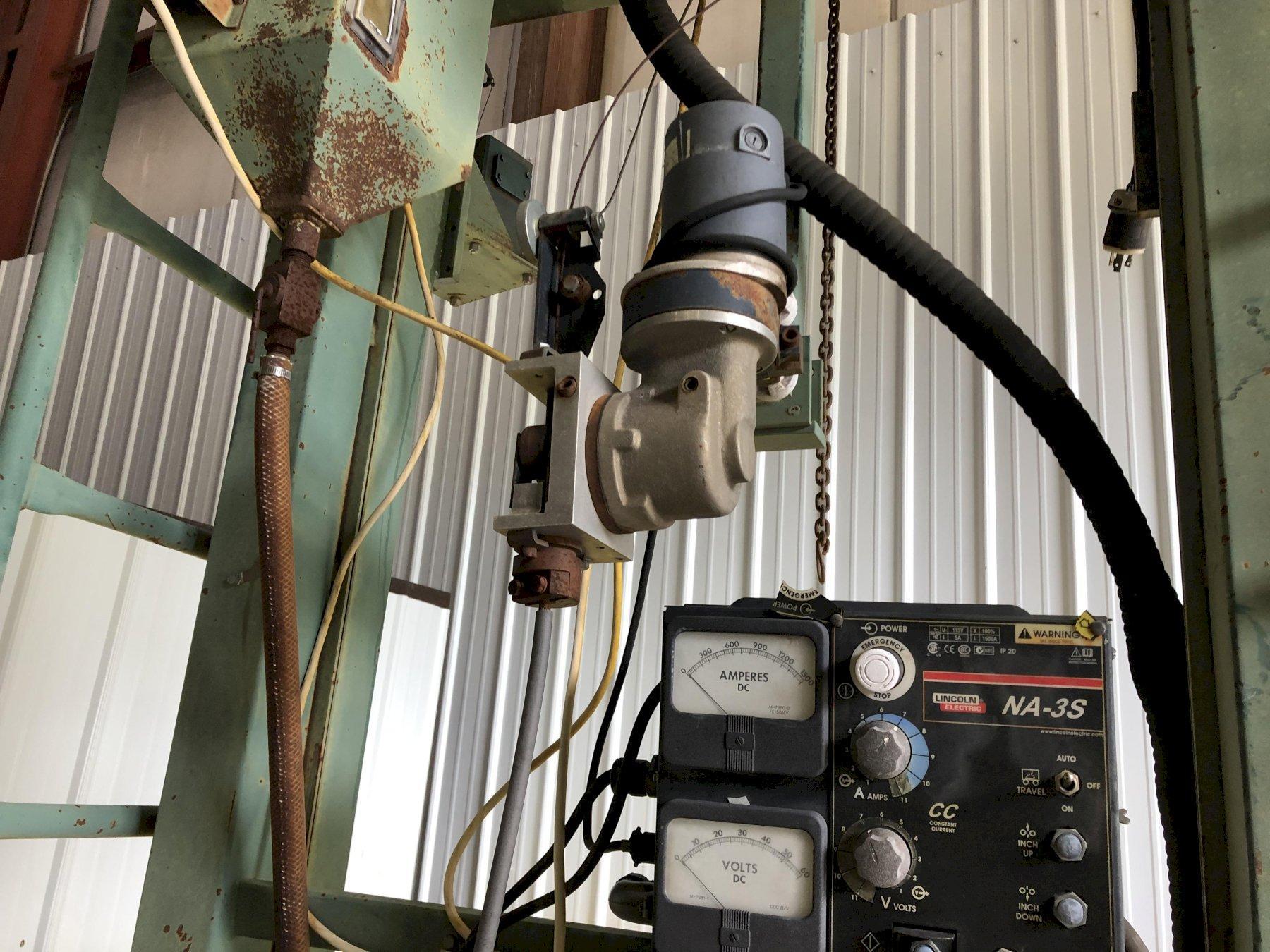

WELDER CONTROLS .............. LINCOLN ELECTRIC
PLATFORM HORZONTAL TRAVEL .... POWERED

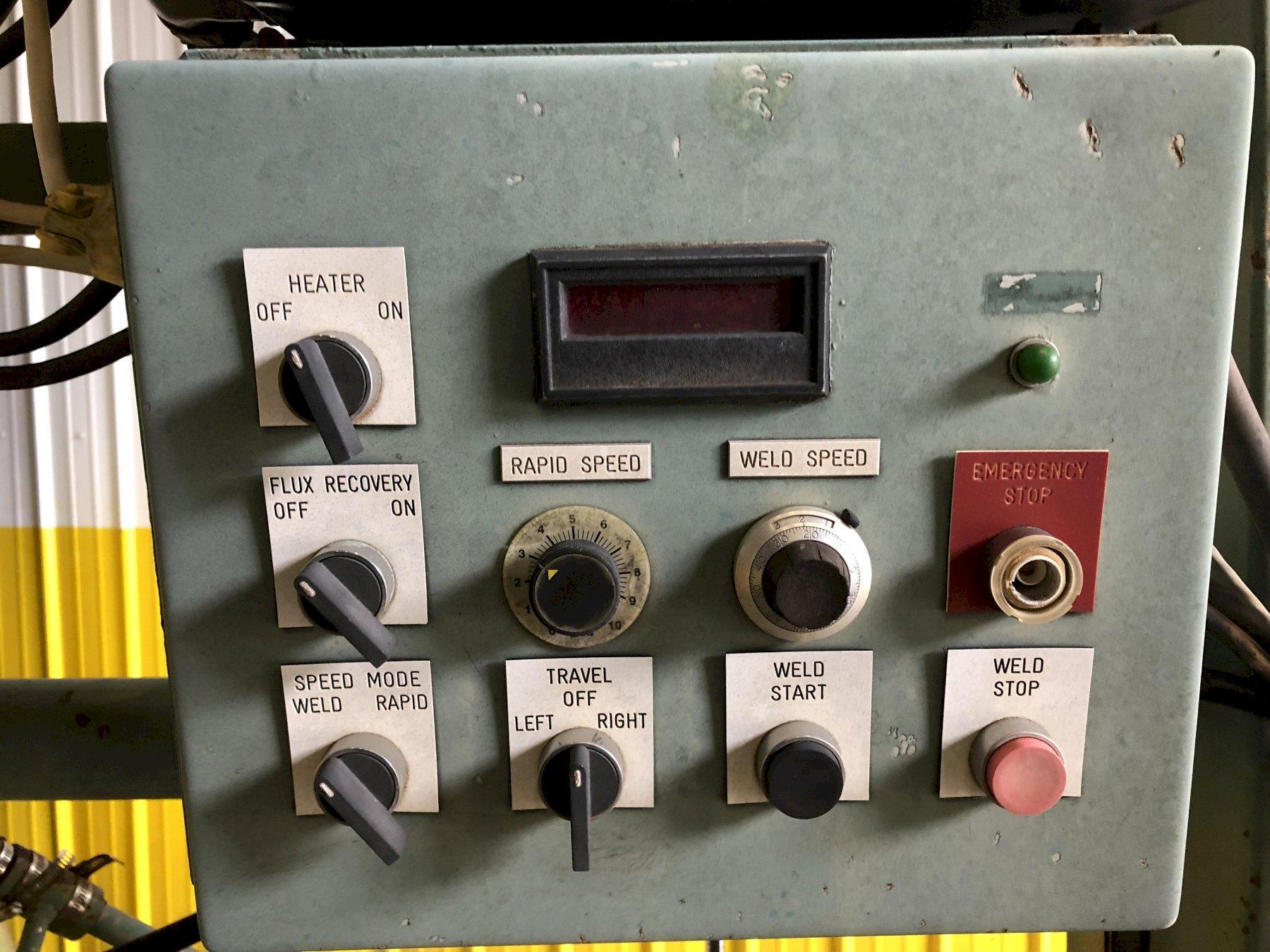

DIGITAL READOUTS ............. YES
FLUX RECOVERY ................ YES
SAFETY SUPPORT ARMS .......... YES
LIFTING EYE .................. YES

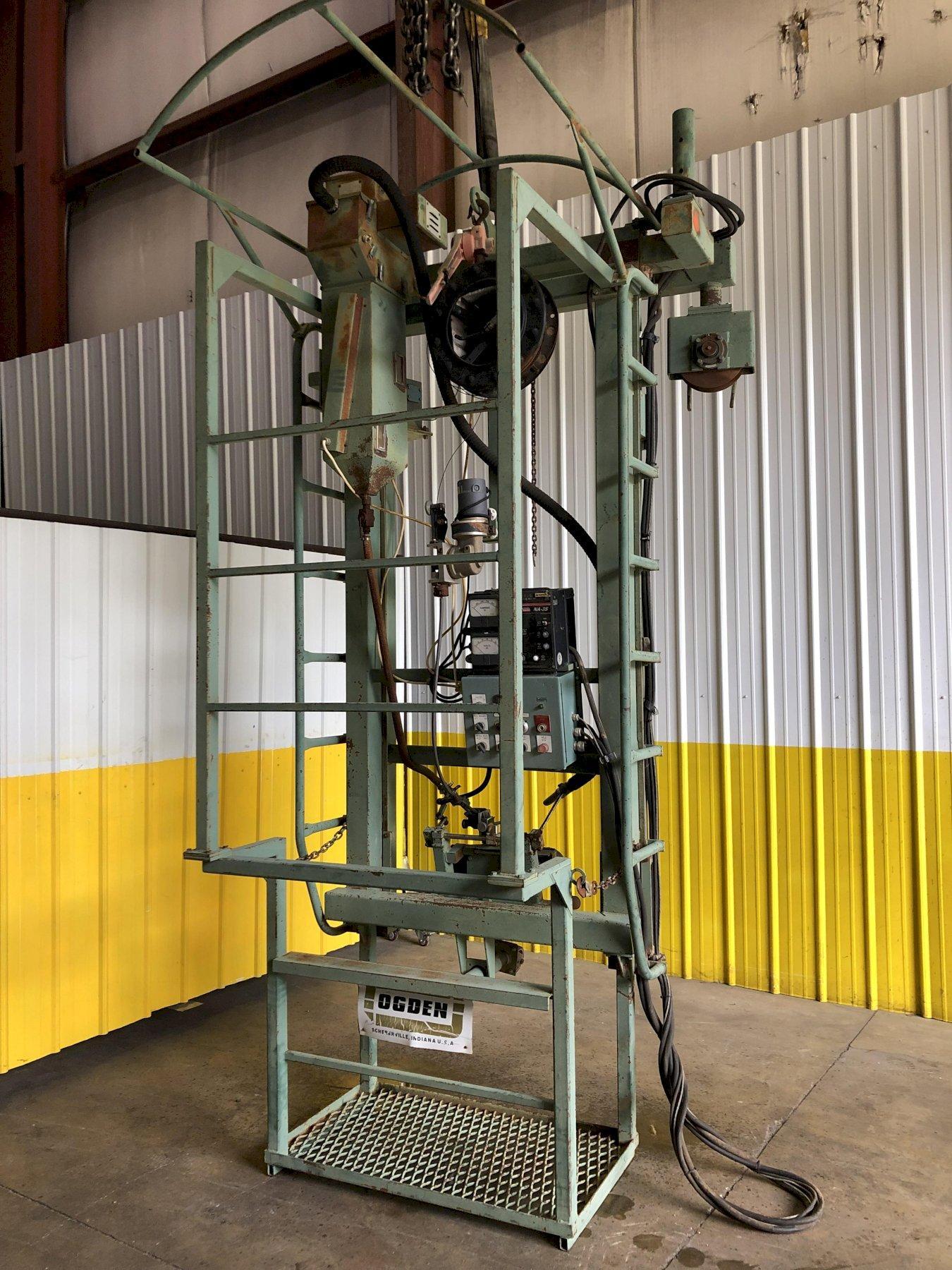

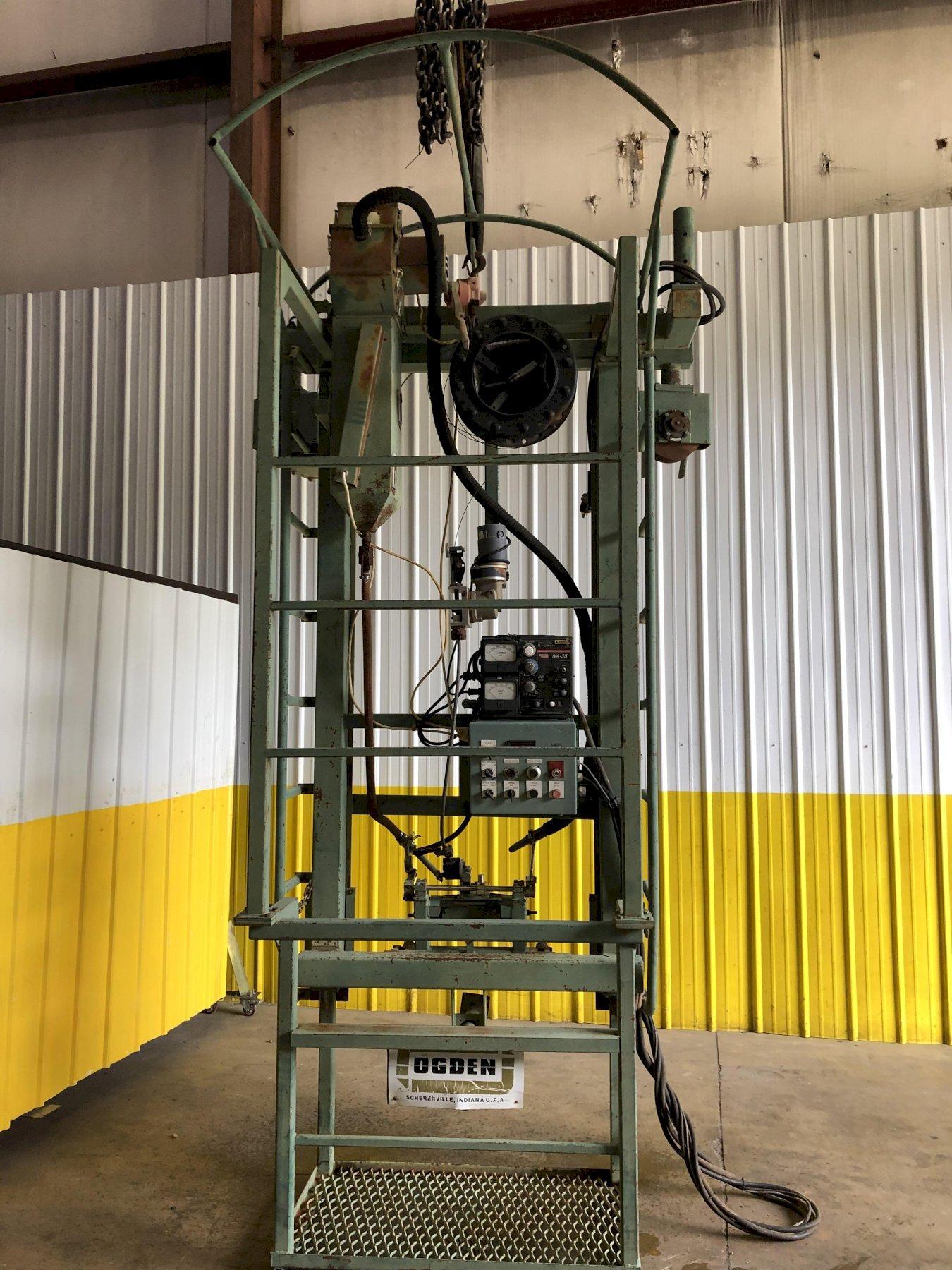

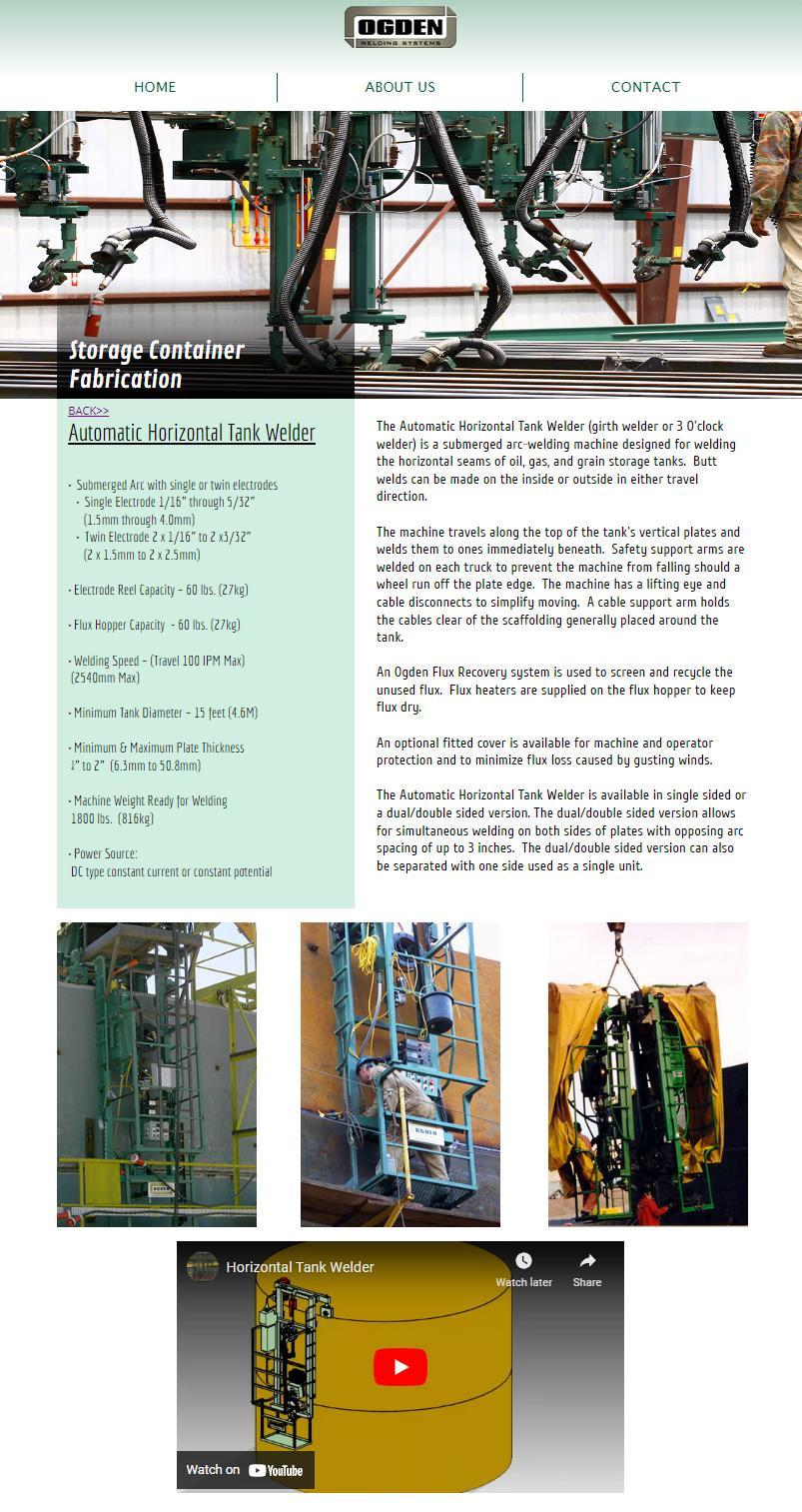

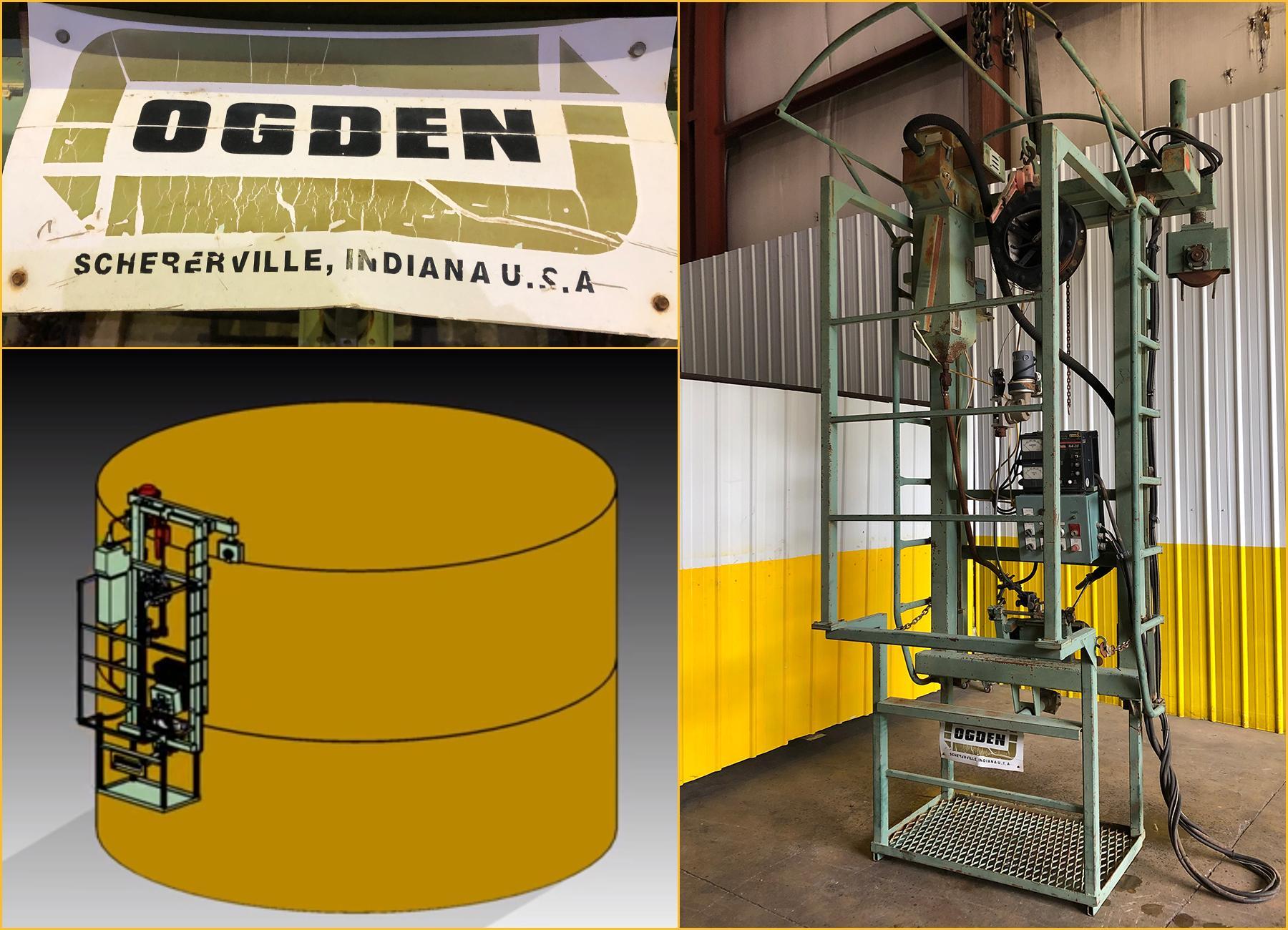

The Automatic Horizontal Tank Welder (girth welder or 3 O'clock welder) is a submerged arc-welding machine designed for welding the horizontal seams of oil, gas, and grain storage tanks.  Butt welds can be made on the inside or outside in either travel direction.

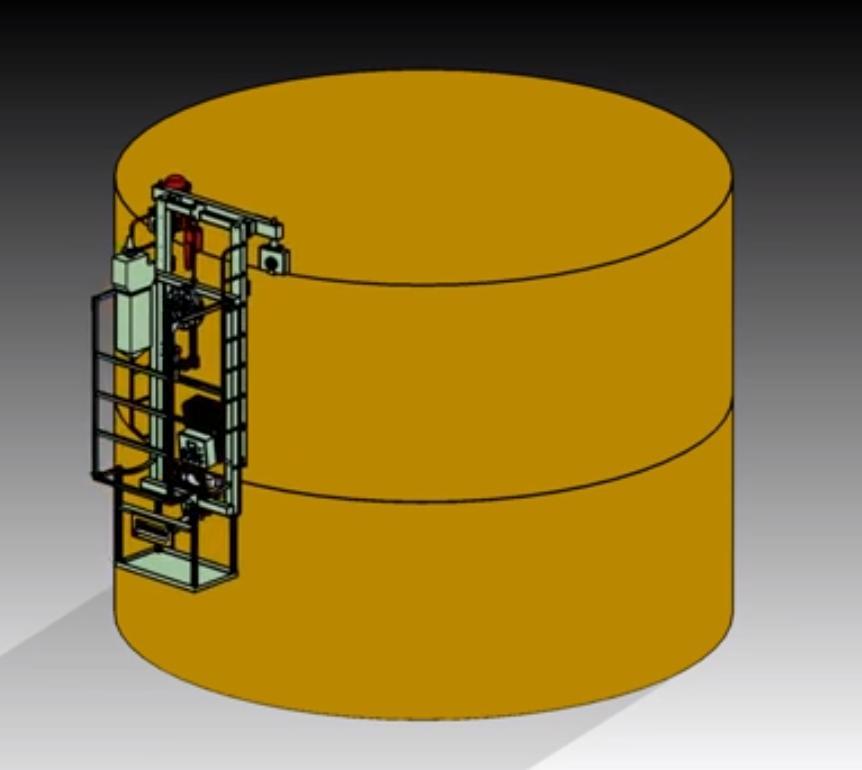

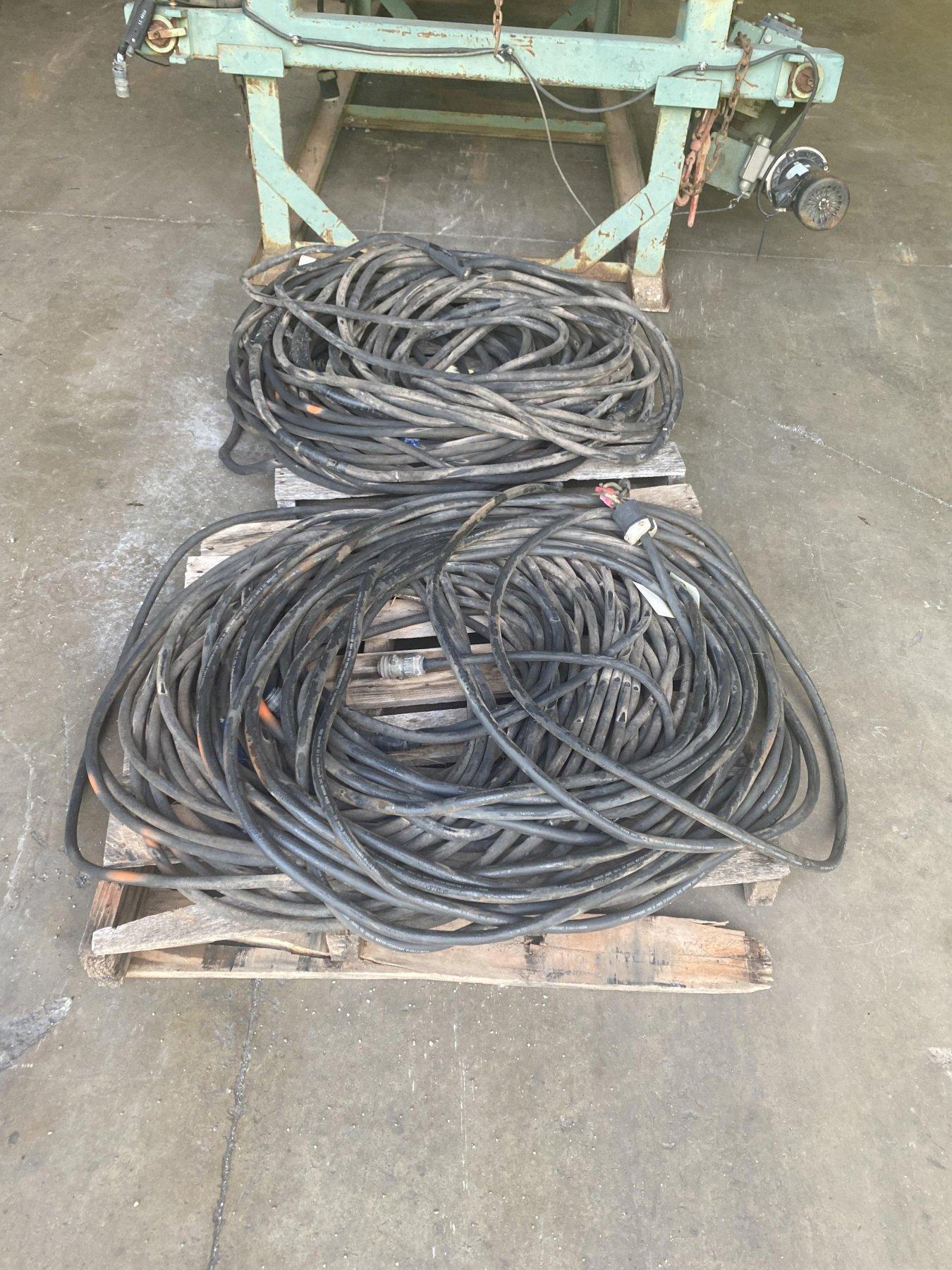

The machine travels along the top of the tank's vertical plates and welds them to ones immediately beneath.  Safety support arms are welded on each truck to prevent the machine from falling should a wheel run off the plate edge.  The machine has a lifting eye and cable disconnects to simplify moving.  A cable support arm holds the cables clear of the scaffolding generally placed around the tank.

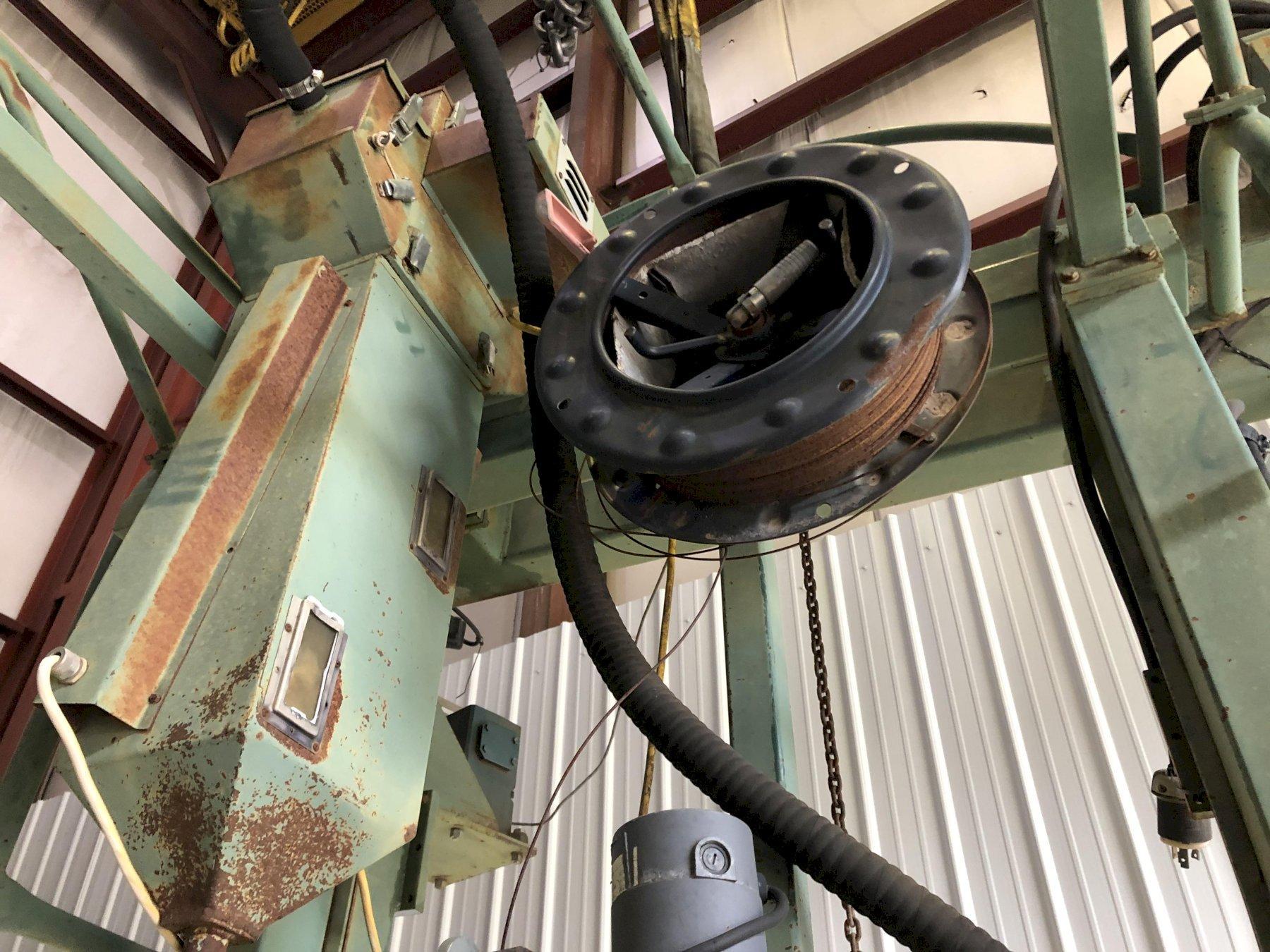

An Ogden Flux Recovery system is used to screen and recycle the unused flux.  Flux heaters are supplied on the flux hopper to keep flux dry.

An optional fitted cover is available for machine and operator protection and to minimize flux loss caused by gusting winds.

The Automatic Horizontal Tank Welder is available in single sided or a dual/double sided version. The dual/double sided version allows for simultaneous welding on both sides of plates with opposing arc spacing of up to 3 inches.  The dual/double sided version can also be separated with one side used as a single unit.
