Peddinghaus Peddiwriter PW-1250, (2) Hypertherm ArcWriter Plasma Torches, Siemens CNC, 2013 #32397

Stock

32397

Model

Peddiwriter PW-1250

Dealer Location

New York

Spec Sheet

Reference #32397

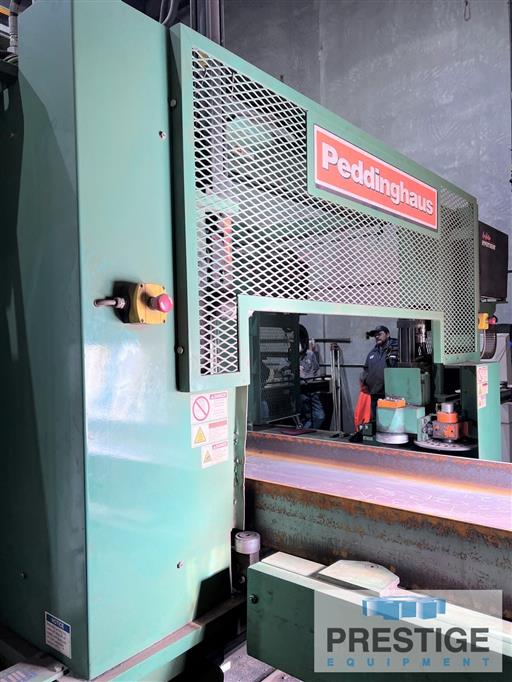

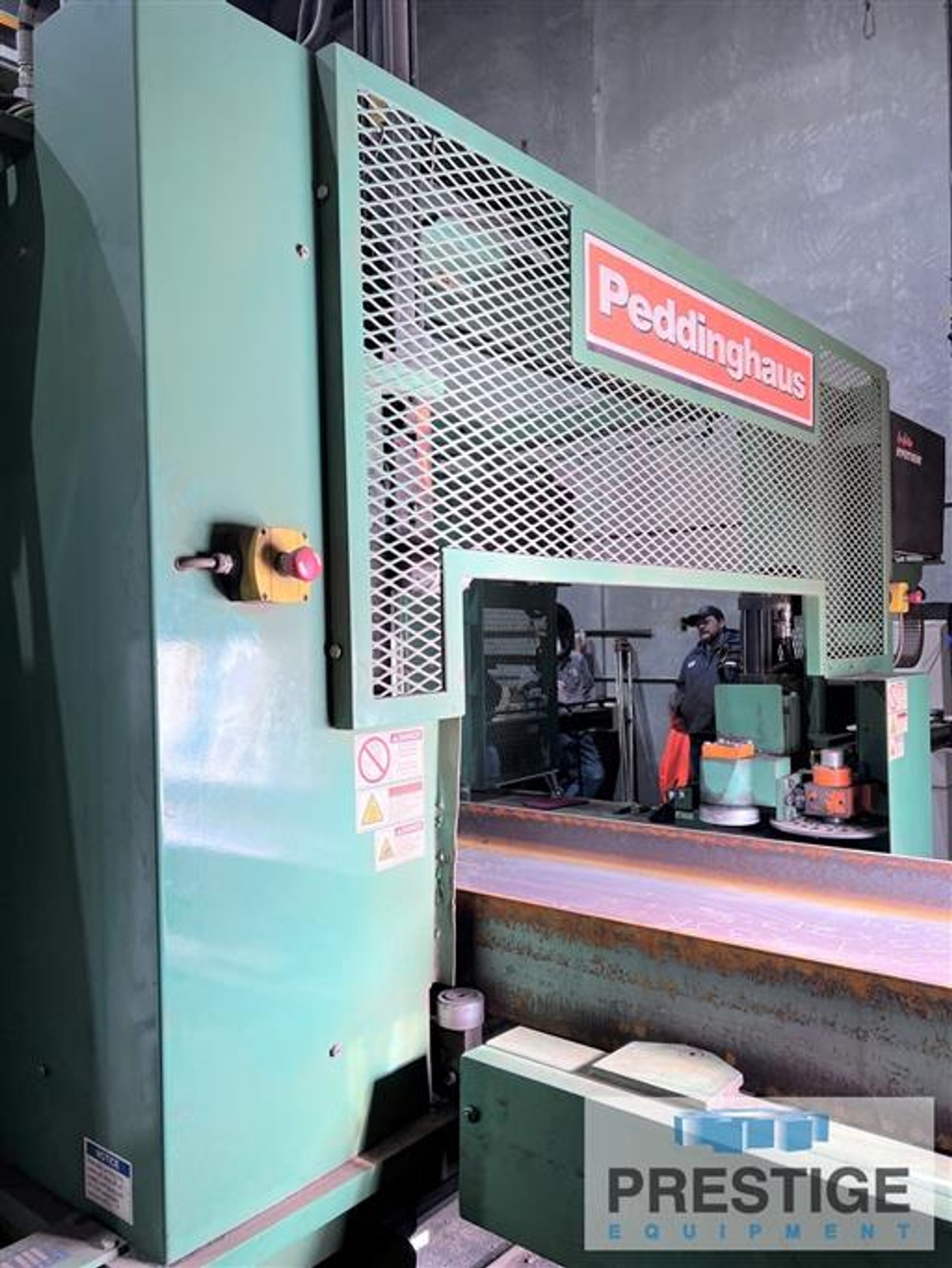

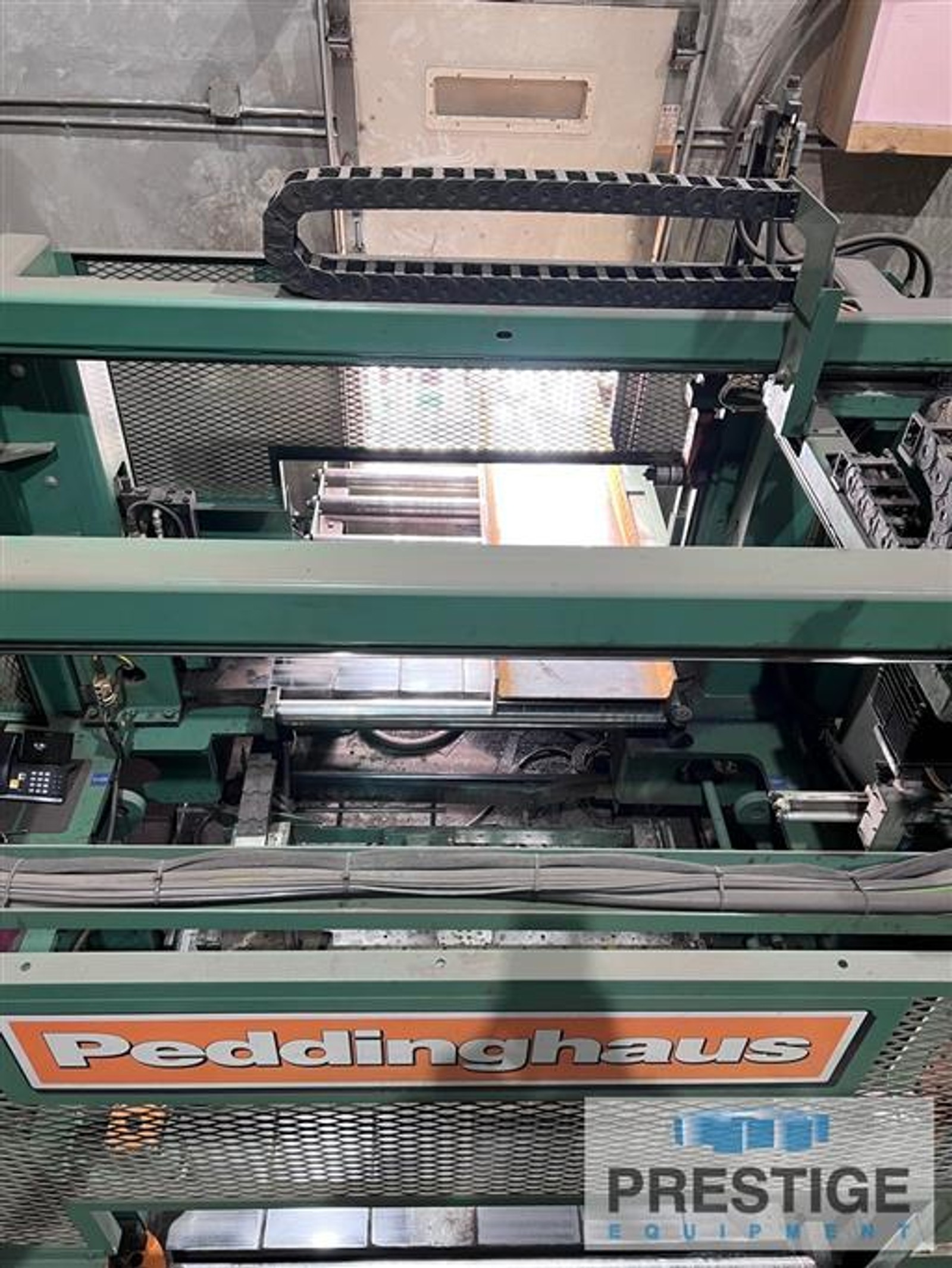

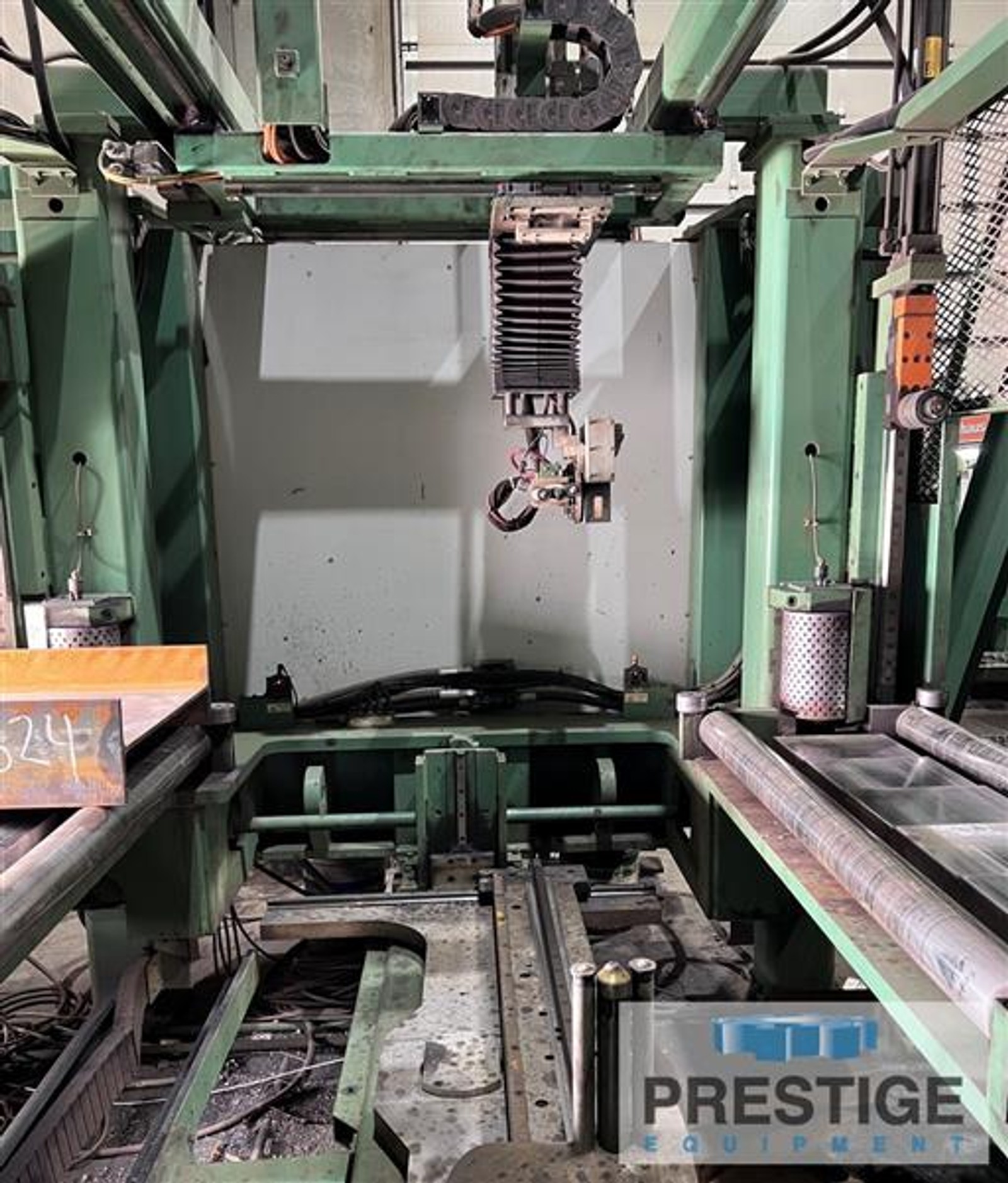

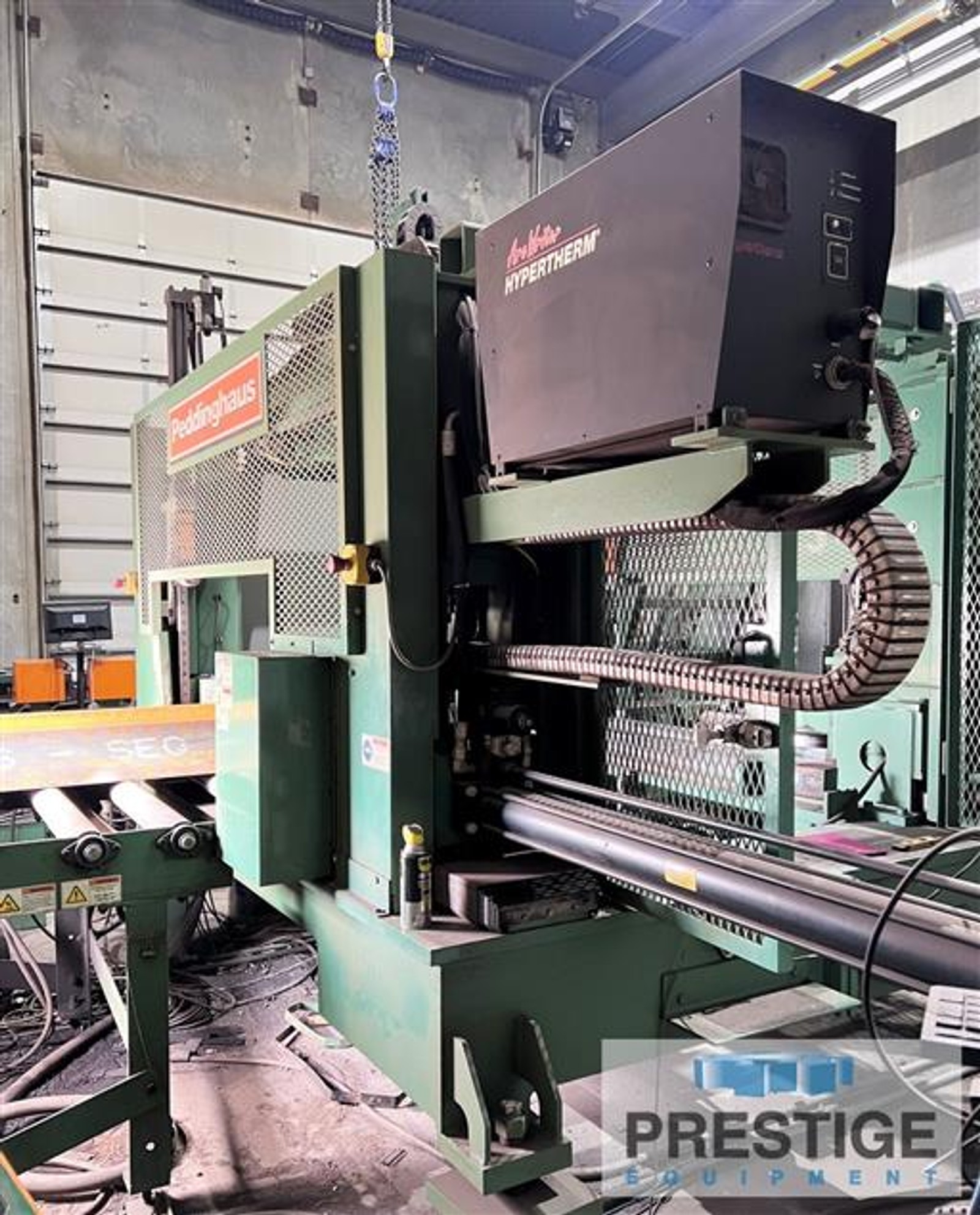

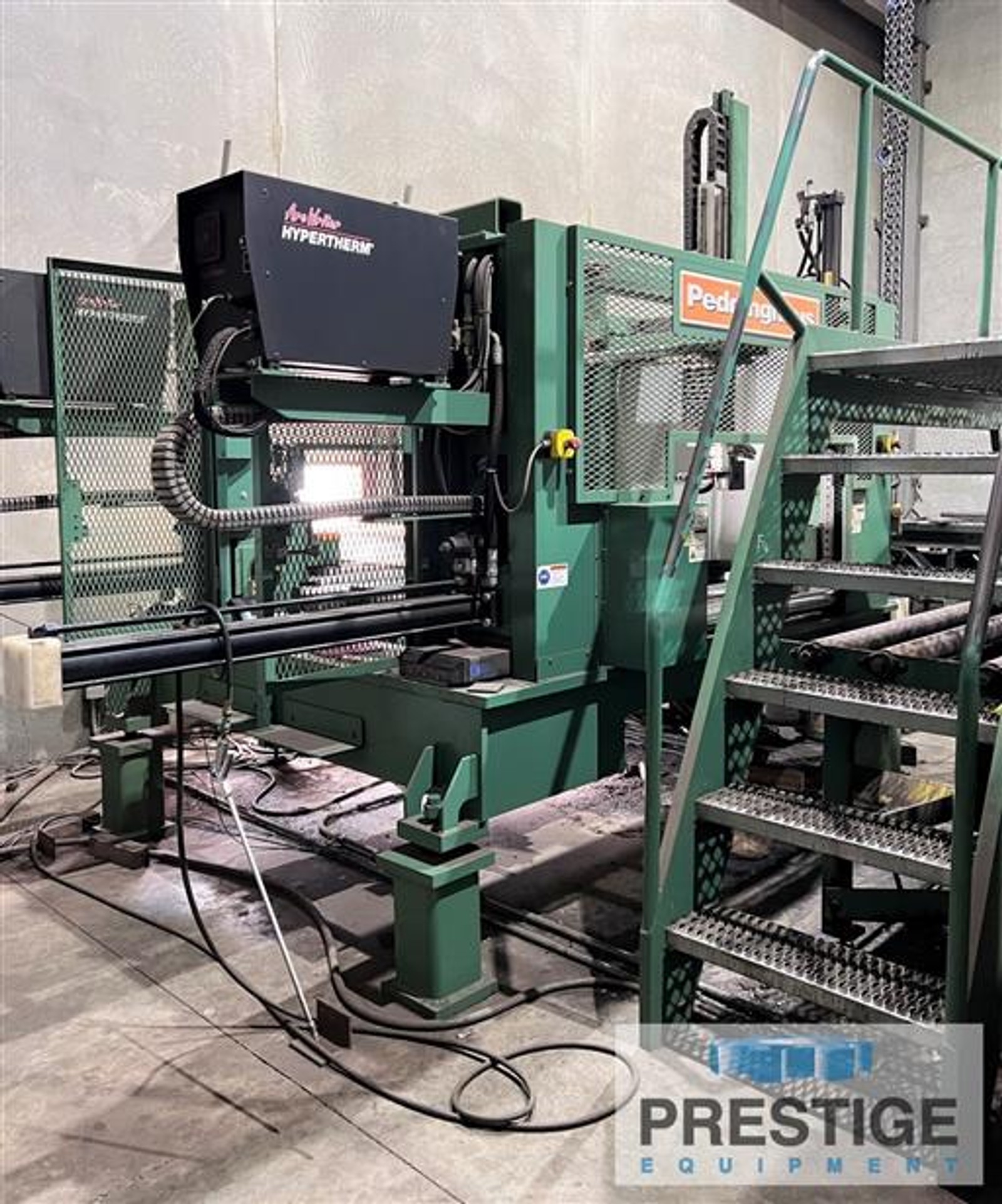

Peddinghaus Peddiwriter PW-1250 Automatic Plasma Layout Marking System

FEATURES:

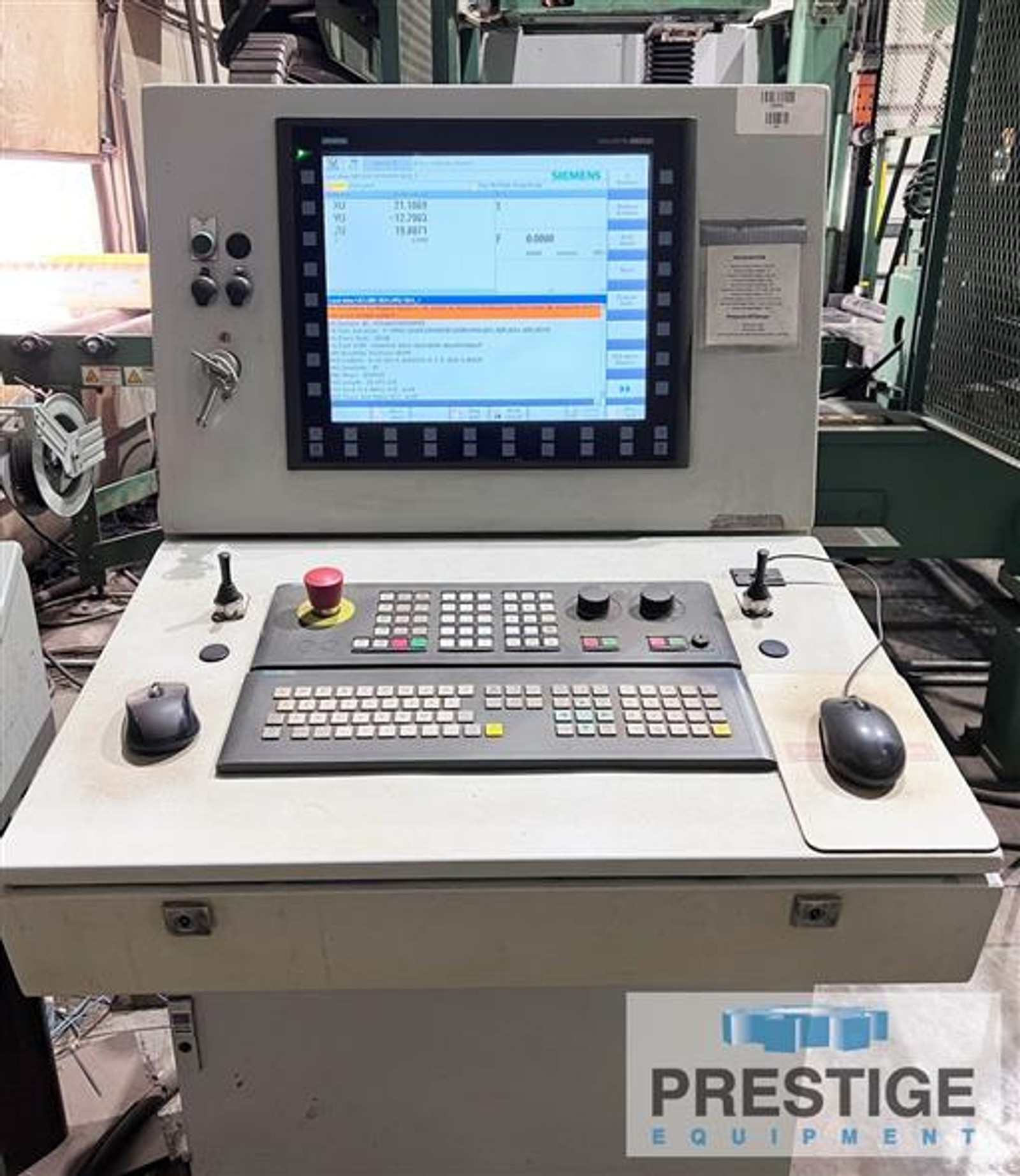

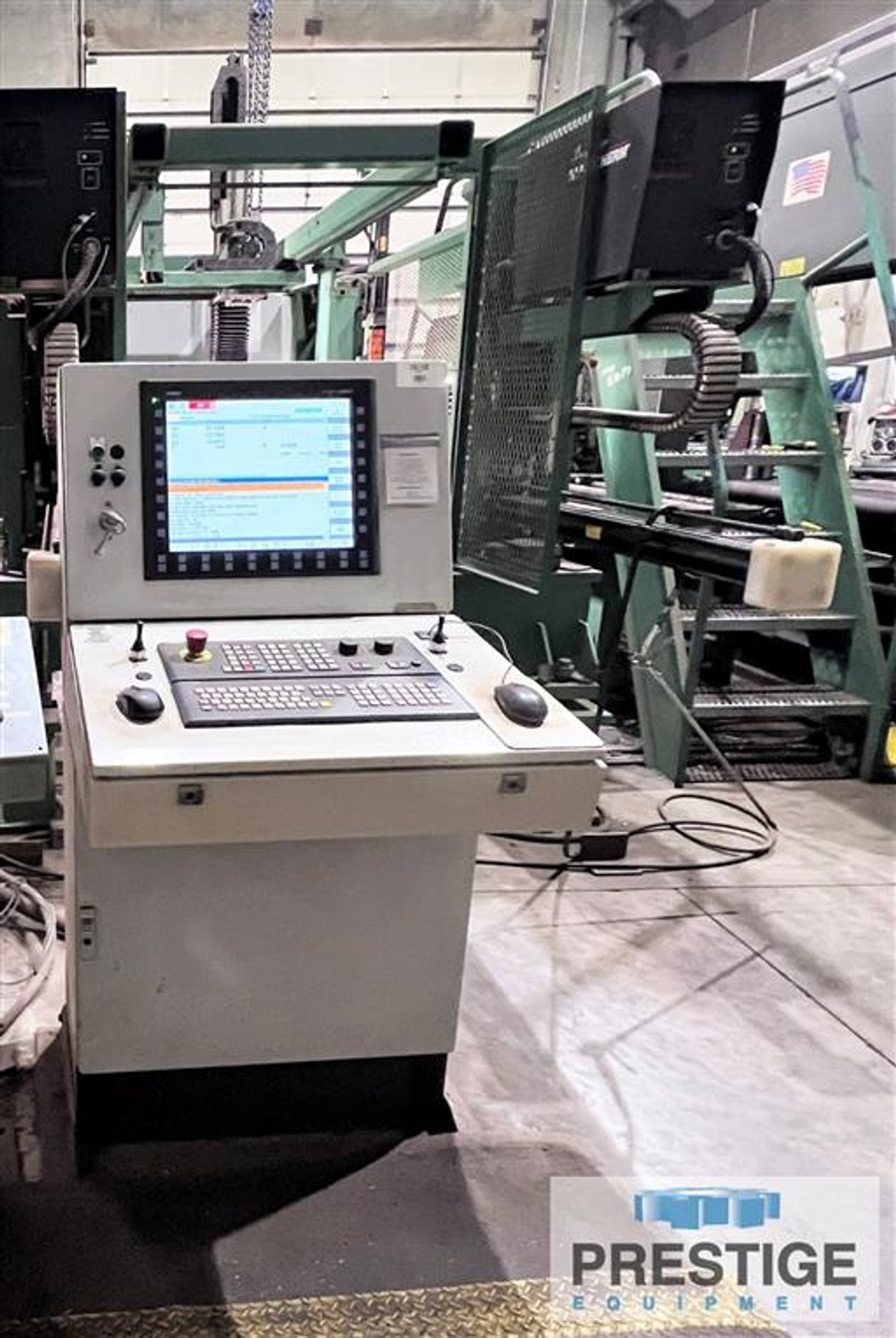

Siemens CNC Control

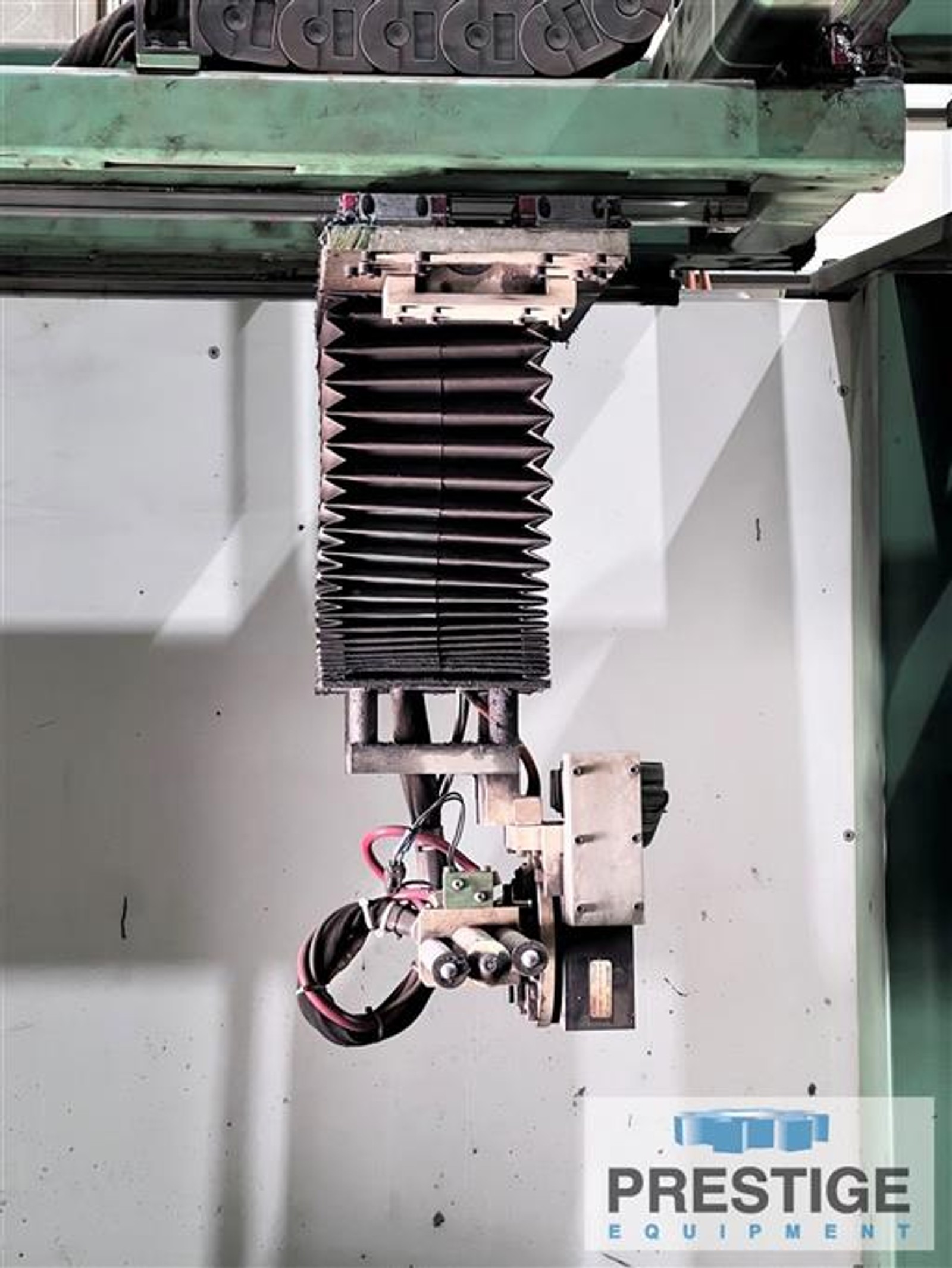

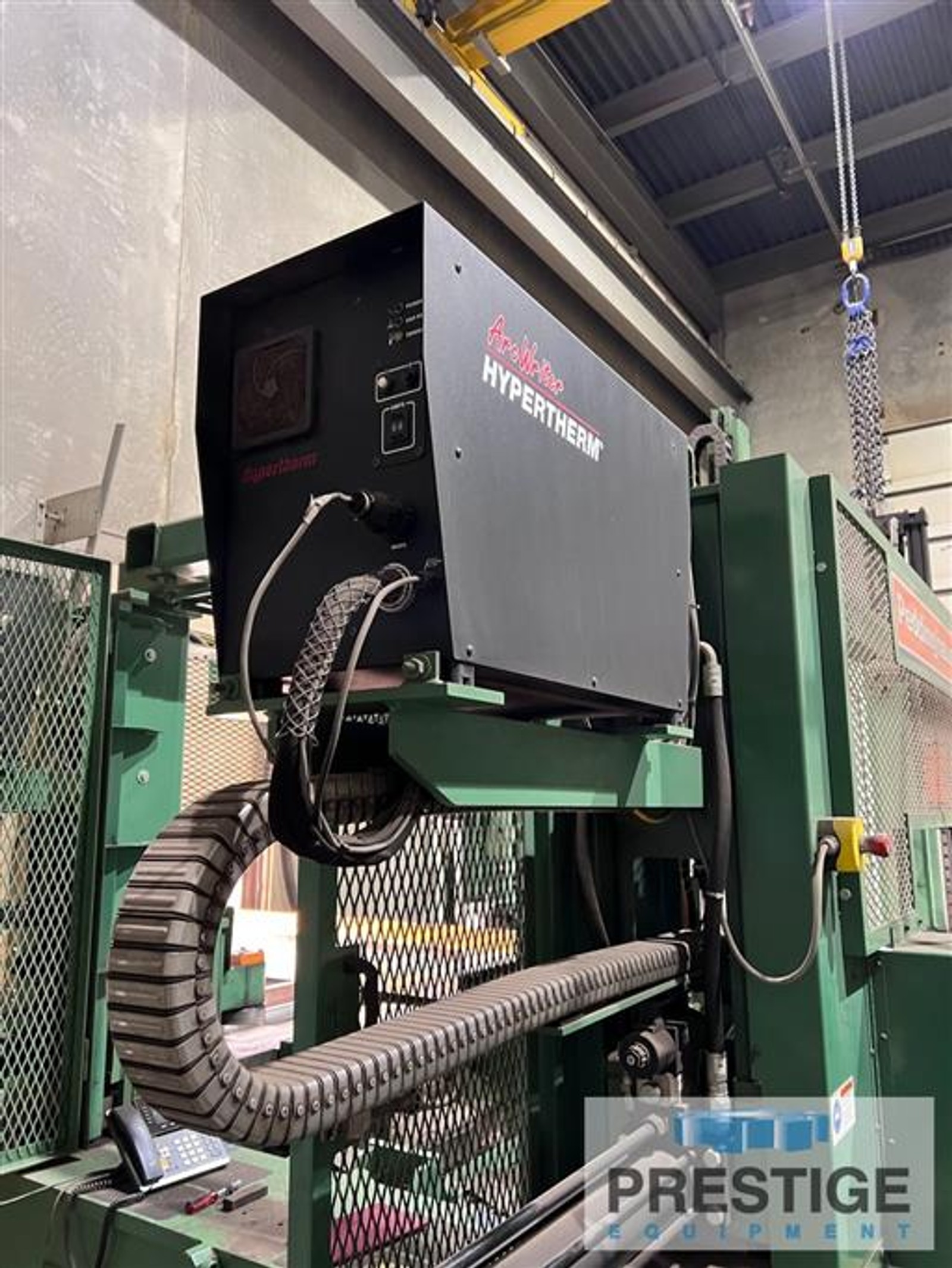

(2)Plasma Hypertherm ArcWriter Torches
4-Sided Marking
2-Side Simultaneous Marking
Roller Feed Measurement

CAPACITY:
Min. Section Width .................... 3"
Max. Section Width .................... 50"
Min. Section Height ................... 3"
Max. Section Height ................... 24"
Max. Profile Weight ................... 43,800 LBS
No. Of Plasma Marking Units ........... 2
Surfaces Marked Simultaneously ........ 2
Electrics ............................. 460 V, 3 Ph, 60 HZ
Approx. Machine Weight ................ 14,020 LBS

EQUIPPED WITH:
Siemens CNC Control
(2)Plasma Hypertherm ArcWriter Torches
4-Sided Marking Top & Bottom Web, Top & Bottom Flange
2-Side Simultaneous Marking
Roller Feed Measurement
Can Process Beams, Channel, Square/Rectangular Tubing, Angle & Flat Stock
