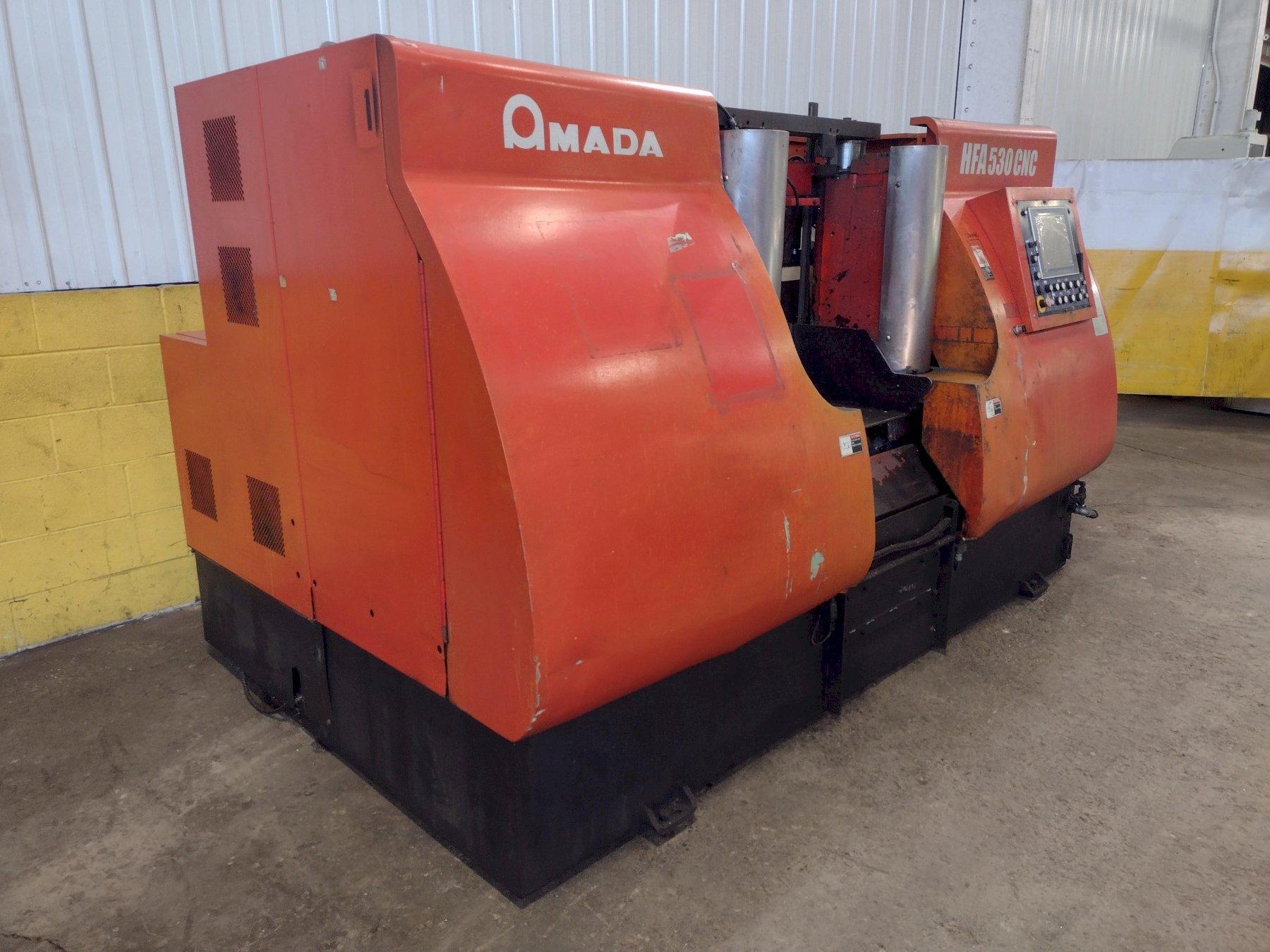

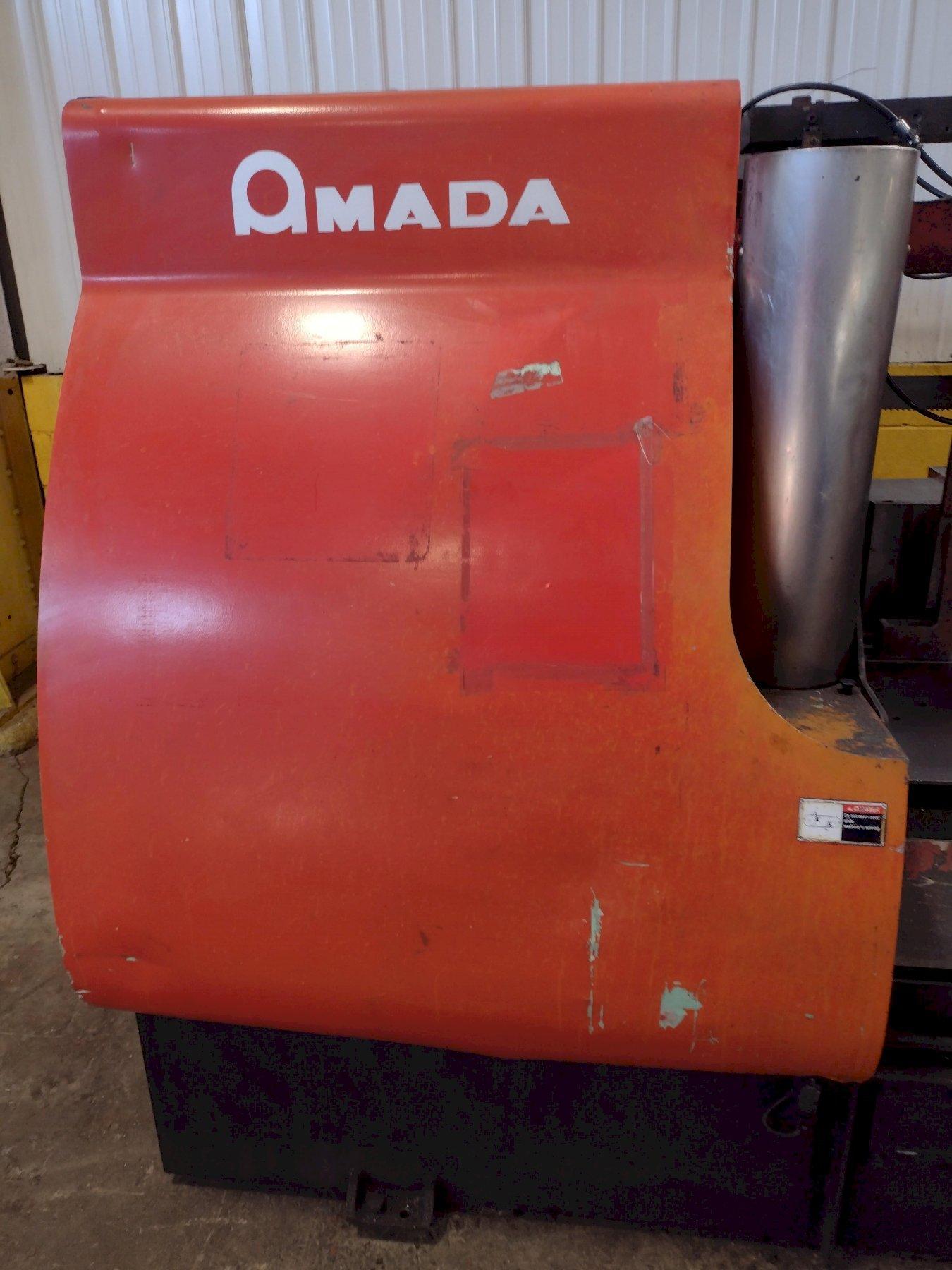

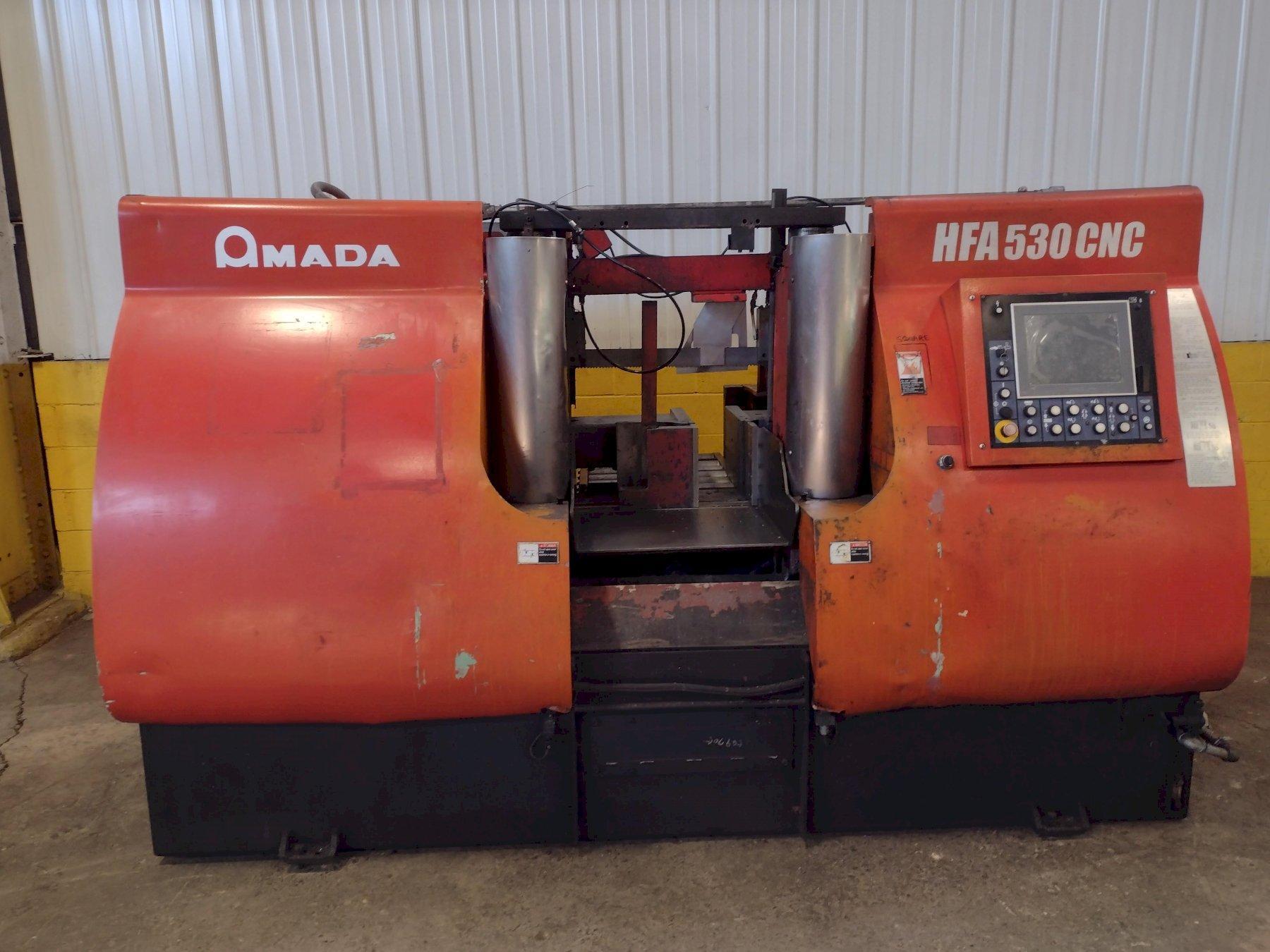

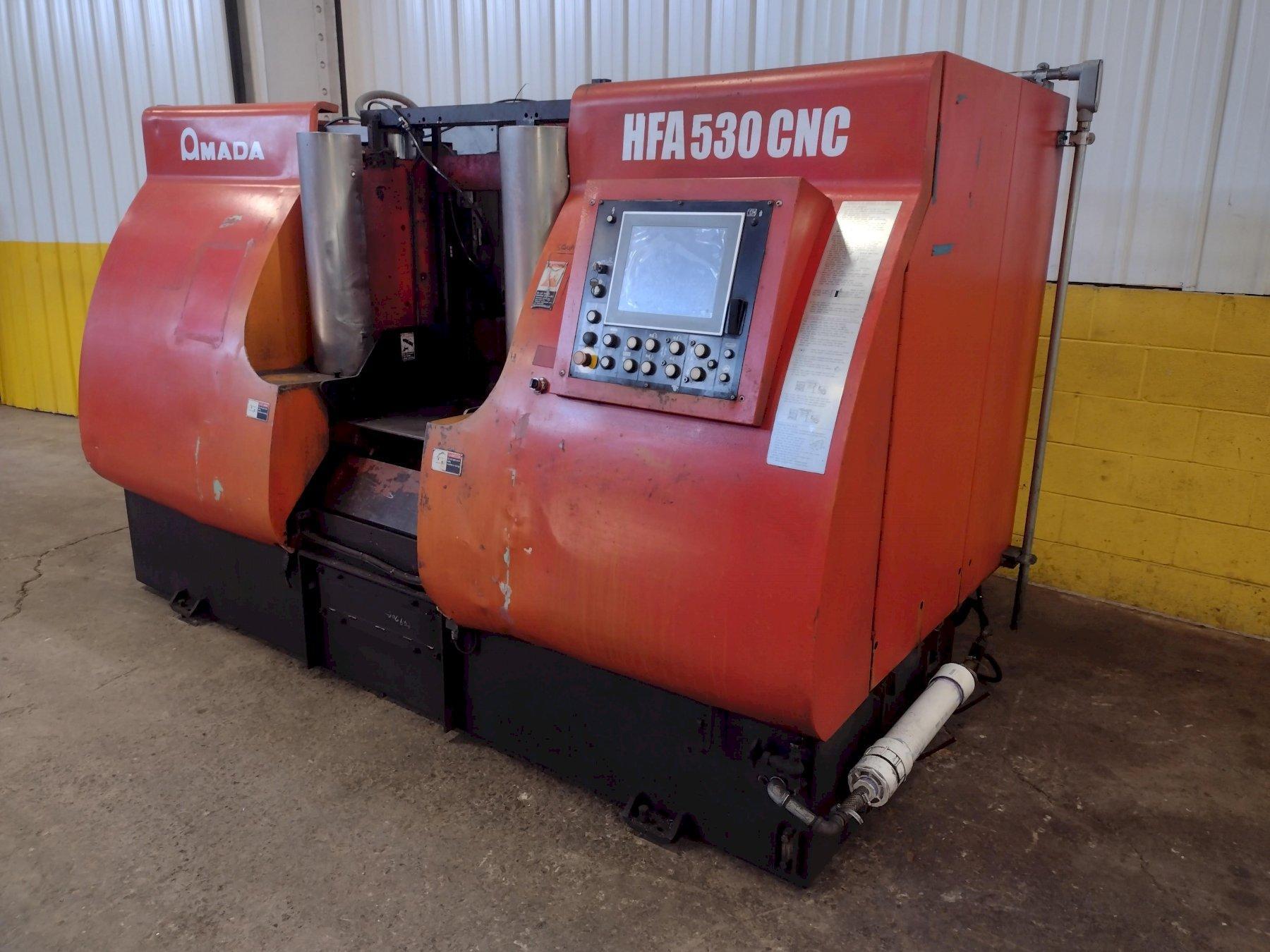

21" x 21" AMADA MODEL HFA530CNC AUTOMATIC HORIZONTAL BANDSAW: STOCK 18232

Manufacturer

AMADA

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

18232

Model

20X20 HFA530CNC

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Rect-Cap (H) - 20.9 inches
Rect-Cap (W) - 20.9 inches
CNC Control - yes
Type of CNC Control - AMADA
Dimensions - 13′ L x 8′ W x 7′ H
Weight - 15000 pounds

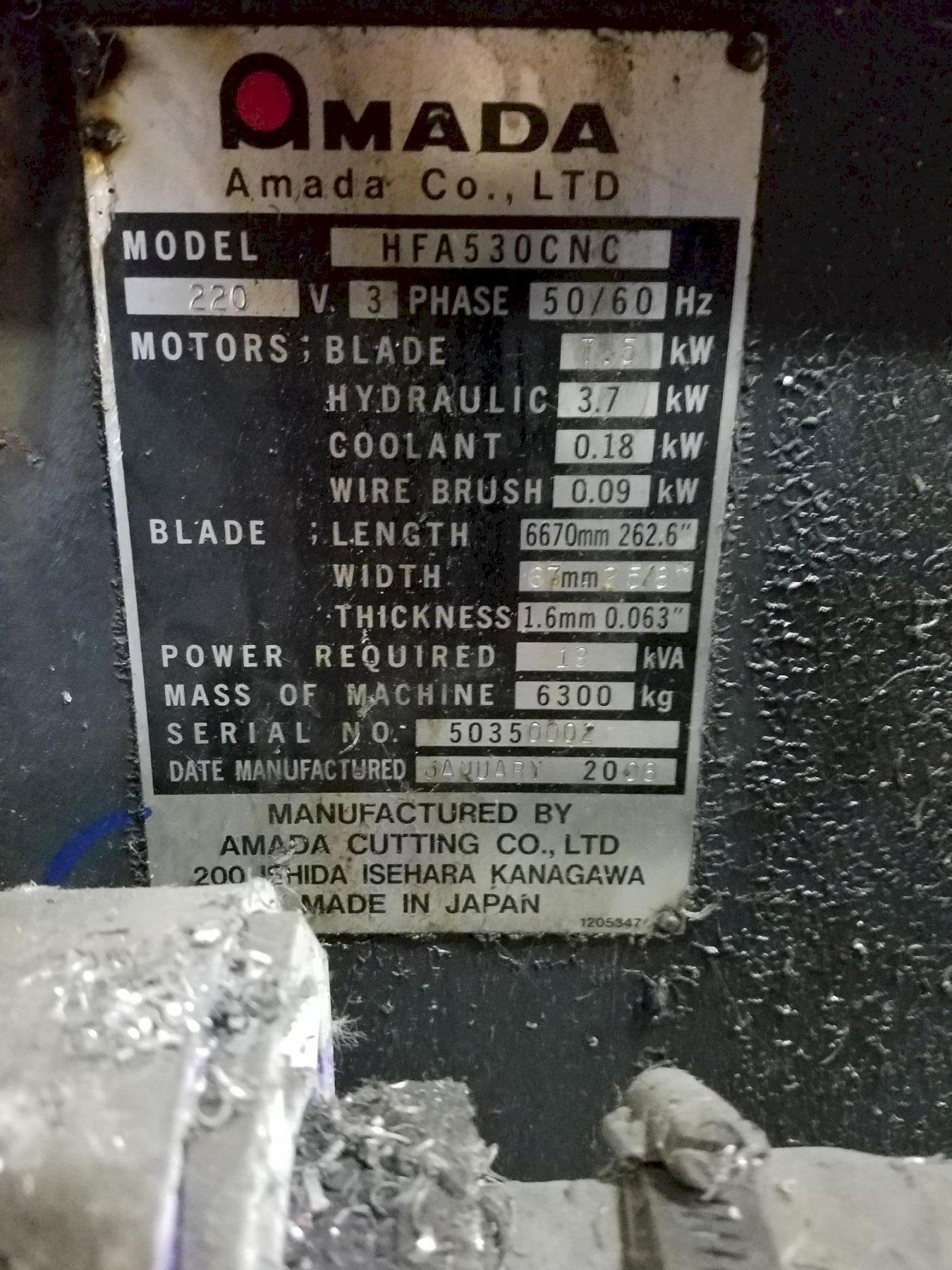

SERIAL ............................ 50350002
MODEL ............................. HFA 530 CNC
YEAR .............................. 2006
ROUND CUTTING CAPACITY ............ 30-530MM
RECTANGLE CUTTING CAPACITY(WxH).... 1.18" TO 21"
WORK LOAD CAPACITY ................ 8,811 LBS

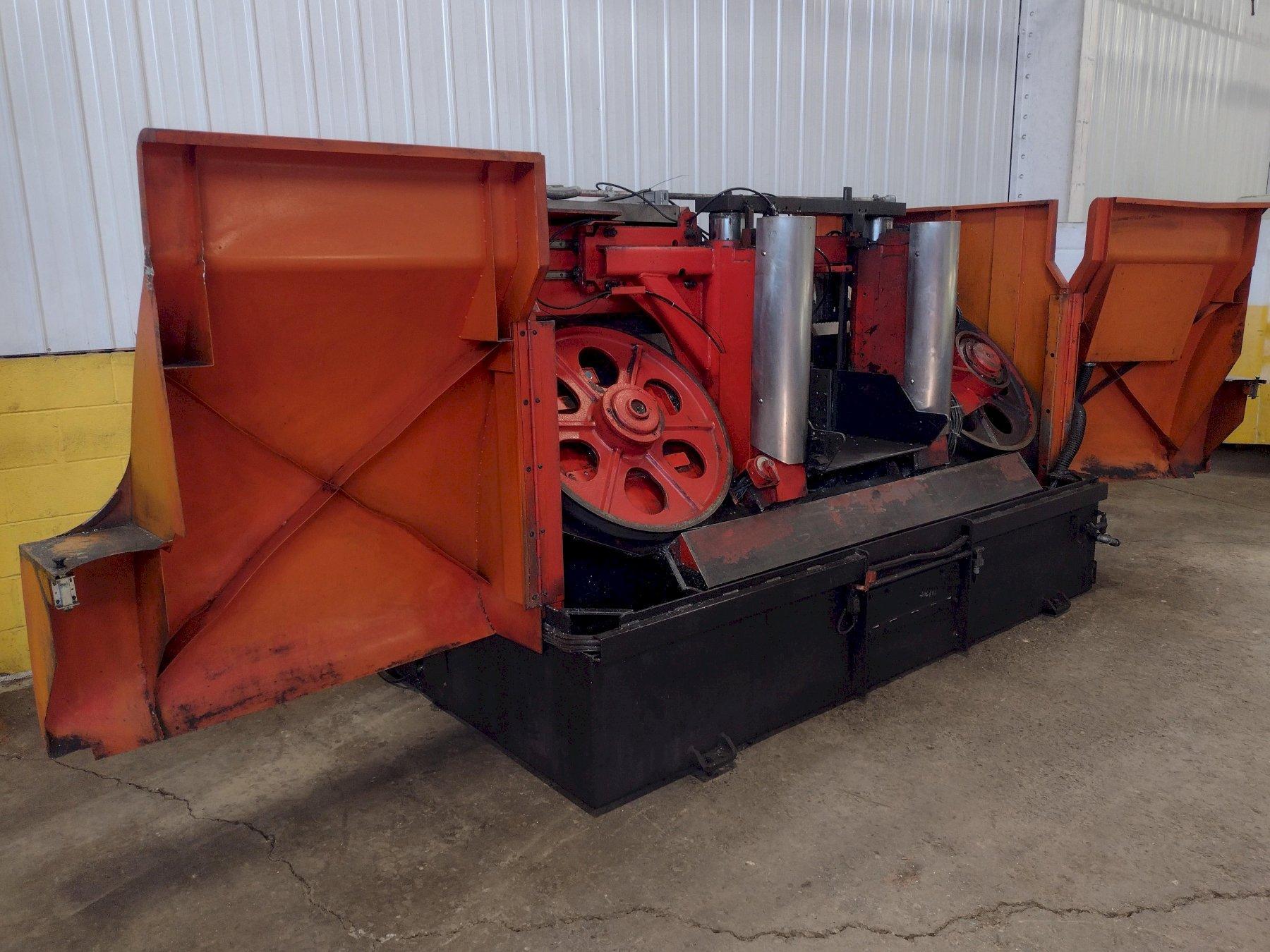

SAW BLADE SIZE .................... 21'10" X 0.063" X 2-5/8"
SAW BLADE SPEED ................... 50 TO 394 FPM
TENSION CONTROL ................... HYDRAULIC

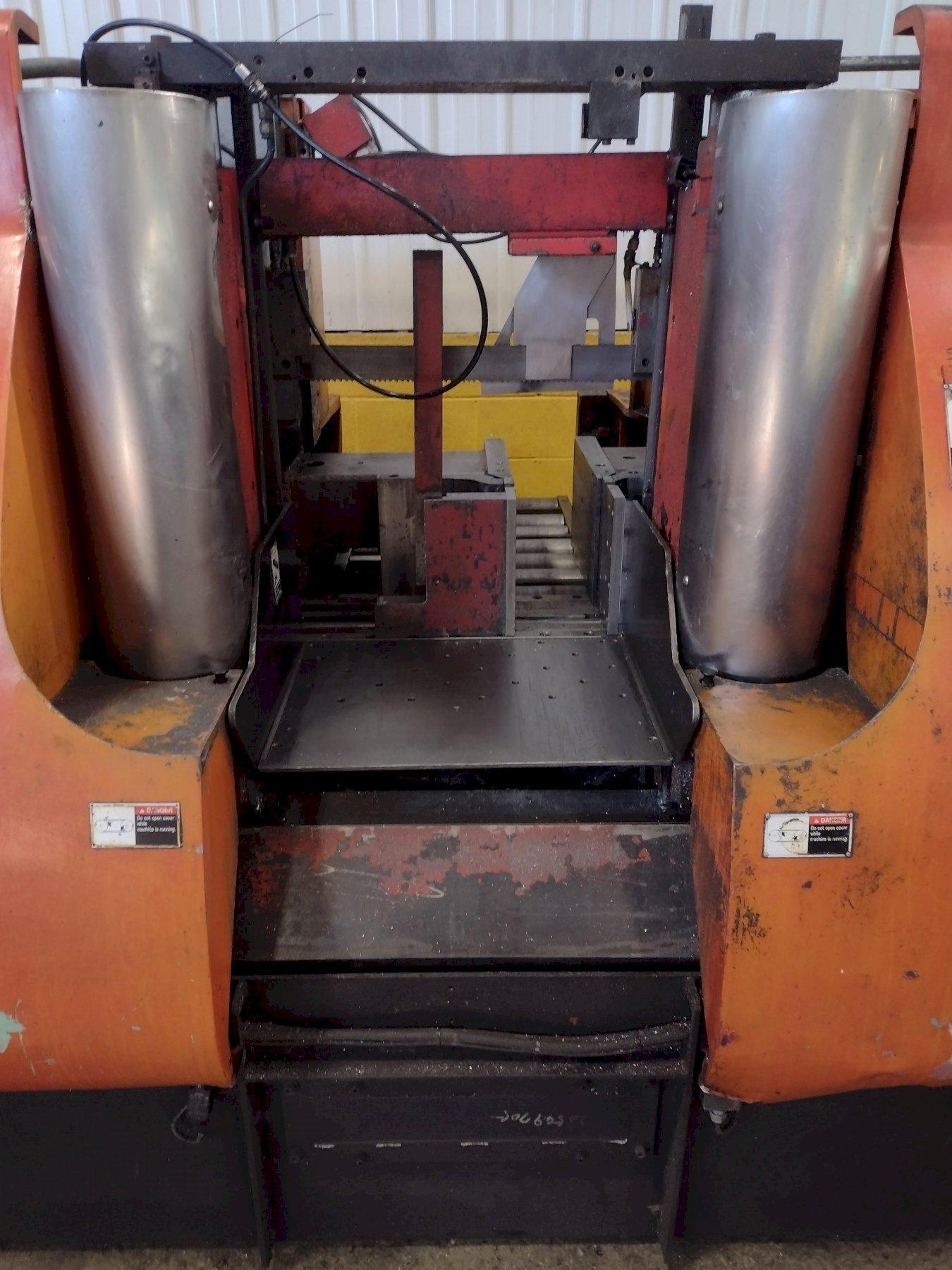

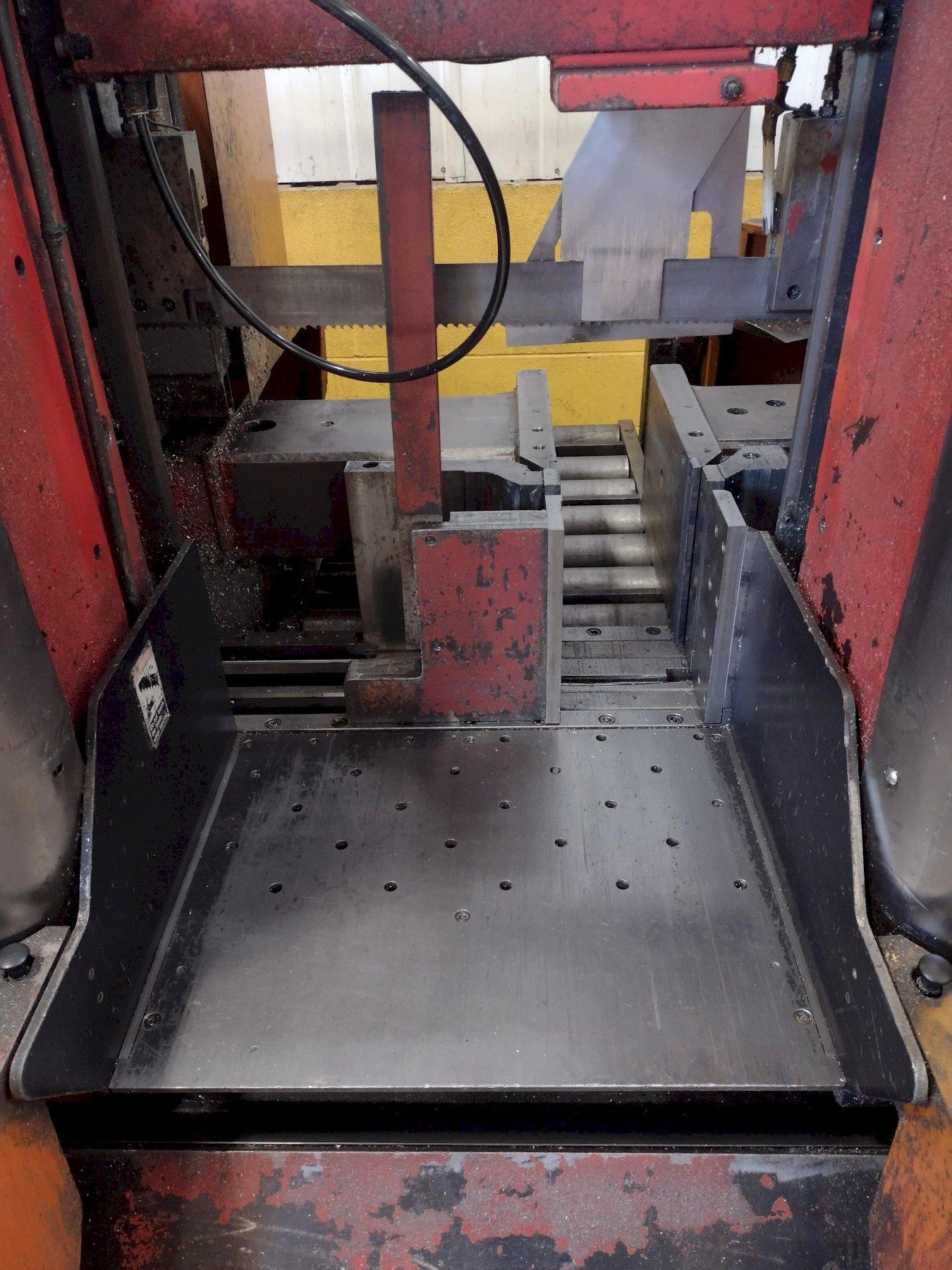

VISE OPERATION TYPE ............... SPLIT
VISE OPERATION CONTROL ............ HYDRAULIC FULL-STROKE CYLINDER
SAW BLADE MOTOR ................... 7.5KW
MATERIAL INDEX MECHANISM .......... SHUTTLE TYPE
MATERIAL INDEX STROKE ............. 15.75"
MATERIAL FEED INDEX LENGTH ........ 0.39"-393.69"
TABLE HEIGHT ABOVE FLOOR .......... 32.7"
SAW BLADE MOTOR ................... 7.5KW
MOTORS HYDRAULIC PUMP MOTOR ....... 5HP
CUTTING FLUID PUMP MOTOR .......... 0.25HP
AC INVERTER SPEED CHANGE .......... YES

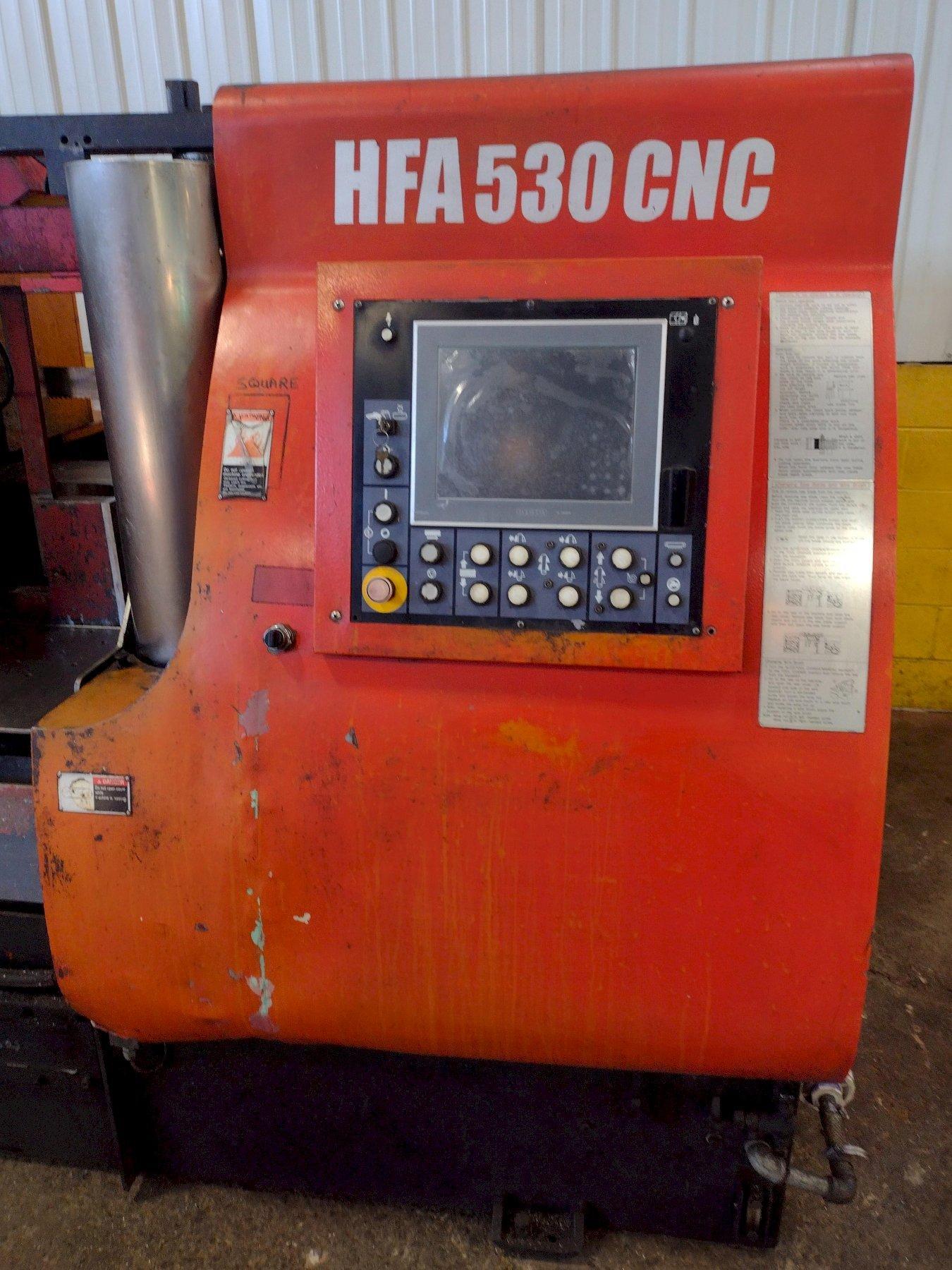

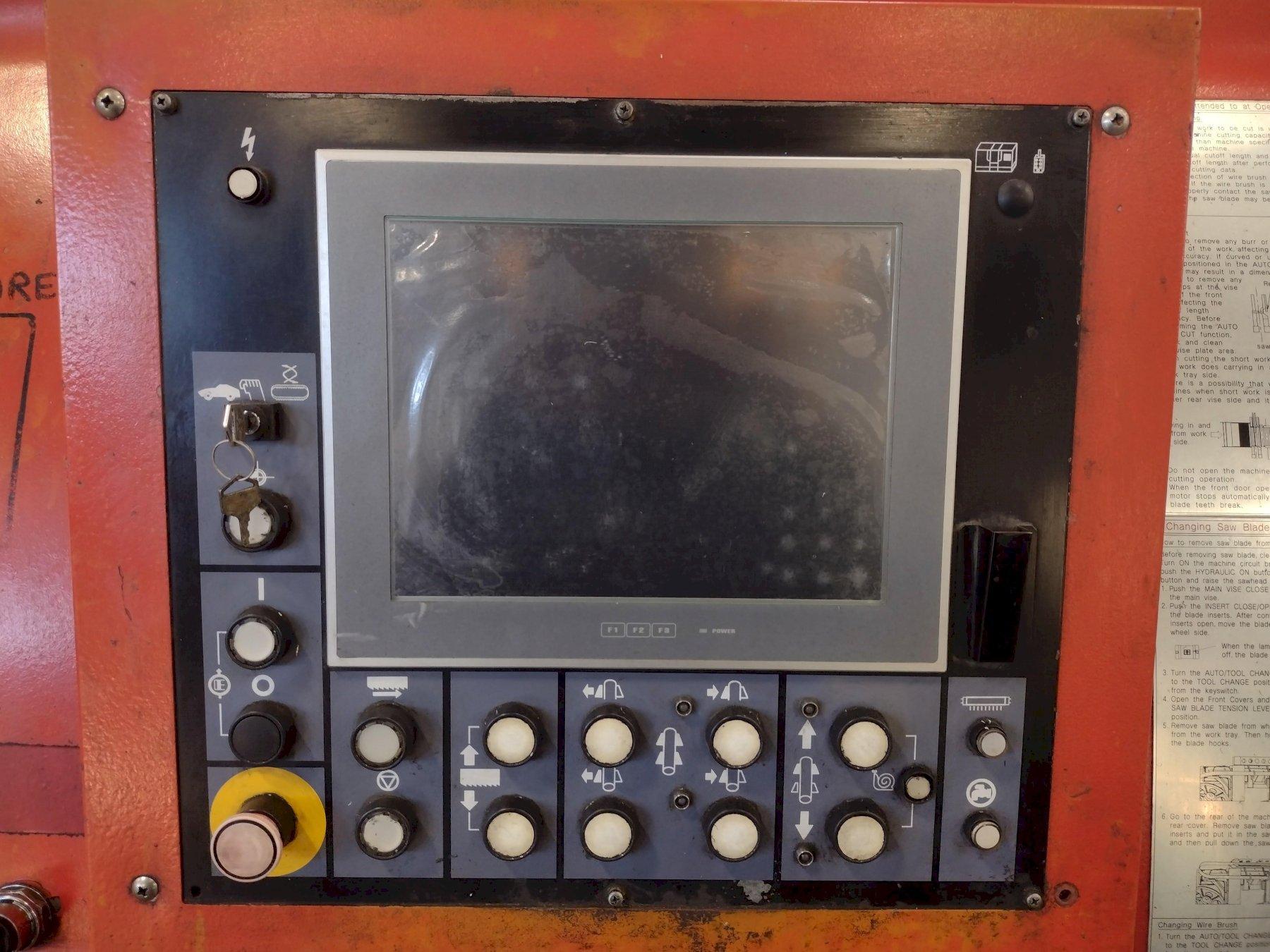

WINDOW-BASED CNC CONTROLLER
AUTO TRIM CUT
AUTO INITIAL MATERIAL POSITION
BLADE DEVIATION MONITOR
CHIP CONVEYOR
30 BLOCK/10 STATION FOR DIFFERENT CUT LENGTH
