10,000 lbs. x 24" Wide Mecon Model# 100CCS24 Coil Cradle Straightener For Sale, Year 1992

Stock

2851

Model

100CCS24

Dealer Location

Michigan

Spec Sheet

Coil Weight - 10000 pounds
Coil Width - 24 inches
Coil Thickness - .220 inches


Standard Specifications
Used Mecon Coil Cradle Straightener - Top Mounted
Model #100CCS224
10,000 lbs. Maximum Coil Weight
24" Max. Coil Width
24" @ .220" Maximum Coil Thickness at Full Width
60" Coil OD Capacity

Equipment and Features

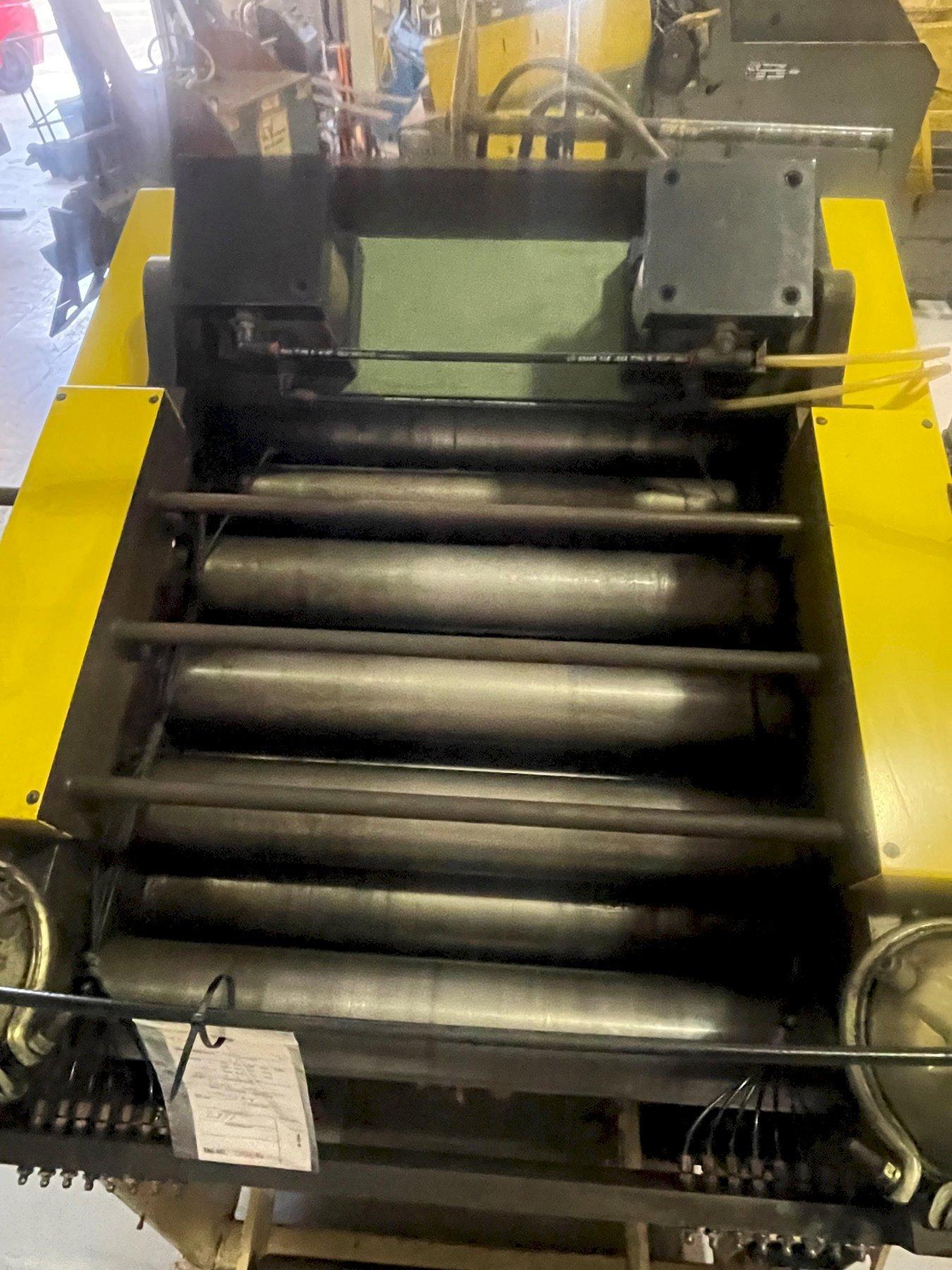

7 Roll Straightener
4" Diameter Straightening Rolls
Hand crank stock width edge guides
Scales and pointers on edge guides
Rugged Heavy Duty Construction
Driven Pinch and Lower Straightening Rolls
Standard Payout speed of 0-80 FPM
Entry and Exit Pinch Rolls
Inclined Straightening Head
Coil nesting rolls
Dual adjustable restrictor side plates
Operator's controls

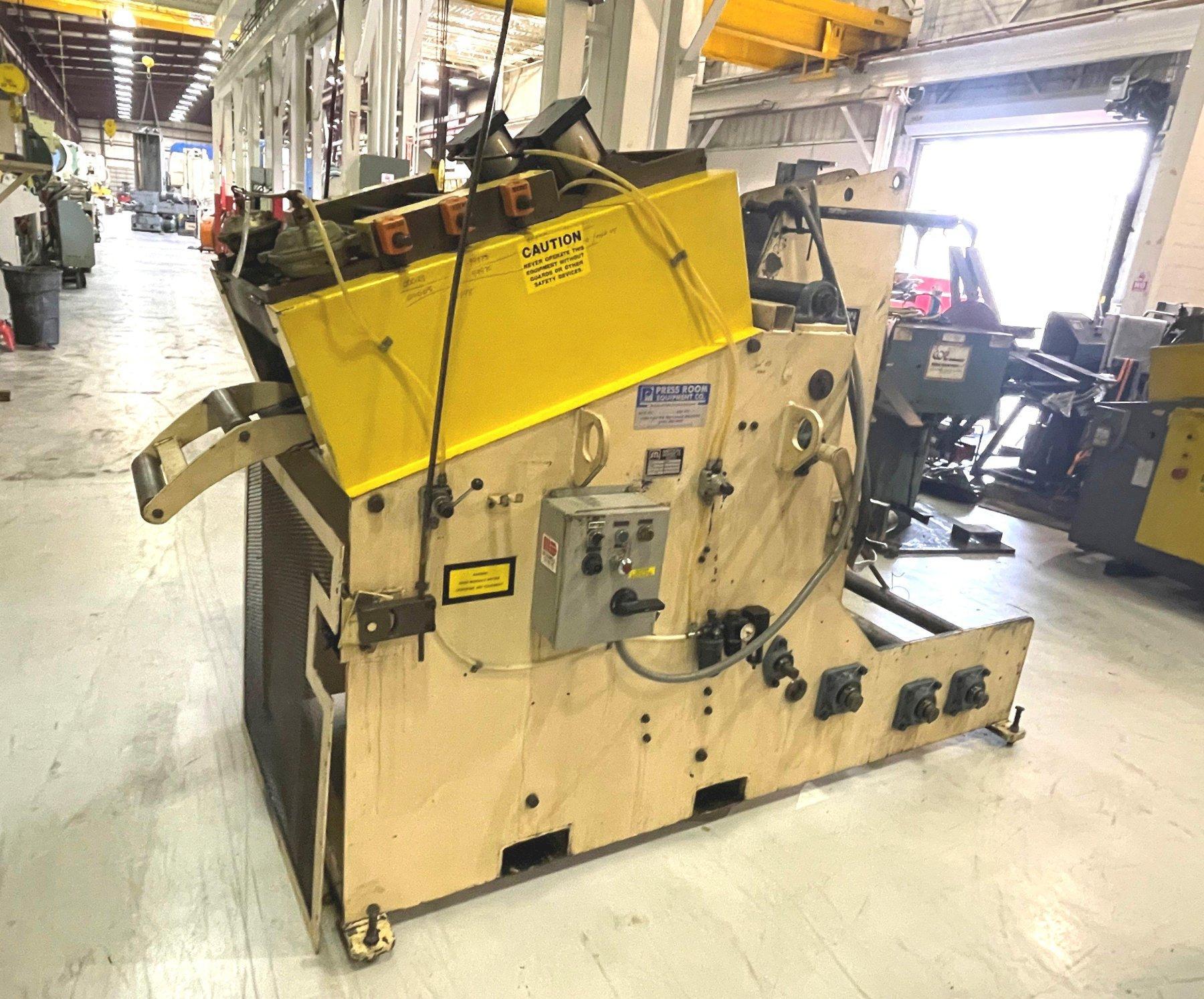

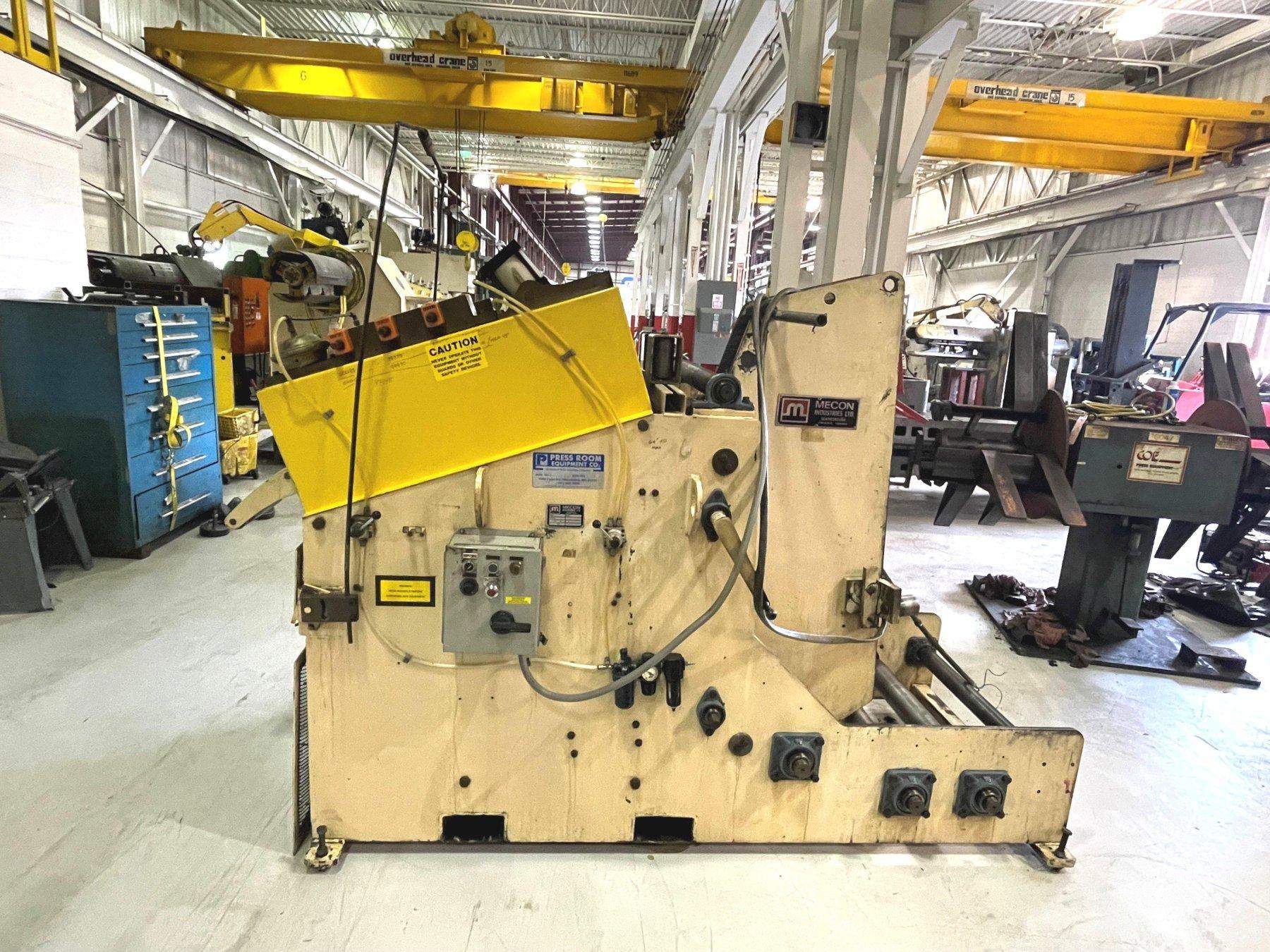

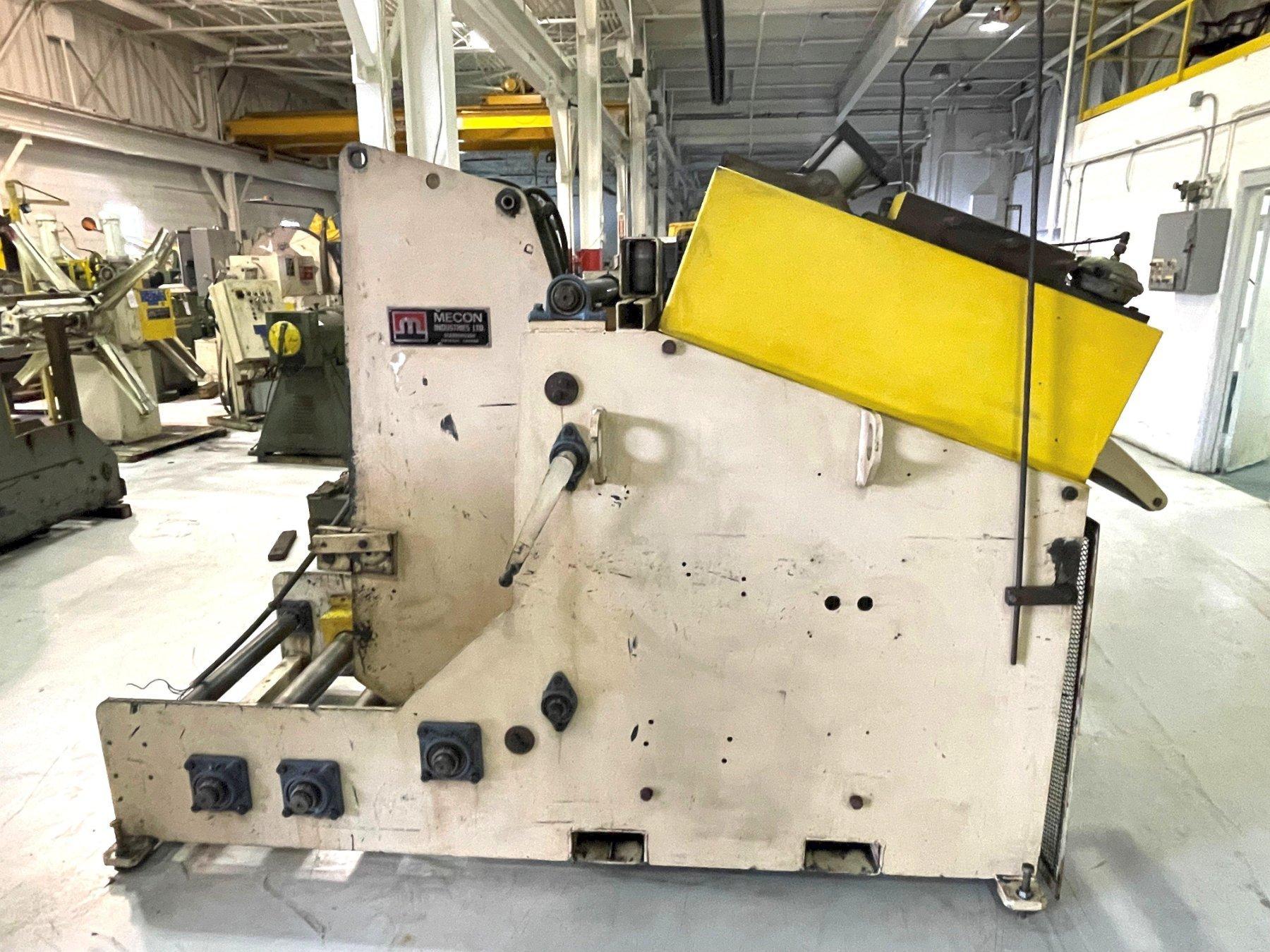

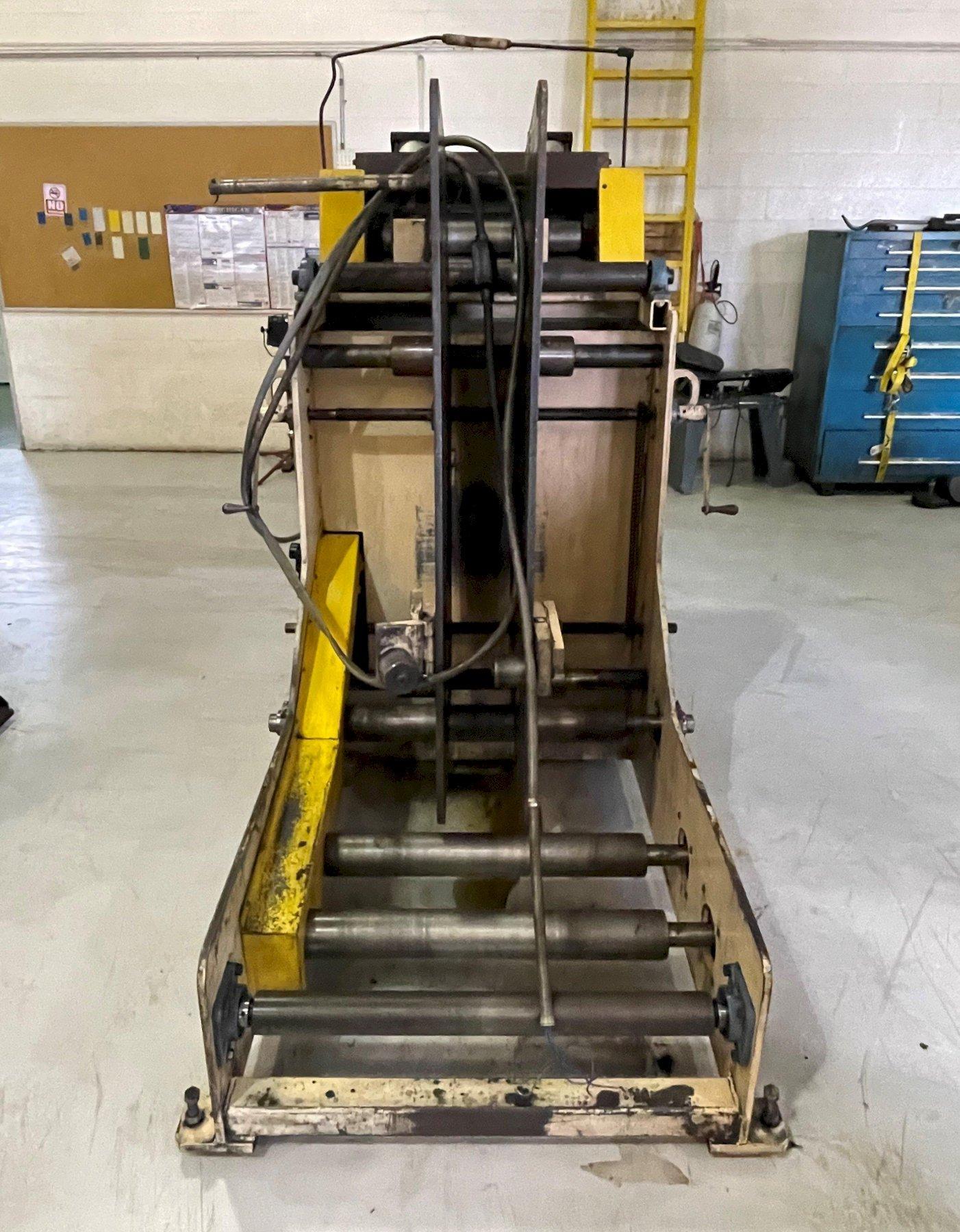

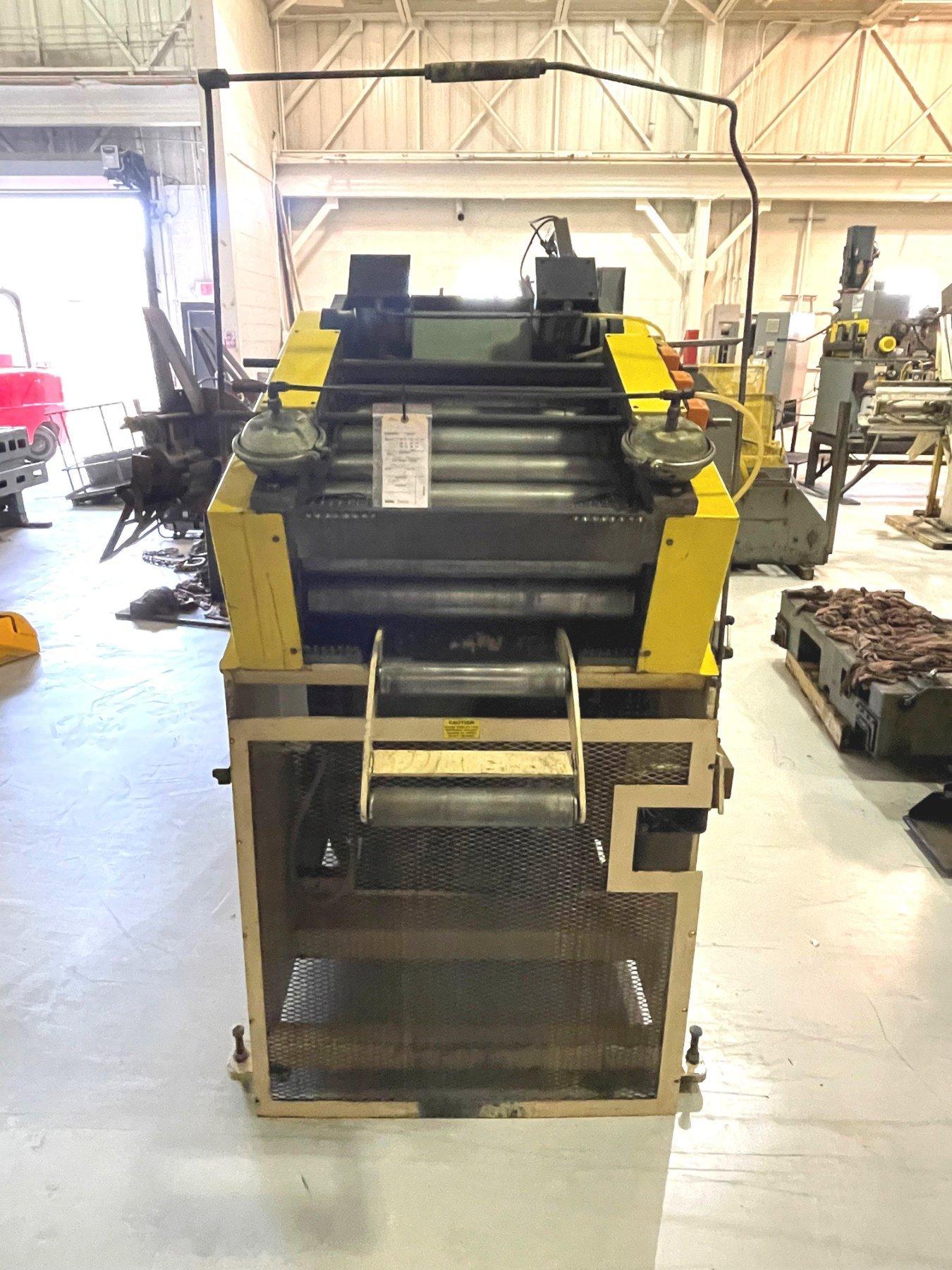

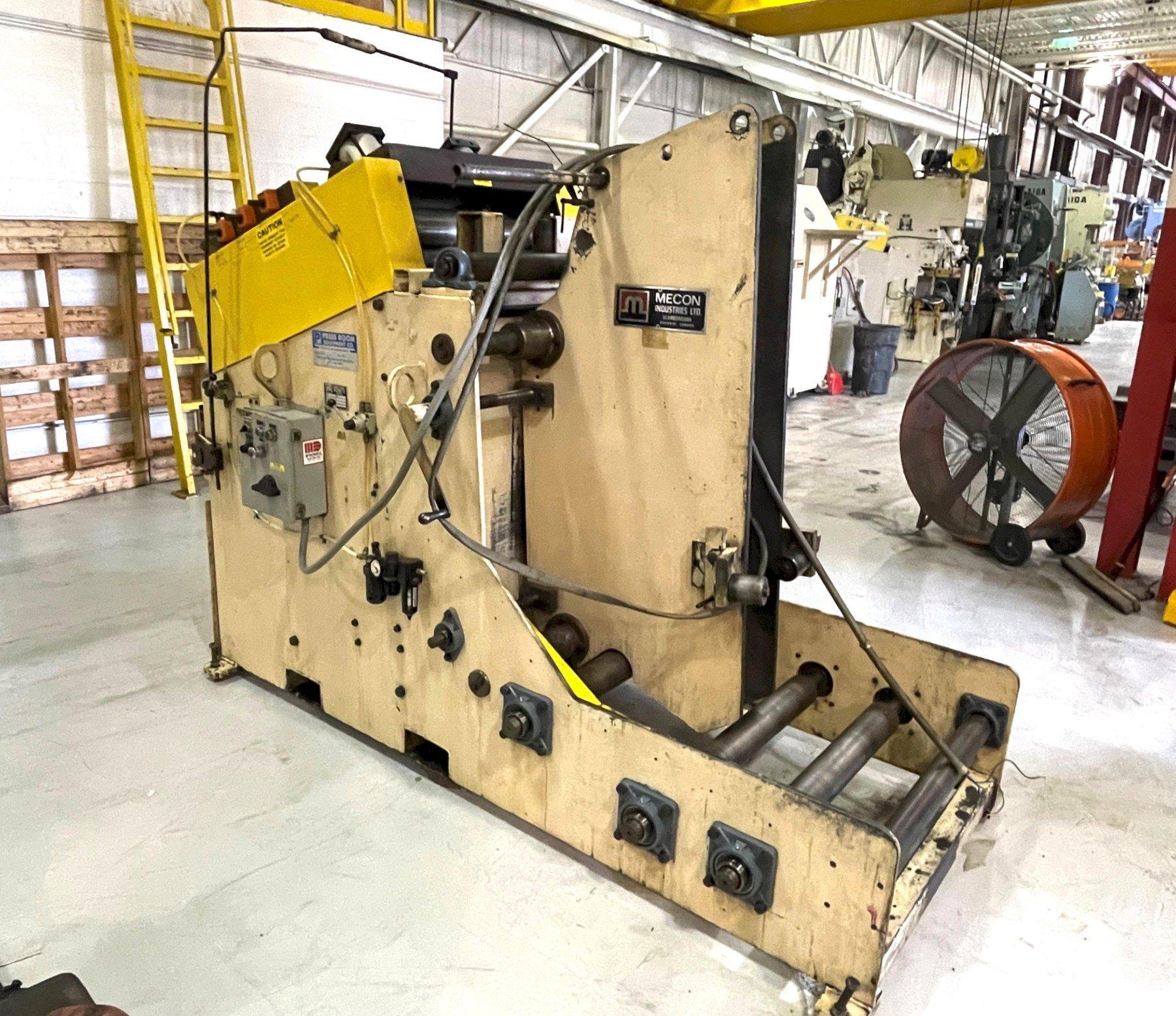

This Used 24 inch Mecon Coil Cradle Straightener can be seen under power in the S&G Press Livonia Michigan Warehouse.

Used Mecon Coil Feed Equipment and Coil Cradle Straightener for sale!
