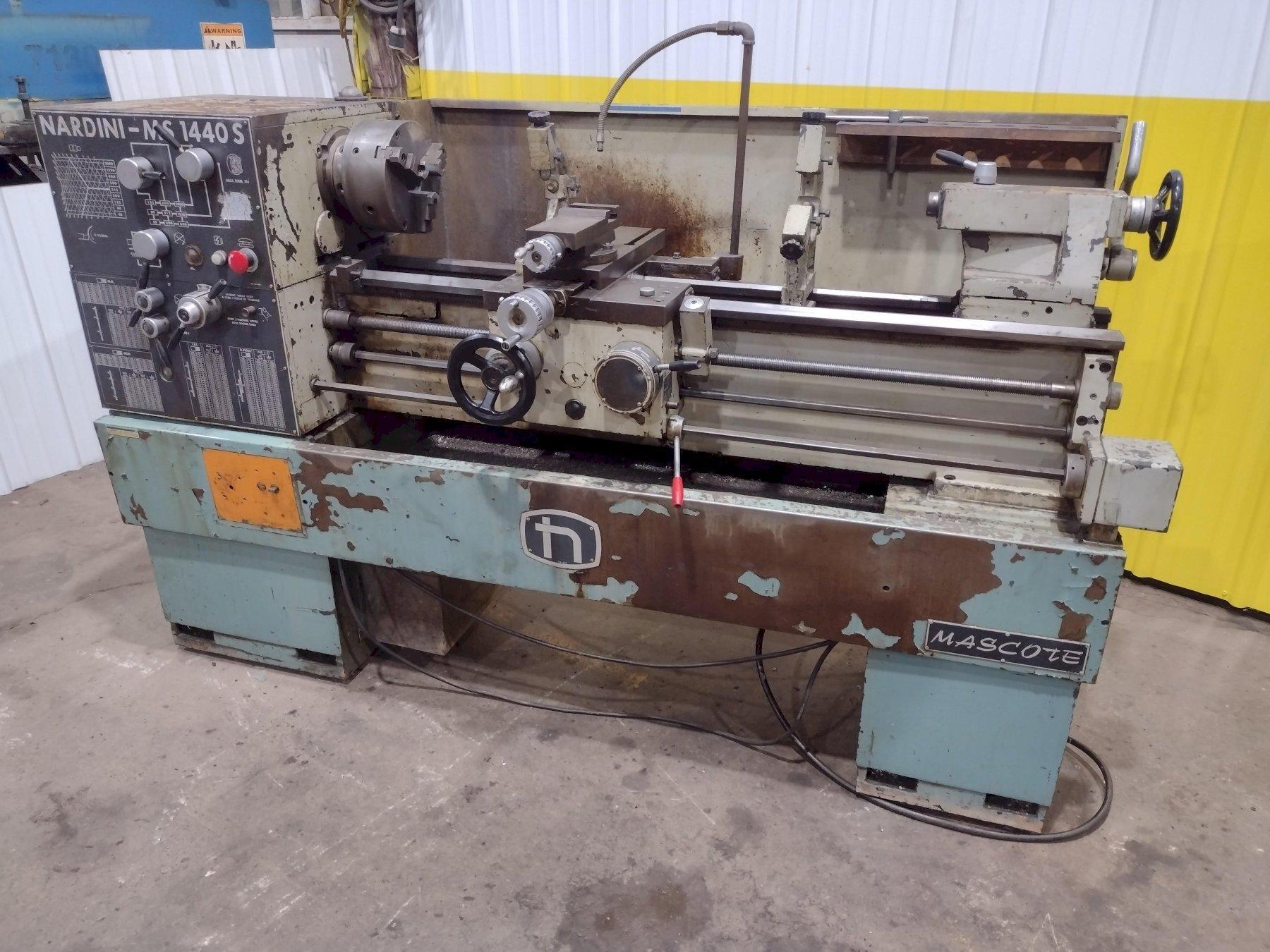

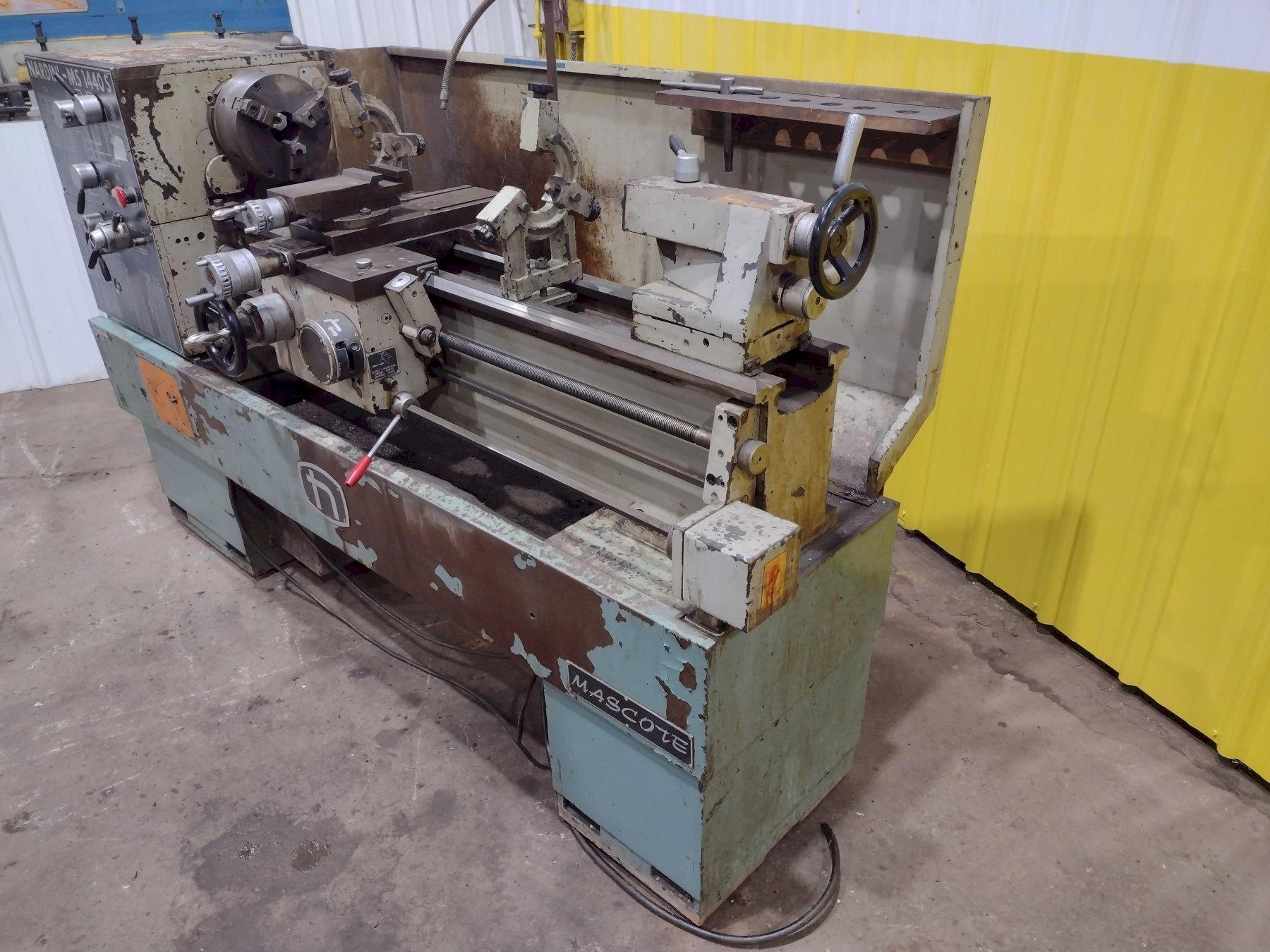

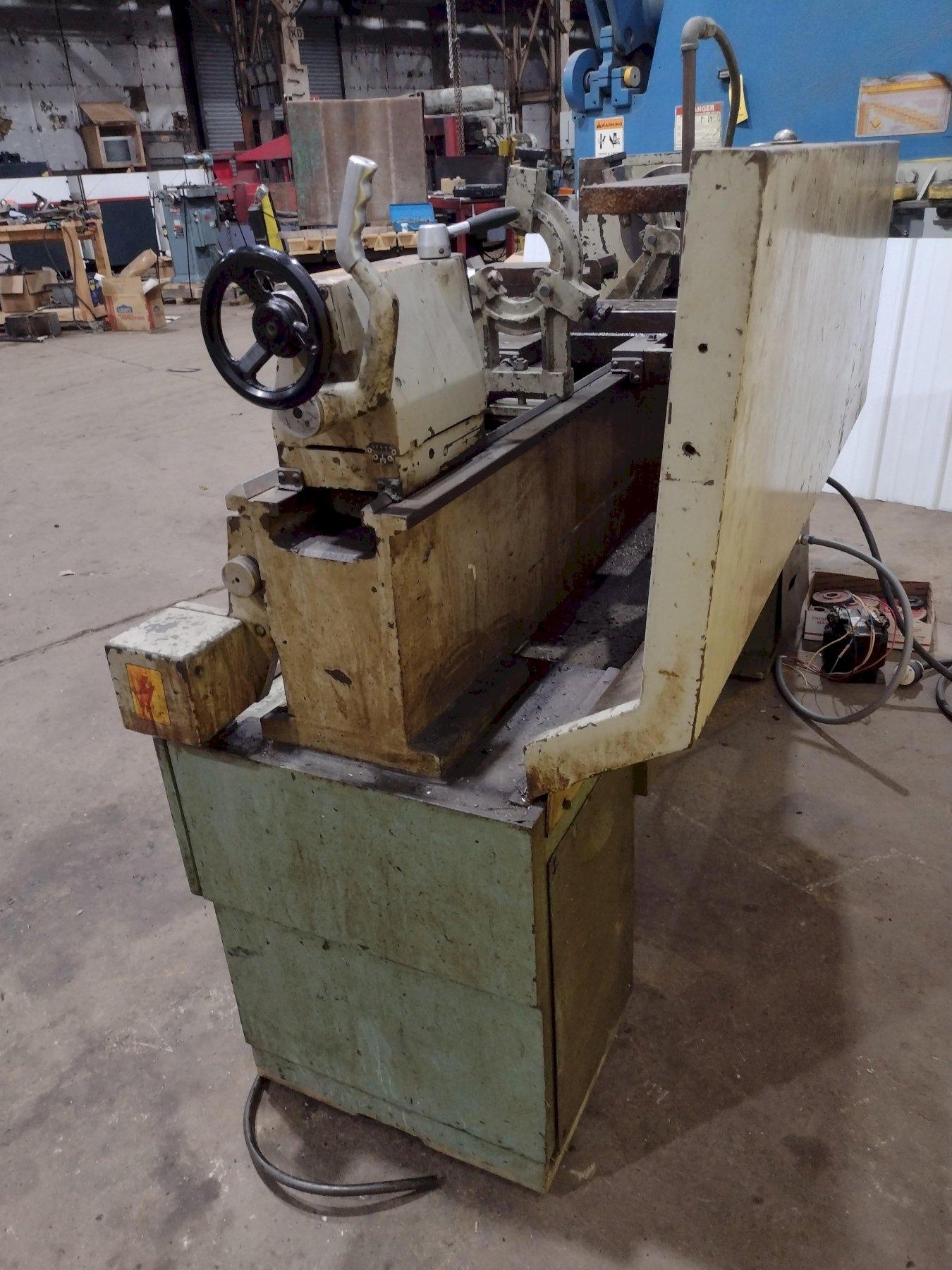

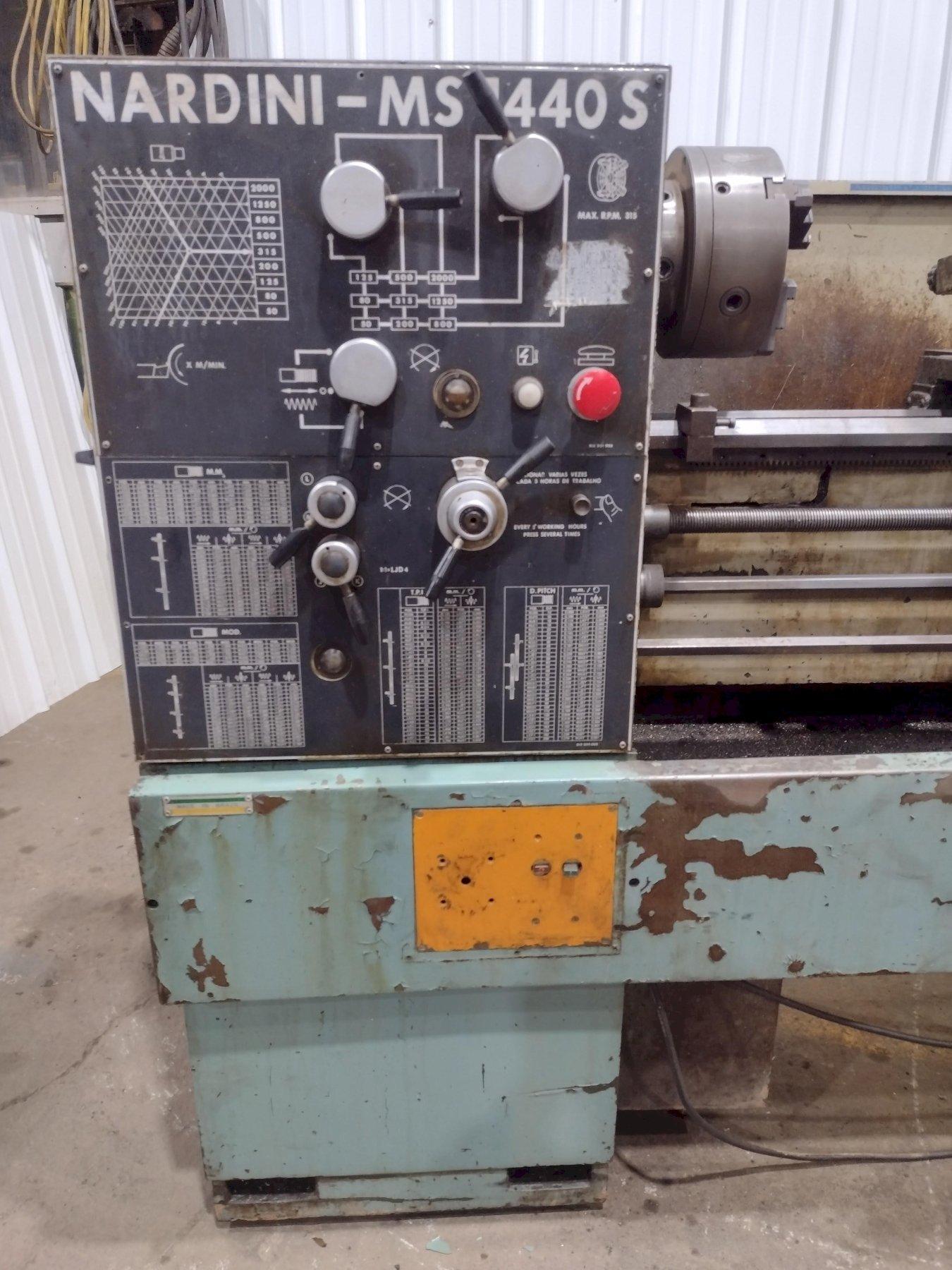

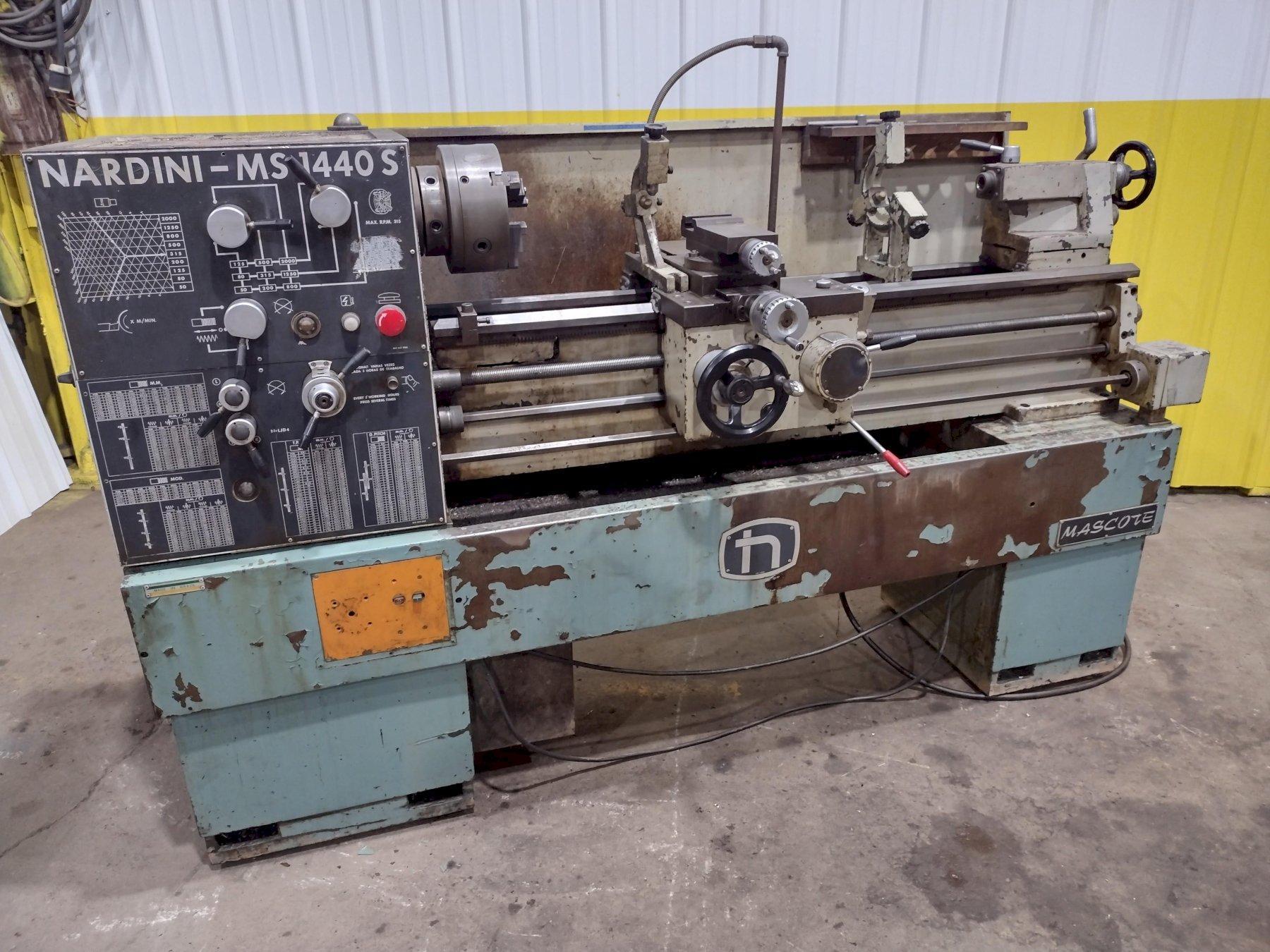

14" x 40" NARDINI MODEL #MASCOTTE 1440S GAP BED ENGINE LATHE, 1.75" HOLE: STOCK #18997

Manufacturer

NARDINI

Category

Lathes

Type

LATHES, ENGINE

Stock

18997

Model

1440S

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL .......................... MS1140S
TYPE ........................... MASCOTE
SWING OVER WAYS ................ 14"
SWING OVER CROSS SLIDE ......... 8"
SWING IN GAP ................... 20"
LENGTH OF GAP, FROM FACEPLATE .. 4-3/4"
DISTANCE BETWEEN CENTERS ....... 40"
CROSS SLIDE TRAVEL ............. 5-3/8"
SPINDLE SPEEDS ................. (9) 50 TO 2000 RPM
DIAMETER OF SPINDLE HOLE ....... 1-3/4"
CHUCK .......................... 10" 3 JAW
SPINDLE NOSE ................... D1-5"
TAILSTOCK QUILL ................ 2" DIAMETER
TAILSTOCK TAPER ................ #3 MT
METRIC THREADS ................. (45) .2 TO 3.5 MM
INCH THREADS ................... (32) 52 TO 3 TPI
LONGITUDINAL FEEDS ............. .0015 TO .0427 IPR
CROSS FEEDS .................... .0007 TO .0213 IPR
HARDENED WAYS .................. YES
COOLANT ........................ 1/8 HP
MOTOR .......................... 5 HORSEPOWER
