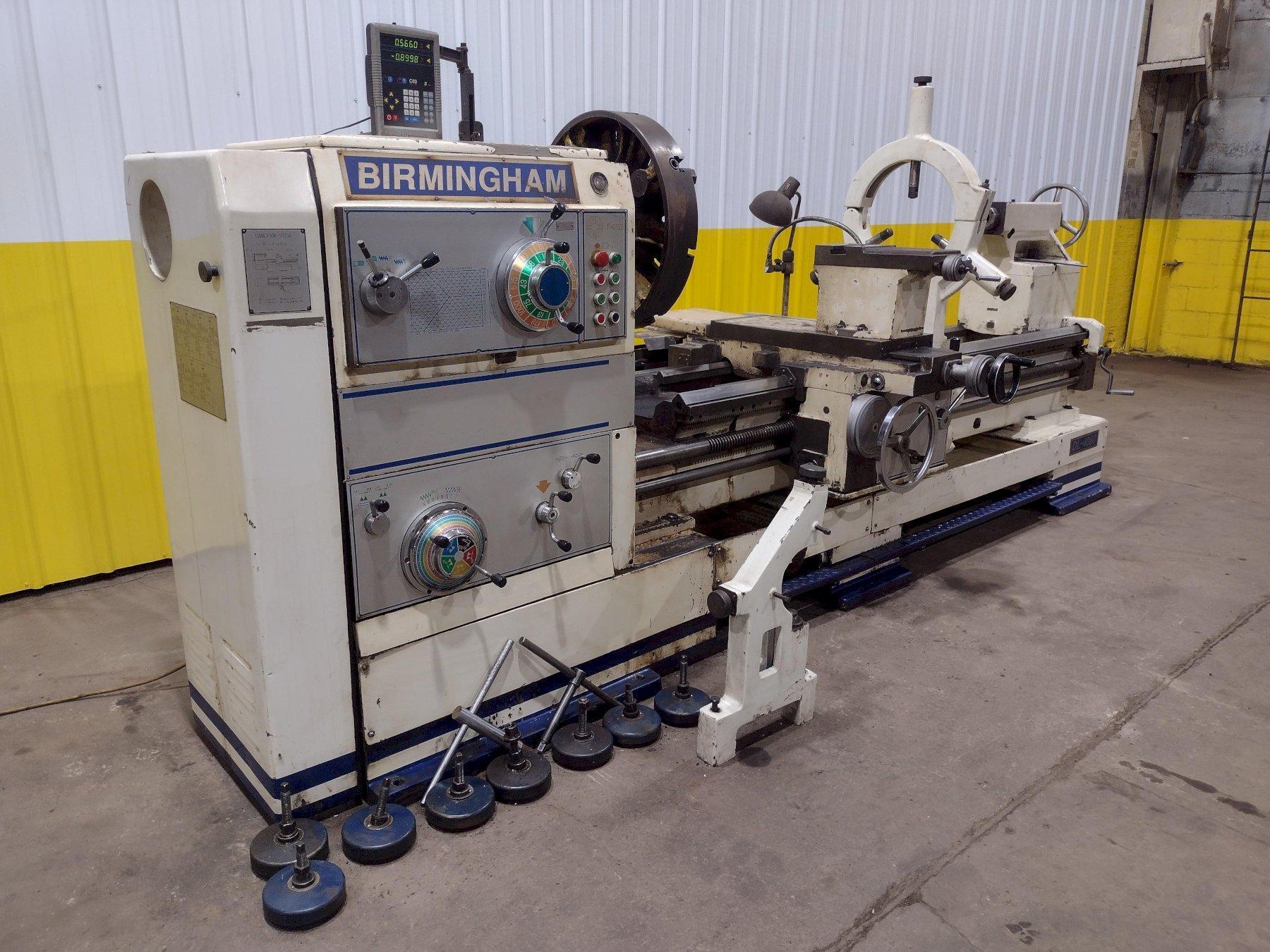

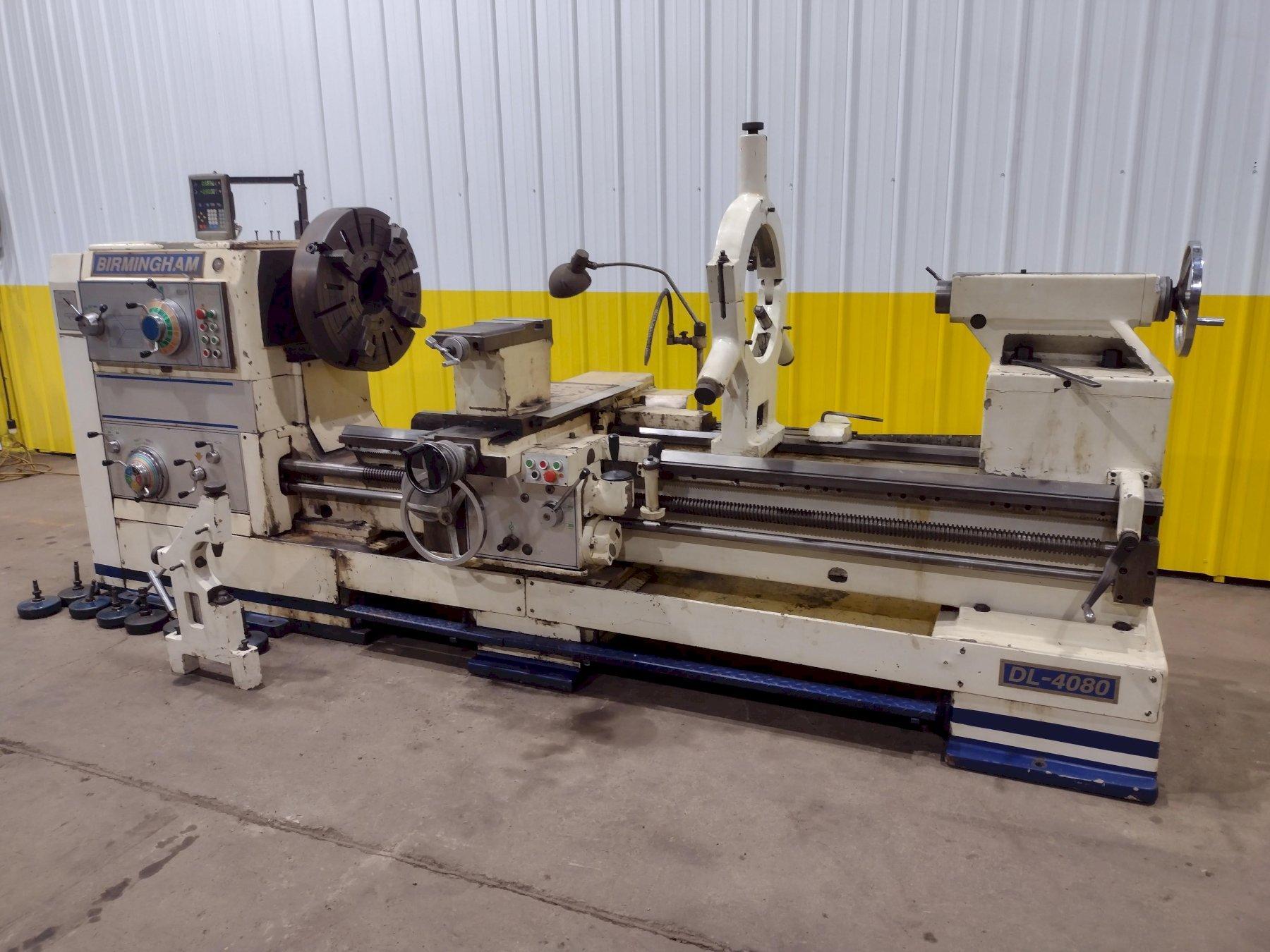

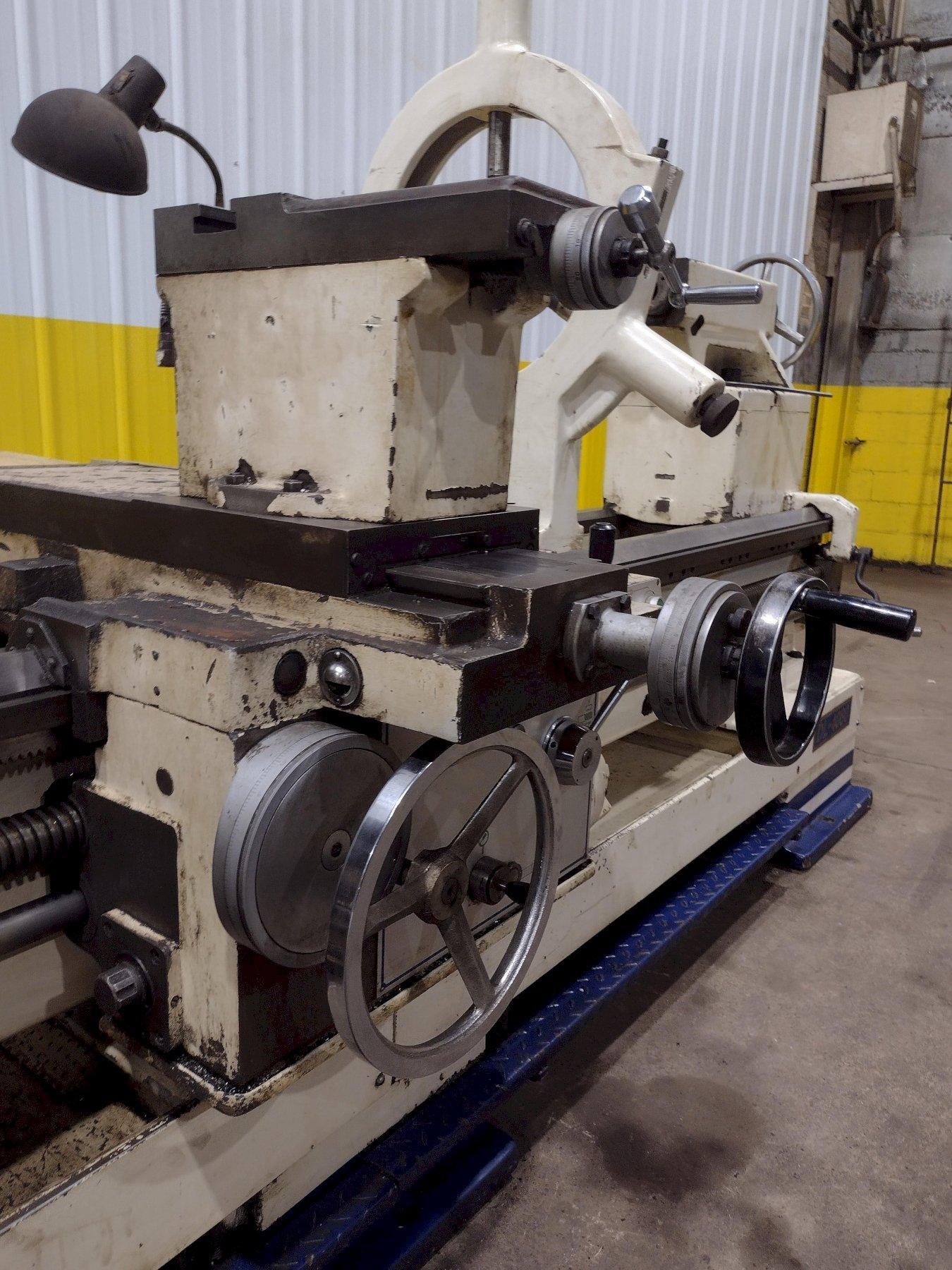

40" x 80" BIRMINGHAM MODEL #DL4080 ENGINE LATHE, 5-1/8" HOLLOW SPINDLE HOLE: STOCK #19321

Manufacturer

BIRMINGHAM

Category

Lathes

Type

LATHES, ENGINE

Stock

19321

Model

DL4080

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 180" X 62" X 78" HIGH
Weight - 11000 pounds

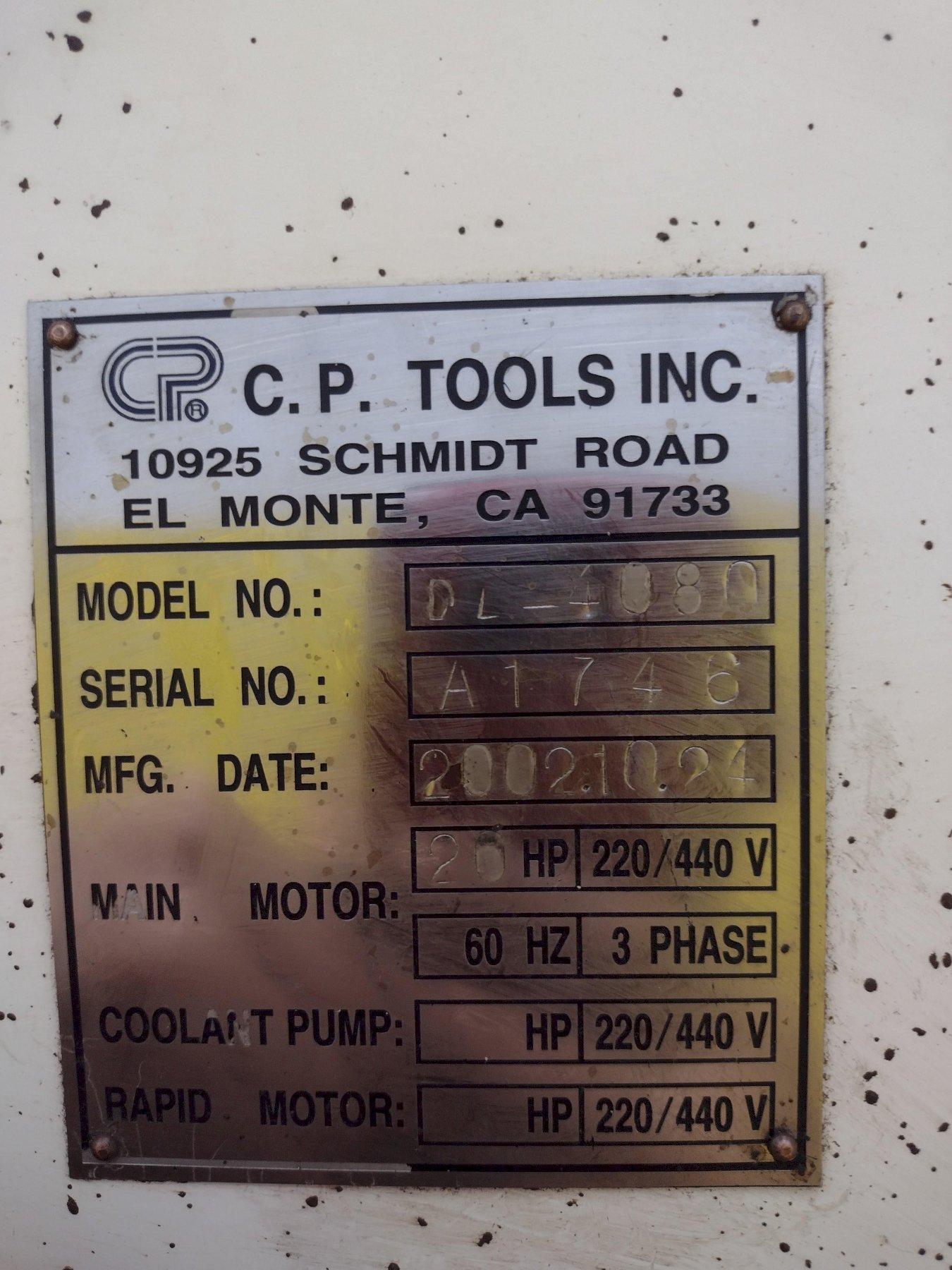

SERIAL .......................... A1746

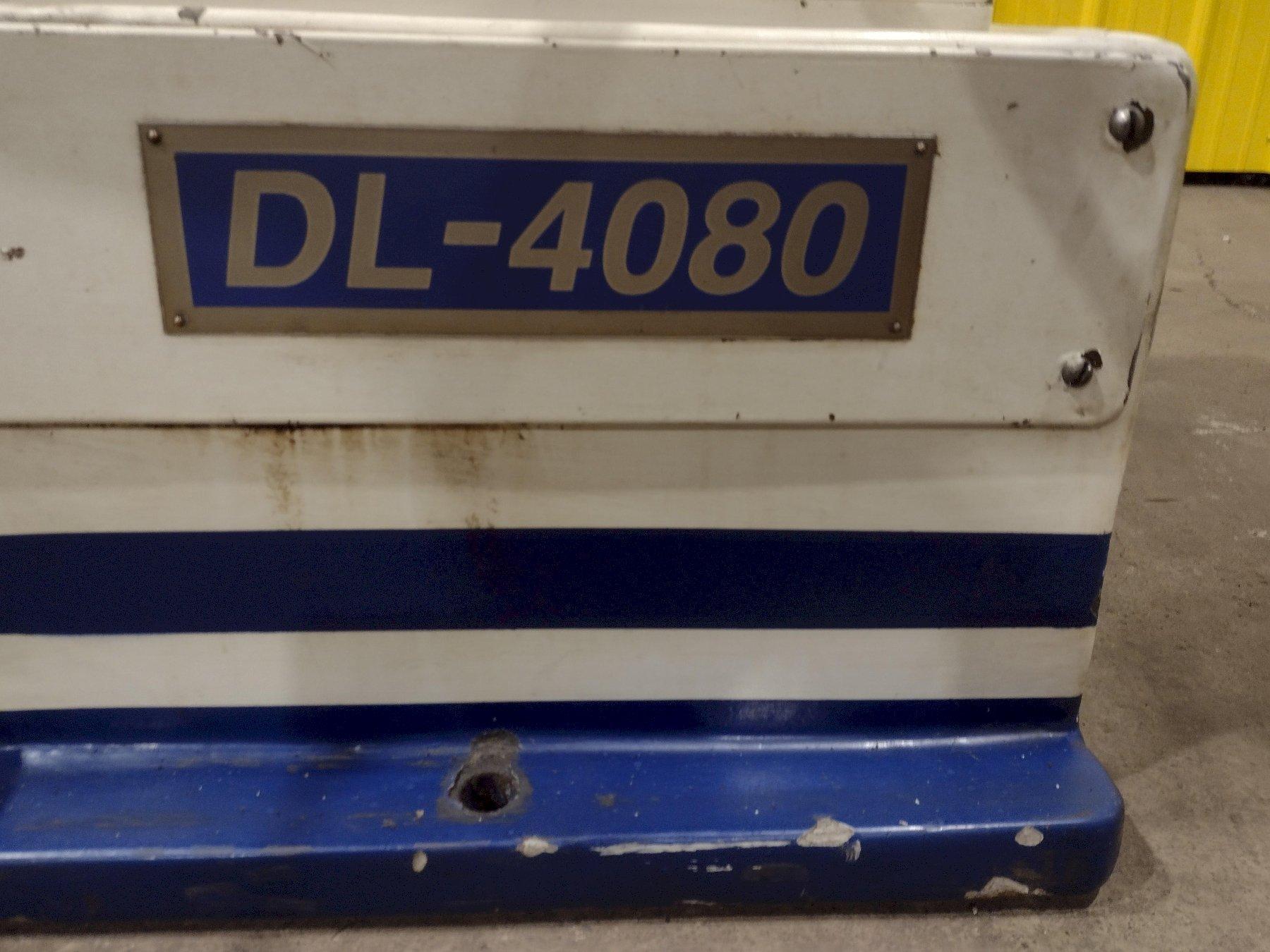

MODEL ........................... DL-4080
SWING ........................... 40"
SWING OVER CROSS ................ 28"
SWING IN GAP .................... 48"
LENGTH OF GAP ................... 16"
CENTERS ......................... 80"
SPINDLE HOLE .................... 5-1/8"

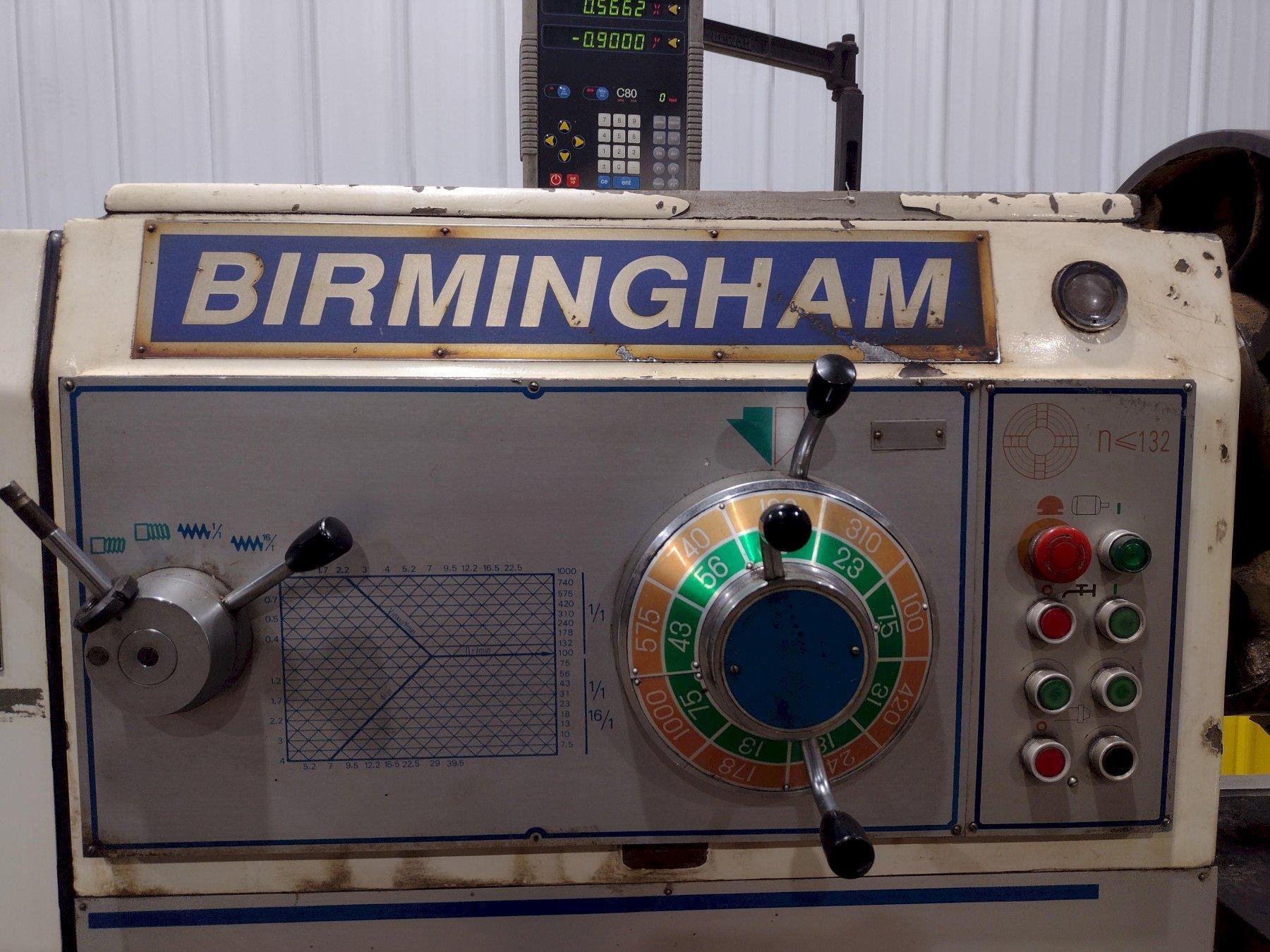

SPINDLE SPEEDS .................. (18) 7.5 TO 1,000 RPM
TAPER OF SPINDLE CENTER ......... MT NO 5
WIDTH OF BED .................... 21-21/32"
RAPID TRAVERSE .................. YES
SPINDLE NOSE .................... D-1-11 CAMLOCK

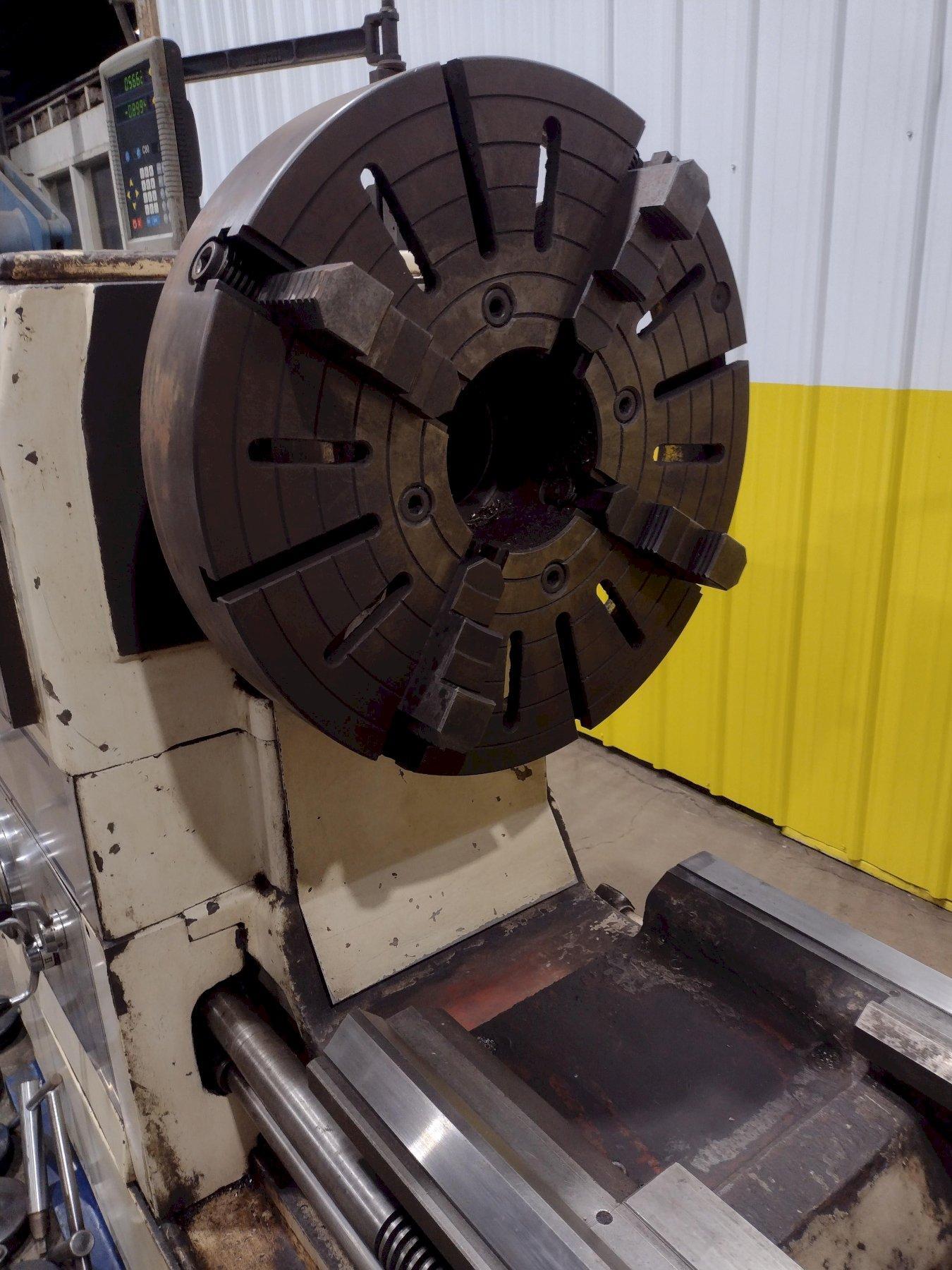

CHUCK ........................... 24.5"

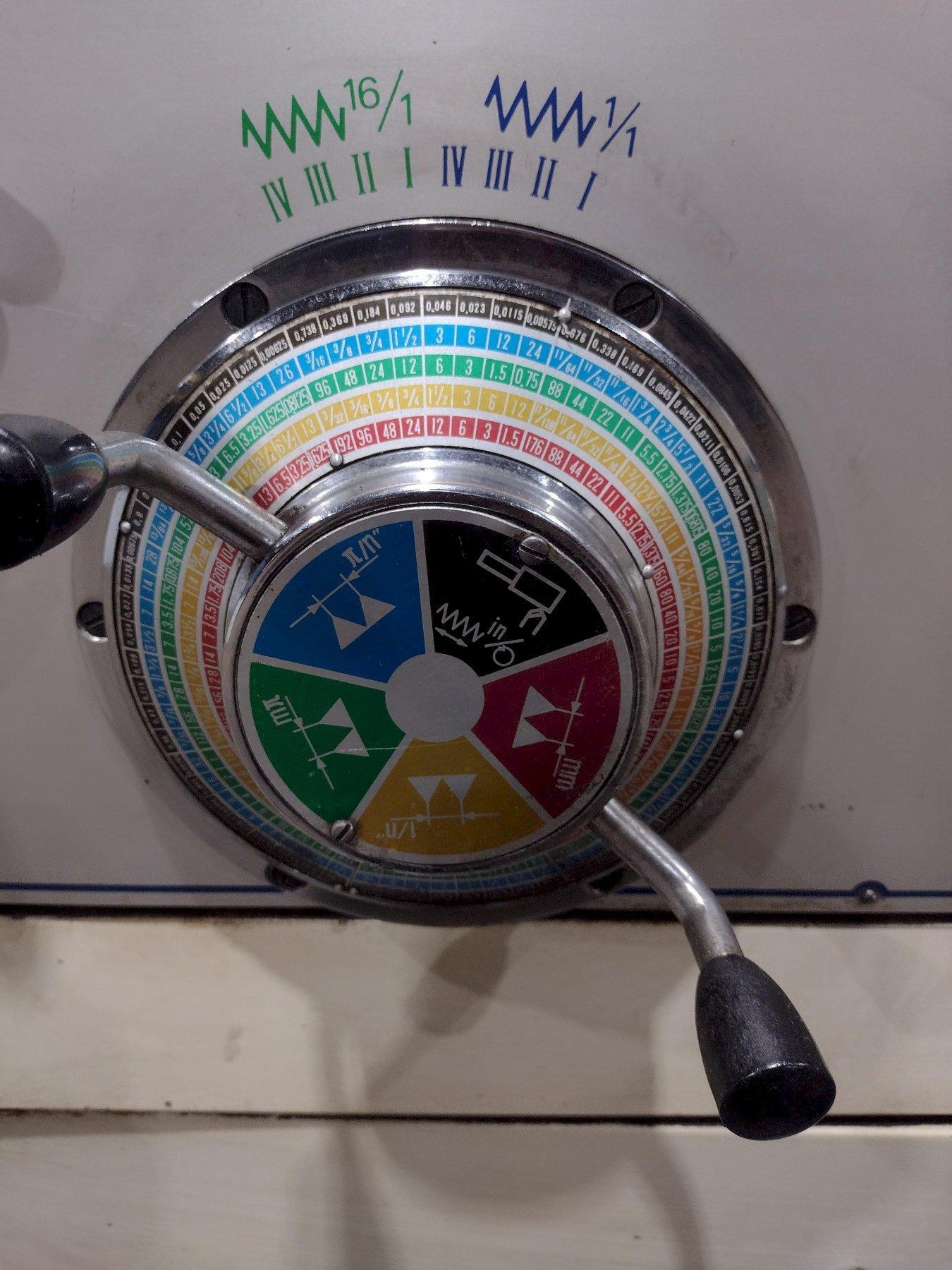

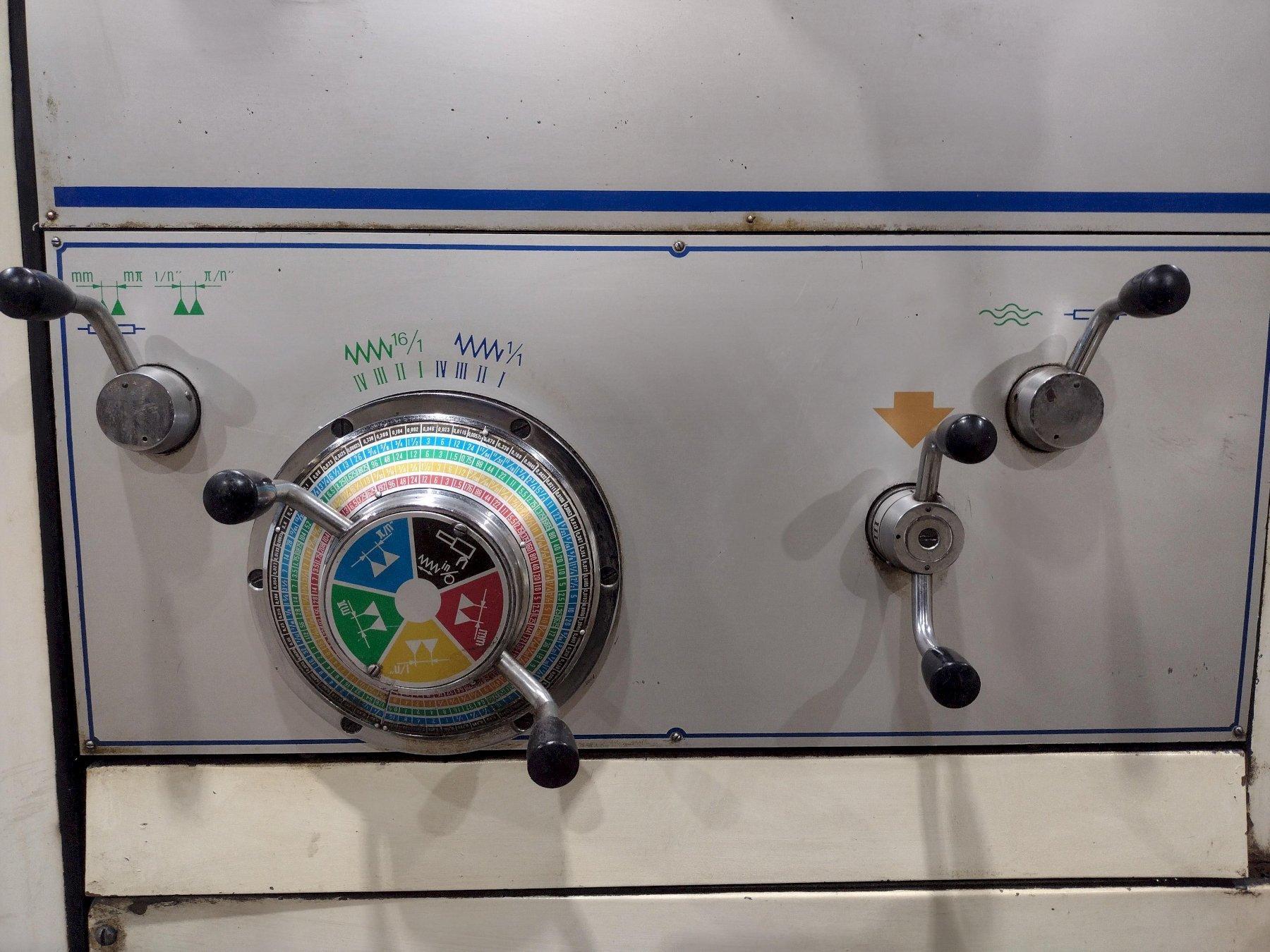

FEEDS, LONGITUDINAL ............. (64) .002 TO .96 IPR
FEEDS, CROSS  ................... (64) .001 TO .48 IRP
THREADS (INCH) .................. (73) 32 1/16 TPI
THREADS (METRIC) ................ (57) 1 TO 256 MM
THREADS (MODULE) ................ (57) .5 TO 128 MM
THRADS (DIAMETERAL) ............. (57) 32-1/8 DP

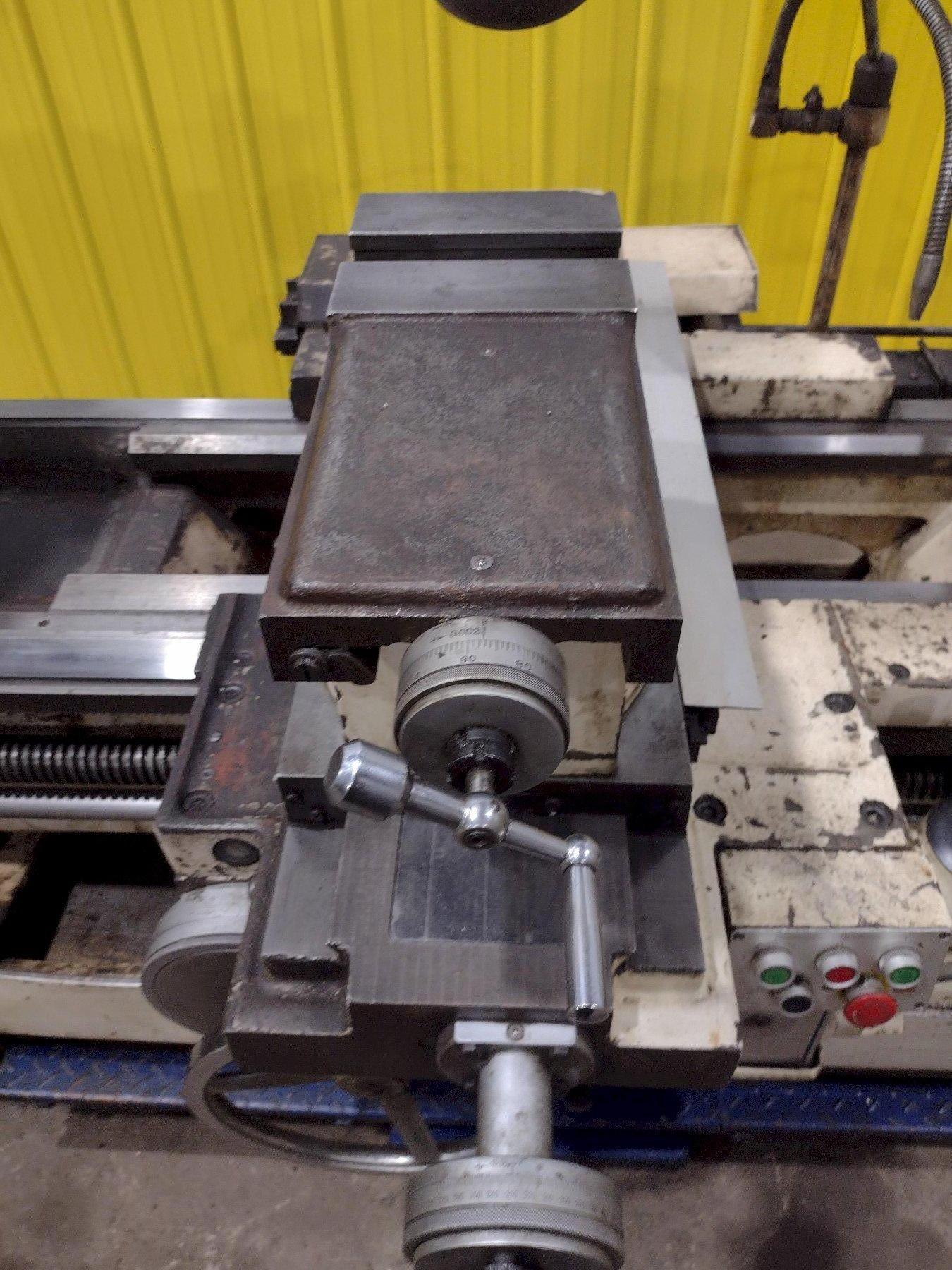

CROSS SLIDE TRAVEL .............. 20-7/8"
TAILSTOCK QUILL ................. #5 MT
TAPER ATTACHMENT ................ YES
COOLANT MOTOR ................... 1/8 HP
RAPID MOTOR ..................... 1.5 HP
MOTOR ........................... 20 HP
