Gray 120" CNC Vertical Boring Mill, 120" Table, 132" Swing, Fanuc 15T CNC, (2) Rams, Chip Conveyor, 50 HP, #32906

Manufacturer

GRAY

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32906

Model

Series 200

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32906

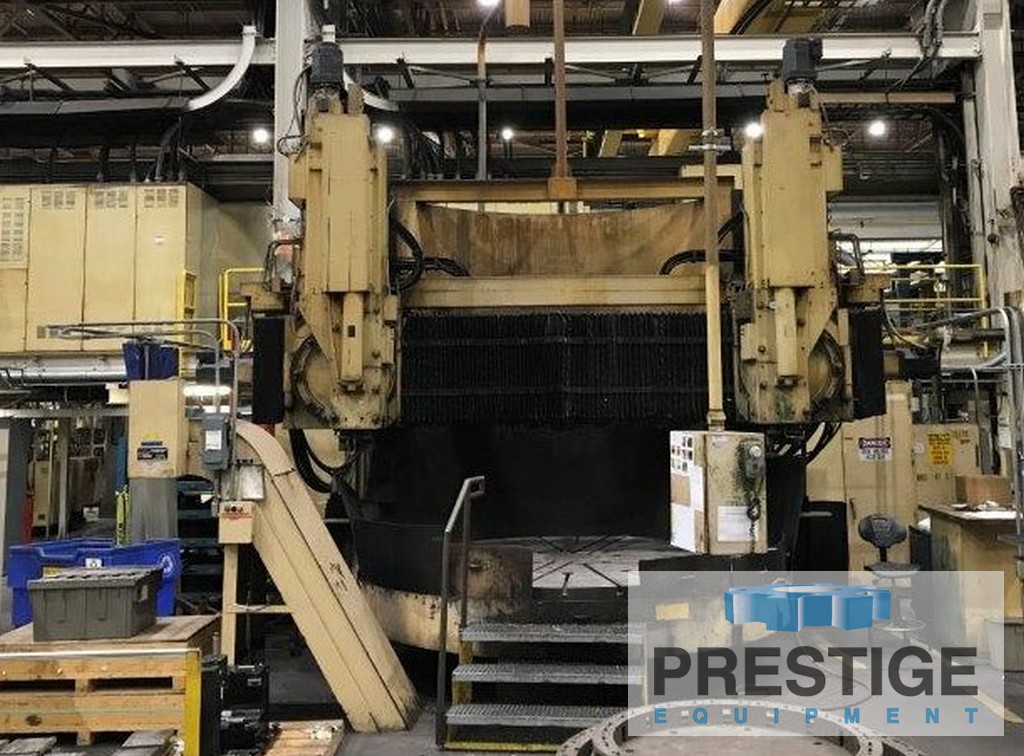

Gray 120" CNC Vertical Boring Mill with Fanuc 15T

FEATURES:
Fanuc 15T CNC Controls

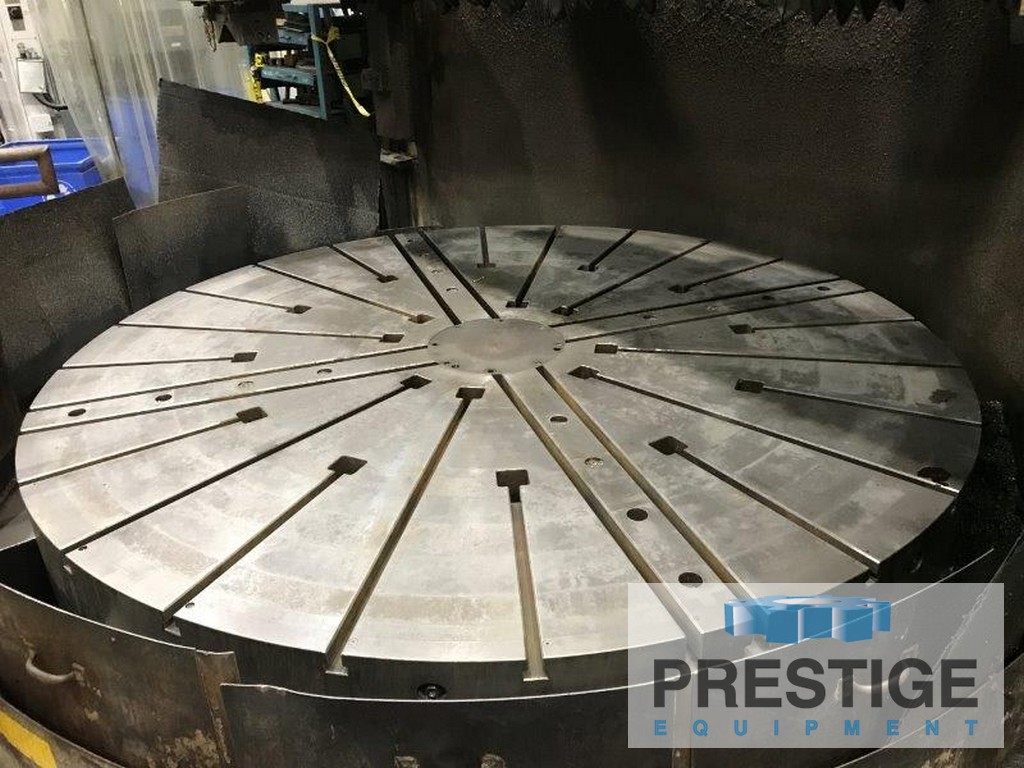

120" Dia. T-Slotted Table

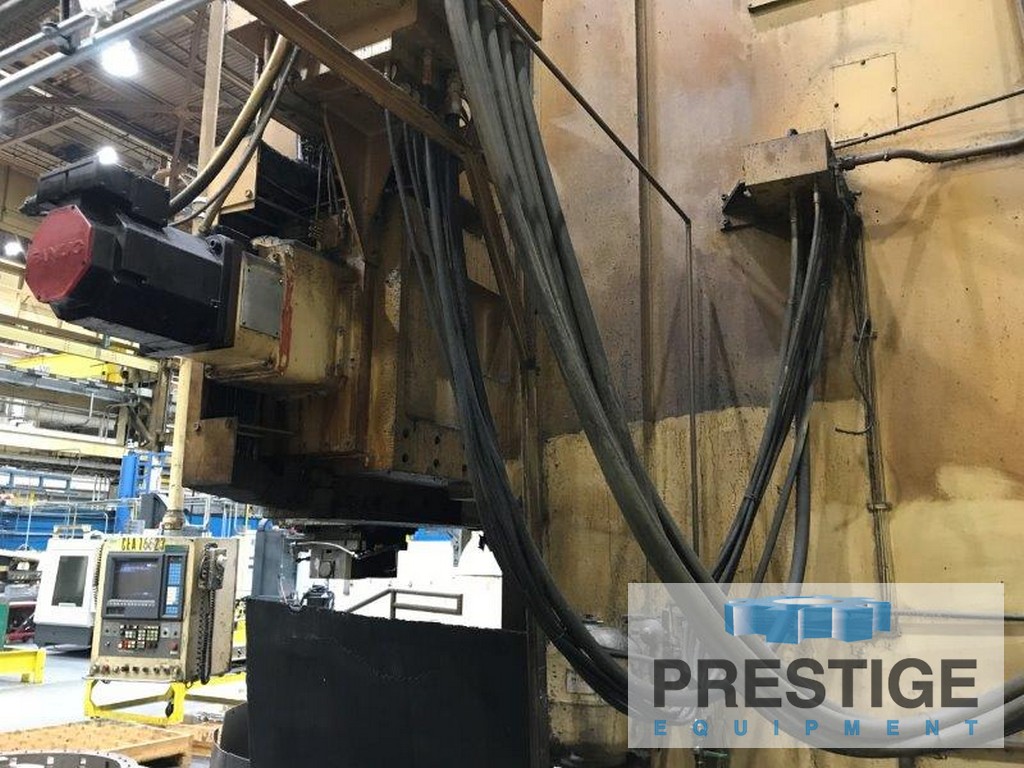

2-Vertical Vertical Rams
Fixed Rail
Flood Coolant System

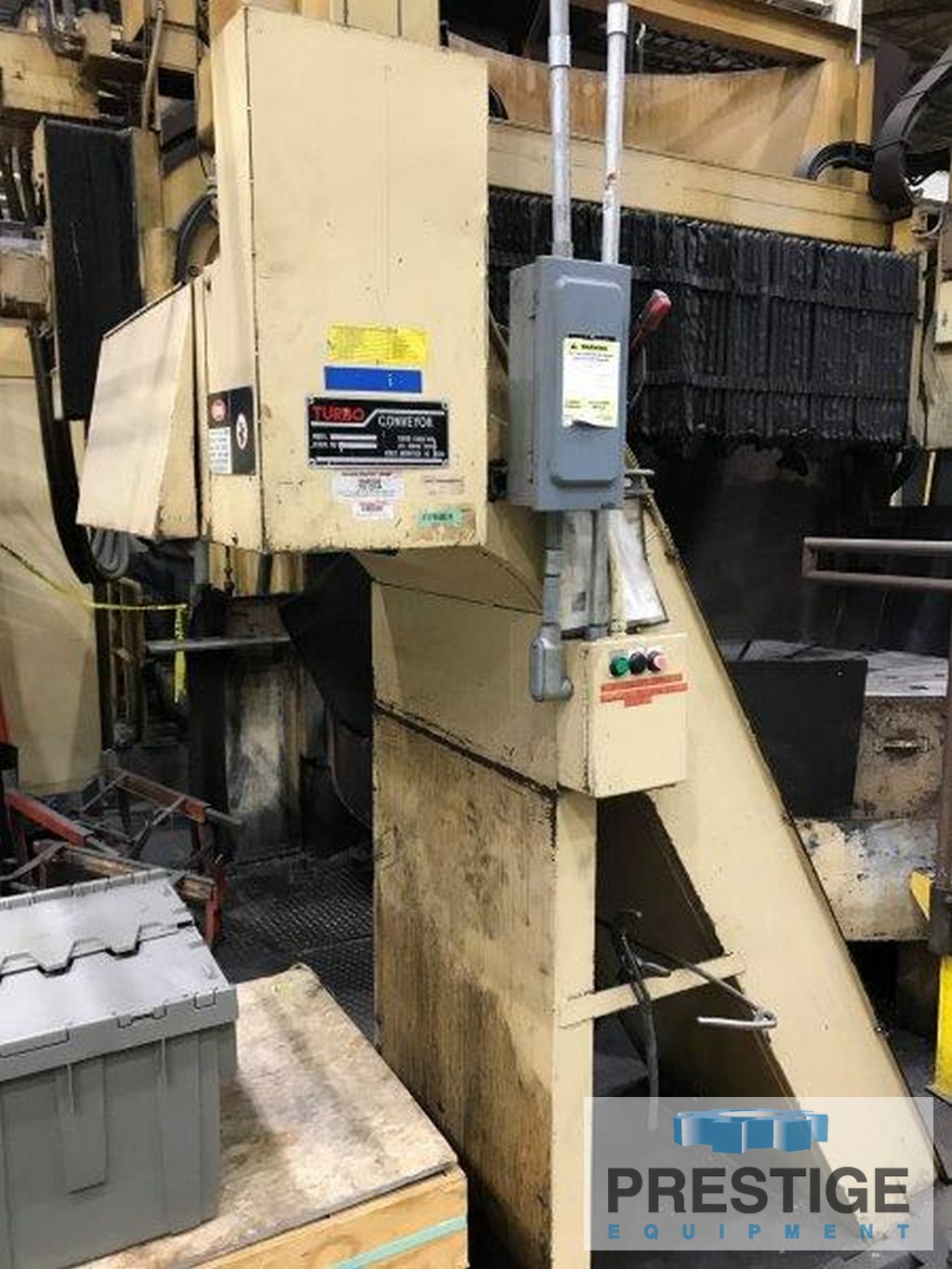

Chip Conveyor
Chip Guards

CAPACITY:
Table Diameter ........................ 120"
Maximum Swing ......................... 132"
Maximum Height Under Rail & Saddle .... 88"
Ram Stroke ............................ 40"
Ram Horz Travel ....................... 71.5"
Table Speeds, Infinitely Variable ..... .83-50 RPM
Table Speed Ranges .................... 2
Feeds, Infinitely Variable ............ 120 IPM
Table Motor .......................... 50 HP
Approximate Machine Height ............ 22'10"

EQUIPPED WITH:
Fanuc 15T CNC Controls
120" Dia. T-Slotted Table
2-Vertical Vertical Rams
Fixed Rail (Ability to reset from 40" To Maximum Height in 12" increments)
Flood Coolant System
Chip Conveyor
Chip Guards

NOTE:
Inspect in Plant Under Power
