Spark CJK x 8000, 47" Swing, 314" C.C, 18" Hole, 5 - 315 RPM, Fanuc 0i TF CNC, 2023, #32905

Manufacturer

SPARK

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

32905

Model

CJK x 8000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32905
Spark 47" x 314" CJK x 8000 CNC Hollow Spindle Lathe

FEATURES:
Fanuc 0i TF CNC Control
18.11" Spindle Bore Diameter

CAPACITY:
Maximum Swing Over Bedways ............ 47.24"
Maximum Swing Over Carriage ........... 31.49"
Distance Between Centers .............. 314.96"
Spindle Hole Diameter ................. 18.11"
Spindle Speeds (18) ................... 5 - 315 RPM
Weight Between Centers ................ 13,200 lbs
Tailstock Diameter .................... 6.3"
Tailstock Taper ....................... #80 Metric
Tailstock Travel ...................... 11.81"
Bed Width ............................. 38.18"
Spindle Motor ......................... 40 HP

EQUIPPED WITH:
Fanuc 0i TF CNC Control
18.11" Spindle Bore Diameter
2 - 39.37" 4-Jaw Chucks
24" Steady Rest
4-Position Tool Post
Tailstock

NOTE:
Machine Sold with 1 Year Parts Warranty
7-Month Delivery From Order

NOTE:

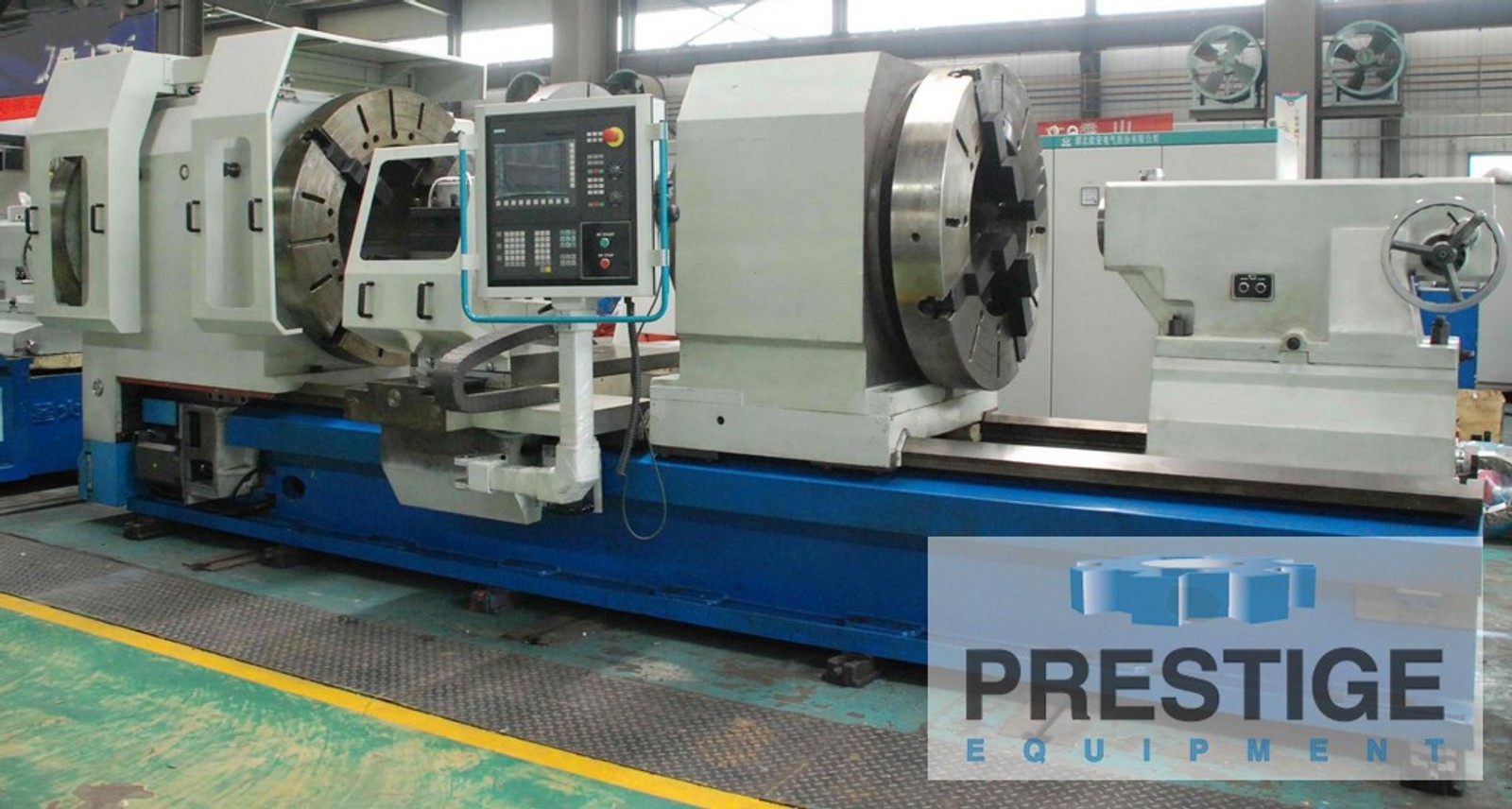

Photo Representative of Completed Machine
