Tacchi HS 1200, 53" Swing x 157"/236" Centers, Fanuc Oi-TD, 40" 4-Jaw Chuck, Chip Convyeor, Rebuilt 2013, #32879

Manufacturer

TACCHI

Category

Lathes

Type

LATHES, CNC

Stock

32879

Model

HS 1200

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32879

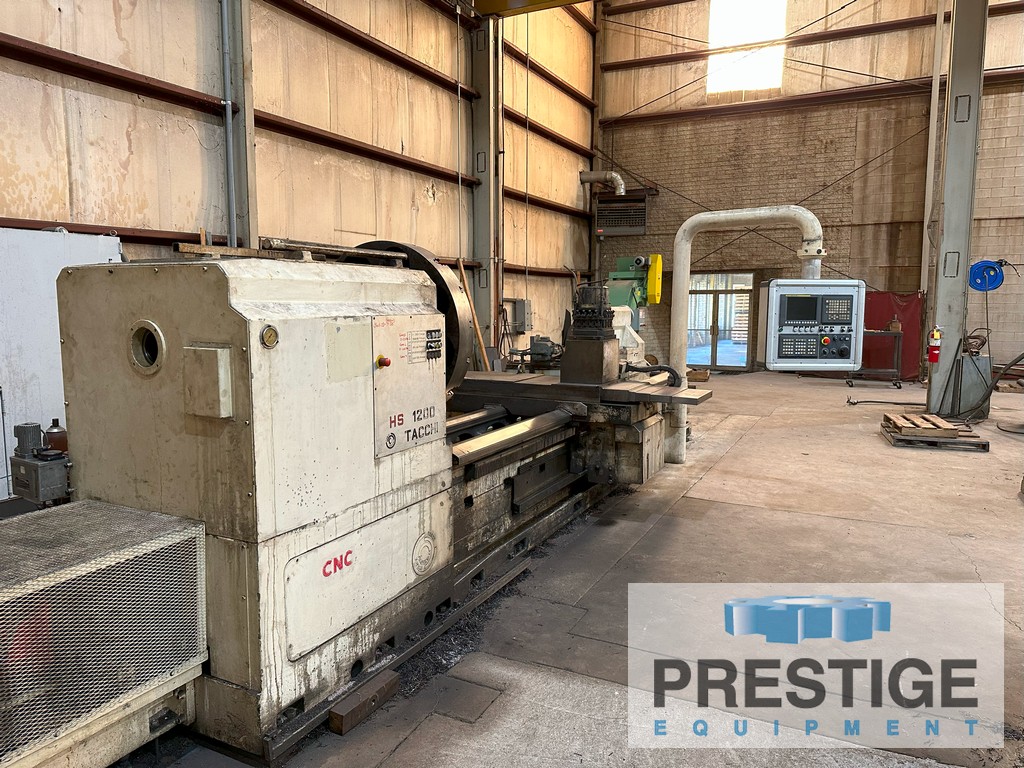

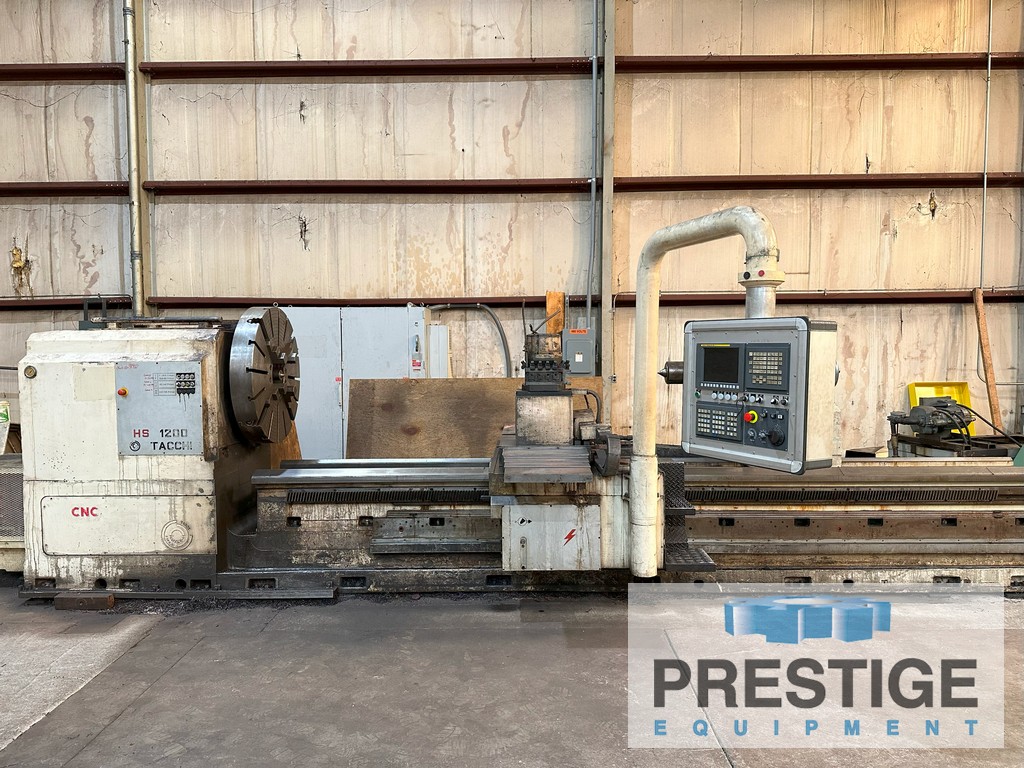

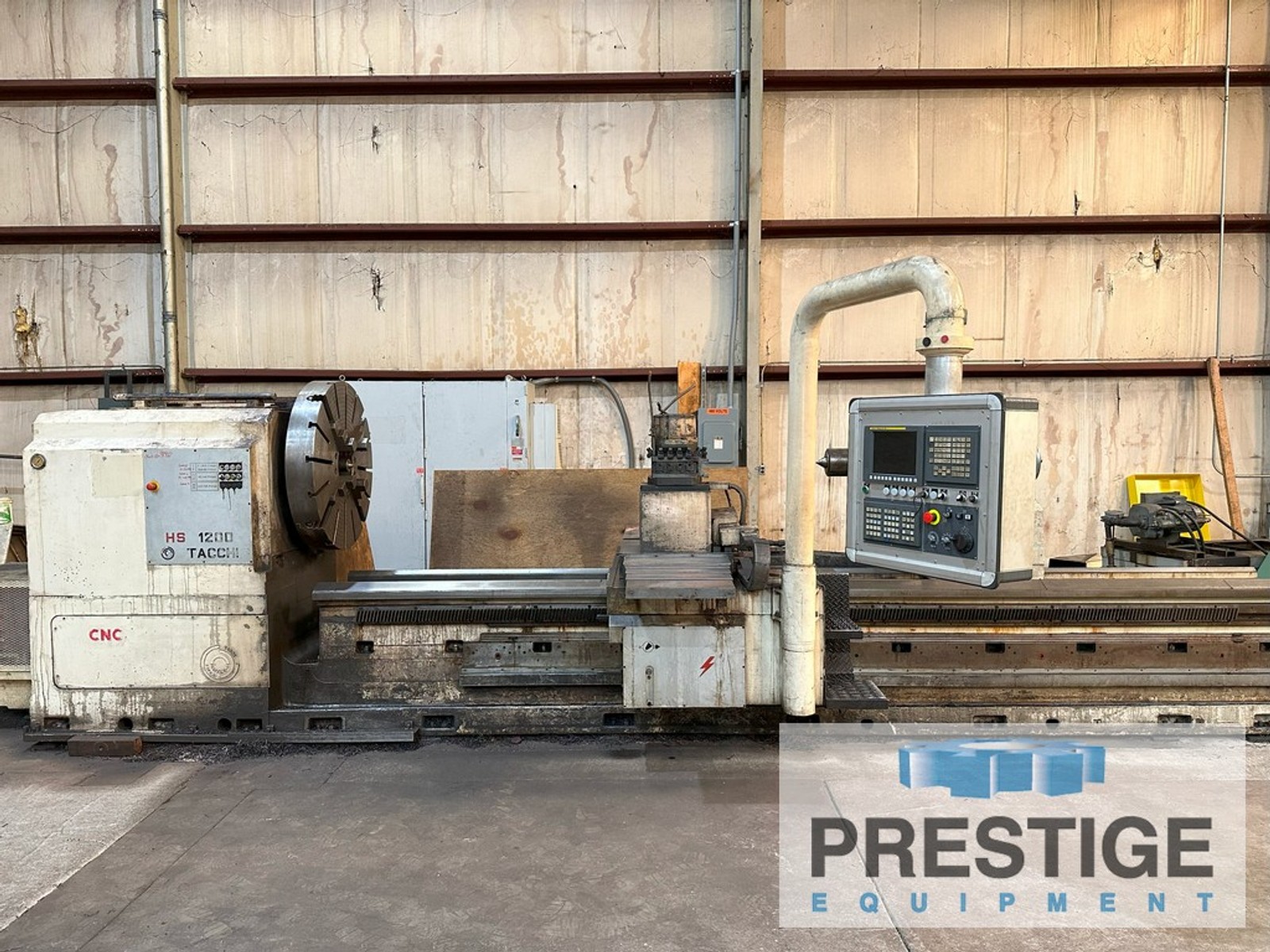

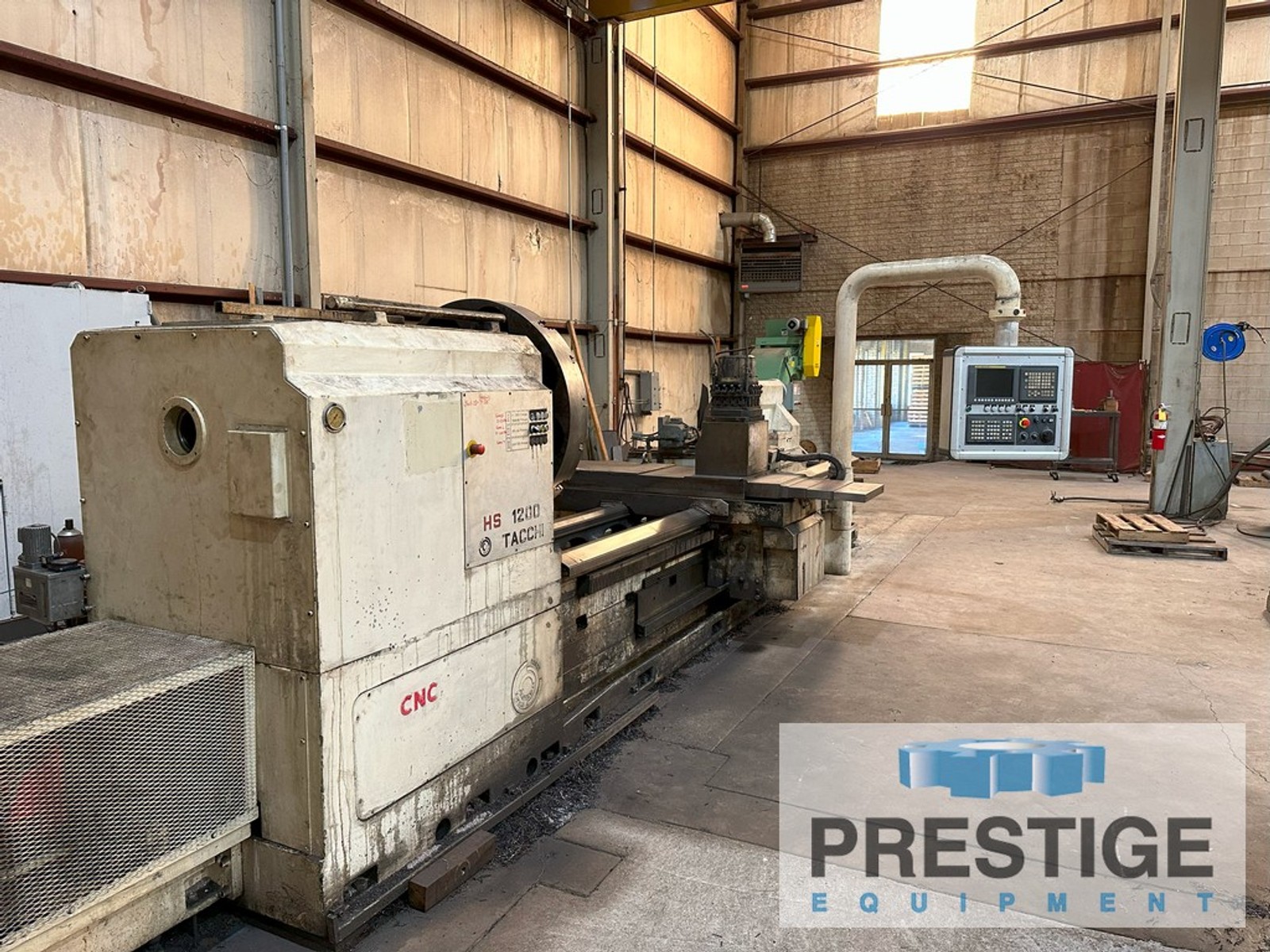

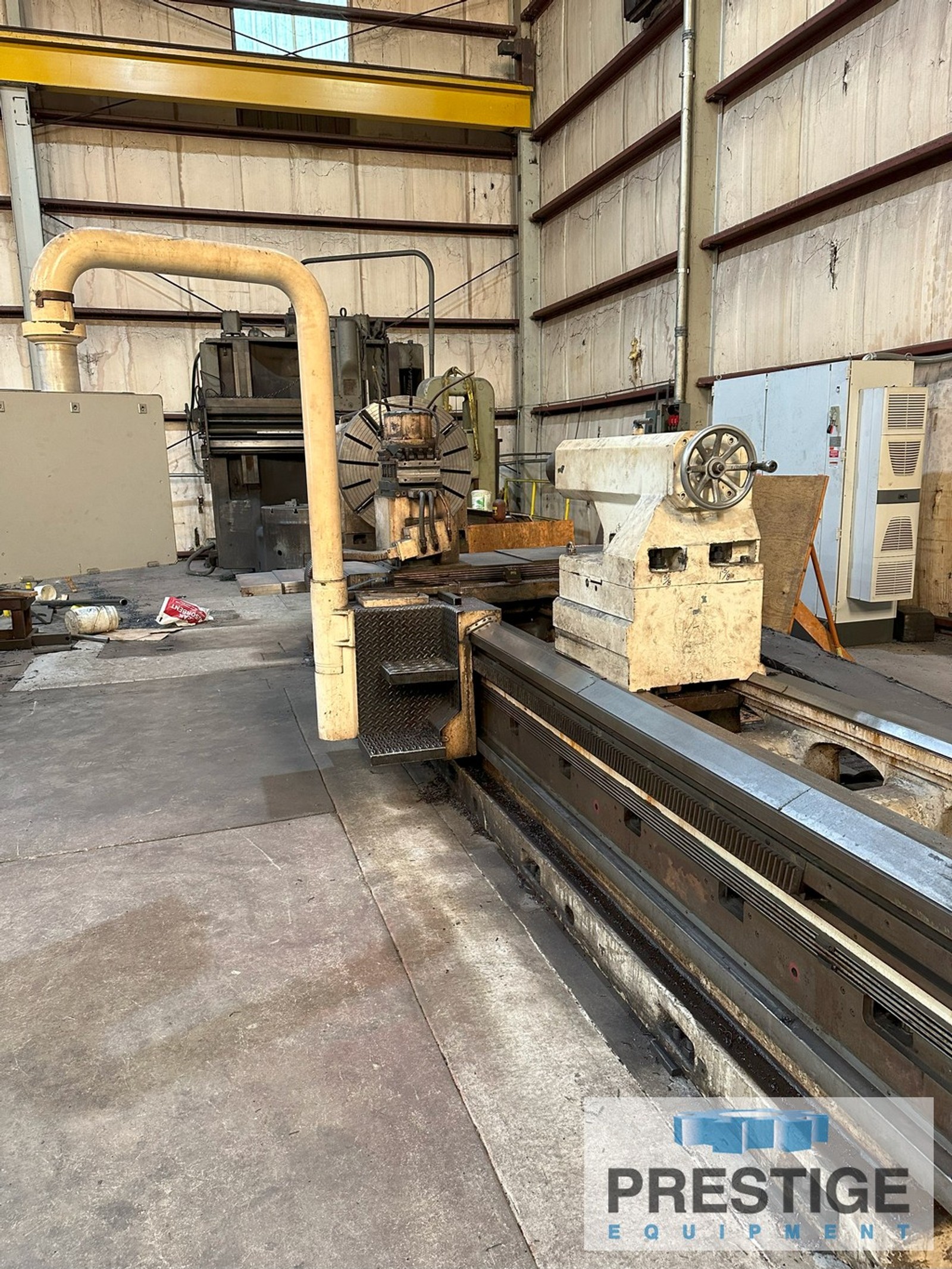

Tacchi HS 1200 53" x 157"/236" CNC Sliding Gap Lathe

FEATURES:

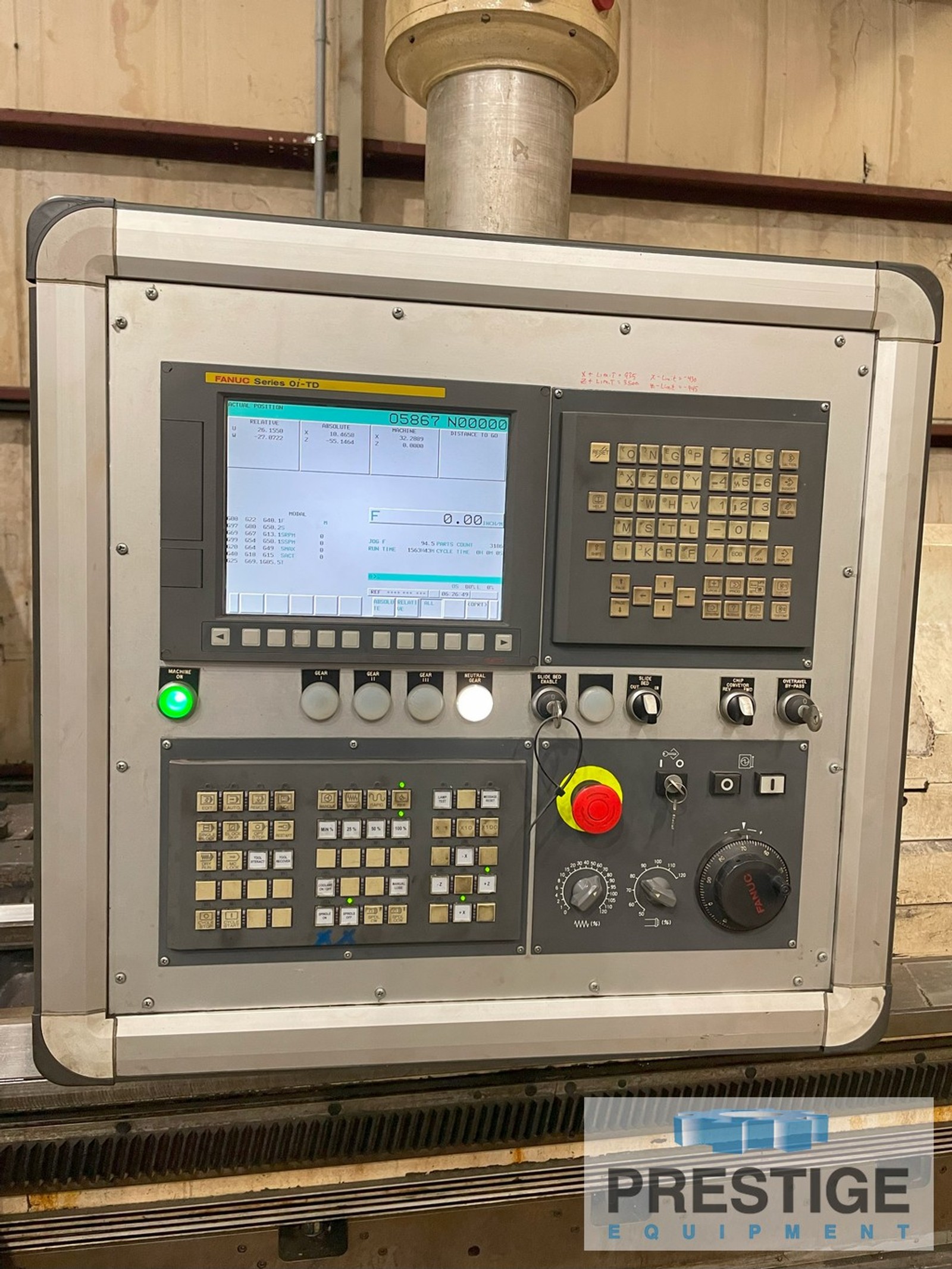

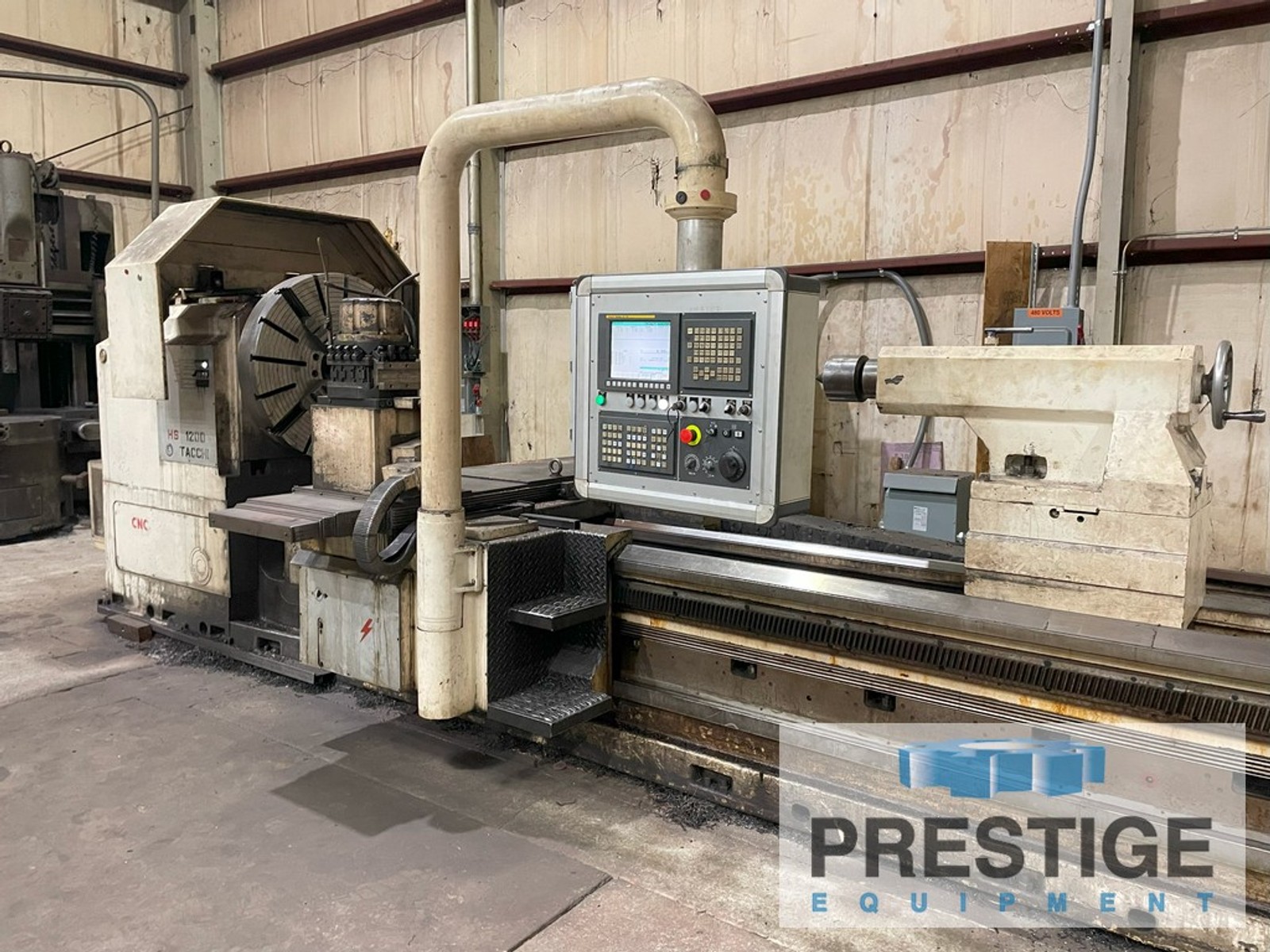

Fanuc Oi-TD CNC Control

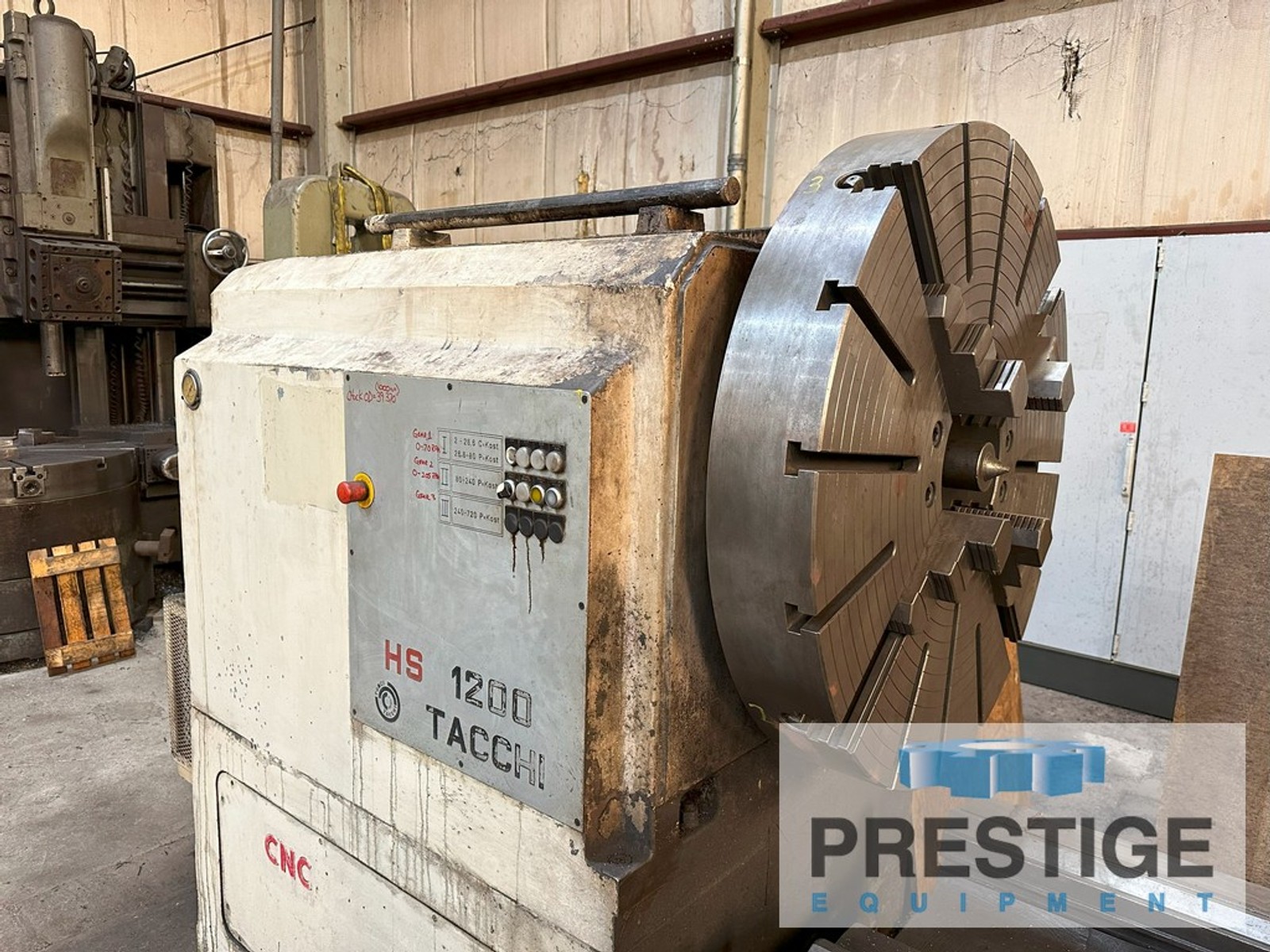

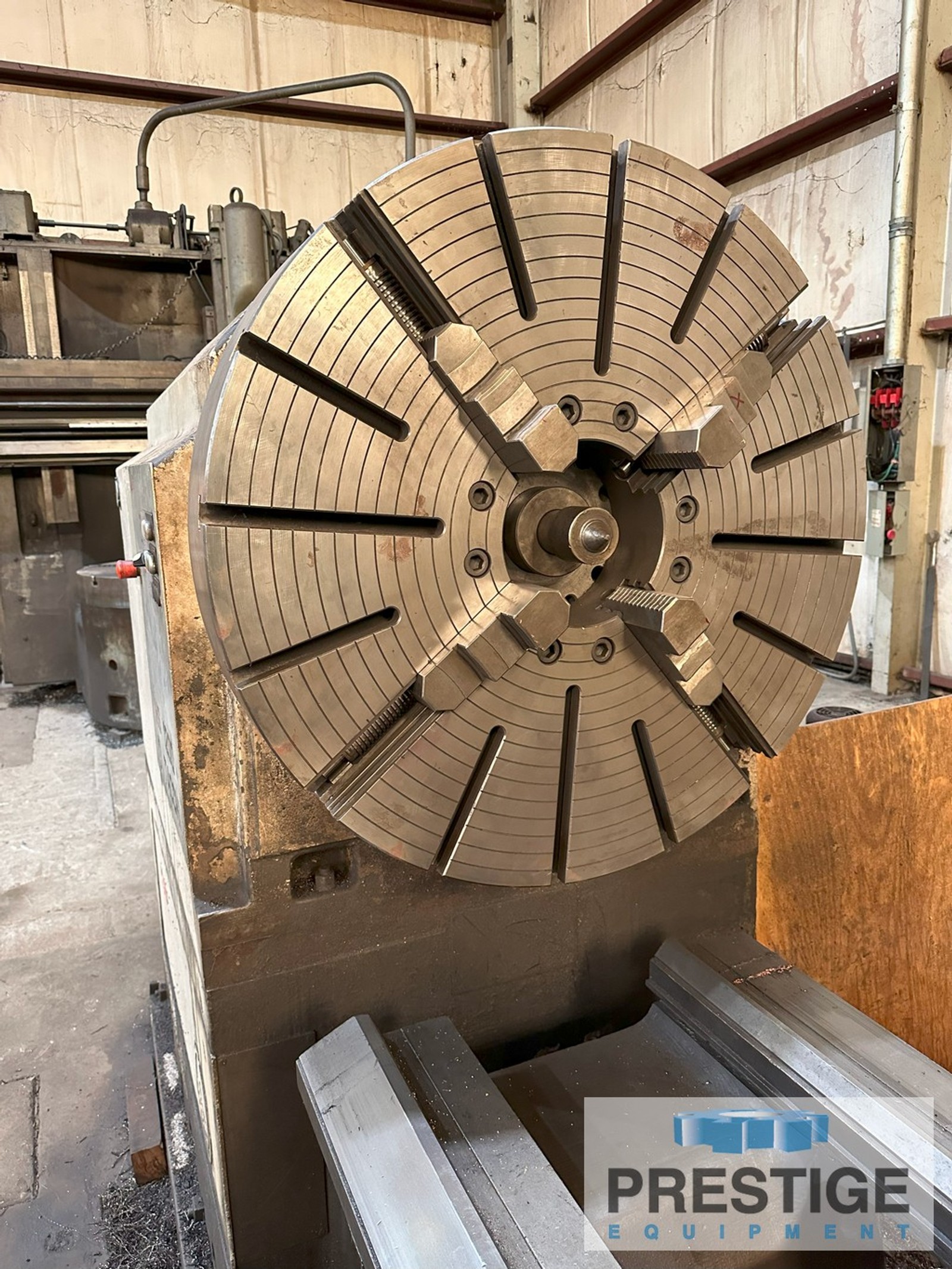

4-Jaw chuck

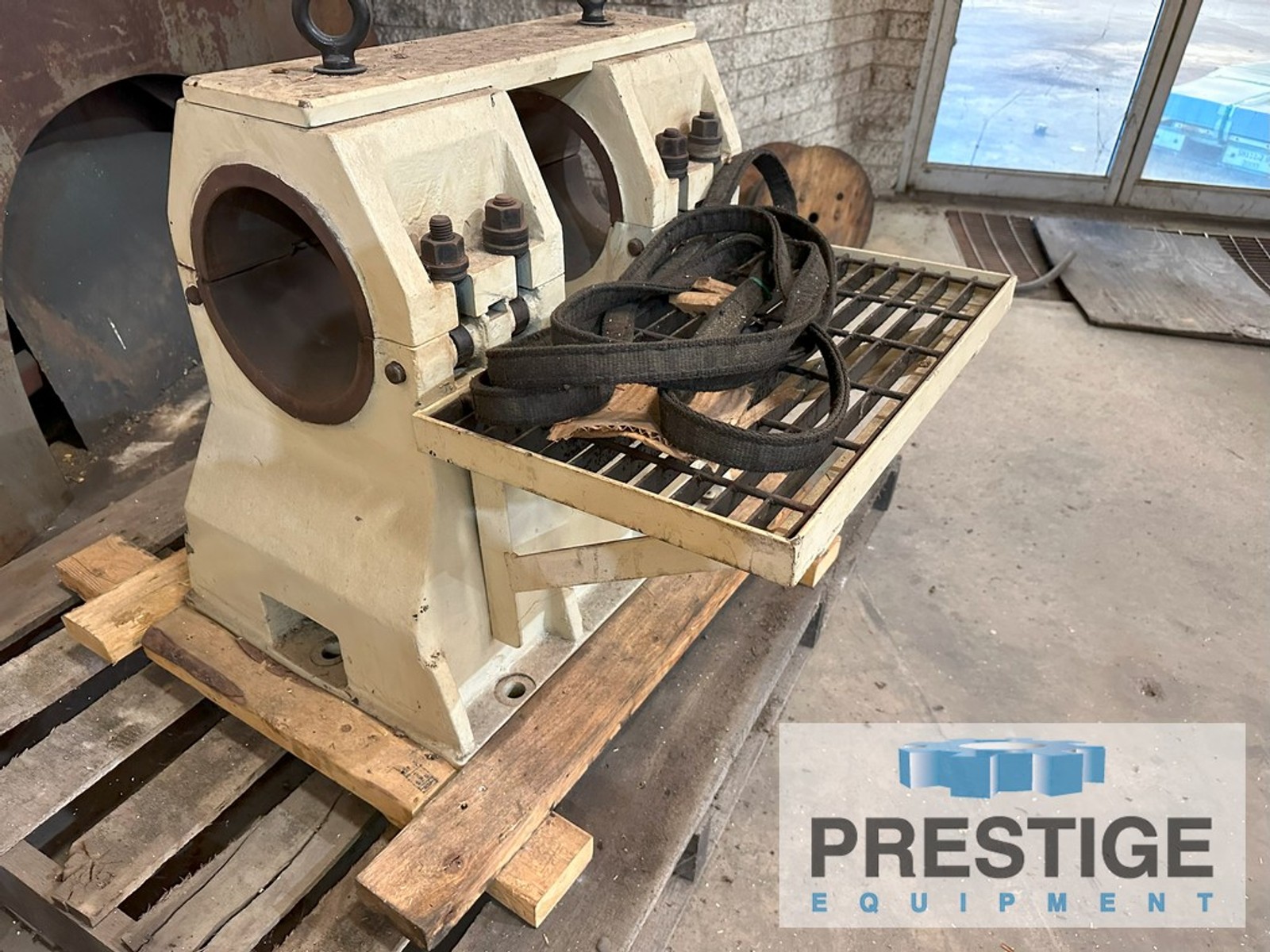

17.71" Steady Rest

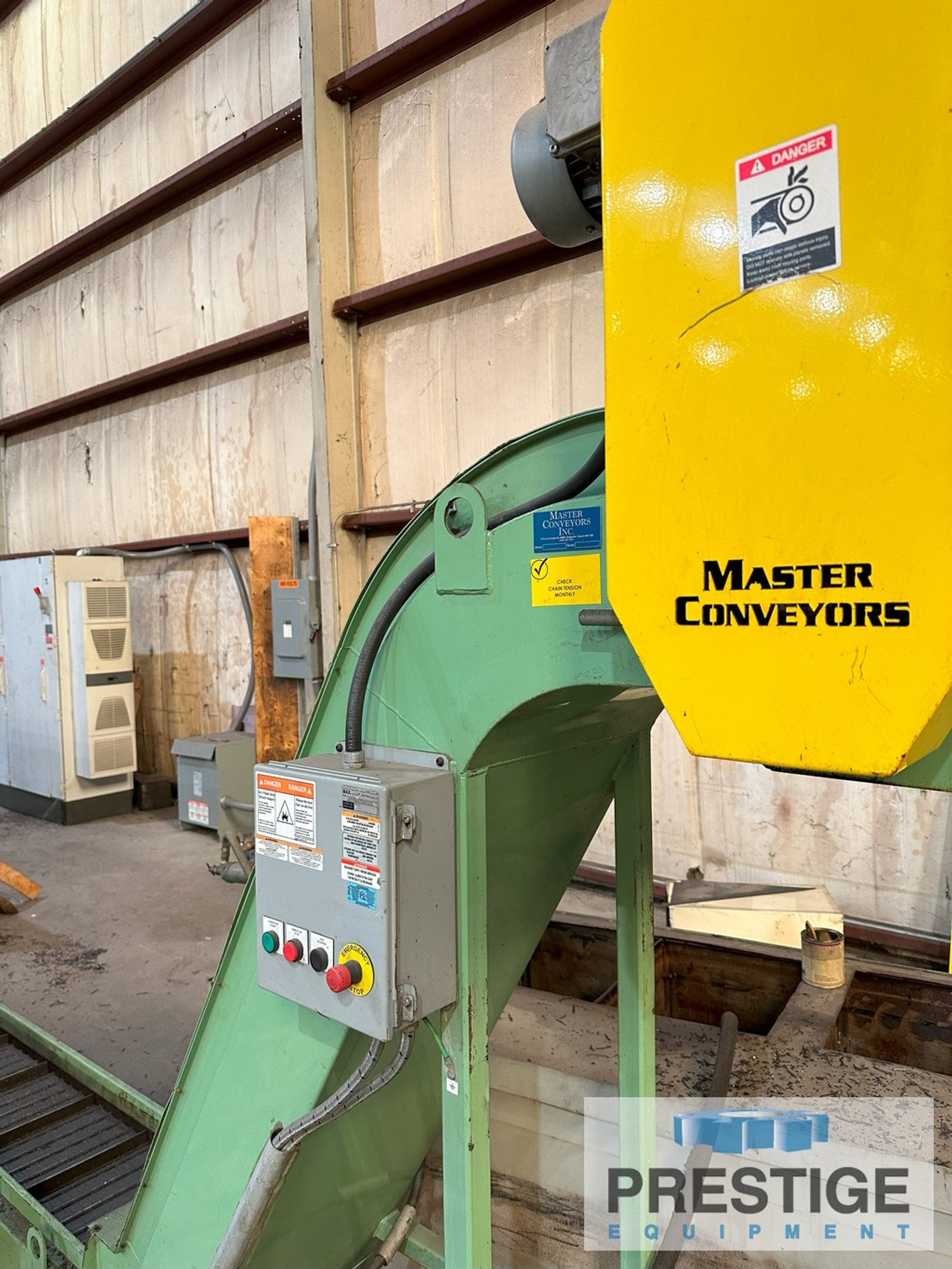

Chip Conveyer
Coolant Equipment

CAPACITY:
Maximum Swing Over Bed ................ 53.14"
Maximum Swing Over Gap ................ 84.64"
Maximum Swing Over Saddle ............. 35.82"
Distance Between Centers, Gap Open .... 157.48"
Distance Between Centers, Gap Closed .. 236.22"

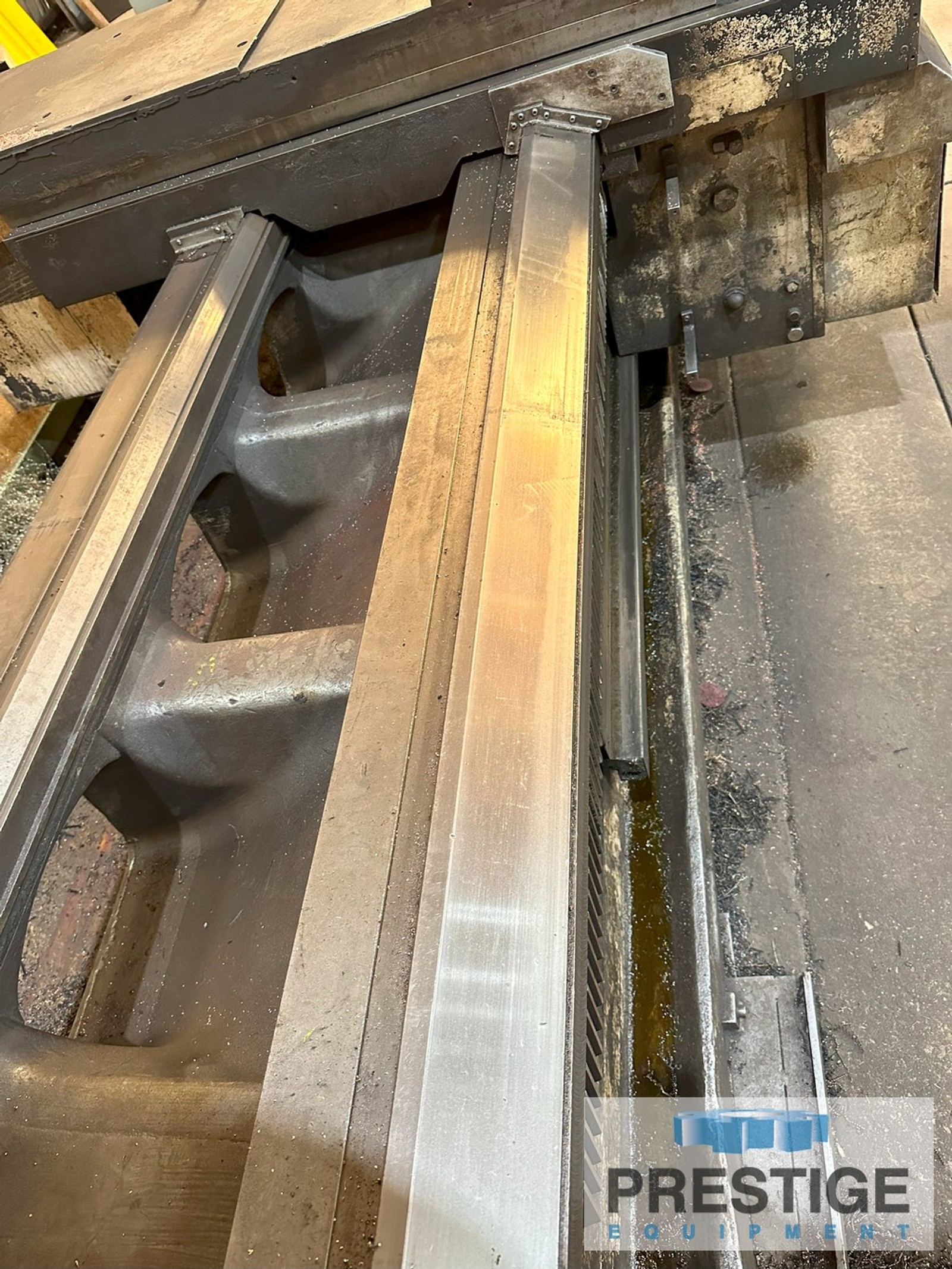

Length of Gap ......................... 78.74"
Main Spindle Bore ..................... 4.72"
Work Piece Weight Between Ctrs ........ 19,841 lbs
Width of Bed .......................... 31.49"
Spindle Speeds, 3-Ranges .............. 2-720 RPM
Torque ................................ 13000 Nm

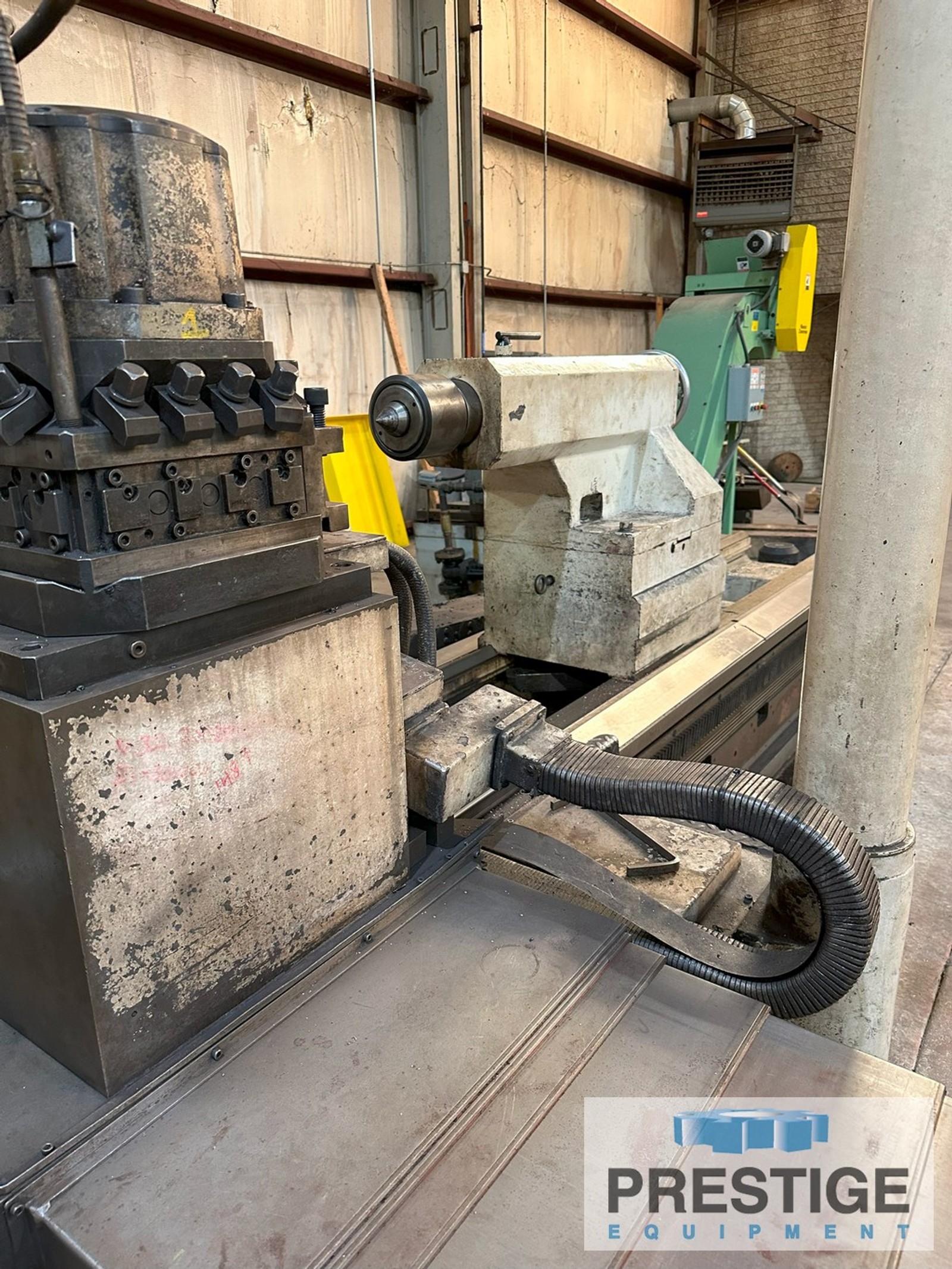

Tailstock Quill Diameter .............. 5.9"
Tailstock Quill Travel ................ 15.74"

EQUIPPED WITH:
Fanuc Oi-TD CNC Control
4- Jaw chuck

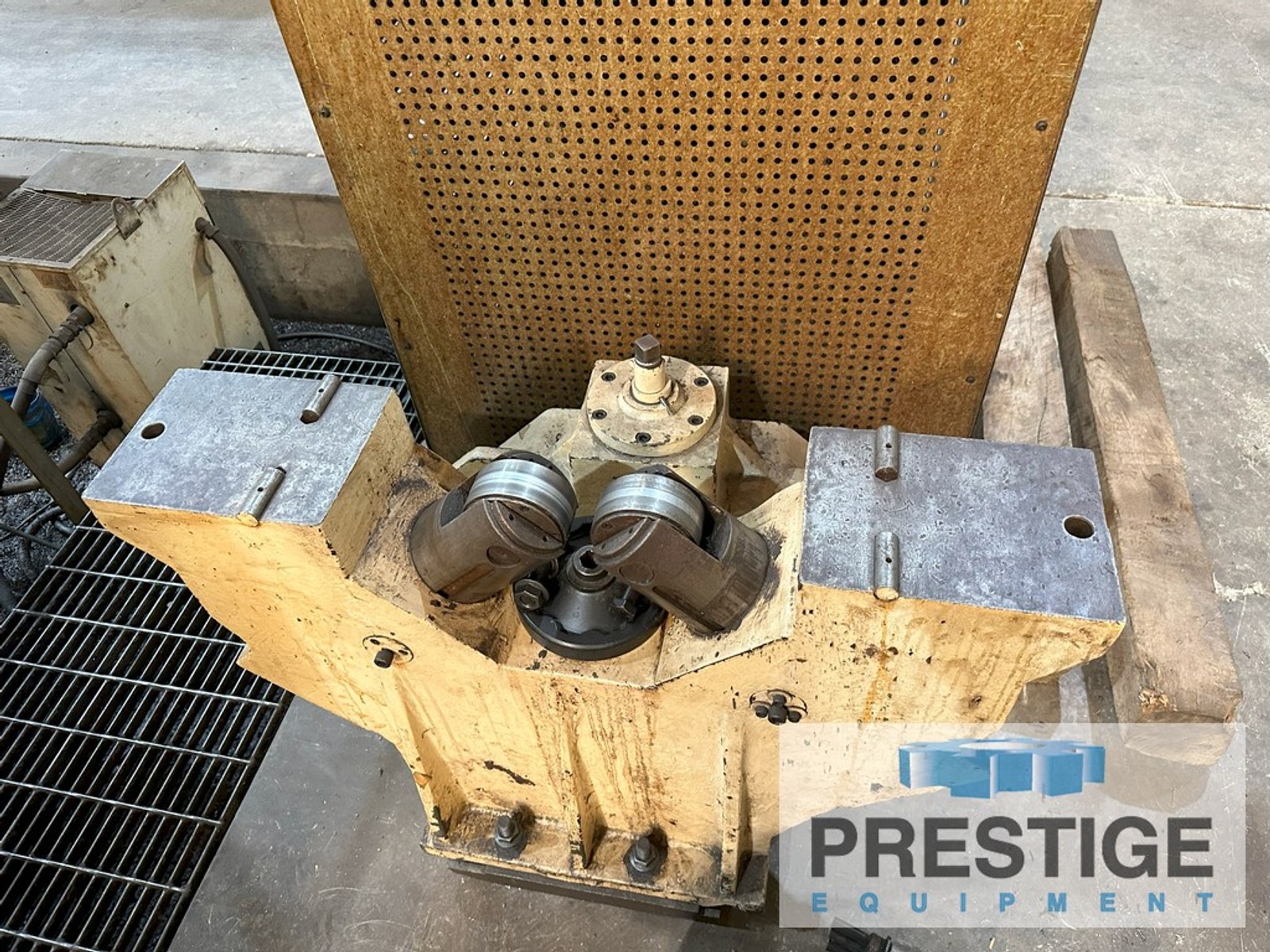

17.71" Steady Rest
Chip Conveyer
Coolant Equipment

NOTE:

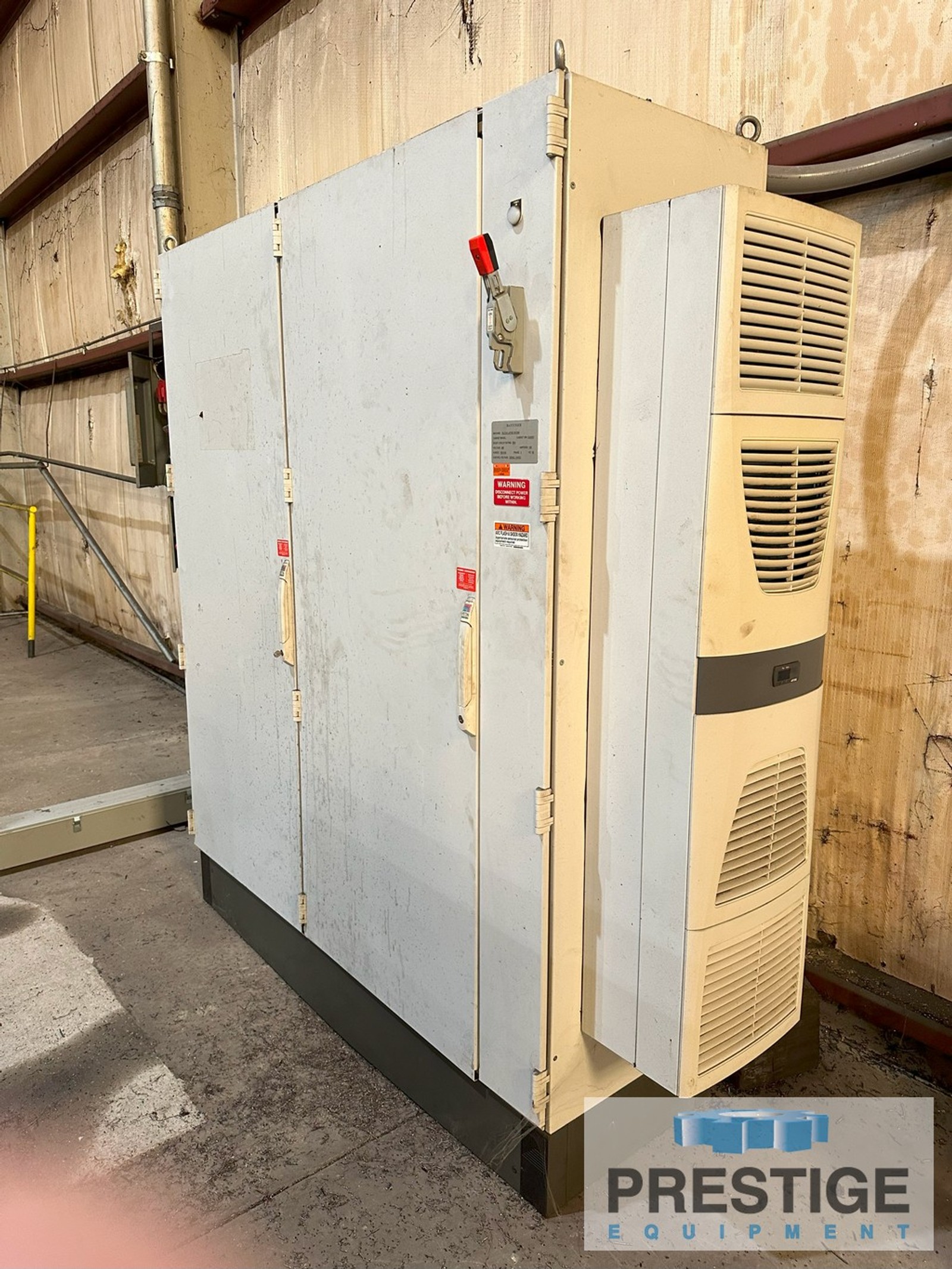

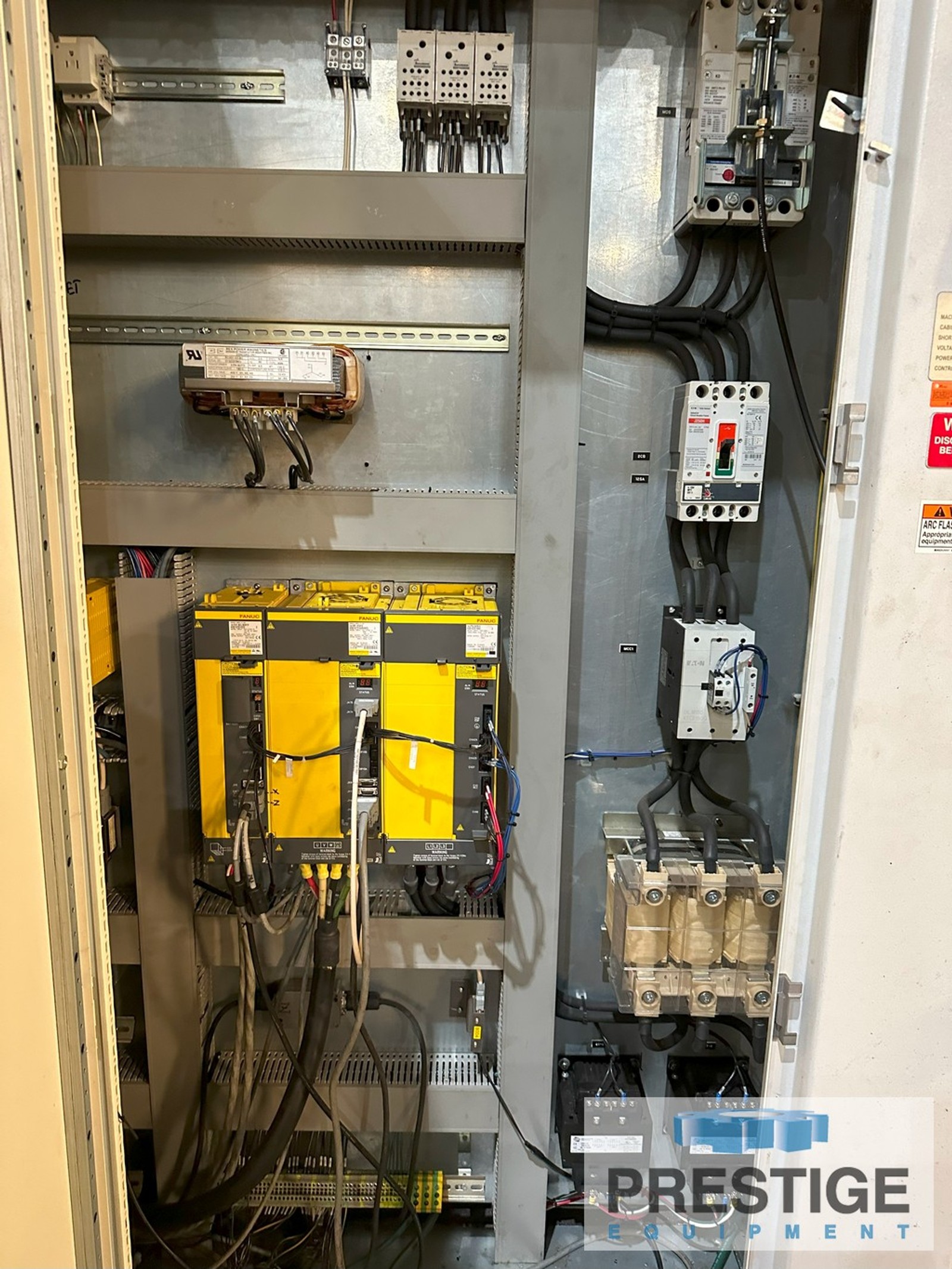

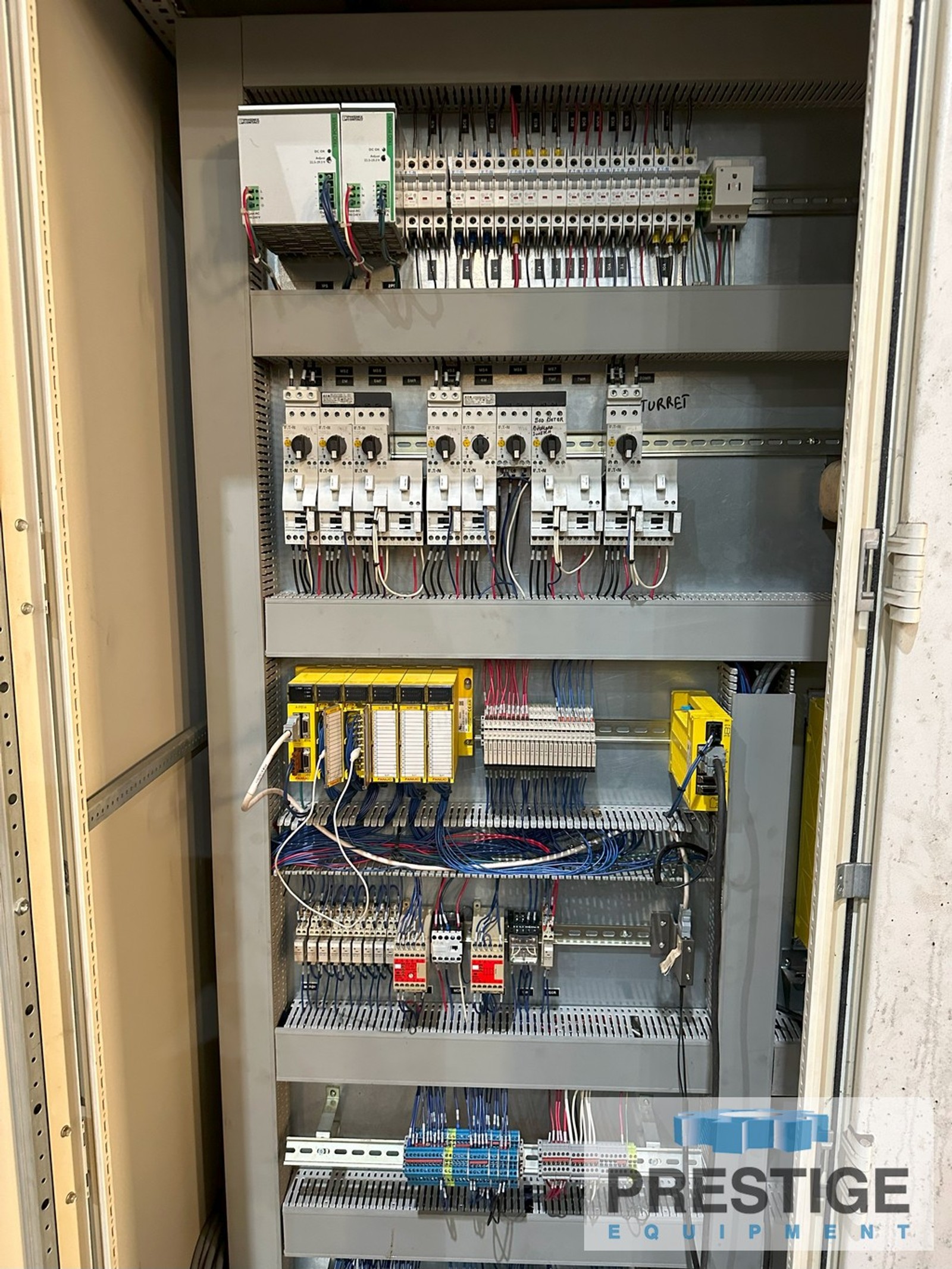

Use to machine landing gear, 2013 - complete remanufacture Mechanical. hydraulic, New electrical panel, New Fanuc Drives, New Fanuc CNC Control Type FA Oi -TD Package # 2, with the fallowing options:
Controlled Axis Detach, Serial Spindle Interface, tool Geometry and Wear compensation, 512 Part Program Storage. Manual pulse Generator, Two Fanuc Alpha HVi for X and Z axis servo package, One Fanuc 40 HVi (60 HP.) AC Main Spindle Drive.

NOTE:
Inspect in plant under power
