108" x 259" Thompson, Double Column Way Grinder, 43" Under Wheel, 90" x 249" Table, #32902

Manufacturer

Thompson

Category

Grinding Machines

Type

GRINDERS, WAY OR RECIPROCATING TABLE, (Vertical Spindle)

Stock

32902

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32902

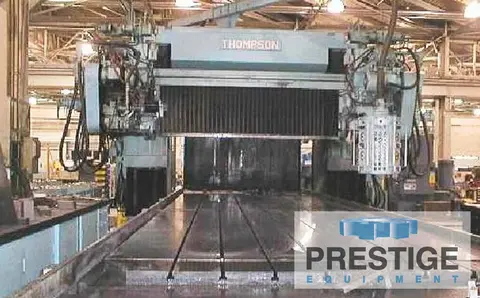

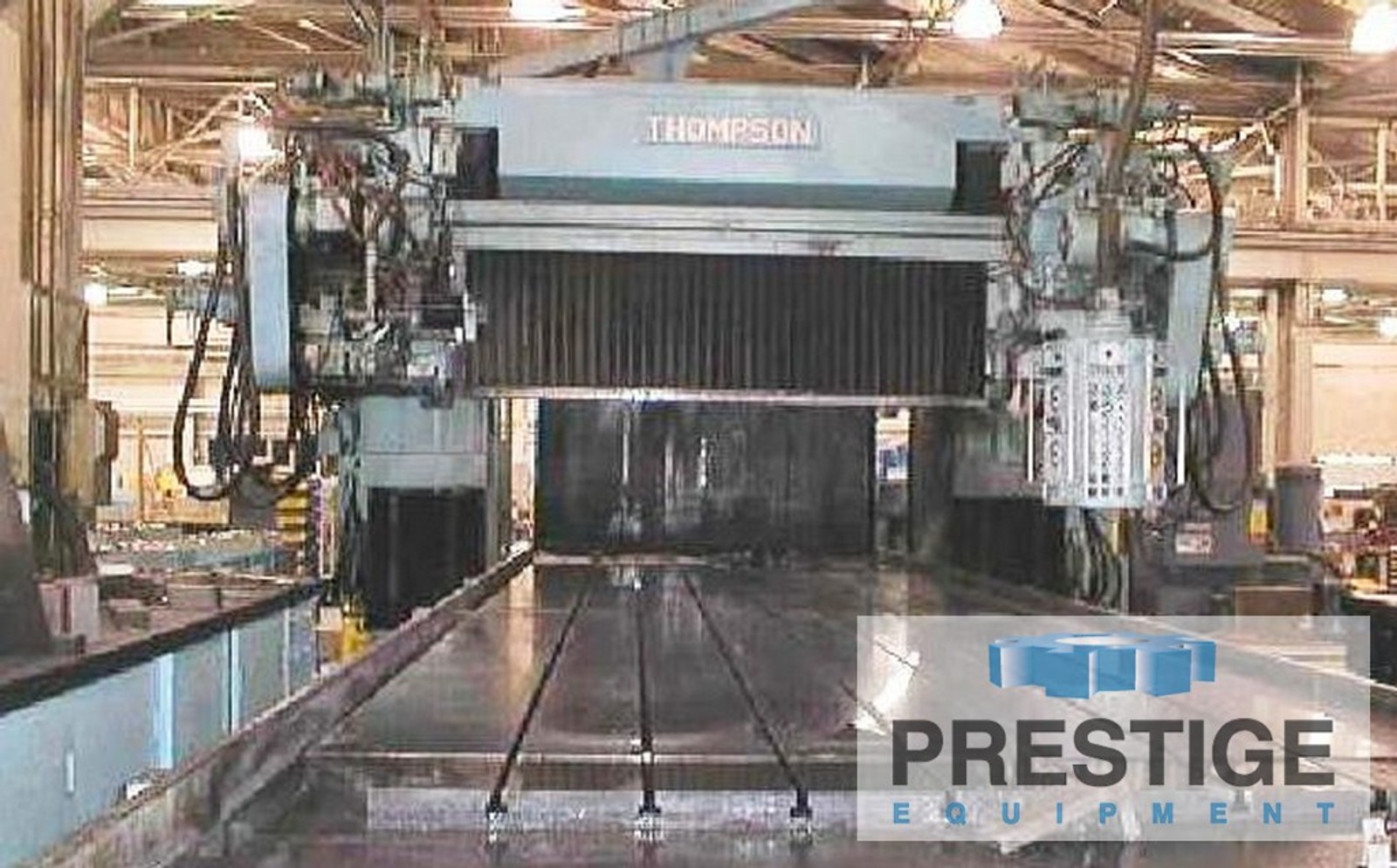

Thompson Double Column Way Grinder

Features:
Pendant Controls
Grinding Heads are Ball Screw Driven
Table is Hydraulic Driven

Specifications:
Table Working Surface ................. 90.25" x 249"
Distance Between Columns .............. 108"
Maximum Work Piece Height ............. 43"
Number of Grinding Heads ............. 2
Grinding Wheel Size ................... 24" x 6"
Grinding Wheel Hole Size ............. 12"
Grinding Wheel Motor ................. 30 HP X 2

Equipped with:
Pendant Controls
Coolant System and Paper Filtration


NOTES:
All Way Surfaces have been Re-Scraped/Flaked.
