216" x 216" Innocenti CWD B-Axis Rotary Table, W-187.5", 176 Ton Weight Capacity, #32793

Manufacturer

INNOCENTI

Category

Tables

Type

TABLES, ROTARY

Stock

32793

Model

CWD

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32793

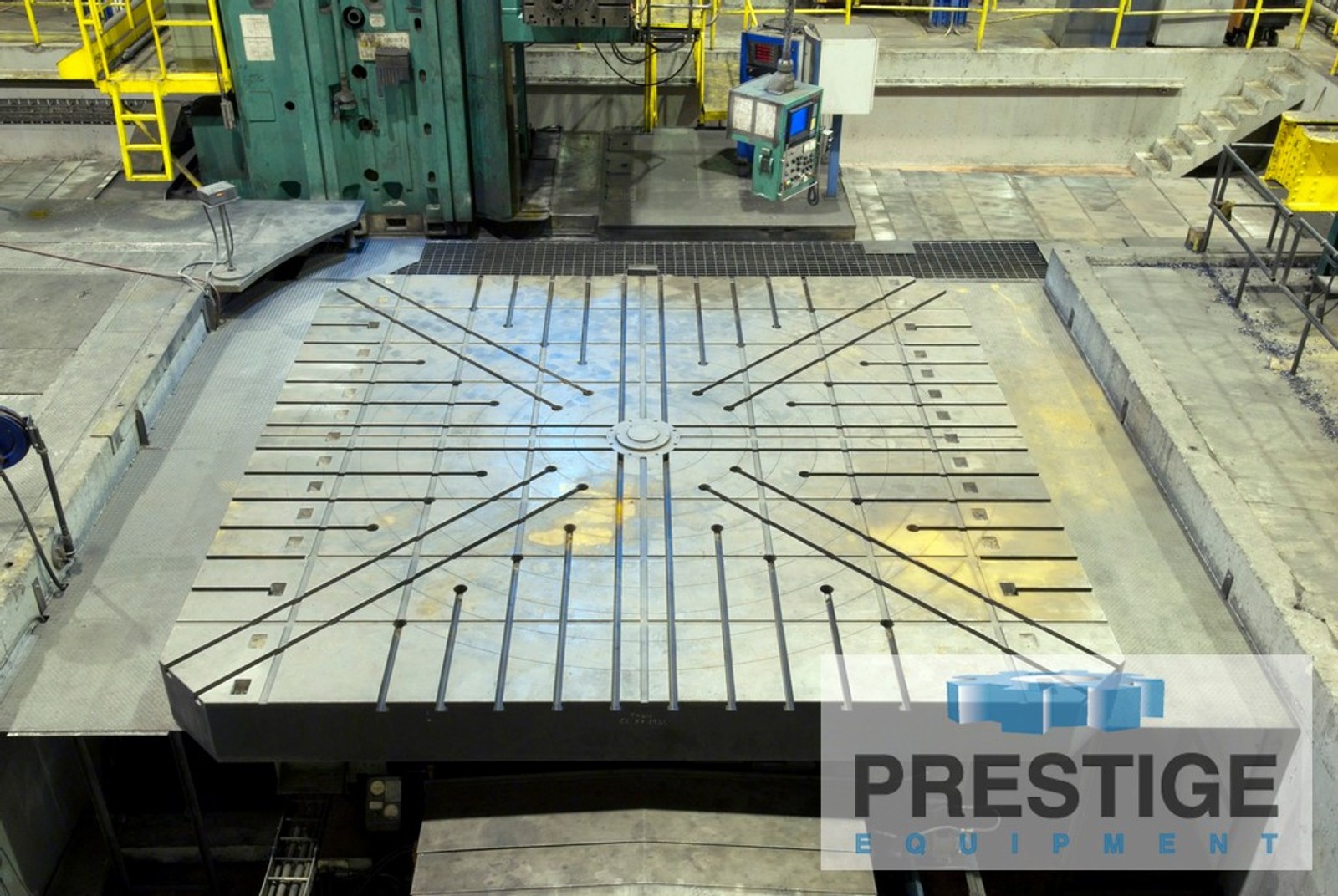

Innocenti 216.53" x 216.53" Infeeding CNC Rotary Table

FEATURES:
175 Ton Weight Capacity
Full B-Axis Rotation

CAPACITY:
Table Size ............................ 216.53" x 216.53"
Table Size, less extensions .......... 216.53" x 169"
B-Axis Rotation ....................... 360,000 Positions
V-Axis Table Infeed ................... 187.5"
Table Weight Capacity ................. 175 Ton

EQUIPPED WITH:
Steel Sliding Way Covers
Full Contouring B-Axis
Ball Screws and Independent Servo Drives

NOTE:
Originally Used By GE For Power Generation Turbine Manufacturing Facility
with CNC Floor Type Horizontal Boring Mill (Sold Separately). Inspect in
our Philadelphia, PA Showroom.

Table Top:
Table Top Can be Reduced to 216" x 169" by removing side extensions, for shipping.

Price is loaded to trucks, Philadelphia, USA
