Controlled Automation ABL-100, 8" x 8" x 1", 143 Ton Punches, 215 & 300 Ton Shears, Conveyor, 2009 #32871

Manufacturer

CONTROLLED AUTOMATION

Category

Punches

Type

PUNCHES, ANGLE

Stock

32871

Model

ABL-100-3

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32871

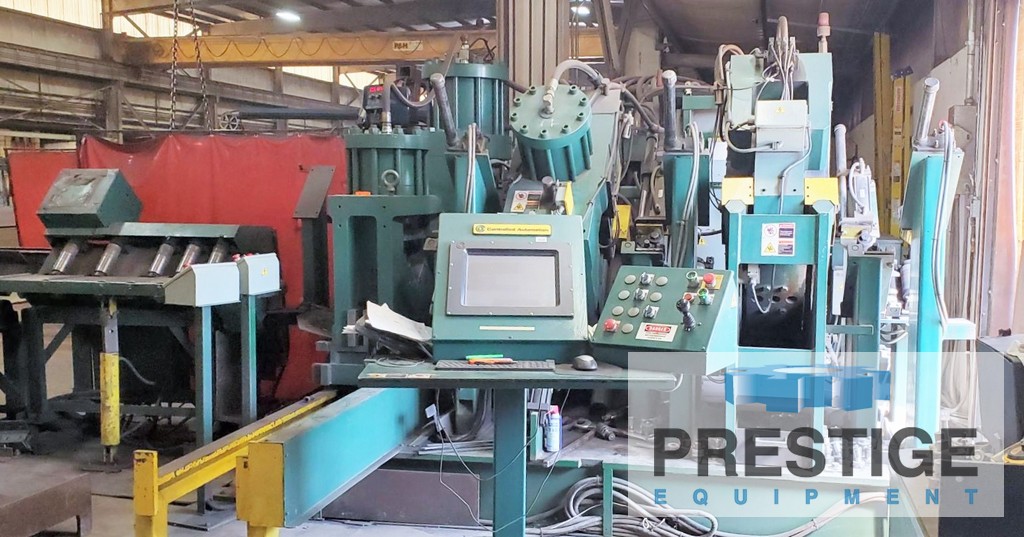

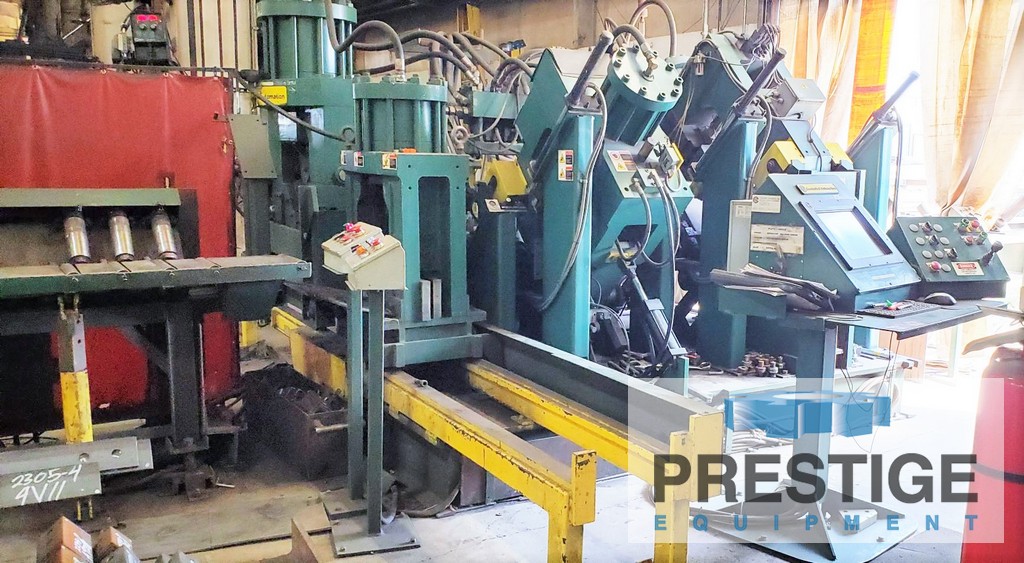

Controlled Automation ABL-100-3 8" x 8" x 1" CNC Angle Punch & Shear Line

FEATURES:
Controlled Automation CNC Control
(2) 143 Ton Punch Heads
215 Ton Single Cut Shear
300 Ton Double Cut Shear
Infeed Conveyor & Material Transfers

CAPACITY:
No. Of Punches ........................ 2
Punching Capacity ..................... 143 Tons
Maximum Hole Size ..................... 1.75"
Maximum Angle Size, Punch ............. 8" X 8" X 1"
Maximum Flat Bar ...................... 1" X 12"
Shear Tonnage, Single Cut ............. 215 Tons
Shear Tonnage, Double Cut ............. 300 Tons
Capacity Single Shear ................. 6" x 6" x 1/2"
Capacity Double Shear ................. 8" x 8" x 3/4"

EQUIPPED WITH:
Controlled Automation CNC Control
(2) 143 Ton Punch Heads

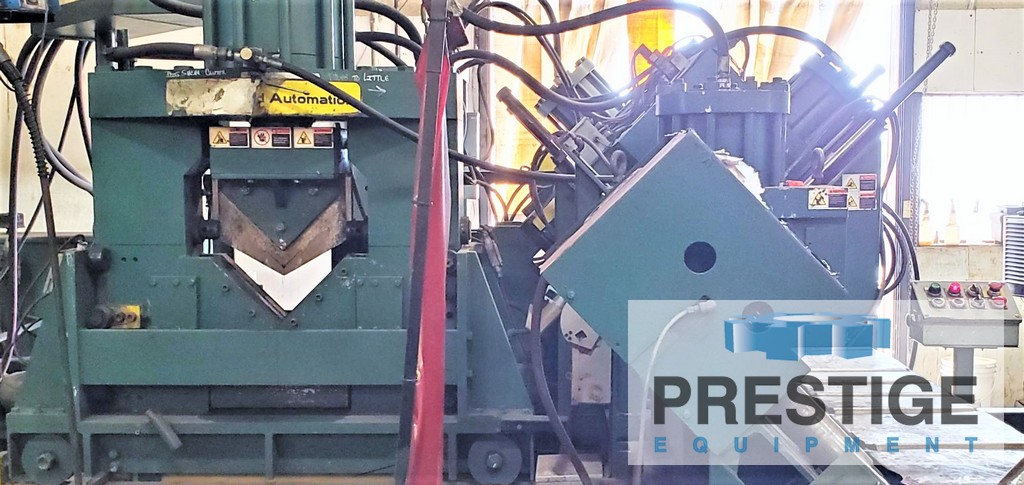

215 Ton CAL Single Cut Shear
300 Ton HDC Double Cut Shear

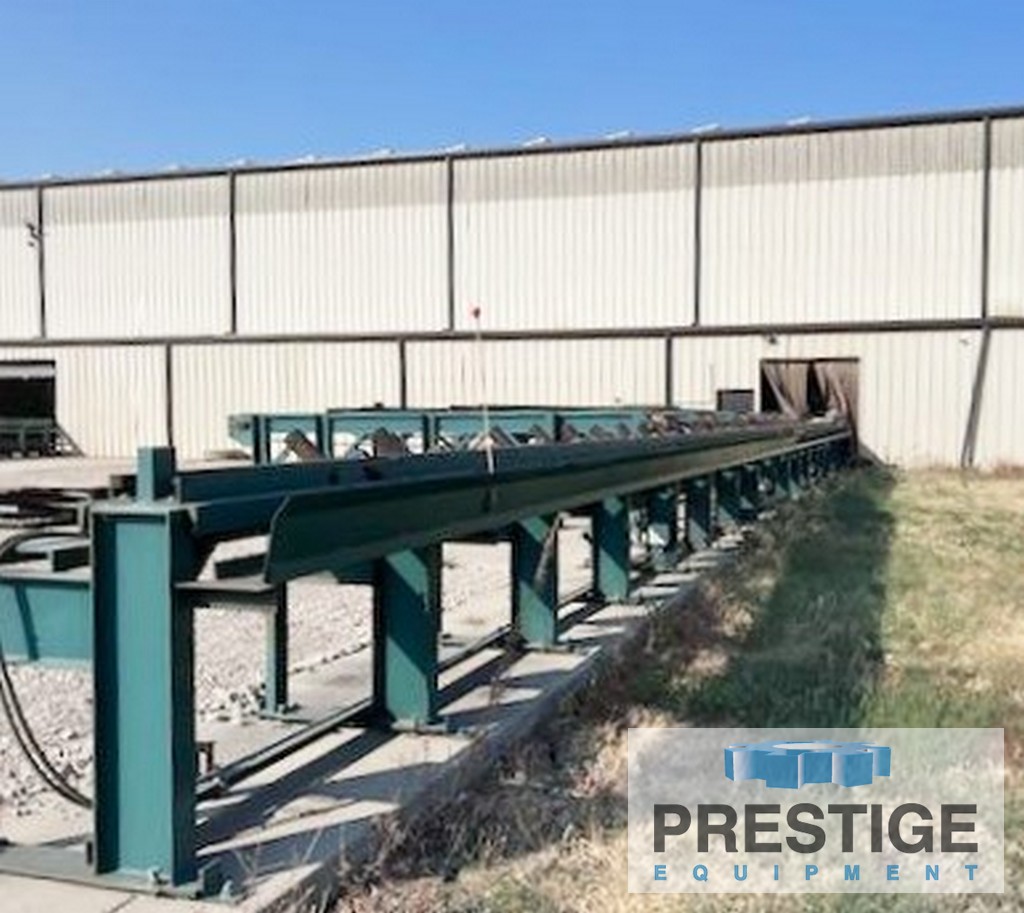

80' Infeed Conveyor

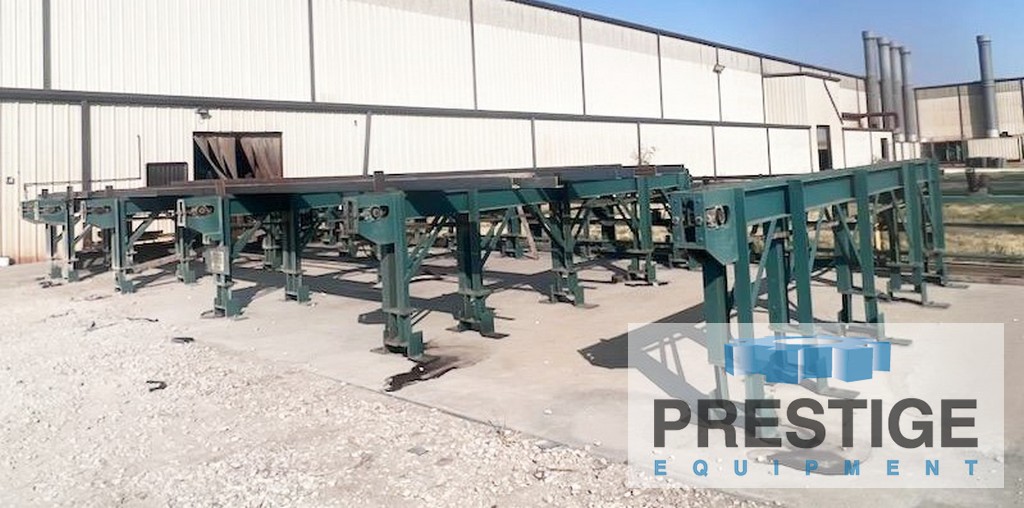

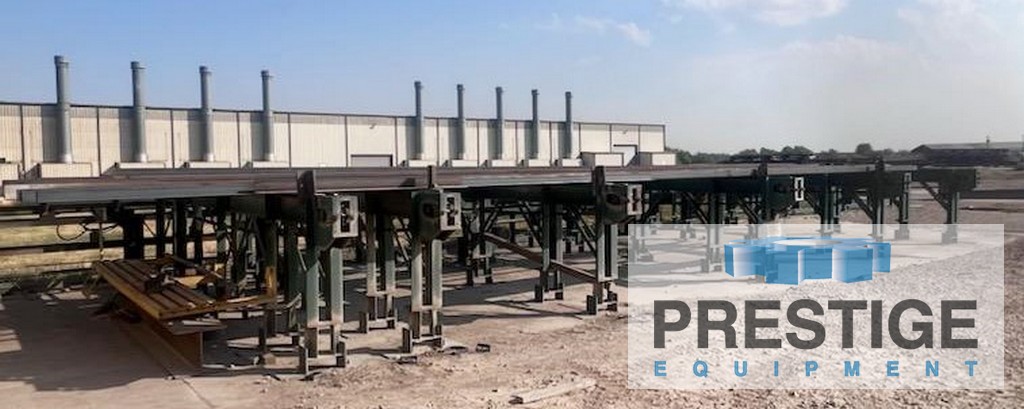

(5) 40' Material Transfers

NOTE:
Inspect Under Power In facility
