60" X 84" Giddings & Lewis Air Lift Rotary Table, 25,000 Lb. Capacity, 4-Position Shot Pin, #32679

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

32679

Model

Air Lift

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32679

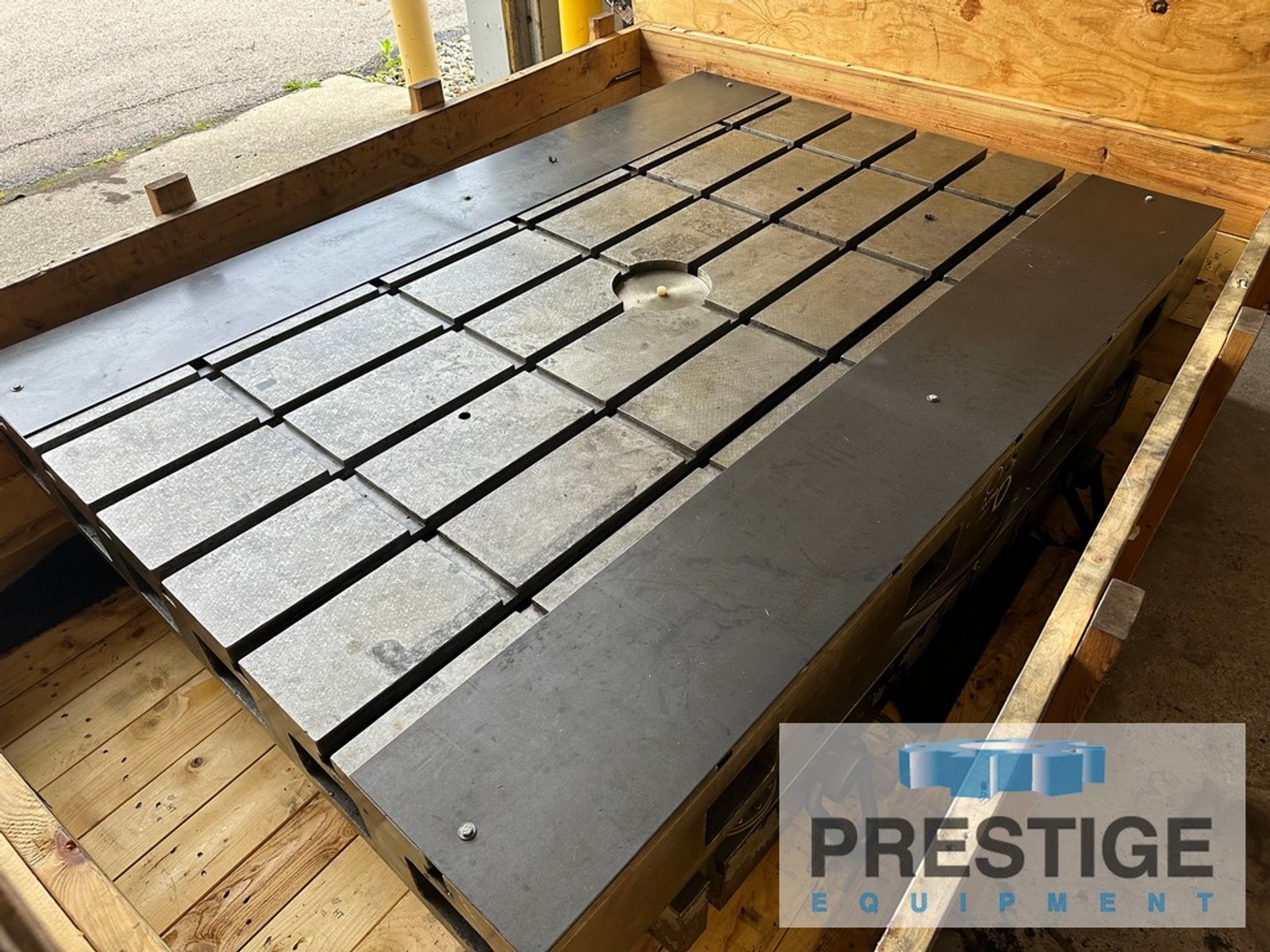

60" x 84" Giddings & Lewis Airlift Table

Features:
Air Clamp
4-Positive Stop, Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway

SPECIFICATIONS:
Table Size ............................ 60" X 84"
Table Height Overall .................. 16"
Number Of T-Slots ..................... 7
Number of Cropss Slots ................ 5
Width Of T-Slots, Top ................. 1"
Width Of T-Slots, Bottom .............. 1.875"
Depth Of T-Slots, Overall ............. 2"
Distance Between T-Slot Centers ....... 10"
Weight Capacity ....................... 30,000 LBS
Shot Pin Locations (degrees) .......... 90,180,270,360
Table Base Dimensions ................. 60" x 66"
Table Weight .......................... 10,300 lbs

EQUIPPED WITH:
Air Clamp
4-Positive Stop, Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway

NOTE:
Preliminary Specification
