HAAS VF-0E, X-30", Y-16", 20 Station ATC, Pre-Wired 4th Axis, Prog. Coolant, Chip Auger, Low Hours, #32746

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

32746

Model

VF-0E

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32746

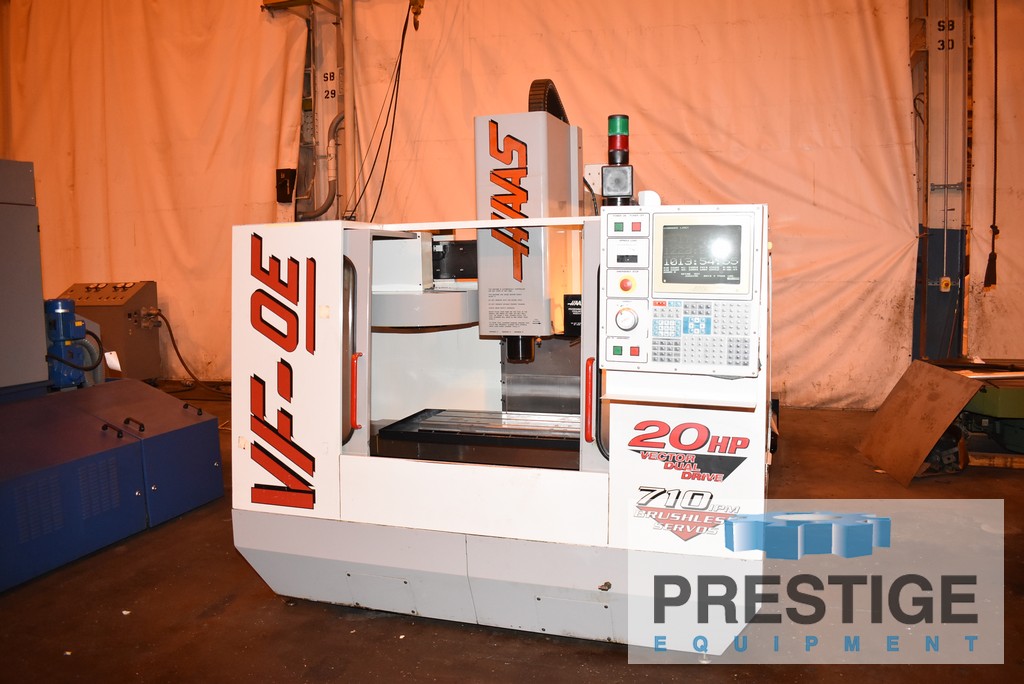

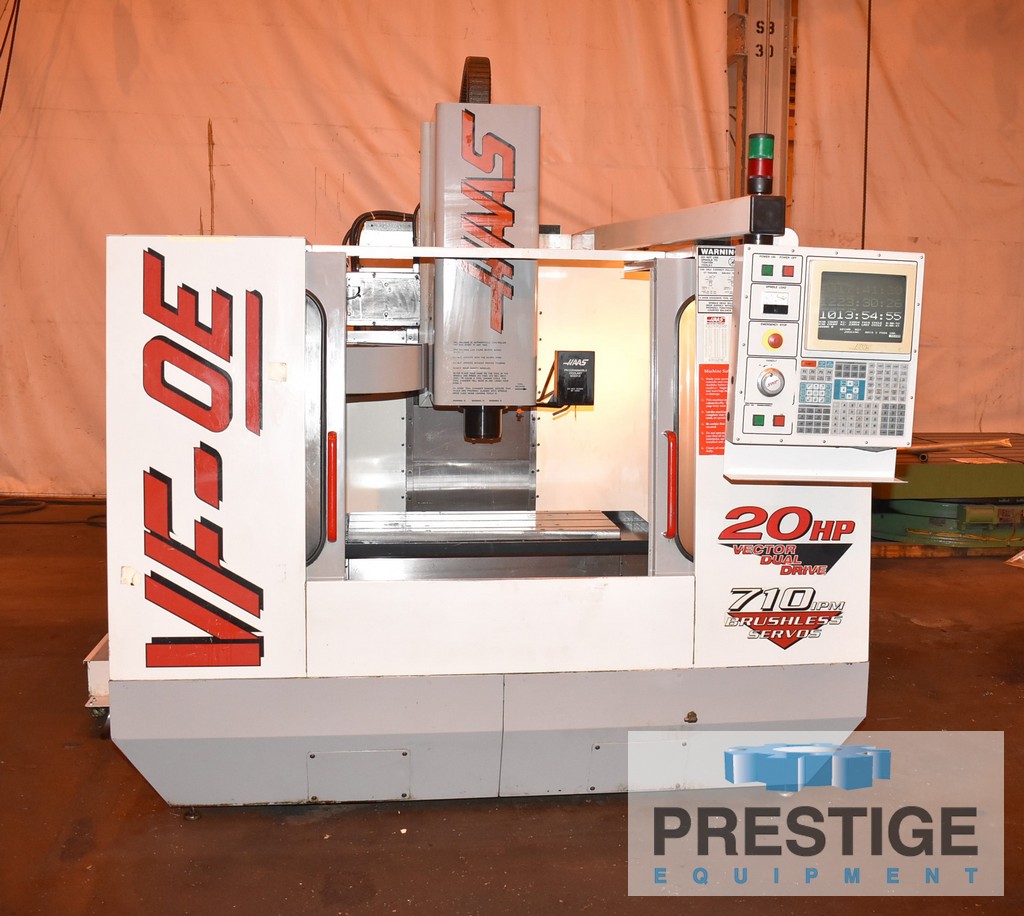

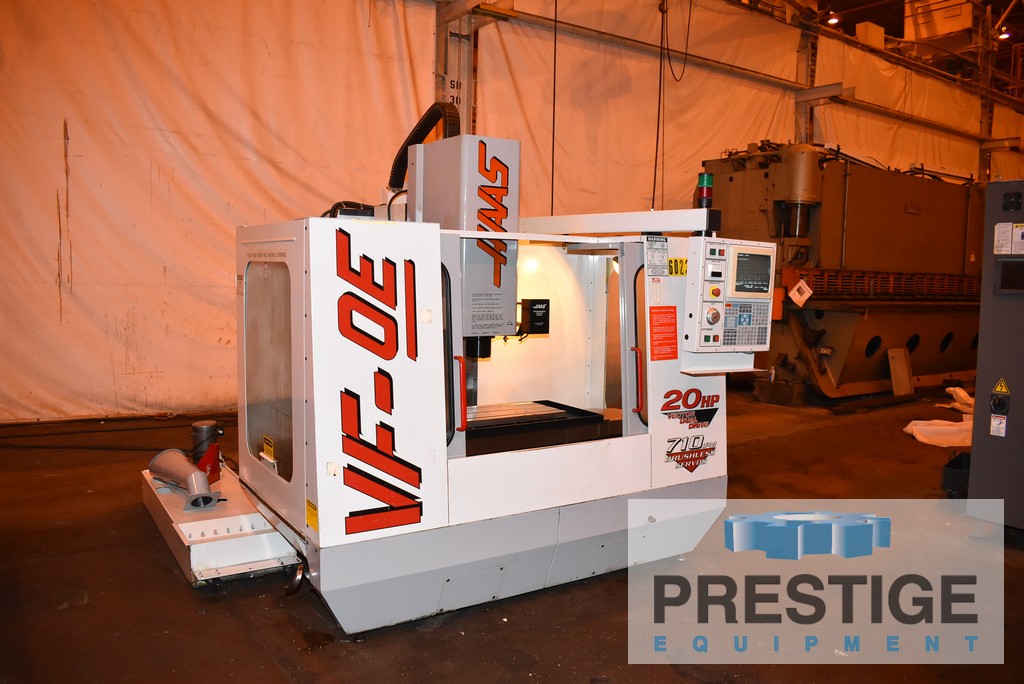

HAAS VF-0E CNC Vertical Machining Center

FEATURES:

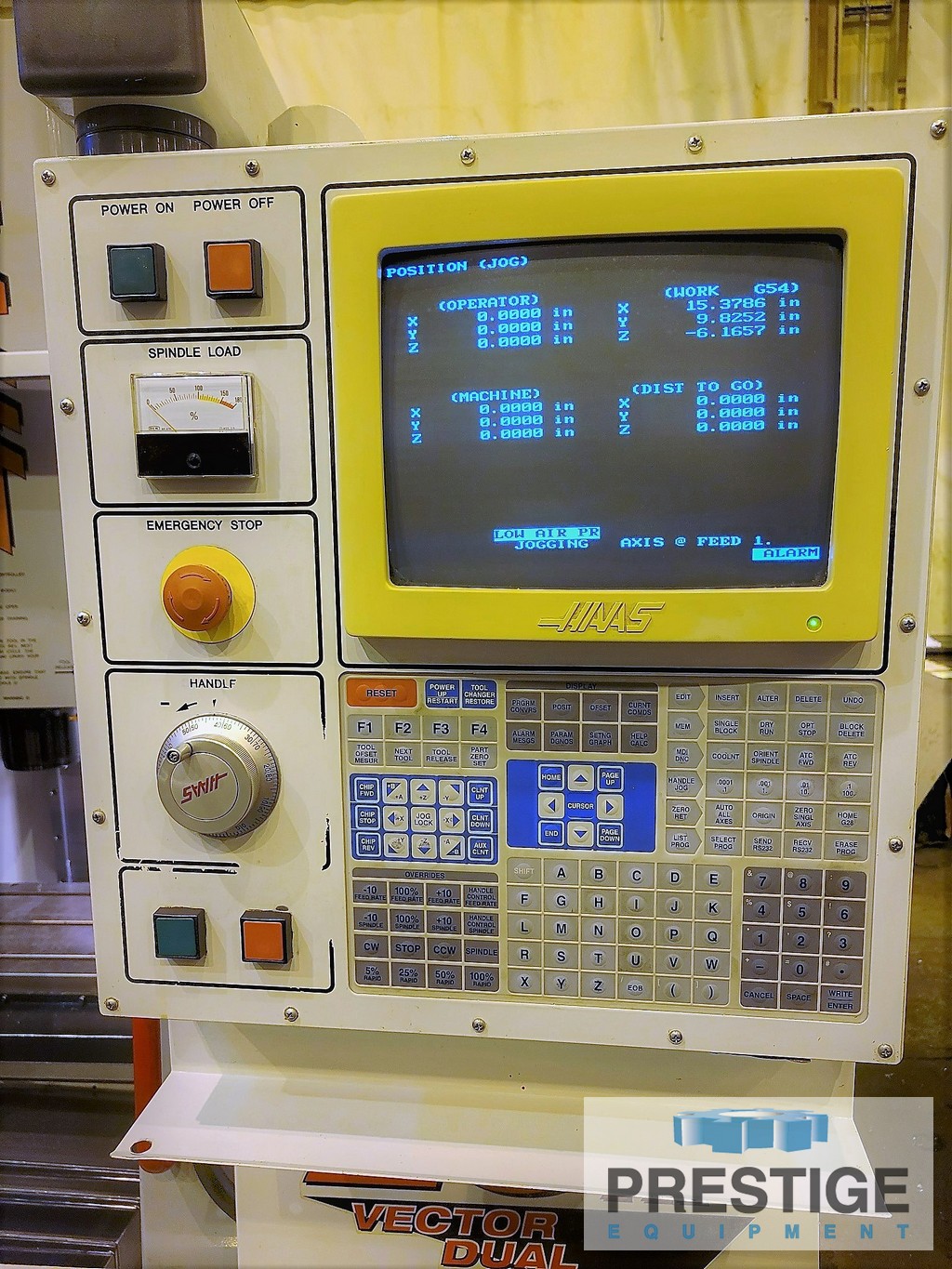

HAAS CNC Control
Pre-Wired for 4th Axis
Fully Enclosed Guarding
20-Position Automatic Tool Changer

CAPATICY:
X-Axis Travel ......................... 30"
Y-Axis Travel ......................... 16"
Z-Axis Travel ......................... 20"

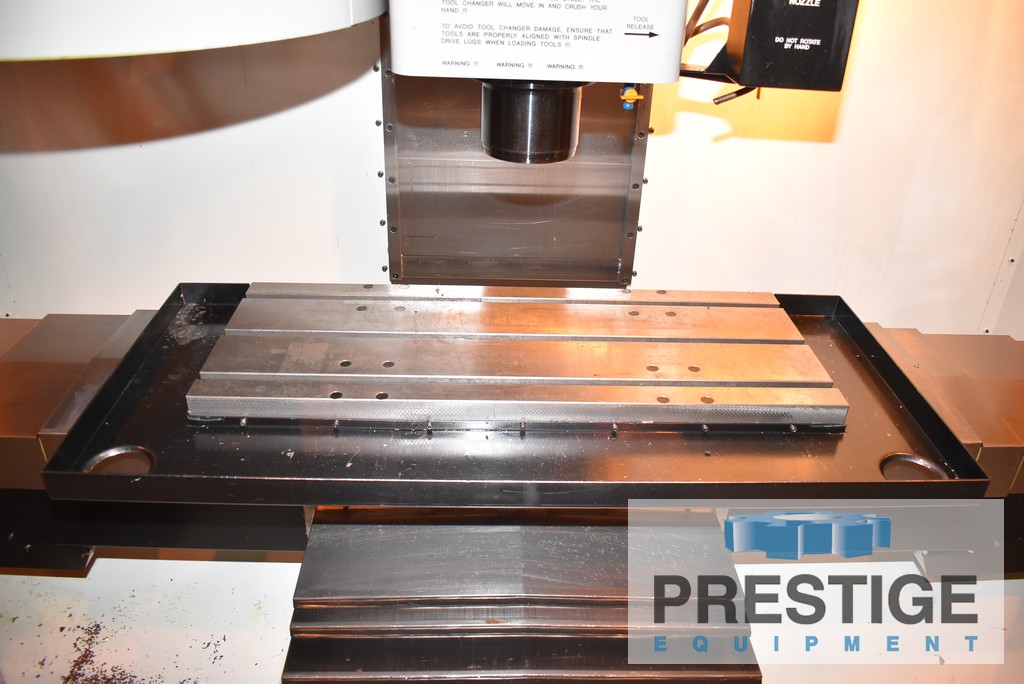

Table Size ............................ 36" x 14"
Max. Table Load ....................... 3000 Lbs.
Spindle Nose to Table Top ............. 4"-24"
Spindle Speeds ........................ 0-10,000 RPM
Spindle Motor ......................... 20 HP
Spindle Taper ......................... #40
Tool Changer .......................... 20 ATC
Rapid Traverse Rate ................... 400 IPM
Cutting Feed Rate ..................... 0.1-500 IPM
Max. Tool Weight ...................... 12 Lbs.
Approx. Weight ........................ 8000 Lbs.
Dimensions ............................ 110" x 93" x 107"

EQUIPPED WITH:
HAAS CNC Control
Extended Memory

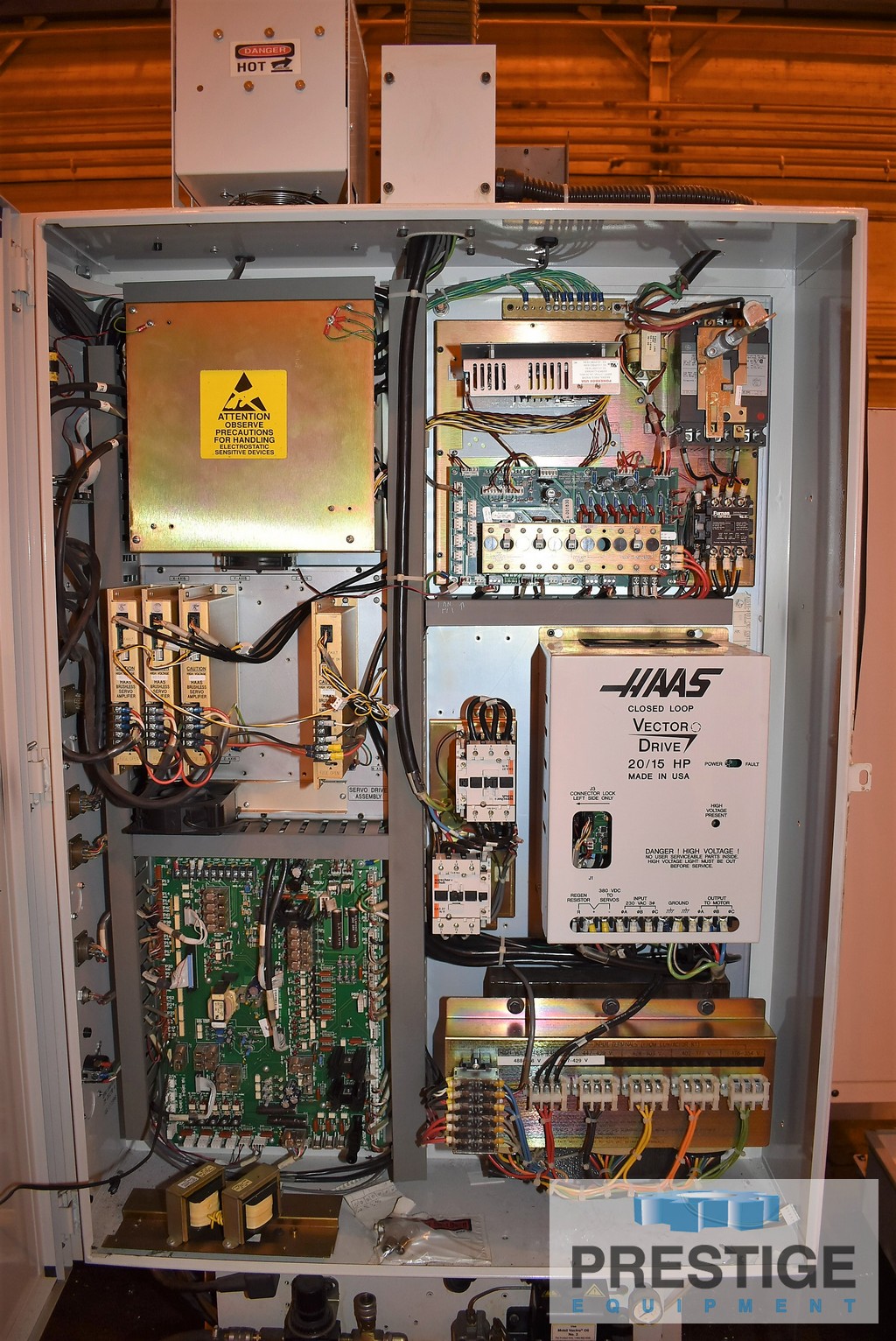

Brushless Servo Drives
Programmable Coolant
Quick Code
Pre-Wired for 4th Axis
Fully Enclosed Guarding
20-Position Automatic Tool Changer
Chip Auger

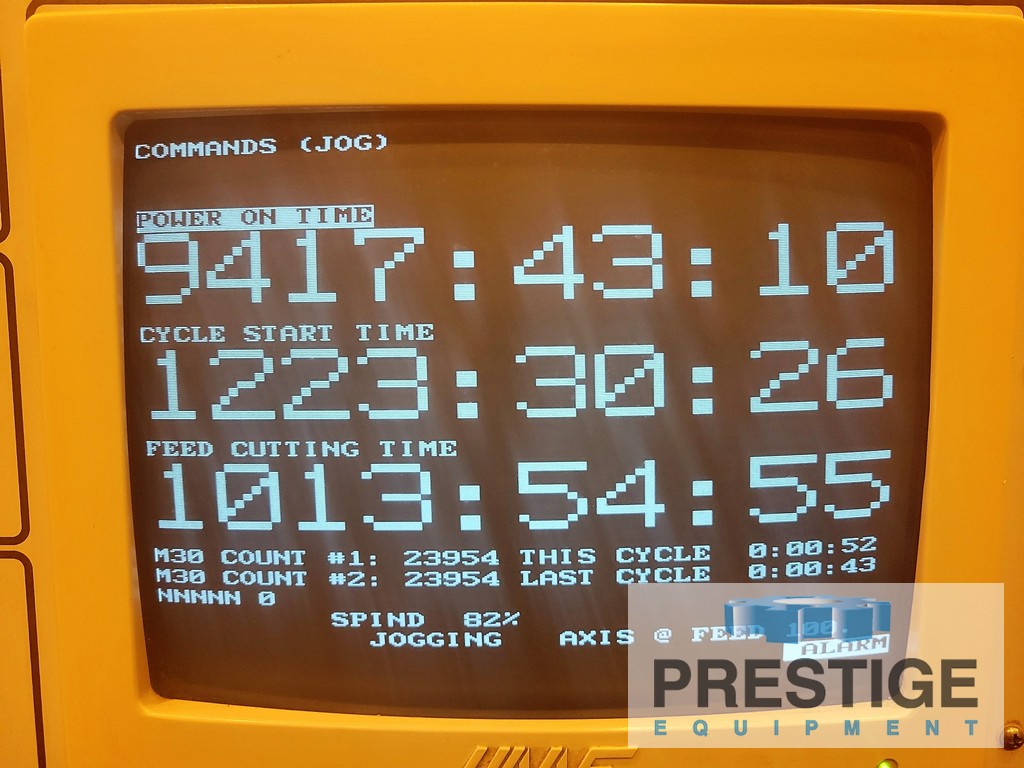

HOURS (From Defense Facility):
Power On Time: 9,417
Cutting Hours: 1,013

No Video Available
