Doosan VT-1100, 50" Swing, 850 RPM, 80 HP, Fanuc i CNC, 32" 4-Jaw Power Chuck, 12 Station Turret, 2012, #32862

Manufacturer

DOOSAN

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32862

Model

VT-1100

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32862

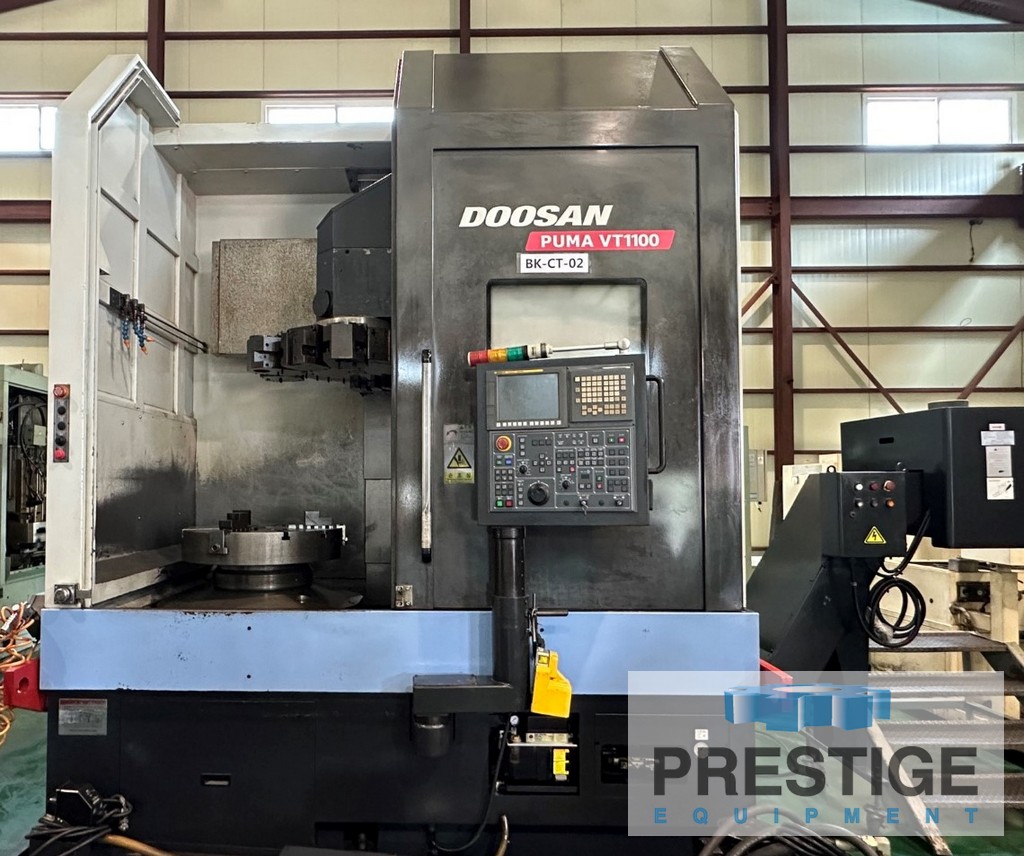

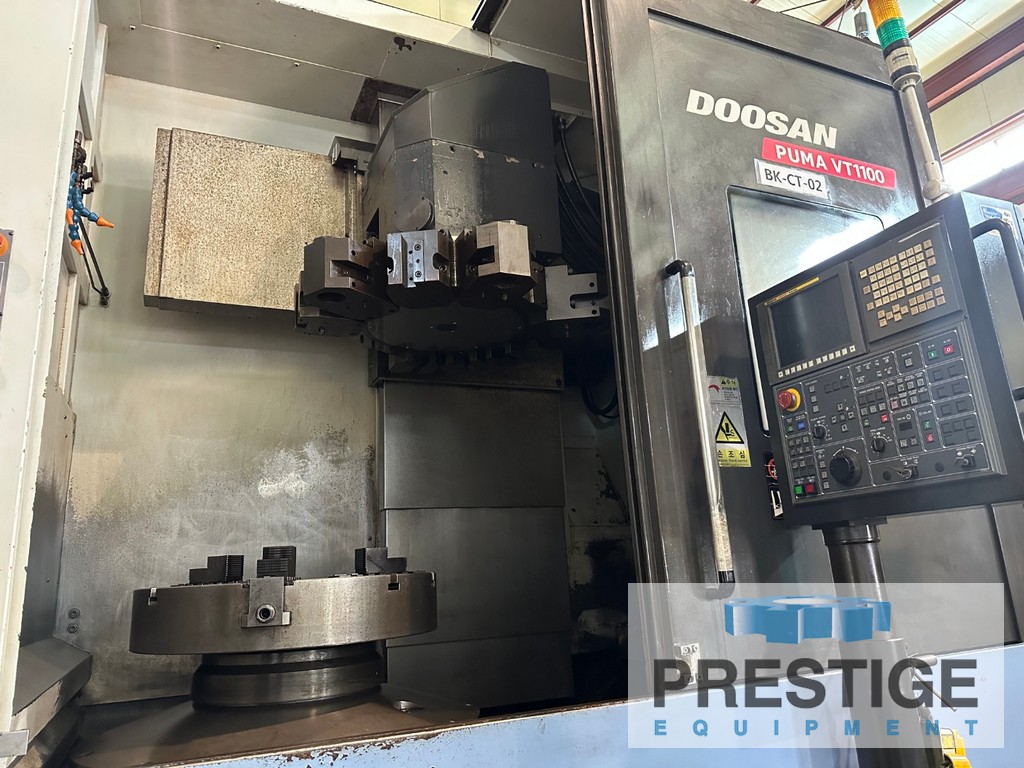

Doosan VT-1100 CNC Vertical Turning Center

FEATURES:

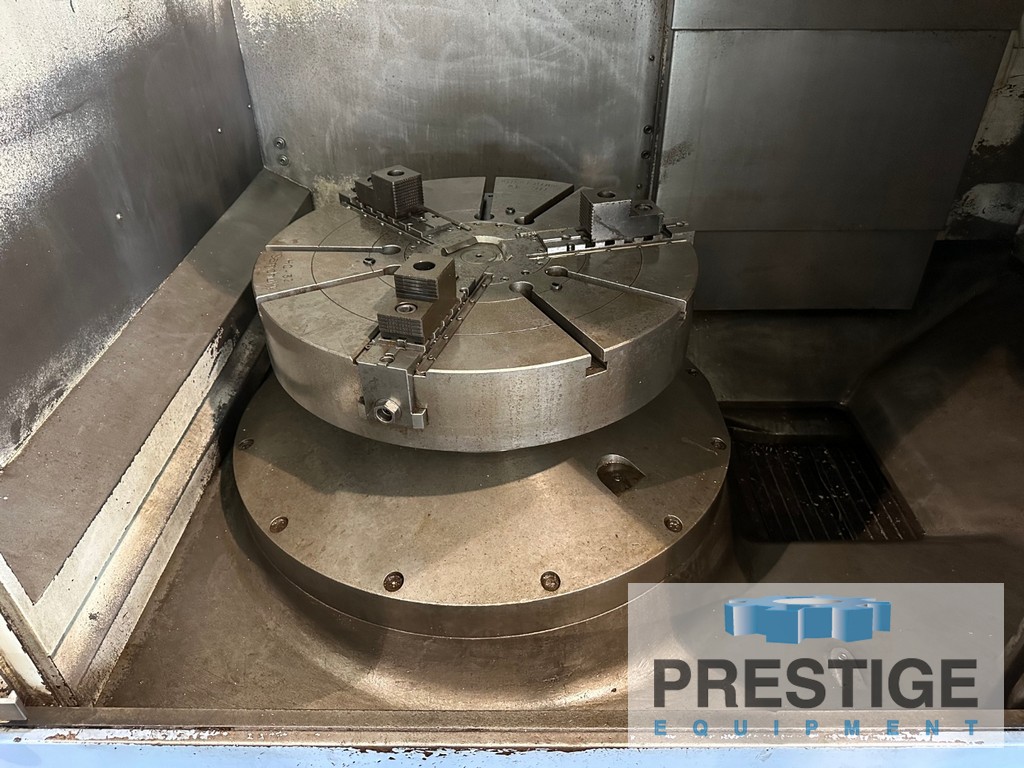

32" 4-Jaw Hydraulic Power Chuck

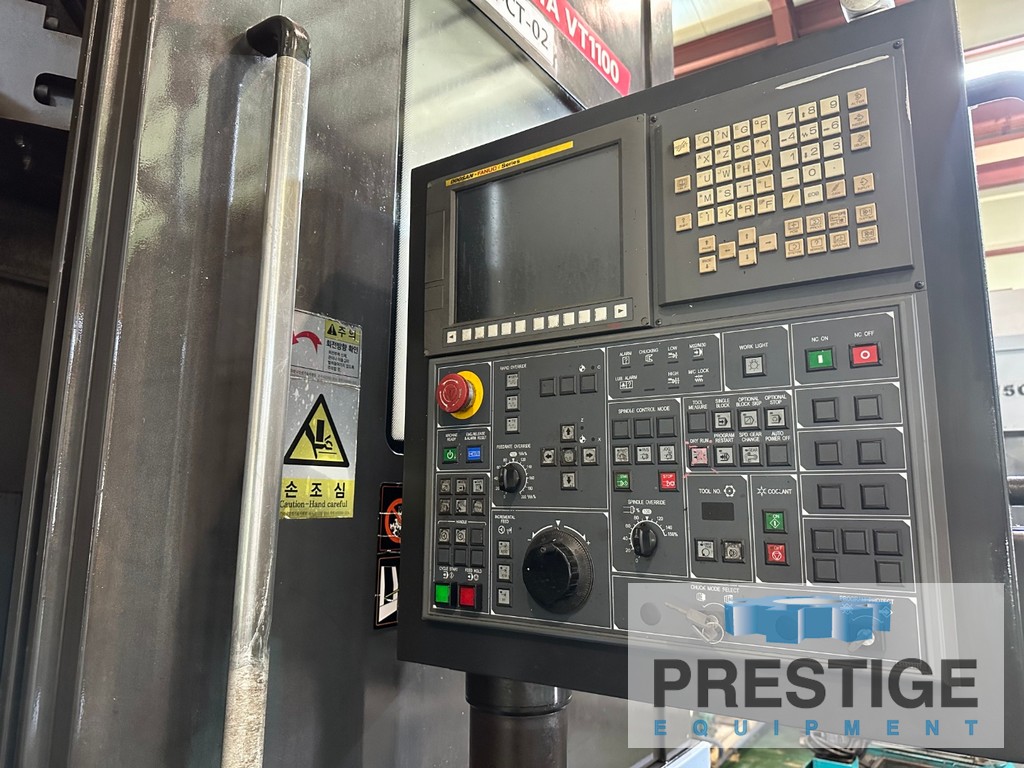

Fanuc i CNC Control

CAPACITY:
Maximum Swing ......................... 50"
Maximum Turning Diameter .............. 43.30"
X-Axis Travel ......................... 22.83"
Z-Axis Travel ......................... 39.37"
Spindle Motor ......................... 80 HP
Spindle Speeds ........................ 850 RPM
Spindle Bearing Diameter .............. 7.87"
Rapid Traverse, X,Z Axes .............. 787.40 IPM
Max. Feed Rate ........................ 787.40 IPM

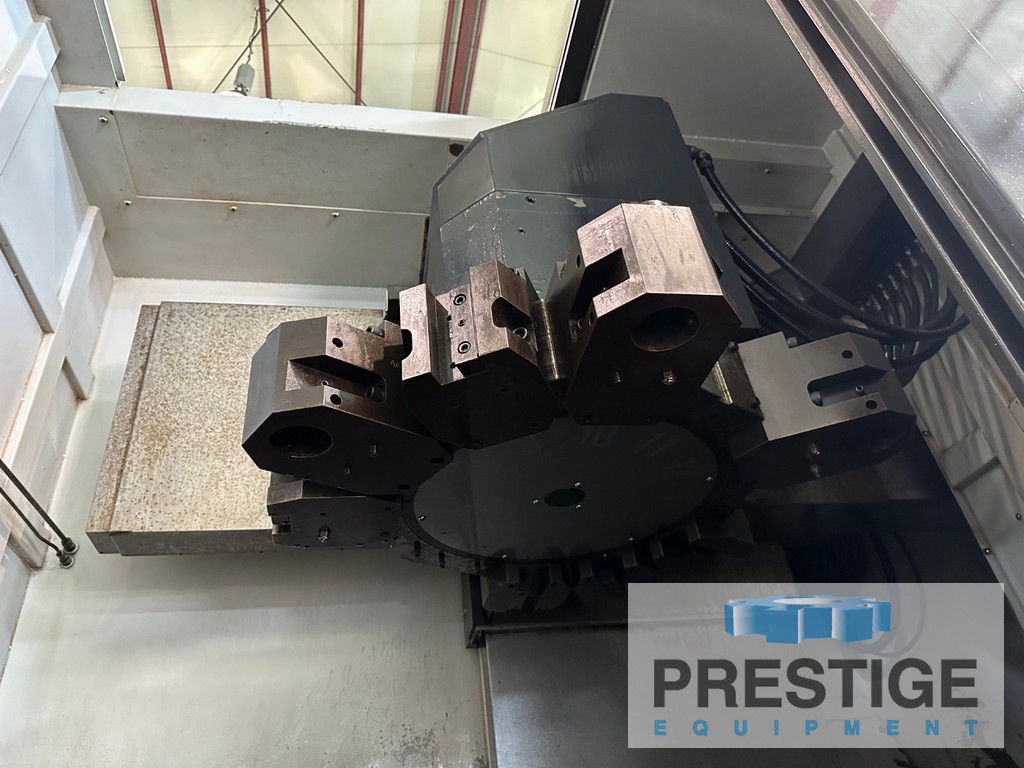

Turret Positions ...................... 12
Approximate Floor Space ............... 112" x 131"
Approximate Machine Height ............ 158"
Approximate Machine Weight ............ 48,510 Lbs.

EQUIPPED WITH:
Fanuc i CNC Control
32" 4-Jaw Hydraulic Power Chuck
12-Position Turret
80 HP Main Motor

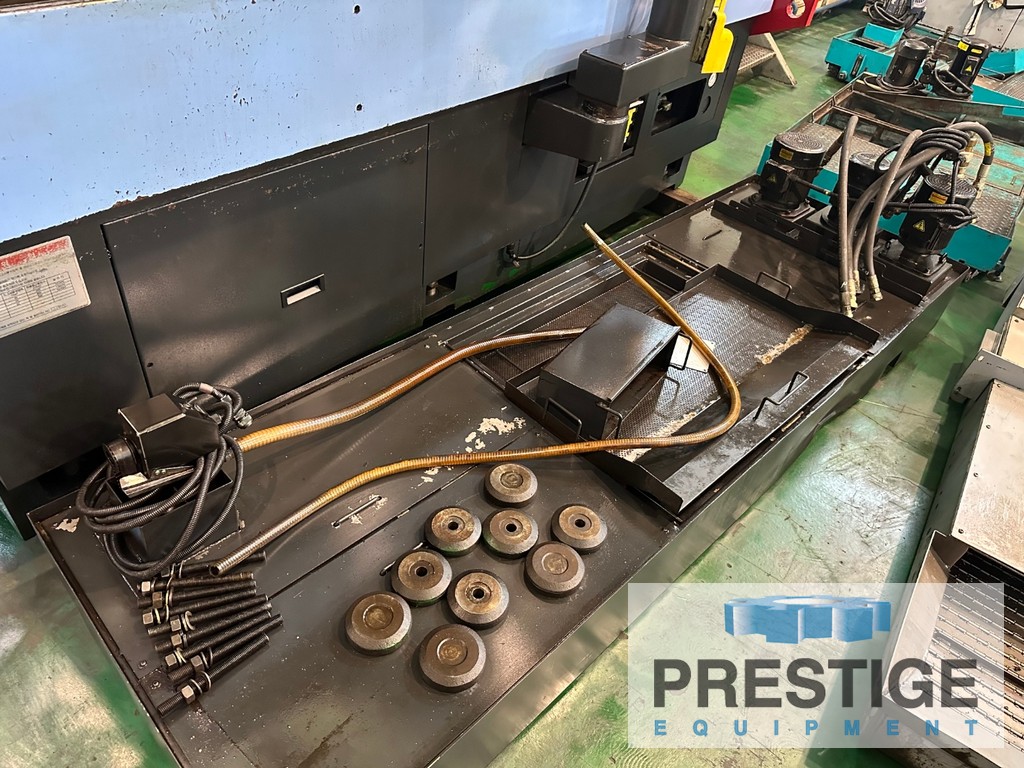

Chip Conveyor

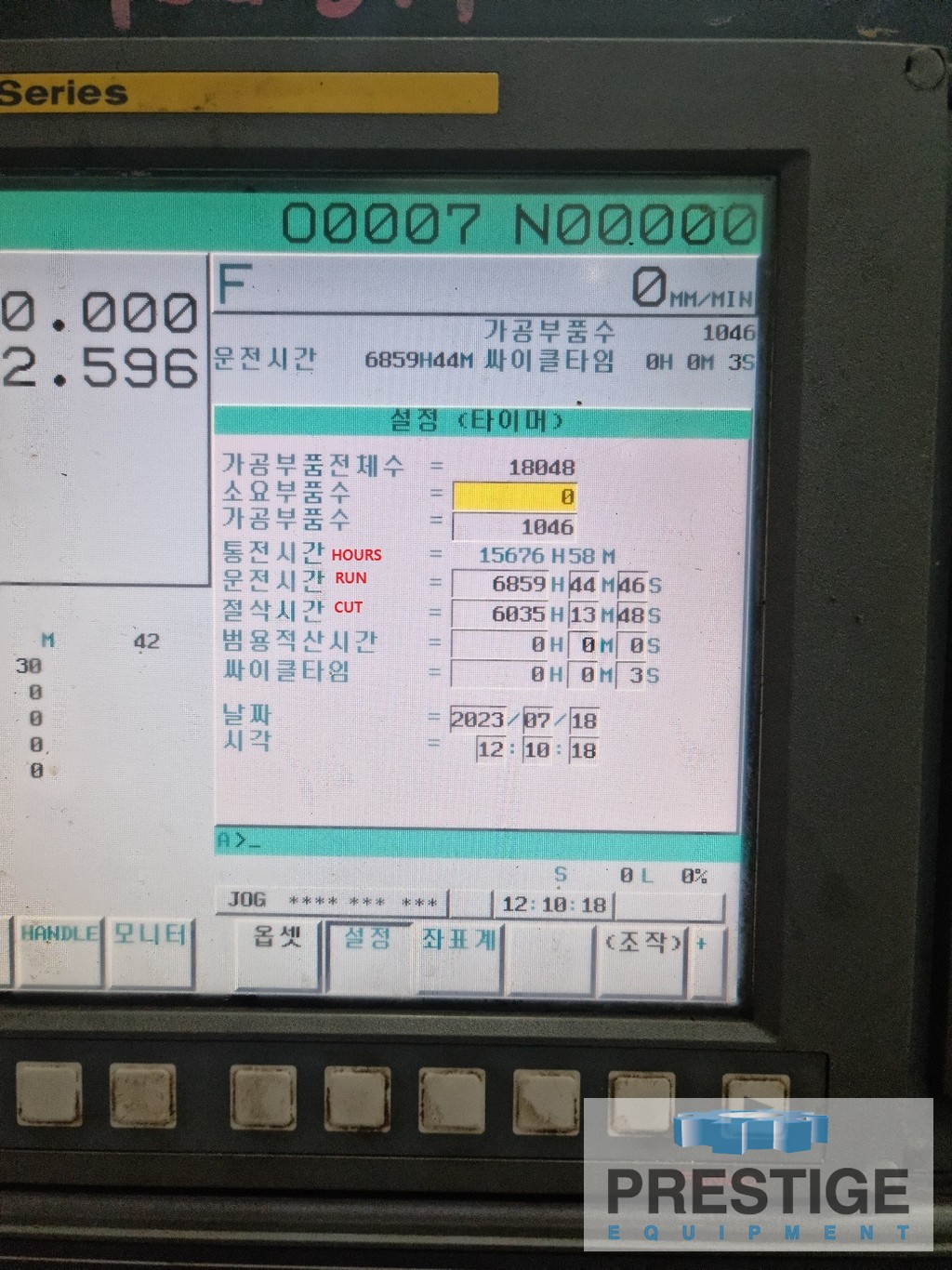

HOURS:
Power On: 15,676
Cutting Hours: 6,035

NOTE:
Inspect in Plant Under Power
