Amada EM2510NT, 22 Ton, 58-Station Thick Turret, Y-50", X-100", Brush Table, AMNC PC CNC Control, 2005 #32760

Manufacturer

AMADA

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

32760

Model

EM2510NT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32760

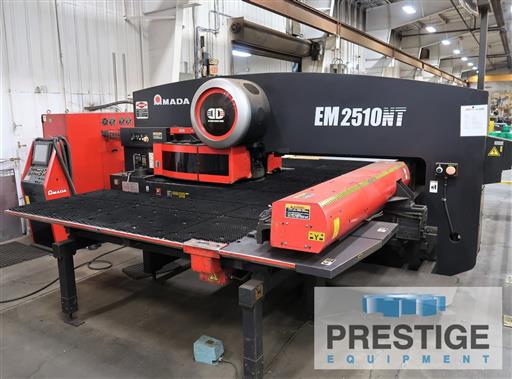

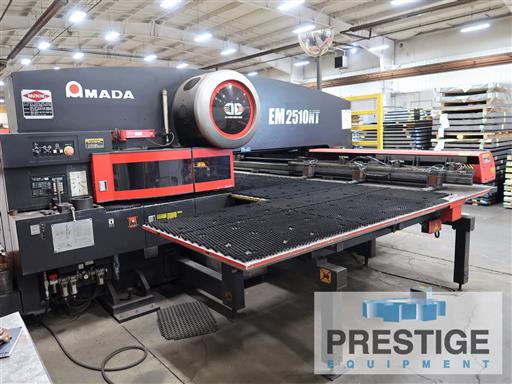

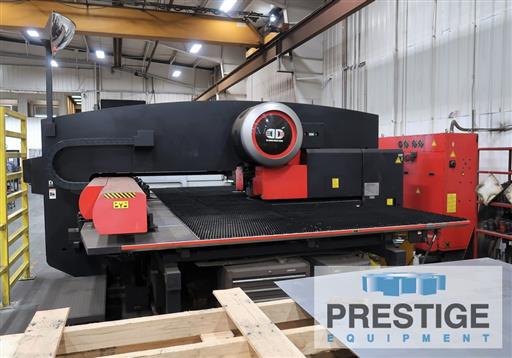

22 Ton Amada EM2510NT Servo Electric CNC Turret Punch Press

FEATURES:
AMNC PC Based Control

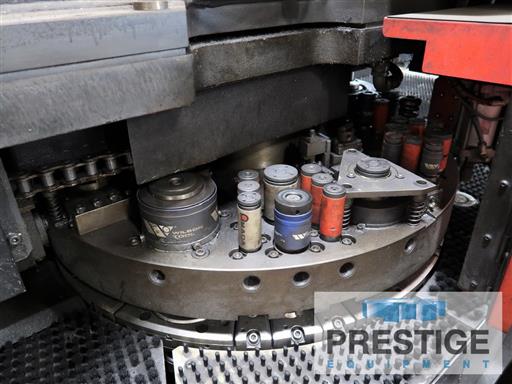

58 Station Thick Turret

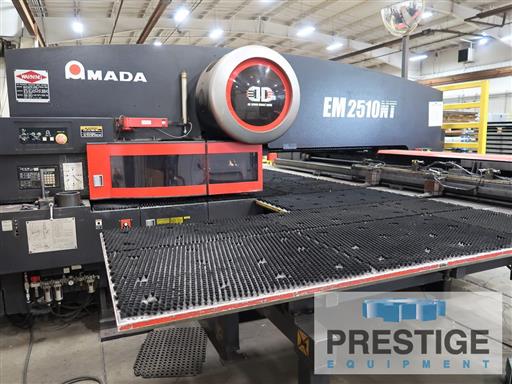

Brush Table Design
Tool Holders and Tooling Included

CAPACITY:
Tonnage Capacity ...................... 22 Tons
Table Travel .......................... 50" x 100"
Throat Depth .......................... 52"
Maximum Material Thickness ............ 1/8"
Maximum Punch Diameter ................ 4-1/2"
Hit Rate 1" Pitch, .197" Stroke ....... 500 HPM (X-Axis)
Hit Rate 1" Pitch, .197" Stroke ....... 330 HPM (Y-Axis)
Hit Rate .040" Pitch, .197" Stroke .... 780 HPM (X-Axis)
Hit Rate .040" Pitch, .197" Stroke .... 515 HPM (Y-Axis)
Marking Speed ......................... 1800 HPM
Marking Speed ......................... 830 HPM
X-Axis Positioning Speed .............. 3,950 IPM
Y-Axis Positioning Speed .............. 3,150 IPM
Stroke Length ......................... 1.65"
Machine Weight ........................ 39,683 Lbs

EQUIPPED WITH:

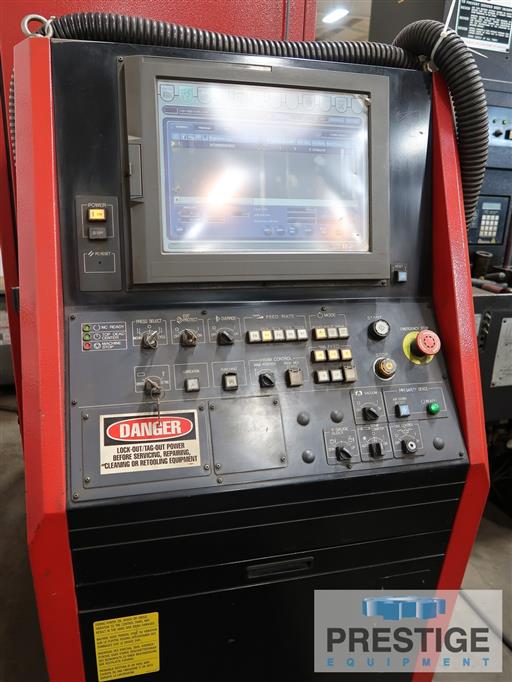

Fanuc AMNC-PC CNC Control
AC Servo Driven Punch Ram
Brush Table Design
58 Station Thick Turret
(2) 1-1/4" Auto Index Stations
Auto Sheet Repositioning
Tool Holders and Tooling Included

NOTE:
Excellent Condition, only 9,253 Operating Hours!
Inspect in Plant, Under Power, Available Immediately!
