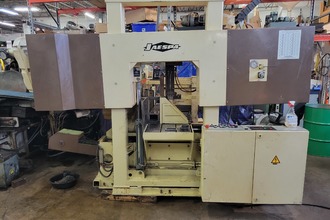

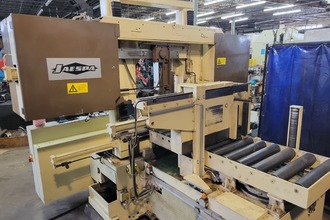

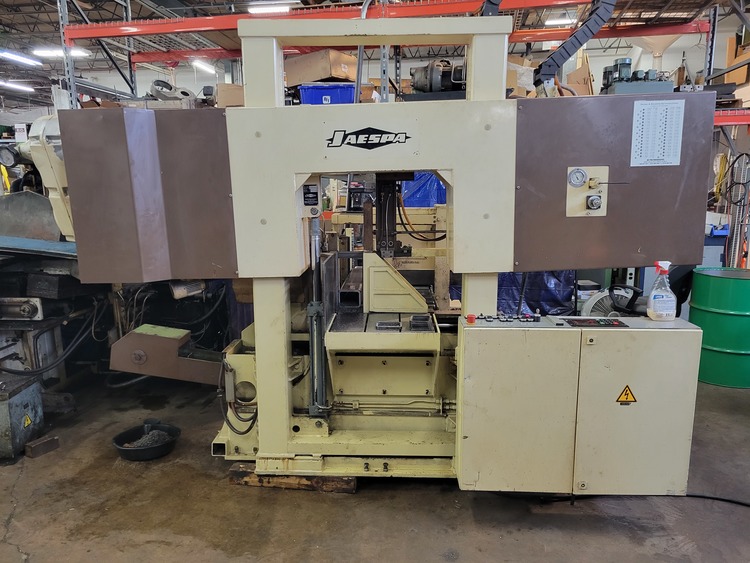

Jaespa Dual Column 16" Fully automatic, programmable Bandsaw, like Amada, Hem, Hyd Mech, Behringer

Manufacturer

JAESPA

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

3839

Model

W420-AZ/P

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Overview

Type:
Horizontal Band Saws (Automatic)
Category:
Saws
Manufacturer:
JAESPA
Model:
W420-AZ/P
Condition:
Used - Good
Year:
1999
Stock #:
3839
Status:
For Sale
Serial #:
90-1211

Jaespa Dual Column 16" x 20" NC Bandsaw, w/ 1.5" Blade, Chip Conveyor, Programmable controller, full stroke vises, heavy duty design, Hydraulic blade tension, variable vise pressure and Automatic blade guide movement



Jaespa, Dual Column, Double column, dual post, like Amada, Marvel, Spartan, Hyd-Mech, W.F. Wells Behrenger, Amada, Doall, Hem Marvel

ALSO AVAILABLE: , AMADA HFA-400W, 7 HFA 330W, DOALL C-3300 NC, .

NC control, Dual column heavy duty design, 1.5" blade, Variable vise pressure, Chip conveyor,, Powered Blade brush, full travel vises, Variable speed blade drive, Automatic blade guide width adjustment

Rect-Cap (H)16"
Rect-Cap (W)20"

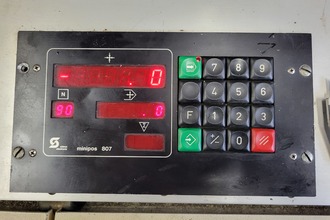

ControlCNC (Jaespa minipos 807)
Dimensions8' x 11' x 9' high
Weight8,000 lbs.

Capacity Round 16.5"

Capacity Rectangle 20" X 16"

Vise opening 20.4"

Vise jaw height 12.75"

Shuttle travel single stroke 24"

Multi stroke YES

Band wheel diameter 25"

Blade motor 7.5 HP

Blade speed 55 to 360 FPM

Blade Size 1-1/2" x269" .050"

Overall Dimensions 8'W x 11' L x 9' tall

Weight Approx. 7,900 lbs.

Voltage 440v/ 3Ph
