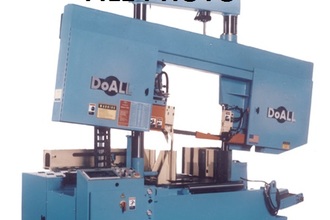

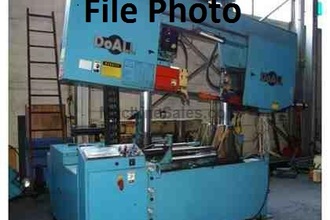

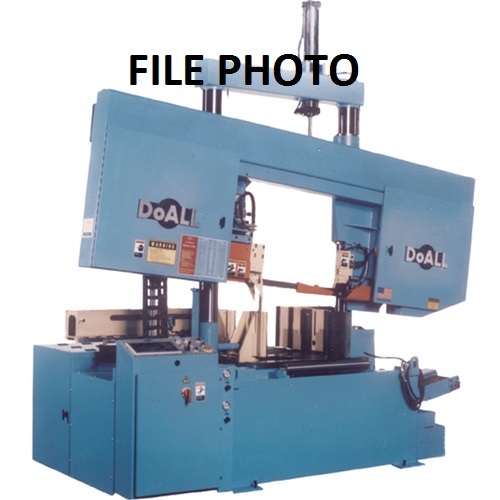

Doall C-650NC, 25" dual column HD bandsaw with NC control, full capacity Bundling and 1 year warranty!

Doall C-650NC, 25" dual column HD bandsaw with NC control, full capacity Bundling and 1 year warranty!

Manufacturer

DOALL

Spec Sheet

Overview

Type:

Horizontal Band Saws

Category:

Saws

Manufacturer:

DOALL

Model:

C-650NC

Condition:

Used - Rebuilt

Stock #:

3898

Status:

For Sale

Serial #:

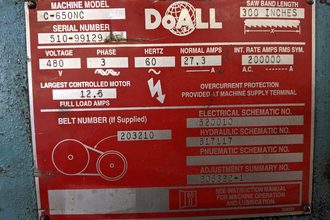

510-99129

Description

Doall C-650NC Dual Column Horizontal Bandsaw, Reconditioned to MTC standards per our website = https://myerstc.com/refurbished_rebuiltMyers Technology Company Proprietary

50 Point Refurbishing and Repair Process

Myers Technology Company (MTC) carefully examines all major castings for cracks, wear, and weak point failure.

MTC tests all slide and pivot areas for proper alignment and functionality.

We start up and test run all equipment.

MTC ensures that all functions of both manual and auto cycles work properly.

We take note of any missing or failing parts and place orders for replacement parts that meet or exceed OEM standards.

Once the machine passes inspection on steps 1-5, MTC begins disassembly.

All guards are removed and inspected for wear or cracks.

All way covers are removed and ways and covers inspected for wear or tear.

Machine oil is drained, cleaned and replaced with new oil to proper levels and condition.

All vices, chucks, and other mechanical control items are removed, cleaned and inspected.

The machine is thoroughly cleaned using steam, degreasers, and solvents.

The hydraulic system is tested for noise.

The hydraulic system pressure is tested for proper settings.

The hydraulic system couplings are examined and aligned as needed.

The hydraulic system hoses are inspected and replaced as needed.

The hydraulic system valves are inspected and tested for proper function.

Electrical system wires are cleaned and examined for damage or wear, replaced as needed.

Electrical system switches are cleaned and inspected for damage or wear, replaced as needed.

Electrical system controls are cleaned and inspected for damage or wear, replaced as needed.

The electrical system cabinet is examined and cleaned.

Worn and failing elements of the hydraulic and electrical systems are replaced as necessary.

Bearings are inspected for proper function and measured for play.

Bearings are replaced as necessary.

Motors are inspected and rebuilt or replaced as necessary.

Motor couplings are removed, cleaned, and examined for wear and failure, replaced as necessary.

Belts are inspected for wear, cracks, and fraying and replaced as necessary.

Belts are inspected for proper alignment.

Gearboxes are cleaned and inspected.

Oil is drained from gearbox.

Gearboxes are refilled with proper oil to correct levels.

Chip conveyors are cleaned and inspected for wear.

Coolant systems are cleaned and inspected.

Worn and failing elements of the gearbox, conveyor, and coolant systems are inspected and replaced as necessary.

Hydraulic fluid is drained and replaced to proper levels in hydraulic system.

All filters are removed and cleaned or replaced.

Sheet metal is cleaned and inspected for wear and failure.

Safety switches are cleaned and tested for proper function.

Safety switches are replaced as necessary.

Machine is inspected to ensure steps 1-38 have been properly completed.

Unit approved for painting.

All previously painted surfaces are prepped and primed.

All primed surfaces are given 2 coats of industrial grade paint.

All systems are reassembled to complete the machine.

All buttons and switches on control works are inspected for wear and functionality.

Machine functions are tested for performance.

Machine is operated in full automatic mode.

Test cuts are completed and examined for accuracy.

If unit passes tests in steps 44-47, machine is calibrated.

A video of the machine is recorded.

Machine is prepped for proper shipping, tied down, Wrapped, etc.

Machine is given a 12 month Warranty.

There are many more items checked and repair.

25% down balance after inspection, delivery 4-8 weeks after down payment

Bandsaw, heavy duty bandsaw, Production bandsaw, Automatic bandsaw, Dual Column bandsaw, cut-off saw, Billet saw

Equipped With

2" Blade, Chip conveyor, NC control, optional feed force dial, bundling vertical clamp on Shuttle feed, rapid to work stop, Full travel vises, 0-99 jobs, powered blade guide arm, hydraulic powered chip brush, 6 degree canted head for more efficient cutting, Blade and manuals

Specifications

Rect-Cap (H)	25"
Rect-Cap (W)	25"
Rounds-Cap	25"
Square-Cap	25"
Power	10 hp
Type (Auto, Manual, Semi)	Auto
Blade Width	2"
Blade Thickness	0.05"
Blade Length	300"
Control	CNC (Doall NC)
Dimensions	96" x 144' x 128' high
Weight	13,000 lbs.

Cutting capacity Round 26"

Square 25"

Rectangular 25" X 25"

Smallest recommended cut size 1"

Minimum butt end 12"

Auto index length single index 20"

Multiple index 221"

Minimum index length 1/4"

Numeric control program capacity 0-99

Display Alpha/numeric

Bandsaw blade size 2" X 300"

Blade speed 40-360 FPM Variable

Blade motor 10HP

Hydraulic motor 3HP

Cutting fluid pump motor 1/3 HP

Hydraulic tank capacity 15 Gallons

Material pass line height 33.5"

Machine weight 13,000 lbs.

Approx. dimensions 96"x 142"x 128"
