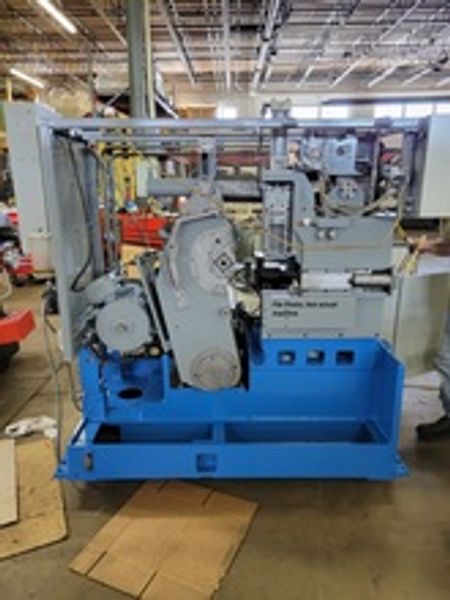

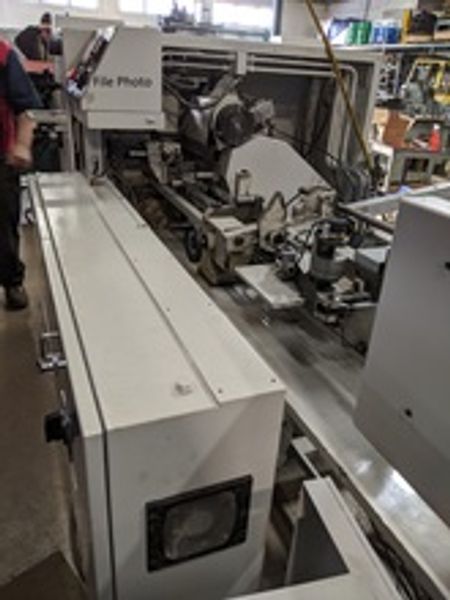

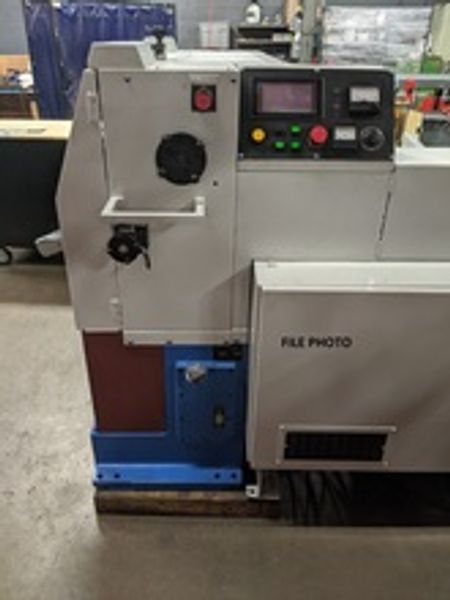

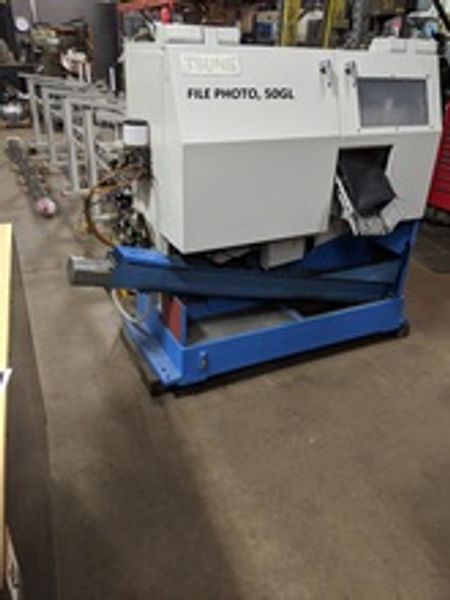

Tsune TK5C-101GLCNC, Cold saw for ferrous and Non ferrous Cuts with HSS or carbide blades, 4.3" Capacity

Tsune TK5C-101GLCNC, Cold saw for ferrous and Non ferrous Cuts with HSS or carbide blades, 4.3" Capacity

Manufacturer

TSUNE

Spec Sheet

Overview

Type:

CNC Cold saw, high production

Category:

Saws

Manufacturer:

TSUNE

Model:

TK5C 101GL

Condition:

Used - Rebuilt

Year:

2003

Stock #:

8211

Status:

For Sale

Serial #:

01693

Description

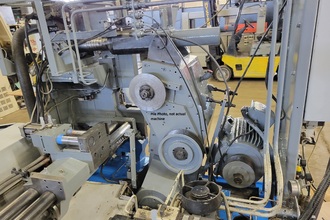

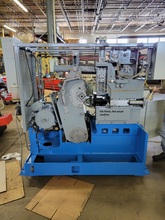

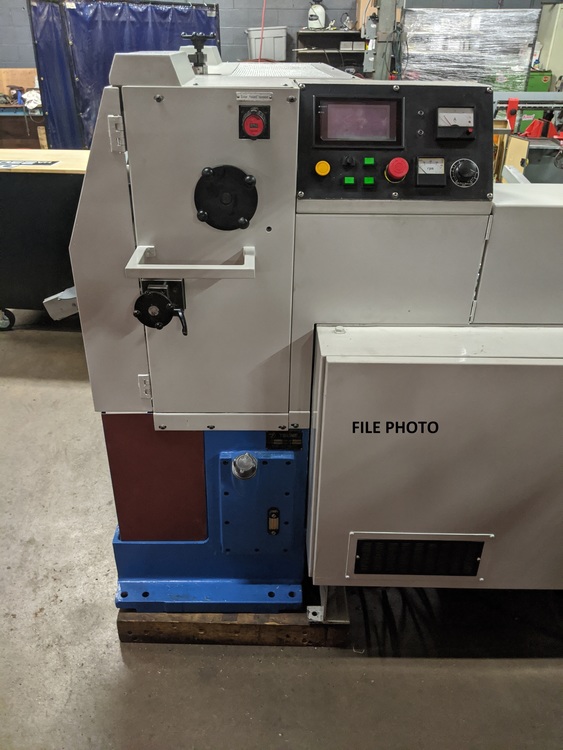

Tsune CNC Carbide High speed saw

Myers Technology Company Proprietary

50 Point Refurbishing and Repair Process

Myers Technology Company (MTC) carefully examines all major castings for cracks, wear, and weak point failure.

MTC tests all slide and pivot areas for proper alignment and functionality.

We start up and test run all equipment.

MTC ensures that all functions of both manual and auto cycles work properly.

We take note of any missing or failing parts and place orders for replacement parts that meet or exceed OEM standards.

Once the machine passes inspection on steps 1-5, MTC begins disassembly.

All guards are removed and inspected for wear or cracks.

All way covers are removed and ways and covers inspected for wear or tear.

Machine oil is drained, cleaned and replaced with new oil to proper levels and condition.

All vices, chucks, and other mechanical control items are removed, cleaned and inspected.

The machine is thoroughly cleaned using steam, degreasers, and solvents.

The hydraulic system is tested for noise.

The hydraulic system pressure is tested for proper settings.

The hydraulic system couplings are examined and aligned as needed.

The hydraulic system hoses are inspected and replaced as needed.

The hydraulic system valves are inspected and tested for proper function.

Electrical system wires are cleaned and examined for damage or wear, replaced as needed.

Electrical system switches are cleaned and inspected for damage or wear, replaced as needed.

Electrical system controls are cleaned and inspected for damage or wear, replaced as needed.

The electrical system cabinet is examined and cleaned.

Worn and failing elements of the hydraulic and electrical systems are replaced as necessary.

Bearings are inspected for proper function and measured for play.

Bearings are replaced as necessary.

Motors are inspected and rebuilt or replaced as necessary.

Motor couplings are removed, cleaned, and examined for wear and failure, replaced as necessary.

Belts are inspected for wear, cracks, and fraying and replaced as necessary.

Belts are inspected for proper alignment.

Gearboxes are cleaned and inspected.

Oil is drained from gearbox.

Gearboxes are refilled with proper oil to correct levels.

Chip conveyors are cleaned and inspected for wear.

Coolant systems are cleaned and inspected.

Worn and failing elements of the gearbox, conveyor, and coolant systems are inspected and replaced as necessary.

Hydraulic fluid is drained and replaced to proper levels in hydraulic system.

All filters are removed and cleaned or replaced.

Sheet metal is cleaned and inspected for wear and failure.

Safety switches are cleaned and tested for proper function.

Safety switches are replaced as necessary.

Machine is inspected to ensure steps 1-38 have been properly completed.

Unit approved for painting.

All previously painted surfaces are prepped and primed.

All primed surfaces are given 2 coats of industrial grade paint.

All systems are reassembled to complete the machine.

All buttons and switches on control works are inspected for wear and functionality.

Machine functions are tested for performance.

Machine is operated in full automatic mode.

Test cuts are completed and examined for accuracy.

If unit passes tests in steps 44-47, machine is calibrated.

A video of the machine is recorded.

Machine is prepped for proper shipping, tied down, Wrapped, etc.

Machine is given a 180-day Warranty.

There are many more items checked and repaired

Tsune, Carbide, Ferrous, High Speed, CNC, Fully automatic, circular saw, Production saw.

Price Includes Reconditioning by MTC = https://myerstc.com/refurbished_rebuilt

Delivery =2-3 weeks ARO

Warranty = 180 days

Terms = 25% down balance upon completion and inspection.

Long Description

Myers Technology Company Proprietary
50 Point Refurbishing and Repair Process
<ol><li>Myers Technology Company (MTC) carefully examines all major castings for cracks, wear, and weak point failure.</li><li>MTC tests all slide and pivot areas for proper alignment and functionality.</li><li>We start up and test run all equipment.</li><li>MTC ensures that all functions of both manual and auto cycles work properly.</li><li>We take note of any missing or failing parts and place orders for replacement parts that meet or exceed OEM standards.</li><li>Once the machine passes inspection on steps 1-5, MTC begins disassembly.</li><li>All guards are removed and inspected for wear or cracks.</li><li>All way covers are removed and ways and covers inspected for wear or tear.</li><li>Machine oil is drained, cleaned and replaced with new oil to proper levels and condition.</li><li>All vices, chucks, and other mechanical control items are removed, cleaned and inspected.</li><li>The machine is thoroughly cleaned using steam, degreasers, and solvents.</li><li>The hydraulic system is tested for noise.</li><li>The hydraulic system pressure is tested for proper settings.</li><li>The hydraulic system couplings are examined and aligned as needed.</li><li>The hydraulic system hoses are inspected and replaced as needed.</li><li>The hydraulic system valves are inspected and tested for proper function.</li><li>Electrical system wires are cleaned and examined for damage or wear, replaced as needed.</li><li>Electrical system switches are cleaned and inspected for damage or wear, replaced as needed.</li><li>Electrical system controls are cleaned and inspected for damage or wear, replaced as needed.</li><li>The electrical system cabinet is examined and cleaned.</li><li>Worn and failing elements of the hydraulic and electrical systems are replaced as necessary.</li><li>Bearings are inspected for proper function and measured for play.</li><li>Bearings are replaced as necessary.</li><li>Motors are inspected and rebuilt or replaced as necessary.</li><li>Motor couplings are removed, cleaned, and examined for wear and failure, replaced as necessary.</li><li>Belts are inspected for wear, cracks, and fraying and replaced as necessary.</li><li> Belts are inspected for proper alignment.</li><li>Gearboxes are cleaned and inspected.</li><li>Oil is drained from gearbox.</li><li>Gearboxes are refilled with proper oil to correct levels.</li><li>Chip conveyors are cleaned and inspected for wear.</li><li>Coolant systems are cleaned and inspected.</li><li>Worn and failing elements of the gearbox, conveyor, and coolant systems are inspected and replaced as necessary.</li><li>Hydraulic fluid is drained and replaced to proper levels in hydraulic system.</li><li>All filters are removed and cleaned or replaced.</li><li>Sheet metal is cleaned and inspected for wear and failure.</li><li>Safety switches are cleaned and tested for proper function.</li><li>Safety switches are replaced as necessary.</li><li>Machine is inspected to ensure steps 1-38 have been properly completed.</li><li>Unit approved for painting.</li><li>All previously painted surfaces are prepped and primed.</li><li>All primed surfaces are given 2 coats of industrial grade paint.</li><li>All systems are reassembled to complete the machine.</li><li>All buttons and switches on control works are inspected for wear and functionality.</li><li>Machine functions are tested for performance.</li><li>Machine is operated in full automatic mode.</li><li>Test cuts are completed and examined for accuracy.</li><li>If unit passes tests in steps 44-47, machine is calibrated.</li><li>A video of the machine is recorded.</li><li>Machine is prepped for proper shipping, tied down, Wrapped, etc.</li><li>Machine is given a 30-, 60- or 90-day Warranty on a case-by-case basis.</li></ol>
There are many more items checked and repaired

Equipped With

Full CNC Control, NEW Carbide saw blade, new Carbide Vise jaws and blade guides as needed, New or reconditioned control, load meter, Chip conveyor, 20' Magazine bar loader, Vertical clamping, Chip brush, Material end separation chute and Mist buster mist collector.

Specifications

Capacity .6" to 4.33" Steel

Carbide cap. Solid steel .98" to 3"

Capacity cutting round tube 5.12"

Square tube .6" to 4.33"

Carbide saw diameter 360mm/ 14"

HSS saw diameter 420mm/16.5"

Saw head feed type Hydraulic

Material feed one stroke 24"

Shortest cut off (Part length) .4"

Remnant length 3.3"

Blade speeds 12-120 RPM

Loading magazine Incline type

max bar length 20'

Main Saw motor 15 HP

Coolant tank capacity 38 Gallons

Operating Dimensions 305" x 84" x 76" High

Weight 7,850 Lbs.

Shipping Dimensions

machine = 8' 6" x 7' x 6' high

barfeed = 15' x 5' x 4' 6" high

https://youtu.be/gHW6brX3e4Q

And again on 9-6-2022

https://youtu.be/AYRSHttzT60
