8338
C-4100NC
Illinois

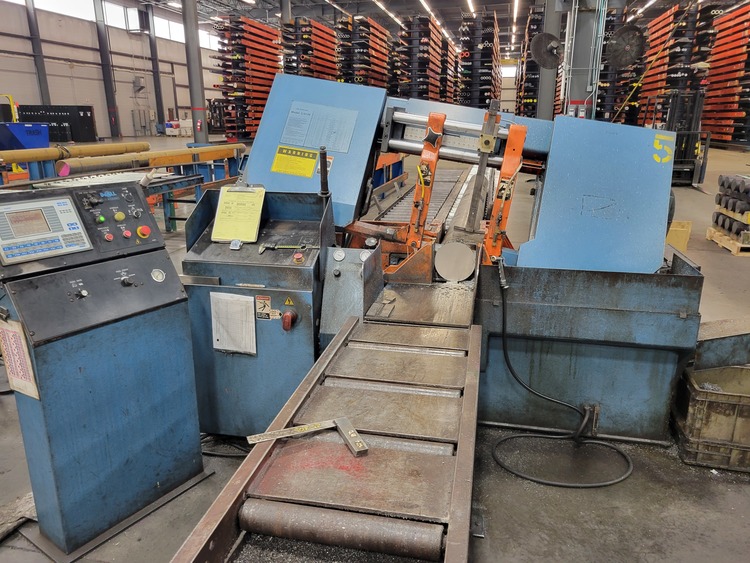

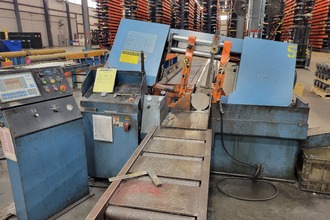

Legendary Doall Quality, made in Minnesota USA, heavy duty through out, Made to run all day long.
Programmable blade speeds, length, piece count, automatic kerf calculation for multiple feeds, Chip conveyor ready to work hard.
Moveable control, programmable control, Variable vise pressure, Chip conveyor, Carbide faced blade guides, Flood coolant with wash down, Work light, programmable 10HP blade drive, reconditioned our exacting process.
Myers Technology Company Proprietary
Rect-Cap (H) | 16" |
Rect-Cap (W) | 14" |
Control | CNC (Doall NC) |
Dimensions | 8' x 8' x 6' high |
Weight | Approx. 6,800 lbs. |
Specification : Round Work Capacity 16" - Square Work Capacity 14" x 16"
Max Blade Size 1.5" x 186"
Blade Wheel Diameter 21"
Blade Speeds Variable 40 - 360 FPM
Stock Feed Shuttle Travel 24" Single Stroke / 999" Multiple IndexNumber of Shuttle Indexes
Drive Motor 10 HP
Coolant Capacity 20 Gallons
24" Stroking Stock Shuttle Vise Front Hydraulic Vise
Hydraulic Band Tensioning with Controls
12" Long Parts Drop Table
Chip Conveyor
Coolant System
Work Light
Electrics:460 Volt, 3 Phase
Approximate Machine Wt. 6800LBS
