98"/78"" x 472" Waldrich WST IV H80 X 12000, Roll Cambering/Crowning, 32" Wheel, Wheel Miounts & Steady Rest, #32816

Manufacturer

WALDRICH

Category

Grinding Machines

Type

GRINDERS, ROLL

Stock

32816

Model

WST IV H80 X 12000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32816

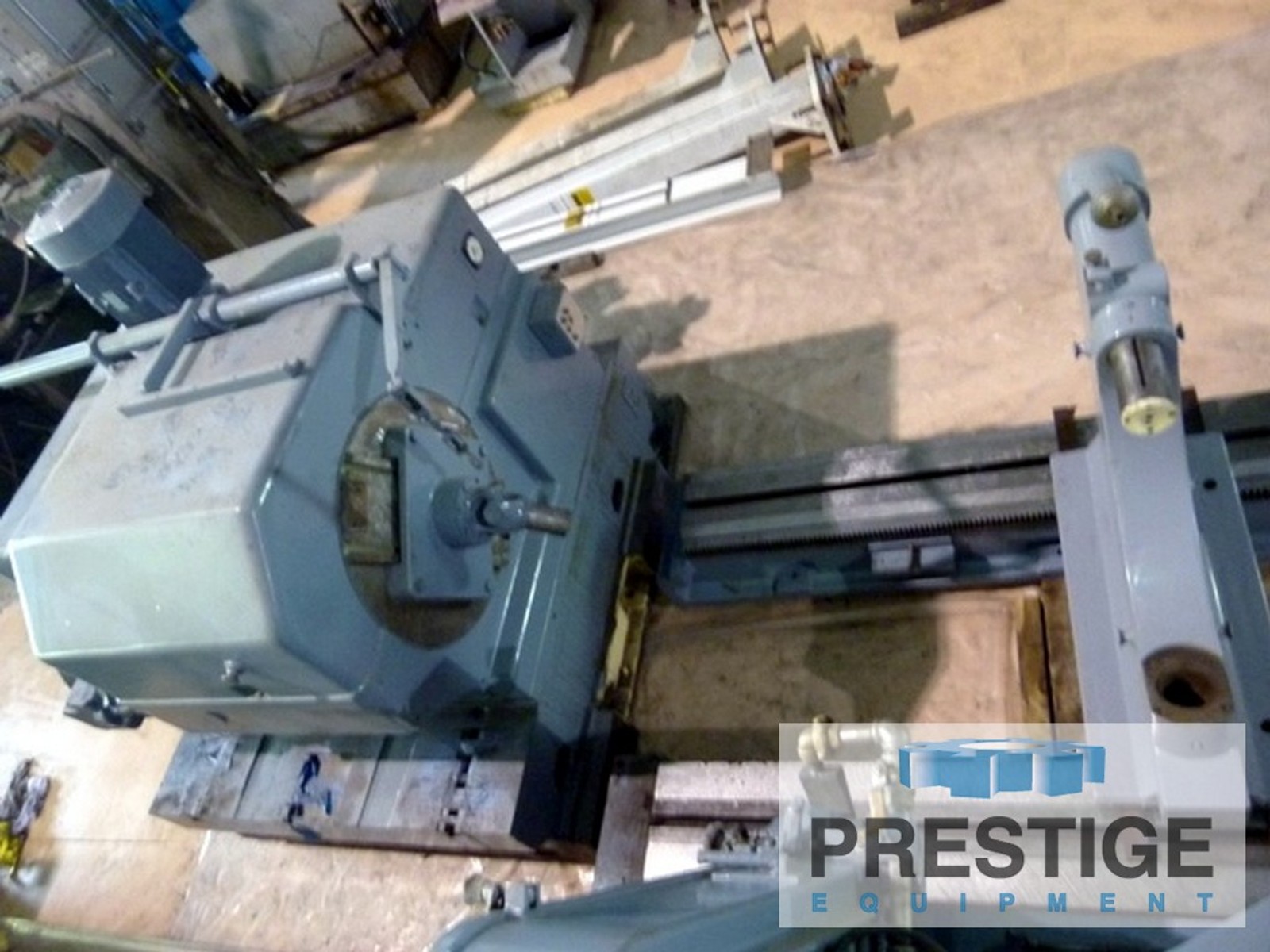

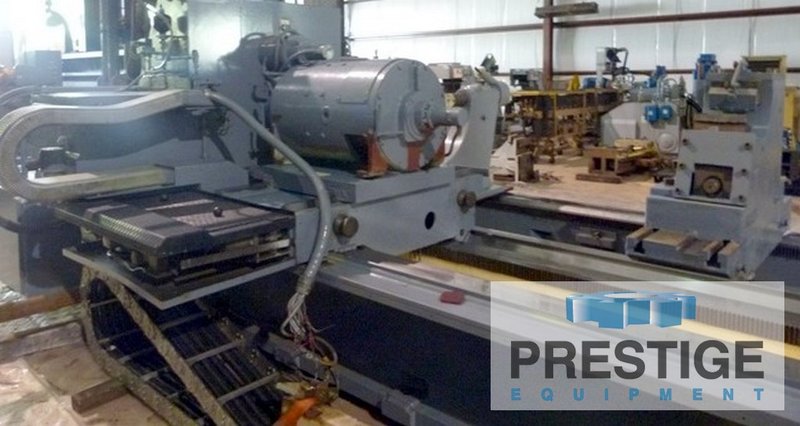

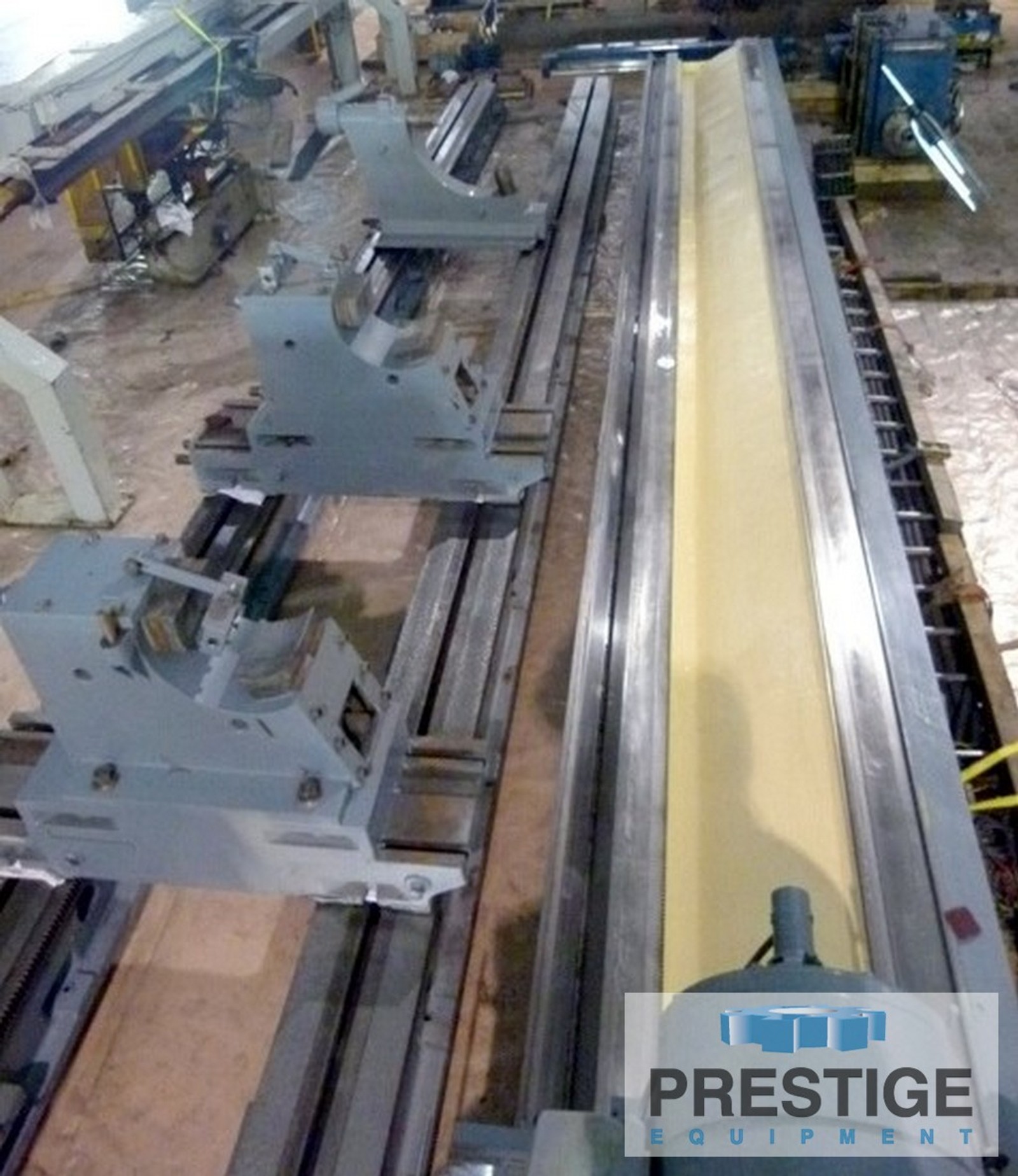

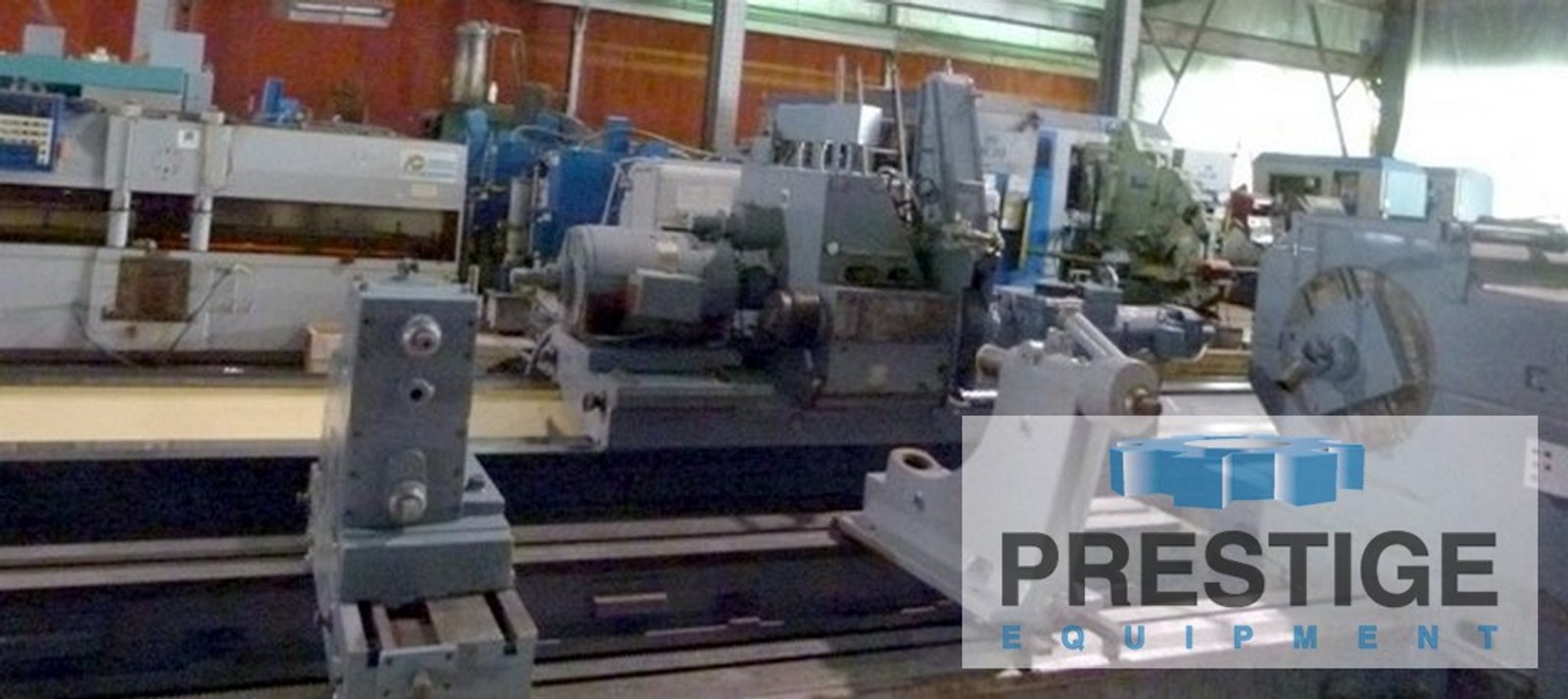

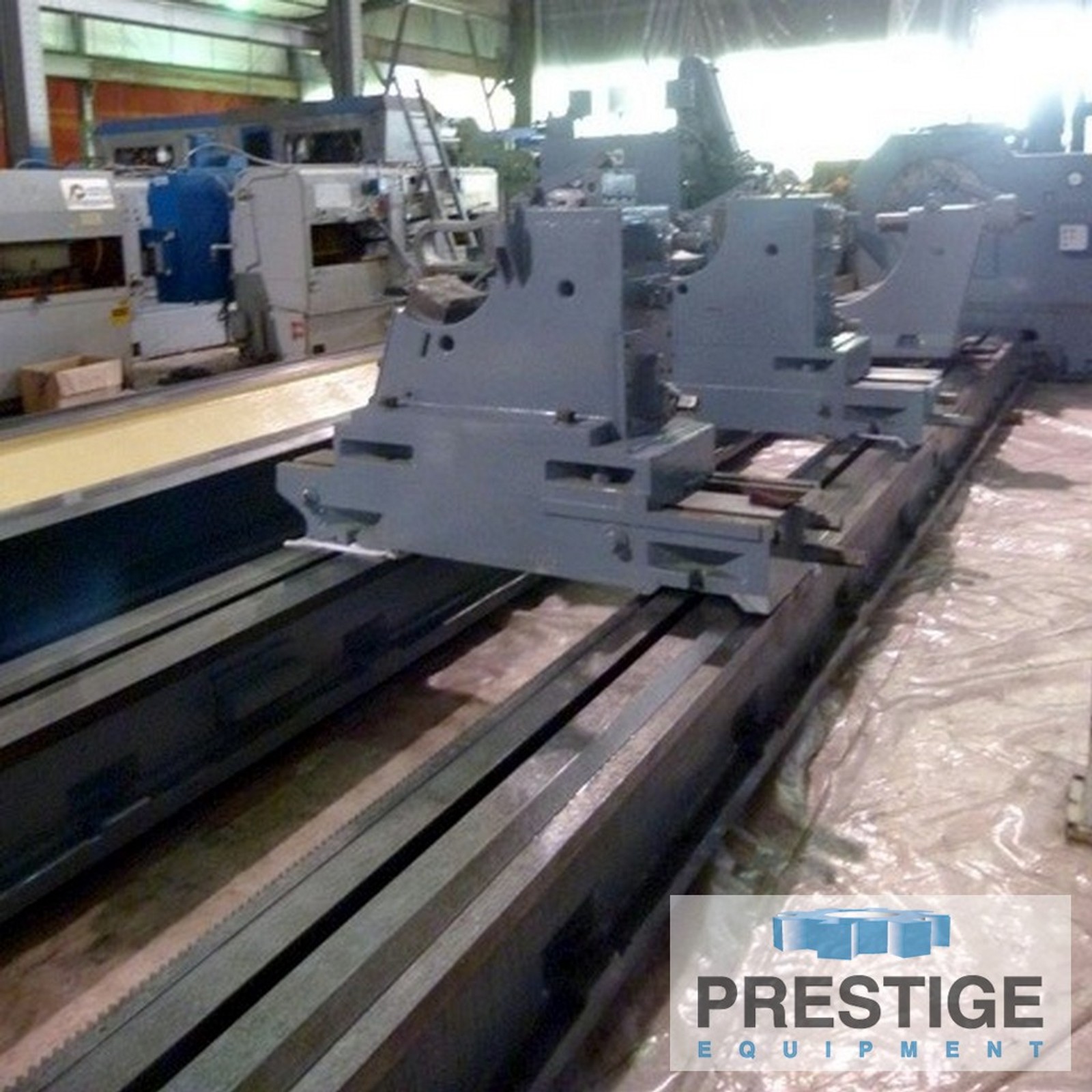

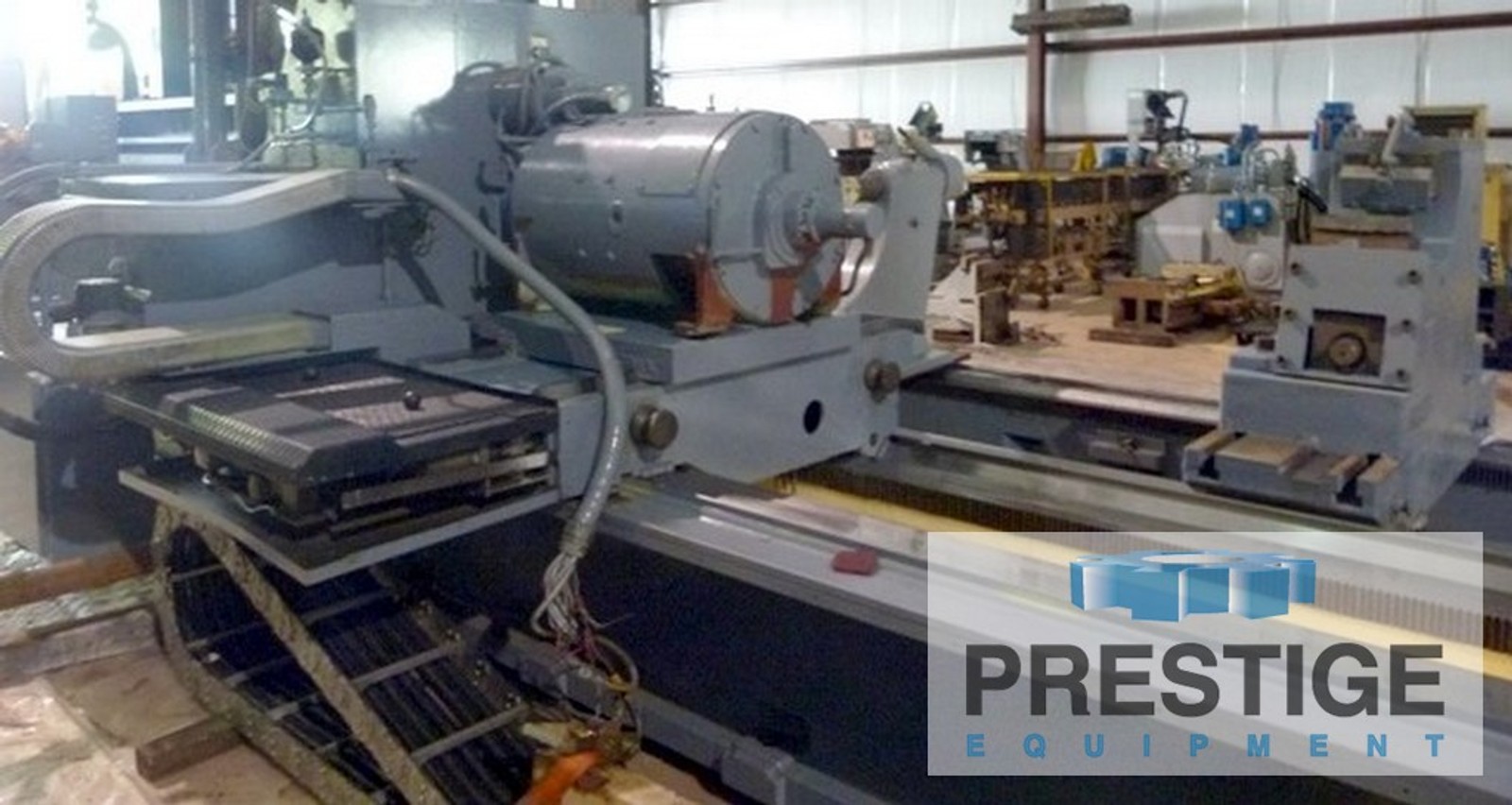

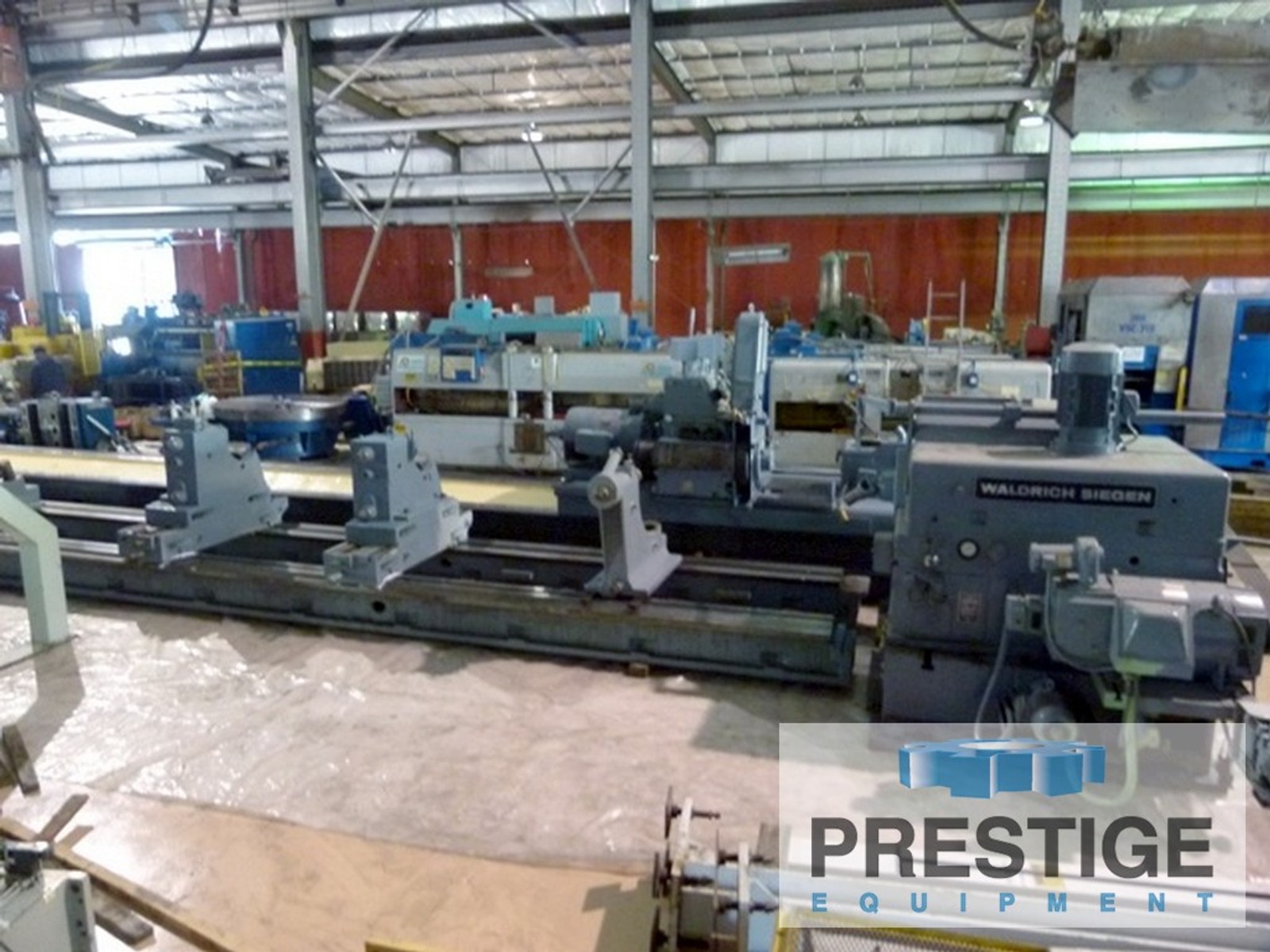

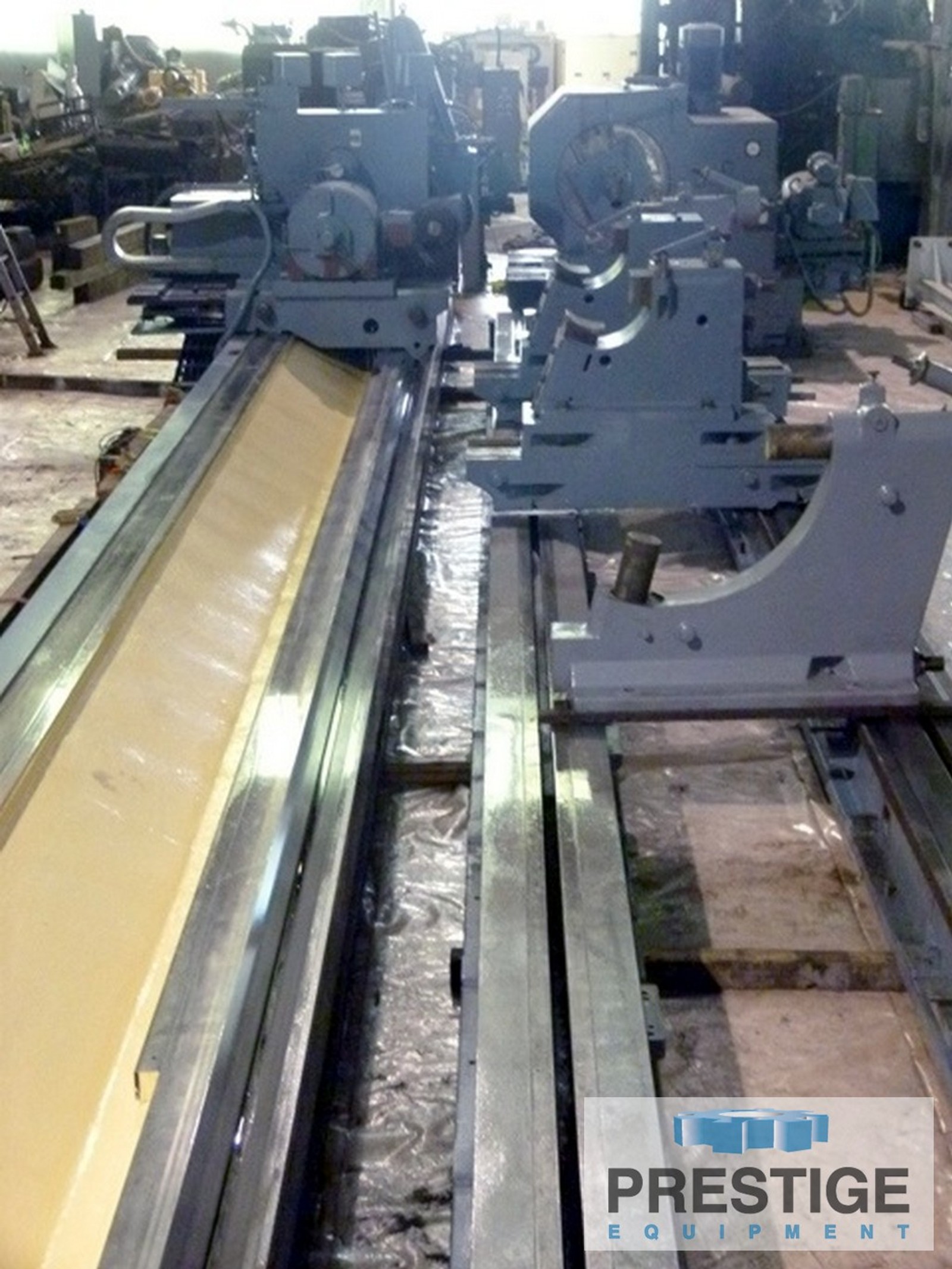

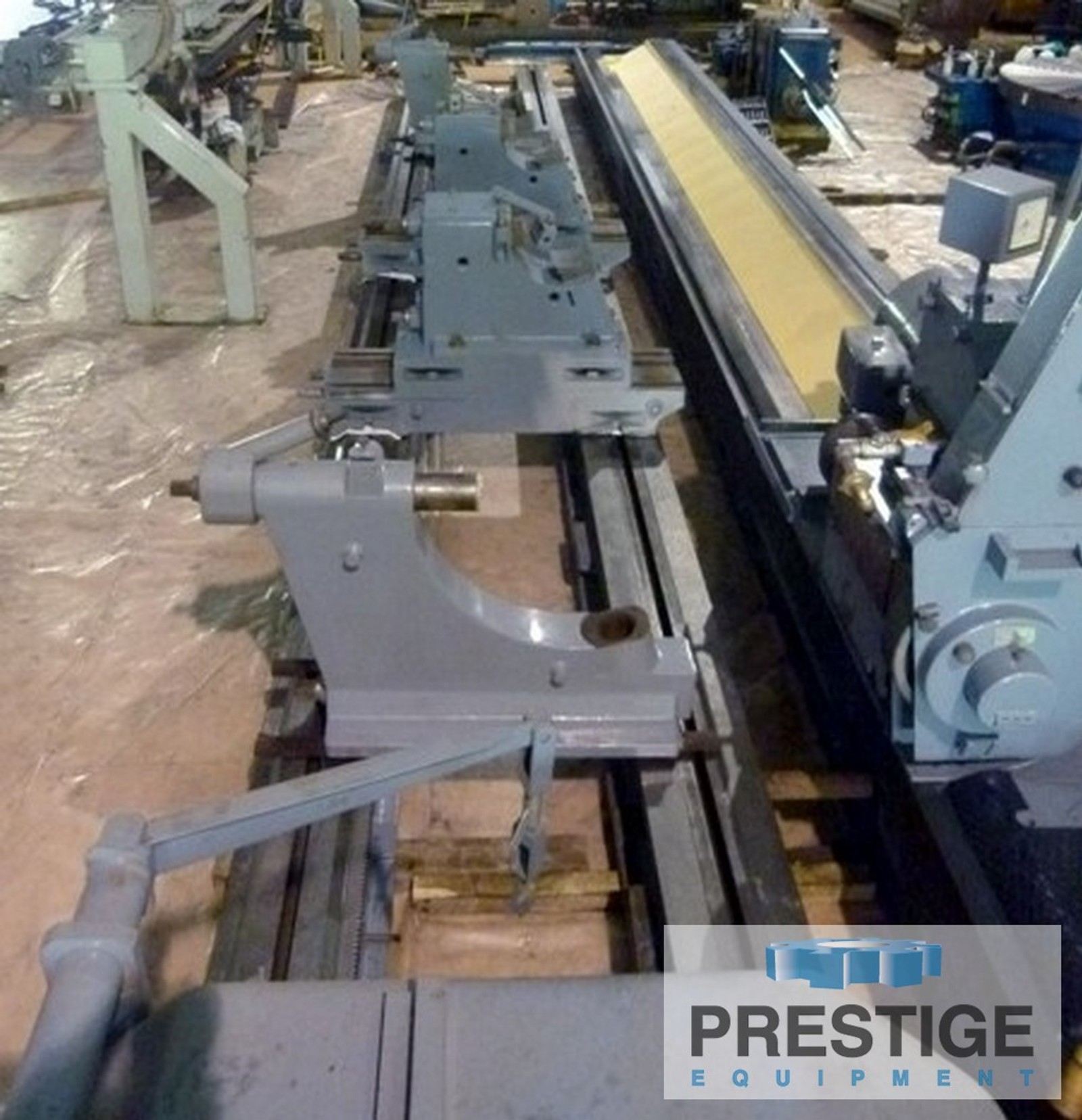

98"/78" x 472" Waldrich Roll Grinder

Features:
WALDRICH SIEGEN 4" WIDTH ROLL BELT
GRINDING ATTACHMENT, ROLL CAMBERING
CROWNING, RANGE OF TABLE SETTING FOR CAMBER
CONVEX: .0005 - .292 MM, RANGE OF TABLE SETTING
FOR CAMBER / CONVEX / AND CONCAVE .0004 - .1024
mm, RANGE OF TABLE SETTING FOR CAMBER BASED ON
RADIUS: .0039 - .1496, 2 - 2 JAW STEADY RESTS
DIAMETER RANGE 7.88 - 20"
CROSS ADJUSTMENT OF STEADY RESTS 23.6"
MULTIPLE WHEEL MOUNTS AND VARIOUS STEADY REST
SPACER PLATES FOR DIFFERENT DIAMETERS.


Specifications:
Maximum Swing, Altered Foundation ..... 98"
Maximum Swing, Standard Foundation .... 78"
DISTANCE BETWEEN CENTERS .............. 472.40"
MAXIMUM WORKPIECE WEIGHT .............. 176000 lbs
WHEEL OD MAXIMUM ...................... 32.00"
WHEEL WIDTH MAXIMUM ................... 4.00"
WHEEL ID .............................. 12.00"
WHEELHEAD ANGLE ....................... 90 DEGREES TO WORKPIECE AXIS
WHEEL SPINDLE POWER ................... 27 - 59/59 HP
WHEEL DRESSER ......................... BED MOUNTED ROLL
WHEELHEAD TRAVEL ...................... 25.60"
TABLE TRAVEL .......................... (WHEEL HEAD TRAVEL) 488.40"
WHEEL SPINDLE SPEED ................... 450 - 1800 RPM Infinitely Variable
WORKHEAD POWER ........................ 1.9 - 59/59 HP 1.4 - 44/44 Kw.
WORKHEAD SPEED ........................ .5 - 300 RPM

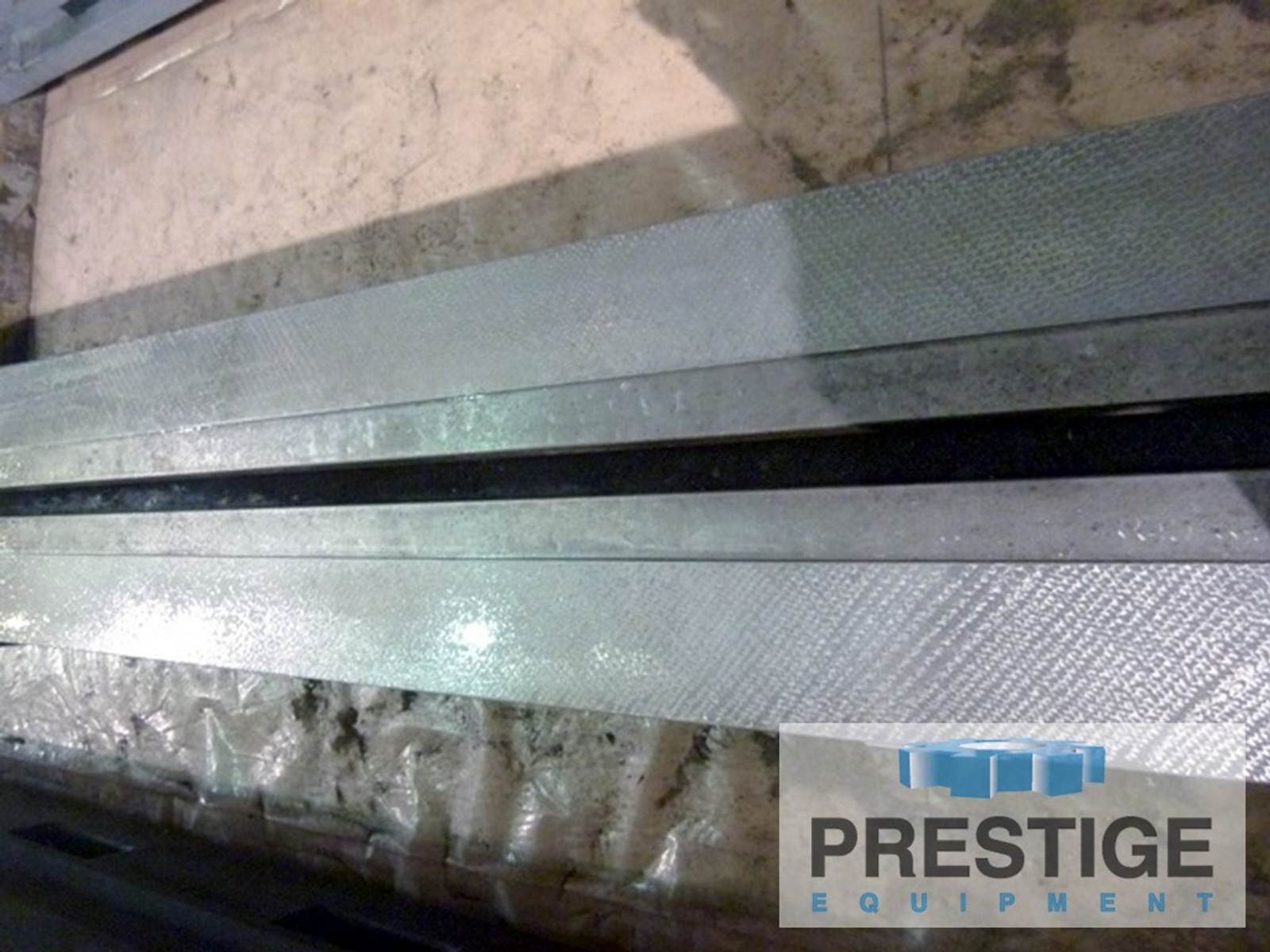

WAYS .................................. CAST IRON FULL HYDROSTATIC
SLUDGE CONVEYOR ....................... NONE
COOLANT ............................... YES
FILTRATION SYSTEM ..................... COMBINATION 2 CARTRIDGE AND FABRIC FILTER
WAY COVERS ............................ METAL TELESCOPIC
POWER 3PHASE .......................... 200 - 500 Volts, 50-60 Hz

EQUIPPED WITH:
WALDRICH SIEGEN 4" WIDTH ROLL BELT
GRINDING ATTACHMENT, ROLL CAMBERING
CROWNING, RANGE OF TABLE SETTING FOR CAMBER
CONVEX: .0005 - .292 MM, RANGE OF TABLE SETTING
FOR CAMBER / CONVEX / AND CONCAVE .0004 - .1024
mm, RANGE OF TABLE SETTING FOR CAMBER BASED ON
RADIUS: .0039 - .1496, 2 - 2 JAW STEADY RESTS
DIAMETER RANGE 7.88 - 20"
CROSS ADJUSTMENT OF STEADY RESTS 23.6"
MULTIPLE WHEEL MOUNTS AND VARIOUS STEADY REST
SPACER PLATES FOR DIFFERENT DIAMETERS.


MACHINE DIMENSIONS (LxWxH): 732" x 219" x 91"
WEIGHT: 134000 lbs. 60800 Kg.
CONDITION: EXCELLENT



* The larger diameter capacity is possible by simply altering the foundation
height of the workpiece bed sections.
