Okuma Genos L250, 17.71" Swing, OSP-P300 CNC, 6" & 10" Chucks, 12 Pos. Turret, Tailstock, Chip Conveyor, 2015, #32832

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32832

Model

Genos L250

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32832
Okuma Genos L250 CNC Turning Center

FEATURES:

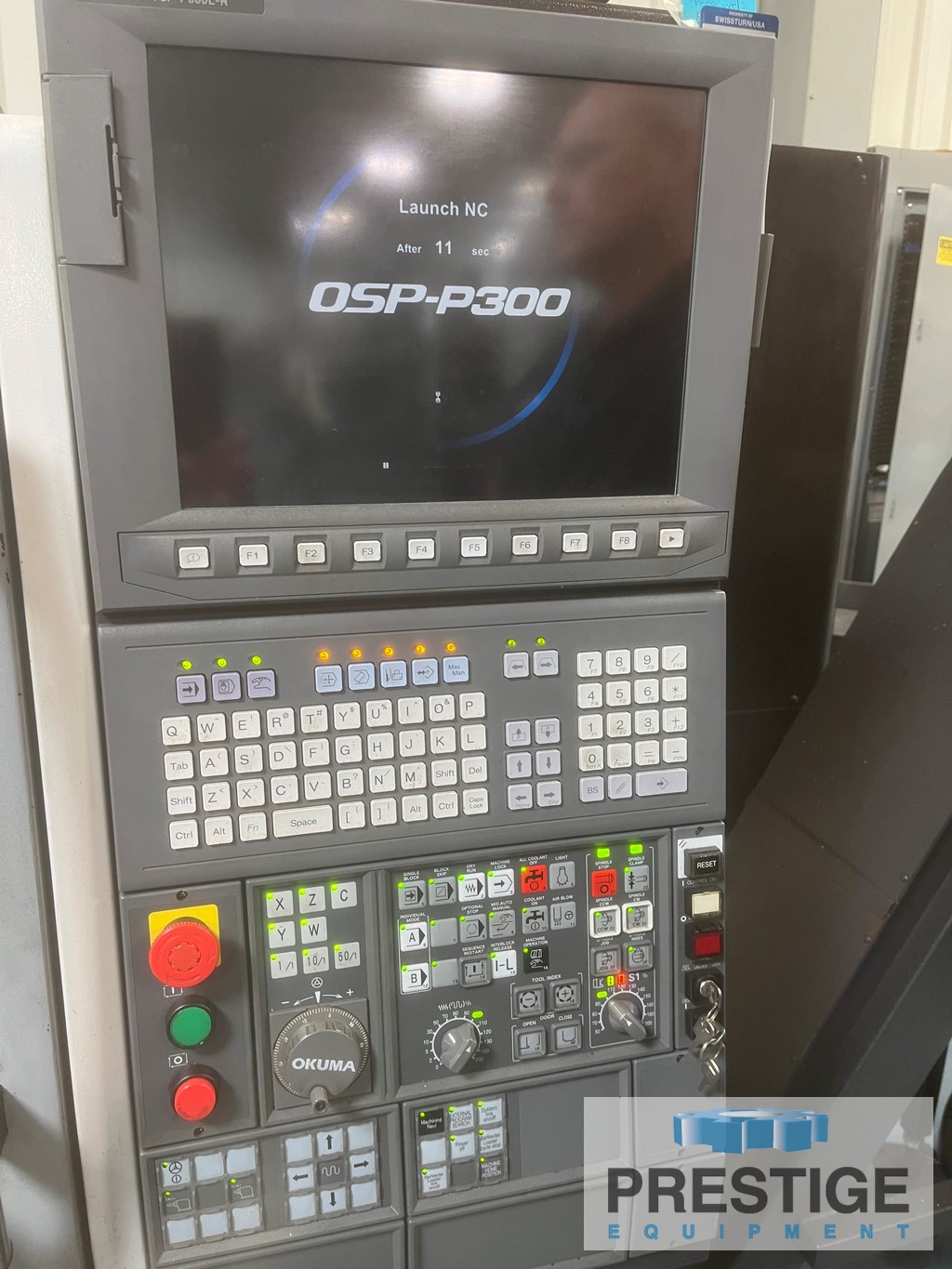

OSP-P300 CNC Control
6" & 10" Chucks
12-Position Turret
Tailstock
Chip Conveyor

CAPACITY:
Max. Swing ............................ 17.71"
Swing Over Cross Slide ................ 11.81"
Maximum Turning Diameter .............. 11.02"
Maximum Turning Length ................ 11.42"
X-Axis Travel ......................... 6.29"
Z-Axis Travel ......................... 20.72"
Spindle Speeds ........................ 6,000 RPM
Spindle Motor ......................... 15 HP
X-Axis Traverse Rate .................. 984 IPM
Z-Axis Traverse Rate .................. 1,181 IPM
Approximate Dimensions ................ 82" x 72" x 64"
Electrics ............................. 220/3/60
Weight ................................ 8,380 Lbs

EQUIPPED WITH:
OSP-P300 CNC Control
6" & 10" Chucks
12-Position Turret
Tailstock
Chip Conveyor
Electric Foot Switch

HOURS:
On Time: 4,735
Spindle Time: 1,078

NOTE:
Inspect In Plant Under Power

No Video Available
