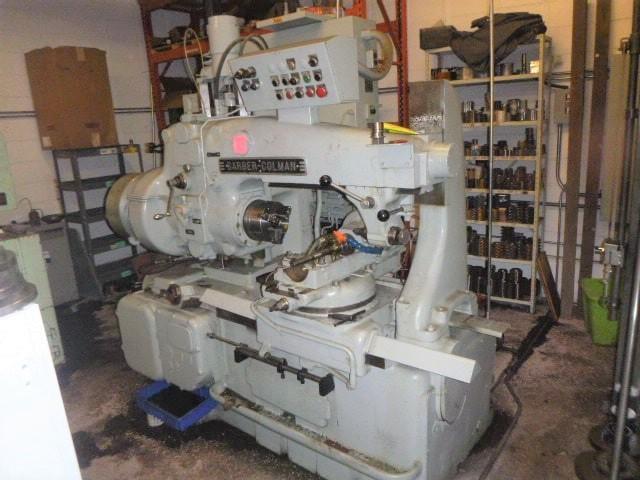

No. 14-15 Barber Colman Heavy Duty Full Cycling Hydraulic Gear Hobbing Machine

Manufacturer

BARBER COLMAN

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

GH1415BX

Model

No.14-15

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Rated Work Diameter - 14”
Maximum Travel Hob Slide - 15”
Maximum Distance Work Spindle Face to Tail Center - 27.25”
Work Spindle Face to C/L of Hob Spindle Maximum - 18.5”
Work Spindle Face to C/L of Hob Spindle Minimum - 3.5”
C/L of Work Spindle to C/L of Hob Spindle Maximum - 9.25’
C/L of Work Spindle to C/L of Hob Spindle Minimum - 2”
Distance of C.L of Work Spindle to Bottom of Overarm - 7.25”
Maximum Hob Diameter - 6.25”
Maximum Swivel Setting - 50 Degrees
Hob Speed Range - 64-362 RPM
Work Spindle Speed - 5 IPM
Work Spindle Taper - No. 18 B&S
Approximate Weight - 9,500 Lbs.


EQUIPPED WITH:
10 HP Motor Driven, 3 Phase, 60 Cycle, AC Main Drive Motor.

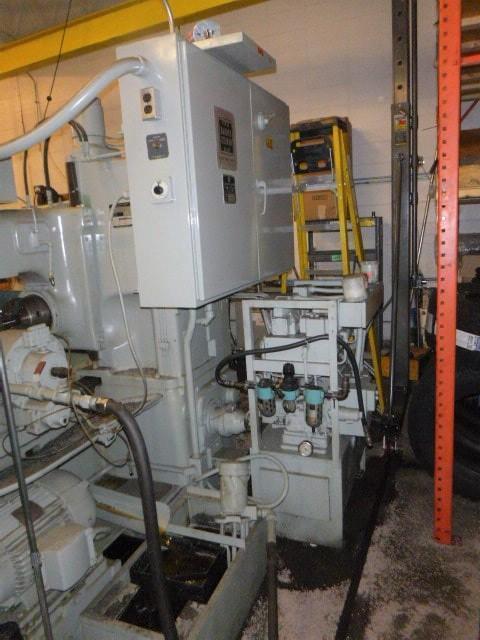

5 HP, 3 Phase, 60 Cycle, 440 Volt Free Standing Hydraulic Power Supply.

Electric Control Cabinet.

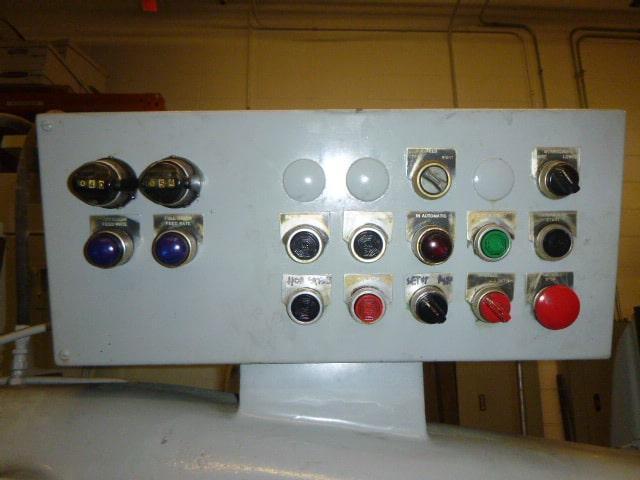

Operators Master Control Station with Cycle.

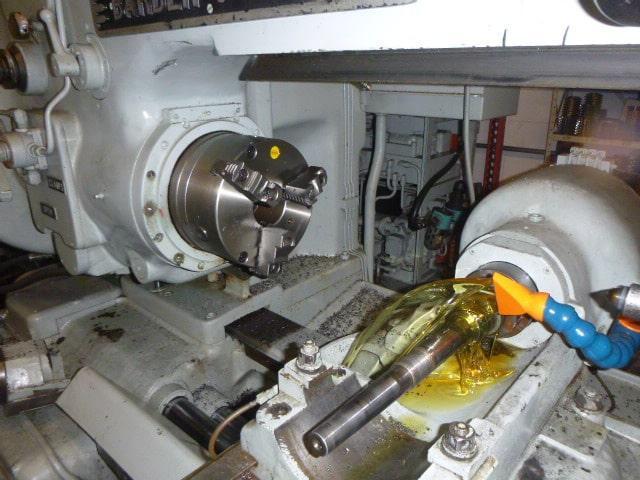

Work Slide Raise and Lower, L & R Rapid Traverse, Setup auto, Stop & Start Selectors. 8” 3-Jaw Chuck with Pneumatic Cylinder and Controls.

Variable Hydraulic Feed. Differential.

Feed-Change Control.

Auto Hydraulic Cycling with Work Slide Power Clamping.

Hydraulic Feed.

Change Gears.

Single Thread Index Worm.

Tailstock and Center.

MD Lubrication System.
