2010 KITAMURA MYCENTER HX1000i

Manufacturer

KITAMURA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

486588

Model

MYCENTER HX1000I

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

PALLET SIZE...................... 39.37" X 39.37"
PALLET INDEXING.................. FULL 4TH AXIS
NUMBER OF PALLETS................ (2)
TABLE LOAD CAPACITY.............. 6,600 LBS
X-AXIS TRAVEL.................... 80.31"
Y-AXIS TRAVEL.................... 51.97"
Z-AXIS TRAVEL.................... 53.94"
SPINDLE SPEED.................... 8,000 RPM (4-STEP, GEAR DRIVEN)
SPINDLE MOTOR.................... 40/30 HP
SPINDLE TORQUE................... 897 FOOT-POUNDS
SPINDLE TAPER.................... BT 50
CUTTING FEED RATE (X/Y/Z)........ 1417 IPM
RAPID TRAVERSE RATE (X/Y/Z)...... 1417 IPM
TOOL POSITIONS................... 150 ATC
APPROXIMATE FOOTPRINT............ 20' X 35'

EQUIPPED WITH:

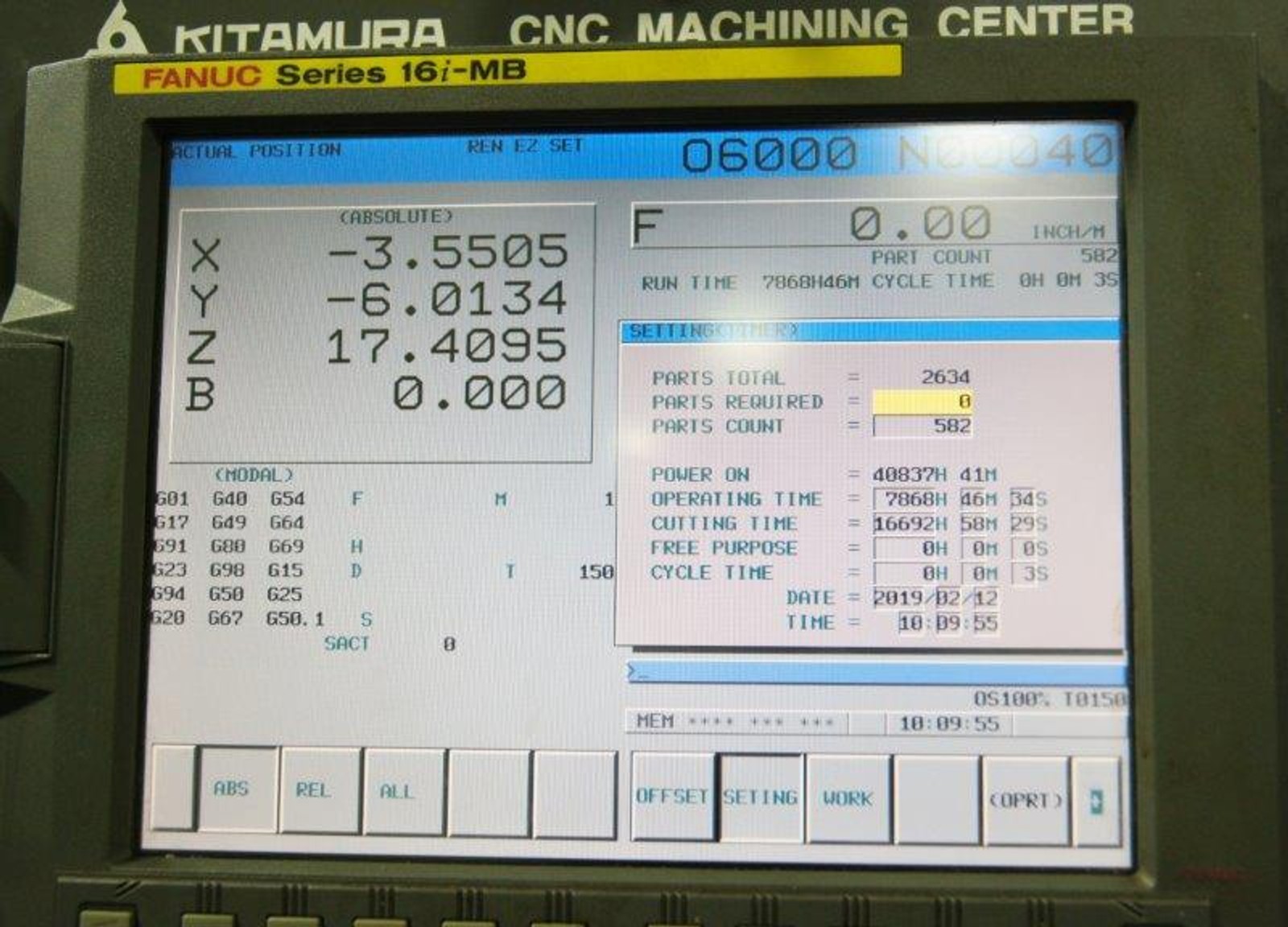

FANUC 16i-MB CONTROL
897 FOOT-POUNDS OF TORQUE
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)

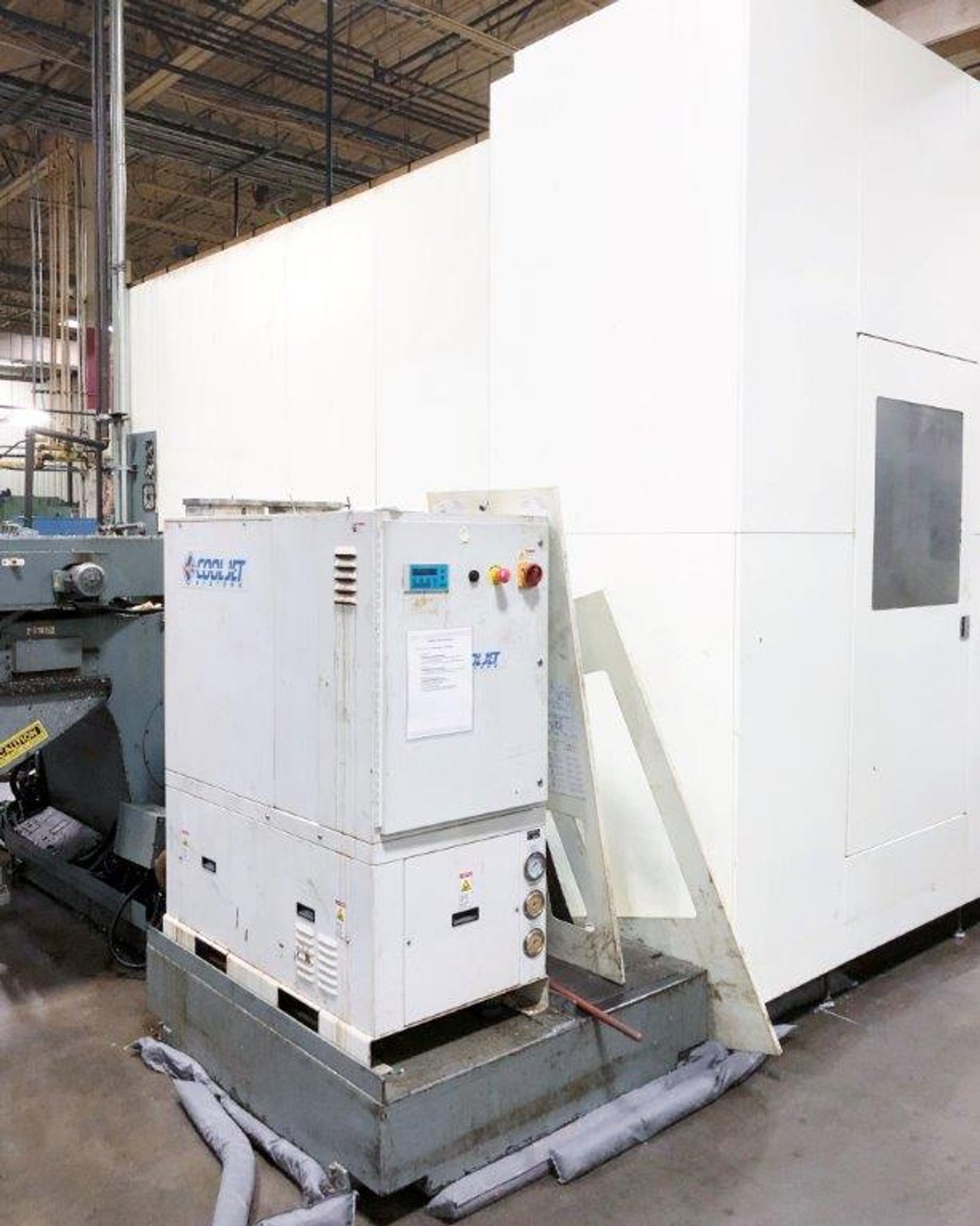

COOLJET HIGH-PRESSURE COOLANT SYSTEM
FULL 4TH AXIS PALLET CONTOURING

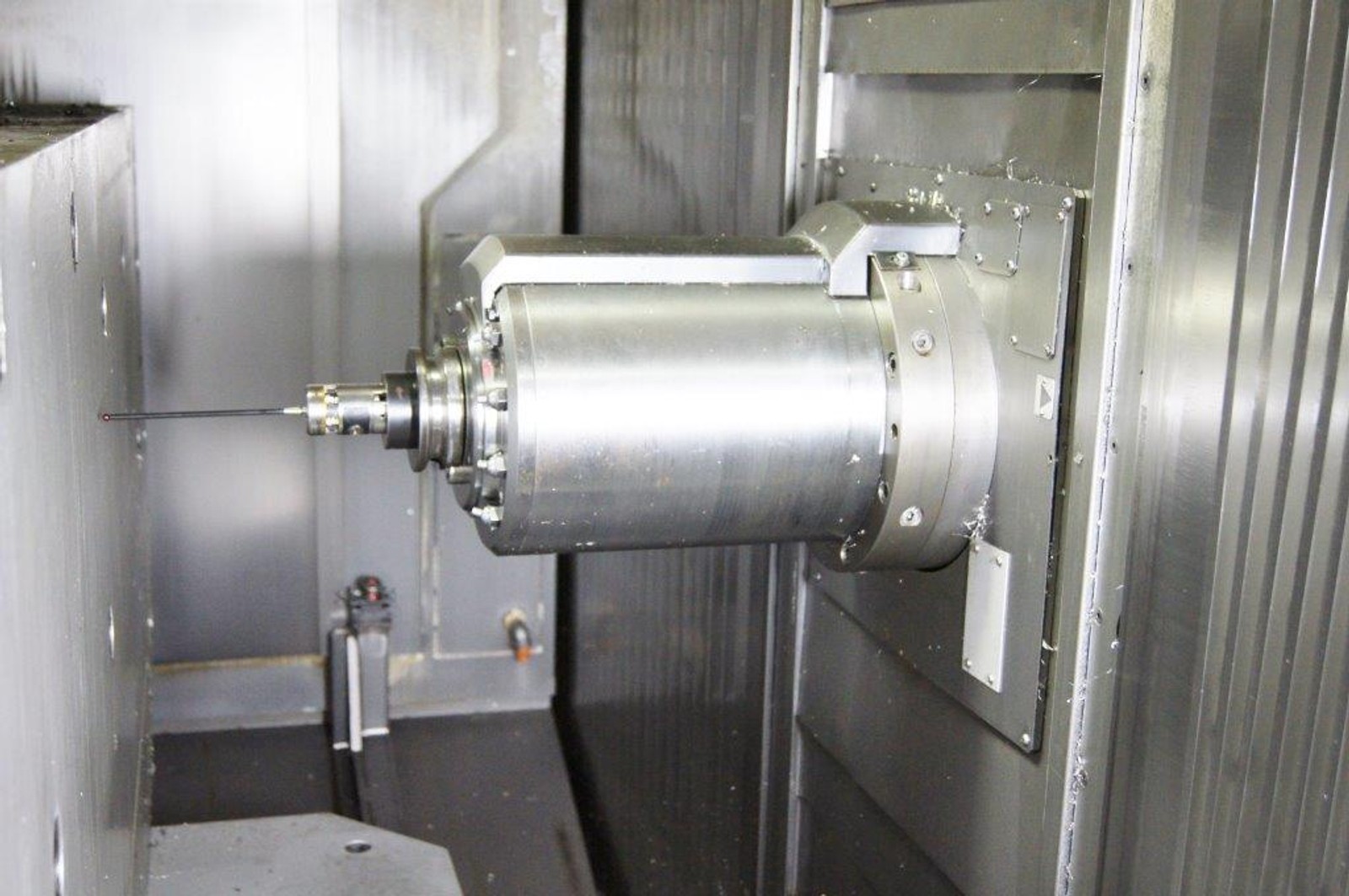

RENISHAW PROBING SYSTEM

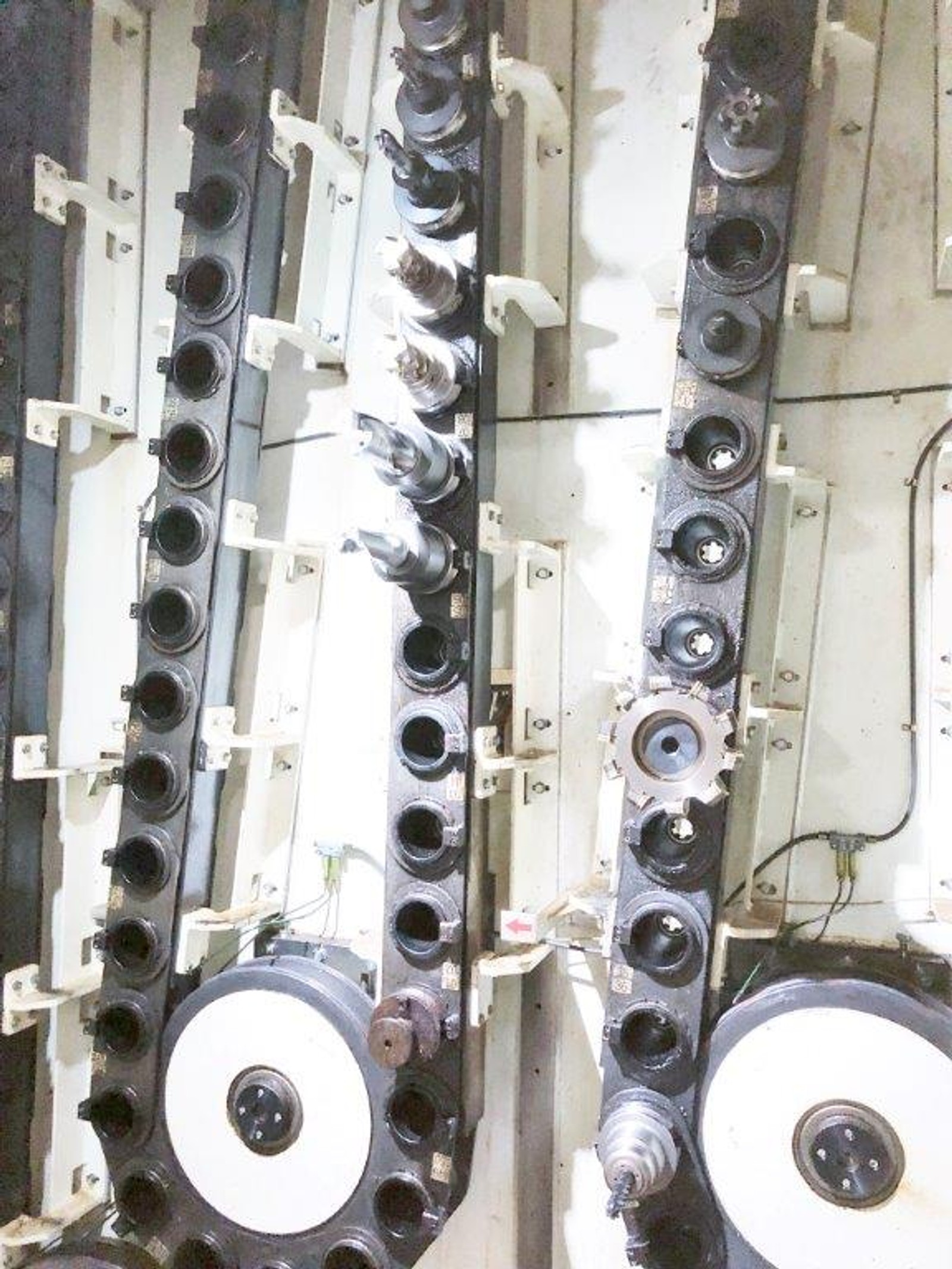

150 TOOL POSITIONS

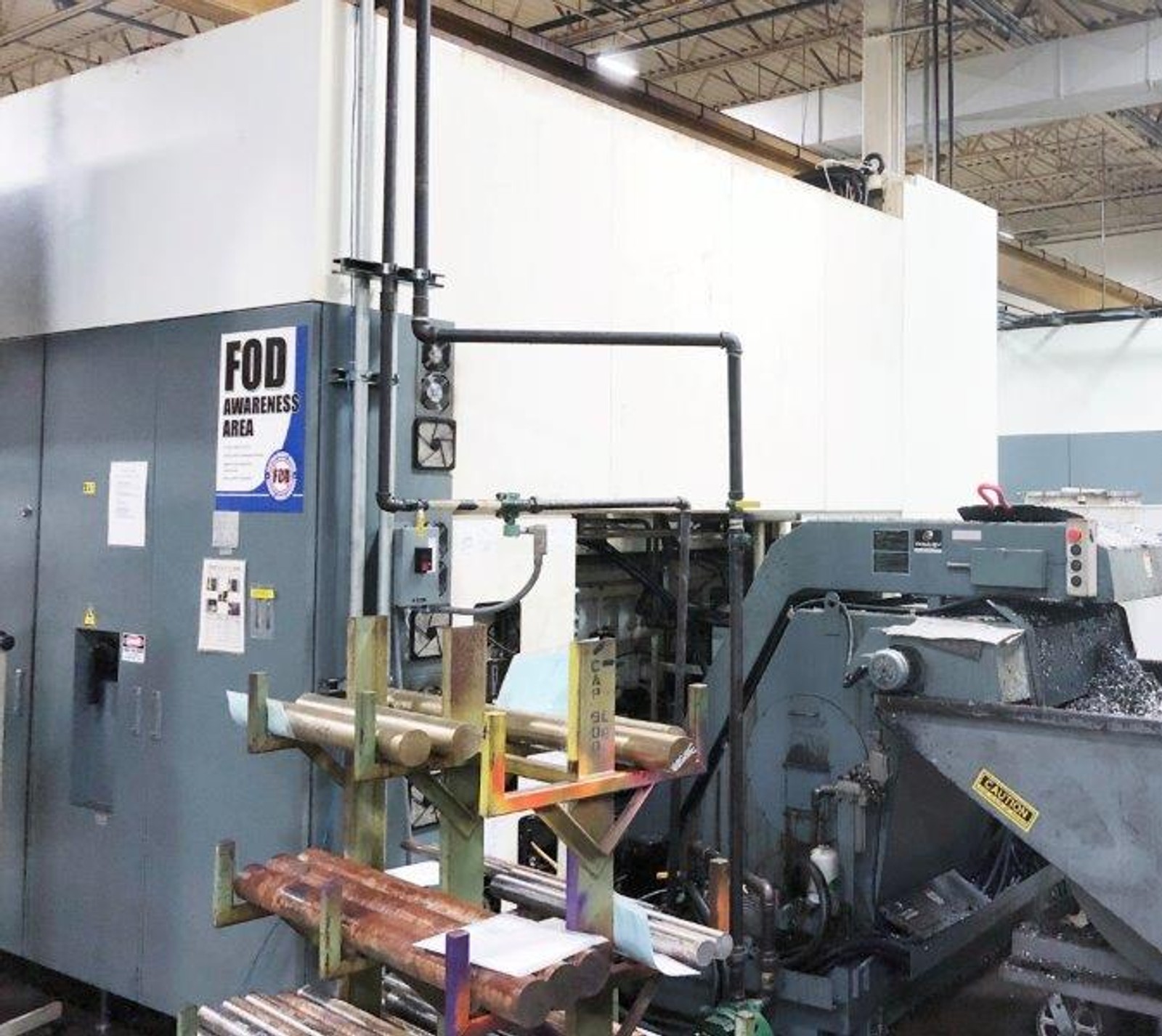

CHIP CONVEYOR
GEARBOX (4-STEP, GEAR DRIVEN)
BOX WAY
LINEAR SCALE FEEDBACK (ALL AXES)
TWIN BALL SCREWS & TWIN SERVO MOTORS
AI NANO HIGH PRECISION CONTOUR CONTROL (500 BLOCK LOOK AHEAD)
TOOL RETRACT & RECOVER
PROGRAM RESTART
APPROX (70) BT50 TOOL HOLDERS

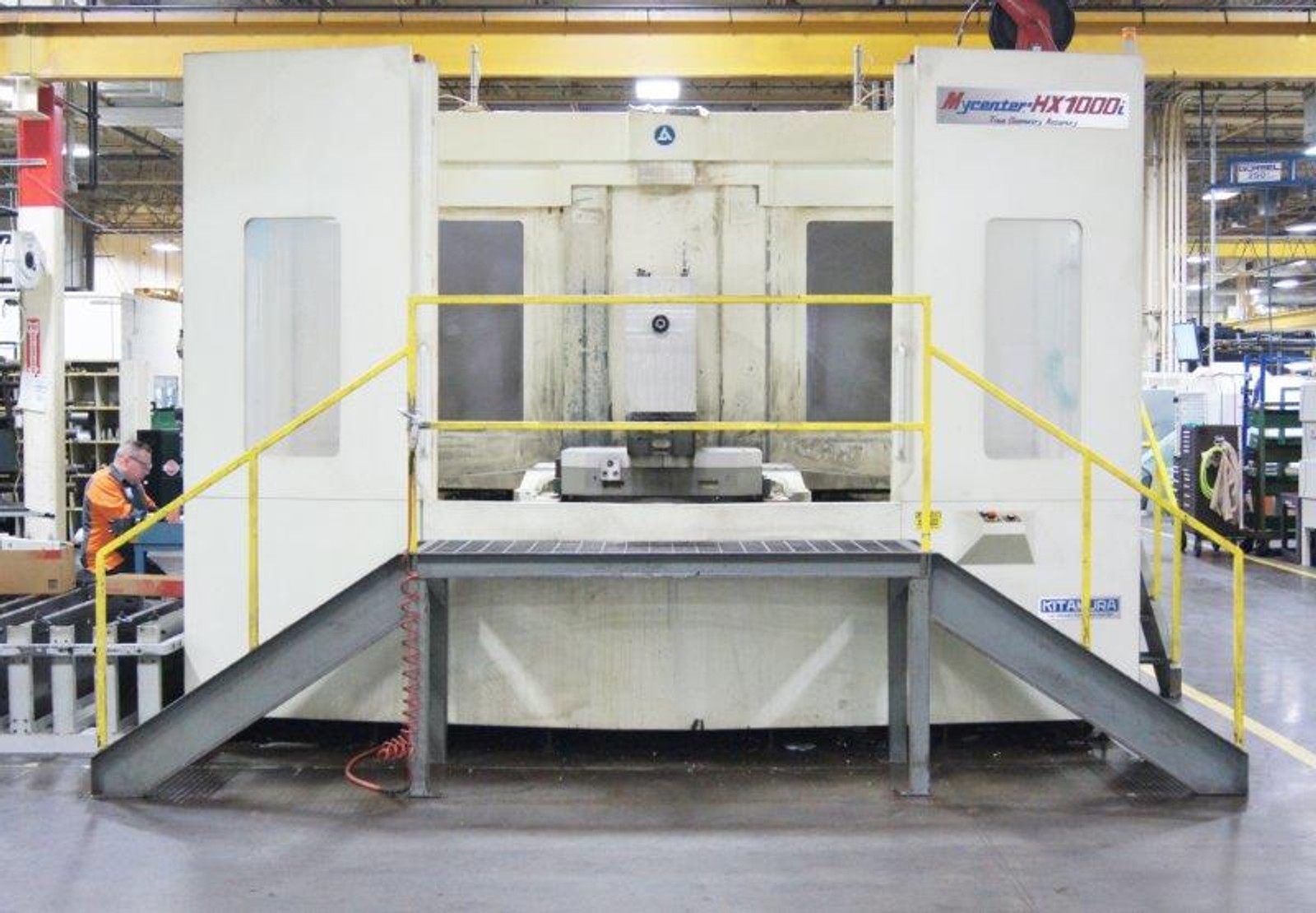

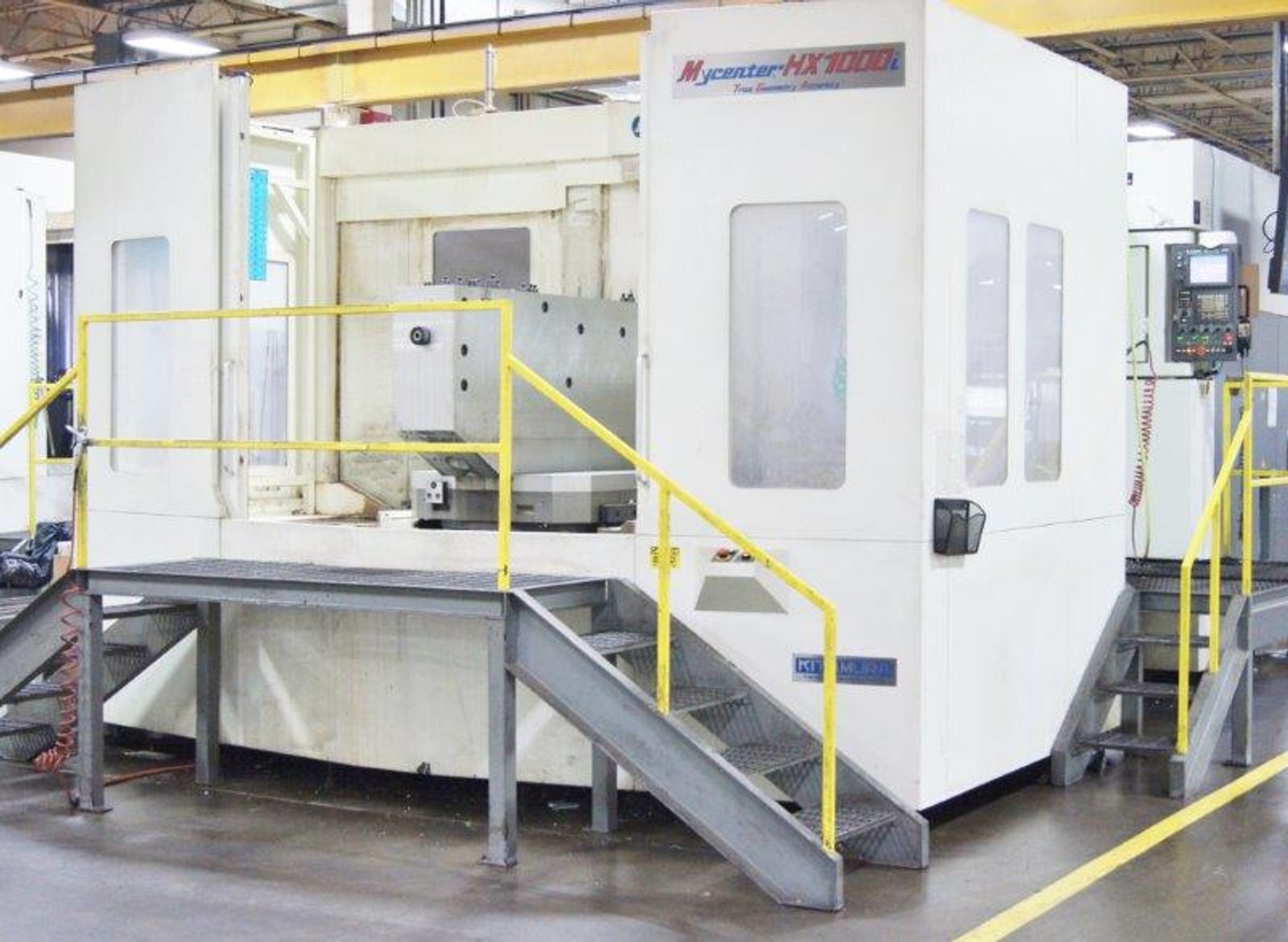

(2) HEAVY DUTY FIXED CUSTOM ENTRY PLATFORMS WITH HANDRAILS

** TSUDAKOMA RBA-500R ROTARY TABLE AND DRIVE CARD AVAILABLE FOR SEPARATE SALE. PURCHASE OF THIS ACCESSORY WILL TURN THIS INTO A 5-AXIS CAPABLE MACHINE

** AS OF MAY 2023, CUTTING TIME - 16,693 HOURS

** MACHINE CUT PRIMARILY ALUMINUM & STAINLESS
** REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $1,500,000
** AVAILABLE FOR IMMEDIATE PURCHASE & REMOVAL - NO LEAD TIME

** TRANSMISSION & SPINDLE MOTOR REPLACED IN MARCH 2019
