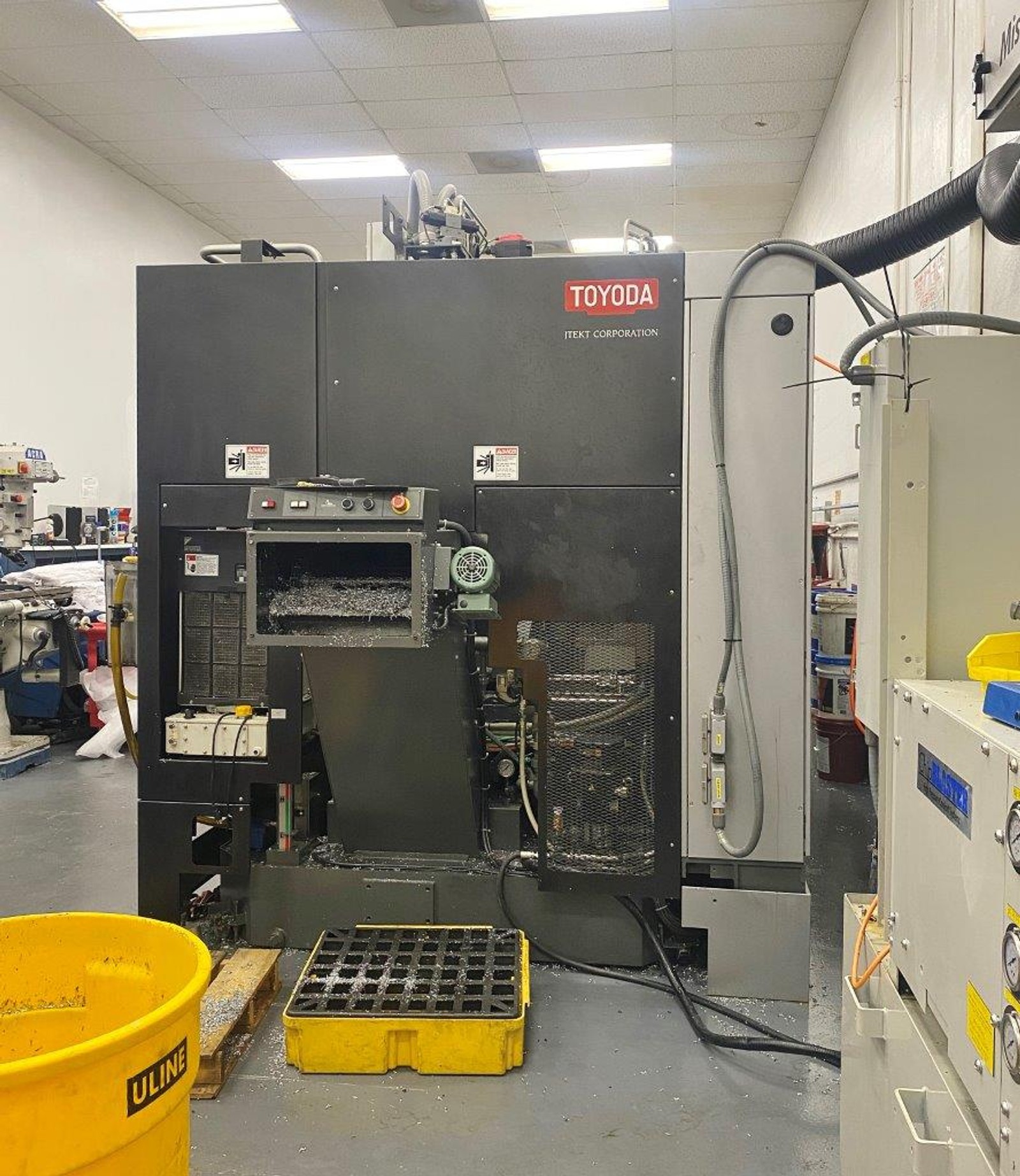

2014 TOYODA FH500J

Manufacturer

TOYODA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

497230

Model

FH500J

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

PALLET DIMENSIONS.......... 19.68" X 19.68"
MAX WORKPIECE WEIGHT....... 1540 LBS
X-AXIS TRAVEL.............. 28.74"
Y-AXIS TRAVEL.............. 28.74"
Z-AXIS TRAVEL.............. 33.46"
SPINDLE SPEED.............. 15,000 RPM
SPINDLE MOTOR.............. 30 HP
SPINDLE TAPER.............. CAT 40
TOOL POSITIONS............. 60 ATC
RAPID TRAVERSE RATE........ 2362 IPM
APPROX MACHINE WEIGHT...... 29,700 LBS

EQUIPPED WITH:
FANUC 31i-MA CNC CONTROL
FULL 4TH AXIS
CHIP CONVEYOR
THRU SPINDLE COOLANT
COOL BLASTER J-30 HIGH PRESSURE COOLANT SYSTEM

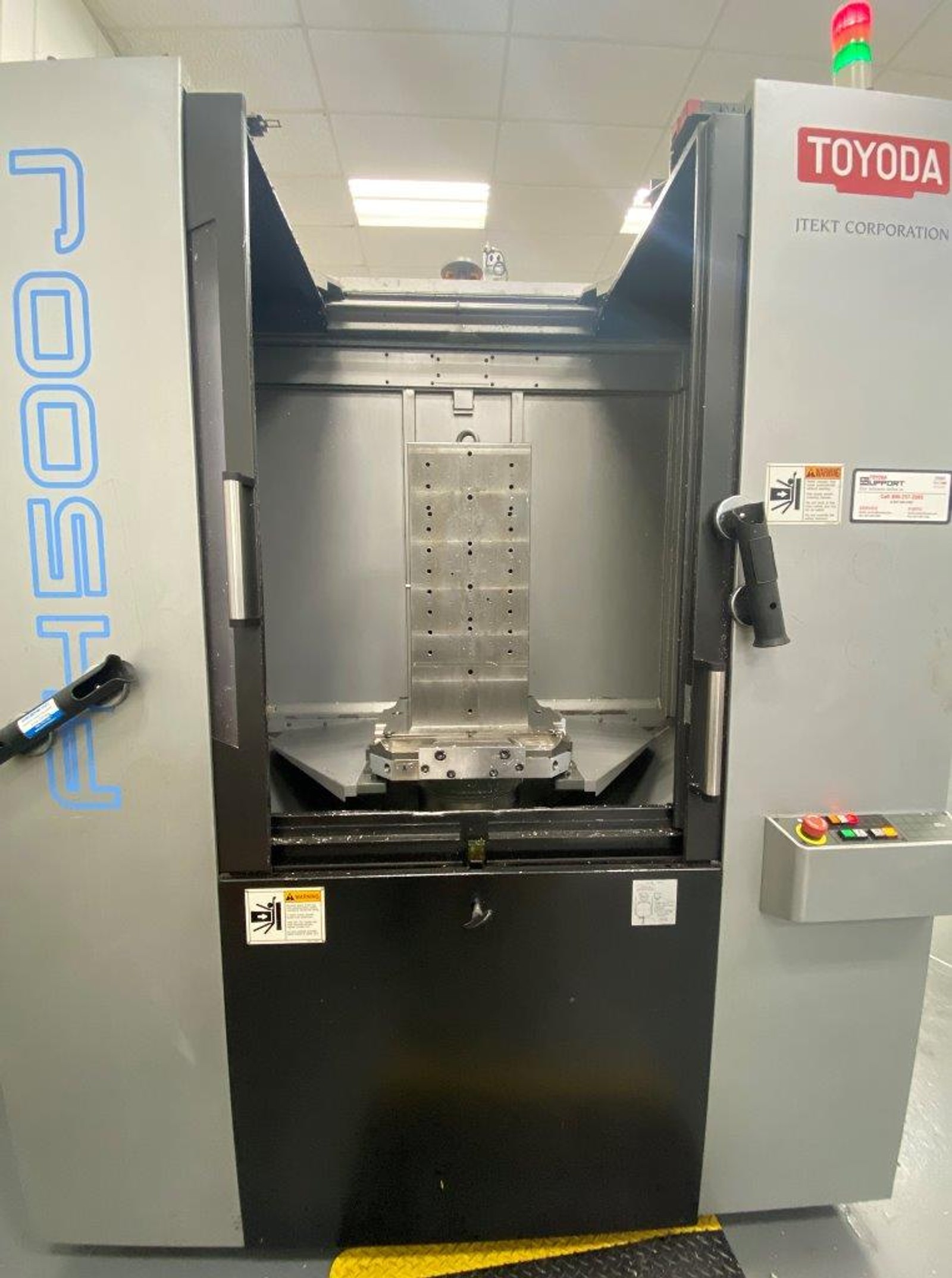

(2) TOMBSTONES INCLUDED IN SALE (AS PICTURED)

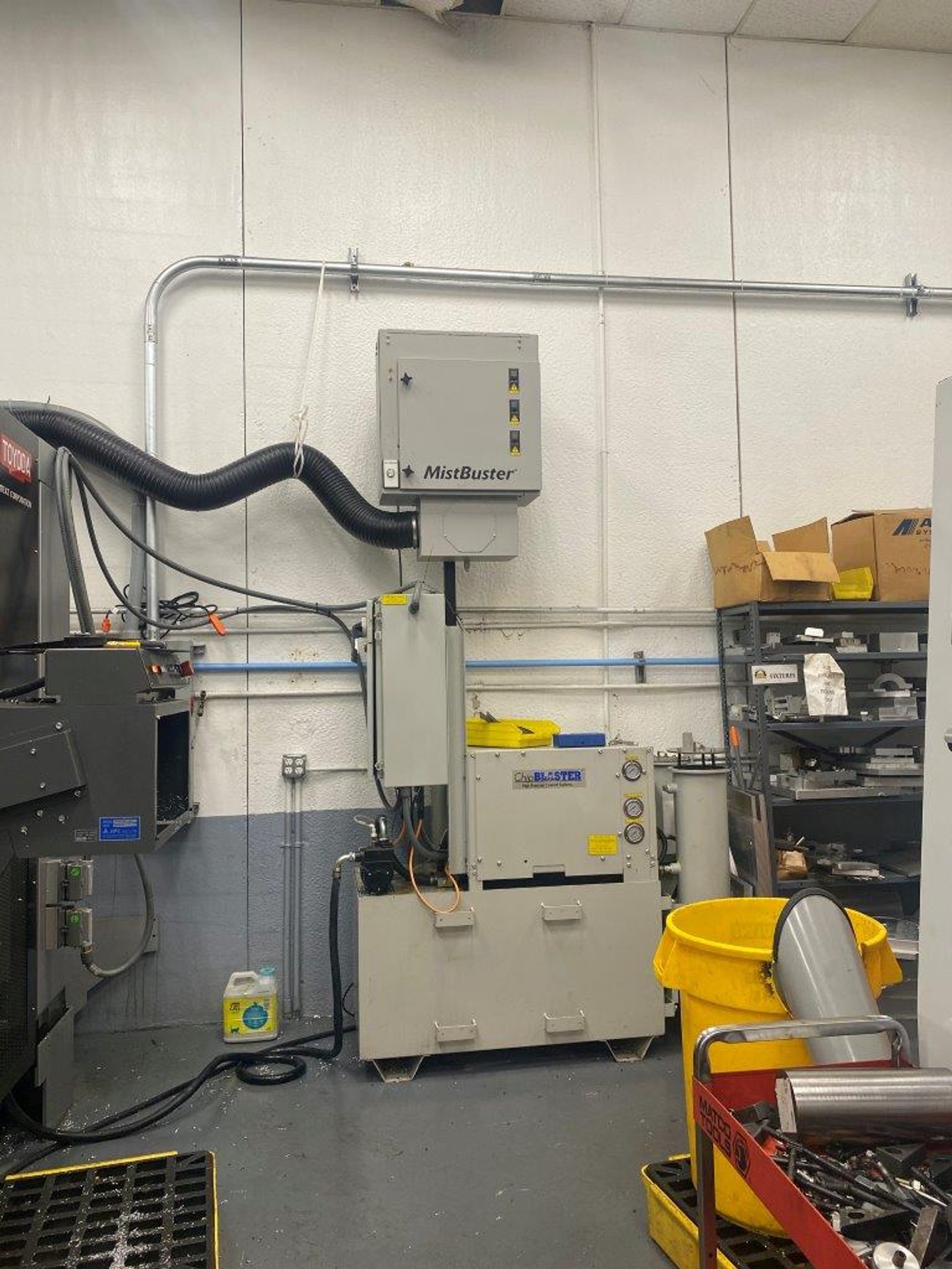

MIST BUSTER MIST COLLECTOR
HAND HELD SPLASH GUN
OVERHEAD COOLANT SHOWER
WORKPIECE COORDINATION SYSTEM
INVERSE TIME FEED
OMP-40 PROBE

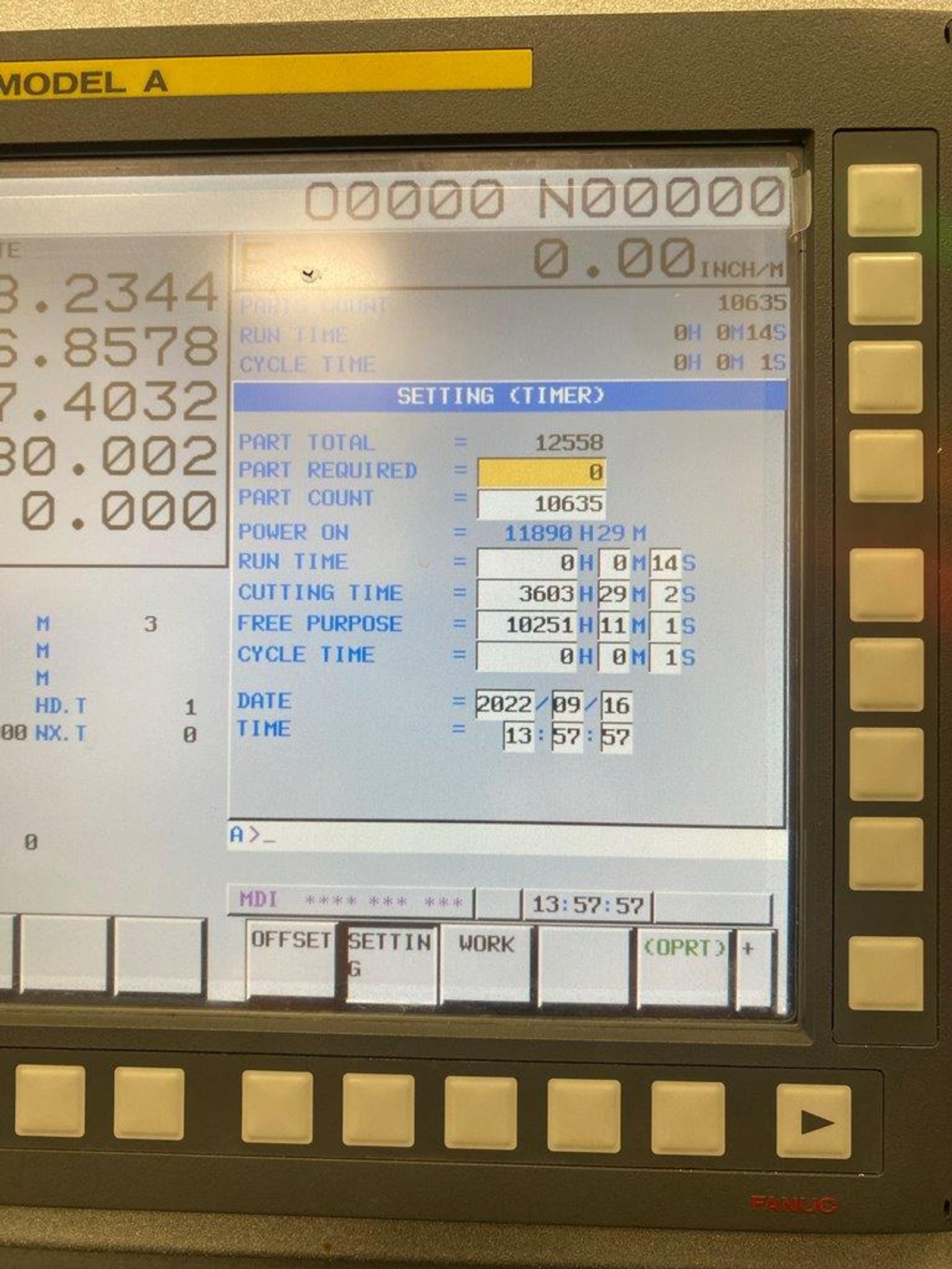

HOURS ON MACHINE AS OF 9/19/2022 (SEE PHOTO):

* POWER ON TIME: 11,898 HOURS
* CUTTING TIME: 3,603 HOURS
* FREE PURPOSE TIME: 10,251 HOURS

MACHINE IN VERY GOOD CONDITION AND IS AVAILABLE IMMEDIATELY.
